Sayfa 6-47 - Isuzu EPC

6-47 — MUD GUARD AND INSULATOR (#48549) — 233 parça

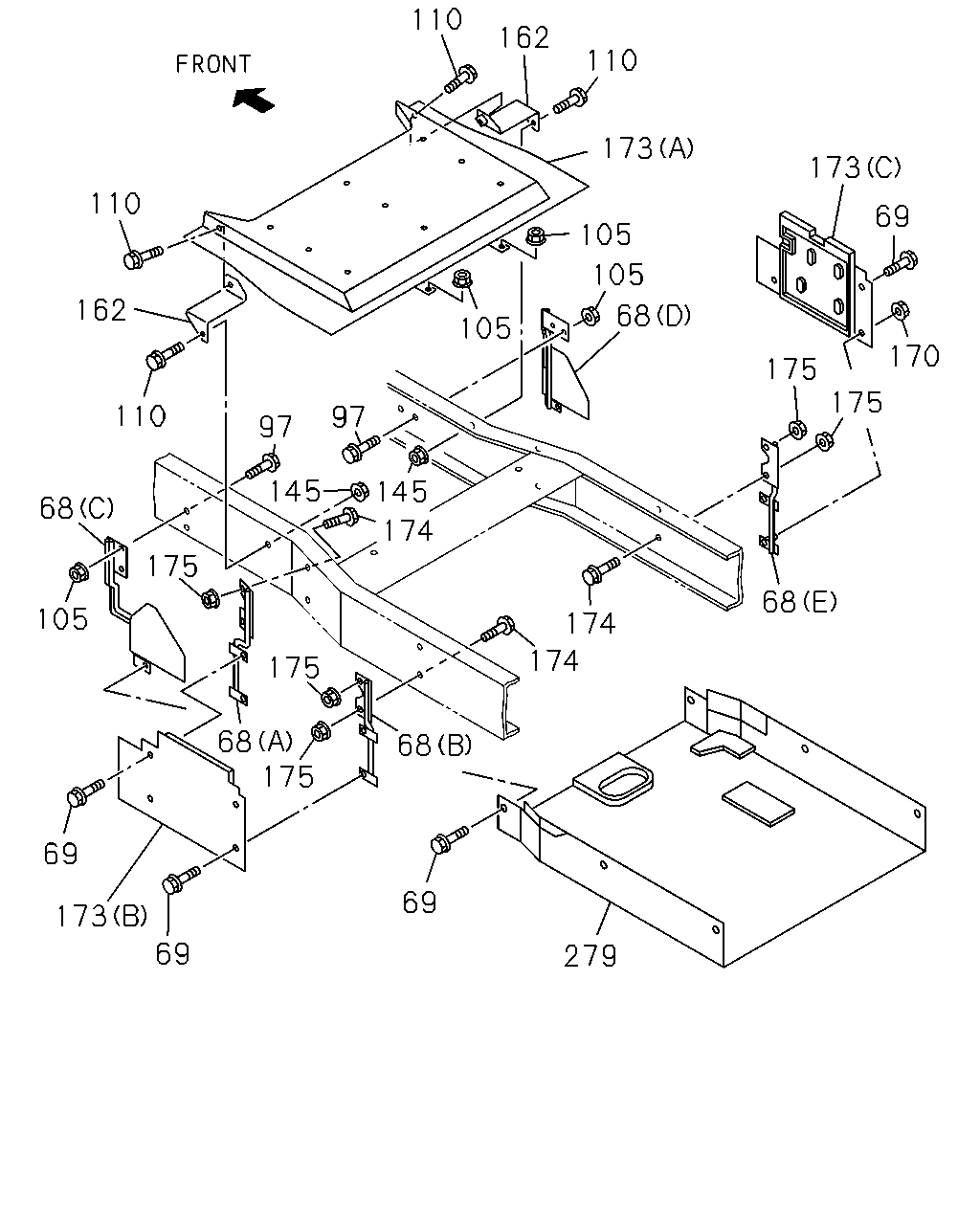

110 162 110 173 173 110 69 105 105 162 68 105 170 175 175 110 97 97 145 145 68 174 175 68 105 174 174 175 68 175 68 69 69 173 69 279

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
68	08.155 STAY; COVER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97314-382-0	01	1	0111-	●
68	08.155 STAY; COVER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> (E)	8-97314-385-0	01	1	0111-	●
68	08.155 STAY; COVER 4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> (D)	8-97314-383-0	01	1	0111-	●
68	08.155 STAY; COVER 4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97314-379-0	01	1	0106-0110	●
68	08.155 STAY; COVER 4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97314-379-0	01	1	0111-	●
68	08.155 STAY; COVER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(PQ1) (A)	8-97314-379-0	01	1	0111-	●
68	08.155 STAY; COVER 4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97314-384-0	01	1	0106-0110	●
68	08.155 STAY; COVER 4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97314-384-0	01	1	0111-	●
68	08.155 STAY; COVER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(PQ1) (B)	8-97314-384-0	01	1	0111-	●
69	08.155 BOLT; COVER TO STAY 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 M8X20 FLANGE	0-28680-820-0	06	1	0111-	●
69	08.155 BOLT; COVER TO STAY 4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE	0-28680-820-0	04	1	0106-0110	●
69	08.155 BOLT; COVER TO STAY 4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) 02.664 M8X20 FLANGE	0-28680-820-0	03	1	0111-	●
69	08.155 BOLT; COVER TO STAY 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(PQ1) 02.664 M8X20 FLANGE	0-28680-820-0	03	1	0111-	●
97	08.155 BOLT; STAY TO FRAME 4JH1 ENG(RJX) NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 M8X20 FLANGE	0-28680-820-0	04	1	0111-	●
105	08.155 NUT; BRKT 4JH1 ENG(RJX) NOISE PACK FOR REGULATION VAR.2<7TF> 07.633 M8 FLANGE	0-91150-108-0	04	1	0111-	●
110	08.155 BOLT; BRKT 4JH1 ENG(RJX) NOISE PACK FOR REGULATION VAR.2<7TF> 02.664 M8X20 FLANGE	0-28680-820-0	06	1	0111-	●
145	08.155 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	06	1	9811-	●	●	●	●	●	●
162	04.275 BRACKET 4JH1 ENG(RJX) NOISE PACK FOR REGULATION VAR.2<7TF>	8-97259-958-1	01	1	0111-	●
162	04.275 BRACKET 4JH1 ENG(RJX) NOISE PACK FOR REGULATION VAR.2<7TF>	8-97259-959-1	01	1	0111-	●
170	08.155 NUT; COVER 4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	0111-	●
170	08.155 NUT; COVER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(PQ1) 07.633 M8 FLANGE	0-91150-108-0	01	1	0111-	●
173	08.155 COVER; TRANS SIDE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97306-989-0	01	1	0111-	●
173	08.155 COVER; TRANS SIDE 4JH1 ENG(RJX) NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97259-950-2	01	1	0111-	●
173	08.155 COVER; TRANS SIDE 4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97306-993-0	01	1	0106-0110	●
173	08.155 COVER; TRANS SIDE 4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97306-993-0	01	1	0111-	●
173	08.155 COVER; TRANS SIDE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(PQ1) (B)	8-97306-993-0	01	1	0111-	●
174	08.155 BOLT; STAY FIX 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> 03.405 M10X25 FLANGE	0-28681-025-0	02	1	0111-	●
174	08.155 BOLT; STAY FIX 4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) 03.405 M10X25 FLANGE	0-28681-025-0	04	1	0106-0110	●
174	08.155 BOLT; STAY FIX 4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) 03.405 M10X25 FLANGE	0-28681-025-0	04	1	0111-	●
174	08.155 BOLT; STAY FIX 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(PQ1) 03.405 M10X25 FLANGE	0-28681-025-0	04	1	0111-	●
175	08.155 NUT; STAY FIX 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> 04.785 M10 FLANGE	0-91150-110-0	02	1	0111-	●
175	08.155 NUT; STAY FIX 4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	04	1	0106-0110	●
175	08.155 NUT; STAY FIX 4JH1 ENG(RJX) HONG KONG EQUIPMENT(PQ1) FRT INDEPENDENT SUSPENSION(6PP) 04.785 M10 FLANGE	0-91150-110-0	04	1	0111-	●
175	08.155 NUT; STAY FIX 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. HONG KONG EQUIPMENT(PQ1) 04.785 M10 FLANGE	0-91150-110-0	04	1	0111-	●
279	08.153 COVER; UNDER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF>	8-97259-953-1	01	1	0111-0208	●
279	08.153 COVER; UNDER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF>	8-97352-227-0	01	1	0209-	●

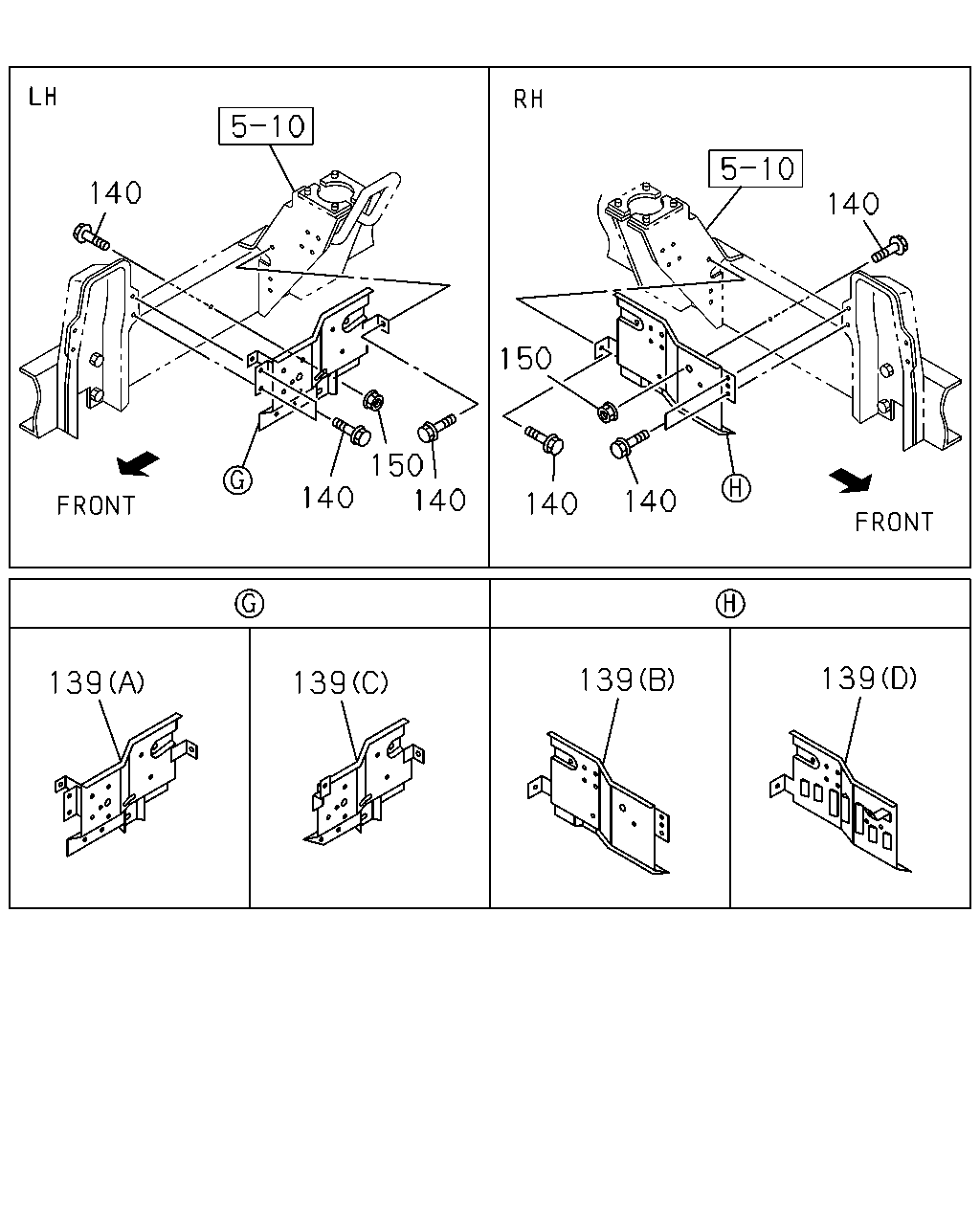

140 140 150 150 140 140 140 140 139 139 139 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
139	08.153 PANEL; SIDE 4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97034-160-1	01	1	0111-	●
139	08.153 PANEL; SIDE 4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97034-163-2	01	1	0111-	●
139	08.153 PANEL; SIDE 4JH1 ENG(RJX),4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97035-770-2	01	1	0111-	●
139	08.153 PANEL; SIDE 4JH1 ENG(RJX),4JB1 ENG(RLF) NOISE PACK FOR REGULATION VAR.2<7TF> EXC. FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97035-773-2	01	1	0111-	●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97083-093-1	01	1	9811-0105	●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A)	8-97083-093-1	01	1	9811-0105			●	●
139	08.153 PANEL; SIDE 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97083-093-1	01	1	0106-0110	●		●	●
139	08.153 PANEL; SIDE 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. CHARGE AIR COOLER<6PL>,FRT INDEPENDENT SUSPENSION(6PP),NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97083-093-1	01	1	0111-	●		●	●
139	08.153 PANEL; SIDE 4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97034-164-2	01	1	0106-0110	●
139	08.153 PANEL; SIDE 4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (C)	8-97034-164-2	01	1	0111-	●
139	08.153 PANEL; SIDE 4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97034-161-1	01	1	0106-0110	●
139	08.153 PANEL; SIDE 4JH1 ENG(RJX),4JB1 ENG(RLF) FRT INDEPENDENT SUSPENSION(6PP) EXC. NOISE PACK FOR REGULATION VAR.2<7TF> (D)	8-97034-161-1	01	1	0111-	●
139	08.153 PANEL; SIDE 4HF1 ENG(RLS) (A)	8-97035-774-3	01	1	9811-0105	●		●	●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97035-774-3	01	1	9811-0105	●
139	08.153 PANEL; SIDE (A)	8-97035-774-3	01	1	9811-0105		●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4HF1 ENG(RLS) (A)	8-97035-774-3	01	1	9811-0105					●
139	08.153 PANEL; SIDE 4JB1 ENG(RLF),4HF1 ENG(RLS) (A)	8-97035-774-3	01	1	9811-0105						●
139	08.153 PANEL; SIDE 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97035-774-3	01	1	0106-0107	●	●			●	●
139	08.153 PANEL; SIDE 4HF1 ENG(RLS) (A)	8-97035-774-3	01	1	0106-0107	●		●	●	●	●
139	08.153 PANEL; SIDE 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97035-774-3	01	1	0106-0107	●		●	●
139	08.153 PANEL; SIDE 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97035-774-3	01	1	0108-0110	●	●			●	●
139	08.153 PANEL; SIDE 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97035-774-3	01	1	0108-0110	●		●	●	●	●
139	08.153 PANEL; SIDE 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97035-774-3	01	1	0108-0110	●		●	●
139	08.153 PANEL; SIDE 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> EXC. FRT INDEPENDENT SUSPENSION(6PP), NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97035-774-3	01	1	0111-	●	●			●	●
139	08.153 PANEL; SIDE 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97035-774-3	01	1	0111-	●		●	●	●	●
139	08.153 PANEL; SIDE 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> CHARGE AIR COOLER<6PL> EXC. FRT INDEPENDENT SUSPENSION(6PP), NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97035-774-3	01	1	0111-	●		●	●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC),4JB1 ENG(RLF) (B) WO/RUBBER AND INSULATOR	8-97078-381-1	01	1	9811-0105	●		●	●
139	08.153 PANEL; SIDE (B) WO/RUBBER AND INSULATOR	8-97078-381-1	01	1	9811-0105		●
139	08.153 PANEL; SIDE 4JG2 ENG(RJC) (B) WO/RUBBER AND INSULATOR	8-97078-381-1	01	1	9811-0105					●
139	08.153 PANEL; SIDE 4JB1 ENG(RLF) (B) WO/RUBBER AND INSULATOR	8-97078-381-1	01	1	9811-0105						●
139	08.153 PANEL; SIDE 4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97078-381-1	01	1	0106-0110	●	●	●	●		●
139	08.153 PANEL; SIDE 4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP), NOISE PACK FOR REGULATION VAR.2<7TF> (B)	8-97078-381-1	01	1	0111-	●	●	●	●		●
139	08.153 PANEL; SIDE 4HF1 ENG(RLS) (B) W/LOUVERS	8-97078-382-1	01	1	9811-0105	●		●	●	●	●
139	08.153 PANEL; SIDE 4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97078-382-1	01	1	0106-0107	●
139	08.153 PANEL; SIDE 4HF1 ENG(RLS) (B)	8-97078-382-1	01	1	0106-0107			●	●		●
139	08.153 PANEL; SIDE (B)	8-97078-382-1	01	1	0106-0107					●
139	08.153 PANEL; SIDE 4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97078-382-1	01	1	0108-	●
139	08.153 PANEL; SIDE 4HF1 ENG(RLS) (B)	8-97078-382-1	01	1	0108-			●			●
139	08.153 PANEL; SIDE 4HG1 ENG(RJH),4HF1 ENG(RLS) (B)	8-97078-382-1	01	1	0108-				●
139	08.153 PANEL; SIDE (B)	8-97078-382-1	01	1	0108-					●
140	08.155 BOLT; SIDE PANEL FRT INDEPENDENT SUSPENSION(6PP) 04.595 M8X20 FLANGE	0-28480-820-0	01	1	0106-	●
140	08.155 BOLT; SIDE PANEL 04.595 M8X20 FLANGE	0-28480-820-0	02	1	9811-	●	●	●	●	●	●
140	08.155 BOLT; SIDE PANEL 4JG2 ENG(RJC),4JB1 ENG(RLF) 04.595 M8X20 FLANGE	0-28480-820-0	03	1	9811-0105	●		●	●
140	08.155 BOLT; SIDE PANEL 04.595 M8X20 FLANGE	0-28480-820-0	03	1	9811-0105		●
140	08.155 BOLT; SIDE PANEL 4JG2 ENG(RJC) 04.595 M8X20 FLANGE	0-28480-820-0	03	1	9811-0105					●
140	08.155 BOLT; SIDE PANEL 4JB1 ENG(RLF) 04.595 M8X20 FLANGE	0-28480-820-0	03	1	9811-0105						●
140	08.155 BOLT; SIDE PANEL 4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.595 M8X20 FLANGE	0-28480-820-0	03	1	0106-	●	●	●	●		●
140	08.155 BOLT; SIDE PANEL 4JG2 ENG(RJC),4JB1 ENG(RLF) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-0105	●		●	●
140	08.155 BOLT; SIDE PANEL 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-0105		●
140	08.155 BOLT; SIDE PANEL 4JG2 ENG(RJC) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-0105					●
140	08.155 BOLT; SIDE PANEL 4JB1 ENG(RLF) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	9811-0105						●
140	08.155 BOLT; SIDE PANEL 4JH1 ENG(RJX),4JB1 ENG(RLF) 02.559 M8X25 FLANGE	0-28680-825-0	02	1	0106-	●	●	●	●		●
140	08.155 BOLT; SIDE PANEL 4HF1 ENG(RLS) 04.595 M8X20 FLANGE	0-28480-820-0	05	1	9811-0105	●		●	●	●	●
140	08.155 BOLT; SIDE PANEL 4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.595 M8X20 FLANGE	0-28480-820-0	05	1	0106-0107	●
140	08.155 BOLT; SIDE PANEL 4HF1 ENG(RLS) 04.595 M8X20 FLANGE	0-28480-820-0	05	1	0106-0107			●	●		●
140	08.155 BOLT; SIDE PANEL 04.595 M8X20 FLANGE	0-28480-820-0	05	1	0106-0107					●
140	08.155 BOLT; SIDE PANEL 4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) 04.595 M8X20 FLANGE	0-28480-820-0	05	1	0108-	●
140	08.155 BOLT; SIDE PANEL 4HF1 ENG(RLS) 04.595 M8X20 FLANGE	0-28480-820-0	05	1	0108-			●			●
140	08.155 BOLT; SIDE PANEL 4HG1 ENG(RJH),4HF1 ENG(RLS) 04.595 M8X20 FLANGE	0-28480-820-0	05	1	0108-				●
140	08.155 BOLT; SIDE PANEL 04.595 M8X20 FLANGE	0-28480-820-0	05	1	0108-					●
150	08.155 NUT; SIDE PANEL 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-	●	●	●	●	●	●
150	08.155 NUT; SIDE PANEL 4JG2 ENG(RJC),4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0105	●		●	●
150	08.155 NUT; SIDE PANEL 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0105		●
150	08.155 NUT; SIDE PANEL 4JG2 ENG(RJC) 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0105					●
150	08.155 NUT; SIDE PANEL 4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	9811-0105						●
150	08.155 NUT; SIDE PANEL 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-	●
150	08.155 NUT; SIDE PANEL 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-		●
150	08.155 NUT; SIDE PANEL 4JB1 ENG(RLF) 07.633 M8 FLANGE	0-91150-108-0	01	1	0106-			●	●		●

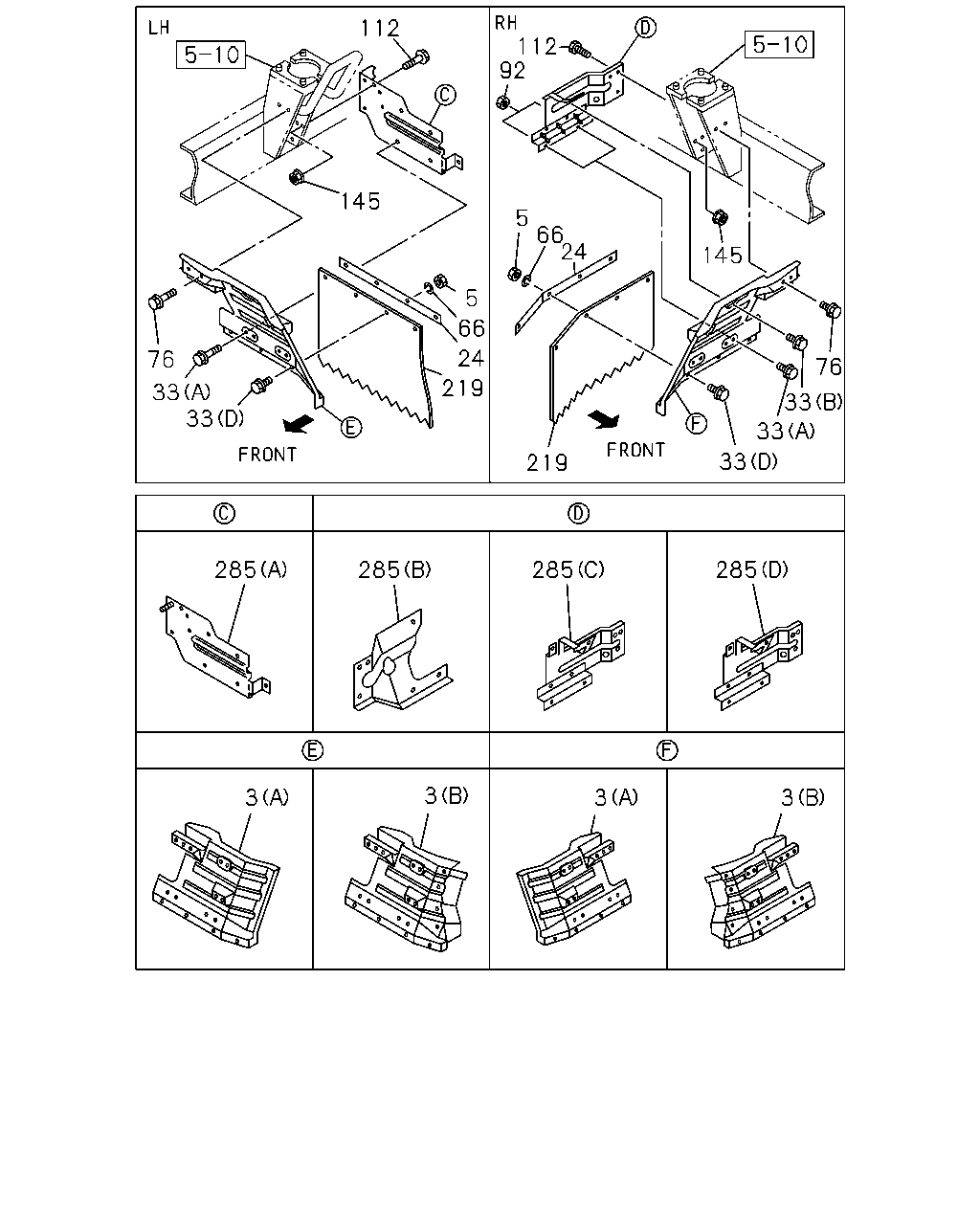

112 92 112 145 5 66 24 145 5 66 24 76 76 219 33 33 33 33 33 219 285 285 285 285 3 3 3 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
3	08.153 GUARD; MUD,RR (A)	8-97048-729-1	01	1	9811-	●		●	●		●
3	08.153 GUARD; MUD,RR (A)	8-97048-728-3	01	1	9811-	●		●	●		●
3	08.153 GUARD; MUD,RR (B)	8-97081-735-3	01	1	9811-		●			●
3	08.153 GUARD; MUD,RR (B)	8-97081-734-5	01	1	9811-		●			●
5	08.155 NUT; FLAP RUBBER 08.915 M6	9-09111-406-0	08	1	9811-	●	●	●	●	●	●
24	08.155 PLATE; MUD COVER	8-97095-186-0	02	1	9811-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	9811-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	9811-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	9811-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	9811-	●	●	●	●	●	●
66	08.155 WASHER; LK 00.206 ID=6.1	9-09150-506-0	08	1	9811-	●	●	●	●	●	●
76	08.155 BOLT; MUD GUARD 07.010 M8X20 FLANGE	0-28080-820-0	02	1	9811-	●	●	●	●	●	●
92	08.155 NUT; MUD COVER 07.633 M8 FLANGE	0-91150-108-0	02	1	9811-	●	●	●	●	●	●
112	08.155 BOLT; BRKT 02.559 M8X25 FLANGE	0-28680-825-0	05	1	9811-	●	●	●	●	●	●
145	08.155 NUT; BRKT 07.633 M8 FLANGE	0-91150-108-0	06	1	9811-	●	●	●	●	●	●
219	08.155 FLAP; MUD GUARD	8-97036-107-2	02	1	9811-9903	●	●	●	●	●	●
219	08.155 FLAP; MUD GUARD	8-97218-078-0	02	1	9904-	●	●	●	●	●	●
285	08.155 BRACKET; MUD COVER 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97092-037-1	01	1	9811-0107	●
285	08.155 BRACKET; MUD COVER 4HF1 ENG(RLS) (A)	8-97092-037-1	01	1	9811-0107			●	●
285	08.155 BRACKET; MUD COVER 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97092-037-2	01	1	0108-	●
285	08.155 BRACKET; MUD COVER 4HF1 ENG(RLS) (A)	8-97092-037-2	01	1	0108-			●
285	08.155 BRACKET; MUD COVER 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97092-037-2	01	1	0108-				●
285	08.155 BRACKET; MUD COVER 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97089-653-2	01	1	9811-0105	●
285	08.155 BRACKET; MUD COVER 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-97089-653-2	01	1	9811-0105			●	●
285	08.155 BRACKET; MUD COVER 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> (B)	8-97089-653-2	01	1	0106-	●		●	●
285	08.155 BRACKET; MUD COVER 4HF1 ENG(RLS) (C)	8-97035-778-4	01	1	9811-0105	●		●	●
285	08.155 BRACKET; MUD COVER 4JG2 ENG(RJC),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97035-778-4	01	1	9811-0105	●
285	08.155 BRACKET; MUD COVER 4JB1 ENG(RLF),4HF1 ENG(RLS) (C)	8-97035-778-4	01	1	9811-0105						●
285	08.155 BRACKET; MUD COVER 4HF1 ENG(RLS) (C)	8-97035-778-4	01	1	0106-0107	●		●	●
285	08.155 BRACKET; MUD COVER 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97035-778-4	01	1	0106-0107	●
285	08.155 BRACKET; MUD COVER 4JB1 ENG(RLF),4HF1 ENG(RLS) (C)	8-97035-778-4	01	1	0106-0107						●
285	08.155 BRACKET; MUD COVER 4HF1 ENG(RLS) (C)	8-97035-778-4	01	1	0108-	●		●
285	08.155 BRACKET; MUD COVER 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE SYSTEM FRONT<6PC> (C)	8-97035-778-4	01	1	0108-	●
285	08.155 BRACKET; MUD COVER 4HG1 ENG(RJH),4HF1 ENG(RLS) (C)	8-97035-778-4	01	1	0108-				●
285	08.155 BRACKET; MUD COVER 4JB1 ENG(RLF),4HF1 ENG(RLS) (C)	8-97035-778-4	01	1	0108-						●
285	08.155 BRACKET; MUD COVER 4JG2 ENG(RJC),4JB1 ENG(RLF) (A)	8-97035-780-3	01	1	9811-0105	●		●	●
285	08.155 BRACKET; MUD COVER 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97035-780-3	01	1	9811-0105	●
285	08.155 BRACKET; MUD COVER (A)	8-97035-780-3	01	1	9811-0105		●
285	08.155 BRACKET; MUD COVER 4JG2 ENG(RJC),4HF1 ENG(RLS) (A)	8-97035-780-3	01	1	9811-0105					●
285	08.155 BRACKET; MUD COVER 4JB1 ENG(RLF),4HF1 ENG(RLS) (A)	8-97035-780-3	01	1	9811-0105						●
285	08.155 BRACKET; MUD COVER 4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. CHARGE AIR COOLER<6PL> (A)	8-97035-780-4	01	1	0106-	●		●	●
285	08.155 BRACKET; MUD COVER 4HF1 ENG(RLS) AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97035-780-4	01	1	0106-	●
285	08.155 BRACKET; MUD COVER (A)	8-97035-780-4	01	1	0106-		●			●
285	08.155 BRACKET; MUD COVER 4JB1 ENG(RLF),4HF1 ENG(RLS) (A)	8-97035-780-4	01	1	0106-						●
285	08.155 BRACKET; MUD COVER 4JH1 ENG(RJX),4JB1 ENG(RLF) CHARGE AIR COOLER<6PL> (A)	8-97225-272-1	01	1	0106-	●		●	●
285	08.155 BRACKET; MUD COVER (C)	8-97103-463-0	01	1	9811-		●
285	08.155 BRACKET; MUD COVER (D)	8-97080-589-5	01	1	9811-					●

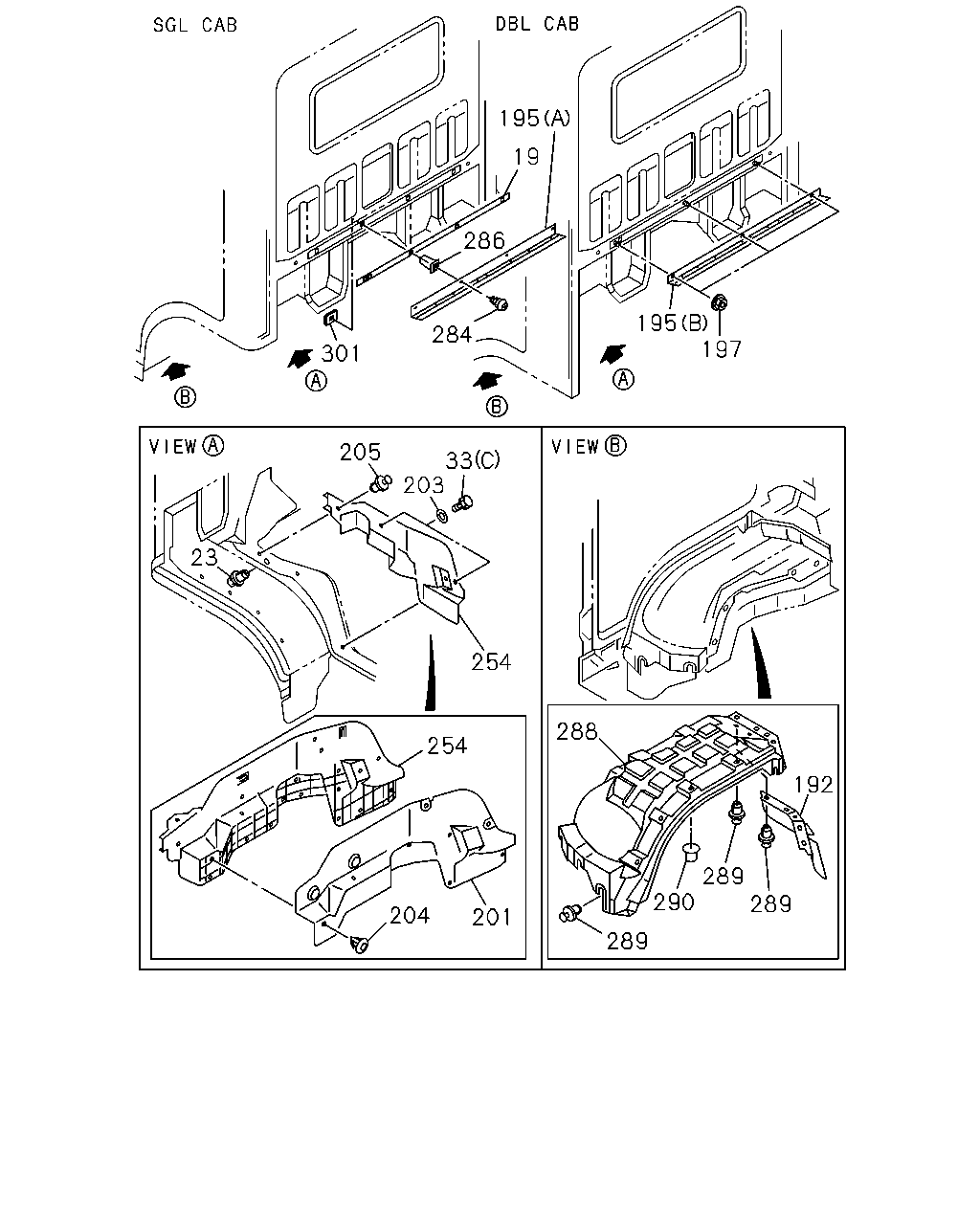

195 19 286 195 197 284 301 205 33 203 23 254 288 254 192 289 290 289 204 201 289

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
19	03.602 SHEET; HEAT PROTECTOR,CAB BACK	8-97856-016-0	01	1	9811-	●		●	●		●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-94279-989-0	10	1	9811-9907	●	●	●	●	●	●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-94279-989-0	06	1	9908-0207	●	●	●	●	●	●
23	08.154 FASTENER; MUD COVER 16.320 OD=8.3	8-97997-832-0	06	1	0208-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 00.738 (D) M6X16 FLANGE	0-28080-616-0	08	1	9811-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 07.010 (A) M8X20 FLANGE	0-28080-820-0	05	1	9811-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 02.334 (C) M6X25 FLANGE	0-28680-625-0	04	1	9811-	●	●	●	●	●	●
33	08.155 BOLT; MUD COVER 16.320 (B) M8X20 W/LK&PL WASHER	8-94279-104-0	01	1	9811-	●	●	●	●	●	●
192	08.153 SEAL; MUD COVER	8-97857-297-3	02	1	9811-	●	●	●	●	●	●
195	03.602 PROTECTOR; HEAT AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97035-834-2	01	1	9811-9812	●
195	03.602 PROTECTOR; HEAT EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T) (A)	8-97035-834-2	01	1	9811-9812			●
195	03.602 PROTECTOR; HEAT 4JG2 ENG(RJC),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97035-834-2	01	1	9901-0105	●
195	03.602 PROTECTOR; HEAT 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T) (A)	8-97035-834-2	01	1	9901-0105			●
195	03.602 PROTECTOR; HEAT 4HF1 ENG(RLS) EXC. DUMP CHASSIS(V4D) (A)	8-97035-834-2	01	1	9901-0105			●
195	03.602 PROTECTOR; HEAT 4HF1 ENG(RLS) (A)	8-97035-834-2	01	1	9901-0105				●
195	03.602 PROTECTOR; HEAT 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97035-834-2	01	1	0106-0107	●
195	03.602 PROTECTOR; HEAT 4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T) (A)	8-97035-834-2	01	1	0106-0107			●
195	03.602 PROTECTOR; HEAT 4HF1 ENG(RLS) EXC. DUMP CHASSIS(V4D) (A)	8-97035-834-2	01	1	0106-0107			●
195	03.602 PROTECTOR; HEAT 4HF1 ENG(RLS) (A)	8-97035-834-2	01	1	0106-0107				●
195	03.602 PROTECTOR; HEAT 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> (A)	8-97035-834-2	01	1	0108-0110	●
195	03.602 PROTECTOR; HEAT 4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T) (A)	8-97035-834-2	01	1	0108-0110			●
195	03.602 PROTECTOR; HEAT 4HF1 ENG(RLS) EXC. DUMP CHASSIS(V4D) (A)	8-97035-834-2	01	1	0108-0110			●
195	03.602 PROTECTOR; HEAT 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97035-834-2	01	1	0108-0110				●
195	03.602 PROTECTOR; HEAT 4JH1 ENG(RJX),4JB1 ENG(RLF) AIR INTAKE REAR VERTICAL<KJ3> EXC. DUMP CHASSIS(V4D),REAR WIDE TREAD(V4T),NOISE PACK FOR REGULATION VAR. 2<7TF> (A)	8-97035-834-2	01	1	0111-	●		●
195	03.602 PROTECTOR; HEAT 4HF1 ENG(RLS) AIR INTAKE REAR VERTICAL<KJ3> EXC. DUMP CHASSIS(V4D) (A)	8-97035-834-2	01	1	0111-	●		●
195	03.602 PROTECTOR; HEAT 4HG1 ENG(RJH),4HF1 ENG(RLS) (A)	8-97035-834-2	01	1	0111-				●
195	03.602 PROTECTOR; HEAT AIR INTAKE SYSTEM FRONT<6PC> (A)	8-97087-749-2	01	1	9811-0105	●
195	03.602 PROTECTOR; HEAT (A)	8-97087-749-2	01	1	9811-0105						●
195	03.602 PROTECTOR; HEAT AIR INTAKE SYSTEM FRONT<6PC> EXC. EURO2 SPECIFICATION<7AF> (A)	8-97087-749-2	01	1	0106-0110	●
195	03.602 PROTECTOR; HEAT (A)	8-97087-749-2	01	1	0106-0110						●
195	03.602 PROTECTOR; HEAT AIR INTAKE SYSTEM FRONT<6PC> EXC. EURO2 SPECIFICATION<7AF>,NOISE PACK FOR REGULATION VAR.2<7TF> (A)	8-97087-749-2	01	1	0111-	●
195	03.602 PROTECTOR; HEAT (A)	8-97087-749-2	01	1	0111-						●
195	03.602 PROTECTOR; HEAT (B)	8-94462-569-0	01	1	9811-		●			●
195	03.602 PROTECTOR; HEAT HONG KONG EQUIPMENT(PQ1) REAR WIDE TREAD(V4T) (A)	8-97094-833-1	01	1	9811-9812			●
195	03.602 PROTECTOR; HEAT DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T) (A)	8-97094-833-1	01	1	9811-9812			●
195	03.602 PROTECTOR; HEAT REAR WIDE TREAD(V4T) EXC. EURO2 SPECIFICATION<7AF> (A)	8-97094-833-1	01	1	9811-9812			●
195	03.602 PROTECTOR; HEAT HONG KONG EQUIPMENT(PQ1) (A)	8-97094-833-1	01	1	9811-9812				●
195	03.602 PROTECTOR; HEAT EXC. EURO2 SPECIFICATION<7AF> (A)	8-97094-833-1	01	1	9811-9812				●
195	03.602 PROTECTOR; HEAT 4JG2 ENG(RJC),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. EURO2 SPECIFICATION<7AF> (A)	8-97094-833-1	01	1	9901-0105			●
195	03.602 PROTECTOR; HEAT 4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1) REAR WIDE TREAD(V4T) (A)	8-97094-833-1	01	1	9901-0105			●
195	03.602 PROTECTOR; HEAT DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T) (A)	8-97094-833-1	01	1	9901-0105			●
195	03.602 PROTECTOR; HEAT 4JG2 ENG(RJC),4JB1 ENG(RLF) EXC. EURO2 SPECIFICATION<7AF> (A)	8-97094-833-1	01	1	9901-0105				●
195	03.602 PROTECTOR; HEAT 4JG2 ENG(RJC) HONG KONG EQUIPMENT(PQ1) (A)	8-97094-833-1	01	1	9901-0105				●
195	03.602 PROTECTOR; HEAT 4JH1 ENG(RJX),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. EURO2 SPECIFICATION<7AF> (A)	8-97094-833-1	01	1	0106-			●
195	03.602 PROTECTOR; HEAT DUMP CHASSIS(V4D) EXC. REAR WIDE TREAD(V4T) (A)	8-97094-833-1	01	1	0106-			●
195	03.602 PROTECTOR; HEAT 4JH1 ENG(RJX),4JB1 ENG(RLF) EXC. EURO2 SPECIFICATION<7AF> (A)	8-97094-833-1	01	1	0106-				●
197	03.602 NUT; HEAT PROTECTOR,CAB BACK 03.417 M6 FLANGE	8-94279-514-0	03	1	9811-		●			●
201	08.155 INSULATOR; VALANCE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-115-4	01	1	0106-	●
201	08.155 INSULATOR; VALANCE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-114-5	01	1	0106-	●
201	08.155 INSULATOR; VALANCE	8-97853-117-2	01	1	9811-9811	●	●	●	●	●	●
201	08.155 INSULATOR; VALANCE	8-97853-117-2	01	1	9812-0105	●	●	●	●	●	●
201	08.155 INSULATOR; VALANCE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-117-3	01	1	0106-	●
201	08.155 INSULATOR; VALANCE	8-97853-117-3	01	1	0106-		●	●	●	●	●
201	08.155 INSULATOR; VALANCE	8-97853-116-2	01	1	9811-9811	●	●	●	●	●	●
201	08.155 INSULATOR; VALANCE	8-97853-116-2	01	1	9812-0105	●	●	●	●	●	●
201	08.155 INSULATOR; VALANCE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-116-3	01	1	0106-	●
201	08.155 INSULATOR; VALANCE	8-97853-116-3	01	1	0106-		●	●	●	●	●
203	08.155 WASHER; PL,VALANCE ID=6.4 OD=22	8-94279-631-0	04	1	9811-	●	●	●	●	●	●
204	08.155 CLIP; VALANCE,INSULATOR OD=18 L=17	8-94279-702-0	12	1	9811-	●	●	●	●	●	●
205	08.155 FASTENER; MUD COVER 12.934 D=5.8 SCREW & GROMMET NYLON	8-94242-150-0	02	1	9811-	●	●	●	●	●	●
254	08.153 COVER; MUD,VALANCE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-112-5	01	1	0106-	●
254	08.153 COVER; MUD,VALANCE FRT INDEPENDENT SUSPENSION(6PP)	8-97853-111-5	01	1	0106-	●
254	08.153 COVER; MUD,VALANCE	8-97853-072-4	01	1	9811-0105	●	●	●	●	●	●
254	08.153 COVER; MUD,VALANCE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-072-4	01	1	0106-	●
254	08.153 COVER; MUD,VALANCE	8-97853-072-4	01	1	0106-		●	●	●	●	●
254	08.153 COVER; MUD,VALANCE	8-97853-071-4	01	1	9811-0105	●	●	●	●	●	●
254	08.153 COVER; MUD,VALANCE EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-97853-071-4	01	1	0106-	●
254	08.153 COVER; MUD,VALANCE	8-97853-071-4	01	1	0106-		●	●	●	●	●
284	08.155 SCREW; HEAT PROTECTOR M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	9811-0110	●		●	●		●
284	08.155 SCREW; HEAT PROTECTOR EXC. NOISE PACK FOR REGULATION VAR.2<7TF> M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0111-	●
284	08.155 SCREW; HEAT PROTECTOR M5X16 TAPPING W/PL WASHER	8-94496-177-1	04	1	0111-			●	●		●
286	08.155 GROMMET; SCREW,HEAT PROTECTOR 16.802 D=7.8X7.8 L=18 NATURAL	8-94279-043-0	04	1	9811-0101	●		●	●		●
286	08.155 GROMMET; SCREW,HEAT PROTECTOR	8-97994-312-0	04	1	0102-	●		●	●		●
288	08.155 LINER; TIRE HOUSE	8-97890-579-1	01	1	9811-0212	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97581-241-0	01	1	0301-	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97890-578-1	01	1	9811-0212	●	●	●	●	●	●
288	08.155 LINER; TIRE HOUSE	8-97581-240-0	01	1	0301-	●	●	●	●	●	●
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	20	1	9811-0212	●	●	●	●	●	●
289	08.155 FASTENER; LINER 16.320 OD=8.3	8-94279-989-0	18	1	0301-	●	●	●	●	●	●
290	08.155 NUT; LINER CAP NUT BLACK	8-94279-526-0	08	1	9811-	●	●	●	●	●	●
301	08.155 HOLDER; HEAT PROTECTOR	8-97857-153-0	04	1	9811-0101	●		●	●		●
301	08.155 HOLDER; HEAT PROTECTOR	8-97994-313-0	04	1	0102-	●		●	●		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
