Isuzu WW
▶
TRUCKS
▶
NKR
▶
50812 - NKR-RHD
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶

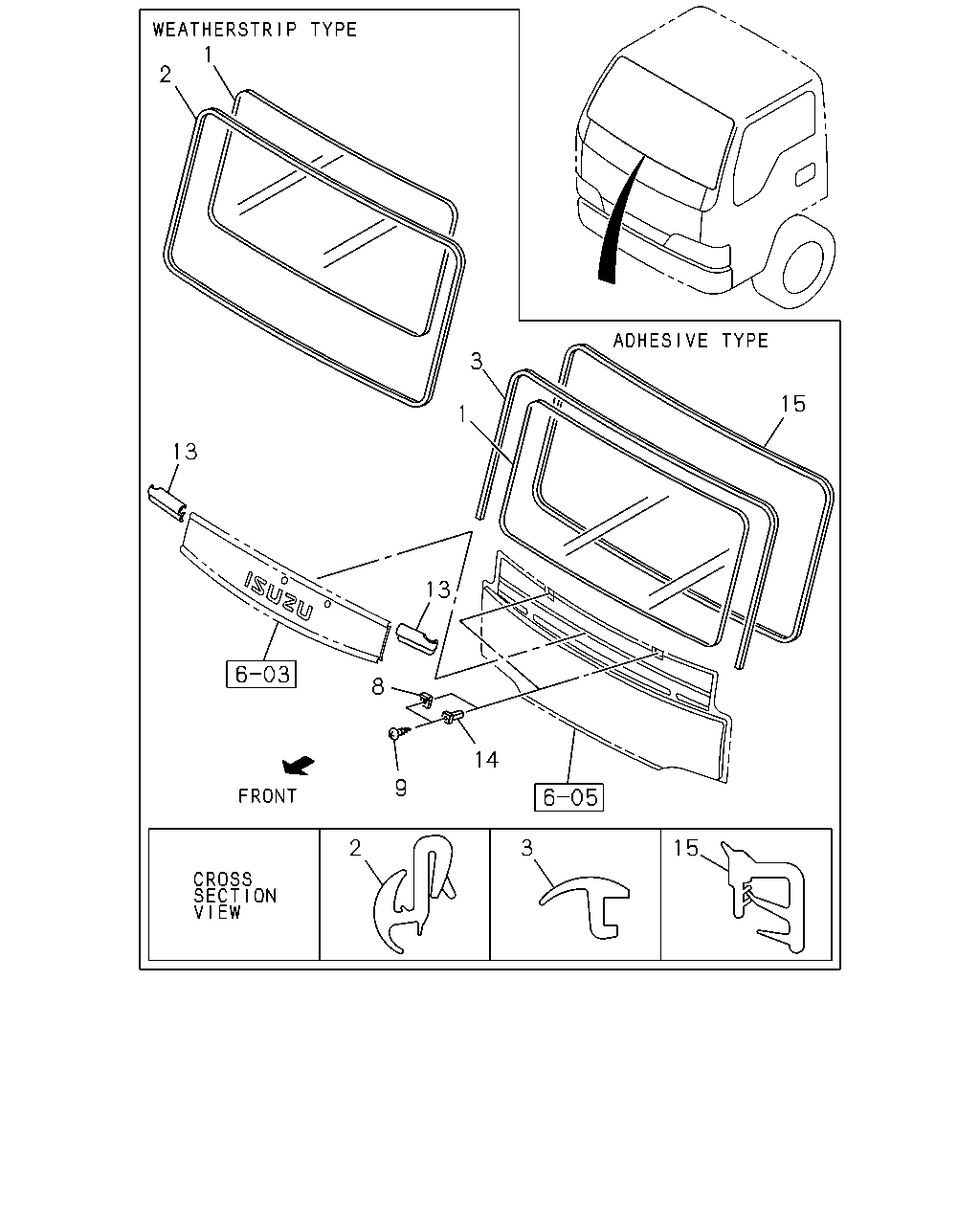

6-07 - FRONT WINDOW GLASS AND WEATHERSTRIP
▶
6-07 — FRONT WINDOW GLASS AND WEATHERSTRIP
(#48542) — 18 parça
Tümü
A - NKB5SC
B - NKC5SC
C - NKC5SF
D - NKN5SC
E - NKB5WC
F - NKC5WF
1
2
3
15
1
13
13
8
14
9
2
3
15
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
1
16.005 GLASS; WINDSHIELD
THAILAND EQUIPMENT(PM9)
8-97114-298-0
01
1
9811-0105
●
●
●
1
16.005 GLASS; WINDSHIELD
AUSTRALIA EQUIPMENT(RR3)
8-97869-124-0
01
1
9811-0105
●
●
●
●
1
16.005 GLASS; WINDSHIELD
AUSTRALIA EQUIPMENT(RR3)
8-97869-124-0
01
1
0106-
●
●
●
1
16.005 GLASS; WINDSHIELD
AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICAEQUIPMENT(SW2)
8-97869-124-0
01
1
0106-
●
1
16.005 GLASS; WINDSHIELD
EXC. THAILAND EQUIPMENT(PM9), AUSTRALIA EQUIPMENT(RR3),INDONESIA EQUIPMENT(S4S)
8-97869-123-0
01
1
9811-0105
●
●
●
●
1
16.005 GLASS; WINDSHIELD
8-97869-123-0
01
1
9811-0105
●
●
1
16.005 GLASS; WINDSHIELD
EXC. AUSTRALIA EQUIPMENT(RR3),SOUTH AFRICA EQUIPMENT(SW2),INDONESIA EQUIPMENT(S4S)
8-97869-123-0
01
1
0106-
●
●
●
●
●
●
1
16.005 GLASS; WINDSHIELD
INDONESIA EQUIPMENT(S4S)
8-97117-890-0
01
1
9811-
●
●
2
16.040 WEATHERSTRIP; WINDSHIELD GLASS
WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97856-351-3
01
1
9811-
●
●
●
●
●
●
3
16.470 MOLDING; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97890-214-1
01
1
9811-
●
●
●
●
●
●
8
16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97859-215-0
02
1
9811-
●
●
●
●
8
16.041 STOPPER; WINDSHIELD GLASS
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-733-0
02
1
9811-
●
●
9
16.041 SCREW; STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.067 M5X14
8-94279-325-0
02
1
9811-
●
●
●
●
●
●
13
16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-787-4
01
1
9811-
●
●
●
●
●
●
13
16.041 MOLDING; BRKT,OUTSIDE MIRROR
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL>
8-97853-786-3
01
1
9811-
●
●
●
●
●
●
14
16.041 GROMMET; SCREW,STOPPER
WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.547 14.5X14.5 BLACK
8-94279-714-0
04
1
9811-
●
●
●
●
●
●
14
16.041 GROMMET; SCREW,STOPPER
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> 16.802 D=7.8X7.8 L=18 NATURAL
8-94279-043-0
02
1
9811-
●
●
15
16.041 FINISHER; WINDSHIELD
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> DARK GRAY
8-97859-856-4
01
1
9811-
●
●
●
●
●
●
