Isuzu WW
▶
TRUCKS
▶
EXR
▶
10724 - EXR RHD
▶
3 - Brakes, Brake System
▶
3-25 - BRAKE LOCK CONTROL
▶

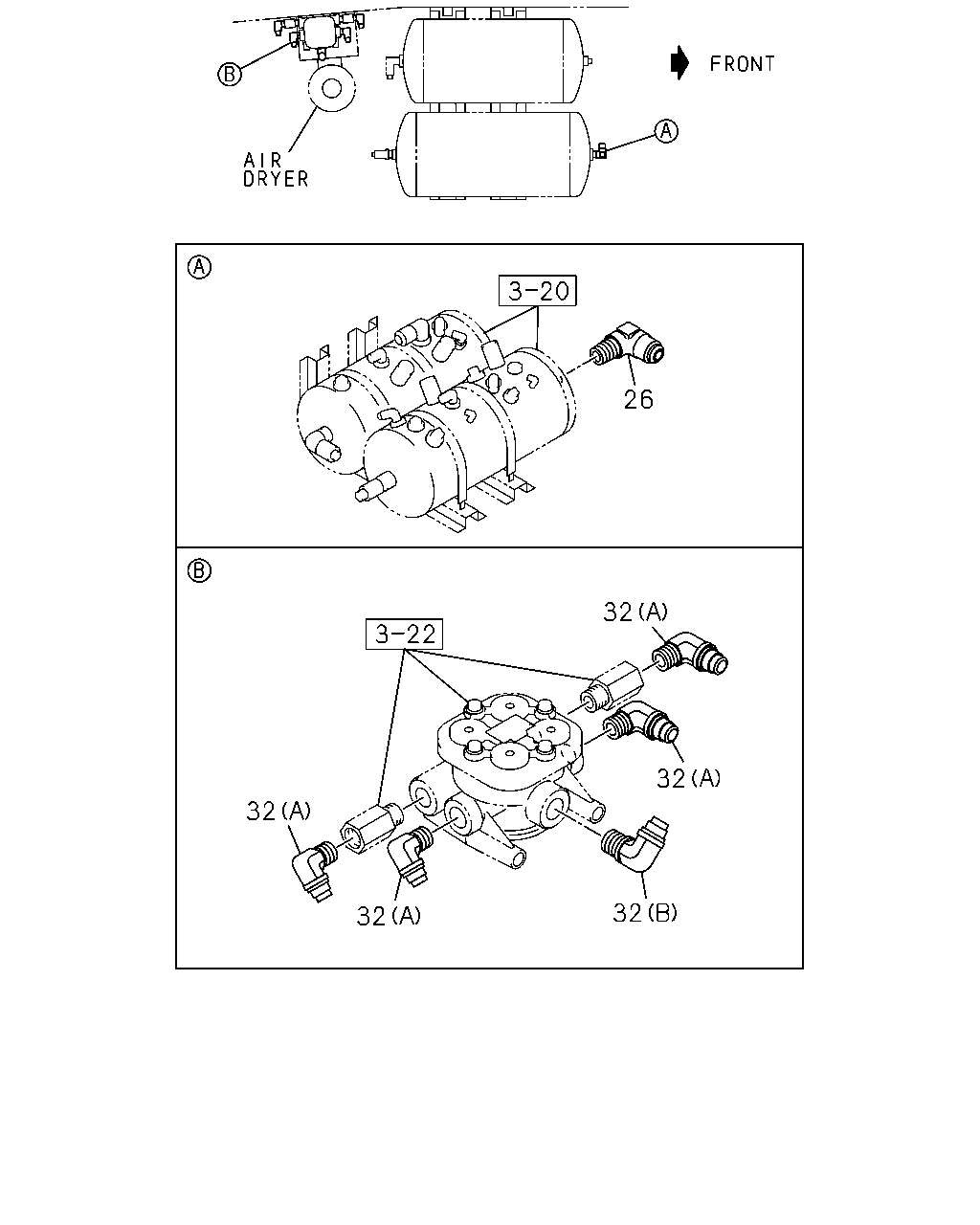

3-25 — BRAKE LOCK CONTROL
(#4854) — 10 parça
26
32
32
32
32
32
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
26
UNION; CONT VLV
EXC. AIR DRYER<PS7> M22
1-09650-277-0
01
1
9601-9609
26
UNION; CONT VLV
EXC. AIR DRYER<PS7> M22
1-09650-277-0
01
1
9907-
32
UNION; DOUBLE CHECK VLV
HONG KONG EQUIPMENT(PQ1) (A) DIN12 & R3/8 ELBOW
1-09660-653-1
04
1
9601-9610
32
UNION; DOUBLE CHECK VLV
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN12 & R3/8 ELBOW
1-09660-653-1
04
1
9611-9904
32
UNION; DOUBLE CHECK VLV
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A) DIN12 & R3/8 ELBOW
1-09660-959-0
04
1
9905-9912
32
UNION; DOUBLE CHECK VLV
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW
1-09660-959-0
04
1
0001-
32
UNION; DOUBLE CHECK VLV
HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW
1-09660-654-1
01
1
9601-9610
32
UNION; DOUBLE CHECK VLV
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW
1-09660-654-1
01
1
9611-9904
32
UNION; DOUBLE CHECK VLV
NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
9905-9912
32
UNION; DOUBLE CHECK VLV
BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN12 & R1/2 ELBOW
1-09660-960-0
01
1
0001-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
