6-03 — RADIATOR GRILLE (#48539) — 144 parça

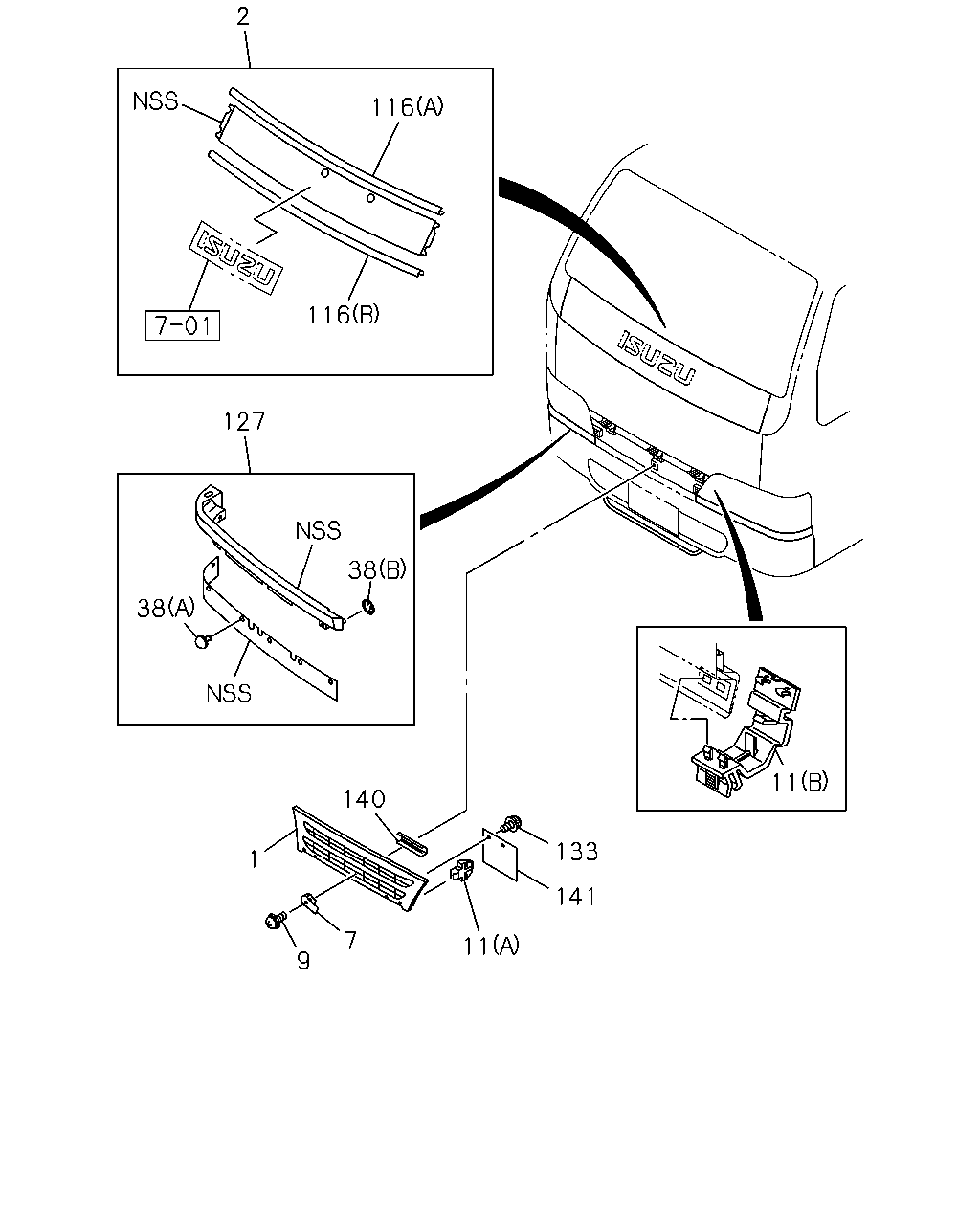

çizim 10992
2 116 116 127 38 38 11 140 133 1 141 7 11 9
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 01.266 GRILLE; RAD
PLEASE PAINT TO MATCH BODY COLOR 		8-97867-242-0 01 1 9811-0105 ● ● ● ● ● ●
1 01.266 GRILLE; RAD
EXC. AUSTRALIA EQUIPMENT(RR3) PLEASE PAINT TO MATCH BODY COLOR 		8-97867-242-0 01 1 0106- ● ● ● ● ● ●
1 01.266 GRILLE; RAD
AUSTRALIA EQUIPMENT(RR3) PLEASE PAINT TO MATCH BODY COLOR 		8-97890-871-1 01 1 0106- ● ● ● ●
2 01.266 GRILLE; ORNAMENT
WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97868-327-3 01 1 9811- ● ● ● ● ● ●
2 01.266 GRILLE; ORNAMENT
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> WO/DECAL 		8-97859-463-3 01 1 9811- ● ● ● ● ● ●
7 01.269 NUT; SPIRE,RAD GRILLE
08.155 		8-97805-829-0 01 1 9811- ● ● ● ● ● ●
9 01.269 SCREW; RAD GRILLE
08.155 M6X20 W/PL WASHER TAPPING 		8-94321-767-1 01 1 9811- ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(B) WHITE 		8-97102-415-0 03 1 9811- ● ● ● ● ● ●
11 01.269 CLIP; RAD GRILLE
EXC. AUSTRALIA EQUIPMENT(RR3) (A) WHITE 		8-97892-729-0 02 1 9811- ● ● ● ●
11 01.269 CLIP; RAD GRILLE
(A) WHITE 		8-97892-729-0 02 1 9811- ● ●
11 01.269 CLIP; RAD GRILLE
BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) (A) WHITE 		8-97892-730-0 02 1 0106- ● ● ● ●
38 01.269 CLIP; GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) (A) D=6.5 		8-97855-279-0 09 1 9811-0005 ● ● ● ● ● ●
38 01.269 CLIP; GRILLE
BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736), BODY COLOR MARINE BLUE(890) (A) D=6.5 		8-97855-279-0 09 1 0006-0010 ● ● ● ●
38 01.269 CLIP; GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) (A) D=6.5 		8-97855-279-0 09 1 0006-0010 ● ●
38 01.269 CLIP; GRILLE
(A) D=6.5 		8-97855-279-0 09 1 0011-0112 ● ● ● ●
38 01.269 CLIP; GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER ME T(845),BODY COLOR MARINE BLUE(890) (A) D=6.5 		8-97855-279-0 09 1 0011-0112 ● ●
38 01.269 CLIP; GRILLE
(A) D=6.5 		8-97855-279-0 09 1 0201-0209 ● ● ● ●
38 01.269 CLIP; GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) (A) D=6.5 		8-97855-279-0 09 1 0201-0209 ● ●
38 01.269 CLIP; GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (A) D=6.5 		8-97855-279-0 09 1 0210- ● ● ● ● ● ●
38 01.269 CLIP; GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) (B) 		1-09987-180-0 01 1 9811-0005 ● ● ● ● ● ●
38 01.269 CLIP; GRILLE
BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736), BODY COLOR MARINE BLUE(890) (B) 		1-09987-180-0 01 1 0006-0010 ● ● ● ●
38 01.269 CLIP; GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) (B) 		1-09987-180-0 01 1 0006-0010 ● ●
38 01.269 CLIP; GRILLE
(B) 		1-09987-180-0 01 1 0011-0112 ● ● ● ●
38 01.269 CLIP; GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER ME T(845),BODY COLOR MARINE BLUE(890) (B) 		1-09987-180-0 01 1 0011-0112 ● ●
38 01.269 CLIP; GRILLE
(B) 		1-09987-180-0 01 1 0201-0209 ● ● ● ●
38 01.269 CLIP; GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) (B) 		1-09987-180-0 01 1 0201-0209 ● ●
38 01.269 CLIP; GRILLE
EXC. RADIATOR GRILLE NON PAINT<7LB> (B) 		1-09987-180-0 01 1 0210- ● ● ● ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
(B) 		8-97853-097-4 01 1 9811- ● ● ● ● ● ●
116 01.266 MOLDING; ORNAMENT GRILLE
EXC. WINDSHIELD WEATHERSTRIP TYPE<7EL> (A) 		8-97853-095-2 01 1 9811- ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR 		8-97898-454-0 01 1 0210- ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
RADIATOR GRILLE NON PAINT<7LB> PLEASE PAINT TO MATCH BODY COLOR 		8-97898-455-0 01 1 0210- ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) BLUE 		8-97150-952-5 01 1 9811-9908 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) BLUE 		8-97898-200-0 01 1 9909-0001 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) BLUE 		8-97898-377-1 01 1 0002-0209 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97898-377-1 01 1 0210- ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) BLUE 		8-97867-325-3 01 1 9811-9908 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) BLUE 		8-97898-179-0 01 1 9909-0001 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) BLUE 		8-97898-356-1 01 1 0002-0209 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ADRIATIC BLUE(730) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97898-356-1 01 1 0210- ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) WHITE 		8-97150-960-5 01 1 9811-9908 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) WHITE 		8-97898-210-0 01 1 9909-0001 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) WHITE 		8-97898-387-1 01 1 0002-0209 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97898-387-1 01 1 0210- ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) WHITE 		8-97867-331-3 01 1 9811-9908 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) WHITE 		8-97898-189-0 01 1 9909-0001 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) WHITE 		8-97898-366-1 01 1 0002-0209 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE 		8-97898-366-1 01 1 0210- ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR CARDINAL RED(736) RED 		8-97150-959-5 01 1 9811-9908 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR CARDINAL RED(736) RED 		8-97898-207-0 01 1 9909-0001 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR CARDINAL RED(736) RED 		8-97898-384-1 01 1 0002-0209 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR CARDINAL RED(736) EXC. RADIATOR GRILLE NON PAINT<7LB> RED 		8-97898-384-1 01 1 0210- ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR CARDINAL RED(736) RED 		8-97867-383-3 01 1 9811-9908 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR CARDINAL RED(736) RED 		8-97898-186-0 01 1 9909-0001 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR CARDINAL RED(736) RED 		8-97898-363-1 01 1 0002-0209 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR CARDINAL RED(736) EXC. RADIATOR GRILLE NON PAINT<7LB> RED 		8-97898-363-1 01 1 0210- ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) BLUE 		8-97150-961-5 01 1 9811-9908 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) BLUE 		8-97898-214-0 01 1 9909-0001 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) BLUE 		8-97898-391-1 01 1 0002-0209 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97898-391-1 01 1 0210- ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) BLUE 		8-97867-332-3 01 1 9811-9908 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) BLUE 		8-97898-193-0 01 1 9909-0001 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) BLUE 		8-97898-370-1 01 1 0002-0209 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE 		8-97898-370-1 01 1 0210- ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97898-383-1 01 1 0011-0112 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97898-383-1 01 1 0201-0209 ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER 		8-97898-383-1 01 1 0210- ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97898-362-1 01 1 0011-0112 ● ● ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) SILVER 		8-97898-362-1 01 1 0201-0209 ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR POLAR SILVER MET(845) EXC. RADIATOR GRILLE NON PAINT<7LB> SILVER 		8-97898-362-1 01 1 0210- ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR FT ORANGE(609) ORANGE 		8-97898-526-1 01 1 0006-0209 ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR FT ORANGE(609) EXC. RADIATOR GRILLE NON PAINT<7LB> ORANGE 		8-97898-526-1 01 1 0210- ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR FT ORANGE(609) ORANGE 		8-97898-525-1 01 1 0006-0209 ● ● ● ●
127 01.266 GRILLE; HEADLAMP,LWR
BODY COLOR FT ORANGE(609) EXC. RADIATOR GRILLE NON PAINT<7LB> ORANGE 		8-97898-525-1 01 1 0210- ● ● ● ●
133 01.269 SCREW; COVER
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. THAILAND EQUIPMENT(PM9) 01.303 M5X12 W/PL WASHER 		8-94385-565-0 04 1 9811-9905 ● ● ●
133 01.269 SCREW; COVER
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 01.303 M5X12 W/PL WASHER 		8-94385-565-0 04 1 9811-9905 ● ● ●
133 01.269 SCREW; COVER
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) AIR INTAKE SYSTEM FRONT<6PC> 01.303 M5X12 W/PL WASHER 		8-94385-565-0 04 1 9906-0005 ●
133 01.269 SCREW; COVER
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 01.303 M5X12 W/PL WASHER 		8-94385-565-0 04 1 9906-0005 ● ● ●
133 01.269 SCREW; COVER
BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736), BODY COLOR MARINE BLUE(890) AIR INTAKE SYSTEM FRONT<6PC> 01.303 M5X12 W/PL WASHER 		8-94385-565-0 04 1 0006-0010 ●
133 01.269 SCREW; COVER
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 01.303 M5X12 W/PL WASHER 		8-94385-565-0 04 1 0006-0010 ● ●
133 01.269 SCREW; COVER
BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736), BODY COLOR MARINE BLUE(890) 01.303 M5X12 W/PL WASHER 		8-94385-565-0 04 1 0006-0010 ●
133 01.269 SCREW; COVER
AIR INTAKE SYSTEM FRONT<6PC> 01.303 M5X12 W/PL WASHER 		8-94385-565-0 04 1 0011-0105 ●
133 01.269 SCREW; COVER
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER ME T(845),BODY COLOR MARINE BLUE(890) 01.303 M5X12 W/PL WASHER 		8-94385-565-0 04 1 0011-0105 ● ●
133 01.269 SCREW; COVER
01.303 M5X12 W/PL WASHER 		8-94385-565-0 04 1 0011-0105 ●
133 01.269 SCREW; COVER
AIR INTAKE SYSTEM FRONT<6PC> EXC. AUSTRALIA EQUIPMENT(RR3) 01.303 M5X12 W/PL WASHER 		8-94385-565-0 04 1 0106-0112 ●
133 01.269 SCREW; COVER
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER ME T(845),BODY COLOR MARINE BLUE(890) 01.303 M5X12 W/PL WASHER 		8-94385-565-0 04 1 0106-0112 ● ●
133 01.269 SCREW; COVER
EXC. AUSTRALIA EQUIPMENT(RR3) 01.303 M5X12 W/PL WASHER 		8-94385-565-0 04 1 0106-0112 ●
133 01.269 SCREW; COVER
AIR INTAKE SYSTEM FRONT<6PC> EXC. AUSTRALIA EQUIPMENT(RR3) 01.303 M5X12 W/PL WASHER 		8-94385-565-0 04 1 0201-0209 ●
133 01.269 SCREW; COVER
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 01.303 M5X12 W/PL WASHER 		8-94385-565-0 04 1 0201-0209 ● ●
133 01.269 SCREW; COVER
EXC. AUSTRALIA EQUIPMENT(RR3) 01.303 M5X12 W/PL WASHER 		8-94385-565-0 04 1 0201-0209 ●
133 01.269 SCREW; COVER
AIR INTAKE SYSTEM FRONT<6PC> EXC. AUSTRALIA EQUIPMENT(RR3) 01.303 M5X12 W/PL WASHER 		8-94385-565-0 04 1 0210- ●
133 01.269 SCREW; COVER
01.303 M5X12 W/PL WASHER 		8-94385-565-0 04 1 0210- ● ●
133 01.269 SCREW; COVER
EXC. AUSTRALIA EQUIPMENT(RR3) 01.303 M5X12 W/PL WASHER 		8-94385-565-0 04 1 0210- ●
133 01.269 SCREW; COVER
BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) 01.303 M5X12 W/PL WASHER 		8-94385-565-0 05 1 0106- ● ● ● ●
140 01.266 SEAL; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 		8-97061-039-3 02 1 9811-9905 ● ● ● ● ● ●
140 01.266 SEAL; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) AIR INTAKE SYSTEM FRONT<6PC> 		8-97061-039-3 02 1 9906-0005 ●
140 01.266 SEAL; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 		8-97061-039-3 02 1 9906-0005 ● ● ●
140 01.266 SEAL; RAD GRILLE
BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736), BODY COLOR MARINE BLUE(890) AIR INTAKE SYSTEM FRONT<6PC> 		8-97061-039-3 02 1 0006-0010 ●
140 01.266 SEAL; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 		8-97061-039-3 02 1 0006-0010 ● ●
140 01.266 SEAL; RAD GRILLE
BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736), BODY COLOR MARINE BLUE(890) 		8-97061-039-3 02 1 0006-0010 ●
140 01.266 SEAL; RAD GRILLE
AIR INTAKE SYSTEM FRONT<6PC> 		8-97061-039-3 02 1 0011-0105 ●
140 01.266 SEAL; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER ME T(845),BODY COLOR MARINE BLUE(890) 		8-97061-039-3 02 1 0011-0105 ● ●
140 01.266 SEAL; RAD GRILLE 8-97061-039-3 02 1 0011-0105 ●
140 01.266 SEAL; RAD GRILLE
AIR INTAKE SYSTEM FRONT<6PC> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97061-039-3 02 1 0106-0110 ●
140 01.266 SEAL; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER ME T(845),BODY COLOR MARINE BLUE(890) 		8-97061-039-3 02 1 0106-0110 ● ●
140 01.266 SEAL; RAD GRILLE
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97061-039-3 02 1 0106-0110 ●
140 01.266 SEAL; RAD GRILLE
AIR INTAKE SYSTEM FRONT<6PC> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97061-039-3 01 1 0111-0112 ●
140 01.266 SEAL; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER ME T(845),BODY COLOR MARINE BLUE(890) 		8-97061-039-3 01 1 0111-0112 ● ●
140 01.266 SEAL; RAD GRILLE
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97061-039-3 01 1 0111-0112 ●
140 01.266 SEAL; RAD GRILLE
AIR INTAKE SYSTEM FRONT<6PC> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97061-039-3 01 1 0201-0209 ●
140 01.266 SEAL; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 		8-97061-039-3 01 1 0201-0209 ● ●
140 01.266 SEAL; RAD GRILLE
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97061-039-3 01 1 0201-0209 ●
140 01.266 SEAL; RAD GRILLE
AIR INTAKE SYSTEM FRONT<6PC> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97061-039-3 01 1 0210- ●
140 01.266 SEAL; RAD GRILLE 8-97061-039-3 01 1 0210- ● ●
140 01.266 SEAL; RAD GRILLE
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97061-039-3 01 1 0210- ●
140 01.266 SEAL; RAD GRILLE
BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) 		8-97061-039-3 04 1 0106-0110 ● ● ● ●
140 01.266 SEAL; RAD GRILLE
BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) 		8-97061-039-3 02 1 0111- ● ● ● ●
141 01.266 COVER; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) EXC. THAILAND EQUIPMENT(PM9) 		8-97119-166-0 01 1 9811-9905 ● ● ●
141 01.266 COVER; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 		8-97119-166-0 01 1 9811-9905 ● ● ●
141 01.266 COVER; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) AIR INTAKE SYSTEM FRONT<6PC> 		8-97119-166-0 01 1 9906-0005 ●
141 01.266 COVER; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 		8-97119-166-0 01 1 9906-0005 ● ● ●
141 01.266 COVER; RAD GRILLE
BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736), BODY COLOR MARINE BLUE(890) AIR INTAKE SYSTEM FRONT<6PC> 		8-97119-166-0 01 1 0006-0010 ●
141 01.266 COVER; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 		8-97119-166-0 01 1 0006-0010 ● ●
141 01.266 COVER; RAD GRILLE
BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736), BODY COLOR MARINE BLUE(890) 		8-97119-166-0 01 1 0006-0010 ●
141 01.266 COVER; RAD GRILLE
AIR INTAKE SYSTEM FRONT<6PC> 		8-97119-166-0 01 1 0011-0105 ●
141 01.266 COVER; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER ME T(845),BODY COLOR MARINE BLUE(890) 		8-97119-166-0 01 1 0011-0105 ● ●
141 01.266 COVER; RAD GRILLE 8-97119-166-0 01 1 0011-0105 ●
141 01.266 COVER; RAD GRILLE
AIR INTAKE SYSTEM FRONT<6PC> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97119-166-0 01 1 0106-0112 ●
141 01.266 COVER; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR POLAR SILVER ME T(845),BODY COLOR MARINE BLUE(890) 		8-97119-166-0 01 1 0106-0112 ● ●
141 01.266 COVER; RAD GRILLE
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97119-166-0 01 1 0106-0112 ●
141 01.266 COVER; RAD GRILLE
AIR INTAKE SYSTEM FRONT<6PC> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97119-166-0 01 1 0201-0209 ●
141 01.266 COVER; RAD GRILLE
BODY COLOR ARC WHITE(729),BODY COLOR ADRIATIC BLUE(730),BODY COLOR CARDINAL RED(736),BODY COLOR MARINE BLUE(890) 		8-97119-166-0 01 1 0201-0209 ● ●
141 01.266 COVER; RAD GRILLE
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97119-166-0 01 1 0201-0209 ●
141 01.266 COVER; RAD GRILLE
AIR INTAKE SYSTEM FRONT<6PC> EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97119-166-0 01 1 0210- ●
141 01.266 COVER; RAD GRILLE 8-97119-166-0 01 1 0210- ● ●
141 01.266 COVER; RAD GRILLE
EXC. AUSTRALIA EQUIPMENT(RR3) 		8-97119-166-0 01 1 0210- ●
141 01.266 COVER; RAD GRILLE
BODY COLOR FT ORANGE(609),BODY COLOR ARC WHITE(729) AUSTRALIA EQUIPMENT(RR3) 		8-97890-638-1 01 1 0106- ● ● ● ●

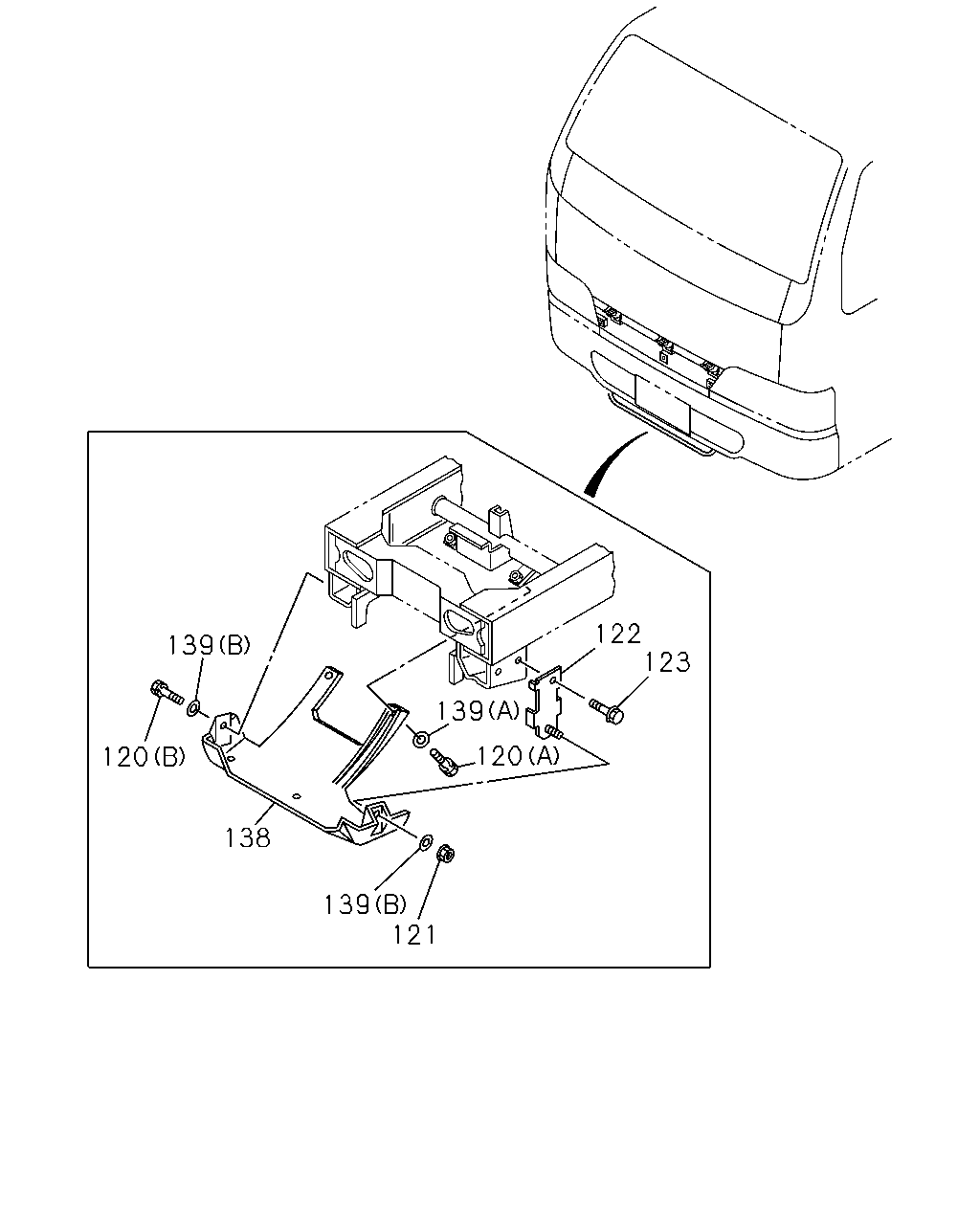

çizim 48435
122 123 139 139 120 120 138 139 121
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
120 01.266 BOLT; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 01.062 (A) M8X16 FLANGE 		0-28080-816-0 02 1 0106- ●
120 01.266 BOLT; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 04.930 (B) M6X20 FLANGE 		0-28680-620-0 01 1 0106- ●
121 01.266 NUT; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 01.062 M6 FLANGE 		0-91150-206-0 01 1 0106- ●
122 01.266 BRACKET; AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 		8-97078-738-4 01 1 0106- ●
123 01.266 BOLT; BRKT AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 01.062 M8X16 FLANGE 		0-28080-816-0 01 1 0106- ●
138 01.266 GUIDE; AIR
FRT INDEPENDENT SUSPENSION(6PP) 		8-97037-229-0 01 1 0106- ●
139 01.269 WASHER; PL,AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 06.760 (A) ID=8.4 OD=22 		9-09160-708-0 02 1 0106- ●
139 01.269 WASHER; PL,AIR GUIDE
FRT INDEPENDENT SUSPENSION(6PP) 02.334 (B) ID=6.4 OD=22 		9-09164-806-0 02 1 0106- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
