◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NKR ▶ 50812 - NKR-RHD ▶ 5 - Frame, Cab Mounting ▶ 5-30 - SPARE TIRE CARRIER AND COVER ▶
5-30 — SPARE TIRE CARRIER AND COVER (#48537) — 63 parça

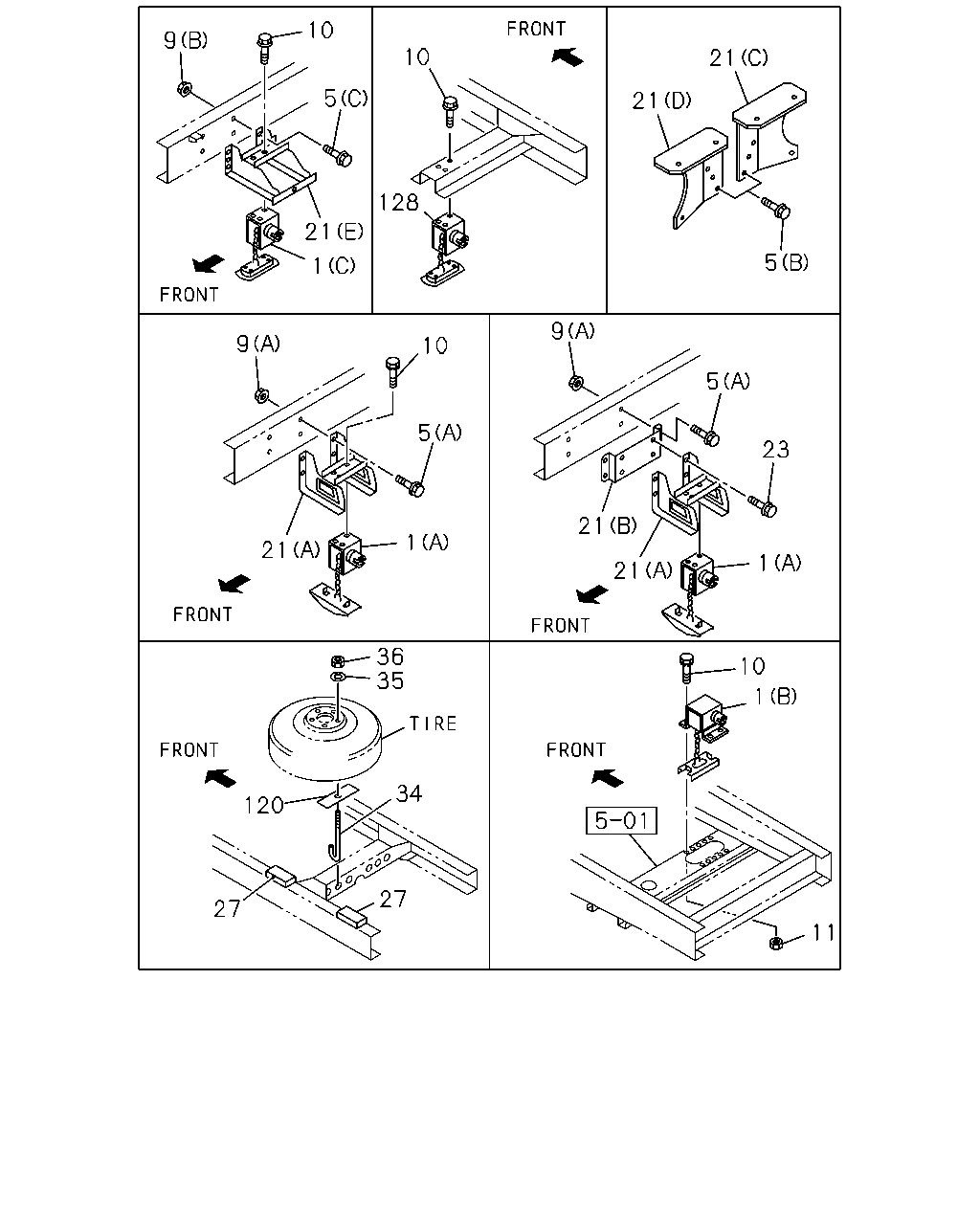

çizim 48639
10 9 10 21 5 21 128 21 5 1 9 9 10 5 5 23 21 1 21 1 21 36 35 10 1 34 120 27 27 11
BalonParca AdiParca NoAdetTipApplied Date A B C D E F
1 07.629 HANGER ASM; TIRE FT
AUSTRALIA EQUIPMENT(RR3) REAR WIDE TREAD(V4T) (B) REAR 		8-97182-113-0 01 1 9811-9901 ●
1 07.629 HANGER ASM; TIRE FT
(B) REAR 		8-97182-113-0 01 1 9811-9901 ● ●
1 07.629 HANGER ASM; TIRE FT
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B) REAR 		8-97182-113-0 01 1 9902- ●
1 07.629 HANGER ASM; TIRE FT
(B) REAR 		8-97182-113-0 01 1 9902- ● ●
1 07.629 HANGER ASM; TIRE FT
REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> (A) FRONT 		8-94382-875-0 01 1 9811-9902 ●
1 07.629 HANGER ASM; TIRE FT
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> (A) FRONT 		8-94382-875-0 01 1 9903-0105 ●
1 07.629 HANGER ASM; TIRE FT
4JH1 ENG(RJX),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> (A) FRONT 		8-94382-875-0 01 1 0106- ●
1 07.629 HANGER ASM; TIRE FT
(C) FRONT 		8-94380-175-0 01 1 9811- ●
5 07.632 BOLT; BRKT TO FRAME
DUMP CHASSIS(V4D) 03.405 (B) M10X30 FLANGE 		0-28681-030-0 06 1 9811- ●
5 07.632 BOLT; BRKT TO FRAME
REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> 03.405 (A) M10X30 FLANGE 		0-28681-030-0 04 1 9811-9902 ●
5 07.632 BOLT; BRKT TO FRAME
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> 03.405 (A) M10X30 FLANGE 		0-28681-030-0 04 1 9903-0105 ●
5 07.632 BOLT; BRKT TO FRAME
4JH1 ENG(RJX),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> 03.405 (A) M10X30 FLANGE 		0-28681-030-0 04 1 0106- ●
5 07.632 BOLT; BRKT TO FRAME
04.686 (C) M8X30 FLANGE 		0-28680-830-0 04 1 9811- ●
9 07.633 NUT; BRKT TO FRAME
REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> 04.785 (A) M10 FLANGE 		0-91150-110-0 04 1 9811-9902 ●
9 07.633 NUT; BRKT TO FRAME
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> 04.785 (A) M10 FLANGE 		0-91150-110-0 04 1 9903-0105 ●
9 07.633 NUT; BRKT TO FRAME
4JH1 ENG(RJX),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> 04.785 (A) M10 FLANGE 		0-91150-110-0 04 1 0106- ●
9 07.633 NUT; BRKT TO FRAME
(B) M8 FLANGE 		0-91150-108-0 04 1 9811- ●
10 07.632 BOLT; TIRE HANGER
02.664 M8X20 FLANGE 		0-28680-820-0 03 1 9811-9902 ● ●
10 07.632 BOLT; TIRE HANGER
REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> 02.664 M8X20 FLANGE 		0-28680-820-0 03 1 9811-9902 ●
10 07.632 BOLT; TIRE HANGER
02.664 M8X20 FLANGE 		0-28680-820-0 03 1 9903-0105 ● ●
10 07.632 BOLT; TIRE HANGER
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> 02.664 M8X20 FLANGE 		0-28680-820-0 03 1 9903-0105 ●
10 07.632 BOLT; TIRE HANGER
02.664 M8X20 FLANGE 		0-28680-820-0 03 1 0106- ● ●
10 07.632 BOLT; TIRE HANGER
4JH1 ENG(RJX),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> 02.664 M8X20 FLANGE 		0-28680-820-0 03 1 0106- ●
10 07.632 BOLT; TIRE HANGER
AUSTRALIA EQUIPMENT(RR3) REAR WIDE TREAD(V4T) 02.664 M8X20 FLANGE 		0-28680-820-0 06 1 9811-9901 ●
10 07.632 BOLT; TIRE HANGER
02.664 M8X20 FLANGE 		0-28680-820-0 06 1 9811-9901 ●
10 07.632 BOLT; TIRE HANGER
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) 02.664 M8X20 FLANGE 		0-28680-820-0 06 1 9902- ●
10 07.632 BOLT; TIRE HANGER
02.664 M8X20 FLANGE 		0-28680-820-0 06 1 9902- ●
10 07.632 BOLT; TIRE HANGER
02.664 M8X20 FLANGE 		0-28680-820-0 04 1 9811- ● ●
11 07.629 NUT; TIRE HANGER
AUSTRALIA EQUIPMENT(RR3) REAR WIDE TREAD(V4T) 07.633 M8 FLANGE 		0-91150-108-0 06 1 9811-9901 ●
11 07.629 NUT; TIRE HANGER
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) 07.633 M8 FLANGE 		0-91150-108-0 02 1 9902- ●
11 07.629 NUT; TIRE HANGER
07.633 M8 FLANGE 		0-91150-108-0 04 1 9811-9901 ● ●
11 07.629 NUT; TIRE HANGER
AUSTRALIA EQUIPMENT(RR3) REAR WIDE TREAD(V4T) 07.633 M8 FLANGE 		0-91150-108-0 04 1 9902- ●
11 07.629 NUT; TIRE HANGER
07.633 M8 FLANGE 		0-91150-108-0 04 1 9902- ● ●
21 07.629 BRACKET; SPARE TIRE HANGER
DUMP CHASSIS(V4D) (D) 		8-97106-655-1 01 1 9811-9902 ●
21 07.629 BRACKET; SPARE TIRE HANGER
DUMP CHASSIS(V4D) (D) 		8-97224-850-0 01 1 9903- ●
21 07.629 BRACKET; SPARE TIRE HANGER
DUMP CHASSIS(V4D) (C) 		8-97106-654-1 01 1 9811-9902 ●
21 07.629 BRACKET; SPARE TIRE HANGER
DUMP CHASSIS(V4D) (C) 		8-97224-883-0 01 1 9903- ●
21 07.629 BRACKET; SPARE TIRE HANGER
REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> (A) 		8-97010-956-1 01 1 9811-9902 ●
21 07.629 BRACKET; SPARE TIRE HANGER
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> (A) 		8-97010-956-1 01 1 9903-9906 ●
21 07.629 BRACKET; SPARE TIRE HANGER
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> (A) 		8-97230-355-0 01 1 9907-0105 ●
21 07.629 BRACKET; SPARE TIRE HANGER
4JH1 ENG(RJX),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> (A) 		8-97230-355-0 01 1 0106- ●
21 07.629 BRACKET; SPARE TIRE HANGER
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> (B) 		8-94176-764-1 01 1 9811-0105 ●
21 07.629 BRACKET; SPARE TIRE HANGER
4JH1 ENG(RJX),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> (B) 		8-94176-764-1 01 1 0106- ●
21 07.629 BRACKET; SPARE TIRE HANGER
4JB1 ENG(RLF) BATTERY NX200-10<S9C>,BATTERY 80D26R<6KC> (E) 		8-97015-884-1 01 1 9811- ●
21 07.629 BRACKET; SPARE TIRE HANGER
4JB1 ENG(RLF) EXC. BATTERY NX200-10<S9C>,BATTERY 80D26R<6KC> (E) 		8-94382-881-0 01 1 9811- ●
21 07.629 BRACKET; SPARE TIRE HANGER
4HF1 ENG(RLS) (E) 		8-94382-881-0 01 1 9811- ●
23 07.632 BOLT; BRKT,SPARE TIRE
4JG2 ENG(RJC),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> 03.405 M10X25 FLANGE 		0-28681-025-0 04 1 9811-0105 ●
23 07.632 BOLT; BRKT,SPARE TIRE
4JH1 ENG(RJX),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) EXC. SPARE TIRE CARRIER INSIDE MOUNTE D<P15> 03.405 M10X25 FLANGE 		0-28681-025-0 04 1 0106- ●
27 07.629 CUSHION; FRAME TO SPARE TIRE
EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6> 125X50X10 		8-94341-284-0 02 1 0201- ●
27 07.629 CUSHION; FRAME TO SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> EXC. AUSTRALIA EQUIPMENT(RR3),DUMP CHASSIS(V4D) 125X50X10 		8-94341-284-0 04 1 9811-9901 ●
27 07.629 CUSHION; FRAME TO SPARE TIRE
4JG2 ENG(RJC),4JB1 ENG(RLF) SPARE TIRE CARRIER INSIDE MOUNTED<P15> 125X50X10 		8-94341-284-0 04 1 9902-0105 ●
27 07.629 CUSHION; FRAME TO SPARE TIRE
4JH1 ENG(RJX),4JB1 ENG(RLF) SPARE TIRE CARRIER INSIDE MOUNTED<P15> 125X50X10 		8-94341-284-0 04 1 0106- ●
34 07.629 BOLT; SPARE TIRE
EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6> M12X305 		8-94441-189-0 02 1 0106- ●
34 07.629 BOLT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> M12X305 		8-94441-189-0 01 1 9811- ●
35 07.629 WASHER; PL,SPARE TIRE
EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6> 07.243 ID=12.5 OD=54 		8-94466-483-0 02 1 0106- ●
35 07.629 WASHER; PL,SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> 07.243 ID=12.5 OD=54 		8-94466-483-0 01 1 9811- ●
36 07.629 NUT; SPARE TIRE
EXC. HONG KONG EQUIPMENT(PQ1), AUSTRALIA EQUIPMENT(RR3),RR BODY FLAT BED<RS6> 05.816 M12 		9-99110-412-0 02 1 0106- ●
36 07.629 NUT; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> 05.816 M12 		9-99110-412-0 01 1 9811- ●
120 07.629 PLATE; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> DUMP CHASSIS(V4D) 07.518 		1-51377-166-0 01 1 9811-9901 ●
120 07.629 PLATE; SPARE TIRE
AUSTRALIA EQUIPMENT(RR3) REAR WIDE TREAD(V4T) 07.518 		1-51377-166-0 01 1 9811-9901 ●
120 07.629 PLATE; SPARE TIRE
4HF1 ENG(RLS) REAR WIDE TREAD(V4T) 07.518 		1-51377-166-0 01 1 9902- ●
120 07.629 PLATE; SPARE TIRE
SPARE TIRE CARRIER INSIDE MOUNTED<P15> DUMP CHASSIS(V4D) 07.518 		1-51377-166-0 01 1 9902- ●
128 07.629 HANGER ASM; TIRE END 8-94380-175-0 01 1 9811- ● ● ●
