Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#48533) — 494 parça

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F

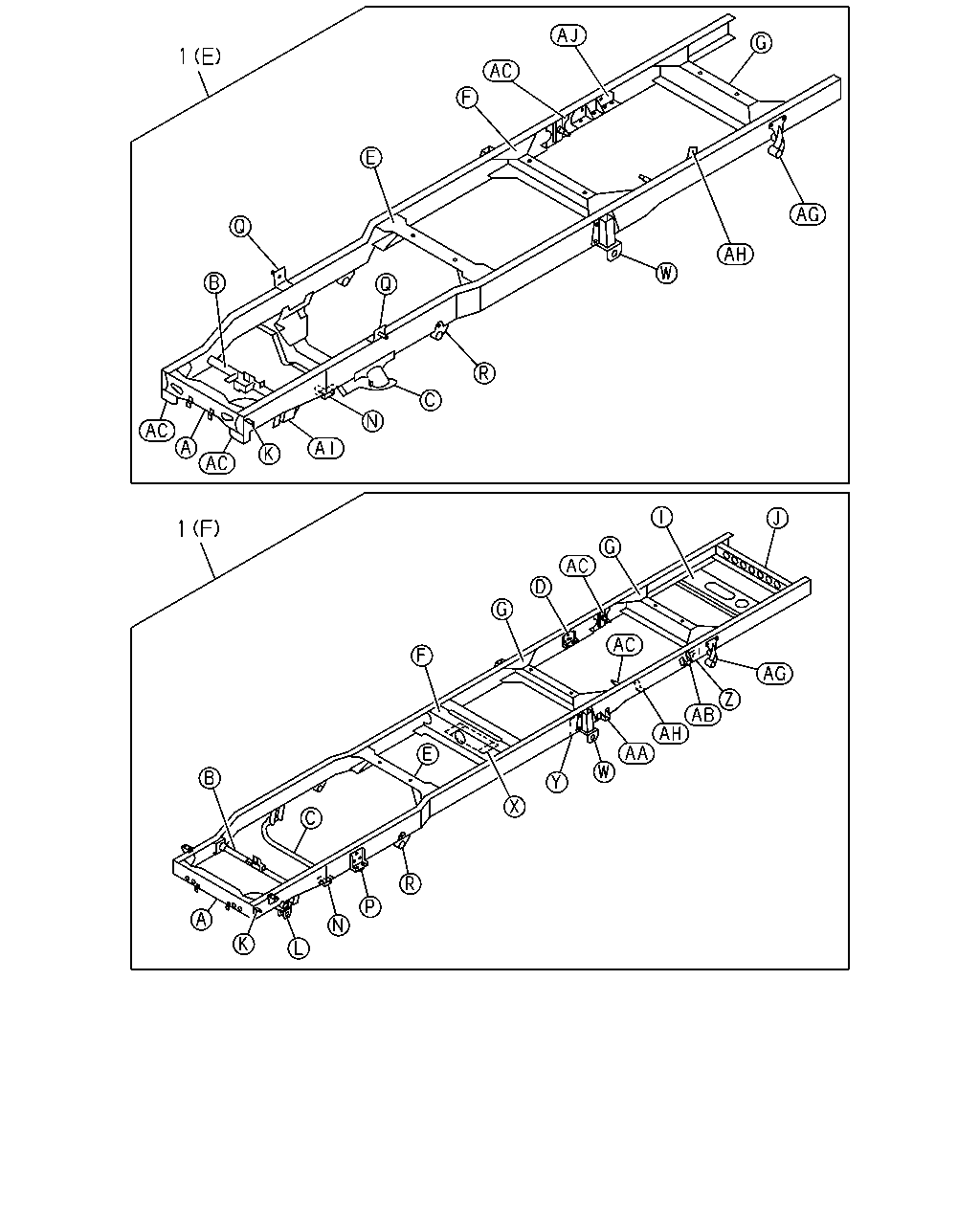

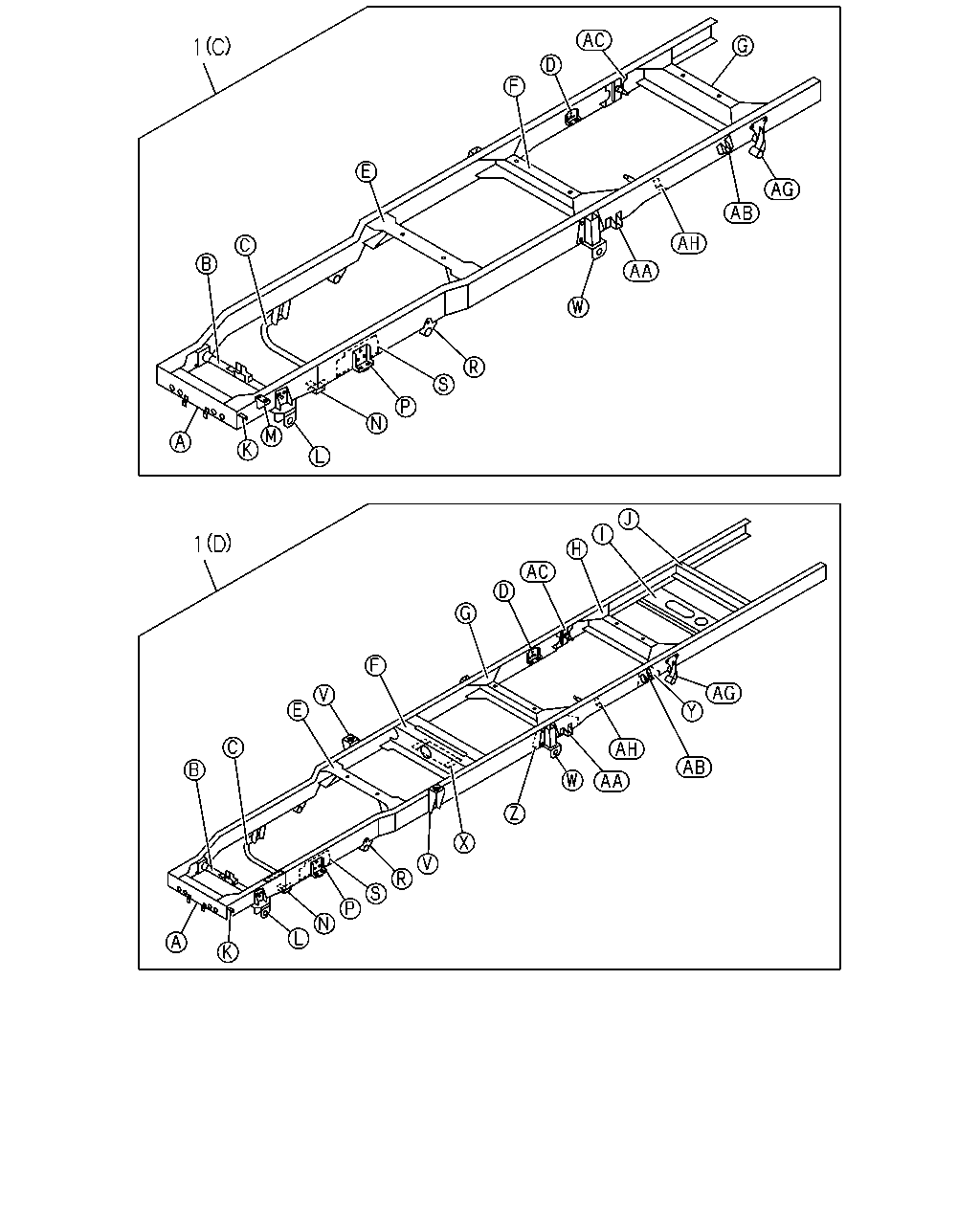

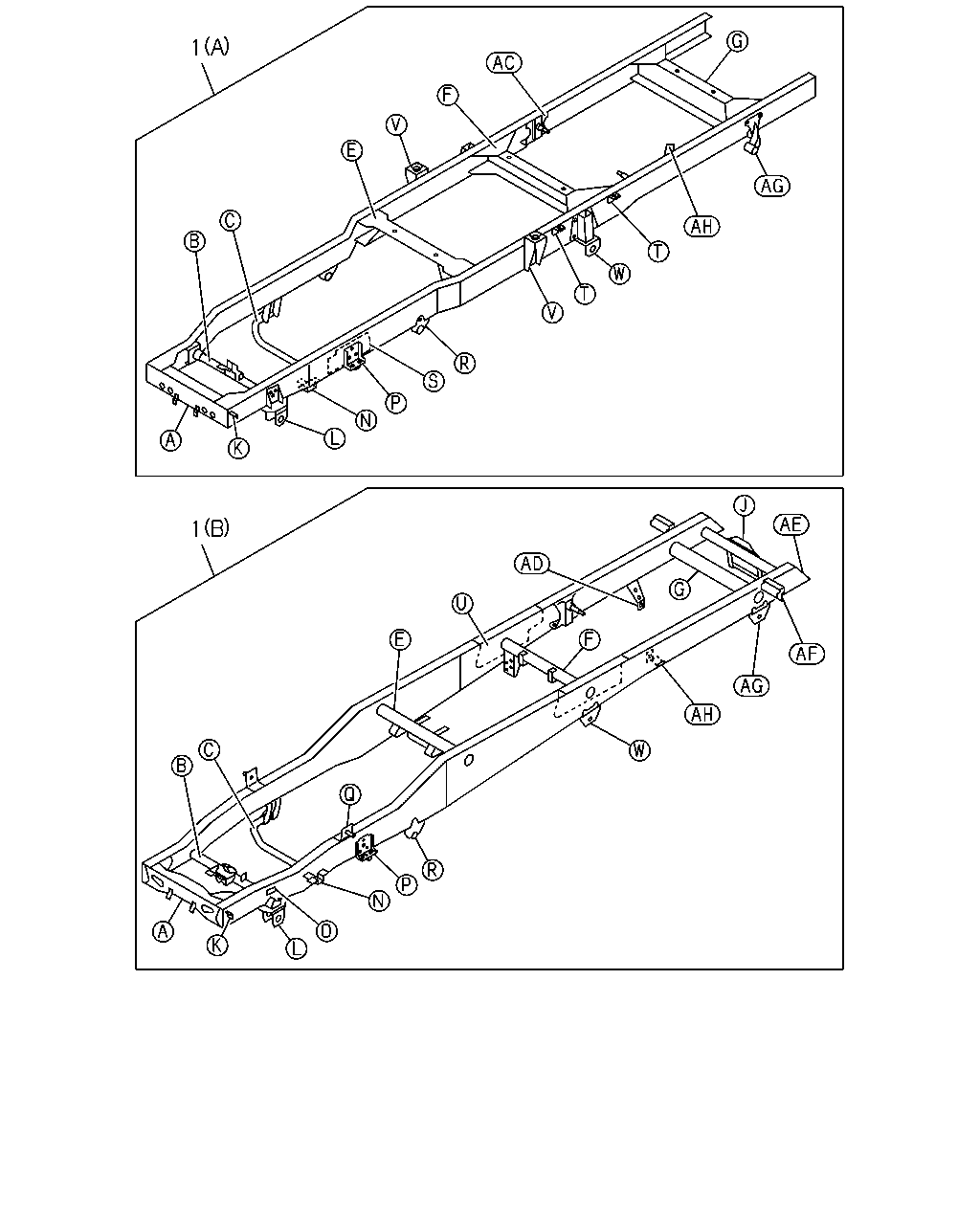

1	07.003 FRAME ASM 4HF1 ENG(RLS) (A)	8-97205-854-1	01	1	9811-0105	●
1	07.003 FRAME ASM 4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97310-096-0	01	1	0106-	●
1	07.003 FRAME ASM 4JG2 ENG(RJC),4JB1 ENG(RLF) (A)	8-97205-852-1	01	1	9811-0105	●
1	07.003 FRAME ASM 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97205-852-1	01	1	0106-	●
1	07.003 FRAME ASM RR BODY NON FLAT BED(RS5) (A)	8-97205-856-1	01	1	9811-		●
1	07.003 FRAME ASM EXC. RR BODY NON FLAT BED(RS5) (A)	8-97205-855-1	01	1	9811-		●
1	07.003 FRAME ASM 4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) REAR WIDE TREAD(V4T) (C)	8-97205-861-1	01	1	9811-			●
1	07.003 FRAME ASM 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B)	8-97205-860-1	01	1	9811-			●
1	07.003 FRAME ASM 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. AUSTRALIA EQUIPMENT(RR3) (C)	8-97205-859-1	01	1	9811-9901			●
1	07.003 FRAME ASM 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. AUSTRALIA EQUIPMENT(RR3) (D)	8-97224-382-0	01	1	9902-			●
1	07.003 FRAME ASM 4JG2 ENG(RJC),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (C)	8-97205-857-1	01	1	9811-0105			●
1	07.003 FRAME ASM 4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (C)	8-97205-857-1	01	1	0106-			●

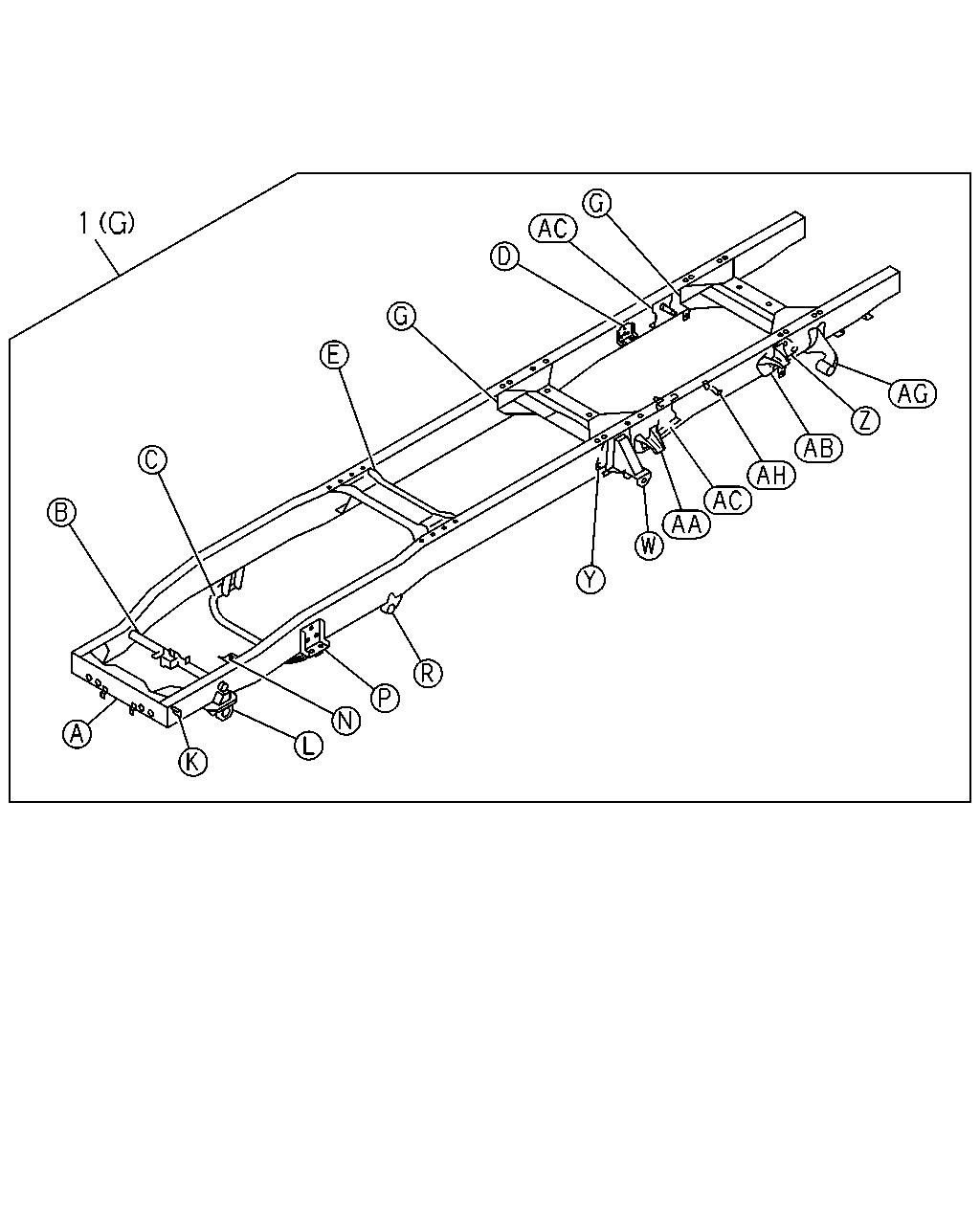

1	07.003 FRAME ASM 4JH1 ENG(RJX) REAR WIDE TREAD(V4T) (G)	8-97260-205-0	01	1	0106-			●
1	07.003 FRAME ASM 4HF1 ENG(RLS) THAILAND EQUIPMENT(PM9),INDONESIA EQUIPMENT(S4S) (D)	8-97205-864-1	01	1	9811-0105				●
1	07.003 FRAME ASM 4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) (D)	8-97205-864-1	01	1	0106-0107				●
1	07.003 FRAME ASM 4HG1 ENG(RJH),4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) (D)	8-97205-864-1	01	1	0108-				●
1	07.003 FRAME ASM 4HF1 ENG(RLS) EXC. THAILAND EQUIPMENT(PM9), INDONESIA EQUIPMENT(S4S) (D)	8-97205-863-2	01	1	9811-0105				●
1	07.003 FRAME ASM 4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) (D)	8-97205-863-2	01	1	0106-				●
1	07.003 FRAME ASM 4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) (F)	8-97307-675-0	01	1	0106-				●
1	07.003 FRAME ASM 4JG2 ENG(RJC),4JB1 ENG(RLF) (D)	8-97205-862-1	01	1	9811-0105				●
1	07.003 FRAME ASM 4JB1 ENG(RLF) EXC. SOUTH AFRICA EQUIPMENT(SW2) (D)	8-97205-862-1	01	1	0106-				●
1	07.003 FRAME ASM 4JH1 ENG(RJX) (F)	8-97260-206-1	01	1	0106-				●
1	07.003 FRAME ASM 4HF1 ENG(RLS) (D)	8-97205-866-1	01	1	9811-0105					●
1	07.003 FRAME ASM (D)	8-97205-866-1	01	1	0106-					●
1	07.003 FRAME ASM 4JG2 ENG(RJC) (D)	8-97205-865-1	01	1	9811-0105					●
1	07.003 FRAME ASM 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97305-460-1	01	1	0106-	●
1	07.003 FRAME ASM 4HF1 ENG(RLS) (A)	8-97205-868-1	01	1	9811-						●
1	07.003 FRAME ASM 4JB1 ENG(RLF) EXC. FRONT STABILIZER SHAFT<F59> (A)	8-97205-867-1	01	1	9811-						●

24 358 24 239 63 63 51 256 256 366 39 136 136

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
24	07.105 BRACKET; FRT SPR,FRT (A)	8-97065-789-1	01	1	9811-0105	●	●
24	07.105 BRACKET; FRT SPR,FRT 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97065-789-1	01	1	0106-	●
24	07.105 BRACKET; FRT SPR,FRT (A)	8-97065-789-1	01	1	0106-		●
24	07.105 BRACKET; FRT SPR,FRT (A)	8-94366-818-1	01	1	9811-0105	●	●
24	07.105 BRACKET; FRT SPR,FRT 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-94366-818-1	01	1	0106-	●
24	07.105 BRACKET; FRT SPR,FRT (A)	8-94366-818-1	01	1	0106-		●
24	07.105 BRACKET; FRT SPR,FRT REAR WIDE TREAD(V4T) (A)	8-97065-788-1	01	1	9811-			●
24	07.105 BRACKET; FRT SPR,FRT (A)	8-97065-788-1	01	1	9811-				●	●	●
24	07.105 BRACKET; FRT SPR,FRT REAR WIDE TREAD(V4T) (A)	8-94366-816-1	01	1	9811-			●
24	07.105 BRACKET; FRT SPR,FRT (A)	8-94366-816-1	01	1	9811-				●	●	●
24	07.105 BRACKET; FRT SPR,FRT 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B)	8-97033-232-1	01	1	9811-			●
24	07.105 BRACKET; FRT SPR,FRT 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B)	8-97033-231-1	01	1	9811-			●
39	07.112 BRACKET; FRT SPR,RR	8-94258-091-0	02	1	9811-0107	●	●	●	●	●	●
39	07.112 BRACKET; FRT SPR,RR 4JB1 ENG(RLF),4HF1 ENG(RLS)	8-94258-091-0	02	1	0108-	●
39	07.112 BRACKET; FRT SPR,RR	8-94258-091-0	02	1	0108-		●	●	●	●	●
51	07.011 BRACKET; ENG SUPPORT,OUTER 00.029	8-94258-086-1	02	1	9811-0107	●	●	●	●	●	●
51	07.011 BRACKET; ENG SUPPORT,OUTER 4JB1 ENG(RLF),4HF1 ENG(RLS) 00.029	8-94258-086-1	02	1	0108-	●
51	07.011 BRACKET; ENG SUPPORT,OUTER 00.029	8-94258-086-1	02	1	0108-		●	●	●	●	●
63	01.270 BRACKET; RAD MTG (A)	8-94257-950-1	01	1	9811-0105	●	●		●	●	●
63	01.270 BRACKET; RAD MTG REAR WIDE TREAD(V4T) (A)	8-94257-950-1	01	1	9811-0105			●
63	01.270 BRACKET; RAD MTG 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-94257-950-1	01	1	0106-0107	●
63	01.270 BRACKET; RAD MTG (A)	8-94257-950-1	01	1	0106-0107		●			●
63	01.270 BRACKET; RAD MTG 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A)	8-94257-950-1	01	1	0106-0107			●
63	01.270 BRACKET; RAD MTG 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) (A)	8-94257-950-1	01	1	0106-0107				●
63	01.270 BRACKET; RAD MTG 4HF1 ENG(RLS) (A)	8-94257-950-1	01	1	0106-0107						●
63	01.270 BRACKET; RAD MTG 4JB1 ENG(RLF) EXC. FRONT STABILIZER SHAFT<F59> (A)	8-94257-950-1	01	1	0106-0107						●
63	01.270 BRACKET; RAD MTG 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-94257-950-1	01	1	0108-	●
63	01.270 BRACKET; RAD MTG (A)	8-94257-950-1	01	1	0108-		●			●
63	01.270 BRACKET; RAD MTG 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A)	8-94257-950-1	01	1	0108-			●
63	01.270 BRACKET; RAD MTG 4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) (A)	8-94257-950-1	01	1	0108-				●
63	01.270 BRACKET; RAD MTG 4HG1 ENG(RJH),4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) (A)	8-94257-950-1	01	1	0108-				●
63	01.270 BRACKET; RAD MTG 4JH1 ENG(RJX),4JB1 ENG(RLF) (A)	8-94257-950-1	01	1	0108-				●
63	01.270 BRACKET; RAD MTG 4HF1 ENG(RLS) (A)	8-94257-950-1	01	1	0108-						●
63	01.270 BRACKET; RAD MTG 4JB1 ENG(RLF) EXC. FRONT STABILIZER SHAFT<F59> (A)	8-94257-950-1	01	1	0108-						●
63	01.270 BRACKET; RAD MTG 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B)	8-97072-648-0	01	1	9811-0105			●
63	01.270 BRACKET; RAD MTG 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97072-648-0	01	1	0106-	●
63	01.270 BRACKET; RAD MTG 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B)	8-97072-648-0	01	1	0106-			●
136	07.006 REINFORCEMENT; ENG SUPPORT 4JG2 ENG(RJC),4JB1 ENG(RLF) (A)	8-94370-228-1	01	1	9811-9912				●
136	07.006 REINFORCEMENT; ENG SUPPORT (A)	8-94370-228-1	01	1	9811-9912					●
136	07.006 REINFORCEMENT; ENG SUPPORT (A)	8-94370-228-1	01	1	0001-0105					●
136	07.006 REINFORCEMENT; ENG SUPPORT (A)	8-94370-228-1	01	1	0106-					●
136	07.006 REINFORCEMENT; ENG SUPPORT 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-97083-311-1	01	1	9811-9912				●
136	07.006 REINFORCEMENT; ENG SUPPORT (B)	8-97083-311-1	01	1	9811-9912					●
136	07.006 REINFORCEMENT; ENG SUPPORT (B)	8-97083-311-1	01	1	0001-0105					●
136	07.006 REINFORCEMENT; ENG SUPPORT (B)	8-97083-311-1	01	1	0106-					●
239	09.003 BRACKET; COIL SPR 4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) REAR WIDE TREAD(V4T)	8-97033-190-0	01	1	9811-			●
256	07.395 BRACKET; S/ABS 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97210-489-0	02	1	0106-	●
256	07.395 BRACKET; S/ABS 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (A)	8-97041-076-0	02	1	9811-			●
358	07.039 BRACKET; CAB EARTH	8-97065-790-3	01	1	9811-	●	●	●	●	●	●
366	07.039 SPACER; BRKT 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D)	8-97034-222-0	02	1	9811-			●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	07.003 FRAME ASM 4HF1 ENG(RLS) (A)	8-97205-854-1	01	1	9811-0105	●
1	07.003 FRAME ASM 4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97310-096-0	01	1	0106-	●
1	07.003 FRAME ASM 4JG2 ENG(RJC),4JB1 ENG(RLF) (A)	8-97205-852-1	01	1	9811-0105	●
1	07.003 FRAME ASM 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97205-852-1	01	1	0106-	●
1	07.003 FRAME ASM RR BODY NON FLAT BED(RS5) (A)	8-97205-856-1	01	1	9811-		●
1	07.003 FRAME ASM EXC. RR BODY NON FLAT BED(RS5) (A)	8-97205-855-1	01	1	9811-		●
1	07.003 FRAME ASM 4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) REAR WIDE TREAD(V4T) (C)	8-97205-861-1	01	1	9811-			●
1	07.003 FRAME ASM 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B)	8-97205-860-1	01	1	9811-			●
1	07.003 FRAME ASM 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. AUSTRALIA EQUIPMENT(RR3) (C)	8-97205-859-1	01	1	9811-9901			●
1	07.003 FRAME ASM 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. AUSTRALIA EQUIPMENT(RR3) (D)	8-97224-382-0	01	1	9902-			●
1	07.003 FRAME ASM 4JG2 ENG(RJC),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (C)	8-97205-857-1	01	1	9811-0105			●
1	07.003 FRAME ASM 4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (C)	8-97205-857-1	01	1	0106-			●
1	07.003 FRAME ASM 4JH1 ENG(RJX) REAR WIDE TREAD(V4T) (G)	8-97260-205-0	01	1	0106-			●
1	07.003 FRAME ASM 4HF1 ENG(RLS) THAILAND EQUIPMENT(PM9),INDONESIA EQUIPMENT(S4S) (D)	8-97205-864-1	01	1	9811-0105				●
1	07.003 FRAME ASM 4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) (D)	8-97205-864-1	01	1	0106-0107				●
1	07.003 FRAME ASM 4HG1 ENG(RJH),4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) (D)	8-97205-864-1	01	1	0108-				●
1	07.003 FRAME ASM 4HF1 ENG(RLS) EXC. THAILAND EQUIPMENT(PM9), INDONESIA EQUIPMENT(S4S) (D)	8-97205-863-2	01	1	9811-0105				●
1	07.003 FRAME ASM 4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) (D)	8-97205-863-2	01	1	0106-				●
1	07.003 FRAME ASM 4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) (F)	8-97307-675-0	01	1	0106-				●
1	07.003 FRAME ASM 4JG2 ENG(RJC),4JB1 ENG(RLF) (D)	8-97205-862-1	01	1	9811-0105				●
1	07.003 FRAME ASM 4JB1 ENG(RLF) EXC. SOUTH AFRICA EQUIPMENT(SW2) (D)	8-97205-862-1	01	1	0106-				●
1	07.003 FRAME ASM 4JH1 ENG(RJX) (F)	8-97260-206-1	01	1	0106-				●
1	07.003 FRAME ASM 4HF1 ENG(RLS) (D)	8-97205-866-1	01	1	9811-0105					●
1	07.003 FRAME ASM (D)	8-97205-866-1	01	1	0106-					●
1	07.003 FRAME ASM 4JG2 ENG(RJC) (D)	8-97205-865-1	01	1	9811-0105					●
1	07.003 FRAME ASM 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97305-460-1	01	1	0106-	●
1	07.003 FRAME ASM 4HF1 ENG(RLS) (A)	8-97205-868-1	01	1	9811-						●
1	07.003 FRAME ASM 4JB1 ENG(RLF) EXC. FRONT STABILIZER SHAFT<F59> (A)	8-97205-867-1	01	1	9811-						●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	07.003 FRAME ASM 4HF1 ENG(RLS) (A)	8-97205-854-1	01	1	9811-0105	●
1	07.003 FRAME ASM 4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97310-096-0	01	1	0106-	●
1	07.003 FRAME ASM 4JG2 ENG(RJC),4JB1 ENG(RLF) (A)	8-97205-852-1	01	1	9811-0105	●
1	07.003 FRAME ASM 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97205-852-1	01	1	0106-	●
1	07.003 FRAME ASM RR BODY NON FLAT BED(RS5) (A)	8-97205-856-1	01	1	9811-		●
1	07.003 FRAME ASM EXC. RR BODY NON FLAT BED(RS5) (A)	8-97205-855-1	01	1	9811-		●
1	07.003 FRAME ASM 4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) REAR WIDE TREAD(V4T) (C)	8-97205-861-1	01	1	9811-			●
1	07.003 FRAME ASM 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B)	8-97205-860-1	01	1	9811-			●
1	07.003 FRAME ASM 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. AUSTRALIA EQUIPMENT(RR3) (C)	8-97205-859-1	01	1	9811-9901			●
1	07.003 FRAME ASM 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. AUSTRALIA EQUIPMENT(RR3) (D)	8-97224-382-0	01	1	9902-			●
1	07.003 FRAME ASM 4JG2 ENG(RJC),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (C)	8-97205-857-1	01	1	9811-0105			●
1	07.003 FRAME ASM 4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (C)	8-97205-857-1	01	1	0106-			●
1	07.003 FRAME ASM 4JH1 ENG(RJX) REAR WIDE TREAD(V4T) (G)	8-97260-205-0	01	1	0106-			●
1	07.003 FRAME ASM 4HF1 ENG(RLS) THAILAND EQUIPMENT(PM9),INDONESIA EQUIPMENT(S4S) (D)	8-97205-864-1	01	1	9811-0105				●
1	07.003 FRAME ASM 4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) (D)	8-97205-864-1	01	1	0106-0107				●
1	07.003 FRAME ASM 4HG1 ENG(RJH),4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) (D)	8-97205-864-1	01	1	0108-				●
1	07.003 FRAME ASM 4HF1 ENG(RLS) EXC. THAILAND EQUIPMENT(PM9), INDONESIA EQUIPMENT(S4S) (D)	8-97205-863-2	01	1	9811-0105				●
1	07.003 FRAME ASM 4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) (D)	8-97205-863-2	01	1	0106-				●
1	07.003 FRAME ASM 4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) (F)	8-97307-675-0	01	1	0106-				●
1	07.003 FRAME ASM 4JG2 ENG(RJC),4JB1 ENG(RLF) (D)	8-97205-862-1	01	1	9811-0105				●
1	07.003 FRAME ASM 4JB1 ENG(RLF) EXC. SOUTH AFRICA EQUIPMENT(SW2) (D)	8-97205-862-1	01	1	0106-				●
1	07.003 FRAME ASM 4JH1 ENG(RJX) (F)	8-97260-206-1	01	1	0106-				●
1	07.003 FRAME ASM 4HF1 ENG(RLS) (D)	8-97205-866-1	01	1	9811-0105					●
1	07.003 FRAME ASM (D)	8-97205-866-1	01	1	0106-					●
1	07.003 FRAME ASM 4JG2 ENG(RJC) (D)	8-97205-865-1	01	1	9811-0105					●
1	07.003 FRAME ASM 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97305-460-1	01	1	0106-	●
1	07.003 FRAME ASM 4HF1 ENG(RLS) (A)	8-97205-868-1	01	1	9811-						●
1	07.003 FRAME ASM 4JB1 ENG(RLF) EXC. FRONT STABILIZER SHAFT<F59> (A)	8-97205-867-1	01	1	9811-						●

34 34 34 74 75 74 344 345 74 75 74 344 345 212

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
34	07.012 MEMBER; CROSS,3RD 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97039-668-1	01	1	0106-	●
34	07.012 MEMBER; CROSS,3RD 4JG2 ENG(RJC),4JB1 ENG(RLF) (A)	8-97039-670-1	01	1	9811-0105	●	●				●
34	07.012 MEMBER; CROSS,3RD 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97039-670-1	01	1	0106-	●
34	07.012 MEMBER; CROSS,3RD (A)	8-97039-670-1	01	1	0106-		●
34	07.012 MEMBER; CROSS,3RD 4JB1 ENG(RLF) EXC. FRONT STABILIZER SHAFT<F59> (A)	8-97039-670-1	01	1	0106-						●
34	07.012 MEMBER; CROSS,3RD 4HF1 ENG(RLS) (B)	8-97072-553-1	01	1	9811-0105	●					●
34	07.012 MEMBER; CROSS,3RD 4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97072-553-1	01	1	0106-	●
34	07.012 MEMBER; CROSS,3RD 4HF1 ENG(RLS) (B)	8-97072-553-1	01	1	0106-						●
34	07.012 MEMBER; CROSS,3RD 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (C)	8-97033-226-5	01	1	9811-			●
34	07.012 MEMBER; CROSS,3RD 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B)	8-97047-768-1	01	1	9811-0105			●
34	07.012 MEMBER; CROSS,3RD 4HF1 ENG(RLS) (B)	8-97047-768-1	01	1	9811-0105					●
34	07.012 MEMBER; CROSS,3RD 4JH1 ENG(RJX),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B)	8-97047-768-1	01	1	0106-			●
34	07.012 MEMBER; CROSS,3RD 4JH1 ENG(RJX) (B)	8-97047-768-1	01	1	0106-				●
34	07.012 MEMBER; CROSS,3RD (B)	8-97047-768-1	01	1	0106-					●
34	07.012 MEMBER; CROSS,3RD 4JG2 ENG(RJC),4JB1 ENG(RLF) (A)	8-97115-578-0	01	1	9811-0105			●	●	●
34	07.012 MEMBER; CROSS,3RD 4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (A)	8-97115-578-0	01	1	0106-			●
34	07.012 MEMBER; CROSS,3RD 4JB1 ENG(RLF) (A)	8-97115-578-0	01	1	0106-				●
34	07.012 MEMBER; CROSS,3RD 4HF1 ENG(RLS) (B)	8-97039-671-1	01	1	9811-0105				●
34	07.012 MEMBER; CROSS,3RD EXC. FRAME PRESS KOUGYOU<7RZ> (B)	8-97039-671-1	01	1	0106-0107				●
34	07.012 MEMBER; CROSS,3RD 4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) (B)	8-97039-671-1	01	1	0108-				●
34	07.012 MEMBER; CROSS,3RD 4HG1 ENG(RJH),4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) (B)	8-97039-671-1	01	1	0108-				●

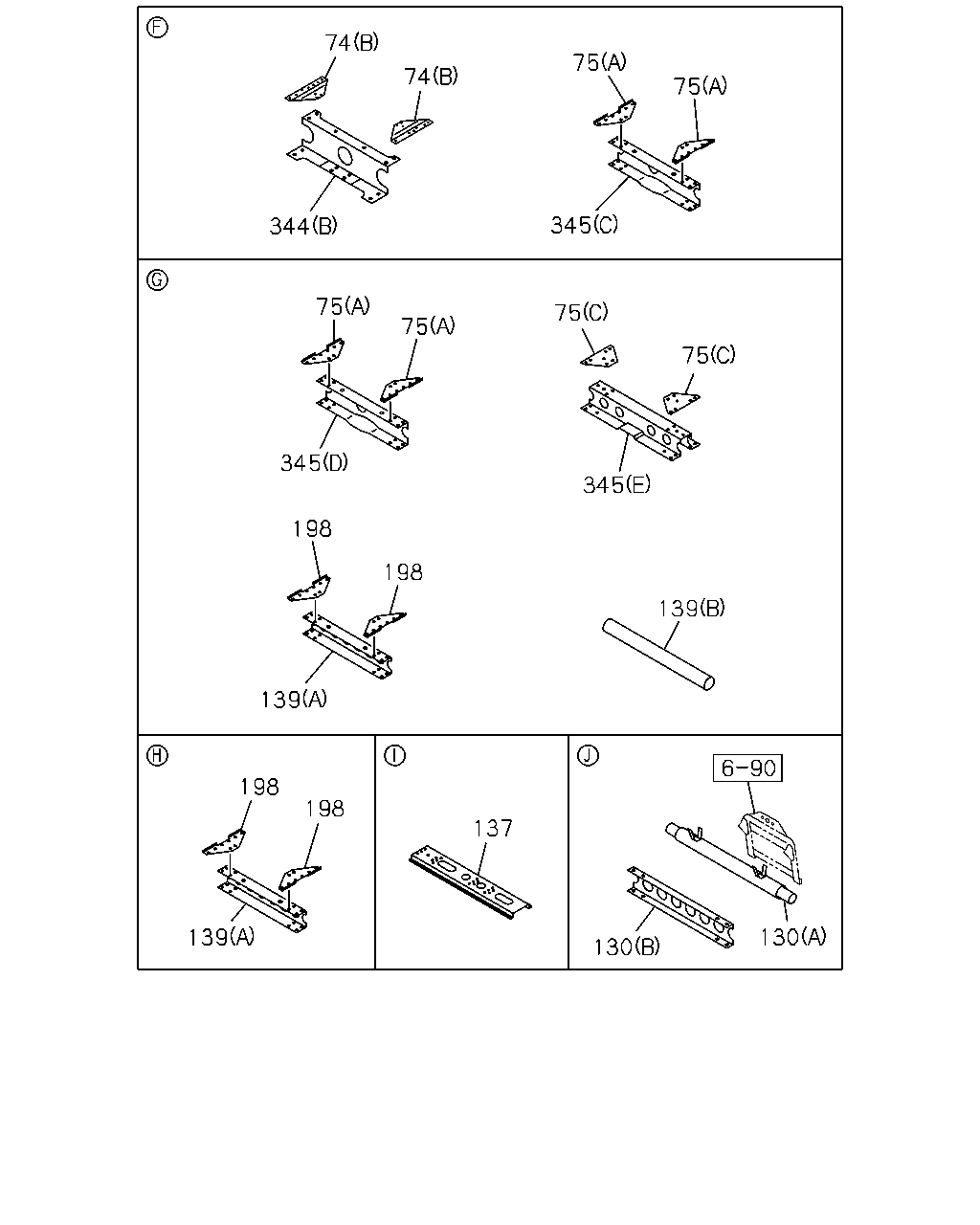

74	07.039 GUSSET; 4TH C/MBR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-94258-075-3	02	1	0106-	●
74	07.039 GUSSET; 4TH C/MBR (A) RH-UPPER, LH-LOWER	8-97101-837-1	02	1	9811-				●
74	07.039 GUSSET; 4TH C/MBR (A) RH-LOWER, LH-UPPER	8-97101-838-1	02	1	9811-				●
74	07.039 GUSSET; 4TH C/MBR (B)	8-97101-840-0	01	1	9811-					●
74	07.039 GUSSET; 4TH C/MBR (B)	8-97101-839-0	01	1	9811-					●
75	07.039 GUSSET; 5TH C/MBR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-94258-081-1	02	1	0106-	●
75	07.039 GUSSET; 5TH C/MBR (B)	8-94258-075-3	02	1	9811-0105	●	●
75	07.039 GUSSET; 5TH C/MBR 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94258-075-3	02	1	0106-	●
75	07.039 GUSSET; 5TH C/MBR (B)	8-94258-075-3	02	1	0106-		●
75	07.039 GUSSET; 5TH C/MBR REAR WIDE TREAD(V4T) (A)	8-97062-499-0	02	1	9811-			●
75	07.039 GUSSET; 5TH C/MBR (A)	8-97062-499-0	02	1	9811-				●	●	●
75	07.039 GUSSET; 5TH C/MBR REAR WIDE TREAD(V4T) (A)	8-97062-500-0	02	1	9811-			●
75	07.039 GUSSET; 5TH C/MBR (A)	8-97062-500-0	02	1	9811-				●	●	●
212	03.704 BRACKET; EXH SILENCER 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D)	8-97034-037-2	01	1	9811-			●
344	07.012 MEMBER; CROSS,4TH 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97081-061-2	01	1	0106-	●
344	07.012 MEMBER; CROSS,4TH (A)	8-97078-707-3	01	1	9811-				●
344	07.012 MEMBER; CROSS,4TH (B)	8-97101-836-0	01	1	9811-					●
345	07.012 MEMBER; CROSS,5TH 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97045-542-2	01	1	0106-	●
345	07.012 MEMBER; CROSS,5TH (A)	8-97081-061-2	01	1	9811-0105	●	●
345	07.012 MEMBER; CROSS,5TH 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97081-061-2	01	1	0106-	●
345	07.012 MEMBER; CROSS,5TH (A)	8-97081-061-2	01	1	0106-		●
345	07.012 MEMBER; CROSS,5TH REAR WIDE TREAD(V4T) (D)	8-97062-497-3	01	1	9811-			●
345	07.012 MEMBER; CROSS,5TH (D)	8-97062-497-3	01	1	9811-				●	●
345	07.012 MEMBER; CROSS,5TH 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B)	8-97086-151-1	01	1	9811-			●
345	07.012 MEMBER; CROSS,5TH (C)	8-97076-793-2	01	1	9811-						●

376 376 376 376 376 376 376 376 376 376 376 376 376 376 376 16 16 176 221 286 288 4 118 336

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
4	07.039 NUT; 1ST C/MBR TO S/MBR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 01.540 M8 FLANGE	0-91150-208-0	02	1	0106-0207	●
16	07.039 BOLT; 1ST C/MBR TO S/MBR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 07.874 (B) M12X30 W/LK&PL WASHER	0-50141-230-0	12	1	0106-	●
16	07.039 BOLT; 1ST C/MBR TO S/MBR 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) 01.531 (A) M8X25 FLANGE	0-28080-825-0	02	1	9811-0105			●
16	07.039 BOLT; 1ST C/MBR TO S/MBR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 01.531 (A) M8X25 FLANGE	0-28080-825-0	02	1	0106-0207	●
16	07.039 BOLT; 1ST C/MBR TO S/MBR 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) 01.531 (A) M8X25 FLANGE	0-28080-825-0	02	1	0106-0207			●
118	07.529 NUT; STOPPER REAR WIDE TREAD(V4T) 07.633 M8 FLANGE	0-91150-108-0	04	1	9811-0109			●
118	07.529 NUT; STOPPER 07.633 M8 FLANGE	0-91150-108-0	04	1	9811-0109				●	●
118	07.529 NUT; STOPPER REAR WIDE TREAD(V4T) 07.242 M8 LOCK NUT	9-09131-508-0	04	1	0110-			●
118	07.529 NUT; STOPPER 07.242 M8 LOCK NUT	9-09131-508-0	04	1	0110-				●	●
176	04.085 BOLT; C/MBR,ENG MTG 03.417 M10X25 FLANGE	0-28081-025-0	08	1	9811-0105	●	●	●	●	●	●
176	04.085 BOLT; C/MBR,ENG MTG 4JB1 ENG(RLF),4HF1 ENG(RLS) 03.417 M10X25 FLANGE	0-28081-025-0	08	1	0106-0107	●	●	●	●	●	●
176	04.085 BOLT; C/MBR,ENG MTG 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) 03.417 M10X25 FLANGE	0-28081-025-0	08	1	0108-	●	●	●	●	●	●
176	04.085 BOLT; C/MBR,ENG MTG 4JH1 ENG(RJX) REAR WIDE TREAD(V4T) 00.685 M10X30 FLANGE	0-28081-030-0	08	1	0106-			●
176	04.085 BOLT; C/MBR,ENG MTG 4JH1 ENG(RJX) 00.685 M10X30 FLANGE	0-28081-030-0	08	1	0106-				●
221	01.270 BOLT; RAD MTG BRKT,FRAME 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) 03.417 M10X25 FLANGE	0-28081-025-0	02	1	9811-0105			●
221	01.270 BOLT; RAD MTG BRKT,FRAME 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) 03.417 M10X25 FLANGE	0-28081-025-0	02	1	0106-	●
221	01.270 BOLT; RAD MTG BRKT,FRAME 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) 03.417 M10X25 FLANGE	0-28081-025-0	02	1	0106-			●
286	07.632 BOLT; SPARE TIRE BRKT AUSTRALIA EQUIPMENT(RR3) REAR WIDE TREAD(V4T) 03.023 M10X30 FLANGE	0-28691-030-0	06	1	9811-9901			●
286	07.632 BOLT; SPARE TIRE BRKT 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) 03.023 M10X30 FLANGE	0-28691-030-0	06	1	9902-			●
288	07.632 NUT; SPARE TIRE BRKT AUSTRALIA EQUIPMENT(RR3) REAR WIDE TREAD(V4T) 08.917 M10 FLANGE	0-91150-210-0	06	1	9811-9901			●
288	07.632 NUT; SPARE TIRE BRKT 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) 08.917 M10 FLANGE	0-91150-210-0	06	1	9902-			●
336	07.068 PLUG; HOLE DUMP CHASSIS(V4D) FRAME-KICK UP<7EW>	8-97062-510-0	10	1	0002-0208			●
376	07.039 RIVET; FRAME (A) D8X20 TAPER END	9-06750-820-0	AR	1	9811-	●	●	●	●	●	●
376	07.039 RIVET; FRAME 07.011 (B) D8X22 TAPER END	9-06750-822-0	AR	1	9811-	●	●	●	●	●	●
376	07.039 RIVET; FRAME 07.395 (C) D8X28 TAPER END	9-06750-828-0	AR	1	9811-	●	●	●	●	●	●
376	07.039 RIVET; FRAME (D) D10X24 TAPER END	9-06751-024-0	AR	1	9811-	●	●	●	●	●	●
376	07.039 RIVET; FRAME (E) D10X26 TAPER END	9-06751-026-0	AR	1	9811-	●	●	●	●	●	●
376	07.039 RIVET; FRAME (F) D10X28 TAPER END	9-06751-028-0	AR	1	9811-	●	●	●	●	●	●
376	07.039 RIVET; FRAME (G) D10X30 TAPER END	9-06751-030-0	AR	1	9811-	●	●	●	●	●	●
376	07.039 RIVET; FRAME (H) D10X32 TAPER END	9-06751-032-0	AR	1	9811-	●	●	●	●	●	●
376	07.039 RIVET; FRAME (I) D10X36 TAPER END	9-06751-036-0	AR	1	9811-	●	●	●	●	●	●
376	07.039 RIVET; FRAME (J) D11X26 TAPER END	9-06751-126-0	AR	1	9811-	●	●	●	●	●	●
376	07.039 RIVET; FRAME 07.105 (K) D12X30 TAPER END	9-06751-230-0	AR	1	9811-	●	●	●	●	●	●
376	07.039 RIVET; FRAME 07.535 (L) D12X34 TAPER END	9-06751-234-0	AR	1	9811-	●	●	●	●	●	●
376	07.039 RIVET; FRAME 07.112 (M) D12X38 TAPER END	9-06751-238-0	AR	1	9811-	●	●	●	●	●	●
376	07.039 RIVET; FRAME 07.395 (N) D8X26 TAPER END	9-06750-826-0	AR	1	9811-	●	●	●	●	●	●
376	07.039 RIVET; FRAME 07.006 (O) D12X32 TAPER END	9-06751-232-0	AR	1	9811-	●	●	●	●	●	●

188 173 173 103 103 147 147 140 140 140 234 150 235

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
103	07.420 STOPPER; SUB SPR REAR WIDE TREAD(V4T) (A)	8-97040-628-0	02	1	9811-9902			●
103	07.420 STOPPER; SUB SPR (A)	8-97040-628-0	02	1	9811-9902				●	●
103	07.420 STOPPER; SUB SPR 4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) REAR WIDE TREAD(V4T) (A)	8-97040-628-0	02	1	9903-9904			●
103	07.420 STOPPER; SUB SPR 4JG2 ENG(RJC),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (A)	8-97040-628-0	02	1	9903-9904			●
103	07.420 STOPPER; SUB SPR 4JG2 ENG(RJC),4JB1 ENG(RLF) (A)	8-97040-628-0	02	1	9903-9904				●
103	07.420 STOPPER; SUB SPR 4HF1 ENG(RLS) THAILAND EQUIPMENT(PM9),INDONESIA EQUIPMENT(S4S) (A)	8-97040-628-0	02	1	9903-9904				●
103	07.420 STOPPER; SUB SPR 4JG2 ENG(RJC),4HF1 ENG(RLS) (A)	8-97040-628-0	02	1	9903-9904					●
103	07.420 STOPPER; SUB SPR REAR WIDE TREAD(V4T) (B)	8-97040-629-0	02	1	9811-9902			●
103	07.420 STOPPER; SUB SPR (B)	8-97040-629-0	02	1	9811-9902				●	●
103	07.420 STOPPER; SUB SPR 4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) REAR WIDE TREAD(V4T) (B)	8-97040-629-0	02	1	9903-9904			●
103	07.420 STOPPER; SUB SPR 4JG2 ENG(RJC),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (B)	8-97040-629-0	02	1	9903-9904			●
103	07.420 STOPPER; SUB SPR 4JG2 ENG(RJC),4JB1 ENG(RLF) (B)	8-97040-629-0	02	1	9903-9904				●
103	07.420 STOPPER; SUB SPR 4HF1 ENG(RLS) THAILAND EQUIPMENT(PM9),INDONESIA EQUIPMENT(S4S) (B)	8-97040-629-0	02	1	9903-9904				●
103	07.420 STOPPER; SUB SPR 4JG2 ENG(RJC),4HF1 ENG(RLS) (B)	8-97040-629-0	02	1	9903-9904					●
103	07.420 STOPPER; SUB SPR 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97223-748-0	02	1	9902-9902			●
103	07.420 STOPPER; SUB SPR 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-97223-748-0	02	1	9903-9904			●
103	07.420 STOPPER; SUB SPR 4HF1 ENG(RLS) EXC. THAILAND EQUIPMENT(PM9), INDONESIA EQUIPMENT(S4S) (A)	8-97223-748-0	02	1	9903-9904				●
103	07.420 STOPPER; SUB SPR REAR WIDE TREAD(V4T) (A)	8-97223-748-0	02	1	9905-			●
103	07.420 STOPPER; SUB SPR (A)	8-97223-748-0	02	1	9905-				●	●
103	07.420 STOPPER; SUB SPR 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. AUSTRALIA EQUIPMENT(RR3) (B)	8-97223-750-0	02	1	9902-9902			●
103	07.420 STOPPER; SUB SPR 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. AUSTRALIA EQUIPMENT(RR3) (B)	8-97223-750-0	02	1	9903-9904			●
103	07.420 STOPPER; SUB SPR 4HF1 ENG(RLS) EXC. THAILAND EQUIPMENT(PM9), INDONESIA EQUIPMENT(S4S) (B)	8-97223-750-0	02	1	9903-9904				●
103	07.420 STOPPER; SUB SPR REAR WIDE TREAD(V4T) (B)	8-97223-750-0	02	1	9905-			●
103	07.420 STOPPER; SUB SPR (B)	8-97223-750-0	02	1	9905-				●	●
140	07.112 BRACKET; S/ABS,RR (A)	8-94258-104-1	01	1	9811-	●	●				●
140	07.112 BRACKET; S/ABS,RR (A)	8-94258-103-1	01	1	9811-	●	●				●
140	07.112 BRACKET; S/ABS,RR REAR WIDE TREAD(V4T) (B)	8-97012-285-0	01	1	9811-			●
140	07.112 BRACKET; S/ABS,RR (B)	8-97012-285-0	01	1	9811-				●	●
140	07.112 BRACKET; S/ABS,RR REAR WIDE TREAD(V4T) 07.395 (C)	8-94101-303-0	01	1	9811-			●
140	07.112 BRACKET; S/ABS,RR 07.395 (C)	8-94101-303-0	01	1	9811-				●	●
147	07.535 RUBBER; SUB SPRING REAR WIDE TREAD(V4T)	8-94119-958-1	04	1	9811-0003			●
147	07.535 RUBBER; SUB SPRING	8-94119-958-1	04	1	9811-0003				●	●
147	07.535 RUBBER; SUB SPRING REAR WIDE TREAD(V4T)	8-97254-387-0	04	1	0004-			●
147	07.535 RUBBER; SUB SPRING	8-97254-387-0	04	1	0004-				●	●
150	03.616 BRACKET; EXH PIPE 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D)	8-94388-181-0	01	1	9811-			●
173	07.112 STIFFENER; RR SPRING 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94372-324-1	02	1	9811-0105			●
173	07.112 STIFFENER; RR SPRING 4JG2 ENG(RJC),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (A)	8-94372-324-1	02	1	9811-0105			●
173	07.112 STIFFENER; RR SPRING 4HF1 ENG(RLS) (A)	8-94372-324-1	02	1	9811-0105				●	●
173	07.112 STIFFENER; RR SPRING 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94372-324-1	02	1	0106-0107			●
173	07.112 STIFFENER; RR SPRING 4JH1 ENG(RJX),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (A)	8-94372-324-1	02	1	0106-0107			●
173	07.112 STIFFENER; RR SPRING 4HF1 ENG(RLS) (A)	8-94372-324-1	02	1	0106-0107				●
173	07.112 STIFFENER; RR SPRING (A)	8-94372-324-1	02	1	0106-0107					●
173	07.112 STIFFENER; RR SPRING 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. AUSTRALIA EQUIPMENT(RR3) (A)	8-94372-324-1	02	1	0108-			●
173	07.112 STIFFENER; RR SPRING 4JH1 ENG(RJX),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (A)	8-94372-324-1	02	1	0108-			●
173	07.112 STIFFENER; RR SPRING 4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) (A)	8-94372-324-1	02	1	0108-				●
173	07.112 STIFFENER; RR SPRING 4HG1 ENG(RJH),4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) (A)	8-94372-324-1	02	1	0108-				●
173	07.112 STIFFENER; RR SPRING (A)	8-94372-324-1	02	1	0108-					●
173	07.112 STIFFENER; RR SPRING 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. AUSTRALIA EQUIPMENT(RR3) (B)	8-94408-191-0	01	1	9811-0105			●
173	07.112 STIFFENER; RR SPRING 4JG2 ENG(RJC),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (B)	8-94408-191-0	01	1	9811-0105			●
173	07.112 STIFFENER; RR SPRING 4HF1 ENG(RLS) (B)	8-94408-191-0	01	1	9811-0105				●	●
173	07.112 STIFFENER; RR SPRING 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. AUSTRALIA EQUIPMENT(RR3) (B)	8-94408-191-0	01	1	0106-0107			●
173	07.112 STIFFENER; RR SPRING 4JH1 ENG(RJX),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (B)	8-94408-191-0	01	1	0106-0107			●
173	07.112 STIFFENER; RR SPRING 4HF1 ENG(RLS) (B)	8-94408-191-0	01	1	0106-0107				●
173	07.112 STIFFENER; RR SPRING (B)	8-94408-191-0	01	1	0106-0107					●
173	07.112 STIFFENER; RR SPRING 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. AUSTRALIA EQUIPMENT(RR3) (B)	8-94408-191-2	01	1	0108-			●
173	07.112 STIFFENER; RR SPRING 4JH1 ENG(RJX),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (B)	8-94408-191-2	01	1	0108-			●
173	07.112 STIFFENER; RR SPRING 4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) (B)	8-94408-191-2	01	1	0108-				●
173	07.112 STIFFENER; RR SPRING 4HG1 ENG(RJH),4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) (B)	8-94408-191-2	01	1	0108-				●
173	07.112 STIFFENER; RR SPRING (B)	8-94408-191-2	01	1	0108-					●
173	07.112 STIFFENER; RR SPRING 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. AUSTRALIA EQUIPMENT(RR3) (B)	8-94403-508-1	01	1	9811-0105			●
173	07.112 STIFFENER; RR SPRING 4JG2 ENG(RJC),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (B)	8-94403-508-1	01	1	9811-0105			●
173	07.112 STIFFENER; RR SPRING 4HF1 ENG(RLS) (B)	8-94403-508-1	01	1	9811-0105				●	●
173	07.112 STIFFENER; RR SPRING 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. AUSTRALIA EQUIPMENT(RR3) (B)	8-94403-508-1	01	1	0106-0107			●
173	07.112 STIFFENER; RR SPRING 4JH1 ENG(RJX),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (B)	8-94403-508-1	01	1	0106-0107			●
173	07.112 STIFFENER; RR SPRING 4HF1 ENG(RLS) (B)	8-94403-508-1	01	1	0106-0107				●
173	07.112 STIFFENER; RR SPRING (B)	8-94403-508-1	01	1	0106-0107					●
173	07.112 STIFFENER; RR SPRING 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. AUSTRALIA EQUIPMENT(RR3) (B)	8-94403-508-2	01	1	0108-			●
173	07.112 STIFFENER; RR SPRING 4JH1 ENG(RJX),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (B)	8-94403-508-2	01	1	0108-			●
173	07.112 STIFFENER; RR SPRING 4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) (B)	8-94403-508-2	01	1	0108-				●
173	07.112 STIFFENER; RR SPRING 4HG1 ENG(RJH),4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) (B)	8-94403-508-2	01	1	0108-				●
173	07.112 STIFFENER; RR SPRING (B)	8-94403-508-2	01	1	0108-					●
188	07.039 BRACKET; SUPPORT,CTR BRG	8-97078-869-1	01	1	9811-				●
188	07.039 BRACKET; SUPPORT,CTR BRG	8-97035-996-0	01	1	9811-					●
234	07.006 COVER; END,S/MBR 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D)	8-97033-249-0	02	1	9811-			●
235	07.039 BRACKET; COMB LAMP 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D)	8-94115-653-4	02	1	9811-			●

2 17 17 17 17 2 20 20 20 5 217 42

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
2	07.010 MEMBER; CROSS,1ST 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97113-623-3	01	1	0209-	●
2	07.010 MEMBER; CROSS,1ST 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B)	8-97033-224-4	01	1	0209-			●
2	07.010 MEMBER; CROSS,1ST 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97113-623-2	01	1	0106-0207	●
2	07.010 MEMBER; CROSS,1ST (A)	8-97034-332-2	01	1	9811-0105	●	●		●	●	●
2	07.010 MEMBER; CROSS,1ST REAR WIDE TREAD(V4T) (A)	8-97034-332-2	01	1	9811-0105			●
2	07.010 MEMBER; CROSS,1ST 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-332-2	01	1	0106-0107	●
2	07.010 MEMBER; CROSS,1ST (A)	8-97034-332-2	01	1	0106-0107		●			●
2	07.010 MEMBER; CROSS,1ST 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A)	8-97034-332-2	01	1	0106-0107			●
2	07.010 MEMBER; CROSS,1ST 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) (A)	8-97034-332-2	01	1	0106-0107				●
2	07.010 MEMBER; CROSS,1ST 4HF1 ENG(RLS) (A)	8-97034-332-2	01	1	0106-0107						●
2	07.010 MEMBER; CROSS,1ST 4JB1 ENG(RLF) EXC. FRONT STABILIZER SHAFT<F59> (A)	8-97034-332-2	01	1	0106-0107						●
2	07.010 MEMBER; CROSS,1ST 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97034-332-2	01	1	0108-	●
2	07.010 MEMBER; CROSS,1ST (A)	8-97034-332-2	01	1	0108-		●			●
2	07.010 MEMBER; CROSS,1ST 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A)	8-97034-332-2	01	1	0108-			●
2	07.010 MEMBER; CROSS,1ST 4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) (A)	8-97034-332-2	01	1	0108-				●
2	07.010 MEMBER; CROSS,1ST 4HG1 ENG(RJH),4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) (A)	8-97034-332-2	01	1	0108-				●
2	07.010 MEMBER; CROSS,1ST 4JH1 ENG(RJX),4JB1 ENG(RLF) (A)	8-97034-332-2	01	1	0108-				●
2	07.010 MEMBER; CROSS,1ST 4HF1 ENG(RLS) (A)	8-97034-332-2	01	1	0108-						●
2	07.010 MEMBER; CROSS,1ST 4JB1 ENG(RLF) EXC. FRONT STABILIZER SHAFT<F59> (A)	8-97034-332-2	01	1	0108-						●
2	07.010 MEMBER; CROSS,1ST 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B)	8-97033-224-3	01	1	9811-0207			●
5	07.010 MEMBER; CROSS,SUSPENSION 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97036-220-2	01	1	0106-	●
17	07.039 GUSSET; 1ST C/MBR (A)	8-97088-205-1	02	1	9811-0105	●	●		●	●	●
17	07.039 GUSSET; 1ST C/MBR REAR WIDE TREAD(V4T) (A)	8-97088-205-1	02	1	9811-0105			●
17	07.039 GUSSET; 1ST C/MBR 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97088-205-1	02	1	0106-0107	●
17	07.039 GUSSET; 1ST C/MBR (A)	8-97088-205-1	02	1	0106-0107		●			●
17	07.039 GUSSET; 1ST C/MBR 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A)	8-97088-205-1	02	1	0106-0107			●
17	07.039 GUSSET; 1ST C/MBR 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) (A)	8-97088-205-1	02	1	0106-0107				●
17	07.039 GUSSET; 1ST C/MBR 4HF1 ENG(RLS) (A)	8-97088-205-1	02	1	0106-0107						●
17	07.039 GUSSET; 1ST C/MBR 4JB1 ENG(RLF) EXC. FRONT STABILIZER SHAFT<F59> (A)	8-97088-205-1	02	1	0106-0107						●
17	07.039 GUSSET; 1ST C/MBR 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97088-205-1	02	1	0108-	●
17	07.039 GUSSET; 1ST C/MBR (A)	8-97088-205-1	02	1	0108-		●			●
17	07.039 GUSSET; 1ST C/MBR 4JH1 ENG(RJX),4JB1 ENG(RLF),4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (A)	8-97088-205-1	02	1	0108-			●
17	07.039 GUSSET; 1ST C/MBR 4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) (A)	8-97088-205-1	02	1	0108-				●
17	07.039 GUSSET; 1ST C/MBR 4HG1 ENG(RJH),4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) (A)	8-97088-205-1	02	1	0108-				●
17	07.039 GUSSET; 1ST C/MBR 4JH1 ENG(RJX),4JB1 ENG(RLF) (A)	8-97088-205-1	02	1	0108-				●
17	07.039 GUSSET; 1ST C/MBR 4HF1 ENG(RLS) (A)	8-97088-205-1	02	1	0108-						●
17	07.039 GUSSET; 1ST C/MBR 4JB1 ENG(RLF) EXC. FRONT STABILIZER SHAFT<F59> (A)	8-97088-205-1	02	1	0108-						●
17	07.039 GUSSET; 1ST C/MBR 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B)	8-97039-568-2	01	1	9811-0105			●
17	07.039 GUSSET; 1ST C/MBR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97039-568-2	01	1	0106-	●
17	07.039 GUSSET; 1ST C/MBR 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B)	8-97039-568-2	01	1	0106-			●
17	07.039 GUSSET; 1ST C/MBR 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B)	8-97035-998-2	01	1	9811-0105			●
17	07.039 GUSSET; 1ST C/MBR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97035-998-2	01	1	0106-	●
17	07.039 GUSSET; 1ST C/MBR 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B)	8-97035-998-2	01	1	0106-			●
20	07.012 MEMBER; CROSS,2ND 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97145-716-1	01	1	0106-	●
20	07.012 MEMBER; CROSS,2ND 4JG2 ENG(RJC),4JB1 ENG(RLF) (A)	8-97145-718-0	01	1	9811-9811	●	●	●	●	●	●
20	07.012 MEMBER; CROSS,2ND 4HF1 ENG(RLS) EXC. THAILAND EQUIPMENT(PM9), INDONESIA EQUIPMENT(S4S) (A)	8-97145-718-0	01	1	9811-9811				●
20	07.012 MEMBER; CROSS,2ND 4JG2 ENG(RJC),4JB1 ENG(RLF) (A)	8-97145-718-0	01	1	9812-0105	●	●	●	●	●	●
20	07.012 MEMBER; CROSS,2ND 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97145-718-0	01	1	0106-	●
20	07.012 MEMBER; CROSS,2ND (A)	8-97145-718-0	01	1	0106-		●
20	07.012 MEMBER; CROSS,2ND 4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (A)	8-97145-718-0	01	1	0106-			●
20	07.012 MEMBER; CROSS,2ND 4JB1 ENG(RLF) EXC. SOUTH AFRICA EQUIPMENT(SW2) (A)	8-97145-718-0	01	1	0106-				●
20	07.012 MEMBER; CROSS,2ND 4JB1 ENG(RLF) EXC. FRONT STABILIZER SHAFT<F59> (A)	8-97145-718-0	01	1	0106-						●
20	07.012 MEMBER; CROSS,2ND 4HF1 ENG(RLS) (B)	8-97043-237-0	01	1	9811-9811	●					●
20	07.012 MEMBER; CROSS,2ND 4HF1 ENG(RLS) THAILAND EQUIPMENT(PM9),INDONESIA EQUIPMENT(S4S) (B)	8-97043-237-0	01	1	9811-9811				●
20	07.012 MEMBER; CROSS,2ND 4HF1 ENG(RLS) (B)	8-97043-237-0	01	1	9812-9901	●			●	●	●
20	07.012 MEMBER; CROSS,2ND 4HF1 ENG(RLS) (B)	8-97043-237-0	01	1	9902-0105	●			●	●	●
20	07.012 MEMBER; CROSS,2ND 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B)	8-97043-237-0	01	1	9902-0105			●
20	07.012 MEMBER; CROSS,2ND 4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97043-237-0	01	1	0106-0107	●
20	07.012 MEMBER; CROSS,2ND 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B)	8-97043-237-0	01	1	0106-0107			●
20	07.012 MEMBER; CROSS,2ND 4HF1 ENG(RLS) (B)	8-97043-237-0	01	1	0106-0107				●		●
20	07.012 MEMBER; CROSS,2ND (B)	8-97043-237-0	01	1	0106-0107					●
20	07.012 MEMBER; CROSS,2ND 4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-97043-237-0	01	1	0108-	●
20	07.012 MEMBER; CROSS,2ND 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B)	8-97043-237-0	01	1	0108-			●
20	07.012 MEMBER; CROSS,2ND 4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) (B)	8-97043-237-0	01	1	0108-				●
20	07.012 MEMBER; CROSS,2ND 4HG1 ENG(RJH),4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) (B)	8-97043-237-0	01	1	0108-				●
20	07.012 MEMBER; CROSS,2ND (B)	8-97043-237-0	01	1	0108-					●
20	07.012 MEMBER; CROSS,2ND 4HF1 ENG(RLS) (B)	8-97043-237-0	01	1	0108-						●
20	07.012 MEMBER; CROSS,2ND 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (C)	8-97145-717-2	01	1	9811-			●
20	07.012 MEMBER; CROSS,2ND 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) (B)	8-97078-581-1	01	1	9811-9901			●
20	07.012 MEMBER; CROSS,2ND 4JH1 ENG(RJX) REAR WIDE TREAD(V4T) (B)	8-97078-581-1	01	1	0106-			●
20	07.012 MEMBER; CROSS,2ND 4JH1 ENG(RJX) (B)	8-97078-581-1	01	1	0106-				●
20	07.012 MEMBER; CROSS,2ND 4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) (C)	8-97307-676-0	01	1	0106-				●
42	07.011 MEMBER; CROSS,ENG MTG 4JG2 ENG(RJC),4JB1 ENG(RLF)	8-94246-127-7	01	1	9811-0105	●	●	●	●	●	●
42	07.011 MEMBER; CROSS,ENG MTG 4JB1 ENG(RLF)	8-94246-127-7	01	1	0106-	●	●		●		●
42	07.011 MEMBER; CROSS,ENG MTG 4JB1 ENG(RLF) REAR WIDE TREAD(V4T)	8-94246-127-7	01	1	0106-			●
42	07.011 MEMBER; CROSS,ENG MTG 4HF1 ENG(RLS)	8-97165-923-1	01	1	9811-0105	●		●	●	●	●
42	07.011 MEMBER; CROSS,ENG MTG 4HF1 ENG(RLS)	8-97165-923-1	01	1	0106-0107	●
42	07.011 MEMBER; CROSS,ENG MTG 4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97165-923-1	01	1	0106-0107			●	●	●	●
42	07.011 MEMBER; CROSS,ENG MTG 4HF1 ENG(RLS)	8-97165-923-1	01	1	0108-	●
42	07.011 MEMBER; CROSS,ENG MTG 4HG1 ENG(RJH),4JH1 ENG(RJX),4HF1 ENG(RLS)	8-97165-923-1	01	1	0108-			●	●	●	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING REAR WIDE TREAD(V4T)	8-94258-963-0	02	1	9811-0105			●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING EXC. THAILAND EQUIPMENT(PM9), INDONESIA EQUIPMENT(S4S)	8-94258-963-0	02	1	9811-0105				●	●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING REAR WIDE TREAD(V4T)	8-94258-963-0	02	1	0106-			●
217	07.535 BRACKET; HELPER RUBBER,RR SPRING EXC. INDONESIA EQUIPMENT(S4S)	8-94258-963-0	02	1	0106-				●	●

1 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
1	07.003 FRAME ASM 4HF1 ENG(RLS) (A)	8-97205-854-1	01	1	9811-0105	●
1	07.003 FRAME ASM 4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97310-096-0	01	1	0106-	●
1	07.003 FRAME ASM 4JG2 ENG(RJC),4JB1 ENG(RLF) (A)	8-97205-852-1	01	1	9811-0105	●
1	07.003 FRAME ASM 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97205-852-1	01	1	0106-	●
1	07.003 FRAME ASM RR BODY NON FLAT BED(RS5) (A)	8-97205-856-1	01	1	9811-		●
1	07.003 FRAME ASM EXC. RR BODY NON FLAT BED(RS5) (A)	8-97205-855-1	01	1	9811-		●
1	07.003 FRAME ASM 4HF1 ENG(RLS) AUSTRALIA EQUIPMENT(RR3) REAR WIDE TREAD(V4T) (C)	8-97205-861-1	01	1	9811-			●
1	07.003 FRAME ASM 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B)	8-97205-860-1	01	1	9811-			●
1	07.003 FRAME ASM 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. AUSTRALIA EQUIPMENT(RR3) (C)	8-97205-859-1	01	1	9811-9901			●
1	07.003 FRAME ASM 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. AUSTRALIA EQUIPMENT(RR3) (D)	8-97224-382-0	01	1	9902-			●
1	07.003 FRAME ASM 4JG2 ENG(RJC),4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (C)	8-97205-857-1	01	1	9811-0105			●
1	07.003 FRAME ASM 4JB1 ENG(RLF) REAR WIDE TREAD(V4T) (C)	8-97205-857-1	01	1	0106-			●
1	07.003 FRAME ASM 4JH1 ENG(RJX) REAR WIDE TREAD(V4T) (G)	8-97260-205-0	01	1	0106-			●
1	07.003 FRAME ASM 4HF1 ENG(RLS) THAILAND EQUIPMENT(PM9),INDONESIA EQUIPMENT(S4S) (D)	8-97205-864-1	01	1	9811-0105				●
1	07.003 FRAME ASM 4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) (D)	8-97205-864-1	01	1	0106-0107				●
1	07.003 FRAME ASM 4HG1 ENG(RJH),4HF1 ENG(RLS) INDONESIA EQUIPMENT(S4S) (D)	8-97205-864-1	01	1	0108-				●
1	07.003 FRAME ASM 4HF1 ENG(RLS) EXC. THAILAND EQUIPMENT(PM9), INDONESIA EQUIPMENT(S4S) (D)	8-97205-863-2	01	1	9811-0105				●
1	07.003 FRAME ASM 4HF1 ENG(RLS) EXC. INDONESIA EQUIPMENT(S4S) (D)	8-97205-863-2	01	1	0106-				●
1	07.003 FRAME ASM 4JB1 ENG(RLF) SOUTH AFRICA EQUIPMENT(SW2) (F)	8-97307-675-0	01	1	0106-				●
1	07.003 FRAME ASM 4JG2 ENG(RJC),4JB1 ENG(RLF) (D)	8-97205-862-1	01	1	9811-0105				●
1	07.003 FRAME ASM 4JB1 ENG(RLF) EXC. SOUTH AFRICA EQUIPMENT(SW2) (D)	8-97205-862-1	01	1	0106-				●
1	07.003 FRAME ASM 4JH1 ENG(RJX) (F)	8-97260-206-1	01	1	0106-				●
1	07.003 FRAME ASM 4HF1 ENG(RLS) (D)	8-97205-866-1	01	1	9811-0105					●
1	07.003 FRAME ASM (D)	8-97205-866-1	01	1	0106-					●
1	07.003 FRAME ASM 4JG2 ENG(RJC) (D)	8-97205-865-1	01	1	9811-0105					●
1	07.003 FRAME ASM 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97305-460-1	01	1	0106-	●
1	07.003 FRAME ASM 4HF1 ENG(RLS) (A)	8-97205-868-1	01	1	9811-						●
1	07.003 FRAME ASM 4JB1 ENG(RLF) EXC. FRONT STABILIZER SHAFT<F59> (A)	8-97205-867-1	01	1	9811-						●

105 105 215 215 105 105 142 142 142 142 226 328 368

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
105	07.112 BRACKET; RR SPR,RR (B)	8-94126-621-1	01	1	9811-	●	●
105	07.112 BRACKET; RR SPR,RR (B)	8-94126-620-1	01	1	9811-	●	●
105	07.112 BRACKET; RR SPR,RR REAR WIDE TREAD(V4T) (A)	8-94459-512-1	01	1	9811-			●
105	07.112 BRACKET; RR SPR,RR (A)	8-94459-512-1	01	1	9811-				●	●
105	07.112 BRACKET; RR SPR,RR REAR WIDE TREAD(V4T) (A)	8-94459-511-1	01	1	9811-			●
105	07.112 BRACKET; RR SPR,RR (A)	8-94459-511-1	01	1	9811-				●	●
105	07.112 BRACKET; RR SPR,RR 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (D)	8-97034-224-1	02	1	9811-			●
105	07.112 BRACKET; RR SPR,RR (C)	8-94109-312-0	02	1	9811-						●
142	04.845 BRACKET; FLEX HOSE,BRAKE 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (D)	8-97264-169-0	01	1	0106-	●
142	04.845 BRACKET; FLEX HOSE,BRAKE 4JG2 ENG(RJC),4JB1 ENG(RLF) (A)	8-97047-775-1	01	1	9811-0105	●	●				●
142	04.845 BRACKET; FLEX HOSE,BRAKE 4JB1 ENG(RLF) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97047-775-1	01	1	0106-	●
142	04.845 BRACKET; FLEX HOSE,BRAKE (A)	8-97047-775-1	01	1	0106-		●
142	04.845 BRACKET; FLEX HOSE,BRAKE 4JB1 ENG(RLF) EXC. FRONT STABILIZER SHAFT<F59> (A)	8-97047-775-1	01	1	0106-						●
142	04.845 BRACKET; FLEX HOSE,BRAKE 4HF1 ENG(RLS) (B)	8-97034-337-0	01	1	9811-0105	●					●
142	04.845 BRACKET; FLEX HOSE,BRAKE 4HF1 ENG(RLS) (B)	8-97034-337-0	01	1	0106-						●
142	04.845 BRACKET; FLEX HOSE,BRAKE REAR WIDE TREAD(V4T) (D)	8-97035-308-0	01	1	9811-			●
142	04.845 BRACKET; FLEX HOSE,BRAKE (D)	8-97035-308-0	01	1	9811-				●	●
142	04.845 BRACKET; FLEX HOSE,BRAKE 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (C)	8-97200-748-0	01	1	9811-			●
215	07.524 BUSHING; BRKT,RR SPRING REAR WIDE TREAD(V4T)	8-97184-699-1	04	1	9811-			●
215	07.524 BUSHING; BRKT,RR SPRING	8-97184-699-1	04	1	9811-				●	●
226	07.112 STIFFENER; HELPER RUBBER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-94169-791-2	01	1	0106-	●
226	07.112 STIFFENER; HELPER RUBBER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-94111-942-2	01	1	0106-	●
328	07.039 BRACKET; RELAY LEVER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97047-944-2	01	1	0106-	●
328	07.039 BRACKET; RELAY LEVER 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97039-650-3	01	1	0106-	●
368	07.039 SEAT; TORSION BAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97047-363-4	01	1	0106-	●
368	07.039 SEAT; TORSION BAR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP)	8-97047-362-2	01	1	0106-	●

74 75 74 75 345 344 75 75 75 75 345 345 198 198 139 139 198 198 137 139 130 130

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
74	07.039 GUSSET; 4TH C/MBR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-94258-075-3	02	1	0106-	●
74	07.039 GUSSET; 4TH C/MBR (A) RH-UPPER, LH-LOWER	8-97101-837-1	02	1	9811-				●
74	07.039 GUSSET; 4TH C/MBR (A) RH-LOWER, LH-UPPER	8-97101-838-1	02	1	9811-				●
74	07.039 GUSSET; 4TH C/MBR (B)	8-97101-840-0	01	1	9811-					●
74	07.039 GUSSET; 4TH C/MBR (B)	8-97101-839-0	01	1	9811-					●
75	07.039 GUSSET; 5TH C/MBR 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-94258-081-1	02	1	0106-	●
75	07.039 GUSSET; 5TH C/MBR (B)	8-94258-075-3	02	1	9811-0105	●	●
75	07.039 GUSSET; 5TH C/MBR 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (B)	8-94258-075-3	02	1	0106-	●
75	07.039 GUSSET; 5TH C/MBR (B)	8-94258-075-3	02	1	0106-		●
75	07.039 GUSSET; 5TH C/MBR REAR WIDE TREAD(V4T) (A)	8-97062-499-0	02	1	9811-			●
75	07.039 GUSSET; 5TH C/MBR (A)	8-97062-499-0	02	1	9811-				●	●	●
75	07.039 GUSSET; 5TH C/MBR REAR WIDE TREAD(V4T) (A)	8-97062-500-0	02	1	9811-			●
75	07.039 GUSSET; 5TH C/MBR (A)	8-97062-500-0	02	1	9811-				●	●	●
130	07.014 MEMBER; CROSS,END 4JH1 ENG(RJX) (B)	8-97106-992-0	01	1	0203-				●
130	07.014 MEMBER; CROSS,END 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (A)	8-94388-995-3	01	1	9811-			●
130	07.014 MEMBER; CROSS,END (B)	8-94257-620-2	01	1	9811-0202				●	●
130	07.014 MEMBER; CROSS,END 4HG1 ENG(RJH),4JB1 ENG(RLF),4HF1 ENG(RLS) (B)	8-94257-620-2	01	1	0203-				●
130	07.014 MEMBER; CROSS,END (B)	8-94257-620-2	01	1	0203-					●
137	07.629 BRACKET; SPARE TIRE AUSTRALIA EQUIPMENT(RR3) REAR WIDE TREAD(V4T)	8-97076-885-0	01	1	9811-9903			●
137	07.629 BRACKET; SPARE TIRE	8-97076-885-0	01	1	9811-9903				●	●
137	07.629 BRACKET; SPARE TIRE	8-97076-885-1	01	1	9904-				●	●
137	07.629 BRACKET; SPARE TIRE 4HF1 ENG(RLS) REAR WIDE TREAD(V4T) EXC. AUSTRALIA EQUIPMENT(RR3)	8-97224-384-1	01	1	9902-			●
139	07.012 MEMBER; CROSS,6TH (A)	8-97045-542-2	01	1	9811-0105	●	●				●
139	07.012 MEMBER; CROSS,6TH 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97045-542-2	01	1	0106-	●	●				●
139	07.012 MEMBER; CROSS,6TH REAR WIDE TREAD(V4T) (A)	8-97062-498-1	01	1	9811-			●
139	07.012 MEMBER; CROSS,6TH (A)	8-97062-498-1	01	1	9811-				●	●
139	07.012 MEMBER; CROSS,6TH 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B)	8-97033-229-1	01	1	9811-			●
198	07.039 GUSSET; 6TH C/MBR	8-94258-081-1	02	1	9811-0105	●	●				●
198	07.039 GUSSET; 6TH C/MBR 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP)	8-94258-081-1	02	1	0106-	●	●				●
198	07.039 GUSSET; 6TH C/MBR REAR WIDE TREAD(V4T)	8-97062-499-0	02	1	9811-			●
198	07.039 GUSSET; 6TH C/MBR	8-97062-499-0	02	1	9811-				●	●
198	07.039 GUSSET; 6TH C/MBR REAR WIDE TREAD(V4T)	8-97062-500-0	02	1	9811-			●
198	07.039 GUSSET; 6TH C/MBR	8-97062-500-0	02	1	9811-				●	●
344	07.012 MEMBER; CROSS,4TH 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (C)	8-97081-061-2	01	1	0106-	●
344	07.012 MEMBER; CROSS,4TH (A)	8-97078-707-3	01	1	9811-				●
344	07.012 MEMBER; CROSS,4TH (B)	8-97101-836-0	01	1	9811-					●
345	07.012 MEMBER; CROSS,5TH 4JH1 ENG(RJX) FRT INDEPENDENT SUSPENSION(6PP) (E)	8-97045-542-2	01	1	0106-	●
345	07.012 MEMBER; CROSS,5TH (A)	8-97081-061-2	01	1	9811-0105	●	●
345	07.012 MEMBER; CROSS,5TH 4JB1 ENG(RLF),4HF1 ENG(RLS) EXC. FRT INDEPENDENT SUSPENSION(6PP) (A)	8-97081-061-2	01	1	0106-	●
345	07.012 MEMBER; CROSS,5TH (A)	8-97081-061-2	01	1	0106-		●
345	07.012 MEMBER; CROSS,5TH REAR WIDE TREAD(V4T) (D)	8-97062-497-3	01	1	9811-			●
345	07.012 MEMBER; CROSS,5TH (D)	8-97062-497-3	01	1	9811-				●	●
345	07.012 MEMBER; CROSS,5TH 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (B)	8-97086-151-1	01	1	9811-			●
345	07.012 MEMBER; CROSS,5TH (C)	8-97076-793-2	01	1	9811-						●

156 156 156 43 365 43 101 101 101 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F
43	09.003 BRACKET; CAB MTG,RR (A)	8-97042-541-0	01	1	9811-		●
43	09.003 BRACKET; CAB MTG,RR (A)	8-97042-540-0	01	1	9811-		●
43	09.003 BRACKET; CAB MTG,RR (B)	8-94126-889-0	01	1	9811-0105					●
43	09.003 BRACKET; CAB MTG,RR (B)	8-94126-889-0	01	1	0106-					●
43	09.003 BRACKET; CAB MTG,RR (B)	8-94111-921-0	01	1	9811-9909					●
43	09.003 BRACKET; CAB MTG,RR (B)	8-97232-931-0	01	1	9910-0105					●
43	09.003 BRACKET; CAB MTG,RR (B)	8-97232-931-0	01	1	0106-					●
101	07.112 BRACKET; RR SPR,FRT (B)	8-94258-093-1	02	1	9811-	●	●
101	07.112 BRACKET; RR SPR,FRT REAR WIDE TREAD(V4T) (A)	8-97034-156-1	02	1	9811-			●
101	07.112 BRACKET; RR SPR,FRT (A)	8-97034-156-1	02	1	9811-				●	●
101	07.112 BRACKET; RR SPR,FRT 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D) (D)	8-97034-223-1	02	1	9811-			●
101	07.112 BRACKET; RR SPR,FRT (C)	8-94376-080-0	02	1	9811-						●
156	07.330 BRACKET; RR BODY MTG RR BODY NON FLAT BED(RS5) (A)	8-94101-398-1	06	1	9811-		●
156	07.330 BRACKET; RR BODY MTG 4HF1 ENG(RLS) (A)	8-94101-398-1	04	1	9811-						●
156	07.330 BRACKET; RR BODY MTG 4HF1 ENG(RLS) (B)	8-94258-111-0	01	1	9811-						●
156	07.330 BRACKET; RR BODY MTG 4HF1 ENG(RLS) (A)	8-94258-112-0	01	1	9811-						●
156	07.330 BRACKET; RR BODY MTG 4HF1 ENG(RLS) (C)	8-97091-293-0	01	1	9811-						●
156	07.330 BRACKET; RR BODY MTG 4HF1 ENG(RLS) (C)	8-94122-891-2	01	1	9811-						●
365	07.039 REINFORCEMENT; TRUNNION 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D)	8-97033-252-2	01	1	9811-			●
365	07.039 REINFORCEMENT; TRUNNION 4HF1 ENG(RLS) MANUAL TILT CAB<RWZ> DUMP CHASSIS(V4D)	8-97033-251-2	01	1	9811-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
