Sayfa 3-22 - Isuzu EPC

3-22 — AIR CONTROL PARTS (#4853) — 479 parça

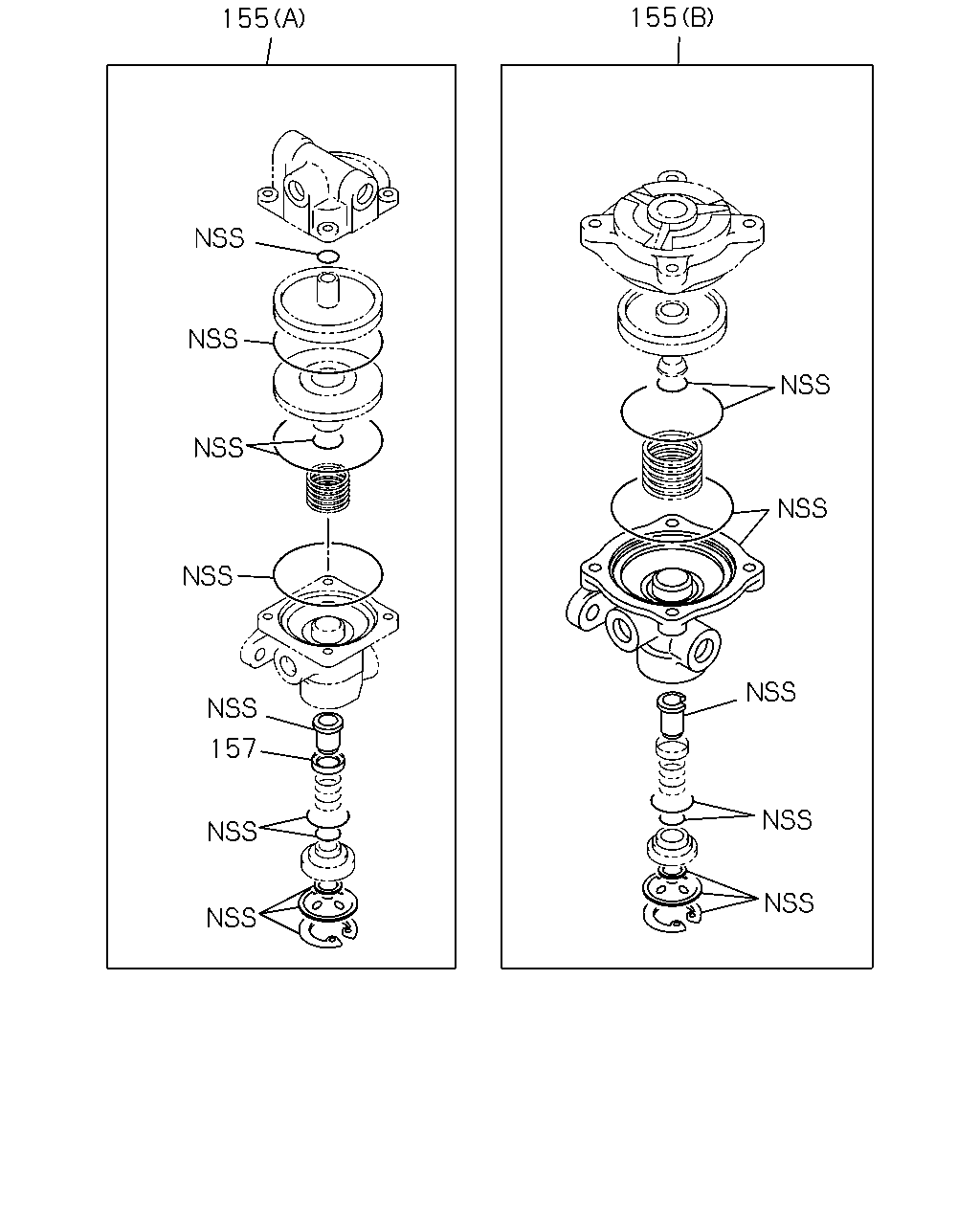

155 155 157

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
155	REPAIR KIT; RELAY VALVE (B)	1-85576-033-0	01	1	9601-9912
155	REPAIR KIT; RELAY VALVE BRAKE SYSTEM SPRING BRAKE(BCR) (B)	1-85576-033-0	01	1	0001-
155	REPAIR KIT; RELAY VALVE EXC. BRAKE REGULATION ECE<TDV> (B)	1-85576-033-0	01	1	0001-
155	REPAIR KIT; RELAY VALVE EXC. BRAKE REGULATION ECE<TDV> (B)	1-85576-033-0	01	1	0001-
155	REPAIR KIT; RELAY VALVE HONG KONG EQUIPMENT(PQ1) (A)	1-85576-035-0	01	1	9601-9610
155	REPAIR KIT; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-85576-035-0	01	1	9611-9912
155	REPAIR KIT; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A)	1-85576-035-0	01	1	0001-
155	REPAIR KIT; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5) (B)	1-85576-033-0	02	1	9611-9912
155	REPAIR KIT; RELAY VALVE BRAKE REGULATION ECE<TDV> (B)	1-85576-033-0	02	1	0001-
157	RETAINER; VALVE	1-48213-002-0	01	1	9601-9912
157	RETAINER; VALVE HONG KONG EQUIPMENT(PQ1)	1-48213-002-0	01	1	9601-9912
157	RETAINER; VALVE BRAKE SYSTEM SPRING BRAKE(BCR)	1-48213-002-0	01	1	0001-
157	RETAINER; VALVE EXC. BRAKE REGULATION ECE<TDV>	1-48213-002-0	01	1	0001-
157	RETAINER; VALVE EXC. BRAKE REGULATION ECE<TDV>	1-48213-002-0	01	1	0001-
157	RETAINER; VALVE BRAKE REGULATION HONG KONG<TCZ>	1-48213-002-0	01	1	0001-
157	RETAINER; VALVE NEW ZEALAND EQUIPMENT(PK5)	1-48213-002-0	03	1	9611-9912
157	RETAINER; VALVE BRAKE REGULATION ECE<TDV>	1-48213-002-0	03	1	0001-

30 240

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
30	GOVERNOR; AIR CONT	1-48350-058-0	01	1	9601-9904
30	GOVERNOR; AIR CONT	1-48350-063-0	01	1	9905-
240	REPAIR KIT; AIR CONT GOV	1-85576-303-0	01	1	9905-

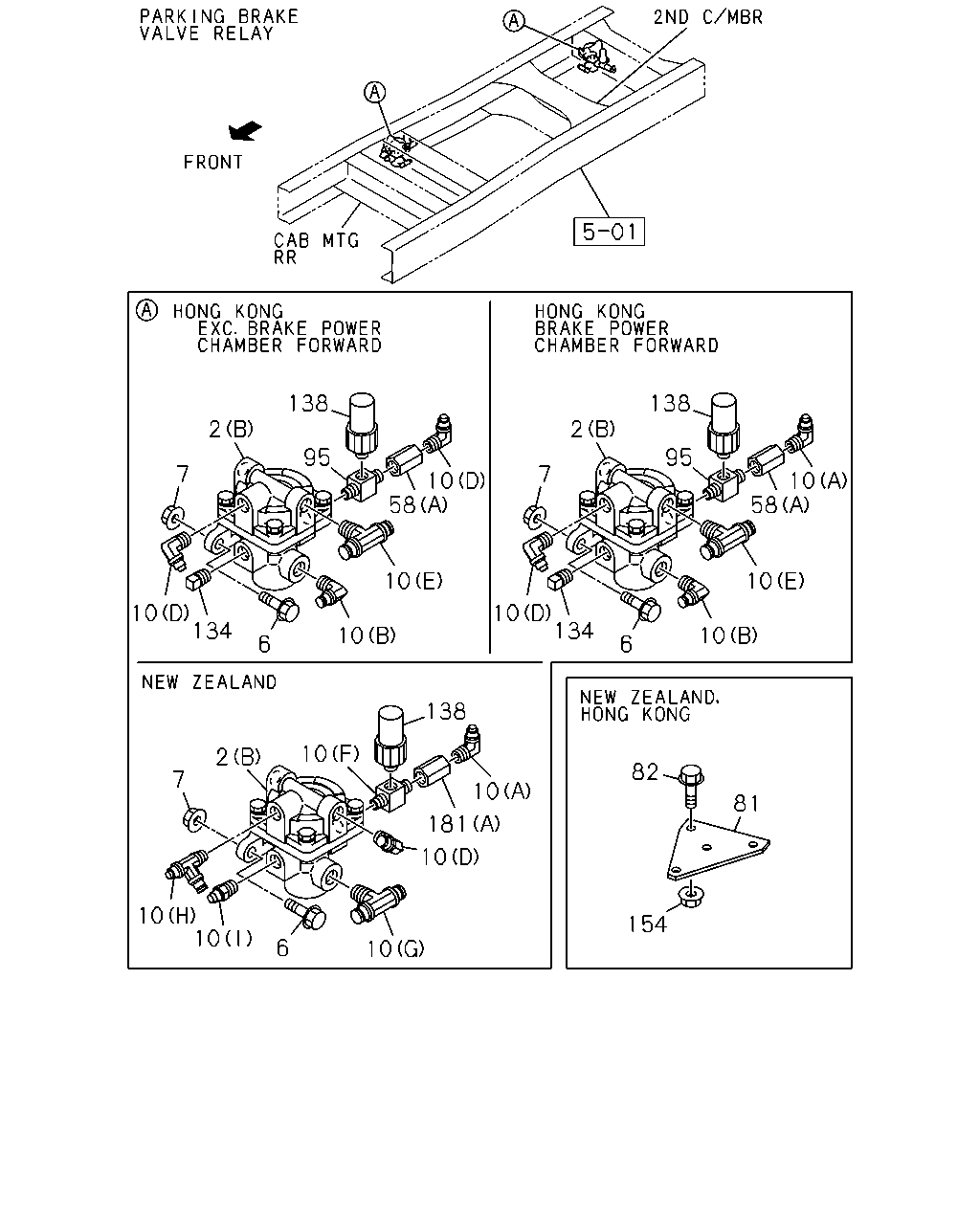

138 138 2 2 95 95 7 7 10 58 10 58 10 10 10 134 10 134 10 10 6 6 138 10 2 82 7 10 81 181 10 10 10 154 6 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date

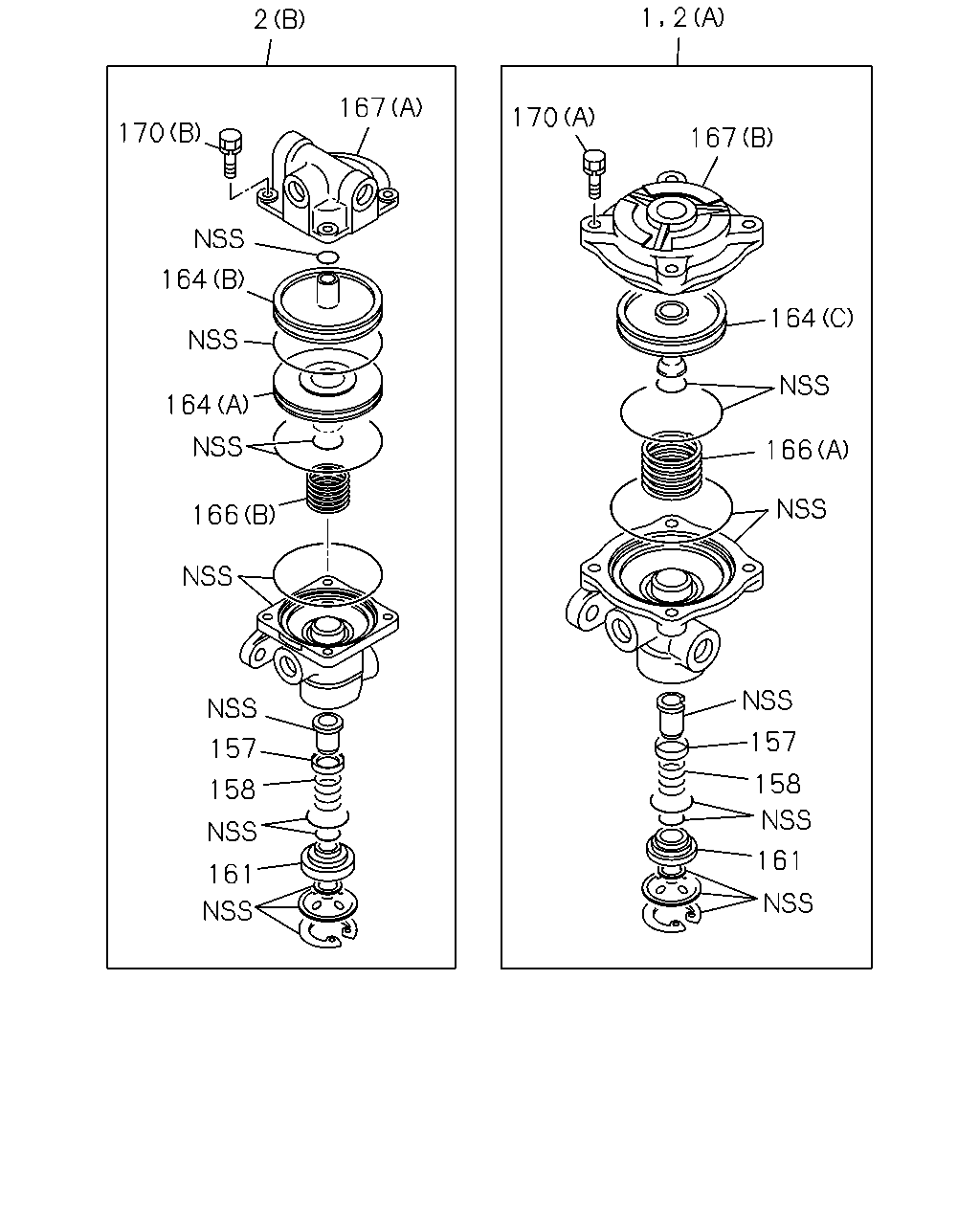

2	VALVE; RELAY (A)	1-48210-278-0	01	1	9601-9610
2	VALVE; RELAY BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-48210-278-0	01	1	9611-9912
2	VALVE; RELAY EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-48210-278-0	01	1	9611-9912
2	VALVE; RELAY BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-48210-278-0	01	1	0001-
2	VALVE; RELAY EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0001-
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) (B)	1-48210-143-0	01	1	9601-9610
2	VALVE; RELAY NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B)	1-48210-143-0	01	1	9611-9912
2	VALVE; RELAY BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-48210-143-0	01	1	0001-
2	VALVE; RELAY NEW ZEALAND EQUIPMENT(PK5) (A)	1-48210-500-0	01	1	9611-9912
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (A)	1-48210-500-0	01	1	0001-
6	BOLT; VLV HONG KONG EQUIPMENT(PQ1) M10X35 FLANGE	0-28081-035-0	02	1	9601-9601
6	BOLT; VLV HONG KONG EQUIPMENT(PQ1) M10X30 FLANGE	0-28081-030-0	02	1	9601-9606
6	BOLT; VLV HONG KONG EQUIPMENT(PQ1) M10X35 FLANGE	0-28681-035-0	02	1	9607-9610
6	BOLT; VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M10X35 FLANGE	0-28681-035-0	02	1	9611-9912
6	BOLT; VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M10X35 FLANGE	0-28681-035-0	02	1	0001-
6	BOLT; VLV EXC. HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28080-830-0	02	1	9601-9606
6	BOLT; VLV EXC. HONG KONG EQUIPMENT(PQ1) M8X35 FLANGE	0-28680-835-0	02	1	9607-9610
6	BOLT; VLV EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X35 FLANGE	0-28680-835-0	02	1	9611-9912
6	BOLT; VLV EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8X35 FLANGE	0-28680-835-0	02	1	0001-
7	NUT; RELAY VLV HONG KONG EQUIPMENT(PQ1) M10	9-09110-510-0	02	1	9601-9606
7	NUT; RELAY VLV HONG KONG EQUIPMENT(PQ1) M10 FLANGE	0-91150-210-0	02	1	9607-9610
7	NUT; RELAY VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M10 FLANGE	0-91150-210-0	02	1	9611-9912
7	NUT; RELAY VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M10 FLANGE	0-91150-210-0	02	1	0001-
10	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9610
10	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9611-9904
10	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9611-9904
10	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9905-9912
10	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9905-9912
10	CONNECTOR BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0001-
10	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0001-
10	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) (D) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9610
10	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) (D) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9611-9904
10	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9611-9904
10	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-9912
10	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-9912
10	CONNECTOR BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0001-
10	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0001-
10	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9610
10	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9611-9904
10	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9611-9904
10	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-9912
10	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-9912
10	CONNECTOR BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0001-
10	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0001-
10	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	9601-9904
10	CONNECTOR HONG KONG EQUIPMENT(PQ1) (B) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	9905-9912
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> (B) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0001-
10	CONNECTOR EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	02	1	9601-9610
10	CONNECTOR EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	02	1	9611-9904
10	CONNECTOR EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	9905-9912
10	CONNECTOR EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	0001-
10	CONNECTOR HONG KONG EQUIPMENT(PQ1) (E) DIN8X2 & R3/8 3WAY	1-09660-715-1	01	1	9601-9904
10	CONNECTOR HONG KONG EQUIPMENT(PQ1) (E) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9905-9912
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> (E) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0001-
10	CONNECTOR HONG KONG EQUIPMENT(PQ1) EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (D) DIN8 & R3/8 ELBOW	1-09660-652-1	02	1	9601-9904
10	CONNECTOR HONG KONG EQUIPMENT(PQ1) EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9905-9912
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0001-
10	CONNECTOR HONG KONG EQUIPMENT(PQ1) EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (B) DIN12 & R1/2 ELBOW	1-09660-654-1	02	1	9601-9904
10	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (F)	1-09656-446-0	01	1	9611-9912
10	CONNECTOR BRAKE REGULATION ECE<TDV> (F)	1-09656-446-0	01	1	0001-
10	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (H) DIN8X2 & R3/8 3WAY	1-09660-658-1	01	1	9611-9904
10	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (H) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	9905-9912
10	CONNECTOR BRAKE REGULATION ECE<TDV> (H) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0001-
10	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (G)	1-09660-661-1	01	1	9611-9904
10	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (G) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	9905-9912
10	CONNECTOR BRAKE REGULATION ECE<TDV> (G) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	0001-
10	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (I) DIN8 & R1/2 STRAIGHT	1-09660-668-1	01	1	9611-9904
10	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (I)	1-09661-126-0	01	1	9905-9912
10	CONNECTOR BRAKE REGULATION ECE<TDV> (I)	1-09661-126-0	01	1	0001-
58	ADAPTER (B) DIN8 & M20 STRAIGHT	1-09660-675-1	02	1	9601-9904
58	ADAPTER HONG KONG EQUIPMENT(PQ1) (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	9601-9912
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ> (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0001-
58	ADAPTER NEW ZEALAND EQUIPMENT(PK5) (D) NPTF3/8 & RC3/8	1-09660-548-0	01	1	9611-9904
58	ADAPTER NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	9611-9904
58	ADAPTER NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9905-9912
58	ADAPTER BRAKE REGULATION ECE<TDV> (C) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0007
58	ADAPTER BRAKE REGULATION ECE<TDV> (C) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
81	BRACKET; RELAY VLV,PARKING BRK HONG KONG EQUIPMENT(PQ1)	1-48495-191-0	01	1	9601-9610
81	BRACKET; RELAY VLV,PARKING BRK NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48495-191-0	01	1	9611-9912
81	BRACKET; RELAY VLV,PARKING BRK BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48495-191-0	01	1	0001-
82	BOLT; BRKT,RELAY VLV HONG KONG EQUIPMENT(PQ1) M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
82	BOLT; BRKT,RELAY VLV HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE	0-28680-825-0	02	1	9607-9610
82	BOLT; BRKT,RELAY VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X25 FLANGE	0-28680-825-0	02	1	9611-9912
82	BOLT; BRKT,RELAY VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8X25 FLANGE	0-28680-825-0	02	1	0001-
95	UNION; AIR VLV HONG KONG EQUIPMENT(PQ1)	1-09656-446-0	01	1	9601-9912
95	UNION; AIR VLV BRAKE REGULATION HONG KONG<TCZ>	1-09656-446-0	01	1	0001-
134	PLUG; RELAY VALVE HONG KONG EQUIPMENT(PQ1) PT1/2	9-09204-521-0	01	1	9601-9912
134	PLUG; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ> PT1/2	9-09204-521-0	01	1	0001-
138	SWITCH; RELAY VALVE HONG KONG EQUIPMENT(PQ1)	1-48340-057-0	01	1	9601-9610
138	SWITCH; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48340-057-0	01	1	9611-9912
138	SWITCH; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48340-057-1	01	1	0001-
154	NUT; BRKT HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9601-9606
154	NUT; BRKT HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91150-108-0	02	1	9607-9610
154	NUT; BRKT NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91150-108-0	02	1	9611-9912
154	NUT; BRKT BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	02	1	0001-

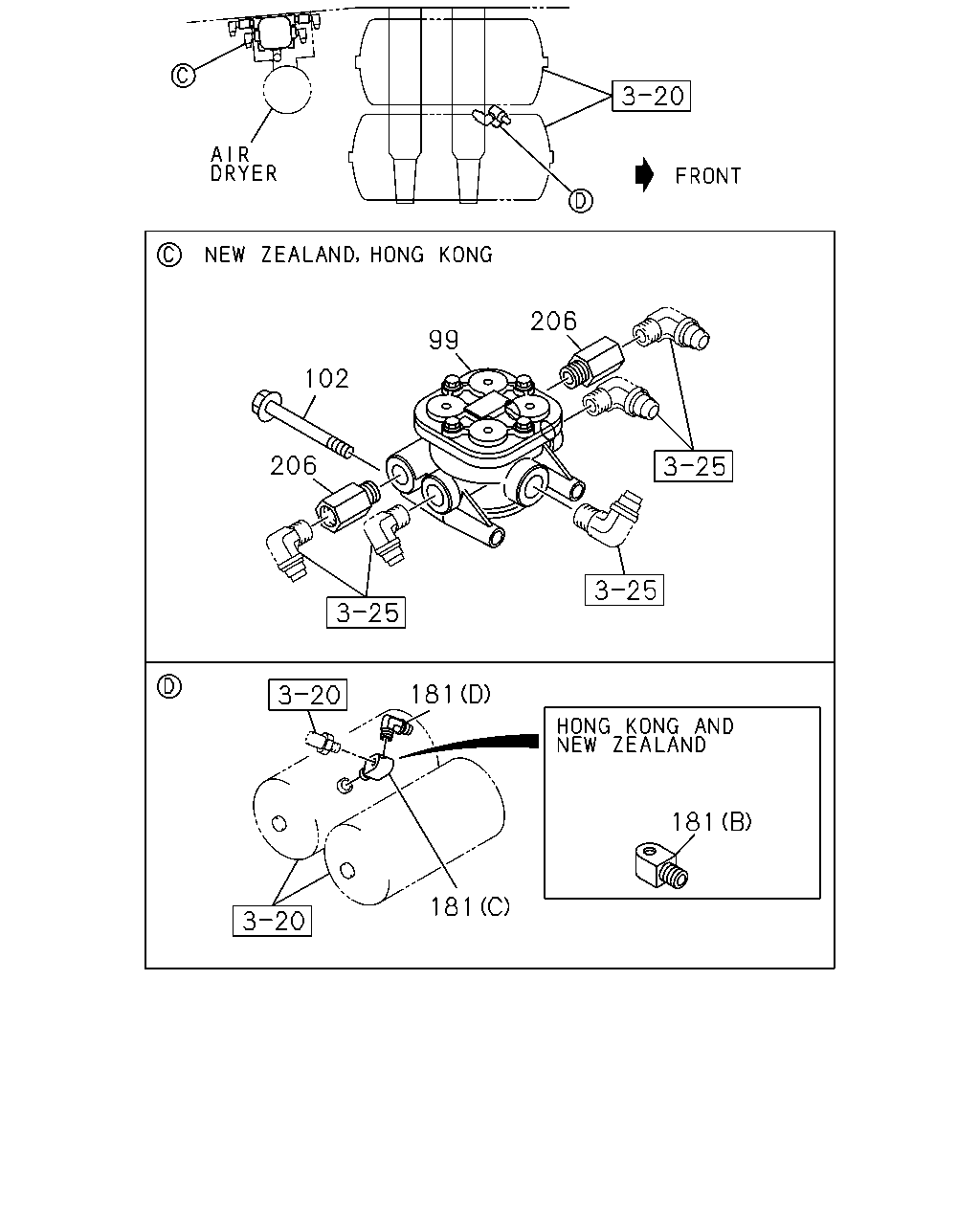

181	ADAPTER; PRESSURE SW FULL FLOATING CAB<W16> EXC. HONG KONG EQUIPMENT(PQ1) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9601-9610
181	ADAPTER; PRESSURE SW FULL FLOATING CAB<W16> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9611-9912
181	ADAPTER; PRESSURE SW FULL FLOATING CAB<W16> EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0001-
181	ADAPTER; PRESSURE SW FULL FLOATING CAB<W16> EXC. HONG KONG EQUIPMENT(PQ1) (D) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9601-9601
181	ADAPTER; PRESSURE SW FULL FLOATING CAB<W16> EXC. HONG KONG EQUIPMENT(PQ1) (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9602-9610
181	ADAPTER; PRESSURE SW FULL FLOATING CAB<W16> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9611-9904
181	ADAPTER; PRESSURE SW FULL FLOATING CAB<W16> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9905-9912
181	ADAPTER; PRESSURE SW FULL FLOATING CAB<W16> EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (D) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	0001-0007
181	ADAPTER; PRESSURE SW FULL FLOATING CAB<W16> EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
181	ADAPTER; PRESSURE SW HONG KONG EQUIPMENT(PQ1) FULL FLOATING CAB<W16> (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9601-9610
181	ADAPTER; PRESSURE SW NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) FULL FLOATING CAB<W16> (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9611-9912
181	ADAPTER; PRESSURE SW BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> FULL FLOATING CAB<W16> (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0001-
181	ADAPTER; PRESSURE SW NEW ZEALAND EQUIPMENT(PK5) (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	9611-9912
181	ADAPTER; PRESSURE SW BRAKE REGULATION ECE<TDV> (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	0001-

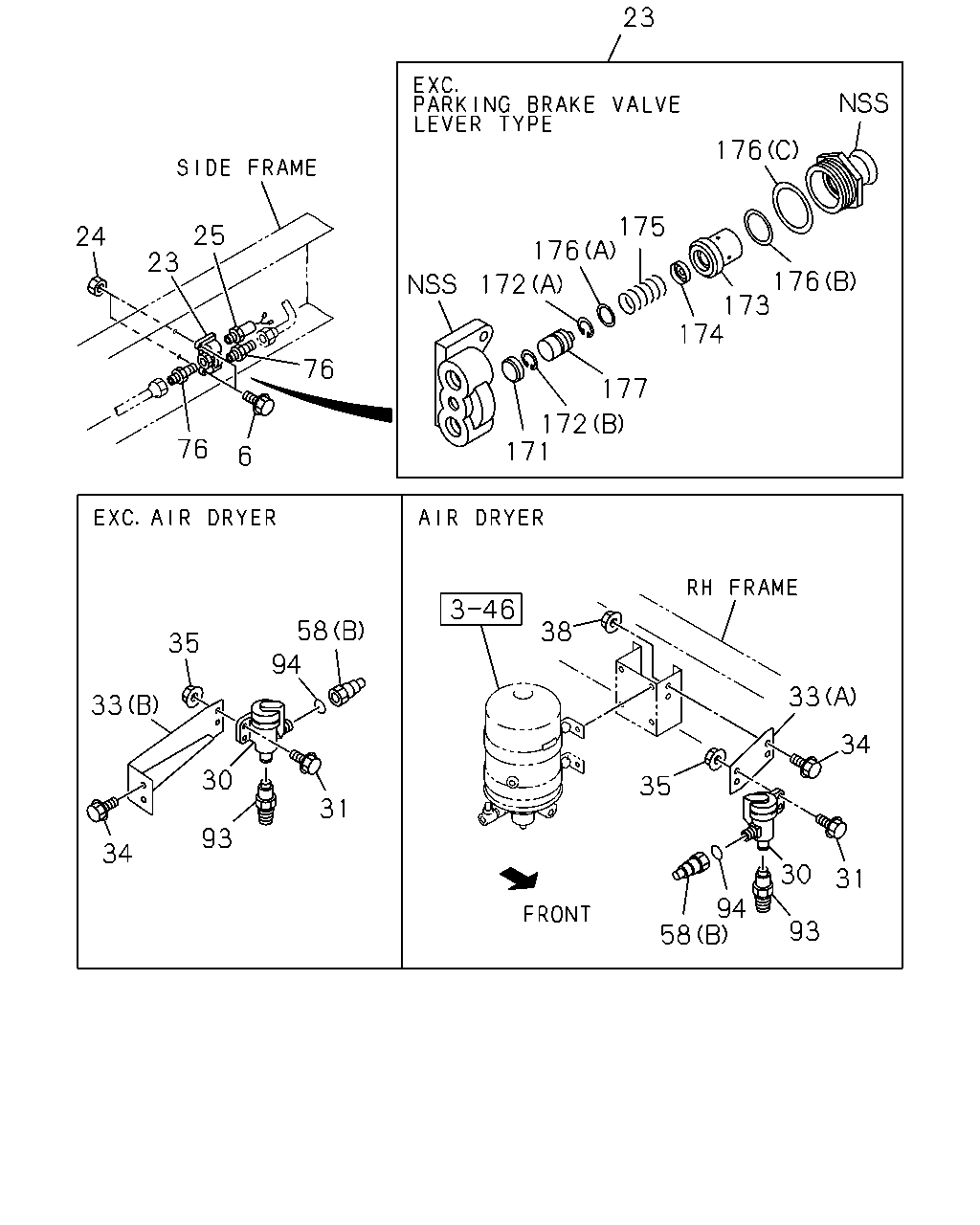

23 176 175 25 24 176 23 176 173 174 172 76 177 172 171 76 6 58 38 35 94 33 33 34 30 35 31 93 34 30 31 94 58 93

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
6	BOLT; VLV HONG KONG EQUIPMENT(PQ1) M10X35 FLANGE	0-28081-035-0	02	1	9601-9601
6	BOLT; VLV HONG KONG EQUIPMENT(PQ1) M10X30 FLANGE	0-28081-030-0	02	1	9601-9606
6	BOLT; VLV HONG KONG EQUIPMENT(PQ1) M10X35 FLANGE	0-28681-035-0	02	1	9607-9610
6	BOLT; VLV NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M10X35 FLANGE	0-28681-035-0	02	1	9611-9912
6	BOLT; VLV BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M10X35 FLANGE	0-28681-035-0	02	1	0001-
6	BOLT; VLV EXC. HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28080-830-0	02	1	9601-9606
6	BOLT; VLV EXC. HONG KONG EQUIPMENT(PQ1) M8X35 FLANGE	0-28680-835-0	02	1	9607-9610
6	BOLT; VLV EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X35 FLANGE	0-28680-835-0	02	1	9611-9912
6	BOLT; VLV EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8X35 FLANGE	0-28680-835-0	02	1	0001-
23	VALVE; PRESSURE CONT EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-48460-067-1	01	1	9601-
24	NUT EXC. HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9601-9606
24	NUT EXC. HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91150-108-0	02	1	9607-9610
24	NUT EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8 FLANGE	0-91150-108-0	02	1	9611-9912
24	NUT EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8 FLANGE	0-91150-108-0	02	1	0001-
25	SWITCH; PRESSURE EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-48340-057-1	01	1	9601-
30	GOVERNOR; AIR CONT	1-48350-058-0	01	1	9601-9904
30	GOVERNOR; AIR CONT	1-48350-063-0	01	1	9905-
31	BOLT; GOV TO FRAME M8X25 FLANGE	0-28080-825-0	02	1	9601-9606
31	BOLT; GOV TO FRAME M8X30 FLANGE	0-28680-830-0	02	1	9607-
33	BRACKET; GOV,AIR CONT AIR DRYER<PS7> (A)	1-48359-083-1	01	1	9601-9904
33	BRACKET; GOV,AIR CONT AIR DRYER<PS7> (A)	1-48359-086-0	01	1	9905-
33	BRACKET; GOV,AIR CONT EXC. AIR DRYER<PS7> (B)	1-48359-082-2	01	1	9601-9904
33	BRACKET; GOV,AIR CONT EXC. AIR DRYER<PS7> (B)	1-48359-085-0	01	1	9905-
34	BOLT; BRKT,GOV AIR DRYER<PS7> M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
34	BOLT; BRKT,GOV AIR DRYER<PS7> M8X25 FLANGE	0-28680-825-0	02	1	9607-
34	BOLT; BRKT,GOV EXC. AIR DRYER<PS7> M10X35 FLANGE	0-28081-035-0	02	1	9601-9606
34	BOLT; BRKT,GOV EXC. AIR DRYER<PS7> M10X40 FLANGE	0-28681-040-0	02	1	9607-
35	NUT; GOV TO FRAME M8	9-09110-508-0	02	1	9601-9606
35	NUT; GOV TO FRAME M8 FLANGE	0-91150-108-0	02	1	9607-
38	NUT; BRKT,GOV AIR DRYER<PS7> M8	9-09110-508-0	02	1	9601-9606
38	NUT; BRKT,GOV AIR DRYER<PS7> M8 FLANGE	0-91150-108-0	02	1	9607-
58	ADAPTER (B) DIN8 & M20 STRAIGHT	1-09660-675-1	02	1	9601-9904
58	ADAPTER HONG KONG EQUIPMENT(PQ1) (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	9601-9912
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ> (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0001-
58	ADAPTER NEW ZEALAND EQUIPMENT(PK5) (D) NPTF3/8 & RC3/8	1-09660-548-0	01	1	9611-9904
58	ADAPTER NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	9611-9904
58	ADAPTER NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9905-9912
58	ADAPTER BRAKE REGULATION ECE<TDV> (C) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0007
58	ADAPTER BRAKE REGULATION ECE<TDV> (C) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
76	CONNECTOR; CONT VLV BRAKE SYSTEM SPRING BRAKE(BCR) EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-09660-718-1	02	1	9611-9904
76	CONNECTOR; CONT VLV BRAKE SYSTEM SPRING BRAKE(BCR) EXC. PARKING BRAKE VALVE LEVER TYPE<W48> DIN8X2 & R1/4 3WAY	1-09661-006-0	02	1	9905-
76	CONNECTOR; CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9601-9610
76	CONNECTOR; CONT VLV EXC. BRAKE SYSTEM SPRING BRAKE(BCR),PARKING BRAKE VALVE LEVER TYPE<W48> DIN8 R1/4 STRAIGHT	1-09660-647-1	02	1	9611-9904
76	CONNECTOR; CONT VLV EXC. BRAKE SYSTEM SPRING BRAKE(BCR),PARKING BRAKE VALVE LEVER TYPE<W48> DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	9905-
93	CONNECTOR; GOV DIN8 R1/4 STRAIGHT	1-09660-963-0	02	1	9905-
94	GASKET; GOV ID=11 OD=18	9-09572-510-0	02	1	9601-9904
171	FILTER; PRESS CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	9-88510-330-0	01	1	9601-
172	RING; RETAINING EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-31829-081-0	01	1	9601-
172	RING; RETAINING EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	9-88510-331-0	01	1	9601-
173	PISTON; PRESS CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-103-0	01	1	9601-
174	VALVE; PRESS CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-104-1	01	1	9601-
175	SPRING; PRESS CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-105-0	01	1	9601-
176	GASKET; PRESS CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (A)	1-47849-010-0	01	1	9601-
176	GASKET; PRESS CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (B)	1-48212-004-0	01	1	9601-
176	GASKET; PRESS CONT VLV EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (C)	1-48469-107-0	01	1	9601-
177	RETAINER; PRESS CONT VLVE EXC. PARKING BRAKE VALVE LEVER TYPE<W48>	1-48469-106-0	01	1	9601-

206 99 102 206 181 181 181

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
99	VALVE; PROTECTION HONG KONG EQUIPMENT(PQ1)	1-48110-079-0	01	1	9601-9610
99	VALVE; PROTECTION NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1)	1-48110-079-0	01	1	9611-9912
99	VALVE; PROTECTION BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV>	1-48110-079-0	01	1	0001-
102	BOLT; PROTECTION VALVE HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28080-830-0	02	1	9601-9606
102	BOLT; PROTECTION VALVE HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28680-830-0	02	1	9607-9610
102	BOLT; PROTECTION VALVE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) M8X30 FLANGE	0-28680-830-0	02	1	9611-9912
102	BOLT; PROTECTION VALVE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8X30 FLANGE	0-28680-830-0	02	1	0001-
181	ADAPTER; PRESSURE SW FULL FLOATING CAB<W16> EXC. HONG KONG EQUIPMENT(PQ1) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9601-9610
181	ADAPTER; PRESSURE SW FULL FLOATING CAB<W16> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9611-9912
181	ADAPTER; PRESSURE SW FULL FLOATING CAB<W16> EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0001-
181	ADAPTER; PRESSURE SW FULL FLOATING CAB<W16> EXC. HONG KONG EQUIPMENT(PQ1) (D) DIN8 & M14 STRAIGHT	1-09660-874-0	01	1	9601-9601
181	ADAPTER; PRESSURE SW FULL FLOATING CAB<W16> EXC. HONG KONG EQUIPMENT(PQ1) (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9602-9610
181	ADAPTER; PRESSURE SW FULL FLOATING CAB<W16> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	9611-9904
181	ADAPTER; PRESSURE SW FULL FLOATING CAB<W16> EXC. NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (D) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	9905-9912
181	ADAPTER; PRESSURE SW FULL FLOATING CAB<W16> EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (D) DIN12 & M16 STRAIGHT	1-09661-096-0	01	1	0001-0007
181	ADAPTER; PRESSURE SW FULL FLOATING CAB<W16> EXC. BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (D) DIN12 & M16 STRAIGHT	1-09660-876-0	01	1	0008-
181	ADAPTER; PRESSURE SW HONG KONG EQUIPMENT(PQ1) FULL FLOATING CAB<W16> (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9601-9610
181	ADAPTER; PRESSURE SW NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) FULL FLOATING CAB<W16> (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	9611-9912
181	ADAPTER; PRESSURE SW BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> FULL FLOATING CAB<W16> (B) PT1/4 & PT3/8 2WAY	1-09660-809-0	01	1	0001-
181	ADAPTER; PRESSURE SW NEW ZEALAND EQUIPMENT(PK5) (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	9611-9912
181	ADAPTER; PRESSURE SW BRAKE REGULATION ECE<TDV> (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	02	1	0001-
206	ADAPTER; NYLON TUBE HONG KONG EQUIPMENT(PQ1) PT3/8	1-48319-058-0	02	1	9601-9610
206	ADAPTER; NYLON TUBE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) PT3/8	1-48319-058-0	02	1	9611-9912
206	ADAPTER; NYLON TUBE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> PT3/8	1-48319-058-0	02	1	0001-

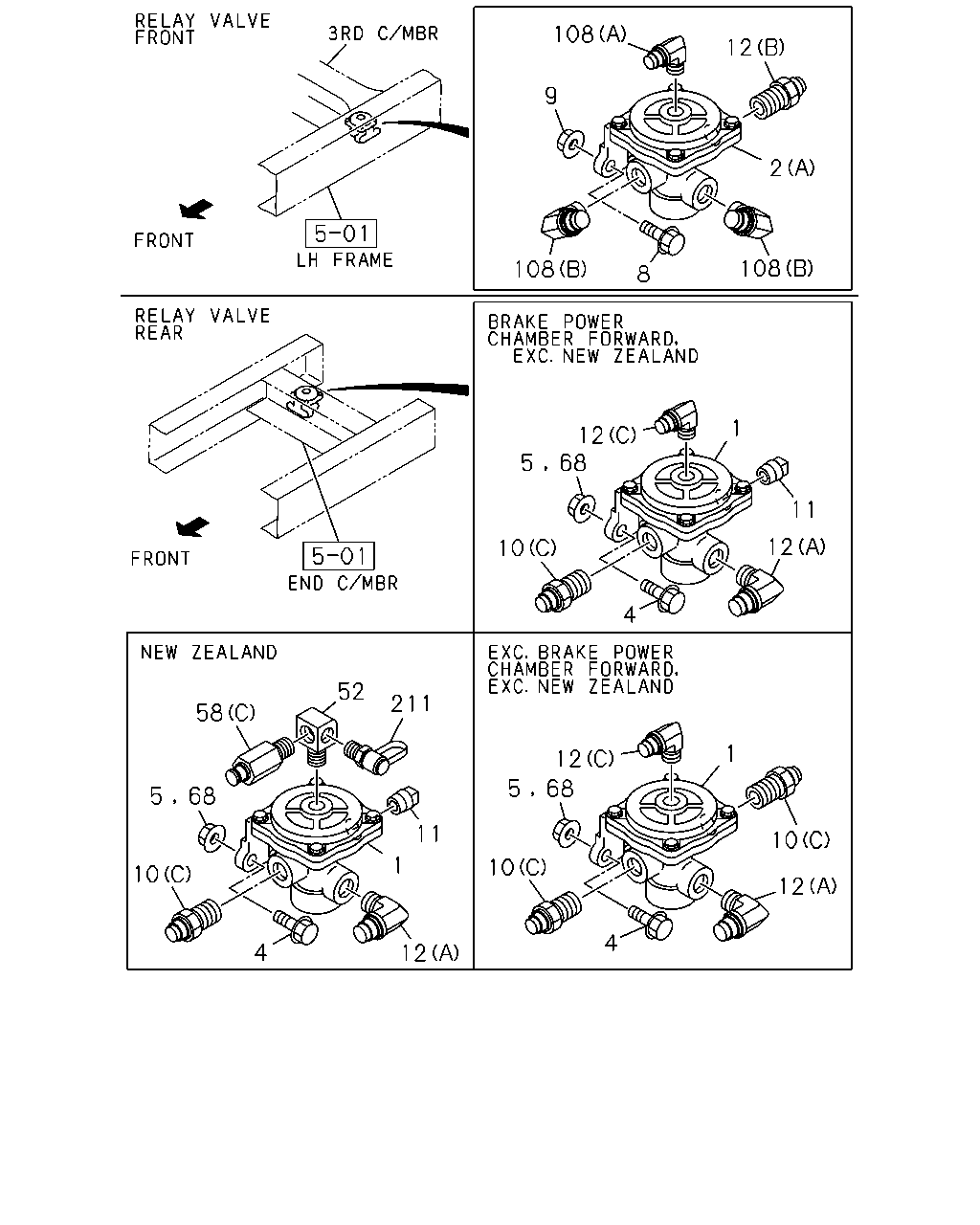

108 12 9 2 108 108 8 1 12 68 5 11 12 10 4 52 211 58 1 12 5 68 5 68 11 10 1 10 10 12 4 4 12

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	VALVE; RELAY RWD RR	1-48210-278-0	01	1	9601-9610
1	VALVE; RELAY RWD RR EXC. NEW ZEALAND EQUIPMENT(PK5)	1-48210-278-0	01	1	9611-9912
1	VALVE; RELAY RWD RR EXC. BRAKE REGULATION ECE<TDV>	1-48210-278-0	01	1	0001-
1	VALVE; RELAY RWD RR NEW ZEALAND EQUIPMENT(PK5)	1-48210-500-0	01	1	9611-9912
1	VALVE; RELAY RWD RR BRAKE REGULATION ECE<TDV>	1-48210-500-0	01	1	0001-
2	VALVE; RELAY (A)	1-48210-278-0	01	1	9601-9610
2	VALVE; RELAY BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-48210-278-0	01	1	9611-9912
2	VALVE; RELAY EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-48210-278-0	01	1	9611-9912
2	VALVE; RELAY BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-48210-278-0	01	1	0001-
2	VALVE; RELAY EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0001-
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) (B)	1-48210-143-0	01	1	9601-9610
2	VALVE; RELAY NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B)	1-48210-143-0	01	1	9611-9912
2	VALVE; RELAY BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-48210-143-0	01	1	0001-
2	VALVE; RELAY NEW ZEALAND EQUIPMENT(PK5) (A)	1-48210-500-0	01	1	9611-9912
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (A)	1-48210-500-0	01	1	0001-
4	BOLT; RELAY VLV TO BRKT M10X40 FLANGE	0-28081-040-0	02	1	9601-9601
4	BOLT; RELAY VLV TO BRKT M10X30 FLANGE	0-28081-030-0	02	1	9602-9606
4	BOLT; RELAY VLV TO BRKT M10X35 FLANGE	0-28681-035-0	02	1	9607-
5	NUT M10	9-09110-510-0	02	1	9601-9601
8	BOLT; BRKT M10X35 FLANGE	0-28081-035-0	02	1	9601-9601
8	BOLT; BRKT M10X40 FLANGE	0-28081-040-0	02	1	9602-9606
8	BOLT; BRKT M10X40 FLANGE	0-28681-040-0	02	1	9607-
9	NUT M10	9-09110-510-0	02	1	9601-9606
9	NUT M10 FLANGE	0-91150-210-0	02	1	9607-
10	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9610
10	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9611-9904
10	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9611-9904
10	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9905-9912
10	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9905-9912
10	CONNECTOR BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0001-
10	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	0001-
10	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) (D) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9610
10	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) (D) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9611-9904
10	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9611-9904
10	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-9912
10	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-9912
10	CONNECTOR BRAKE REGULATION ECE<TDV> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0001-
10	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0001-
10	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-9610
10	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9611-9904
10	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (A) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9611-9904
10	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-9912
10	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	9905-9912
10	CONNECTOR BRAKE REGULATION ECE<TDV> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0001-
10	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ> (A) DIN12 & R3/8 ELBOW	1-09660-959-0	01	1	0001-
10	CONNECTOR BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) (B) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	9601-9904
10	CONNECTOR HONG KONG EQUIPMENT(PQ1) (B) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	9905-9912
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> (B) DIN8X2 & R3/8 3WAY	1-09660-996-0	01	1	0001-
10	CONNECTOR EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	02	1	9601-9610
10	CONNECTOR EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT	1-09660-670-1	02	1	9611-9904
10	CONNECTOR EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,NEW ZEALAND EQUIPMENT(PK5) (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	9905-9912
10	CONNECTOR EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE REGULATION ECE<TDV> (C) DIN12 & R1/2 STRAIGHT	1-09660-966-0	02	1	0001-
10	CONNECTOR HONG KONG EQUIPMENT(PQ1) (E) DIN8X2 & R3/8 3WAY	1-09660-715-1	01	1	9601-9904
10	CONNECTOR HONG KONG EQUIPMENT(PQ1) (E) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9905-9912
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> (E) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	0001-
10	CONNECTOR HONG KONG EQUIPMENT(PQ1) EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (D) DIN8 & R3/8 ELBOW	1-09660-652-1	02	1	9601-9904
10	CONNECTOR HONG KONG EQUIPMENT(PQ1) EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	9905-9912
10	CONNECTOR BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (D) DIN8 & R3/8 ELBOW	1-09660-957-0	02	1	0001-
10	CONNECTOR HONG KONG EQUIPMENT(PQ1) EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (B) DIN12 & R1/2 ELBOW	1-09660-654-1	02	1	9601-9904
10	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (F)	1-09656-446-0	01	1	9611-9912
10	CONNECTOR BRAKE REGULATION ECE<TDV> (F)	1-09656-446-0	01	1	0001-
10	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (H) DIN8X2 & R3/8 3WAY	1-09660-658-1	01	1	9611-9904
10	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (H) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	9905-9912
10	CONNECTOR BRAKE REGULATION ECE<TDV> (H) DIN8X2 & R3/8 3WAY	1-09660-997-0	01	1	0001-
10	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (G)	1-09660-661-1	01	1	9611-9904
10	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (G) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	9905-9912
10	CONNECTOR BRAKE REGULATION ECE<TDV> (G) DIN12X2 & R1/2 3WAY	1-09661-020-0	01	1	0001-
10	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (I) DIN8 & R1/2 STRAIGHT	1-09660-668-1	01	1	9611-9904
10	CONNECTOR NEW ZEALAND EQUIPMENT(PK5) (I)	1-09661-126-0	01	1	9905-9912
10	CONNECTOR BRAKE REGULATION ECE<TDV> (I)	1-09661-126-0	01	1	0001-
11	PLUG BRAKE POWER CHAMBER FORWARD<BCQ> PT1/2	9-09204-521-0	01	1	9601-9610
11	PLUG BRAKE POWER CHAMBER FORWARD<BCQ> EXC. NEW ZEALAND EQUIPMENT(PK5) PT1/2	9-09204-521-0	01	1	9611-9912
11	PLUG NEW ZEALAND EQUIPMENT(PK5) PT1/2	9-09204-521-0	01	1	9611-9912
11	PLUG BRAKE REGULATION ECE<TDV> PT1/2	9-09204-521-0	01	1	0001-
11	PLUG BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE REGULATION ECE<TDV> PT1/2	9-09204-521-0	01	1	0001-
12	CONNECTOR; RELAY VLV (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9610
12	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9611-9611
12	CONNECTOR; RELAY VLV BRAKE SYSTEM SPRING BRAKE(BCR) (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9612-9904
12	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9612-9904
12	CONNECTOR; RELAY VLV BRAKE SYSTEM SPRING BRAKE(BCR) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-9912
12	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-9912
12	CONNECTOR; RELAY VLV BRAKE SYSTEM SPRING BRAKE(BCR) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0001-
12	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION ECE<TDV> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0001-
12	CONNECTOR; RELAY VLV (A) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	9601-9904
12	CONNECTOR; RELAY VLV (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9905-
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9904
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9905-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM SPRING BRAKE(BCR) (A) DIN12 & R1/2 ELBOW	1-09660-654-1	03	1	9612-9904
12	CONNECTOR; RELAY VLV BRAKE SYSTEM SPRING BRAKE(BCR) (A) DIN12 & R1/2 ELBOW	1-09660-960-0	03	1	9905-
52	CONNECTOR; RELAY VLV NEW ZEALAND EQUIPMENT(PK5) M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	9611-9912
52	CONNECTOR; RELAY VLV BRAKE REGULATION ECE<TDV> M16 & PT1/4 & PT3/8 3WAY	1-09656-677-0	01	1	0001-
58	ADAPTER (B) DIN8 & M20 STRAIGHT	1-09660-675-1	02	1	9601-9904
58	ADAPTER HONG KONG EQUIPMENT(PQ1) (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	9601-9912
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ> (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0001-
58	ADAPTER NEW ZEALAND EQUIPMENT(PK5) (D) NPTF3/8 & RC3/8	1-09660-548-0	01	1	9611-9904
58	ADAPTER NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	9611-9904
58	ADAPTER NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9905-9912
58	ADAPTER BRAKE REGULATION ECE<TDV> (C) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0007
58	ADAPTER BRAKE REGULATION ECE<TDV> (C) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
68	NUT; RELAY VLV TO BRKT M10	9-09110-510-0	02	1	9601-9606
68	NUT; RELAY VLV TO BRKT M10 FLANGE	0-91150-210-0	02	1	9607-
108	CONNECTOR; ELBOW (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9610
108	CONNECTOR; ELBOW BRAKE SYSTEM SPRING BRAKE(BCR) (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9611-9611
108	CONNECTOR; ELBOW (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9611-9611
108	CONNECTOR; ELBOW (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9612-9904
108	CONNECTOR; ELBOW (A) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-
108	CONNECTOR; ELBOW (B) DIN12 & R1/2 ELBOW	1-09660-654-1	02	1	9601-9904
108	CONNECTOR; ELBOW (B) DIN12 & R1/2 ELBOW	1-09660-960-0	02	1	9905-
211	CONNECTOR; TEST NEW ZEALAND EQUIPMENT(PK5)	1-47459-013-0	01	1	9611-9912
211	CONNECTOR; TEST BRAKE REGULATION ECE<TDV>	1-47459-013-0	01	1	0001-

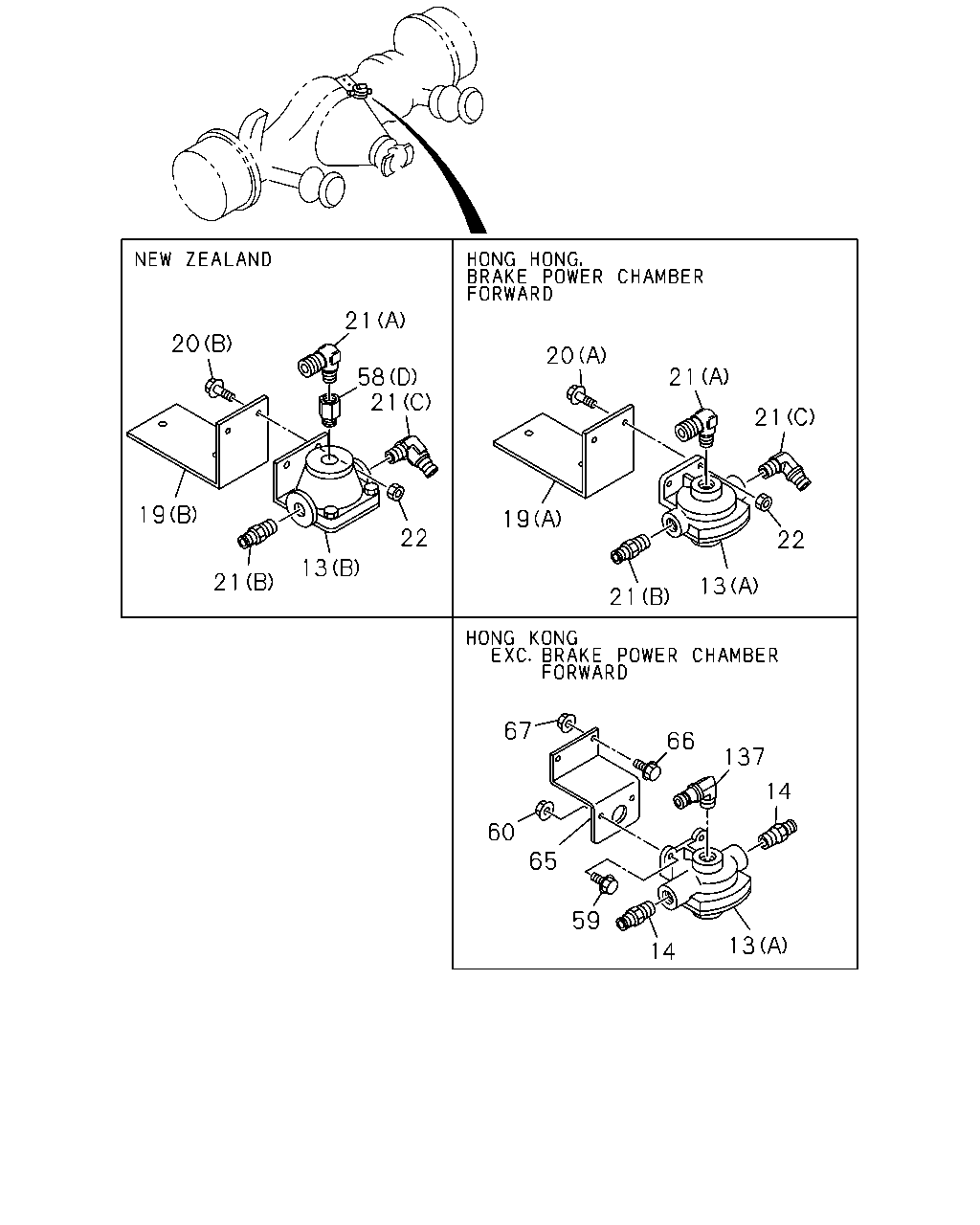

21 20 20 21 58 21 21 19 19 22 22 13 21 13 21 67 66 137 14 60 65 59 13 14

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
13	VALVE ASM; QUICK RELEASE BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ> (A)	1-48410-320-0	01	1	9601-9904
13	VALVE ASM; QUICK RELEASE HONG KONG EQUIPMENT(PQ1) (A)	1-48410-320-0	01	1	9601-9904
13	VALVE ASM; QUICK RELEASE HONG KONG EQUIPMENT(PQ1) EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (A)	1-48410-320-0	01	1	9905-9912
13	VALVE ASM; QUICK RELEASE BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A)	1-48410-320-0	01	1	9905-9912
13	VALVE ASM; QUICK RELEASE BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A)	1-48410-320-0	01	1	0001-
13	VALVE ASM; QUICK RELEASE BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (A)	1-48410-320-0	01	1	0001-
13	VALVE ASM; QUICK RELEASE NEW ZEALAND EQUIPMENT(PK5) (B)	1-48410-234-0	01	1	9611-9904
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) EXC. BRAKE POWER CHAMBER FORWARD<BCQ> DIN8,R3/8 STRAIGHT	1-09660-651-1	02	1	9601-9904
14	CONNECTOR; RELAY VLV HONG KONG EQUIPMENT(PQ1) EXC. BRAKE POWER CHAMBER FORWARD<BCQ> DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	9905-9912
14	CONNECTOR; RELAY VLV BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE POWER CHAMBER FORWARD<BCQ> DIN8 & R3/8 STRAIGHT	1-09660-964-0	02	1	0001-
19	BRACKET; QUICK RELEASE VLV BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) (A)	1-47465-885-1	01	1	9601-9904
19	BRACKET; QUICK RELEASE VLV BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ> (A)	1-47465-885-1	01	1	9601-9904
19	BRACKET; QUICK RELEASE VLV BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A)	1-47465-885-1	01	1	9905-
19	BRACKET; QUICK RELEASE VLV NEW ZEALAND EQUIPMENT(PK5) (B)	1-47476-889-0	01	1	9611-9904
20	BOLT; BRKT BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) (A) M8X25 FLANGE	0-28680-825-0	02	1	9601-9904
20	BOLT; BRKT BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ> (A) M8X25 FLANGE	0-28680-825-0	02	1	9601-9904
20	BOLT; BRKT BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) M8X25 FLANGE	0-28680-825-0	02	1	9905-
20	BOLT; BRKT NEW ZEALAND EQUIPMENT(PK5) (B) M8X16 FLANGE	0-28080-816-0	02	1	9611-9904
21	CONNECTOR; QUICK RELEASE VLV BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) (A) M27 & PT3/8 ELBOW	1-09660-136-0	01	1	9601-9610
21	CONNECTOR; QUICK RELEASE VLV BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ> (A) M27 & PT3/8 ELBOW	1-09660-136-0	01	1	9601-9610
21	CONNECTOR; QUICK RELEASE VLV BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	9611-9904
21	CONNECTOR; QUICK RELEASE VLV BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ> (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	9611-9904
21	CONNECTOR; QUICK RELEASE VLV NEW ZEALAND EQUIPMENT(PK5) (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	9611-9904
21	CONNECTOR; QUICK RELEASE VLV BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A) M27 & PT3/8 ELBOW	1-09660-136-1	01	1	9905-
21	CONNECTOR; QUICK RELEASE VLV BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) (B) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9601-9610
21	CONNECTOR; QUICK RELEASE VLV BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ> (B) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9601-9610
21	CONNECTOR; QUICK RELEASE VLV BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) (B) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9611-9904
21	CONNECTOR; QUICK RELEASE VLV BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ> (B) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9611-9904
21	CONNECTOR; QUICK RELEASE VLV NEW ZEALAND EQUIPMENT(PK5) (B) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9611-9904
21	CONNECTOR; QUICK RELEASE VLV BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN8,R3/8 STRAIGHT	1-09660-651-1	01	1	9905-9905
21	CONNECTOR; QUICK RELEASE VLV BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B) DIN8 & R3/8 STRAIGHT	1-09660-964-0	01	1	9905-
21	CONNECTOR; QUICK RELEASE VLV BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9610
21	CONNECTOR; QUICK RELEASE VLV BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ> (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9610
21	CONNECTOR; QUICK RELEASE VLV BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9611-9904
21	CONNECTOR; QUICK RELEASE VLV BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ> (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9611-9904
21	CONNECTOR; QUICK RELEASE VLV NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9611-9904
21	CONNECTOR; QUICK RELEASE VLV BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9905-9905
21	CONNECTOR; QUICK RELEASE VLV BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-
22	NUT; BRKT BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9601-9610
22	NUT; BRKT BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ> M8	9-09110-408-0	02	1	9601-9610
22	NUT; BRKT BRAKE POWER CHAMBER FORWARD<BCQ> HONG KONG EQUIPMENT(PQ1) M8	9-09110-408-0	02	1	9611-9904
22	NUT; BRKT BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ> M8	9-09110-408-0	02	1	9611-9904
22	NUT; BRKT NEW ZEALAND EQUIPMENT(PK5) M8	9-09110-408-0	02	1	9611-9904
22	NUT; BRKT BRAKE POWER CHAMBER FORWARD<BCQ> BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> M8	9-09110-408-0	02	1	9905-
58	ADAPTER (B) DIN8 & M20 STRAIGHT	1-09660-675-1	02	1	9601-9904
58	ADAPTER HONG KONG EQUIPMENT(PQ1) (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	9601-9912
58	ADAPTER BRAKE REGULATION HONG KONG<TCZ> (A) M16 & RC3/8 STRAIGHT	1-09660-882-0	01	1	0001-
58	ADAPTER NEW ZEALAND EQUIPMENT(PK5) (D) NPTF3/8 & RC3/8	1-09660-548-0	01	1	9611-9904
58	ADAPTER NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	9611-9904
58	ADAPTER NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	9905-9912
58	ADAPTER BRAKE REGULATION ECE<TDV> (C) DIN8 & M16 STRAIGHT	1-09661-095-0	01	1	0001-0007
58	ADAPTER BRAKE REGULATION ECE<TDV> (C) DIN8 & M16 STRAIGHT	1-09660-875-0	01	1	0008-
59	BOLT; RELEASE VALVE FIX HONG KONG EQUIPMENT(PQ1) EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M8X20 FLANGE	0-28080-820-0	02	1	9601-9606
59	BOLT; RELEASE VALVE FIX HONG KONG EQUIPMENT(PQ1) EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M8X25 FLANGE	0-28680-825-0	02	1	9607-9912
59	BOLT; RELEASE VALVE FIX BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M8X25 FLANGE	0-28680-825-0	02	1	0001-
60	NUT; RELEASE VALVE FIX HONG KONG EQUIPMENT(PQ1) EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M8	9-09110-408-0	02	1	9601-9606
60	NUT; RELEASE VALVE FIX HONG KONG EQUIPMENT(PQ1) EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M8 FLANGE	0-91150-108-0	02	1	9607-9912
60	NUT; RELEASE VALVE FIX BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M8 FLANGE	0-91150-108-0	02	1	0001-
65	BRACKET; RELAY VLV RR HONG KONG EQUIPMENT(PQ1) EXC. BRAKE POWER CHAMBER FORWARD<BCQ>	1-47475-540-1	01	1	9601-9912
65	BRACKET; RELAY VLV RR BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE POWER CHAMBER FORWARD<BCQ>	1-47475-540-1	01	1	0001-
66	BOLT; BRKT,RELAY VLV RR HONG KONG EQUIPMENT(PQ1) EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M8X25 FLANGE	0-28080-825-0	02	1	9601-9606
66	BOLT; BRKT,RELAY VLV RR HONG KONG EQUIPMENT(PQ1) EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M8X30 FLANGE	0-28680-830-0	02	1	9607-9912
66	BOLT; BRKT,RELAY VLV RR BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M8X30 FLANGE	0-28680-830-0	02	1	0001-
67	NUT; BRKT,RELAY VLV RR HONG KONG EQUIPMENT(PQ1) EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M8	9-09110-408-0	02	1	9601-9606
67	NUT; BRKT,RELAY VLV RR HONG KONG EQUIPMENT(PQ1) EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M8 FLANGE	0-91150-108-0	02	1	9607-9912
67	NUT; BRKT,RELAY VLV RR BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M8 FLANGE	0-91150-108-0	02	1	0001-
137	CONNECTOR; SUPPLY HONG KONG EQUIPMENT(PQ1) EXC. BRAKE POWER CHAMBER FORWARD<BCQ> DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9904
137	CONNECTOR; SUPPLY HONG KONG EQUIPMENT(PQ1) EXC. BRAKE POWER CHAMBER FORWARD<BCQ> DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-9912
137	CONNECTOR; SUPPLY BRAKE REGULATION HONG KONG<TCZ> EXC. BRAKE POWER CHAMBER FORWARD<BCQ> DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0001-

12 2 167 170 170 167 164 164 164 166 166 157 157 158 158 161 161

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	VALVE; RELAY (A)	1-48210-278-0	01	1	9601-9610
2	VALVE; RELAY BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-48210-278-0	01	1	9611-9912
2	VALVE; RELAY EXC. NEW ZEALAND EQUIPMENT(PK5) (A)	1-48210-278-0	01	1	9611-9912
2	VALVE; RELAY BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-48210-278-0	01	1	0001-
2	VALVE; RELAY EXC. BRAKE REGULATION ECE<TDV> (A)	1-48210-278-0	01	1	0001-
2	VALVE; RELAY HONG KONG EQUIPMENT(PQ1) (B)	1-48210-143-0	01	1	9601-9610
2	VALVE; RELAY NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B)	1-48210-143-0	01	1	9611-9912
2	VALVE; RELAY BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-48210-143-0	01	1	0001-
2	VALVE; RELAY NEW ZEALAND EQUIPMENT(PK5) (A)	1-48210-500-0	01	1	9611-9912
2	VALVE; RELAY BRAKE REGULATION ECE<TDV> (A)	1-48210-500-0	01	1	0001-
12	CONNECTOR; RELAY VLV (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-9610
12	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9611-9611
12	CONNECTOR; RELAY VLV BRAKE SYSTEM SPRING BRAKE(BCR) (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9612-9904
12	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9612-9904
12	CONNECTOR; RELAY VLV BRAKE SYSTEM SPRING BRAKE(BCR) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-9912
12	CONNECTOR; RELAY VLV EXC. NEW ZEALAND EQUIPMENT(PK5) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	9905-9912
12	CONNECTOR; RELAY VLV BRAKE SYSTEM SPRING BRAKE(BCR) (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0001-
12	CONNECTOR; RELAY VLV EXC. BRAKE REGULATION ECE<TDV> (C) DIN8 & R3/8 ELBOW	1-09660-957-0	01	1	0001-
12	CONNECTOR; RELAY VLV (A) DIN12 & R1/2 ELBOW	1-09660-654-1	01	1	9601-9904
12	CONNECTOR; RELAY VLV (A) DIN12 & R1/2 ELBOW	1-09660-960-0	01	1	9905-
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 STRAIGHT	1-09660-670-1	01	1	9601-9904
12	CONNECTOR; RELAY VLV (B) DIN12 & R1/2 STRAIGHT	1-09660-966-0	01	1	9905-
12	CONNECTOR; RELAY VLV BRAKE SYSTEM SPRING BRAKE(BCR) (A) DIN12 & R1/2 ELBOW	1-09660-654-1	03	1	9612-9904
12	CONNECTOR; RELAY VLV BRAKE SYSTEM SPRING BRAKE(BCR) (A) DIN12 & R1/2 ELBOW	1-09660-960-0	03	1	9905-
157	RETAINER; VALVE	1-48213-002-0	01	1	9601-9912
157	RETAINER; VALVE HONG KONG EQUIPMENT(PQ1)	1-48213-002-0	01	1	9601-9912
157	RETAINER; VALVE BRAKE SYSTEM SPRING BRAKE(BCR)	1-48213-002-0	01	1	0001-
157	RETAINER; VALVE EXC. BRAKE REGULATION ECE<TDV>	1-48213-002-0	01	1	0001-
157	RETAINER; VALVE EXC. BRAKE REGULATION ECE<TDV>	1-48213-002-0	01	1	0001-
157	RETAINER; VALVE BRAKE REGULATION HONG KONG<TCZ>	1-48213-002-0	01	1	0001-
157	RETAINER; VALVE NEW ZEALAND EQUIPMENT(PK5)	1-48213-002-0	03	1	9611-9912
157	RETAINER; VALVE BRAKE REGULATION ECE<TDV>	1-48213-002-0	03	1	0001-
158	SPRING; VALVE	1-47819-089-0	01	1	9601-9912
158	SPRING; VALVE HONG KONG EQUIPMENT(PQ1)	1-47819-089-0	01	1	9601-9912
158	SPRING; VALVE BRAKE SYSTEM SPRING BRAKE(BCR)	1-47819-089-0	01	1	0001-
158	SPRING; VALVE EXC. BRAKE REGULATION ECE<TDV>	1-47819-089-0	01	1	0001-
158	SPRING; VALVE EXC. BRAKE REGULATION ECE<TDV>	1-47819-089-0	01	1	0001-
158	SPRING; VALVE BRAKE REGULATION HONG KONG<TCZ>	1-47819-089-0	01	1	0001-
158	SPRING; VALVE NEW ZEALAND EQUIPMENT(PK5)	1-47819-089-0	03	1	9611-9912
158	SPRING; VALVE BRAKE REGULATION ECE<TDV>	1-47819-089-0	03	1	0001-
161	GUIDE; VALVE	1-48129-014-0	01	1	9601-9912
161	GUIDE; VALVE HONG KONG EQUIPMENT(PQ1)	1-48129-014-0	01	1	9601-9912
161	GUIDE; VALVE BRAKE SYSTEM SPRING BRAKE(BCR)	1-48129-014-0	01	1	0001-
161	GUIDE; VALVE EXC. BRAKE REGULATION ECE<TDV>	1-48129-014-0	01	1	0001-
161	GUIDE; VALVE EXC. BRAKE REGULATION ECE<TDV>	1-48129-014-0	01	1	0001-
161	GUIDE; VALVE BRAKE REGULATION HONG KONG<TCZ>	1-48129-014-0	01	1	0001-
161	GUIDE; VALVE NEW ZEALAND EQUIPMENT(PK5)	1-48129-014-0	03	1	9611-9912
161	GUIDE; VALVE BRAKE REGULATION ECE<TDV>	1-48129-014-0	03	1	0001-
164	PISTON; RELAY VALVE (C)	1-48219-071-0	01	1	9601-9912
164	PISTON; RELAY VALVE HONG KONG EQUIPMENT(PQ1) (C)	1-48219-071-0	01	1	9601-9912
164	PISTON; RELAY VALVE BRAKE SYSTEM SPRING BRAKE(BCR) (C)	1-48219-071-0	01	1	0001-
164	PISTON; RELAY VALVE EXC. BRAKE REGULATION ECE<TDV> (C)	1-48219-071-0	01	1	0001-
164	PISTON; RELAY VALVE EXC. BRAKE REGULATION ECE<TDV> (C)	1-48219-071-0	01	1	0001-
164	PISTON; RELAY VALVE HONG KONG EQUIPMENT(PQ1) (A)	1-48219-032-0	01	1	9601-9610
164	PISTON; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-48219-032-0	01	1	9611-9912
164	PISTON; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A)	1-48219-032-0	01	1	0001-
164	PISTON; RELAY VALVE HONG KONG EQUIPMENT(PQ1) (B)	1-48219-047-0	01	1	9601-9610
164	PISTON; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B)	1-48219-047-0	01	1	9611-9912
164	PISTON; RELAY VALVE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-48219-047-0	01	1	0001-
164	PISTON; RELAY VALVE NEW ZEALAND EQUIPMENT(PK5) (C)	1-48219-071-0	02	1	9611-9912
164	PISTON; RELAY VALVE BRAKE REGULATION ECE<TDV> (C)	1-48219-071-0	02	1	0001-
166	SPRING; PISTON (A)	1-47819-090-0	01	1	9601-9912
166	SPRING; PISTON HONG KONG EQUIPMENT(PQ1) (A)	1-47819-090-0	01	1	9601-9912
166	SPRING; PISTON BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-47819-090-0	01	1	0001-
166	SPRING; PISTON EXC. BRAKE REGULATION ECE<TDV> (A)	1-47819-090-0	01	1	0001-
166	SPRING; PISTON EXC. BRAKE REGULATION ECE<TDV> (A)	1-47819-090-0	01	1	0001-
166	SPRING; PISTON HONG KONG EQUIPMENT(PQ1) (B)	1-48219-048-0	01	1	9601-9610
166	SPRING; PISTON NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B)	1-48219-048-0	01	1	9611-9912
166	SPRING; PISTON BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-48219-048-0	01	1	0001-
166	SPRING; PISTON NEW ZEALAND EQUIPMENT(PK5) (A)	1-47819-165-0	02	1	9611-9912
166	SPRING; PISTON BRAKE REGULATION ECE<TDV> (A)	1-47819-165-0	02	1	0001-
167	COVER; VALVE (B)	1-48219-070-0	01	1	9601-9912
167	COVER; VALVE HONG KONG EQUIPMENT(PQ1) (B)	1-48219-070-0	01	1	9601-9912
167	COVER; VALVE BRAKE SYSTEM SPRING BRAKE(BCR) (B)	1-48219-070-0	01	1	0001-
167	COVER; VALVE EXC. BRAKE REGULATION ECE<TDV> (B)	1-48219-070-0	01	1	0001-
167	COVER; VALVE EXC. BRAKE REGULATION ECE<TDV> (B)	1-48219-070-0	01	1	0001-
167	COVER; VALVE HONG KONG EQUIPMENT(PQ1) (A)	1-48219-050-1	01	1	9601-9610
167	COVER; VALVE NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (A)	1-48219-050-1	01	1	9611-9912
167	COVER; VALVE BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (A)	1-48219-050-1	01	1	0001-
167	COVER; VALVE NEW ZEALAND EQUIPMENT(PK5) (B)	1-48219-070-0	02	1	9611-9912
167	COVER; VALVE BRAKE REGULATION ECE<TDV> (B)	1-48219-070-0	02	1	0001-
170	SCREW; COVER TO BODY (A)	1-48219-039-0	04	1	9601-9912
170	SCREW; COVER TO BODY HONG KONG EQUIPMENT(PQ1) (A)	1-48219-039-0	04	1	9601-9912
170	SCREW; COVER TO BODY BRAKE SYSTEM SPRING BRAKE(BCR) (A)	1-48219-039-0	04	1	0001-
170	SCREW; COVER TO BODY EXC. BRAKE REGULATION ECE<TDV> (A)	1-48219-039-0	04	1	0001-
170	SCREW; COVER TO BODY EXC. BRAKE REGULATION ECE<TDV> (A)	1-48219-039-0	04	1	0001-
170	SCREW; COVER TO BODY HONG KONG EQUIPMENT(PQ1) (B)	1-48219-041-0	04	1	9601-9610
170	SCREW; COVER TO BODY NEW ZEALAND EQUIPMENT(PK5),HONG KONG EQUIPMENT(PQ1) (B)	1-48219-041-0	04	1	9611-9912
170	SCREW; COVER TO BODY BRAKE REGULATION HONG KONG<TCZ>,BRAKE REGULATION ECE<TDV> (B)	1-48219-041-0	04	1	0001-
170	SCREW; COVER TO BODY NEW ZEALAND EQUIPMENT(PK5) (A)	1-48219-039-0	08	1	9611-9912
170	SCREW; COVER TO BODY BRAKE REGULATION ECE<TDV> (A)	1-48219-039-0	08	1	0001-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
