Isuzu WW
▶
TRUCKS
▶
FXR
▶
11427 - FXR/GXR(AUST)JNLT05
▶
0 - Engine, Emission, Engine Electrical
▶
0-57 - EMISSION PIPING
▶
0-57 — EMISSION PIPING
(#48516) — 51 parça
◀

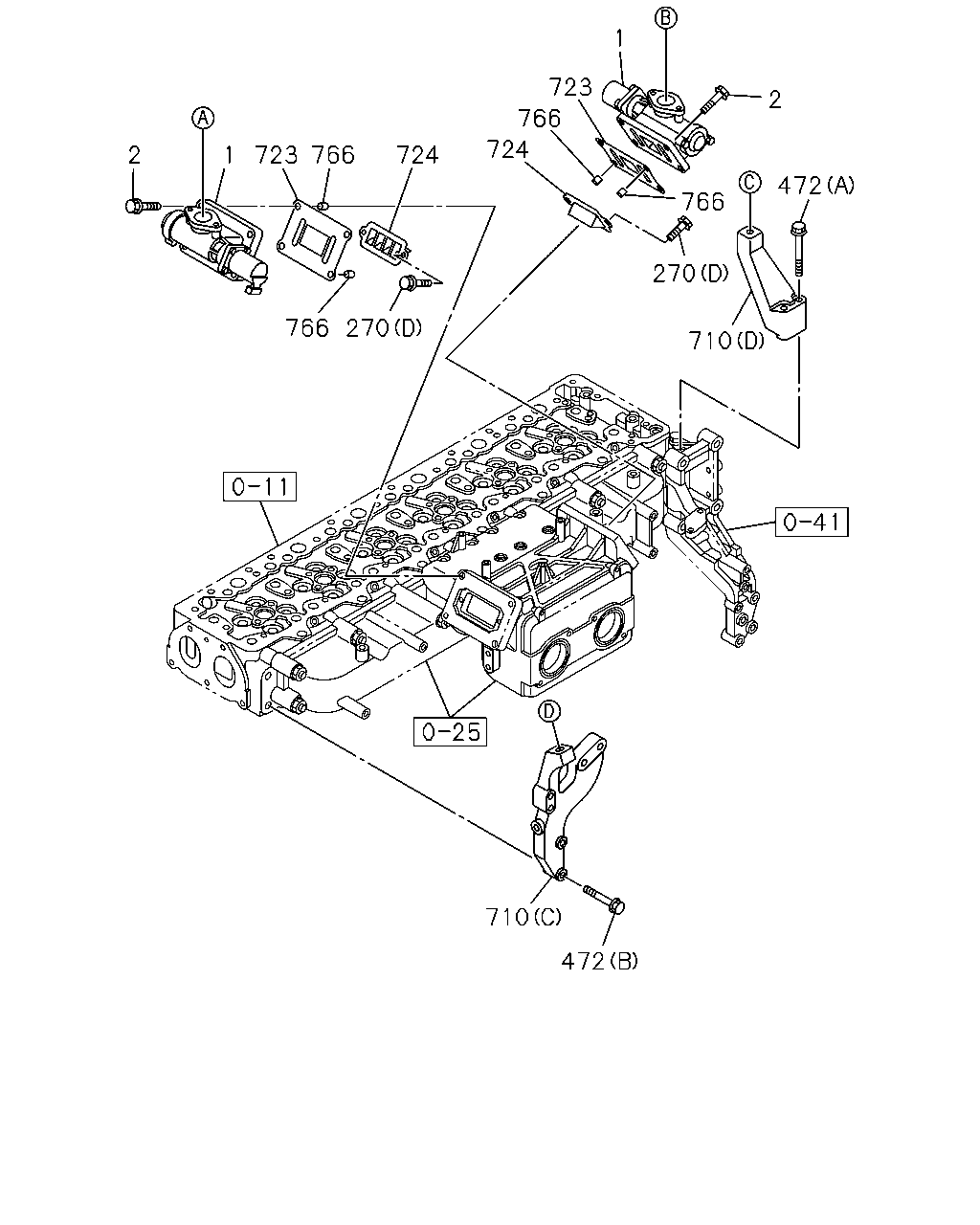

[057A] EGR VALVE (23 parça)
[057A] EGR COOLER (28 parça)
▶
1
723
2
766
724
2
723
766
724
1
472
766
270
766
270
710
710
472
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
VALVE; EGR
8-97603-872-9
02
1
0801-1405
1
VALVE; EGR
8-98238-263-0
02
1
1406-
2
BOLT; EGR VLV
M10X30 FLANGE
0-28751-030-0
06
1
0801-
2
BOLT; EGR VLV
M10X40 FLANGE
0-28751-040-0
02
1
0801-
270
BOLT
(E) M10X80 FLANGE
0-28151-080-0
01
1
1202-
270
BOLT
(A) M10X60 FLANGE
0-28151-060-0
04
1
0801-1201
270
BOLT
(A) M10X60 FLANGE
0-28151-060-0
03
1
1202-
270
BOLT
(B) M10X90 FLANGE
0-28151-090-0
02
1
0801-
270
BOLT
(C) M10X35 FLANGE
0-28751-035-0
20
1
0801-
270
BOLT
(D) M6X12 HEX SOCKET
0-58330-612-0
04
1
0801-1405
270
BOLT
M6X12 HEX SOCKET
8-98272-417-0
04
1
1406-
472
BOLT; BRKT
(A) M10X70 FLANGE
0-28151-070-0
02
1
0801-
472
BOLT; BRKT
(B) M12X45 FLANGE
0-28151-245-0
04
1
0801-
710
BRACKET; EGR COOLER
(A)
8-97604-631-2
01
1
0801-1004
710
BRACKET; EGR COOLER
(A)
8-98153-690-1
01
1
1005-
710
BRACKET; EGR COOLER
(B)
8-97604-739-1
01
1
0801-
710
BRACKET; EGR COOLER
(C)
8-97606-746-0
01
1
0801-
710
BRACKET; EGR COOLER
(D)
8-97606-747-0
01
1
0801-
723
GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97608-423-0
02
1
0801-1405
723
GASKET; REED VLV
ALSO INCLUDED IN GASKET SET(ENGINE).
8-97647-879-0
02
1
1406-
724
VALVE; REED
8-98186-738-0
02
1
0801-1405
724
VALVE; REED
8-98272-702-0
02
1
1406-
766
DOWEL; EGR VLV
OD=14 L=10
9-11319-065-3
04
1
0801-
270
270
270
720
270
270
270
270
718
270
270
270
718
270
720
720
720
720
718
17
703
17
767
767
270
718
726
716
720
716
726
767
767
270
17
703
710
472
710
17
725
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (A)
1-16157-017-1
02
1
0801-
17
GASKET; EGR PIPE
ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=47
8-97603-282-0
02
1
0801-
270
BOLT
(E) M10X80 FLANGE
0-28151-080-0
01
1
1202-
270
BOLT
(A) M10X60 FLANGE
0-28151-060-0
04
1
0801-1201
270
BOLT
(A) M10X60 FLANGE
0-28151-060-0
03
1
1202-
270
BOLT
(B) M10X90 FLANGE
0-28151-090-0
02
1
0801-
270
BOLT
(C) M10X35 FLANGE
0-28751-035-0
20
1
0801-
270
BOLT
(D) M6X12 HEX SOCKET
0-58330-612-0
04
1
0801-1405
270
BOLT
M6X12 HEX SOCKET
8-98272-417-0
04
1
1406-
472
BOLT; BRKT
(A) M10X70 FLANGE
0-28151-070-0
02
1
0801-
472
BOLT; BRKT
(B) M12X45 FLANGE
0-28151-245-0
04
1
0801-
703
DUCT; EGR
(A)
8-97604-165-1
01
1
0801-
703
DUCT; EGR
(B)
8-97604-519-2
01
1
0801-
710
BRACKET; EGR COOLER
(A)
8-97604-631-2
01
1
0801-1004
710
BRACKET; EGR COOLER
(A)
8-98153-690-1
01
1
1005-
710
BRACKET; EGR COOLER
(B)
8-97604-739-1
01
1
0801-
710
BRACKET; EGR COOLER
(C)
8-97606-746-0
01
1
0801-
710
BRACKET; EGR COOLER
(D)
8-97606-747-0
01
1
0801-
716
WASHER; EGR PIPE
T=2.2
1-09556-015-0
06
1
0801-
718
COOLER; EGR
(A)
8-97606-717-3
01
1
0801-
718
COOLER; EGR
(D)
8-97606-718-2
01
1
0801-
718
COOLER; EGR
(C)
8-97606-719-3
01
1
0801-
718
COOLER; EGR
(B)
8-97606-720-2
01
1
0801-
720
GASKET; COOLER
ALSO INCLUDED IN GASKET SET(ENGINE). ID=80
8-97603-889-0
06
1
0801-
725
DUCT; EGR VLV
8-97603-690-0
01
1
0801-
726
TUBE; DISTANCE
L=28
8-97250-073-1
06
1
0801-
767
BOLT; DUCT,EGR
(A) M10X100 FLANGE
0-28151-000-0
06
1
0801-
767
BOLT; DUCT,EGR
(B) M10X35 FLANGE
0-28751-035-0
02
1
0801-
