Isuzu WW
▶
TRUCKS
▶
FXR
▶
11427 - FXR/GXR(AUST)JNLT05
▶
0 - Engine, Emission, Engine Electrical
▶
0-27 - EXHAUST MANIFOLD
▶
0-27 — EXHAUST MANIFOLD
(#48501) — 20 parça
◀

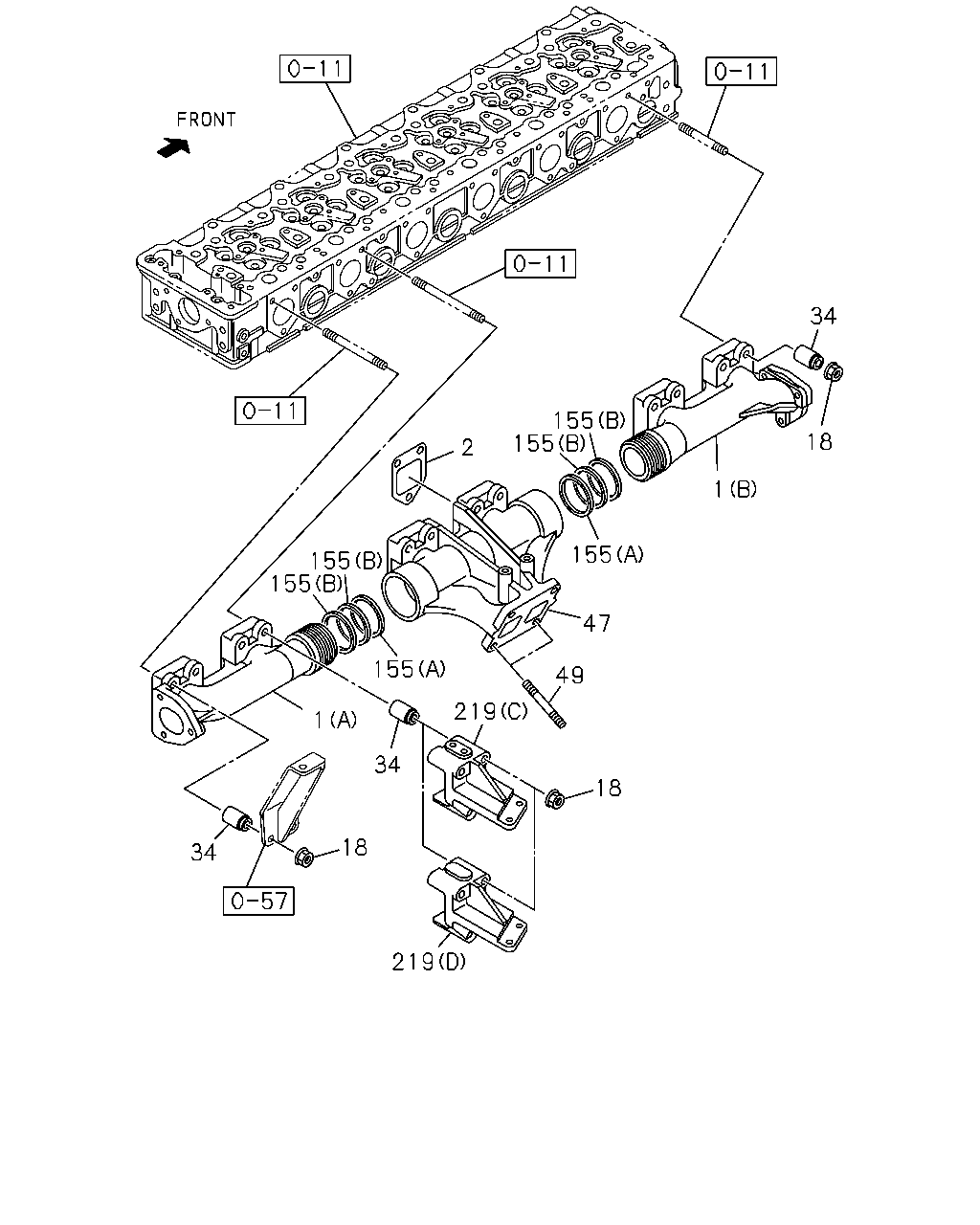

[027A] EXHAUST MANIFOLD (13 parça)

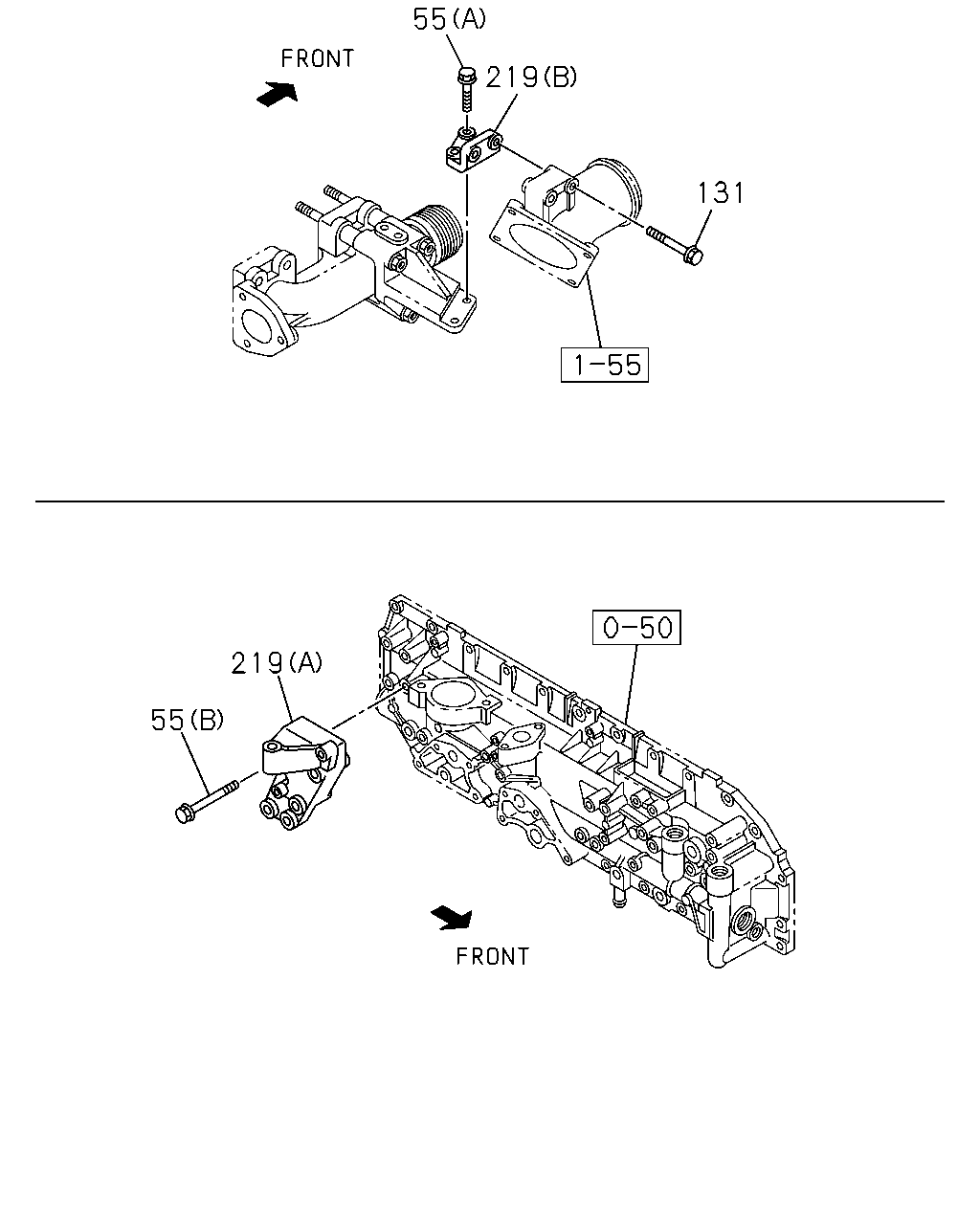

[027A] DUCT BRACKET (7 parça)
▶
34
155
155
18
2
1
155
155
155
47
155
49
219
1
34
18
18
34
219
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
MANIFOLD; EXHAUST
(A)
8-97604-163-2
01
1
0801-
1
MANIFOLD; EXHAUST
(B)
8-97604-518-3
01
1
0801-
2
GASKET; EXH MANIF TO HD
ALSO INCLUDED IN GASKET SET(ENG. & HEAD)
1-14145-205-2
06
1
0801-
18
NUT; EXH MANIF
M10 FLANGE
8-97096-192-1
18
1
0801-
34
COLLAR; DIST,EXH MANIF
L=28
8-97250-073-1
18
1
0801-
47
MANIFOLD; EXH,CENTER
8-97603-684-3
01
1
0801-
49
STUD; CENTER MANIF TO TURBOCHARGER
M10X25 L=47
8-97378-071-0
02
1
0801-
155
RING; SEAL,EXH MANIF
(A) STAMP RH
1-14149-151-0
02
1
0801-
155
RING; SEAL,EXH MANIF
(B)
1-14149-184-0
04
1
0801-
219
BRACKET; DUCT
(A)
8-97606-627-0
01
1
0801-
219
BRACKET; DUCT
(B)
8-97606-628-0
01
1
0801-
219
BRACKET; DUCT
(C)
8-97606-752-1
01
1
0801-
219
BRACKET; DUCT
(D)
8-98147-019-0
01
1
0906-
55
219
131
219
55
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
55
BOLT; BRKT
(B) M10X60 FLANGE
0-28151-060-0
03
1
0801-
55
BOLT; BRKT
(A) M10X30 FLANGE
0-28751-030-0
02
1
0801-
131
BOLT; MTG
M10X60 FLANGE
0-28151-060-0
03
1
0801-
219
BRACKET; DUCT
(A)
8-97606-627-0
01
1
0801-
219
BRACKET; DUCT
(B)
8-97606-628-0
01
1
0801-
219
BRACKET; DUCT
(C)
8-97606-752-1
01
1
0801-
219
BRACKET; DUCT
(D)
8-98147-019-0
01
1
0906-
