29 |
BOLT; CONT CYL
M10X20
|
1-09020-073-2 |
04 |
1 |
8712- |
● |
● |
● |
| |
41 |
BRACKET
|
1-14149-114-0 |
01 |
1 |
8712- |
● |
● |
● |
| |
82 |
WASHER; DISH
|
1-09500-007-0 |
04 |
1 |
8712- |
● |
● |
● |
| |
86 |

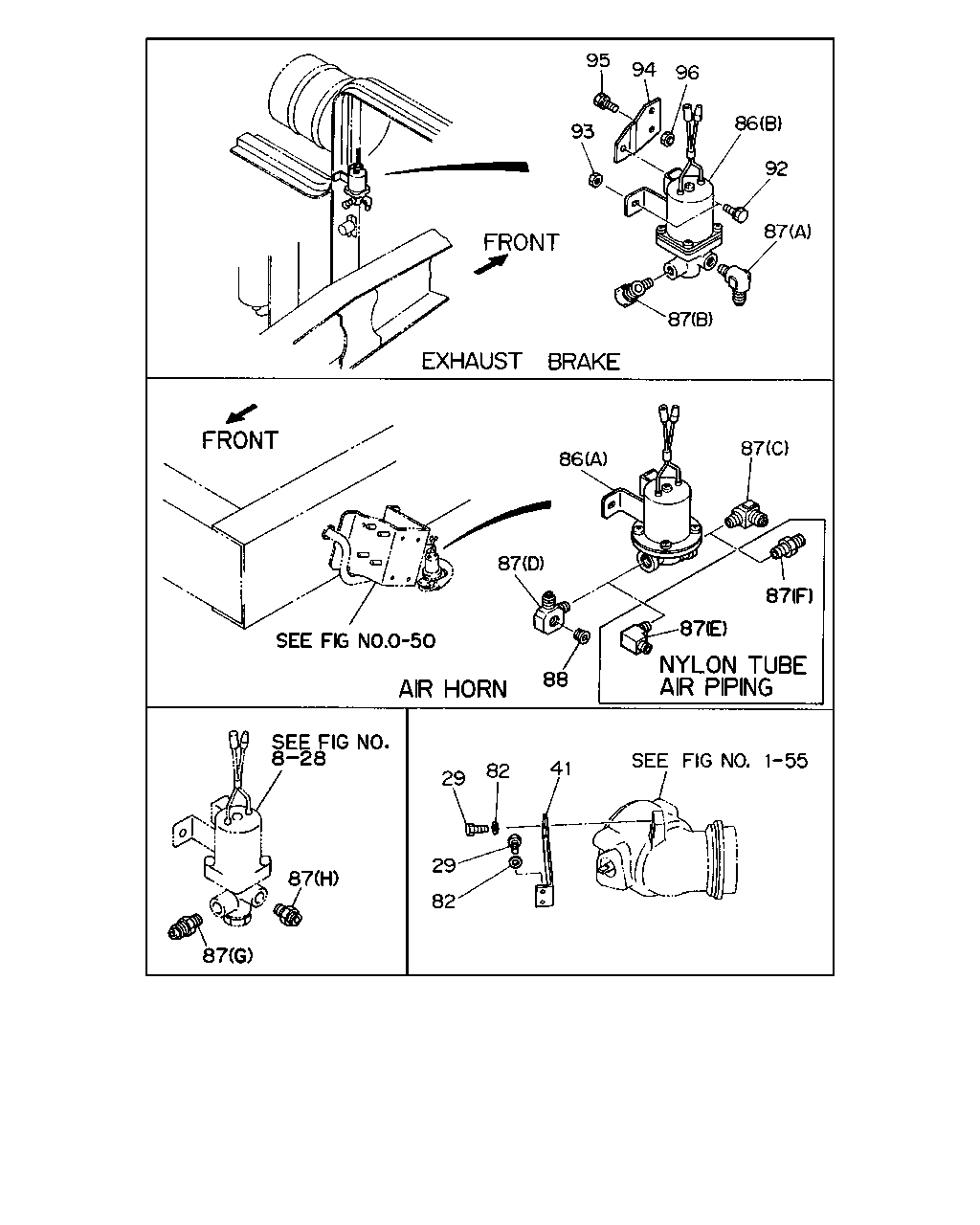

VALVE; MAG,EXH BRK
(B)
|
1-82563-094-0 |
01 |
1 |
8712-9006 |
● |
● |
● |
| |
86 |
VALVE; MAG,EXH BRK
(B)
|
1-82563-172-0 |
01 |
1 |
9007-9012 |
● |
● |
|
| |
86 |
VALVE; MAG,EXH BRK
(B)
|
1-82563-158-0 |
01 |
1 |
9101-9306 |
● |
● |
|
| |
86 |
VALVE; MAG,EXH BRK
(A)
|
1-82563-095-0 |
01 |
1 |
8712-9001 |
● |
● |
● |
| |
86 |
VALVE; MAG,EXH BRK
(B)
|
1-82563-402-0 |
01 |
1 |
9307- |
|
● |
|
| |
86 |
VALVE; MAG,EXH BRK
(A)
|
1-82563-299-1 |
01 |
1 |
9002- |
● |
● |
|
| |
87 |
CONNECTOR
(A)
PT1/4 & M12 ELBOW
|
1-09650-117-1 |
01 |
1 |
8712-9302 |
● |
● |
● |
| |
87 |
CONNECTOR
(A)
M12 & PT1/4 ELBOW
|
1-09650-430-0 |
01 |
1 |
9303- |
● |
● |
|
| |
87 |
CONNECTOR
(B)
M20 & PT1/4 ELBOW
|
9-09903-467-0 |
01 |
1 |
8712-8901 |
● |
● |
● |
| |
87 |
CONNECTOR
(B)
M20 & PT1/4 ELBOW
|
1-09660-137-0 |
01 |
1 |
8902-9302 |
● |
● |
● |
| |
87 |
CONNECTOR
(B)
M20 & PT1/4 ELBOW
|
1-09660-681-0 |
01 |
1 |
9303- |
● |
● |
|
| |
87 |
CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29>
(G)
M12 & PT1/4 STRAIGHT
|
1-09650-074-0 |
01 |
1 |
8712-9001 |
● |
● |
● |
| |
87 |
CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29>
(H)
M20 & PT1/4
|
9-09902-386-0 |
01 |
1 |
8712-9001 |
● |
● |
● |
| |
87 |
CONNECTOR
NYLON TUBE AIR PIPING<Z29>
(E)
17/32" PT1/4 ELBOW
|
1-09660-551-0 |
01 |
1 |
9307- |
|
● |
|
| |
87 |
CONNECTOR
NYLON TUBE AIR PIPING<Z29>
(F)
17/32" PT1/4
|
1-09660-573-0 |
01 |
1 |
9307- |
|
● |
|
| |
87 |
CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29>
(C)
M14 & PT1/4 STRAIGHT
|
1-09650-332-1 |
01 |
1 |
9307- |
|
● |
|
| |
87 |
CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29>
(D)
|
1-09656-316-1 |
01 |
1 |
9307- |
|
● |
|
| |
87 |
CONNECTOR
(C)
M14
|
1-09650-031-0 |
01 |
1 |
9002-9103 |
● |
● |
|
| |
87 |
CONNECTOR
(C)
M14 & PT1/4 STRAIGHT
|
1-09650-332-1 |
01 |
1 |
9104-9306 |
● |
● |
|
| |
87 |
CONNECTOR
(D)
|
1-09656-316-1 |
01 |
1 |
9002-9306 |
● |
● |
|
| |
87 |
CONNECTOR
NYLON TUBE AIR PIPING<Z29>
(F)
|
1-09660-226-0 |
01 |
1 |
8712-9306 |
● |
● |
|
| |
87 |
CONNECTOR
NYLON TUBE AIR PIPING<Z29>
FULL TRACTOR TRUCK<RD6>
(E)
|
1-09660-304-0 |
01 |
1 |
8712-9005 |
● |
● |
|
| |
87 |
CONNECTOR
NYLON TUBE AIR PIPING<Z29>
EXC. FULL TRACTOR TRUCK<RD6>
(E)
M14 & PT1/4 ELBOW
|
1-09660-233-0 |
01 |
1 |
8712-9005 |
● |
● |
|
| |
87 |
CONNECTOR
NYLON TUBE AIR PIPING<Z29>
(E)
M14 & PT1/4 ELBOW
|
1-09660-233-0 |
01 |
1 |
9006-9306 |
● |
● |
|
| |
87 |
CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29>
(G)
M12 & PT1/4 STRAIGHT
|
1-09650-074-1 |
01 |
1 |
9002-9306 |
● |
● |
|
| |
87 |
CONNECTOR
EXC. NYLON TUBE AIR PIPING<Z29>
(H)
M20 & PT1/4
|
9-09902-386-0 |
01 |
1 |
9002-9306 |
● |
● |
|
| |
88 |
PLUG
PT3/8
|
9-09204-517-0 |
01 |
1 |
8712-9306 |
● |
● |
● |
| |
88 |
PLUG
EXC. NYLON TUBE AIR PIPING<Z29>
PT3/8
|
9-09204-517-0 |
01 |
1 |
9307- |
|
● |
|
| |
92 |
BOLT; MAG VLV
M8X25 W/LK WASHER
|
9-01900-825-0 |
02 |
1 |
8712-9204 |
● |
● |
● |
| |
92 |
BOLT; MAG VLV
M8X25 W/LK WASHER
|
0-50040-825-0 |
02 |
1 |
9205-9302 |
● |
● |
|
| |
92 |
BOLT; MAG VLV
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9303-9306 |
● |
● |
|
| |
92 |
BOLT; MAG VLV
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9307- |
● |
● |
|
| |
93 |
NUT; MAG VLV
M8
|
9-09110-408-0 |
02 |
1 |
8712-9001 |
● |
● |
● |
| |
93 |
NUT; MAG VLV
M8
|
9-09110-408-0 |
01 |
1 |
9002- |
● |
● |
|
| |
94 |
BRACKET; MAG VLV,EXH BRAKE
|
1-82569-026-2 |
01 |
1 |
8712- |
● |
● |
● |
| |
95 |
BOLT; BRKT,MAG VLV,EXH BRAKE
M8X25 W/LK WASHER
|
9-01900-825-0 |
02 |
1 |
8712-9204 |
● |
● |
● |
| |
95 |
BOLT; BRKT,MAG VLV,EXH BRAKE
M8X25 W/LK WASHER
|
0-50040-825-0 |
02 |
1 |
9205-9302 |
● |
● |
|
| |
95 |
BOLT; BRKT,MAG VLV,EXH BRAKE
M8X25 FLANGE
|
0-28080-825-0 |
02 |
1 |
9303-9306 |
● |
● |
|
| |
95 |
BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE
|
0-28080-820-0 |
02 |
1 |
9307- |
|
● |
|
| |
96 |
NUT; BRKT,MAG VLV,EXH BRAKE
M8
|
9-09110-408-0 |
02 |
1 |
8712- |
● |
● |
● |
