Sayfa 3-05 - Isuzu EPC

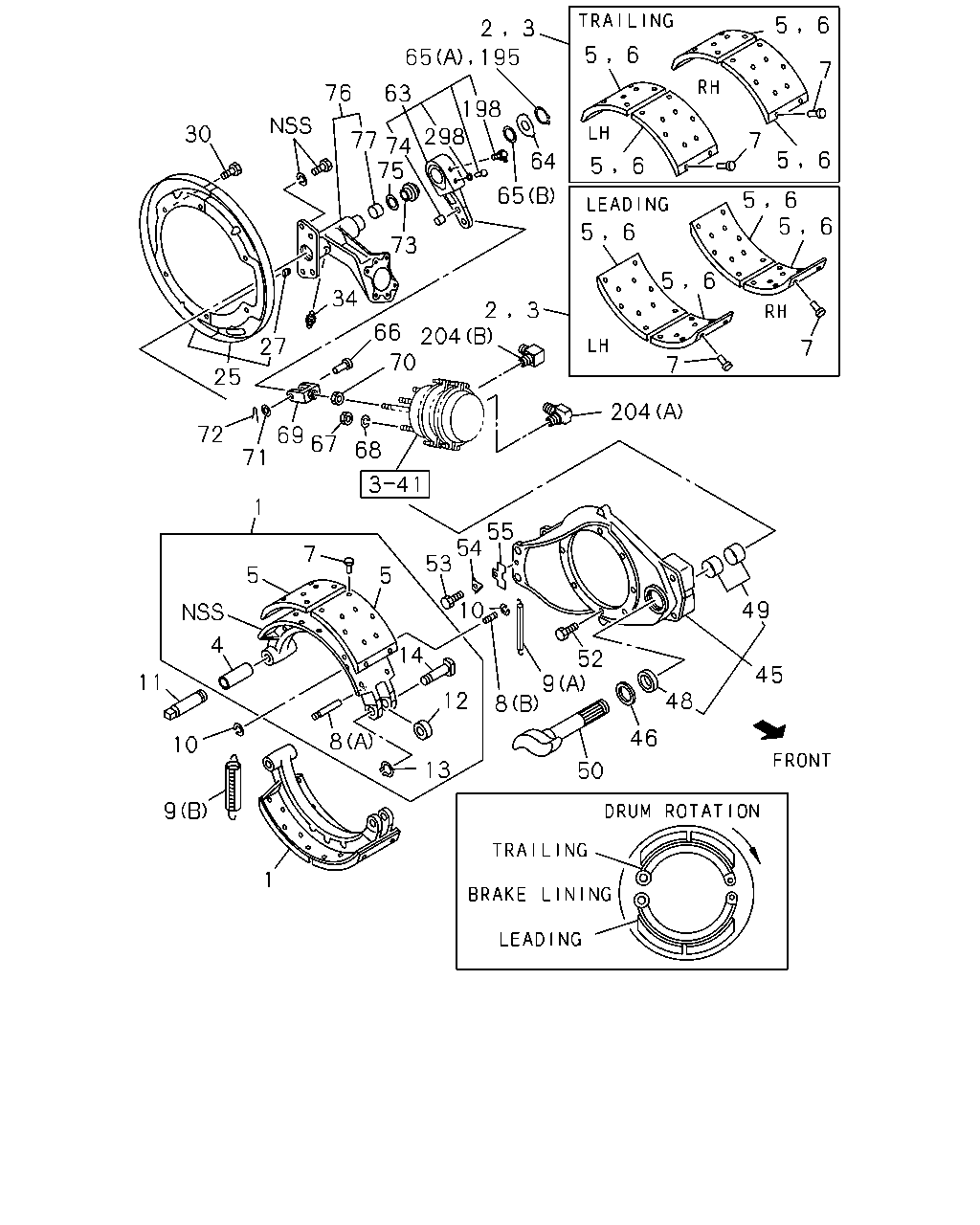

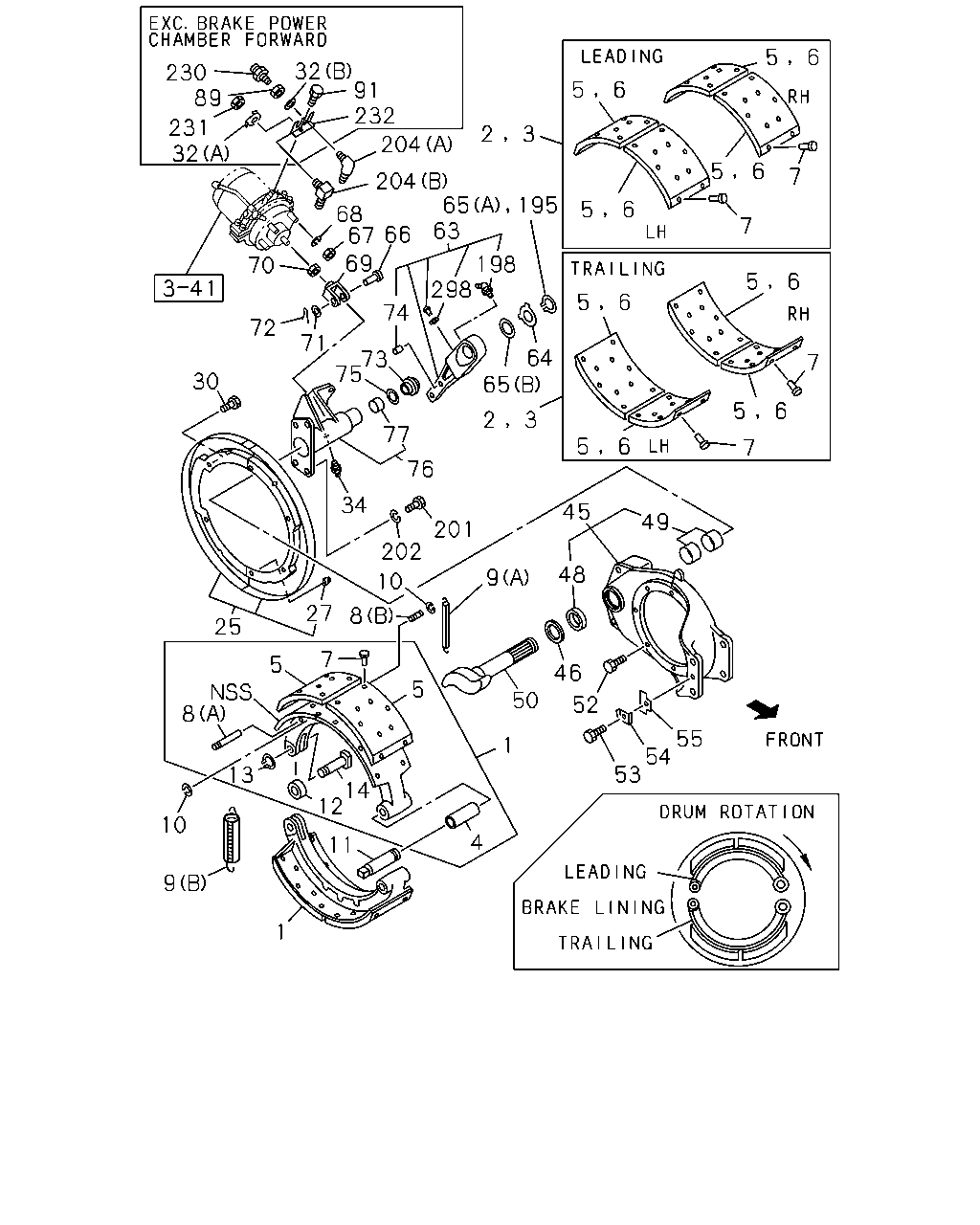

3-05 — REAR WHEEL BRAKE (#4848) — 359 parça

5 6 32 91 232 230 89 5 6 231 32 2 3 204 5 6 7 204 65 63 195 5 6 68 67 69 7 66 198 298 70 5 6 71 5 6 74 72 64 65 73 75 7 30 5 6 2 3 77 6 5 7 76 34 45 49 201 202 48 9 10 27 8 25 7 5 46 5 8 50 52 55 54 53 1 13 14 12 10 4 11 9 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-117-0	01	1	9601-9610
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-118-0	01	1	9601-9610
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-115-0	01	1	9601-9610
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-116-0	01	1	9601-9610
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-338-0	01	1	9611-9904
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING	1-47120-338-0	01	1	9905-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-339-0	01	1	9611-9904
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-47120-339-0	01	1	9905-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-336-0	01	1	9611-9904
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING	1-47120-336-0	01	1	9905-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-337-0	01	1	9611-9904
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-47120-337-0	01	1	9905-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING	1-47120-342-0	01	1	9905-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-47120-343-0	01	1	9905-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING	1-47120-340-0	01	1	9905-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-47120-341-0	01	1	9905-
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-969-0	01	1	9601-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-715-0	01	1	0007-
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-970-0	01	1	9601-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-716-0	01	1	0007-
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-967-0	01	1	9601-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-713-0	01	1	0007-
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-968-0	01	1	9601-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-714-0	01	1	0007-
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-059-0	01	1	9601-9610
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-061-0	01	1	9601-9610
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-313-0	01	1	9611-9904
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING	1-88310-313-0	01	1	9905-
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-315-0	01	1	9611-9904
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-88310-315-0	01	1	9905-
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING	1-88310-317-0	01	1	9905-
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-88310-319-0	01	1	9905-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-925-0	01	1	9601-0006
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-521-0	01	1	0007-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-933-0	01	1	9601-0006
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-523-0	01	1	0007-
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-060-0	01	1	9601-9610
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-062-0	01	1	9601-9610
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-314-0	01	1	9611-9904
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING	1-88310-314-0	01	1	9905-
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-316-0	01	1	9611-9904
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-88310-316-0	01	1	9905-
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING	1-88310-318-0	01	1	9905-
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-88310-320-0	01	1	9905-
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-926-0	01	1	9601-0006
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-522-0	01	1	0007-
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-934-0	01	1	9601-0006
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-524-0	01	1	0007-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	9601-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-075-0	04	1	9601-9610
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-081-0	04	1	9601-9610
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/INDICATOR HOLE	1-47125-413-0	04	1	9601-9610
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING WO/INDICATOR HOLE	1-47125-435-0	04	1	9611-9904
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING WO/INDICATOR HOLE	1-47125-435-0	04	1	9905-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING T=16	1-47125-436-0	04	1	9611-9904
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING T=16	1-47125-436-0	04	1	9905-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/INDICATOR HOLE	1-47125-445-0	04	1	9611-9904
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING W/INDICATOR HOLE	1-47125-445-0	04	1	9905-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING WO/INDICATOR HOLE	1-47125-439-0	04	1	9905-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-47125-440-0	04	1	9905-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING W/INDICATOR HOLE	1-47125-447-0	04	1	9905-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-773-0	04	1	9601-0006
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-797-0	04	1	0007-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-817-0	04	1	9601-0006
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-799-0	04	1	0007-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING WO/INDICATOR HOLE	1-47125-076-0	04	1	9601-9610
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-082-0	04	1	9601-9610
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/INDICATOR HOLE	1-47125-414-0	04	1	9601-9610
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING WO/INDICATOR HOLE	1-47125-437-0	04	1	9611-9904
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING WO/INDICATOR HOLE	1-47125-437-0	04	1	9905-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING T=17	1-47125-438-0	04	1	9611-9904
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING T=17	1-47125-438-0	04	1	9905-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/INDICATOR HOLE	1-47125-446-0	04	1	9611-9904
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING W/INDICATOR HOLE	1-47125-446-0	04	1	9905-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING EXC.INDICATO HOLE	1-47125-441-0	04	1	9905-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-47125-442-0	04	1	9905-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING W/INDICATOR HOLE	1-47125-448-0	04	1	9905-
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-774-0	04	1	9601-0006
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-798-0	04	1	0007-
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-818-0	04	1	9601-0006
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-800-0	04	1	0007-
7	RIVET; LINING,RR BRK BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> L=19.5	1-09732-035-0	AR	1	9905-
7	RIVET; LINING,RR BRK BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> L=18.5	1-09732-034-0	AR	1	9601-9604
7	RIVET; LINING,RR BRK BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. BRAKE POWER CHAMBER FORWARD<BCQ> L=18.5	1-09732-034-0	AR	1	9601-9604
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	9605-9904
7	RIVET; LINING,RR BRK BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> L=18.5	1-09732-034-0	AR	1	9905-9907
7	RIVET; LINING,RR BRK BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> L=18.5	1-09732-034-0	AR	1	9908-
7	RIVET; LINING,RR BRK EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> L=18.5	1-09732-034-0	AR	1	9908-
7	RIVET; LINING,RR BRK EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE LINING MATERIAL NON ASBESTOS<SKR> L=17	1-09732-027-0	AR	1	9601-9604
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	04	1	9601-9904
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-47119-021-0	04	1	9905-9907
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-47119-021-0	04	1	9908-
8	PIN; RETURN SPRING,RR BRK SHOE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B)	1-47119-021-0	04	1	9908-
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	9601-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-09744-074-0	04	1	9905-
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	9601-9904
9	SPRING; RETURN,BRK SHOE BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-09583-175-0	02	1	9905-9907
9	SPRING; RETURN,BRK SHOE BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-09583-175-0	02	1	9908-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B)	1-09583-175-0	02	1	9908-
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	02	1	9601-9904
9	SPRING; RETURN,BRK SHOE BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-09583-196-0	02	1	9905-9907
9	SPRING; RETURN,BRK SHOE BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-09583-196-0	02	1	9908-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> (A)	1-09583-196-0	02	1	9908-
9	SPRING; RETURN,BRK SHOE BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-09583-210-0	02	1	9905-
9	SPRING; RETURN,BRK SHOE BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-09583-277-2	02	1	9905-
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	08	1	9601-9907
10	RING; SNAP,SPR PIN BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> ID=10	9-09185-410-0	08	1	9908-
10	RING; SNAP,SPR PIN EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> ID=10	9-09185-410-0	08	1	9908-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	9601-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	9601-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	9601-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	9601-
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	9601-9904
25	COVER SET; RR BRK DRUM BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47151-462-1	02	1	9905-9907
25	COVER SET; RR BRK DRUM BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47151-462-1	02	1	9908-
25	COVER SET; RR BRK DRUM EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-47151-462-1	02	1	9908-
25	COVER SET; RR BRK DRUM BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47151-487-1	02	1	9905-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	9601-
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9601-
32	WASHER; LK EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (A)	1-48255-005-0	01	1	9601-
32	WASHER; LK EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (B) ID=21 TOOTH LK INT	9-09151-220-0	01	1	9601-
34	NIPPLE; GREASE,CHAMBER BRKT PT1/8 STRAIGHT	9-09031-010-0	02	1	9601-
45	BRACKET; ANCHOR PIN,W/BUSHING	1-47137-120-2	02	1	9601-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	9601-
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	9601-
49	BUSHING; CM/SHF,RR BRK	1-47146-003-1	02	1	9601-
50	CAMSHAFT; BRK,RR BRK	1-47141-054-0	01	1	9601-9904
50	CAMSHAFT; BRK,RR BRK BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47141-054-0	01	1	9905-9907
50	CAMSHAFT; BRK,RR BRK BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47141-054-0	01	1	9908-
50	CAMSHAFT; BRK,RR BRK EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-47141-054-0	01	1	9908-
50	CAMSHAFT; BRK,RR BRK	1-47141-053-0	01	1	9601-9904
50	CAMSHAFT; BRK,RR BRK BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47141-053-0	01	1	9905-9907
50	CAMSHAFT; BRK,RR BRK BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47141-053-0	01	1	9908-
50	CAMSHAFT; BRK,RR BRK EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-47141-053-0	01	1	9908-
50	CAMSHAFT; BRK,RR BRK BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47141-094-0	01	1	9905-
50	CAMSHAFT; BRK,RR BRK BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47141-095-0	01	1	9905-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9601-
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	9601-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	9601-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	9601-
63	ADJUSTER ASM; SLACK,RR BRK	1-48270-046-0	01	1	9601-
63	ADJUSTER ASM; SLACK,RR BRK	1-48270-045-0	01	1	9601-
64	PLATE; STOPPER,CM/SHF	1-47149-022-0	02	1	9601-
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	9601-
65	SPACER; SLACK ADJ,BRK EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> (A)	9-09180-038-0	01	1	9601-9705
65	SPACER; SLACK ADJ,BRK (A)	9-09180-038-0	01	1	9706-
66	PIN; JAW JOINT	1-09744-088-0	02	1	9601-
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	9601-
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	9601-
69	JOINT; JAW	1-09768-060-1	02	1	9601-
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	9601-
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	9601-
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	9601-
73	COLLAR; FELT RING,CM/SHF	1-47143-003-0	02	1	9601-9708
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	9709-
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	9601-
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	9601-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-084-0	01	1	9601-9904
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48258-084-0	01	1	9905-9907
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48258-084-0	01	1	9908-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-48258-084-0	01	1	9908-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-083-0	01	1	9601-9904
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48258-083-0	01	1	9905-9907
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48258-083-0	01	1	9908-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-48258-083-0	01	1	9908-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48258-141-0	01	1	9905-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48258-140-0	01	1	9905-
77	BUSHING	1-47146-003-1	02	1	9601-
89	NUT; CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M20	9-99111-420-0	02	1	9601-
91	BOLT; CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M8X12 W/LK WASHER	0-50040-812-0	02	1	9601-
195	RING; SNAP,CM/SHF BRAKE LINING MATERIAL NON ASBESTOS<SKR>	9-09180-038-0	02	1	9601-
195	RING; SNAP,CM/SHF EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	9-09180-038-0	01	1	9601-9907
195	RING; SNAP,CM/SHF	9-09180-038-0	01	1	9908-
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9601-
201	BOLT; BRKT,POWER CHAMBER BRAKE LINING MATERIAL NON ASBESTOS<SKR> M14X35	0-20801-435-0	08	1	9601-
202	WASHER; LK,BRKT BRAKE LINING MATERIAL NON ASBESTOS<SKR> ID=14.2	9-09150-514-0	08	1	9601-
204	CONNECTOR; SPR CHAMBER BRAKE POWER CHAMBER FORWARD<BCQ> (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-
204	CONNECTOR; SPR CHAMBER BRAKE POWER CHAMBER FORWARD<BCQ> (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-
204	CONNECTOR; SPR CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (B) PT3/8 & M27 ELBOW	1-09650-118-1	02	1	9601-
204	CONNECTOR; SPR CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (A) M20 & PT3/8 ELBOW	1-09660-686-0	01	1	9601-
230	NIPPLE; SPR CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M20 & PT1/4	9-09902-386-0	01	1	9601-
231	NUT; CONNECTOR EXC. BRAKE POWER CHAMBER FORWARD<BCQ> M27	9-09840-286-0	02	1	9601-
232	BRACKET; FLEX HOSE,CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ>	1-47465-696-1	01	1	9601-
298	GASKET ID=23.3	9-09561-223-0	02	1	9905-

5 6 2 3 5 6 65 195 7 76 63 198 298 30 77 74 75 7 5 6 64 5 6 65 5 6 5 6 6 5 73 5 6 34 2 204 70 3 66 27 7 7 25 204 72 69 67 68 71 1 55 54 53 7 5 5 49 10 14 4 52 45 11 9 8 12 48 46 8 10 13 50 9 1

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-117-0	01	1	9601-9610
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-118-0	01	1	9601-9610
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-115-0	01	1	9601-9610
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-116-0	01	1	9601-9610
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-338-0	01	1	9611-9904
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING	1-47120-338-0	01	1	9905-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-339-0	01	1	9611-9904
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-47120-339-0	01	1	9905-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-336-0	01	1	9611-9904
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING	1-47120-336-0	01	1	9905-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-337-0	01	1	9611-9904
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-47120-337-0	01	1	9905-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING	1-47120-342-0	01	1	9905-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-47120-343-0	01	1	9905-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING	1-47120-340-0	01	1	9905-
1	SHOE; BRK,RR BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-47120-341-0	01	1	9905-
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-969-0	01	1	9601-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-715-0	01	1	0007-
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-970-0	01	1	9601-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-716-0	01	1	0007-
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47110-967-0	01	1	9601-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47120-713-0	01	1	0007-
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47110-968-0	01	1	9601-0006
1	SHOE; BRK,RR EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47120-714-0	01	1	0007-
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-059-0	01	1	9601-9610
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-061-0	01	1	9601-9610
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-313-0	01	1	9611-9904
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING	1-88310-313-0	01	1	9905-
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-315-0	01	1	9611-9904
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-88310-315-0	01	1	9905-
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING	1-88310-317-0	01	1	9905-
2	LINING SET; RR BRK,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-88310-319-0	01	1	9905-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-925-0	01	1	9601-0006
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-521-0	01	1	0007-
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-933-0	01	1	9601-0006
2	LINING SET; RR BRK,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-523-0	01	1	0007-
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-060-0	01	1	9601-9610
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-062-0	01	1	9601-9610
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-314-0	01	1	9611-9904
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING	1-88310-314-0	01	1	9905-
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-316-0	01	1	9611-9904
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-88310-316-0	01	1	9905-
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING	1-88310-318-0	01	1	9905-
3	LINING SET; RR BRK,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-88310-320-0	01	1	9905-
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88302-926-0	01	1	9601-0006
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-88310-522-0	01	1	0007-
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88302-934-0	01	1	9601-0006
3	LINING SET; RR BRK,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-88310-524-0	01	1	0007-
4	BUSHING; BRK SHOE,RR WHEEL	1-47112-012-0	04	1	9601-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-075-0	04	1	9601-9610
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-081-0	04	1	9601-9610
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/INDICATOR HOLE	1-47125-413-0	04	1	9601-9610
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING WO/INDICATOR HOLE	1-47125-435-0	04	1	9611-9904
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING WO/INDICATOR HOLE	1-47125-435-0	04	1	9905-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING T=16	1-47125-436-0	04	1	9611-9904
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING T=16	1-47125-436-0	04	1	9905-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/INDICATOR HOLE	1-47125-445-0	04	1	9611-9904
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING W/INDICATOR HOLE	1-47125-445-0	04	1	9905-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING WO/INDICATOR HOLE	1-47125-439-0	04	1	9905-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-47125-440-0	04	1	9905-
5	LINING; RR BRK SHOE,STANDARD BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING W/INDICATOR HOLE	1-47125-447-0	04	1	9905-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-773-0	04	1	9601-0006
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-797-0	04	1	0007-
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-817-0	04	1	9601-0006
5	LINING; RR BRK SHOE,STANDARD EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-799-0	04	1	0007-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING WO/INDICATOR HOLE	1-47125-076-0	04	1	9601-9610
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-082-0	04	1	9601-9610
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/INDICATOR HOLE	1-47125-414-0	04	1	9601-9610
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING WO/INDICATOR HOLE	1-47125-437-0	04	1	9611-9904
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING WO/INDICATOR HOLE	1-47125-437-0	04	1	9905-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING T=17	1-47125-438-0	04	1	9611-9904
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING T=17	1-47125-438-0	04	1	9905-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING W/INDICATOR HOLE	1-47125-446-0	04	1	9611-9904
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING W/INDICATOR HOLE	1-47125-446-0	04	1	9905-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING EXC.INDICATO HOLE	1-47125-441-0	04	1	9905-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> TRAILING	1-47125-442-0	04	1	9905-
6	LINING; RR BRK SHOE,OVER SIZE BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> LEADING W/INDICATOR HOLE	1-47125-448-0	04	1	9905-
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47115-774-0	04	1	9601-0006
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> LEADING	1-47125-798-0	04	1	0007-
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47115-818-0	04	1	9601-0006
6	LINING; RR BRK SHOE,OVER SIZE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> TRAILING	1-47125-800-0	04	1	0007-
7	RIVET; LINING,RR BRK BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> L=19.5	1-09732-035-0	AR	1	9905-
7	RIVET; LINING,RR BRK BRAKE POWER CHAMBER FORWARD<BCQ> EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> L=18.5	1-09732-034-0	AR	1	9601-9604
7	RIVET; LINING,RR BRK BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. BRAKE POWER CHAMBER FORWARD<BCQ> L=18.5	1-09732-034-0	AR	1	9601-9604
7	RIVET; LINING,RR BRK L=18.5	1-09732-034-0	AR	1	9605-9904
7	RIVET; LINING,RR BRK BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> L=18.5	1-09732-034-0	AR	1	9905-9907
7	RIVET; LINING,RR BRK BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> L=18.5	1-09732-034-0	AR	1	9908-
7	RIVET; LINING,RR BRK EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> L=18.5	1-09732-034-0	AR	1	9908-
7	RIVET; LINING,RR BRK EXC. BRAKE POWER CHAMBER FORWARD<BCQ>,BRAKE LINING MATERIAL NON ASBESTOS<SKR> L=17	1-09732-027-0	AR	1	9601-9604
8	PIN; RETURN SPRING,RR BRK SHOE (B)	1-47119-021-0	04	1	9601-9904
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-47119-021-0	04	1	9905-9907
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-47119-021-0	04	1	9908-
8	PIN; RETURN SPRING,RR BRK SHOE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B)	1-47119-021-0	04	1	9908-
8	PIN; RETURN SPRING,RR BRK SHOE (A)	1-47119-029-0	04	1	9601-
8	PIN; RETURN SPRING,RR BRK SHOE BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-09744-074-0	04	1	9905-
9	SPRING; RETURN,BRK SHOE (B)	1-09583-175-0	02	1	9601-9904
9	SPRING; RETURN,BRK SHOE BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-09583-175-0	02	1	9905-9907
9	SPRING; RETURN,BRK SHOE BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-09583-175-0	02	1	9908-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> (B)	1-09583-175-0	02	1	9908-
9	SPRING; RETURN,BRK SHOE (A)	1-09583-196-0	02	1	9601-9904
9	SPRING; RETURN,BRK SHOE BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-09583-196-0	02	1	9905-9907
9	SPRING; RETURN,BRK SHOE BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-09583-196-0	02	1	9908-
9	SPRING; RETURN,BRK SHOE EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> (A)	1-09583-196-0	02	1	9908-
9	SPRING; RETURN,BRK SHOE BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> (A)	1-09583-210-0	02	1	9905-
9	SPRING; RETURN,BRK SHOE BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V> (B)	1-09583-277-2	02	1	9905-
10	RING; SNAP,SPR PIN ID=10	9-09185-410-0	08	1	9601-9907
10	RING; SNAP,SPR PIN BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V> ID=10	9-09185-410-0	08	1	9908-
10	RING; SNAP,SPR PIN EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> ID=10	9-09185-410-0	08	1	9908-
11	PIN; ANCHOR,RR WHEEL BRK L=121.5	1-47131-039-0	04	1	9601-
12	ROLLER; CAM,BRK SHOE	1-47113-005-0	04	1	9601-
13	CLIP; ROLLER PIN,BRK SHOE	9-47119-022-0	04	1	9601-
14	PIN; CAM ROLLER,BRK SHOE	1-09744-061-0	04	1	9601-
25	COVER SET; RR BRK DRUM	1-47151-462-1	02	1	9601-9904
25	COVER SET; RR BRK DRUM BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47151-462-1	02	1	9905-9907
25	COVER SET; RR BRK DRUM BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47151-462-1	02	1	9908-
25	COVER SET; RR BRK DRUM EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-47151-462-1	02	1	9908-
25	COVER SET; RR BRK DRUM BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47151-487-1	02	1	9905-
27	COVER; CHECK HOLE,DRUM COVER	1-09333-151-0	04	1	9601-
30	BOLT; DRUM COVER M10X16 W/LK WASHER	0-50041-016-0	12	1	9601-
34	NIPPLE; GREASE,CHAMBER BRKT PT1/8 STRAIGHT	9-09031-010-0	02	1	9601-
45	BRACKET; ANCHOR PIN,W/BUSHING	1-47137-120-2	02	1	9601-
46	RING; SPACER,CM/SHF,RR BRK	1-47143-005-0	02	1	9601-
48	SEAL; OIL,CM/SHF,RR BRK	1-09625-228-0	02	1	9601-
49	BUSHING; CM/SHF,RR BRK	1-47146-003-1	02	1	9601-
50	CAMSHAFT; BRK,RR BRK	1-47141-054-0	01	1	9601-9904
50	CAMSHAFT; BRK,RR BRK BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47141-054-0	01	1	9905-9907
50	CAMSHAFT; BRK,RR BRK BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47141-054-0	01	1	9908-
50	CAMSHAFT; BRK,RR BRK EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-47141-054-0	01	1	9908-
50	CAMSHAFT; BRK,RR BRK	1-47141-053-0	01	1	9601-9904
50	CAMSHAFT; BRK,RR BRK BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47141-053-0	01	1	9905-9907
50	CAMSHAFT; BRK,RR BRK BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47141-053-0	01	1	9908-
50	CAMSHAFT; BRK,RR BRK EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-47141-053-0	01	1	9908-
50	CAMSHAFT; BRK,RR BRK BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47141-094-0	01	1	9905-
50	CAMSHAFT; BRK,RR BRK BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-47141-095-0	01	1	9905-
52	BOLT; ANCHOR BRKT M14X50	1-09040-066-0	02	1	9601-
53	BOLT; LOCK PLATE M10X16	0-20801-016-0	02	1	9601-
54	WASHER; LK,ANCHOR PIN,RR BRK	1-47133-011-0	02	1	9601-
55	PLATE; LK,RR WHEEL CYL	1-47133-005-0	02	1	9601-
63	ADJUSTER ASM; SLACK,RR BRK	1-48270-046-0	01	1	9601-
63	ADJUSTER ASM; SLACK,RR BRK	1-48270-045-0	01	1	9601-
64	PLATE; STOPPER,CM/SHF	1-47149-022-0	02	1	9601-
65	SPACER; SLACK ADJ,BRK (B)	1-47143-004-0	02	1	9601-
65	SPACER; SLACK ADJ,BRK EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR> (A)	9-09180-038-0	01	1	9601-9705
65	SPACER; SLACK ADJ,BRK (A)	9-09180-038-0	01	1	9706-
66	PIN; JAW JOINT	1-09744-088-0	02	1	9601-
67	NUT; POWER CHAMBER FIX M16	9-99110-416-0	08	1	9601-
68	WASHER; LK,CHAMBER ID=16.2	9-09150-516-0	08	1	9601-
69	JOINT; JAW	1-09768-060-1	02	1	9601-
70	NUT; LK,JAW JOINT M16	9-99111-416-0	02	1	9601-
71	WASHER; PL,JAW JOINT ID=17 OD=32	9-09160-616-0	02	1	9601-
72	PIN; SPLIT OD=3.7 L=28	9-08114-028-0	02	1	9601-
73	COLLAR; FELT RING,CM/SHF	1-47143-003-0	02	1	9601-9708
73	COLLAR; FELT RING,CM/SHF	1-47143-016-0	02	1	9709-
74	BUSHING; SLACK ADJ	1-09330-041-0	02	1	9601-
75	RING; FELT,CM/SHF	1-09620-009-0	02	1	9601-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-084-0	01	1	9601-9904
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48258-084-0	01	1	9905-9907
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48258-084-0	01	1	9908-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-48258-084-0	01	1	9908-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING	1-48258-083-0	01	1	9601-9904
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48258-083-0	01	1	9905-9907
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE LINING MATERIAL NON ASBESTOS<SKR> EXC. INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48258-083-0	01	1	9908-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	1-48258-083-0	01	1	9908-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48258-141-0	01	1	9905-
76	BRACKET; POWER CHAMBER,RR,W/BUSHING BRAKE LINING MATERIAL NON ASBESTOS<SKR> INTERNATIONAL STANDARD ISO 10STUD<B3V>	1-48258-140-0	01	1	9905-
77	BUSHING	1-47146-003-1	02	1	9601-
195	RING; SNAP,CM/SHF BRAKE LINING MATERIAL NON ASBESTOS<SKR>	9-09180-038-0	02	1	9601-
195	RING; SNAP,CM/SHF EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>	9-09180-038-0	01	1	9601-9907
195	RING; SNAP,CM/SHF	9-09180-038-0	01	1	9908-
198	NIPPLE; GREASE,SLACK ADJ PT1/8 ELBOW 67.5 DEGREES	9-09031-110-0	02	1	9601-
204	CONNECTOR; SPR CHAMBER BRAKE POWER CHAMBER FORWARD<BCQ> (B) DIN12 & R3/8 ELBOW	1-09660-653-1	01	1	9601-
204	CONNECTOR; SPR CHAMBER BRAKE POWER CHAMBER FORWARD<BCQ> (A) DIN8 & R3/8 ELBOW	1-09660-652-1	01	1	9601-
204	CONNECTOR; SPR CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (B) PT3/8 & M27 ELBOW	1-09650-118-1	02	1	9601-
204	CONNECTOR; SPR CHAMBER EXC. BRAKE POWER CHAMBER FORWARD<BCQ> (A) M20 & PT3/8 ELBOW	1-09660-686-0	01	1	9601-
298	GASKET ID=23.3	9-09561-223-0	02	1	9905-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
