Sayfa 8-28 - Isuzu EPC

8-28 — CHASSIS ELECTRICAL (#48477) — 224 parça

531 115

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A MATSUSHITA	8-97173-035-1	01	1	0710-	●	●
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-1	01	1	0710-	●	●
531	RELAY; MAIN 24V 30A JIDECO	8-97238-540-0	01	1	0710-1402	●	●
531	RELAY; MAIN 24V 30A MITSUBA	8-98259-779-0	01	1	1403-	●	●

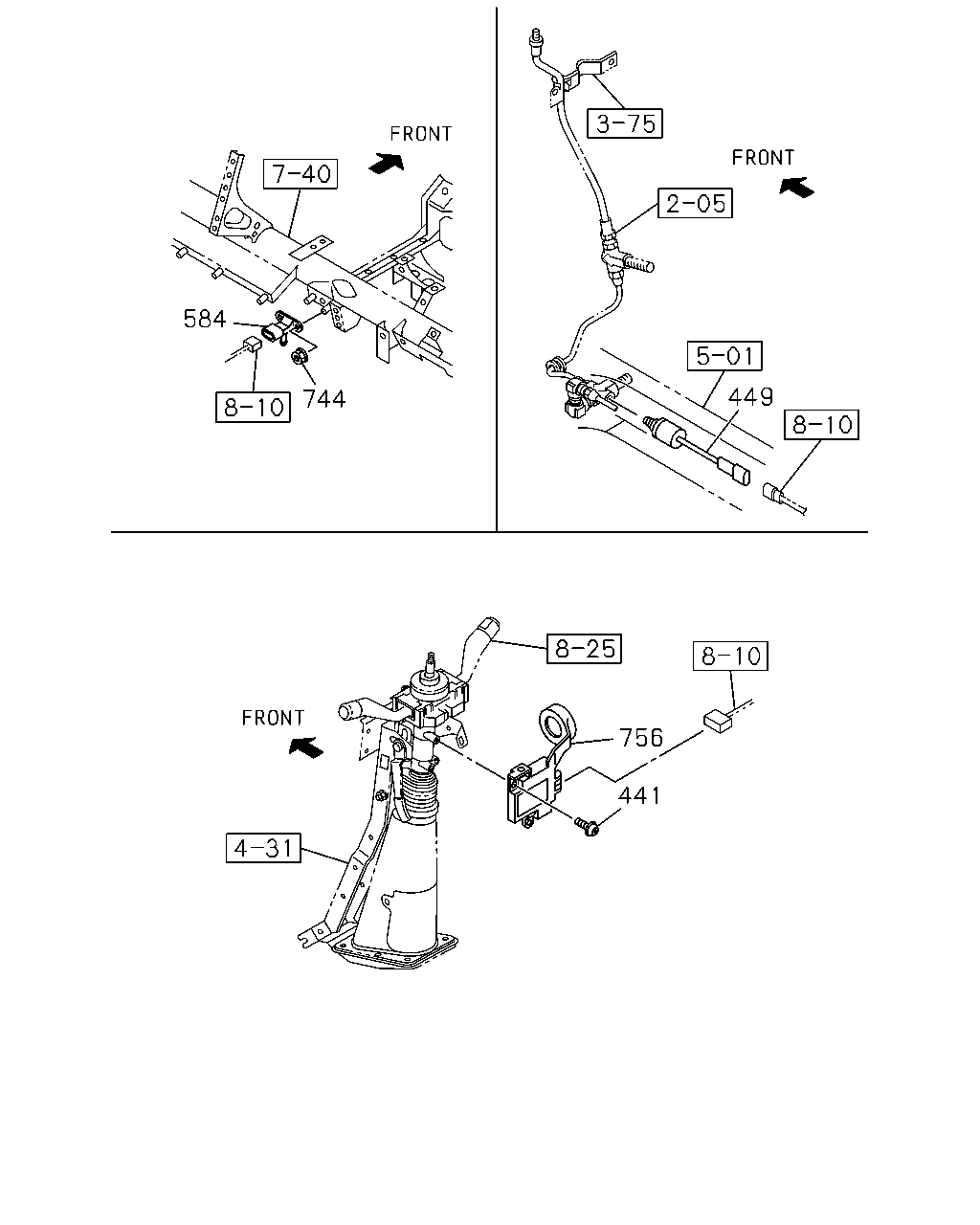

584 449 744 756 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
441	SCREW; CONT UNIT M5X7 HEXALOBULAR SOCKET	8-98063-767-0	02	1	0710-	●	●
449	SWITCH; OIL PRESS,CLUTCH ZF9S1110 M/T(Y5E) H.S.A SYSTEM<6EP>	1-82410-143-1	01	1	0710-	●	●
584	SENSOR; PRESSURE	8-98020-514-0	01	1	0710-	●	●
744	NUT; SENSOR M6 FLANGE	0-91180-106-0	02	1	0710-	●	●
756	CONTROL UNIT; IMMOBILIZER	8-98073-883-0	01	1	0710-0711	●	●
756	CONTROL UNIT; IMMOBILIZER	8-98097-554-0	01	1	0712-1005	●	●
756	CONTROL UNIT; IMMOBILIZER	8-98158-127-0	01	1	1006-	●	●

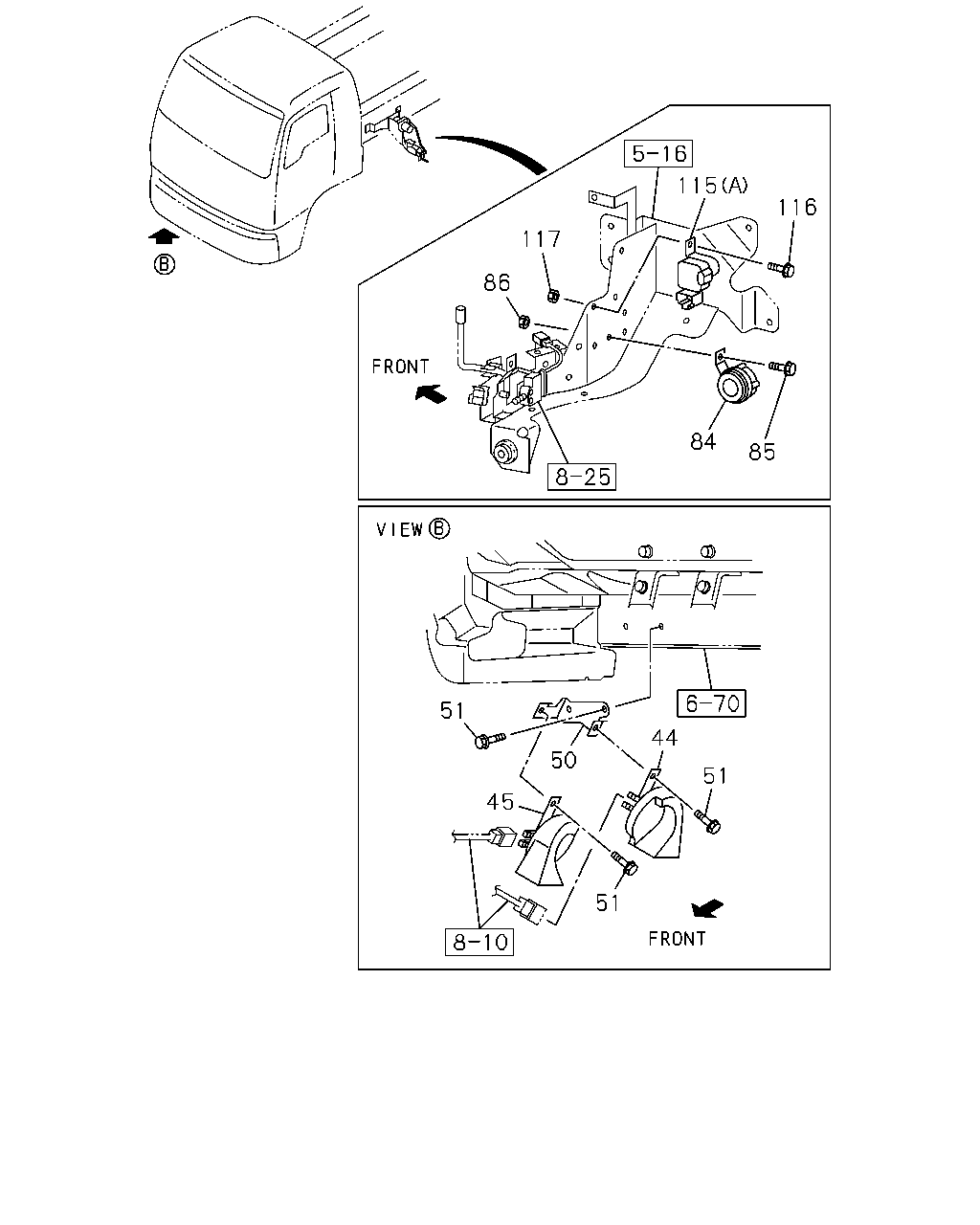

115 116 117 86 84 85 51 44 50 51 45 51

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
44	HORN; HIGH NOTE	8-97611-677-2	01	1	0710-	●	●
45	HORN; LOW NOTE	8-97611-676-2	01	1	0710-	●	●
50	BRACKET; HORN	8-97613-300-2	01	1	0710-	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	04	1	0710-1001	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1002-	●	●
51	BOLT; HORN TO BRKT M8X20 W/LK&PL WASHER	8-97086-825-0	02	1	1002-	●	●
84	BUZZER; POWER CAB TILT METRO	8-98069-860-0	01	1	0710-	●	●
85	BOLT; BUZZER,POWER CAB TILT M8X20 FLANGE	0-28650-820-0	01	1	0710-	●	●
86	NUT; BUZZER M8 FLANGE	0-91180-108-0	01	1	0710-	●	●
115	RELAY; POWER CAB TILT UNIT (B) 24V 10A MATSUSHITA	8-97173-035-1	01	1	0710-	●	●
115	RELAY; POWER CAB TILT UNIT (A) 24V NIKKO	8-98005-631-1	01	1	0710-	●	●
116	BOLT; RELAY FIX M8X20 FLANGE	0-28650-820-0	02	1	0710-	●	●
117	NUT; RELAY FIX M8 FLANGE	0-91180-108-0	02	1	0710-	●	●

450 79 40 88 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
40	BRACKET; MAG VLV ZF9S1110 M/T(Y5E)	8-98057-863-0	01	1	0710-0710	●	●
40	BRACKET; MAG VLV	8-98057-863-0	01	1	0710-0711	●	●
40	BRACKET; MAG VLV ZF9S1110 M/T(Y5E)	8-98057-863-0	01	1	0712-0807	●	●
40	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8>	8-98057-863-0	01	1	0808-	●	●
79	BOLT; MAG VLV ZF9S1110 M/T(Y5E) M8X20 FLANGE	0-28650-820-0	02	1	0710-0710	●	●
79	BOLT; MAG VLV M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●	●
79	BOLT; MAG VLV ZF9S1110 M/T(Y5E) M8X20 FLANGE	0-28650-820-0	02	1	0712-0807	●	●
79	BOLT; MAG VLV ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> M8X20 FLANGE	0-28650-820-0	02	1	0808-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0710-0710	●	●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0710-0711	●	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0712-0801	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0803-0807	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0803-0807	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0808-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0808-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0710-0711	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0712-0801	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0803-0804	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0803-0804	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0803-0804	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0805-	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0805-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-0801	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0803-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0710-0801	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0802-0802	●	●
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0803-0804	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0805-	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) EXC. PTO CONTROL<SV6> (E) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0712-0801	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> (E) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (E) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0803-0804	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (E) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0803-0804	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (E) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0805-	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	0710-0710	●	●
450	VALVE; MAG (B)	1-82563-871-2	01	1	0710-0711	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	0712-0801	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	0802-0802	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (B)	1-82563-871-2	01	1	0802-0802	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	0803-0807	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0803-0807	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B)	1-82563-871-2	01	1	0808-	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0808-	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A)	8-97376-939-3	01	1	0710-0711	●	●
450	VALVE; MAG EXC. PTO CONTROL<SV6> (A)	8-97376-939-3	01	1	0712-0801	●	●
450	VALVE; MAG ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> (A)	8-97376-939-3	01	1	0802-0802	●	●
450	VALVE; MAG ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> (A)	8-97376-939-3	01	1	0802-0802	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (A)	8-97376-939-3	01	1	0802-0802	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A)	8-97376-939-3	01	1	0802-0802	●	●
450	VALVE; MAG ALLISON MD3560P A/T(Y3B) (A)	8-97376-939-3	01	1	0803-0804	●	●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0803-0804	●	●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0805-0910	●	●
450	VALVE; MAG (A)	8-97633-075-0	01	1	0911-	●	●

89 34 90 261 261 34 34 34

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-0710	●	●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0710-	●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0710-0710	●	●
34	CONNECTOR; MAG VLV,INL PORT (B) DIN8 R1/4 STRAIGHT	1-09660-963-0	01	1	0710-		●
34	CONNECTOR; MAG VLV,INL PORT (A) DIN8 & R1/4 ELBOW	1-09660-956-0	01	1	0710-		●
89	VALVE; MAG,DIFF LOCK	1-82563-871-2	01	1	0710-1205	●	●
89	VALVE; MAG,DIFF LOCK	8-97641-594-0	01	1	1206-	●	●
90	BOLT; MAG VLV M8X30 FLANGE	0-28650-830-0	02	1	0710-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0710-0801	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0802-0802	●	●
261	PLUG; MAG VLV ALLISON MD3560P A/T(Y3B) PT1/4	9-99204-513-0	01	1	0802-0802	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0803-1205	●	●
261	PLUG; MAG VLV	0-92004-813-0	01	1	1206-1206	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1207-	●	●

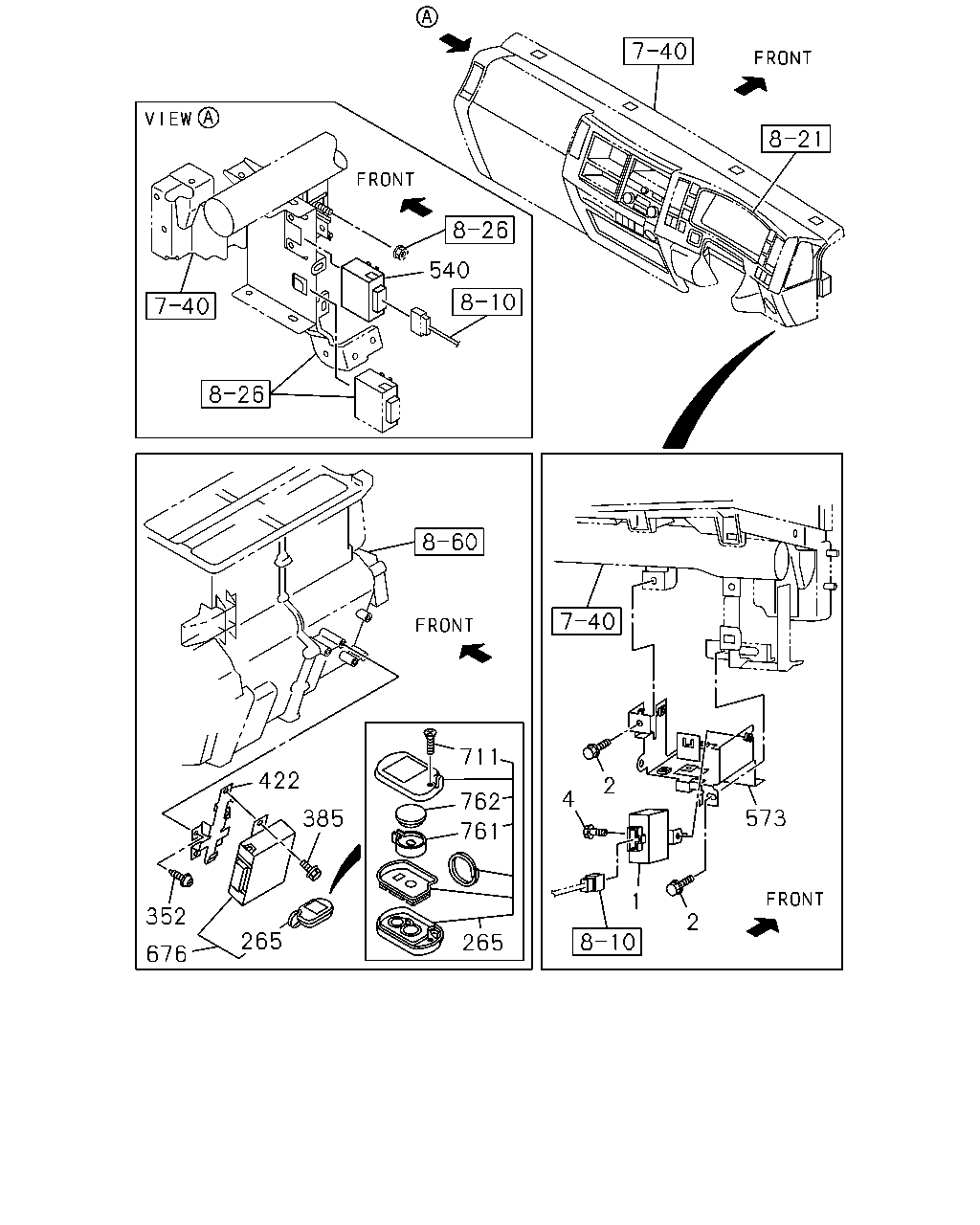

540 711 422 2 4 762 385 573 761 1 352 2 265 265 676

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	UNIT; FLASHER	8-98025-533-1	01	1	0710-	●	●
2	BOLT; FLASHER UNIT M6X16 FLANGE	0-28650-616-0	02	1	0710-	●	●
4	SCREW; FLASHER UNIT BOLT M6X16 FLANGE	0-28650-616-0	01	1	0710-	●	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98048-459-1	02	1	0710-1012	●	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98180-751-0	02	1	1101-1205	●	●
265	TRANSMITTER ASM; AUTO DOOR LOCK	8-98218-236-0	02	1	1206-	●	●
352	SCREW; BRKT M5X16 TAPPING	0-72180-516-0	02	1	0710-	●	●
385	BOLT; CONT UNIT M6X12 W/LK&PL WASHER	0-52000-612-0	01	1	0710-	●	●
422	BRACKET; CONT UNIT	8-98055-281-1	01	1	0710-	●	●
540	RELAY; WIPER INTERVAL	8-98060-388-0	01	1	0710-1308	●	●
540	RELAY; WIPER INTERVAL	8-98233-976-0	01	1	1309-	●	●
573	BRACKET; FLASHER UNIT	8-97609-984-5	01	1	0710-	●	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98017-258-1	01	1	0710-1012	●	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98181-809-0	01	1	1101-1205	●	●
676	CONTROL UNIT; KEYLESS ENTRY	8-98218-231-0	01	1	1206-	●	●
711	SCREW; TRANSMITTER M2X5	8-98078-067-0	02	1	0710-1205	●	●
711	SCREW; TRANSMITTER M2X5	8-98218-239-0	02	1	1206-	●	●
761	HOLDER; BATTERY	8-98078-063-0	02	1	0710-1012	●	●
762	BATTERY	8-98078-061-0	02	1	0710-	●	●

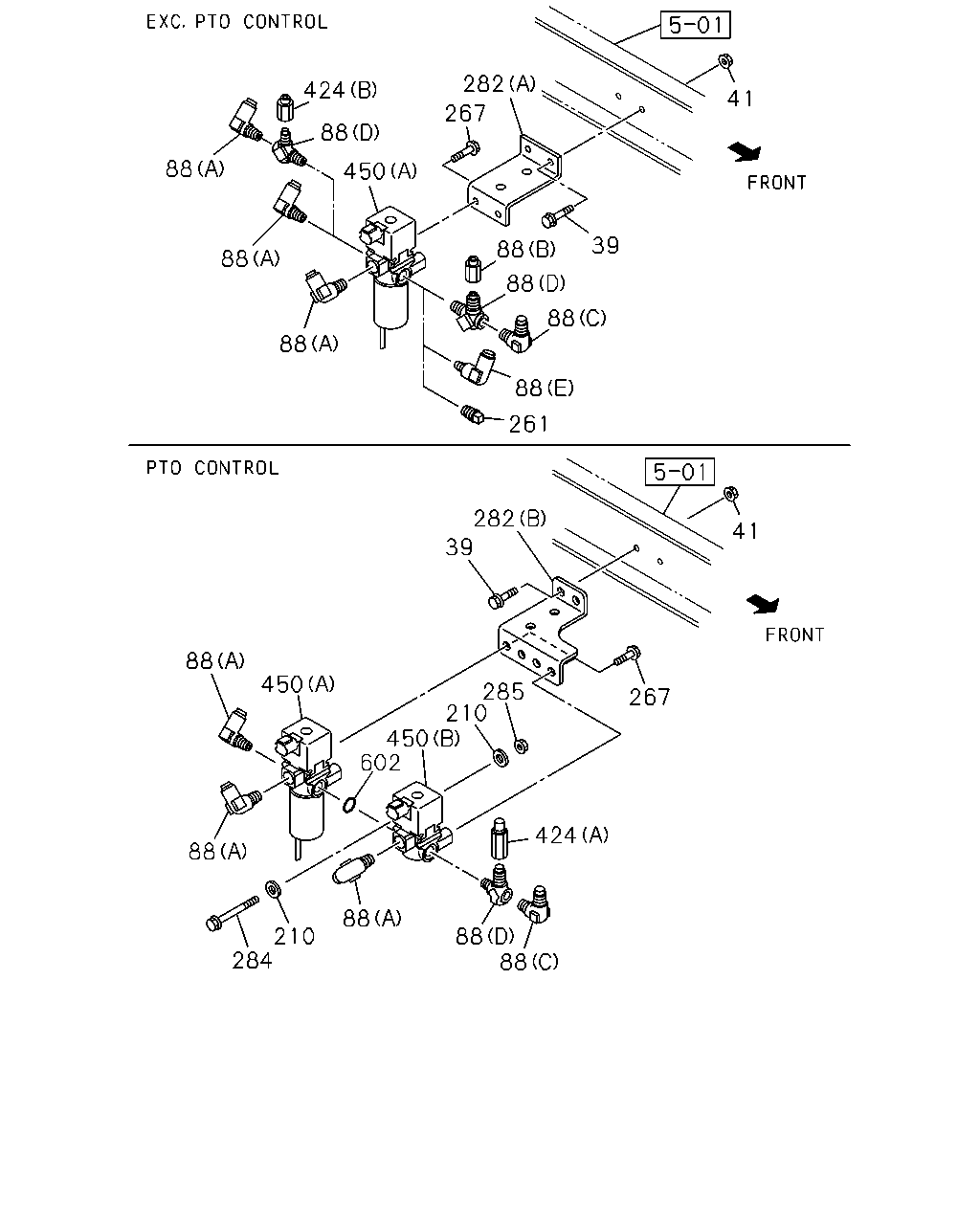

282 424 41 267 88 88 450 39 88 88 88 88 88 88 261 282 41 39 88 450 285 210 450 602 267 424 88 88 210 284 88 88

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
39	BOLT; BRKT,MAG VLV PTO CONTROL<SV6> M10X30 FLANGE	0-28651-030-0	02	1	0710-0710	●	●
39	BOLT; BRKT,MAG VLV EXC. PTO CONTROL<SV6> M8X35 FLANGE	0-28650-835-0	02	1	0710-0710	●	●
39	BOLT; BRKT,MAG VLV M8X35 FLANGE	0-28650-835-0	02	1	0710-	●	●
41	NUT; BRKT,MAG VLV EXC. PTO CONTROL<SV6> M8 FLANGE	0-91180-108-0	02	1	0710-0710	●	●
41	NUT; BRKT,MAG VLV M8 FLANGE	0-91180-108-0	02	1	0710-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (B) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0710-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0710-0710	●	●
88	CONNECTOR; MAG VLV (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0710-0711	●	●
88	CONNECTOR; MAG VLV EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0712-0801	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0803-0807	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0803-0807	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0808-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0808-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0710-0711	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	03	1	0712-0801	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0803-0804	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0803-0804	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0803-0804	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0805-	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (A) DIN8 & R1/4 ELBOW	1-09660-956-0	02	1	0805-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0710-0801	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (C) M12 & PT1/4 ELBOW	1-09650-430-0	01	1	0803-	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0710-0801	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0802-0802	●	●
88	CONNECTOR; MAG VLV (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0803-0804	●	●
88	CONNECTOR; MAG VLV ZF9S1110 M/T(Y5E) (D) M12 & PT1/4 3WAY	1-09656-586-1	01	1	0805-	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) EXC. PTO CONTROL<SV6> (E) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0712-0801	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> (E) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0802-0802	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (E) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0803-0804	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (E) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0803-0804	●	●
88	CONNECTOR; MAG VLV ALLISON MD3560P A/T(Y3B) (E) DIN6 & R1/4 ELBOW	1-09661-067-0	01	1	0805-	●	●
210	WASHER; PL,BRKT ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP>	1-82569-266-0	02	1	0802-0802	●	●
210	WASHER; PL,BRKT ZF9S1110 M/T(Y5E) PTO CONTROL<SV6>	1-82569-266-0	02	1	0803-	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0710-0801	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0802-0802	●	●
261	PLUG; MAG VLV ALLISON MD3560P A/T(Y3B) PT1/4	9-99204-513-0	01	1	0802-0802	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	0803-1205	●	●
261	PLUG; MAG VLV	0-92004-813-0	01	1	1206-1206	●	●
261	PLUG; MAG VLV PT1/4	9-99204-513-0	01	1	1207-	●	●
267	BOLT; VLV TO BRKT ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	02	1	0710-0711	●	●
267	BOLT; VLV TO BRKT EXC. PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	02	1	0712-0801	●	●
267	BOLT; VLV TO BRKT ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE	0-28650-820-0	02	1	0802-0802	●	●
267	BOLT; VLV TO BRKT ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE	0-28650-820-0	02	1	0802-0802	●	●
267	BOLT; VLV TO BRKT ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> M8X20 FLANGE	0-28650-820-0	02	1	0802-0802	●	●
267	BOLT; VLV TO BRKT ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> M8X20 FLANGE	0-28650-820-0	02	1	0802-0802	●	●
267	BOLT; VLV TO BRKT ALLISON MD3560P A/T(Y3B) M8X20 FLANGE	0-28650-820-0	02	1	0803-0804	●	●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0803-0804	●	●
267	BOLT; VLV TO BRKT M8X20 FLANGE	0-28650-820-0	02	1	0805-	●	●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A)	1-47471-374-0	01	1	0710-0711	●	●
282	BRACKET; MAG VLV EXC. PTO CONTROL<SV6> (A)	1-47471-374-0	01	1	0712-0801	●	●
282	BRACKET; MAG VLV ALLISON MD3560P A/T(Y3B) (A)	1-47471-374-0	01	1	0802-0802	●	●
282	BRACKET; MAG VLV ALLISON MD3560P A/T(Y3B) (A)	1-47471-374-0	01	1	0802-0802	●	●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A)	1-47471-374-0	01	1	0802-0802	●	●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A)	1-47471-374-0	01	1	0803-0804	●	●
282	BRACKET; MAG VLV ALLISON MD3560P A/T(Y3B) (A)	1-47471-374-0	01	1	0803-0804	●	●
282	BRACKET; MAG VLV ALLISON MD3560P A/T(Y3B) (A)	1-47471-374-0	01	1	0803-0804	●	●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A)	1-47471-374-1	01	1	0805-1004	●	●
282	BRACKET; MAG VLV ALLISON MD3560P A/T(Y3B) (A)	1-47471-374-1	01	1	0805-1004	●	●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A)	8-98154-633-0	01	1	1005-	●	●
282	BRACKET; MAG VLV ALLISON MD3560P A/T(Y3B) (A)	8-98154-633-0	01	1	1005-	●	●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (B)	8-98101-296-0	01	1	0802-0802	●	●
282	BRACKET; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B)	8-98101-296-0	01	1	0803-	●	●
284	BOLT; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> M6X50 FLANGE	0-28050-650-0	01	1	0802-0802	●	●
284	BOLT; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> M6X50 FLANGE	0-28050-650-0	01	1	0803-	●	●
285	NUT; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> M6 FLANGE	0-91180-106-0	01	1	0802-0802	●	●
285	NUT; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> M6 FLANGE	0-91180-106-0	01	1	0803-	●	●
424	ADAPTER ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0802-0802	●	●
424	ADAPTER ALLISON MD3560P A/T(Y3B) (B) DIN8 & M12 STRAIGHT	1-09660-873-0	01	1	0803-0804	●	●
424	ADAPTER ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (A) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0802-0802	●	●
424	ADAPTER ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (A) DIN6 & M12 STRAIGHT	1-09661-379-0	01	1	0803-	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	0710-0710	●	●
450	VALVE; MAG (B)	1-82563-871-2	01	1	0710-0711	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	0712-0801	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	0802-0802	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (B)	1-82563-871-2	01	1	0802-0802	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) (B)	1-82563-871-2	01	1	0803-0807	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0803-0807	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (B)	1-82563-871-2	01	1	0808-	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> (B)	1-82563-871-2	01	1	0808-	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A)	8-97376-939-3	01	1	0710-0711	●	●
450	VALVE; MAG EXC. PTO CONTROL<SV6> (A)	8-97376-939-3	01	1	0712-0801	●	●
450	VALVE; MAG ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> (A)	8-97376-939-3	01	1	0802-0802	●	●
450	VALVE; MAG ALLISON MD3560P A/T(Y3B) EXC. H.S.A SYSTEM<6EP> (A)	8-97376-939-3	01	1	0802-0802	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> (A)	8-97376-939-3	01	1	0802-0802	●	●
450	VALVE; MAG ZF9S1110 M/T(Y5E) EXC. PTO CONTROL<SV6> (A)	8-97376-939-3	01	1	0802-0802	●	●
450	VALVE; MAG ALLISON MD3560P A/T(Y3B) (A)	8-97376-939-3	01	1	0803-0804	●	●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0803-0804	●	●
450	VALVE; MAG (A)	8-97376-939-3	01	1	0805-0910	●	●
450	VALVE; MAG (A)	8-97633-075-0	01	1	0911-	●	●
602	GASKET; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> EXC. H.S.A SYSTEM<6EP> ID=16.8	9-09565-117-0	01	1	0802-0802	●	●
602	GASKET; MAG VLV ZF9S1110 M/T(Y5E) PTO CONTROL<SV6> ID=16.8	9-09565-117-0	01	1	0803-	●	●

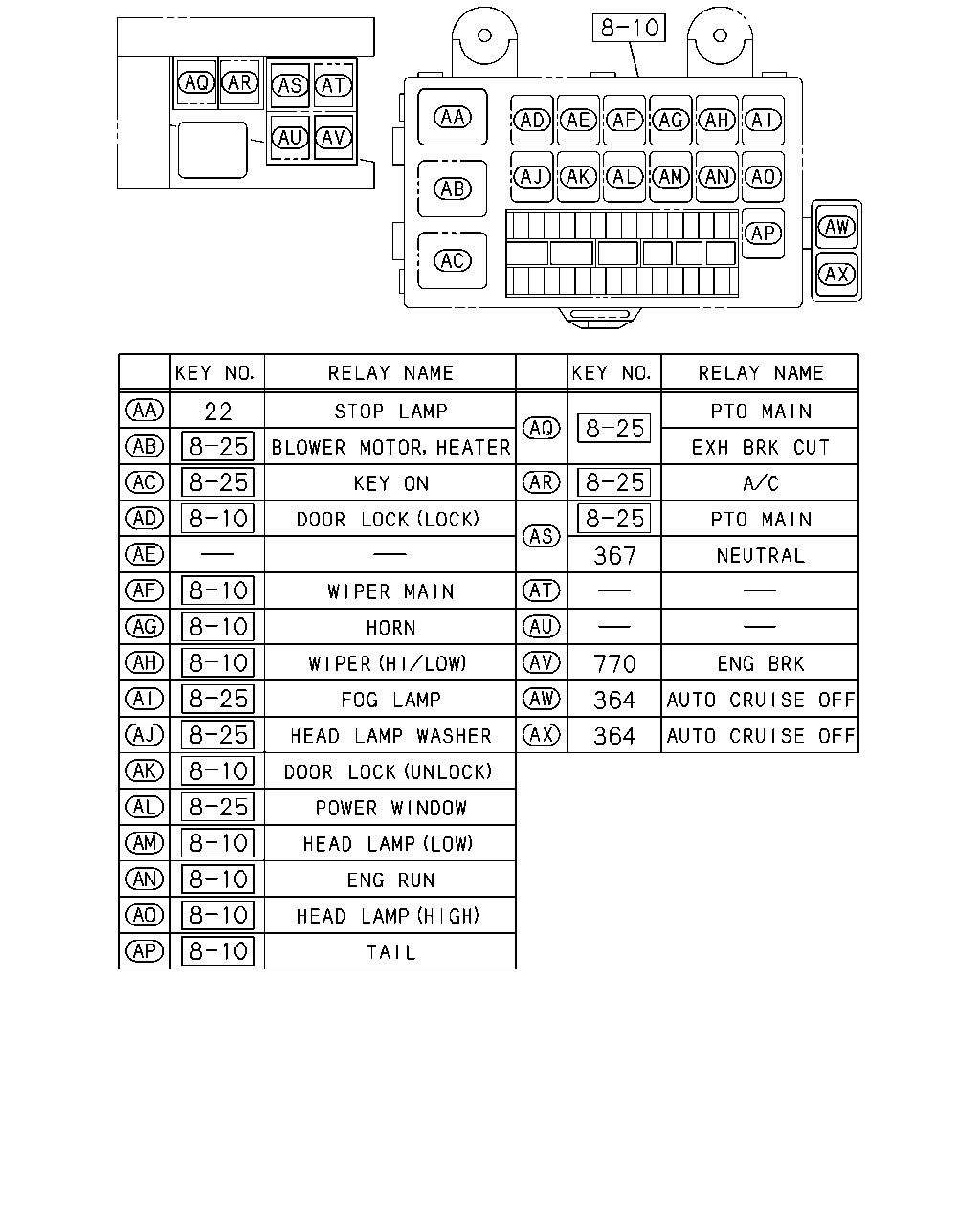

22 367 770 364 364

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
22	RELAY; STOP LAMP 24V 12.5A MATSUSHITA	8-97262-933-0	01	1	0710-	●	●
364	RELAY; AUTO CRUISE OFF AUTO CRUISE<K30> A/T<X9D> 24V 10A MATSUSHITA	8-97173-035-1	03	1	1001-1001	●	●
364	RELAY; AUTO CRUISE OFF A/T<X9D> 24V 10A MATSUSHITA	8-97173-035-1	03	1	1002-	●	●
367	RELAY; NEUTRAL A/T<X9D> 24V 10A MATSUSHITA	8-97173-035-1	01	1	0710-	●	●
770	RELAY; ENG BRK ZF9S1110 M/T(Y5E) 24V 10A MATSUSHITA	8-97173-035-1	01	1	0710-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
