◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11426 - FVZ(AUST)EURO4 ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-25 - SWITCH AND RELAY; INSTRUMENT PANEL ▶
8-25 — SWITCH AND RELAY; INSTRUMENT PANEL (#48474) — 104 parça
çizim 112280
237
BalonParca AdiParca NoAdetTipApplied Date A B
237 NUT
M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●

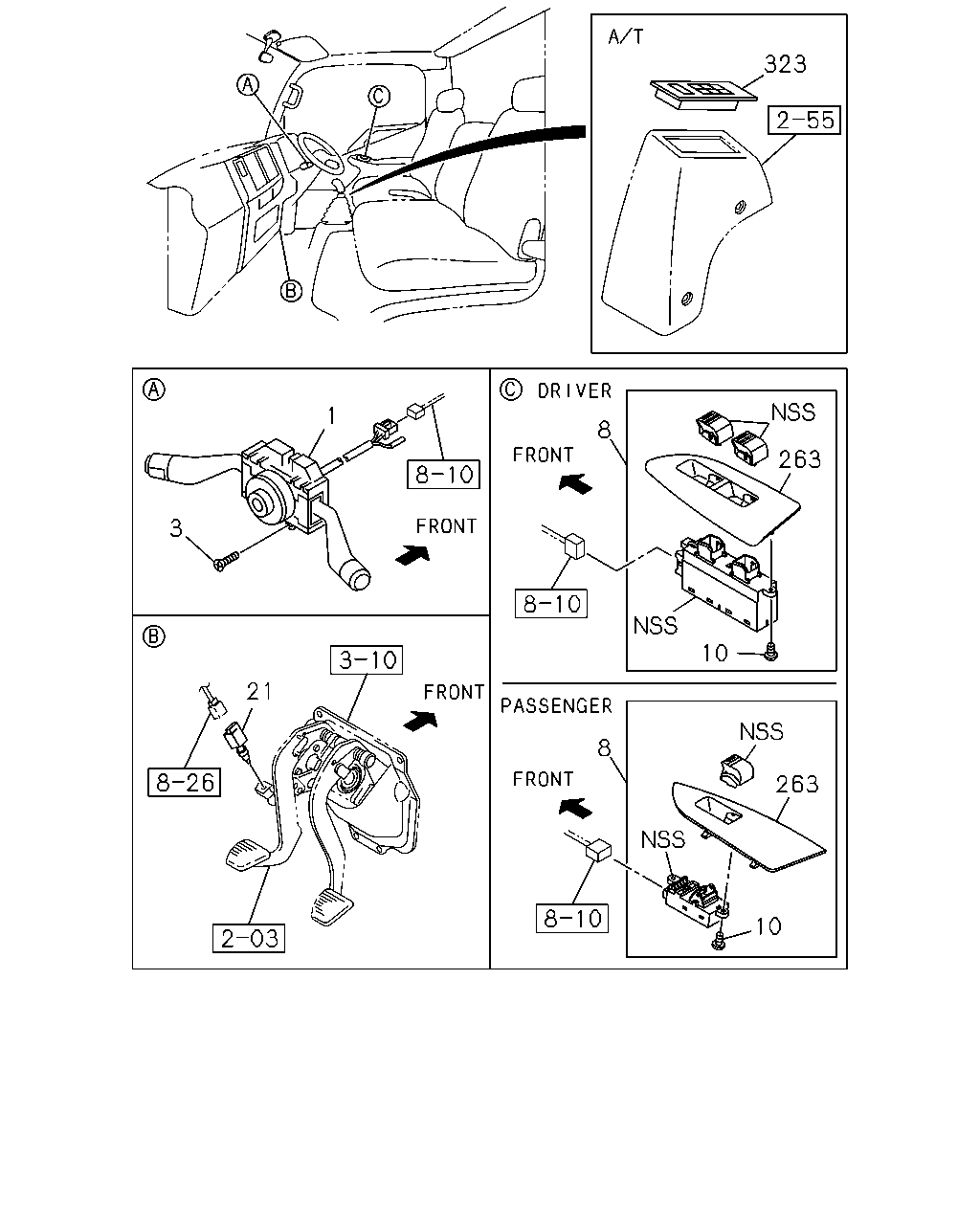

çizim 112291
323 1 8 263 3 10 21 8 263 10
BalonParca AdiParca NoAdetTipApplied Date A B
1 SWITCH; COMB
AUTO CRUISE<K30> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98024-269-1 01 1 0710-1310 ● ●
1 SWITCH; COMB
AUTO CRUISE<K30> EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) 		8-98243-705-0 01 1 1311- ● ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE<K30> 		8-98060-302-1 01 1 0710-1310 ● ●
1 SWITCH; COMB
EXC. AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5),AUTO CRUISE<K30> 		8-98243-704-0 01 1 1311- ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30> 		8-98064-763-1 01 1 0710-0905 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30> 		8-98146-619-0 01 1 0906-1210 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30> 		8-98217-821-0 01 1 1211-1310 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) AUTO CRUISE<K30> 		8-98243-692-0 01 1 1311- ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30> 		8-98064-764-1 01 1 0710-0905 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30> 		8-98146-618-0 01 1 0906-1210 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30> 		8-98217-820-0 01 1 1211-1310 ● ●
1 SWITCH; COMB
AIR BAG DRIVER(AJ3),AIR BAG DRIVER & PASSENGER(AK5) EXC. AUTO CRUISE<K30> 		8-98243-691-0 01 1 1311- ● ●
3 SCREW; COMB SW
M5X20 W/PL WASHER&TORQUES 		8-98061-743-0 02 1 0710- ● ●
8 SWITCH; POWER WINDOW
PASSENGER 		8-97387-034-2 01 1 0710- ● ●
8 SWITCH; POWER WINDOW
DRIVER 		8-98003-785-1 01 1 0710-0809 ● ●
8 SWITCH; POWER WINDOW
DRIVER 		8-98129-844-0 01 1 0810-1001 ● ●
8 SWITCH; POWER WINDOW
DRIVER 		8-98159-543-0 01 1 1002- ● ●
10 SCREW; POWER WINDOW SW 8-98153-865-0 03 1 0710- ● ●
21 SWITCH; CLU
PTO ZF TRANS RR(BDM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-94337-761-0 01 1 0710- ● ●
21 SWITCH; CLU
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) EXC. PTO ZF TRANS RR(BDM) 		8-97358-248-0 01 1 0710- ● ●
263 COVER; SW
DRIVER 		8-98153-836-0 01 1 0710- ● ●
263 COVER; SW
PASSENGER 		8-98153-841-0 01 1 0710- ● ●
323 SWITCH ASM; SELECTOR
ALLISON MD3560P A/T(Y3B) 		8-98017-397-0 01 1 0710-0903 ● ●
323 SWITCH ASM; SELECTOR
ALLISON MD3560P A/T(Y3B) WHEEL BASE 7100MM(71W) 		8-98017-397-0 01 1 0904-0904 ●
323 SWITCH ASM; SELECTOR
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) 		8-98017-397-0 01 1 0904-0904 ●
323 SWITCH ASM; SELECTOR
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) 		8-98143-058-0 01 1 0904-0904 ●
323 SWITCH ASM; SELECTOR
ALLISON MD3560P A/T(Y3B) 		8-98143-058-0 01 1 0905- ● ●

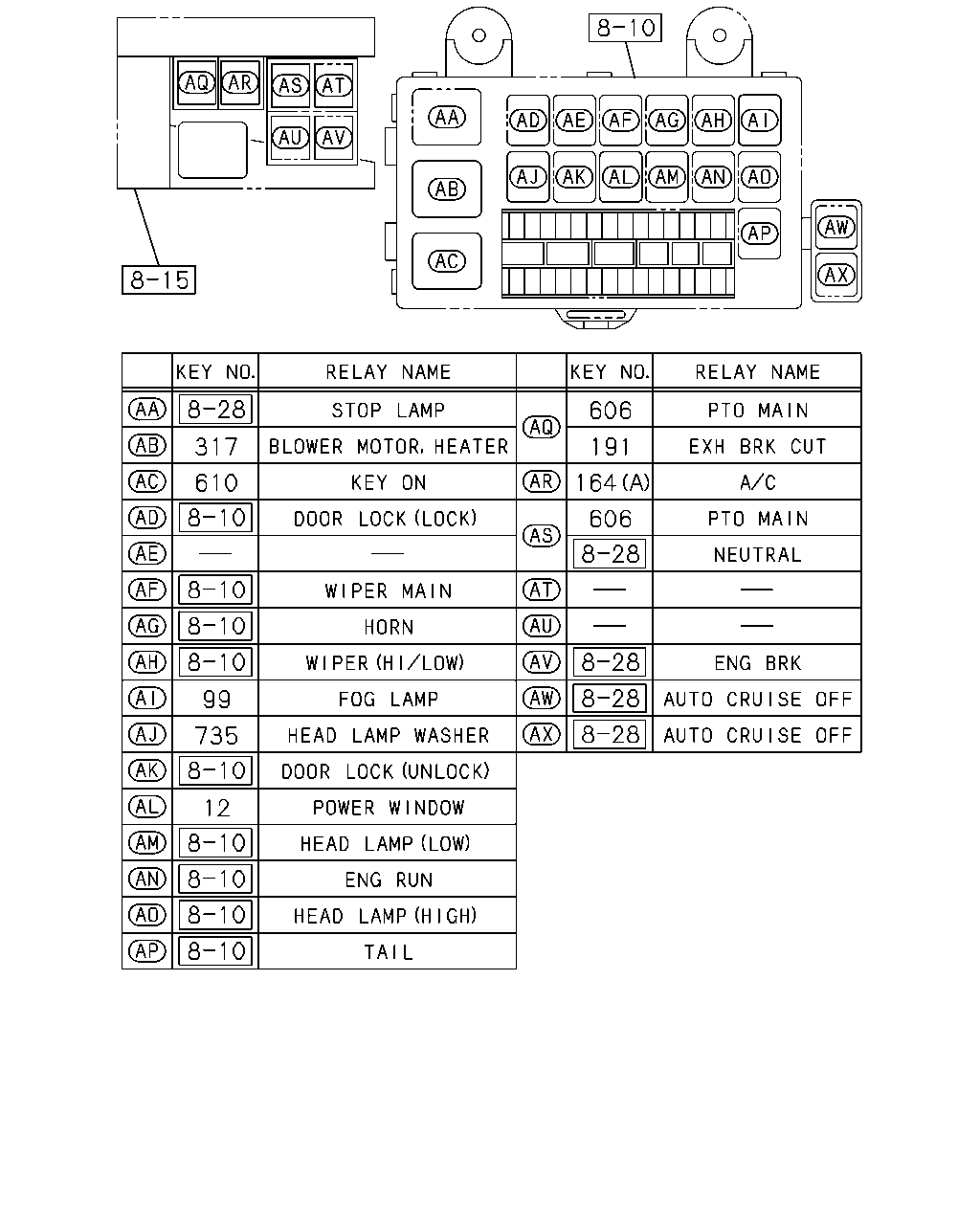

çizim 112293
606 317 191 610 164 606 99 735 12
BalonParca AdiParca NoAdetTipApplied Date A B
12 RELAY; POWER WINDOW
24V 10A MATSUSHITA 		8-97173-035-1 01 1 0710- ● ●
99 RELAY; FOG LAMP
24V 10A MATSUSHITA 		8-97173-035-1 01 1 0710-0908 ● ●
99 RELAY; FOG LAMP
FOG LAMP<T96> 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0909- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0710- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0710- ● ●
191 RELAY; EXH BRK CUT
A/T<X9D> 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0710-0710 ● ●
191 RELAY; EXH BRK CUT
24V 10A MATSUSHITA 		8-97173-035-1 01 1 0710-0710 ●
191 RELAY; EXH BRK CUT
ANTI LOCK BRAKE<JE5> 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0710-0710 ●
191 RELAY; EXH BRK CUT
A/T<X9D> 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0710- ● ●
317 RELAY; BLOWER MOTOR,HTR
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0710-0806 ● ●
317 RELAY; BLOWER MOTOR,HTR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0807- ● ●
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM) 24V 10A MATSUSHITA 		8-97173-035-1 02 1 0710-0710 ● ●
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0710- ● ●
606 RELAY; PTO MAIN
PTO ZF TRANS RR(BDM) MANUAL TRANSMISSION<X9C> 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0710- ● ●
610 RELAY; KEY ON
24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0710- ● ●
735 RELAY; HEAD LAMP WASHER
HEAD LAMP WASHER<CE4> 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0710-1003 ●

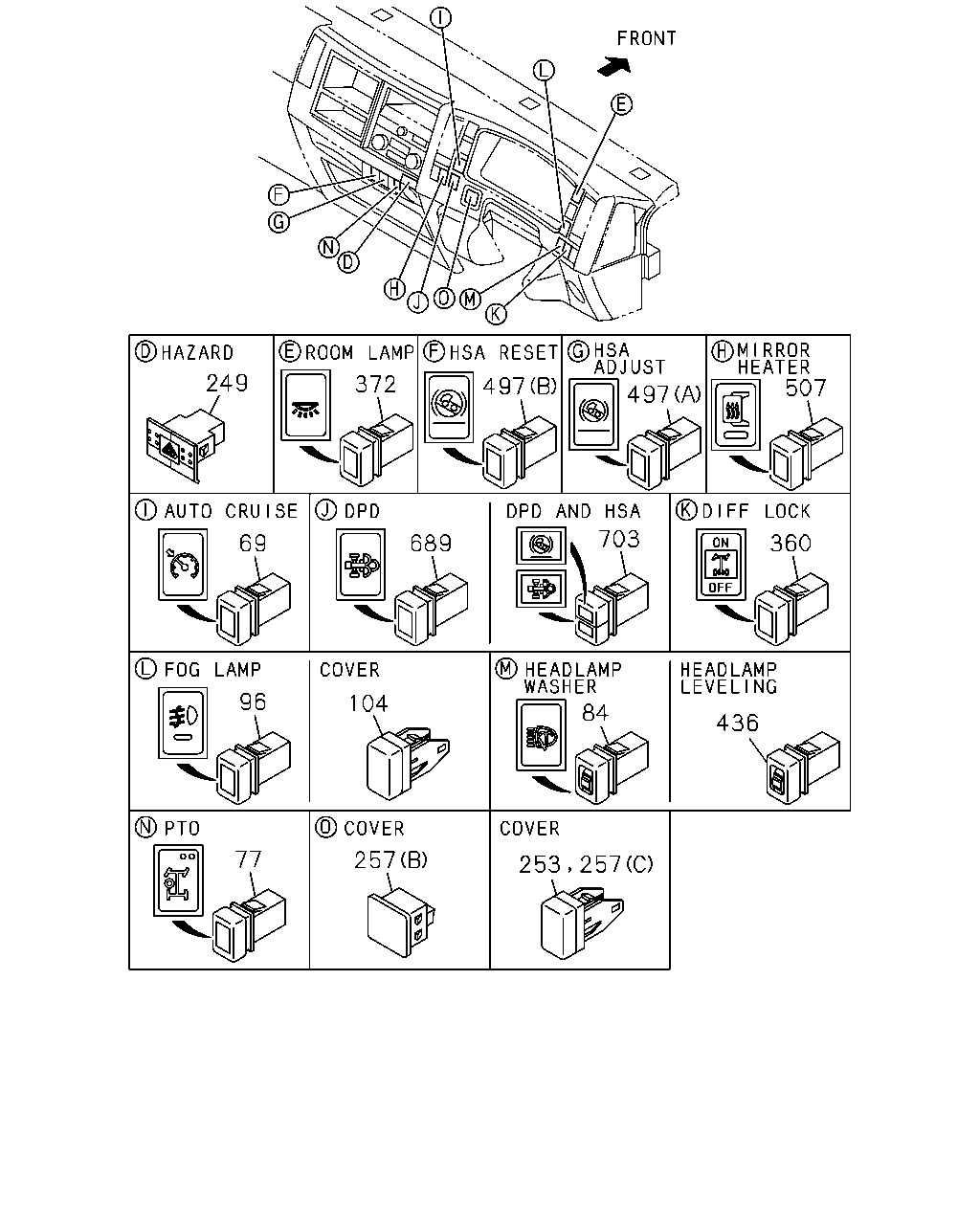

çizim 112294
497 507 249 372 497 703 69 689 360 84 96 104 436 77 257 253 257
BalonParca AdiParca NoAdetTipApplied Date A B
69 SWITCH; AUTO CRUISE
AUTO CRUISE<K30> 		8-98011-344-1 01 1 0710- ● ●
77 SWITCH; PTO
PTO ZF TRANS RR(BDM) TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) 		8-97615-488-2 01 1 0710- ● ●
84 SWITCH; WASHER,HEADLAMP
HEAD LAMP WASHER<CE4> 		8-97614-052-0 01 1 0710-1003 ●
96 SWITCH; FOG LAMP 8-97387-031-3 01 1 0710-0908 ● ●
96 SWITCH; FOG LAMP
FOG LAMP<T96> 		8-97387-031-4 01 1 0909- ● ●
104 COVER; SW HOLE,FOG LAMP 8-98025-954-1 01 1 0710-0710 ● ●
104 COVER; SW HOLE,FOG LAMP
EXC. FOG LAMP<T96> 		8-98025-954-1 01 1 0909- ● ●
249 SWITCH; HAZARD 8-97386-922-1 01 1 0710- ● ●
253 COVER; SW HOLE 8-98025-954-1 02 1 0710- ● ●
253 COVER; SW HOLE
EXC. AUTO CRUISE<K30> 		8-98025-954-1 01 1 0710- ● ●
257 COVER; HOLE,SW
(A) GRAY 		8-97409-339-0 01 1 0710-0710 ● ●
257 COVER; HOLE,SW
(D) 		8-97619-254-1 02 1 0710- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 03 1 0710- ● ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 0710- ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0710-1003 ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0710-1003 ● ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM) (C) 		8-98025-954-1 01 1 0710-1003 ● ●
257 COVER; HOLE,SW
EXC. HEAD LAMP WASHER<CE4> (C) 		8-98025-954-1 01 1 0710-1003 ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 0710-1003 ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1004- ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1004- ● ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM) (C) 		8-98025-954-1 01 1 1004- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1004- ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1004- ●
360 SWITCH ASM; DIFF LK 8-97613-964-1 01 1 0710- ● ●
372 SWITCH; ROOM LAMP 8-97386-917-2 01 1 0710- ● ●
436 SWITCH; HEADLAMP LEVELING
HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> 		8-97386-981-2 01 1 0710- ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) ADJUST 		8-97386-967-2 01 1 0710-0806 ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (B) RESET 		8-98119-946-0 01 1 0807- ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (B) RESET 		8-97386-985-1 01 1 0710-0806 ● ●
497 SWITCH; HSA
H.S.A SYSTEM<6EP> (A) ADJUST 		8-98119-947-1 01 1 0807- ● ●
507 SWITCH; MIRROR HEATER 8-97386-924-3 01 1 0710- ● ●
689 SWITCH; DPD
EXC. H.S.A SYSTEM<6EP> 		8-97386-921-2 01 1 0710- ● ●
703 SWITCH; DPD & HSA
H.S.A SYSTEM<6EP> 		8-98011-346-2 01 1 0710- ● ●
çizim 112297
164
BalonParca AdiParca NoAdetTipApplied Date A B
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (A) 24V 10A MATSUSHITA 		8-97173-035-1 01 1 0710- ● ●
164 RELAY; A/C COMPRESSOR
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (B) 24V 12.5A MATSUSHITA 		8-97262-933-0 01 1 0710- ● ●

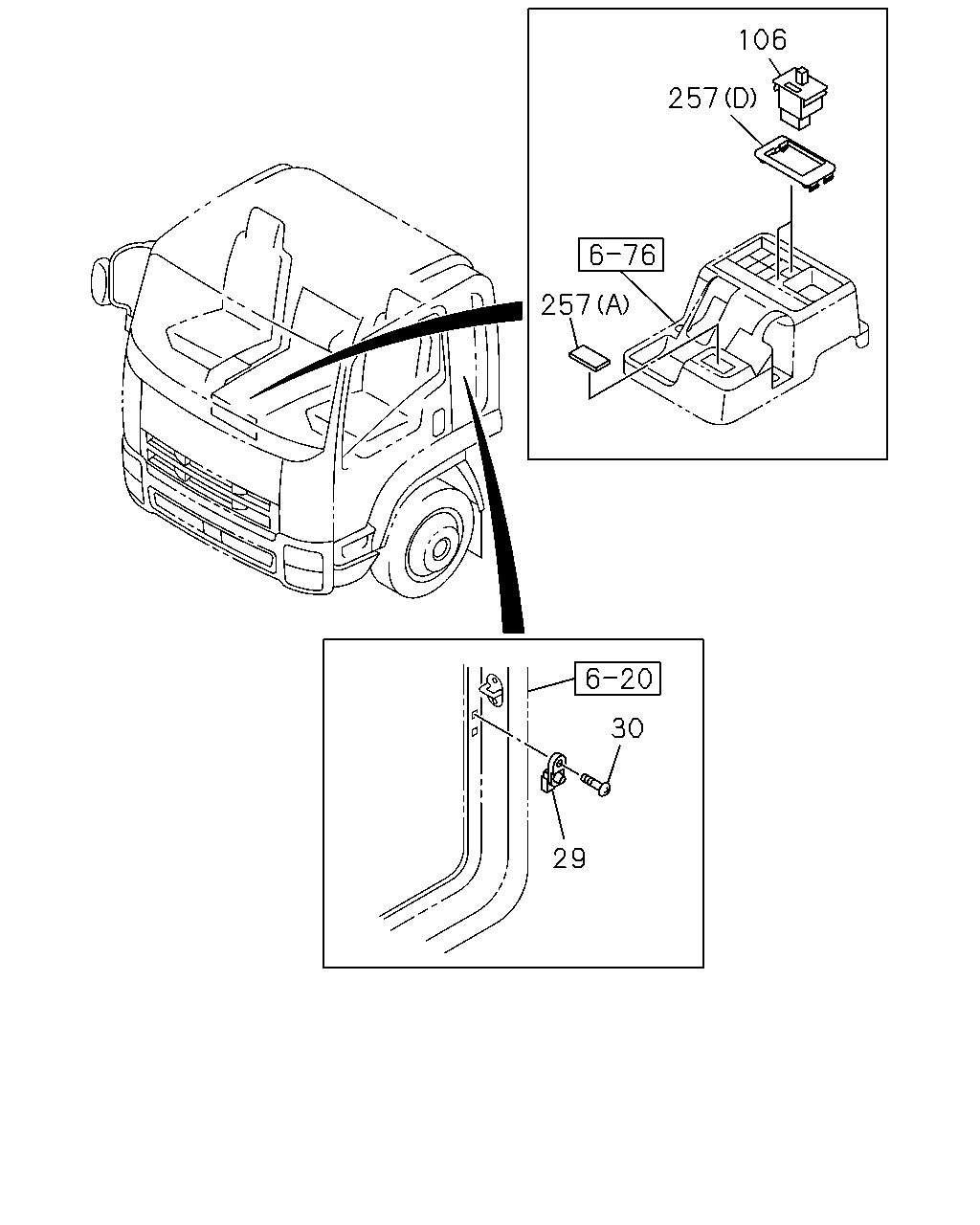

çizim 112303
257 257 30 29 106
BalonParca AdiParca NoAdetTipApplied Date A B
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 0710- ● ●
29 SWITCH; DOOR
BLACK 		8-98022-211-0 01 1 0710- ● ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 0710- ● ●
30 SCREW; DOOR SW
M5X18 		8-98047-201-0 01 1 0710- ● ●
106 SWITCH; REMOTE CONT MIRROR 1-82350-223-0 02 1 0710- ● ●
257 COVER; HOLE,SW
(A) GRAY 		8-97409-339-0 01 1 0710-0710 ● ●
257 COVER; HOLE,SW
(D) 		8-97619-254-1 02 1 0710- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 03 1 0710- ● ●
257 COVER; HOLE,SW
(B) 		8-98029-914-1 01 1 0710- ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0710-1003 ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 0710-1003 ● ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM) (C) 		8-98025-954-1 01 1 0710-1003 ● ●
257 COVER; HOLE,SW
EXC. HEAD LAMP WASHER<CE4> (C) 		8-98025-954-1 01 1 0710-1003 ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 0710-1003 ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1004- ● ●
257 COVER; HOLE,SW
EXC. H.S.A SYSTEM<6EP> (C) 		8-98025-954-1 01 1 1004- ● ●
257 COVER; HOLE,SW
EXC. PTO ZF TRANS RR(BDM) (C) 		8-98025-954-1 01 1 1004- ● ●
257 COVER; HOLE,SW
(C) 		8-98025-954-1 01 1 1004- ●
257 COVER; HOLE,SW
EXC. HEADLAMPS CONTROL LEVELING SYSTEM MANUAL<TR6> (C) 		8-98025-954-1 01 1 1004- ●

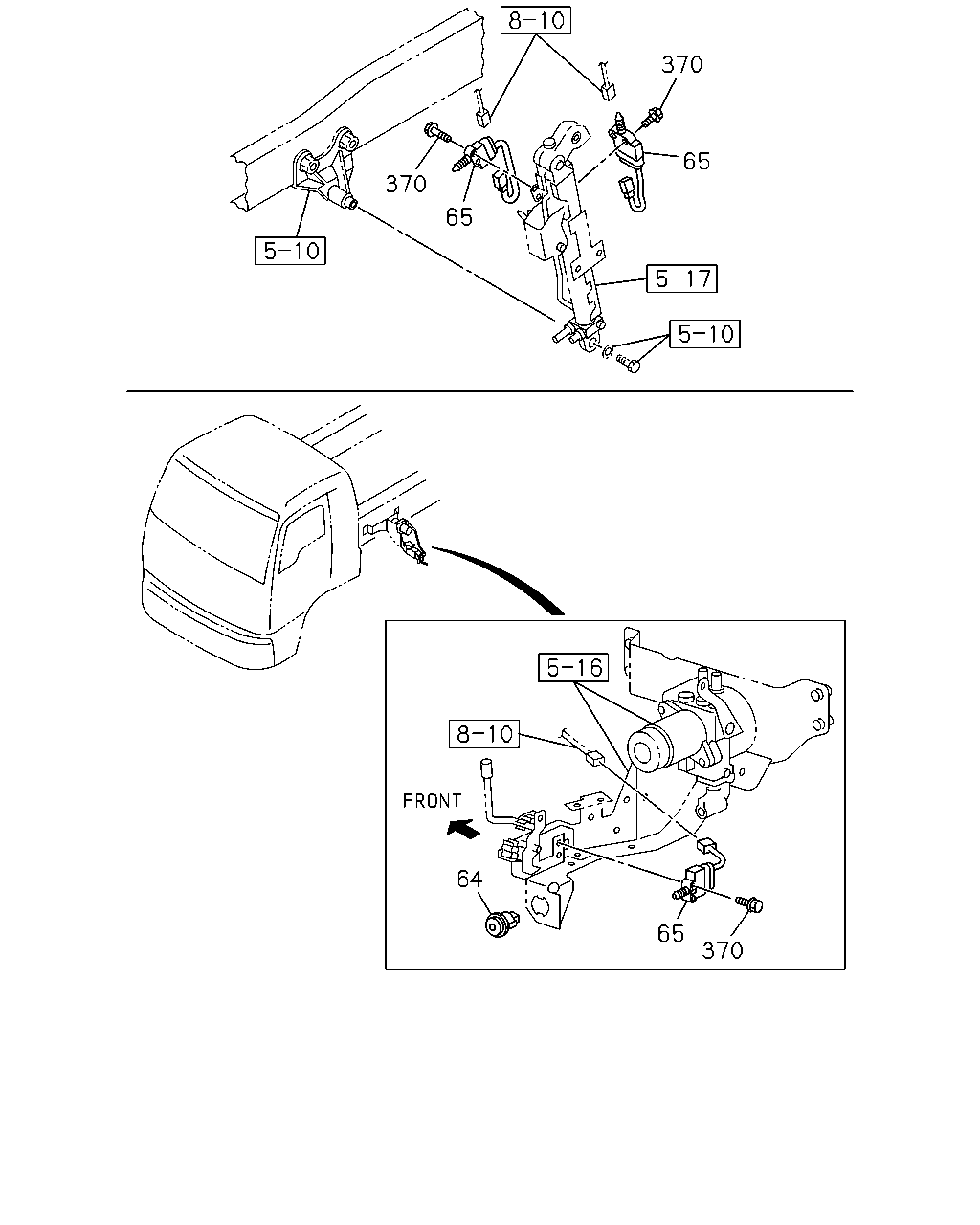

çizim 112314
370 65 370 65 64 65 370
BalonParca AdiParca NoAdetTipApplied Date A B
64 SWITCH; CAB TILT MAIN 1-82380-173-2 01 1 0710- ● ●
65 SWITCH; CAB TILT LK 1-82380-172-1 03 1 0710-0710 ● ●
65 SWITCH; CAB TILT LK 1-82380-172-1 01 1 0711- ● ●
370 BOLT; SW
M6X30 FLANGE 		0-28650-630-0 06 1 0710-0710 ● ●
370 BOLT; SW
M6X30 FLANGE 		0-28650-630-0 02 1 0711- ● ●
