8-21 — METER ASM (#48473) — 16 parça

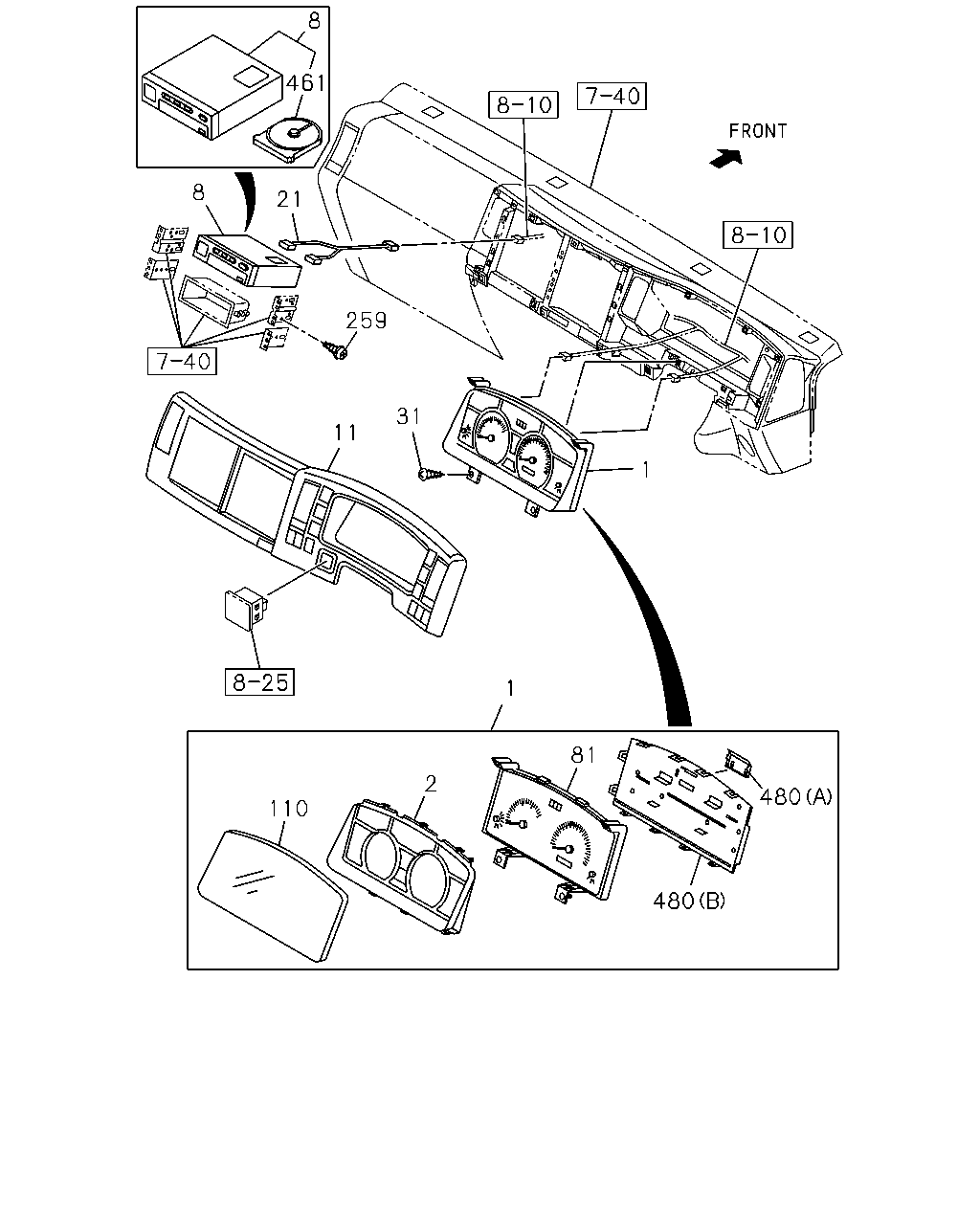

çizim 112301
8 461 8 21 259 31 11 1 1 81 2 480 110 480
BalonParca AdiParca NoAdetTipApplied Date A B
1 METER COMPL; CLUSTER 8-98064-930-5 01 1 0710- ● ●
2 PANEL; CLUSTER 8-98054-432-0 01 1 0710- ● ●
8 TACHOGRAPH; CLUSTER METER
TACHOGRAPH 140KM/H<WC7> 		8-97387-082-2 01 1 0710- ● ●
11 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-3 01 1 0710-0712 ● ●
11 CLUSTER ASM; METER
EXC. TACHOGRAPH DIGITAL<EBB> DARK GRAY 		8-97405-350-6 01 1 0801-0805 ● ●
11 CLUSTER ASM; METER
DARK GRAY 		8-97405-350-6 01 1 0806- ● ●
11 CLUSTER ASM; METER
TACHOGRAPH DIGITAL<EBB> DARK GRAY 		8-97414-681-0 01 1 0801-0805 ● ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH DIGITAL<EBB> 		8-98078-839-0 01 1 0710-0802 ● ●
21 HARNESS; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		8-98074-077-0 01 1 0710- ● ●
31 SCREW; METER,INST PANEL
M5X16 TAPPING 		0-72180-516-0 04 1 0710- ● ●
81 METER SUB ASM 8-98079-689-0 01 1 0710- ● ●
110 GLASS; CLUSTER METER 8-98054-642-0 01 1 0710- ● ●
259 SCREW; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> M5X7 HEXALOBULAR SOCKET 		8-98063-767-0 04 1 0710- ● ●
461 CARTRIDGE ASM; TACHOGRAPH
TACHOGRAPH 140KM/H<WC7> 		1-83129-433-0 01 1 0710- ● ●
480 COVER; METER
(B) BLACK 		8-98054-433-0 01 1 0710- ● ●
480 COVER; METER
(A) BLACK DOT MATRIX FOR FPC PROTECTION 		8-98054-881-0 01 1 0710- ● ●
