8-15 — FIXING PARTS; WIRING HARNESS (#48471) — 526 parça

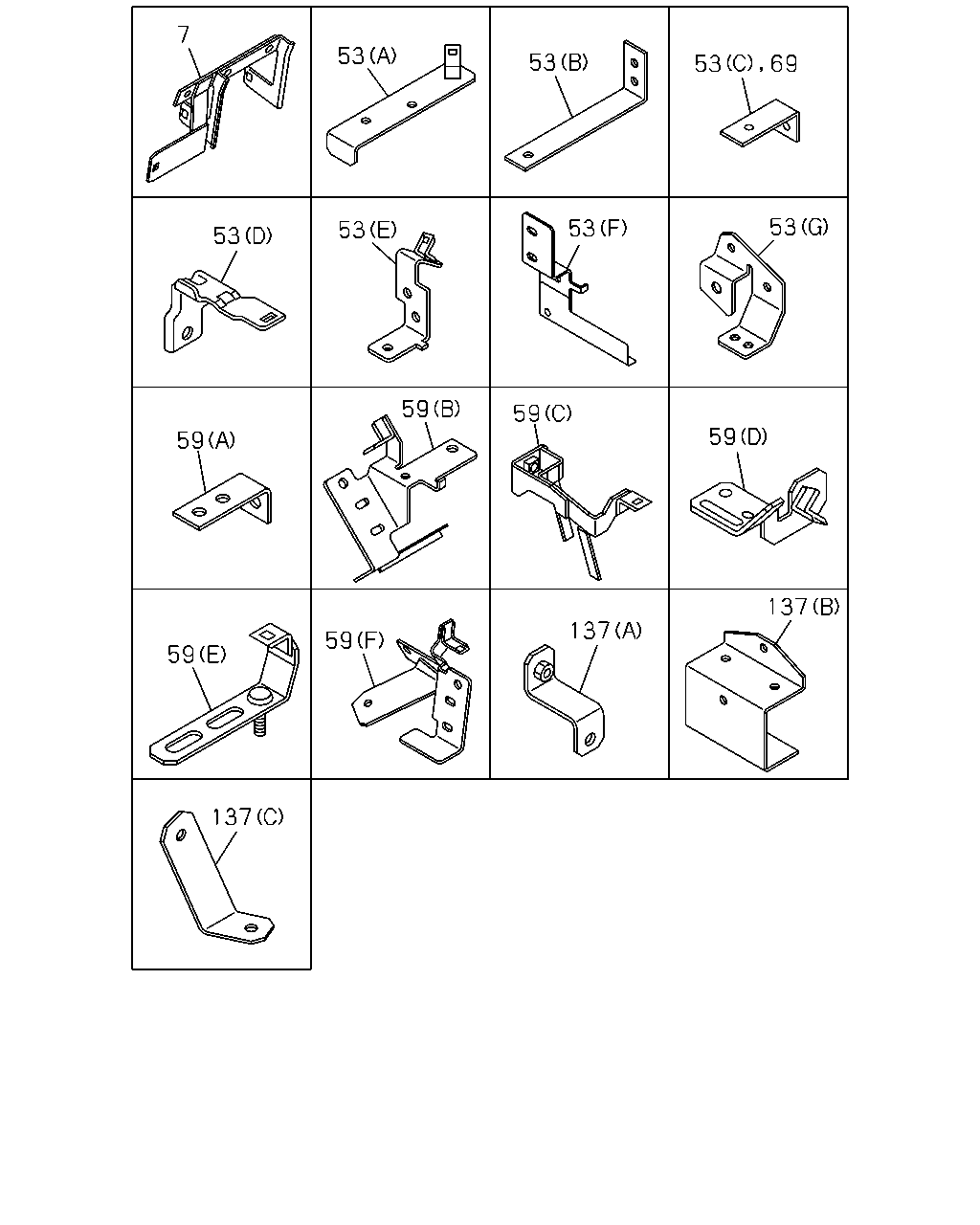

çizim 112283
7 53 53 53 53 53 53 59 59 59 59 137 137 59 59 137 53 69
BalonParca AdiParca NoAdetTipApplied Date A B
7 BRACKET; CONNECTOR 8-98049-798-1 01 1 0710- ● ●
53 BRACKET; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (C) L=55 		1-47475-304-0 01 1 0710-0711 ● ●
53 BRACKET; HARNESS
(B) 		1-47479-674-0 01 1 0710- ● ●
53 BRACKET; HARNESS
(A) 		8-97616-959-0 01 1 0710- ● ●
53 BRACKET; HARNESS
(F) 		8-97620-485-0 01 1 0710- ● ●
53 BRACKET; HARNESS
(D) 		8-98052-458-0 01 1 0710- ● ●
53 BRACKET; HARNESS
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) 		8-98084-590-0 01 1 0801- ● ●
53 BRACKET; HARNESS
ALLISON MD3560P A/T(Y3B) (E) 		8-98129-543-0 01 1 0809-0809 ● ●
53 BRACKET; HARNESS
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (E) 		8-98129-543-0 01 1 0809-0809 ● ●
59 BRACKET; FRAME HARNESS
(A) 		1-21464-170-2 01 1 0710- ● ●
59 BRACKET; FRAME HARNESS
(C) 		8-97609-264-2 01 1 0710- ● ●
59 BRACKET; FRAME HARNESS
(D) 		8-97616-305-0 01 1 0710- ● ●
59 BRACKET; FRAME HARNESS
(E) 		8-98047-730-0 02 1 0710- ● ●
59 BRACKET; FRAME HARNESS
(B) 		8-97620-482-1 01 1 0710-0905 ● ●
59 BRACKET; FRAME HARNESS
(F) 		8-98107-611-0 01 1 0906- ● ●
69 BRACKET; CLIP
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) L=55 		1-47475-304-0 01 1 0712- ● ●
137 BRACKET; HARNESS CLAMP
(A) 		1-47476-200-0 01 1 0710-0802 ●
137 BRACKET; HARNESS CLAMP
ZF9S1110 M/T(Y5E) (B) 		8-97609-797-1 02 1 0710- ● ●
137 BRACKET; HARNESS CLAMP
(C) 		8-97614-728-1 01 1 0710- ● ●
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE<JE5> (E) 		1-47475-654-2 01 1 0710- ●
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE<JE5> (F) 		1-47479-329-0 01 1 0710- ●
137 BRACKET; HARNESS CLAMP
(D) 		8-97622-657-0 01 1 0710-0710 ● ●
137 BRACKET; HARNESS CLAMP
(G) 		8-97624-013-0 01 1 0711- ● ●

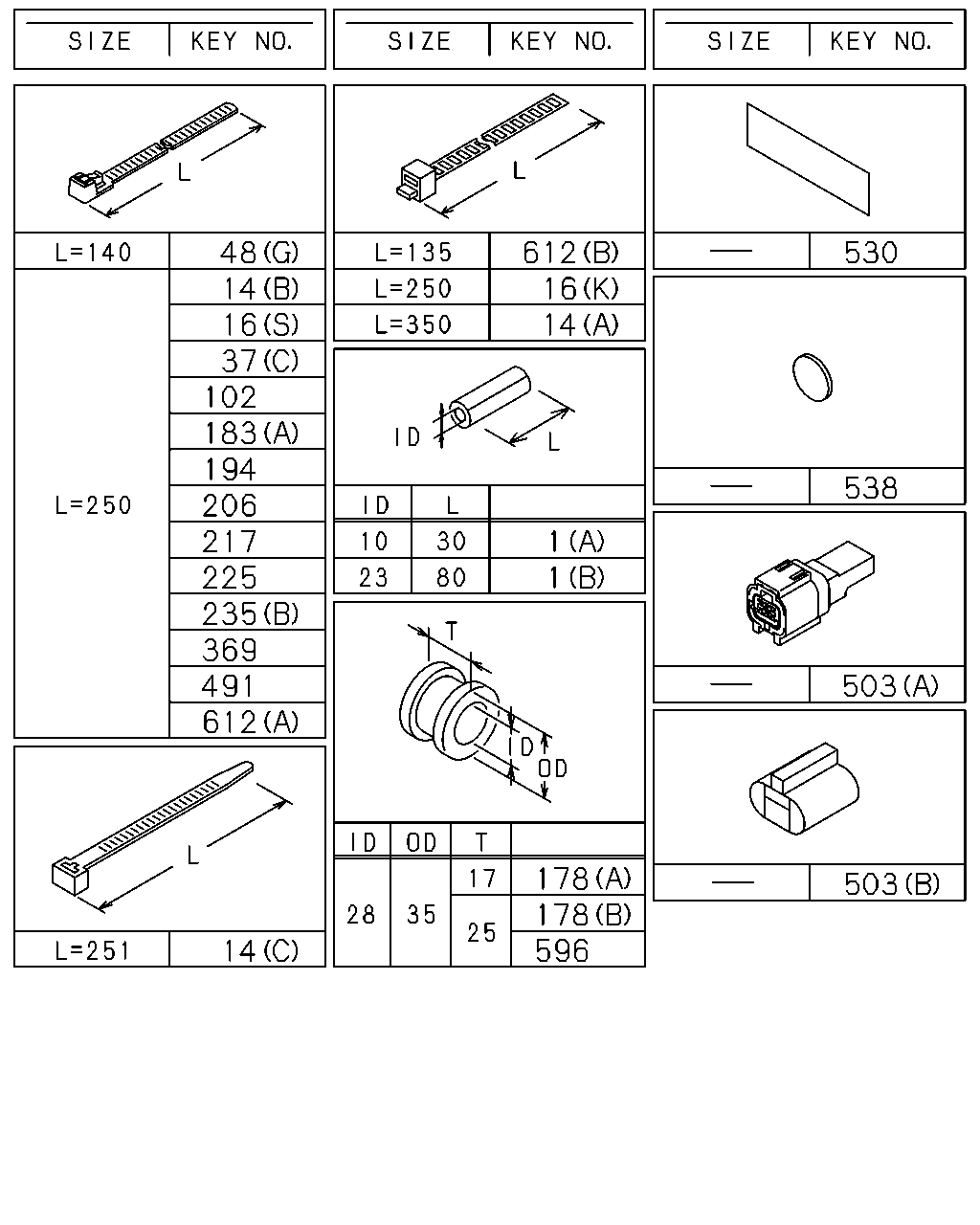

çizim 112285
48 14 16 37 102 183 194 206 217 225 235 369 491 612 612 16 14 530 538 1 1 503 178 178 596 503 14
BalonParca AdiParca NoAdetTipApplied Date A B
1 SLEEVE; RUBBER
(B) ID=23 OD=27 L=80 		8-97608-976-0 06 1 0710- ● ●
1 SLEEVE; RUBBER
(A) ID=10 OD=14 L=30 		9-09956-682-0 03 1 0710- ● ●
14 CLIP; BAND,HARNESS
(A) L=350 		1-09707-183-0 01 1 0710- ● ●
14 CLIP; BAND,HARNESS
ALLISON MD3560P A/T(Y3B) (B) L=250 		5-09707-030-1 14 1 0710-0712 ● ●
14 CLIP; BAND,HARNESS
ALLISON MD3560P A/T(Y3B) (B) L=250 		5-09707-030-1 15 1 0801-0909 ● ●
14 CLIP; BAND,HARNESS
ALLISON MD3560P A/T(Y3B) (B) L=250 		5-09707-030-1 14 1 0910-1205 ● ●
14 CLIP; BAND,HARNESS
ALLISON MD3560P A/T(Y3B) (B) L=250 		8-98216-430-0 14 1 1206- ● ●
14 CLIP; BAND,HARNESS
ZF9S1110 M/T(Y5E) (B) L=250 		5-09707-030-1 13 1 0710-0712 ● ●
14 CLIP; BAND,HARNESS
ZF9S1110 M/T(Y5E) (B) L=250 		5-09707-030-1 14 1 0801-0909 ● ●
14 CLIP; BAND,HARNESS
ZF9S1110 M/T(Y5E) (B) L=250 		5-09707-030-1 13 1 0910-1205 ● ●
14 CLIP; BAND,HARNESS
ZF9S1110 M/T(Y5E) (B) L=250 		8-98216-430-0 13 1 1206- ● ●
14 CLIP; BAND,HARNESS
(C) L=251 		8-97619-917-0 01 1 0910- ● ●
16 CLIP; HARNESS
(N) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (D) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ● ●
16 CLIP; HARNESS
(I) L=36.5 		8-97019-892-0 02 1 0710-0802 ● ●
16 CLIP; HARNESS
(Q) ID=11 L=60 		0-95235-096-0 01 1 0710-0807 ● ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=11 L=61 		1-09700-484-0 01 1 0710-0810 ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (H) ID=11 L=16 		0-95235-025-0 02 1 0710- ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (K) L=250 		1-09707-126-0 01 1 0710- ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0710- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710- ● ●
16 CLIP; HARNESS
(J) 		8-98052-679-0 02 1 0710- ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (C) ID=22X11 L=20 		1-09700-871-0 04 1 0710- ●
16 CLIP; HARNESS
(O) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0710-0710 ● ●
16 CLIP; HARNESS
(V) ID=14 H=50 L=20 		1-09700-843-0 02 1 0711- ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (R) ID=16 L=20 		0-95235-536-0 01 1 0712-0806 ● ●
16 CLIP; HARNESS
(S) L=250 		5-09707-030-1 01 1 0802-1001 ● ●
16 CLIP; HARNESS
(C) ID=22X11 L=20 		1-09700-871-0 01 1 0710-0802 ●
16 CLIP; HARNESS
(T) ID=11X2 L=16 		0-95325-025-0 01 1 0803- ●
16 CLIP; HARNESS
(F) L=60 		8-94449-165-0 02 1 0710-0802 ● ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 0803- ● ●
16 CLIP; HARNESS
(G) ID=15 L=28 		1-09701-216-0 02 1 0710-0807 ● ●
16 CLIP; HARNESS
(E) ID=16 L=28 		0-95235-556-0 02 1 0808- ● ●
16 CLIP; HARNESS
(S) L=250 		5-09707-030-1 05 1 0710-0810 ● ●
16 CLIP; HARNESS
(S) L=250 		5-09707-030-1 03 1 0811- ● ●
37 CLIP; HARNESS,POWER TILT
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710- ● ●
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 0710- ● ●
37 CLIP; HARNESS,POWER TILT
(D) OD=9 H=6 		8-97368-793-0 02 1 0710- ● ●
37 CLIP; HARNESS,POWER TILT
(A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0710-0802 ● ●
37 CLIP; HARNESS,POWER TILT
(E) ID=11 H=45 L=25 		1-09700-866-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(L) ID=33 L=83 		1-09701-291-0 01 1 1306- ● ●
48 CLIP; FRAME HARNESS
ANTI LOCK BRAKE<JE5> (F) ID=11 L=61 		1-09700-484-0 02 1 0712- ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (B) ID=9 L=20 		0-95234-835-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (O) ID=16X2 L=50 		0-95325-586-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (I) OD=9 H=13.5 		1-09709-180-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 04 1 0710- ● ●
48 CLIP; FRAME HARNESS
(K) ID=28 L=78 		1-09700-858-0 02 1 0710- ● ●
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(L) ID=33 L=83 		1-09701-291-0 03 1 0710- ● ●
48 CLIP; FRAME HARNESS
(G) L=140 		5-09707-031-1 02 1 0710- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (M) OD=9 H=9.5 		1-09709-179-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (A) ID=22 L=32 		1-09700-126-1 02 1 0710-0710 ● ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (R) ID=19 L=32 		0-95235-866-0 02 1 0710- ● ●
48 CLIP; FRAME HARNESS
(F) ID=11 L=61 		1-09700-484-0 01 1 0710-0710 ● ●
48 CLIP; FRAME HARNESS
(Q) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0711 ● ●
48 CLIP; FRAME HARNESS
(T) ID=5-12 L=26 		1-09709-289-0 01 1 0712-0802 ● ●
48 CLIP; FRAME HARNESS
(F) ID=11 L=61 		1-09700-484-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (D) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0710-0801 ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (P) ID=14.5 L=40 		1-09701-014-0 01 1 0802- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 27 1 0710-0801 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 29 1 0802-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 30 1 0806-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (C) ID=15 L=65 		1-09700-466-0 28 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (H) ID=20 L=70 		1-09700-485-0 16 1 0710-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (H) ID=20 L=70 		1-09700-485-0 19 1 0802-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (C) ID=15 L=65 		1-09700-466-0 17 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W) (H) ID=20 L=70 		1-09700-485-0 21 1 0710-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W) (H) ID=20 L=70 		1-09700-485-0 24 1 0802-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W) (C) ID=15 L=65 		1-09700-466-0 22 1 1008- ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (N) ID=9 H=32 L=24 		1-09701-221-0 01 1 0710-0802 ● ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (S) ID=9 H=20 L=25 		1-09701-073-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 30 1 0802-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 31 1 0806-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (C) ID=15 L=65 		1-09700-466-0 29 1 1008- ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 0710-0902 ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 0710-0902 ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 0903- ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 02 1 1008-1201 ● ●
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 02 1 1202- ● ●
102 CLIP; BAND
H.S.A SYSTEM<6EP> L=250 		5-09707-030-1 01 1 0710-0901 ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0710- ● ●
178 GROMMET; HARNESS
(A) ID=28 OD=35 T=17 		9-09956-256-2 01 1 0710- ● ●
178 GROMMET; HARNESS
ZF9S1110 M/T(Y5E) (A) ID=28 OD=35 T=17 		9-09956-256-2 02 1 0710- ● ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 03 1 0710-0711 ● ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 01 1 0712- ● ●
178 GROMMET; HARNESS
(B) ID=28 OD=35 T=25 		1-09332-011-1 02 1 0712- ● ●
183 CLIP; CONNECTOR
EXC. H.S.A SYSTEM<6EP> (B) OD=9 H=6 		1-09709-178-0 01 1 0710-0810 ● ●
183 CLIP; CONNECTOR
H.S.A SYSTEM<6EP> (A) L=250 		5-09707-030-1 01 1 0710- ● ●
194 CLIP; BAND
L=250 		5-09707-030-1 02 1 0710- ● ●
194 CLIP; BAND
ALLISON MD3560P A/T(Y3B) L=250 		5-09707-030-1 01 1 0710-0802 ● ●
206 CLIP; FUEL TANK HARNESS
L=250 		5-09707-030-1 02 1 0710- ● ●
217 CLIP; RR BODY HARNESS
L=250 		5-09707-030-1 02 1 0710- ● ●
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 04 1 0710- ● ●
225 CLIP; AIR TANK HARNESS
L=250 		5-09707-030-1 03 1 0710- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ZF9S1110 M/T(Y5E) (B) L=250 		5-09707-030-1 01 1 0710-0909 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ZF9S1110 M/T(Y5E) (A) ID=11 L=16 		0-95235-025-0 02 1 0710- ● ●
369 CLIP; BAND EDS HARNESS
L=250 		5-09707-030-1 02 1 0710-0802 ● ●
491 CLIP; BAND,HTR HOSE & HARNESS
A/T<X9D> L=250 		5-09707-030-1 05 1 0710-0710 ● ●
491 CLIP; BAND,HTR HOSE & HARNESS
A/T<X9D> L=250 		5-09707-030-1 06 1 0710-0804 ● ●
491 CLIP; BAND,HTR HOSE & HARNESS
A/T<X9D> L=250 		5-09707-030-1 07 1 0805- ● ●
503 CONNECTOR
EXC. H.S.A SYSTEM<6EP> (A) 		1-82691-191-0 01 1 0710-0810 ● ●
503 CONNECTOR
HEATER & DEFROSTER(C41) (B) 		1-82690-668-0 01 1 0710- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 14 1 0710-1305 ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 16 1 1306- ● ●
530 SEAL; HARNESS
100X40 		1-72498-022-1 06 1 0710-1305 ● ●
530 SEAL; HARNESS
A/T<X9D> 180X40 		1-72498-019-1 01 1 1306- ● ●
530 SEAL; HARNESS
180X40 		1-72498-019-1 01 1 1306- ● ●
538 SEAL; HOLE
OD=25 BLACK 		1-76798-019-0 01 1 0710- ● ●
596 GROMMET
ID=28 OD=35 T=25 		1-09332-011-1 01 1 0710- ● ●
612 CLIP; HARNESS DPD
(B) L=135 		1-09987-143-1 02 1 0710- ● ●
612 CLIP; HARNESS DPD
(A) L=250 		5-09707-030-1 02 1 0710-0802 ● ●
612 CLIP; HARNESS DPD
ZF9S1110 M/T(Y5E) WHEEL BASE 7100MM(71W) (A) L=250 		5-09707-030-1 01 1 0911- ●
612 CLIP; HARNESS DPD
ZF9S1110 M/T(Y5E) WHEEL BASE 5900MM(59W),WHEEL BASE 7100MM(71W) (A) L=250 		5-09707-030-1 01 1 0911- ●

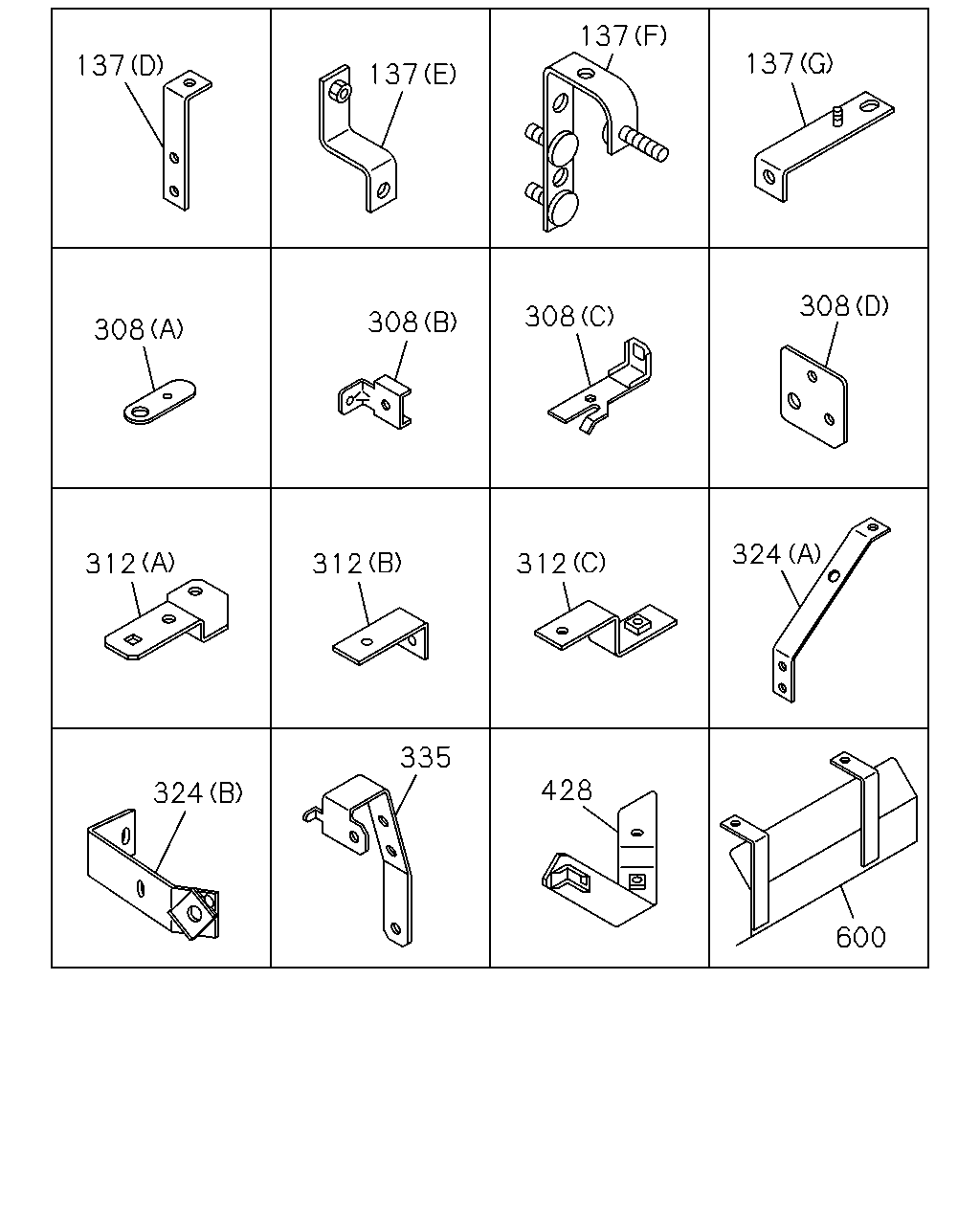

çizim 112298
137 137 137 137 308 308 308 308 312 312 312 324 428 600 335 324
BalonParca AdiParca NoAdetTipApplied Date A B
137 BRACKET; HARNESS CLAMP
(A) 		1-47476-200-0 01 1 0710-0802 ●
137 BRACKET; HARNESS CLAMP
ZF9S1110 M/T(Y5E) (B) 		8-97609-797-1 02 1 0710- ● ●
137 BRACKET; HARNESS CLAMP
(C) 		8-97614-728-1 01 1 0710- ● ●
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE<JE5> (E) 		1-47475-654-2 01 1 0710- ●
137 BRACKET; HARNESS CLAMP
ANTI LOCK BRAKE<JE5> (F) 		1-47479-329-0 01 1 0710- ●
137 BRACKET; HARNESS CLAMP
(D) 		8-97622-657-0 01 1 0710-0710 ● ●
137 BRACKET; HARNESS CLAMP
(G) 		8-97624-013-0 01 1 0711- ● ●
308 BRACKET; CLIP,ENG HARNESS
(B) 		8-97614-078-0 01 1 0710- ● ●
308 BRACKET; CLIP,ENG HARNESS
(C) 		8-98021-291-2 01 1 0710- ● ●
308 BRACKET; CLIP,ENG HARNESS
(D) 		8-98021-692-1 01 1 0710- ● ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 03 1 0710-1010 ● ●
308 BRACKET; CLIP,ENG HARNESS
(A) 		8-97601-310-0 02 1 1011- ● ●
312 BRACKET; CLIP HARNESS
(B) L=55 		1-47475-304-0 01 1 0710- ● ●
312 BRACKET; CLIP HARNESS
(C) 		8-97609-110-1 01 1 0710- ● ●
312 BRACKET; CLIP HARNESS
(A) 		8-97620-519-0 01 1 0710- ● ●
324 BRACKET; CLIP
(B) 		8-98210-921-1 01 1 1212- ●
324 BRACKET; CLIP
(B) 		8-98210-922-1 01 1 1212- ●
324 BRACKET; CLIP
(A) 		1-47479-430-0 02 1 0710-0711 ● ●
324 BRACKET; CLIP
ZF9S1110 M/T(Y5E) (A) 		1-47479-430-0 02 1 0712-1211 ● ●
324 BRACKET; CLIP
(A) 		1-47479-430-0 02 1 1212-1212 ●
324 BRACKET; CLIP
ANTI LOCK BRAKE<JE5> (A) 		1-47479-430-0 02 1 1212- ●
335 BRACKET; CONNECTOR 8-97619-097-1 01 1 0710- ● ●
428 BRACKET 8-97620-514-0 01 1 0710- ● ●
600 PROTECTOR; HEAT
ZF9S1110 M/T(Y5E) 		8-98073-436-0 01 1 0710-0801 ● ●
çizim 112300
16 16 16 16 306 16 305 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(N) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (D) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ● ●
16 CLIP; HARNESS
(I) L=36.5 		8-97019-892-0 02 1 0710-0802 ● ●
16 CLIP; HARNESS
(Q) ID=11 L=60 		0-95235-096-0 01 1 0710-0807 ● ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=11 L=61 		1-09700-484-0 01 1 0710-0810 ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (H) ID=11 L=16 		0-95235-025-0 02 1 0710- ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (K) L=250 		1-09707-126-0 01 1 0710- ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0710- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710- ● ●
16 CLIP; HARNESS
(J) 		8-98052-679-0 02 1 0710- ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (C) ID=22X11 L=20 		1-09700-871-0 04 1 0710- ●
16 CLIP; HARNESS
(O) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0710-0710 ● ●
16 CLIP; HARNESS
(V) ID=14 H=50 L=20 		1-09700-843-0 02 1 0711- ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (R) ID=16 L=20 		0-95235-536-0 01 1 0712-0806 ● ●
16 CLIP; HARNESS
(S) L=250 		5-09707-030-1 01 1 0802-1001 ● ●
16 CLIP; HARNESS
(C) ID=22X11 L=20 		1-09700-871-0 01 1 0710-0802 ●
16 CLIP; HARNESS
(T) ID=11X2 L=16 		0-95325-025-0 01 1 0803- ●
16 CLIP; HARNESS
(F) L=60 		8-94449-165-0 02 1 0710-0802 ● ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 0803- ● ●
16 CLIP; HARNESS
(G) ID=15 L=28 		1-09701-216-0 02 1 0710-0807 ● ●
16 CLIP; HARNESS
(E) ID=16 L=28 		0-95235-556-0 02 1 0808- ● ●
16 CLIP; HARNESS
(S) L=250 		5-09707-030-1 05 1 0710-0810 ● ●
16 CLIP; HARNESS
(S) L=250 		5-09707-030-1 03 1 0811- ● ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0710- ● ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(G) ID=24 L=32 		1-09700-766-1 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(I) ID=19 H=33 L=45 		1-09701-045-0 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(E) ID=11 L=45 		8-94296-897-1 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 01 1 0710- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=21 L=47.5 		8-94178-108-0 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 01 1 0710-0801 ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0802- ● ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 0710- ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0710- ● ●

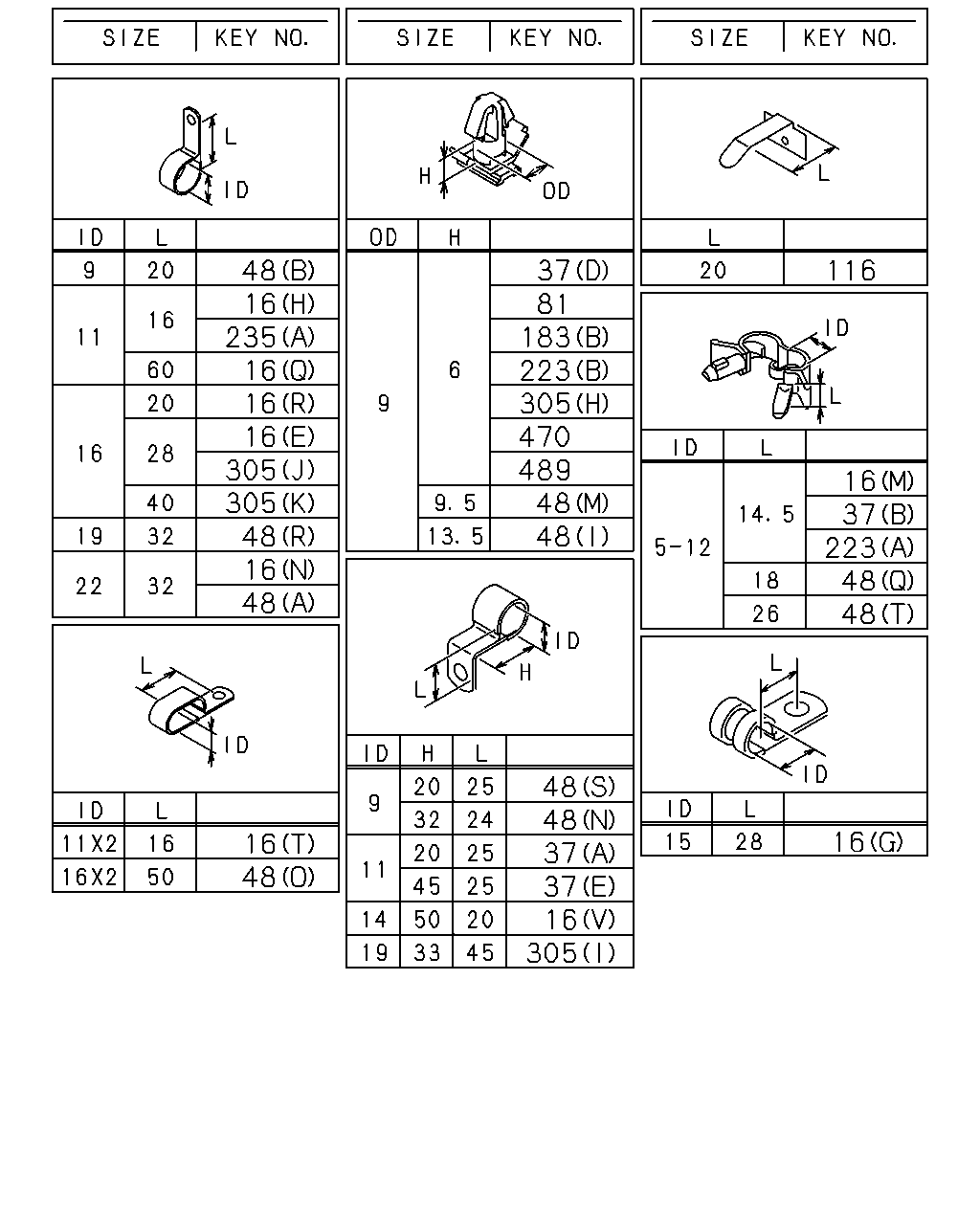

çizim 112306
48 16 235 16 16 16 305 305 48 16 48 37 81 183 223 305 470 489 48 48 116 16 37 223 48 48 48 48 37 37 16 305 16 16 48
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(N) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (D) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ● ●
16 CLIP; HARNESS
(I) L=36.5 		8-97019-892-0 02 1 0710-0802 ● ●
16 CLIP; HARNESS
(Q) ID=11 L=60 		0-95235-096-0 01 1 0710-0807 ● ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=11 L=61 		1-09700-484-0 01 1 0710-0810 ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (H) ID=11 L=16 		0-95235-025-0 02 1 0710- ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (K) L=250 		1-09707-126-0 01 1 0710- ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0710- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710- ● ●
16 CLIP; HARNESS
(J) 		8-98052-679-0 02 1 0710- ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (C) ID=22X11 L=20 		1-09700-871-0 04 1 0710- ●
16 CLIP; HARNESS
(O) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0710-0710 ● ●
16 CLIP; HARNESS
(V) ID=14 H=50 L=20 		1-09700-843-0 02 1 0711- ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (R) ID=16 L=20 		0-95235-536-0 01 1 0712-0806 ● ●
16 CLIP; HARNESS
(S) L=250 		5-09707-030-1 01 1 0802-1001 ● ●
16 CLIP; HARNESS
(C) ID=22X11 L=20 		1-09700-871-0 01 1 0710-0802 ●
16 CLIP; HARNESS
(T) ID=11X2 L=16 		0-95325-025-0 01 1 0803- ●
16 CLIP; HARNESS
(F) L=60 		8-94449-165-0 02 1 0710-0802 ● ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 0803- ● ●
16 CLIP; HARNESS
(G) ID=15 L=28 		1-09701-216-0 02 1 0710-0807 ● ●
16 CLIP; HARNESS
(E) ID=16 L=28 		0-95235-556-0 02 1 0808- ● ●
16 CLIP; HARNESS
(S) L=250 		5-09707-030-1 05 1 0710-0810 ● ●
16 CLIP; HARNESS
(S) L=250 		5-09707-030-1 03 1 0811- ● ●
37 CLIP; HARNESS,POWER TILT
(B) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710- ● ●
37 CLIP; HARNESS,POWER TILT
(C) L=250 		5-09707-030-1 01 1 0710- ● ●
37 CLIP; HARNESS,POWER TILT
(D) OD=9 H=6 		8-97368-793-0 02 1 0710- ● ●
37 CLIP; HARNESS,POWER TILT
(A) ID=11 H=20 L=25 		1-09700-848-0 01 1 0710-0802 ● ●
37 CLIP; HARNESS,POWER TILT
(E) ID=11 H=45 L=25 		1-09700-866-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(L) ID=33 L=83 		1-09701-291-0 01 1 1306- ● ●
48 CLIP; FRAME HARNESS
ANTI LOCK BRAKE<JE5> (F) ID=11 L=61 		1-09700-484-0 02 1 0712- ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (B) ID=9 L=20 		0-95234-835-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (O) ID=16X2 L=50 		0-95325-586-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (I) OD=9 H=13.5 		1-09709-180-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 04 1 0710- ● ●
48 CLIP; FRAME HARNESS
(K) ID=28 L=78 		1-09700-858-0 02 1 0710- ● ●
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(L) ID=33 L=83 		1-09701-291-0 03 1 0710- ● ●
48 CLIP; FRAME HARNESS
(G) L=140 		5-09707-031-1 02 1 0710- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (M) OD=9 H=9.5 		1-09709-179-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (A) ID=22 L=32 		1-09700-126-1 02 1 0710-0710 ● ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (R) ID=19 L=32 		0-95235-866-0 02 1 0710- ● ●
48 CLIP; FRAME HARNESS
(F) ID=11 L=61 		1-09700-484-0 01 1 0710-0710 ● ●
48 CLIP; FRAME HARNESS
(Q) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0711 ● ●
48 CLIP; FRAME HARNESS
(T) ID=5-12 L=26 		1-09709-289-0 01 1 0712-0802 ● ●
48 CLIP; FRAME HARNESS
(F) ID=11 L=61 		1-09700-484-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (D) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0710-0801 ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (P) ID=14.5 L=40 		1-09701-014-0 01 1 0802- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 27 1 0710-0801 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 29 1 0802-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 30 1 0806-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (C) ID=15 L=65 		1-09700-466-0 28 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (H) ID=20 L=70 		1-09700-485-0 16 1 0710-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (H) ID=20 L=70 		1-09700-485-0 19 1 0802-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (C) ID=15 L=65 		1-09700-466-0 17 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W) (H) ID=20 L=70 		1-09700-485-0 21 1 0710-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W) (H) ID=20 L=70 		1-09700-485-0 24 1 0802-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W) (C) ID=15 L=65 		1-09700-466-0 22 1 1008- ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (N) ID=9 H=32 L=24 		1-09701-221-0 01 1 0710-0802 ● ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (S) ID=9 H=20 L=25 		1-09701-073-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 30 1 0802-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 31 1 0806-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (C) ID=15 L=65 		1-09700-466-0 29 1 1008- ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 0710-0902 ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 0710-0902 ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 0903- ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 02 1 1008-1201 ● ●
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 02 1 1202- ● ●
81 CLIP; HARNESS
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=9 H=6 		1-09709-178-0 01 1 0712-1010 ● ●
81 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=9 H=6 		1-09709-178-0 01 1 1011- ● ●
116 CLIP; ROOF HARNESS
L=20 		1-09987-246-2 04 1 0710- ● ●
183 CLIP; CONNECTOR
EXC. H.S.A SYSTEM<6EP> (B) OD=9 H=6 		1-09709-178-0 01 1 0710-0810 ● ●
183 CLIP; CONNECTOR
H.S.A SYSTEM<6EP> (A) L=250 		5-09707-030-1 01 1 0710- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 0710- ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0710- ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710- ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ZF9S1110 M/T(Y5E) (B) L=250 		5-09707-030-1 01 1 0710-0909 ● ●
235 CLIP; HARNESS,SPD SENSOR,SSPS
ZF9S1110 M/T(Y5E) (A) ID=11 L=16 		0-95235-025-0 02 1 0710- ● ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0710- ● ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(G) ID=24 L=32 		1-09700-766-1 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(I) ID=19 H=33 L=45 		1-09701-045-0 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(E) ID=11 L=45 		8-94296-897-1 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 01 1 0710- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=21 L=47.5 		8-94178-108-0 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 01 1 0710-0801 ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0802- ● ●
470 CLIP; HARNESS,LICENSE LAMP
OD=9 H=6 		1-09709-178-0 01 1 0710-1205 ● ●
470 CLIP; HARNESS,LICENSE LAMP
COUNTRY NEW ZEALAND(CX6) OD=9 H=6 		1-09709-178-0 01 1 1206- ● ●
489 CLIP; HARNESS,OIL PRESS SW
H.S.A SYSTEM<6EP> TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) OD=9 H=6 		1-09709-178-0 01 1 0710-0711 ● ●

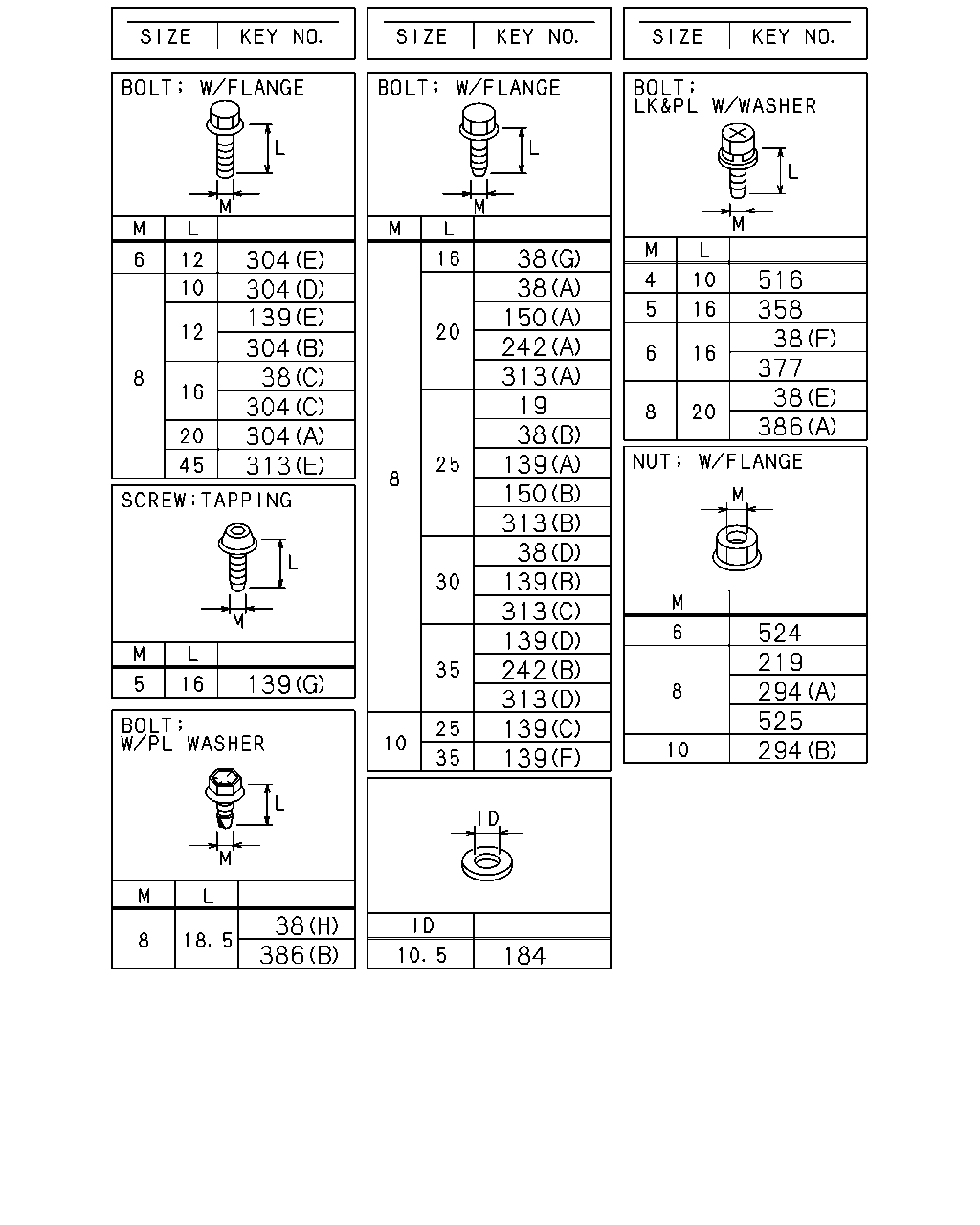

çizim 112307
38 38 150 242 313 19 38 139 150 313 38 139 313 139 242 313 139 139 304 304 139 304 38 304 304 313 516 358 38 377 38 386 524 219 294 525 294 139 38 386 184
BalonParca AdiParca NoAdetTipApplied Date A B
19 BOLT; PROTECTOR
ZF9S1110 M/T(Y5E) M8X25 FLANGE 		0-28650-825-0 02 1 0710-0801 ● ●
38 BOLT; CLIP,HARNESS
(G) M8X16 FLANGE 		8-98076-109-0 01 1 0710-0710 ● ●
38 BOLT; CLIP,HARNESS
(E) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0710-1201 ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3560P A/T(Y3B) (E) M8X20 W/LK&PL WASHER 		8-97086-825-0 03 1 0710-1201 ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3560P A/T(Y3B) (H) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202- ● ●
38 BOLT; CLIP,HARNESS
(H) M8X18.5 W/PL WASHER 		8-98141-255-0 03 1 1202- ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3560P A/T(Y3B) (F) M6X16 W/LK&PL WASHER 		8-97086-823-0 01 1 0710- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0710- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 02 1 0710- ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (D) M8X30 FLANGE 		0-28650-830-0 02 1 0710- ●
38 BOLT; CLIP,HARNESS
(C) M8X16 FLANGE 		0-28050-816-0 02 1 0710- ● ●
38 BOLT; CLIP,HARNESS
(B) M8X25 FLANGE 		0-28650-825-0 04 1 0710- ● ●
38 BOLT; CLIP,HARNESS
(D) M8X30 FLANGE 		0-28650-830-0 01 1 0710- ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3560P A/T(Y3B) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0710-0711 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
38 BOLT; CLIP,HARNESS
ALLISON MD3560P A/T(Y3B) (A) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE 		0-28650-820-0 02 1 0712- ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 04 1 0710-0711 ● ●
38 BOLT; CLIP,HARNESS
ZF9S1110 M/T(Y5E) (C) M8X16 FLANGE 		0-28050-816-0 01 1 0712-0806 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ● ●
38 BOLT; CLIP,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
38 BOLT; CLIP,HARNESS
ANTI LOCK BRAKE<JE5> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0710-0711 ●
38 BOLT; CLIP,HARNESS
ZF9S1110 M/T(Y5E) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0712- ● ●
139 BOLT; BRKT
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ●
139 BOLT; BRKT
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (A) M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0710- ● ●
139 BOLT; BRKT
(F) M10X35 FLANGE 		0-28651-035-0 01 1 0710- ● ●
139 BOLT; BRKT
(E) M8X12 FLANGE 		0-28050-812-0 01 1 0710- ● ●
139 BOLT; BRKT
(D) M8X35 FLANGE 		0-28650-835-0 01 1 0710- ● ●
139 BOLT; BRKT
(C) M10X25 FLANGE 		0-28651-025-0 02 1 0710- ● ●
139 BOLT; BRKT
ZF9S1110 M/T(Y5E) (B) M8X30 FLANGE 		0-28650-830-0 02 1 0710-0711 ● ●
139 BOLT; BRKT
ZF9S1110 M/T(Y5E) (B) M8X30 FLANGE 		0-28650-830-0 06 1 0712-0809 ● ●
139 BOLT; BRKT
ZF9S1110 M/T(Y5E) (B) M8X30 FLANGE 		0-28650-830-0 04 1 0810- ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 06 1 0710-0711 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0712-0809 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0810-0810 ● ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 02 1 0810-0810 ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 02 1 0810-0810 ●
139 BOLT; BRKT
ZF9S1110 M/T(Y5E) (B) M8X30 FLANGE 		0-28650-830-0 02 1 0811- ● ●
139 BOLT; BRKT
EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (G) M5X16 TAPPING 		0-72180-516-0 01 1 0801- ● ●
139 BOLT; BRKT
ZF9S1110 M/T(Y5E) (B) M8X30 FLANGE 		0-28650-830-0 01 1 0710-0802 ● ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 01 1 0803-0810 ●
139 BOLT; BRKT
(B) M8X30 FLANGE 		0-28650-830-0 01 1 0811- ● ●
139 BOLT; BRKT
ANTI LOCK BRAKE<JE5> (B) M8X30 FLANGE 		0-28650-830-0 01 1 0811- ●
150 BOLT; CLIP
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
150 BOLT; CLIP
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0710- ● ●
184 WASHER; PL,STARTER EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0806- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
219 NUT
ANTI LOCK BRAKE<JE5> M8 FLANGE 		0-91180-108-0 03 1 0710- ●
219 NUT
ZF9S1110 M/T(Y5E) M8 FLANGE 		0-91180-108-0 05 1 0710-0802 ● ●
219 NUT
ZF9S1110 M/T(Y5E) M8 FLANGE 		0-91180-108-0 04 1 0803- ● ●
219 NUT
M8 FLANGE 		0-91180-108-0 01 1 0803- ●
242 BOLT; BRKT,HARNESS
(A) M8X20 FLANGE 		0-28650-820-0 02 1 0710- ● ●
242 BOLT; BRKT,HARNESS
(B) M8X35 FLANGE 		0-28650-835-0 01 1 0710- ● ●
242 BOLT; BRKT,HARNESS
ALLISON MD3560P A/T(Y3B) (A) M8X20 FLANGE 		0-28650-820-0 01 1 0809-0809 ● ●
242 BOLT; BRKT,HARNESS
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8X20 FLANGE 		0-28650-820-0 01 1 0809-0809 ● ●
294 NUT
(B) M10 FLANGE 		0-91180-210-0 02 1 0710- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 07 1 0710-0710 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 09 1 0710-0711 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 0712-0901 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 03 1 0902-0905 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 05 1 0906- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 0710-0711 ●
294 NUT
ZF9S1110 M/T(Y5E) (A) M8 FLANGE 		0-91180-108-0 06 1 0712-0809 ● ●
294 NUT
ZF9S1110 M/T(Y5E) (A) M8 FLANGE 		0-91180-108-0 04 1 0810- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0802 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0802 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0802 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0710-0802 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0803-0808 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0803-0808 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0803-0808 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ●
294 NUT
ALLISON MD3560P A/T(Y3B) (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ●
294 NUT
ZF9S1110 M/T(Y5E) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) M8 FLANGE 		0-91180-108-0 01 1 0809-0809 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0810- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0810- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 01 1 0810- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0712-0809 ● ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 0712-0809 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0810-0901 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0810-0901 ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 0810-0901 ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 0810-0901 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-0905 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-0905 ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0902-0905 ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 0902-0905 ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 0902-0905 ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0906- ● ●
294 NUT
(A) M8 FLANGE 		0-91180-108-0 02 1 0906- ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 0906- ●
294 NUT
ANTI LOCK BRAKE<JE5> (A) M8 FLANGE 		0-91180-108-0 02 1 0906- ●
304 BOLT; ENG HARNESS CLIP
(D) M8X10 FLANGE 		0-28050-810-0 01 1 0710-1010 ● ●
304 BOLT; ENG HARNESS CLIP
(E) M6X12 FLANGE 		0-28050-612-0 01 1 0710- ● ●
304 BOLT; ENG HARNESS CLIP
(B) M8X12 FLANGE 		0-28050-812-0 03 1 0710- ● ●
304 BOLT; ENG HARNESS CLIP
(C) M8X16 FLANGE 		0-28050-816-0 03 1 0710- ● ●
304 BOLT; ENG HARNESS CLIP
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0710- ● ●
313 BOLT; BRKT
(E) M8X45 FLANGE 		0-28050-845-0 01 1 0710- ● ●
313 BOLT; BRKT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0710- ● ●
313 BOLT; BRKT
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0710- ● ●
313 BOLT; BRKT
(C) M8X30 FLANGE 		0-28650-830-0 01 1 0710- ● ●
313 BOLT; BRKT
(D) M8X35 FLANGE 		0-28650-835-0 01 1 0710- ● ●
358 BOLT; EARTH
M5X16 W/LK&PL WASHER 		8-94198-538-0 01 1 0710- ● ●
377 BOLT; CAB EARTH
M6X16 W/LK&PL WASHER 		8-97086-823-0 02 1 0710- ● ●
386 BOLT; GRAND HARNESS
(A) M8X20 W/LK&PL WASHER 		8-97086-825-0 02 1 0710-1202 ● ●
386 BOLT; GRAND HARNESS
(B) M8X18.5 W/PL WASHER 		8-98141-255-0 02 1 1203- ● ●
516 BOLT; HARNESS
M4X10 W/LK&PL WASHER 		0-36230-410-0 01 1 0710- ● ●
524 NUT; HARNESS
M6 FLANGE 		0-91180-106-0 04 1 0710- ● ●
525 NUT; CLIP
T=8.5 M8 FLANGE 		5-09440-010-0 01 1 0710- ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 01 1 0710- ● ●
525 NUT; CLIP
T=8.0 M8 FLANGE 		0-91180-108-0 02 1 0710- ● ●
çizim 112308
305 48 305 305 306 48 16 48 305 16 16 48 581 16 48 223 581 213 48 48 48 48 16 305 305
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; HARNESS
(N) ID=22 L=32 		1-09700-126-1 01 1 0710-0711 ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) ASSISTOR SHIFT CONTROL<WX8> (D) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ● ●
16 CLIP; HARNESS
(I) L=36.5 		8-97019-892-0 02 1 0710-0802 ● ●
16 CLIP; HARNESS
(Q) ID=11 L=60 		0-95235-096-0 01 1 0710-0807 ● ●
16 CLIP; HARNESS
TRANSMISSION CONTROL-SMOOTHER DELETE(8GJ) (P) ID=11 L=61 		1-09700-484-0 01 1 0710-0810 ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (H) ID=11 L=16 		0-95235-025-0 02 1 0710- ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (K) L=250 		1-09707-126-0 01 1 0710- ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (M) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 01 1 0710- ● ●
16 CLIP; HARNESS
(L) ID=34.5 H=23 L=27.5 		1-09700-905-0 03 1 0710- ● ●
16 CLIP; HARNESS
(A) ID=10 & 16 		8-94413-325-0 01 1 0710- ● ●
16 CLIP; HARNESS
(B) L=155 		8-97173-307-0 18 1 0710- ● ●
16 CLIP; HARNESS
(J) 		8-98052-679-0 02 1 0710- ● ●
16 CLIP; HARNESS
ANTI LOCK BRAKE<JE5> (C) ID=22X11 L=20 		1-09700-871-0 04 1 0710- ●
16 CLIP; HARNESS
(O) ID=14.5 H=23 L=30 		1-09700-859-0 02 1 0710-0710 ● ●
16 CLIP; HARNESS
(V) ID=14 H=50 L=20 		1-09700-843-0 02 1 0711- ● ●
16 CLIP; HARNESS
ZF9S1110 M/T(Y5E) (R) ID=16 L=20 		0-95235-536-0 01 1 0712-0806 ● ●
16 CLIP; HARNESS
(S) L=250 		5-09707-030-1 01 1 0802-1001 ● ●
16 CLIP; HARNESS
(C) ID=22X11 L=20 		1-09700-871-0 01 1 0710-0802 ●
16 CLIP; HARNESS
(T) ID=11X2 L=16 		0-95325-025-0 01 1 0803- ●
16 CLIP; HARNESS
(F) L=60 		8-94449-165-0 02 1 0710-0802 ● ●
16 CLIP; HARNESS
(U) L=40.6 		8-97229-357-0 02 1 0803- ● ●
16 CLIP; HARNESS
(G) ID=15 L=28 		1-09701-216-0 02 1 0710-0807 ● ●
16 CLIP; HARNESS
(E) ID=16 L=28 		0-95235-556-0 02 1 0808- ● ●
16 CLIP; HARNESS
(S) L=250 		5-09707-030-1 05 1 0710-0810 ● ●
16 CLIP; HARNESS
(S) L=250 		5-09707-030-1 03 1 0811- ● ●
48 CLIP; FRAME HARNESS
(L) ID=33 L=83 		1-09701-291-0 01 1 1306- ● ●
48 CLIP; FRAME HARNESS
ANTI LOCK BRAKE<JE5> (F) ID=11 L=61 		1-09700-484-0 02 1 0712- ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (B) ID=9 L=20 		0-95234-835-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (O) ID=16X2 L=50 		0-95325-586-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (I) OD=9 H=13.5 		1-09709-180-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 04 1 0710- ● ●
48 CLIP; FRAME HARNESS
(K) ID=28 L=78 		1-09700-858-0 02 1 0710- ● ●
48 CLIP; FRAME HARNESS
(E) ID=35 L=50 		1-09701-214-0 01 1 0710- ● ●
48 CLIP; FRAME HARNESS
(L) ID=33 L=83 		1-09701-291-0 03 1 0710- ● ●
48 CLIP; FRAME HARNESS
(G) L=140 		5-09707-031-1 02 1 0710- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W),WHEEL BASE 5900MM(59W) (M) OD=9 H=9.5 		1-09709-179-0 01 1 0710- ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (A) ID=22 L=32 		1-09700-126-1 02 1 0710-0710 ● ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (R) ID=19 L=32 		0-95235-866-0 02 1 0710- ● ●
48 CLIP; FRAME HARNESS
(F) ID=11 L=61 		1-09700-484-0 01 1 0710-0710 ● ●
48 CLIP; FRAME HARNESS
(Q) ID=5-12 L=18 		1-09709-287-0 01 1 0710-0711 ● ●
48 CLIP; FRAME HARNESS
(T) ID=5-12 L=26 		1-09709-289-0 01 1 0712-0802 ● ●
48 CLIP; FRAME HARNESS
(F) ID=11 L=61 		1-09700-484-0 01 1 0712- ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (D) ID=14.5 H=23 L=30 		1-09700-859-0 01 1 0710-0801 ● ●
48 CLIP; FRAME HARNESS
ZF9S1110 M/T(Y5E) (P) ID=14.5 L=40 		1-09701-014-0 01 1 0802- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 27 1 0710-0801 ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 29 1 0802-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 30 1 0806-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (C) ID=15 L=65 		1-09700-466-0 28 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (H) ID=20 L=70 		1-09700-485-0 16 1 0710-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (H) ID=20 L=70 		1-09700-485-0 19 1 0802-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5000MM(50W) (C) ID=15 L=65 		1-09700-466-0 17 1 1008- ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W) (H) ID=20 L=70 		1-09700-485-0 21 1 0710-0801 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W) (H) ID=20 L=70 		1-09700-485-0 24 1 0802-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 5900MM(59W) (C) ID=15 L=65 		1-09700-466-0 22 1 1008- ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (N) ID=9 H=32 L=24 		1-09701-221-0 01 1 0710-0802 ● ●
48 CLIP; FRAME HARNESS
ALLISON MD3560P A/T(Y3B) (S) ID=9 H=20 L=25 		1-09701-073-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0710-0802 ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
(J) ID=11 L=41 		1-09700-403-0 01 1 0803- ● ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 30 1 0802-0805 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (H) ID=20 L=70 		1-09700-485-0 31 1 0806-1007 ●
48 CLIP; FRAME HARNESS
WHEEL BASE 7100MM(71W) (C) ID=15 L=65 		1-09700-466-0 29 1 1008- ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 0710-0902 ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 0710-0902 ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 01 1 0903- ● ●
48 CLIP; FRAME HARNESS
(H) ID=20 L=70 		1-09700-485-0 02 1 1008-1201 ● ●
48 CLIP; FRAME HARNESS
(C) ID=15 L=65 		1-09700-466-0 02 1 1202- ● ●
213 CLIP; END CROSS HARNESS
ID=14 L=44 		9-09917-427-0 03 1 0710- ● ●
223 CLIP; AIR TANK HARNESS
(C) ID=11 L=61 		1-09700-484-0 01 1 0710- ● ●
223 CLIP; AIR TANK HARNESS
(B) OD=9 H=6 		1-09709-178-0 01 1 0710- ● ●
223 CLIP; AIR TANK HARNESS
(A) ID=5-12 L=14.5 		1-09987-221-0 02 1 0710- ● ●
305 CLIP; ENG HARNESS
(J) ID=16 L=28 		0-95235-556-0 02 1 0710- ● ●
305 CLIP; ENG HARNESS
(K) ID=16 L=40 		0-95235-576-0 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(G) ID=24 L=32 		1-09700-766-1 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(D) ID=20 H=23 L=27 		1-09700-861-0 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(A) ID=25 L=60 		1-09701-041-1 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(I) ID=19 H=33 L=45 		1-09701-045-0 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(H) OD=9 H=6 		1-09709-178-0 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(E) ID=11 L=45 		8-94296-897-1 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(F) L=100 		8-94443-021-1 01 1 0710- ● ●
305 CLIP; ENG HARNESS
AIR CONDITIONER MANUAL CONTROL(C60),FULLAUTO AIR CONDITIONER(C68) (C) ID=21 L=47.5 		8-94178-108-0 01 1 0710- ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-94225-185-0 01 1 0710-0801 ● ●
305 CLIP; ENG HARNESS
(B) ID=18 L=44 		8-97367-985-1 01 1 0802- ● ●
306 CLIP; HARNESS,ELEC GOV
(A) ID=28 L=32 		1-09701-107-1 01 1 0710- ● ●
306 CLIP; HARNESS,ELEC GOV
(B) ID=28X2 L=28 		1-09701-302-0 02 1 0710- ● ●
581 CLIP; HARNESS,REAR SUSP
(A) ID=11 L=41 		1-09700-403-0 02 1 0710-0711 ● ●
581 CLIP; HARNESS,REAR SUSP
(A) ID=11 L=41 		1-09700-403-0 02 1 0710-0711 ●
581 CLIP; HARNESS,REAR SUSP
(A) ID=11 L=41 		1-09700-403-0 02 1 0712-0801 ●
581 CLIP; HARNESS,REAR SUSP
(B) ID=11 L=61 		1-09700-484-0 02 1 0802-0802 ●
581 CLIP; HARNESS,REAR SUSP
(A) ID=11 L=41 		1-09700-403-0 02 1 0803- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
