1 |

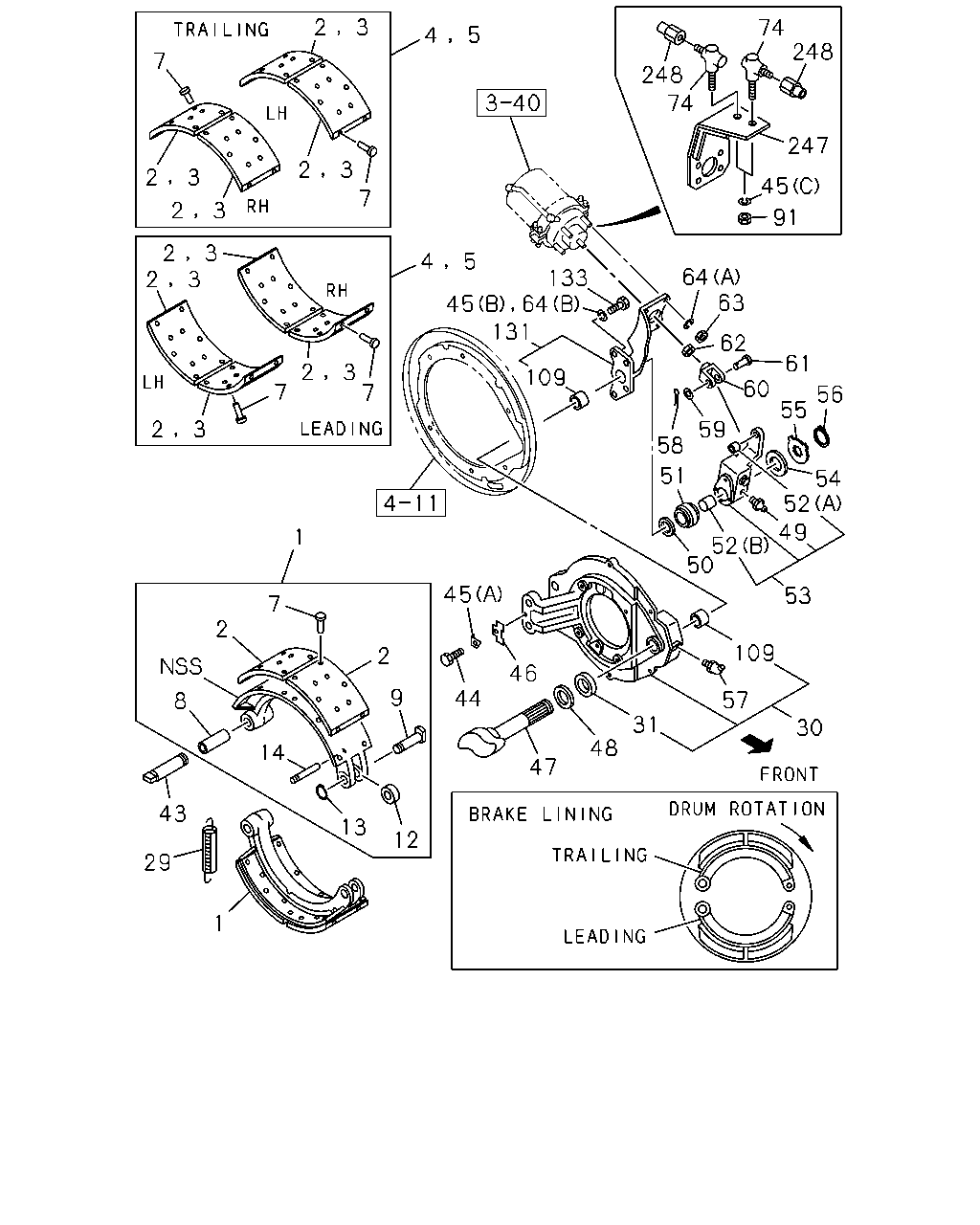

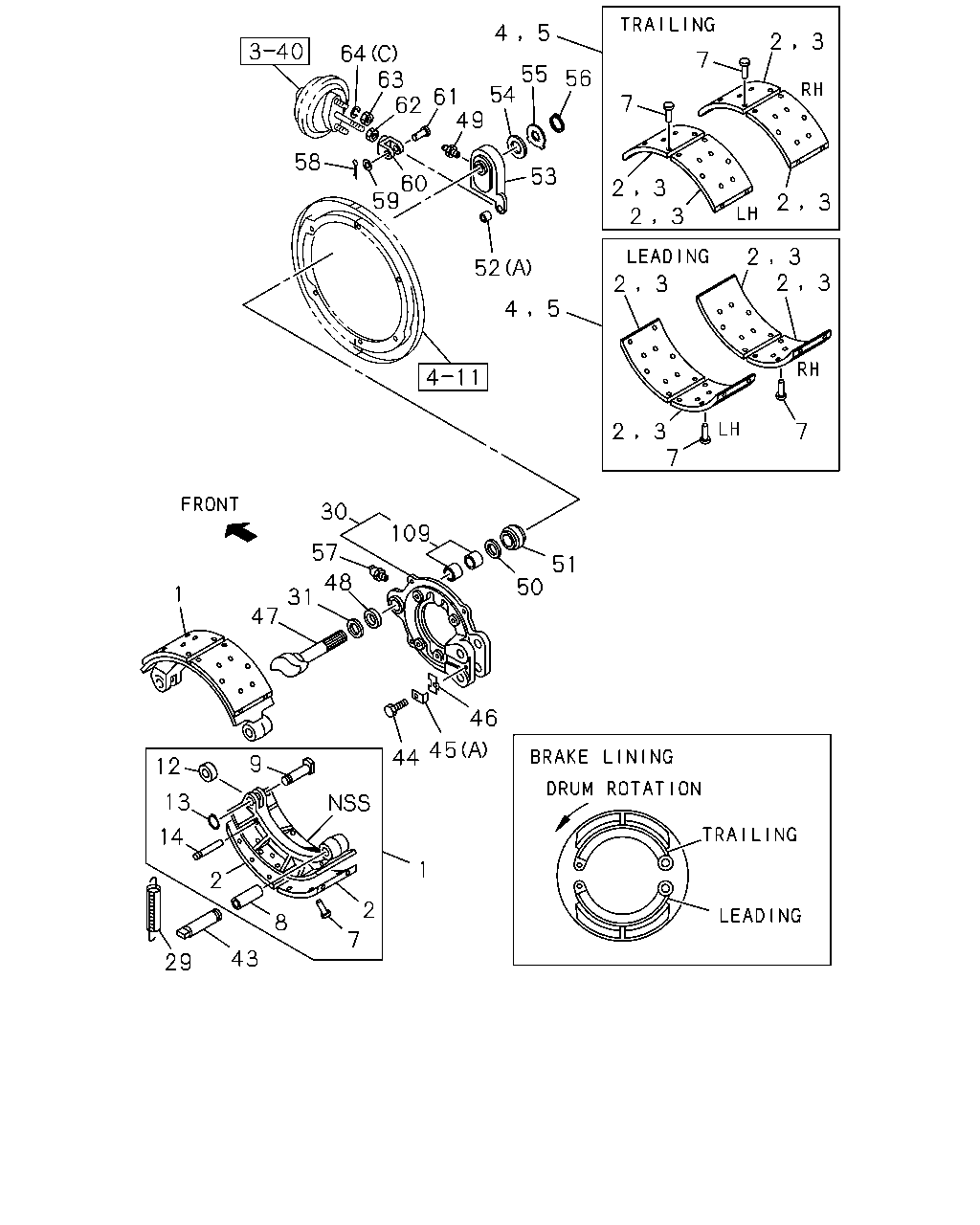

SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47120-113-0 |
01 |
1 |
9601-9610 |
| |
1 |
SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47120-114-0 |
01 |
1 |
9601-9610 |
| |
1 |
SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47120-111-0 |
01 |
1 |
9601-9610 |
| |
1 |
SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47120-112-0 |
01 |
1 |
9601-9610 |
| |
1 |
SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47120-334-0 |
01 |
1 |
9611- |
| |
1 |
SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47120-335-0 |
01 |
1 |
9611- |
| |
1 |
SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47120-332-0 |
01 |
1 |
9611- |
| |
1 |
SHOE; BRK,FRT
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47120-333-0 |
01 |
1 |
9611- |
| |
1 |
SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47110-965-0 |
01 |
1 |
9601-0006 |
| |
1 |
SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47120-711-0 |
01 |
1 |
0007- |
| |
1 |
SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47110-966-0 |
01 |
1 |
9601-0006 |
| |
1 |
SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47120-712-0 |
01 |
1 |
0007- |
| |
1 |
SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47110-963-0 |
01 |
1 |
9601-0006 |
| |
1 |
SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47120-709-0 |
01 |
1 |
0007- |
| |
1 |
SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47110-964-0 |
01 |
1 |
9601-0006 |
| |
1 |
SHOE; BRK,FRT
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47120-710-0 |
01 |
1 |
0007- |
| |
2 |
LINING; FRT BRK SHOE,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47115-955-0 |
04 |
1 |
9601-9610 |
| |
2 |
LINING; FRT BRK SHOE,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47115-961-0 |
04 |
1 |
9601-9610 |
| |
2 |
LINING; FRT BRK SHOE,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING W/INDICATOR HOLE
|
1-47125-411-0 |
04 |
1 |
9601-9610 |
| |
2 |
LINING; FRT BRK SHOE,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING WO/INDICATOR HOLE
|
1-47125-431-0 |
04 |
1 |
9611- |
| |
2 |
LINING; FRT BRK SHOE,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47125-432-0 |
04 |
1 |
9611- |
| |
2 |
LINING; FRT BRK SHOE,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING W/INDICATOR HOLE
|
1-47125-443-0 |
04 |
1 |
9611- |
| |
2 |
LINING; FRT BRK SHOE,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47115-771-0 |
04 |
1 |
9601-0006 |
| |
2 |
LINING; FRT BRK SHOE,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47125-793-0 |
04 |
1 |
0007- |
| |
2 |
LINING; FRT BRK SHOE,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47115-814-0 |
04 |
1 |
9601-0006 |
| |
2 |
LINING; FRT BRK SHOE,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47125-795-0 |
04 |
1 |
0007- |
| |
3 |
LINING; FRT BRK SHOE,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47115-956-0 |
04 |
1 |
9601-9610 |
| |
3 |
LINING; FRT BRK SHOE,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47115-962-0 |
04 |
1 |
9601-9610 |
| |
3 |
LINING; FRT BRK SHOE,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
W/FOR WEAR INDICATOR HOLE
|
1-47125-412-0 |
04 |
1 |
9601-9610 |
| |
3 |
LINING; FRT BRK SHOE,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47125-433-0 |
04 |
1 |
9611- |
| |
3 |
LINING; FRT BRK SHOE,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47125-434-0 |
04 |
1 |
9611- |
| |
3 |
LINING; FRT BRK SHOE,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
W/FOR WEAR INDICATOR HOLE
|
1-47125-444-0 |
04 |
1 |
9611- |
| |
3 |
LINING; FRT BRK SHOE,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47115-772-0 |
04 |
1 |
9601-0006 |
| |
3 |
LINING; FRT BRK SHOE,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-47125-794-0 |
04 |
1 |
0007- |
| |
3 |
LINING; FRT BRK SHOE,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47115-815-0 |
04 |
1 |
9601-0006 |
| |
3 |
LINING; FRT BRK SHOE,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-47125-796-0 |
04 |
1 |
0007- |
| |
4 |
LINING SET; FRT BRK,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88310-051-0 |
01 |
1 |
9601-9610 |
| |
4 |
LINING SET; FRT BRK,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-88310-053-0 |
01 |
1 |
9601-9610 |
| |
4 |
LINING SET; FRT BRK,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88310-309-0 |
01 |
1 |
9611- |
| |
4 |
LINING SET; FRT BRK,STANDARD
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-88310-311-0 |
01 |
1 |
9611- |
| |
4 |
LINING SET; FRT BRK,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88302-923-0 |
01 |
1 |
9601-0006 |
| |
4 |
LINING SET; FRT BRK,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88310-497-0 |
01 |
1 |
0007- |
| |
4 |
LINING SET; FRT BRK,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-88302-931-0 |
01 |
1 |
9601-0006 |
| |
4 |
LINING SET; FRT BRK,STANDARD
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-88310-499-0 |
01 |
1 |
0007- |
| |
5 |
LINING SET; FRT BRK,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88310-052-0 |
01 |
1 |
9601-9610 |
| |
5 |
LINING SET; FRT BRK,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-88310-054-0 |
01 |
1 |
9601-9610 |
| |
5 |
LINING SET; FRT BRK,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88310-310-0 |
01 |
1 |
9611- |
| |
5 |
LINING SET; FRT BRK,OVER SIZE
BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-88310-312-0 |
01 |
1 |
9611- |
| |
5 |
LINING SET; FRT BRK,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88302-924-0 |
01 |
1 |
9601-0006 |
| |
5 |
LINING SET; FRT BRK,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
LEADING
|
1-88310-498-0 |
01 |
1 |
0007- |
| |
5 |
LINING SET; FRT BRK,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-88302-932-0 |
01 |
1 |
9601-0006 |
| |
5 |
LINING SET; FRT BRK,OVER SIZE
EXC. BRAKE LINING MATERIAL NON ASBESTOS<SKR>
TRAILING
|
1-88310-500-0 |
01 |
1 |
0007- |
| |
7 |
RIVET; LINING,FRT BRK
L=18.5
|
1-09732-034-0 |
80 |
1 |
9601- |
| |
8 |
BUSHING; BRK SHOE
|
1-47112-011-0 |
04 |
1 |
9601- |
| |
9 |
PIN; SHOE HOLDER
|
1-09744-060-0 |
04 |
1 |
9601- |
| |
12 |
ROLLER; CAM,BRK SHOE
|
1-47113-007-0 |
04 |
1 |
9601- |
| |
13 |
CLIP; ROLLER PIN,BRK SHOE
|
9-47119-022-0 |
04 |
1 |
9601- |
| |
14 |
PIN; SHOE RETURN SPR
L=73.5
|
1-47119-017-1 |
04 |
1 |
9601- |
| |
29 |
SPRING; RETURN,FRT BRK SHOE
|
1-09583-185-2 |
02 |
1 |
9601- |
| |
30 |
BRACKET; ANCHOR,FRT
|
1-47137-119-2 |
01 |
1 |
9601-9610 |
| |
30 |
BRACKET; ANCHOR,FRT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
|
1-47137-119-3 |
01 |
1 |
9611- |
| |
30 |
BRACKET; ANCHOR,FRT
|
1-47137-118-2 |
01 |
1 |
9601-9610 |
| |
30 |
BRACKET; ANCHOR,FRT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
|
1-47137-118-3 |
01 |
1 |
9611- |
| |
30 |
BRACKET; ANCHOR,FRT
BRAKE SYSTEM SPRING BRAKE(BCR)
|
1-47137-268-2 |
01 |
1 |
9611- |
| |
30 |
BRACKET; ANCHOR,FRT
BRAKE SYSTEM SPRING BRAKE(BCR)
|
1-47137-267-2 |
01 |
1 |
9611- |
| |
31 |
SEAL; OIL,CM/SHF
|
1-09625-228-0 |
02 |
1 |
9601- |
| |
43 |
PIN; ANCHOR
L=106.5
|
1-47131-038-0 |
04 |
1 |
9601- |
| |
44 |
BOLT; LOCK,ANCHOR PIN
M10X16
|
0-20801-016-0 |
02 |
1 |
9601- |
| |
45 |
WASHER; LK
(A)
|
1-47133-011-0 |
02 |
1 |
9601- |
| |
45 |
WASHER; LK
BRAKE SYSTEM SPRING BRAKE(BCR)
(B)
ID=14.2
|
9-09150-514-0 |
04 |
1 |
9611- |
| |
45 |
WASHER; LK
BRAKE SYSTEM SPRING BRAKE(BCR)
(C)
ID=20.2
|
9-09150-520-0 |
04 |
1 |
9611- |
| |
46 |
PLATE; LOCK
|
1-47133-005-0 |
02 |
1 |
9601- |
| |
47 |
CAMSHAFT; FRT BRK
|
1-47141-052-0 |
01 |
1 |
9601- |
| |
47 |
CAMSHAFT; FRT BRK
|
1-47141-051-0 |
01 |
1 |
9601- |
| |
48 |
RING; SPACER,CM/SHF
|
1-47143-005-0 |
02 |
1 |
9601- |
| |
49 |
NIPPLE; GREASE,SLACK ADJ
PT1/8 STRAIGHT
|
9-09031-010-0 |
01 |
1 |
9601-9610 |
| |
49 |
NIPPLE; GREASE,SLACK ADJ
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
PT1/8 STRAIGHT
|
9-09031-010-0 |
01 |
1 |
9611- |
| |
49 |
NIPPLE; GREASE,SLACK ADJ
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
01 |
1 |
9601-9610 |
| |
49 |
NIPPLE; GREASE,SLACK ADJ
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
01 |
1 |
9611- |
| |
49 |
NIPPLE; GREASE,SLACK ADJ
BRAKE SYSTEM SPRING BRAKE(BCR)
PT1/8 STRAIGHT
|
9-09031-010-0 |
02 |
1 |
9611- |
| |
50 |
RING; FELT,CM/SHF
|
1-09620-009-0 |
02 |
1 |
9601- |
| |
51 |
COLLAR; RING,CM/SHF
|
1-47143-003-0 |
02 |
1 |
9601-9708 |
| |
51 |
COLLAR; RING,CM/SHF
|
1-47143-016-0 |
02 |
1 |
9709- |
| |
52 |
BUSHING; SLACK ADJ
(A)
|
1-09330-041-0 |
02 |
1 |
9601- |
| |
52 |
BUSHING; SLACK ADJ
BRAKE SYSTEM SPRING BRAKE(BCR)
(B)
|
1-47146-003-1 |
02 |
1 |
9611- |
| |
53 |
ADJUSTER ASM; SLACK
|
1-48270-044-0 |
01 |
1 |
9601-9610 |
| |
53 |
ADJUSTER ASM; SLACK
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
|
1-48270-044-0 |
01 |
1 |
9611- |
| |
53 |
ADJUSTER ASM; SLACK
|
1-48270-043-0 |
01 |
1 |
9601-9610 |
| |
53 |
ADJUSTER ASM; SLACK
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
|
1-48270-043-0 |
01 |
1 |
9611- |
| |
53 |
ADJUSTER ASM; SLACK
BRAKE SYSTEM SPRING BRAKE(BCR)
|
1-48270-078-1 |
01 |
1 |
9611- |
| |
53 |
ADJUSTER ASM; SLACK
BRAKE SYSTEM SPRING BRAKE(BCR)
|
1-48270-077-1 |
01 |
1 |
9611- |
| |
54 |
SPACER; CM/SHF
|
1-47143-004-0 |
02 |
1 |
9601- |
| |
55 |
PLATE; STOPPER,CM/SHF
|
1-47149-021-0 |
02 |
1 |
9601-9610 |
| |
55 |
PLATE; STOPPER,CM/SHF
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
|
1-47149-021-0 |
02 |
1 |
9611- |
| |
55 |
PLATE; STOPPER,CM/SHF
BRAKE SYSTEM SPRING BRAKE(BCR)
|
1-47149-053-0 |
02 |
1 |
9611- |
| |
56 |
CLIP; ANCHOR PIN
|
9-09180-038-0 |
02 |
1 |
9601- |
| |
57 |
NIPPLE; GREASE,ANCHOR BRKT
PT1/8 STRAIGHT
|
9-09031-010-0 |
02 |
1 |
9601-9610 |
| |
57 |
NIPPLE; GREASE,ANCHOR BRKT
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
PT1/8 STRAIGHT
|
9-09031-010-0 |
02 |
1 |
9611- |
| |
57 |
NIPPLE; GREASE,ANCHOR BRKT
BRAKE SYSTEM SPRING BRAKE(BCR)
PT1/8 ELBOW 67.5 DEGREES
|
9-09031-110-0 |
02 |
1 |
9611- |
| |
58 |
PIN; SPLIT,JAW JOINT
OD=3.7 L=28
|
9-08114-028-0 |
02 |
1 |
9601- |
| |
59 |
WASHER; PL,JAW JOINT
ID=17 OD=32
|
9-09160-616-0 |
02 |
1 |
9601- |
| |
60 |
JOINT; JAW,POWER CHAMBER
|
1-09768-060-1 |
02 |
1 |
9601- |
| |
61 |
PIN; JAW JOINT,POWER CHAMBER
|
1-09744-088-0 |
02 |
1 |
9601- |
| |
62 |
NUT; LK,JAW JOINT
M16
|
9-99111-416-0 |
02 |
1 |
9601- |
| |
63 |
NUT; POWER CHAMBER
M16
|
9-99110-416-0 |
04 |
1 |
9601-9610 |
| |
63 |
NUT; POWER CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
M16
|
9-99110-416-0 |
04 |
1 |
9611- |
| |
63 |
NUT; POWER CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR)
M16
|
9-99110-416-0 |
08 |
1 |
9611- |
| |
64 |
WASHER; LK,POWER CHAMBER
(C)
ID=16.2
|
9-09150-516-0 |
04 |
1 |
9601-9610 |
| |
64 |
WASHER; LK,POWER CHAMBER
EXC. BRAKE SYSTEM SPRING BRAKE(BCR)
(C)
ID=16.2
|
9-09150-516-0 |
04 |
1 |
9611- |
| |
64 |
WASHER; LK,POWER CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR)
(B)
ID=14.2
|
9-09150-514-0 |
04 |
1 |
9611- |
| |
64 |
WASHER; LK,POWER CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR)
(A)
ID=16.2
|
9-09150-516-0 |
08 |
1 |
9611- |
| |
74 |
CONNECTOR; FRT BRK
BRAKE SYSTEM SPRING BRAKE(BCR)
EMERGENCY
|
1-09654-119-1 |
02 |
1 |
9611- |
| |
74 |
CONNECTOR; FRT BRK
BRAKE SYSTEM SPRING BRAKE(BCR)
SERVICE
|
1-09654-128-1 |
02 |
1 |
9611- |
| |
91 |
NUT; CONNECTOR
BRAKE SYSTEM SPRING BRAKE(BCR)
M20
|
9-99111-420-0 |
04 |
1 |
9611- |
| |
109 |
BUSHING; CM/SHF,FRT BRK
|
1-47146-003-1 |
04 |
1 |
9601- |
| |
131 |
BRACKET; POWER CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR)
|
1-48258-152-1 |
01 |
1 |
9611- |
| |
131 |
BRACKET; POWER CHAMBER
BRAKE SYSTEM SPRING BRAKE(BCR)
|
1-48258-151-1 |
01 |
1 |
9611- |
| |
133 |
BOLT; BRKT
BRAKE SYSTEM SPRING BRAKE(BCR)
M14X60
|
0-20801-460-0 |
08 |
1 |
9611- |
| |
247 |
BRACKET; CONNECTOR
BRAKE SYSTEM SPRING BRAKE(BCR)
|
1-82699-859-0 |
01 |
1 |
9611- |
| |
247 |
BRACKET; CONNECTOR
BRAKE SYSTEM SPRING BRAKE(BCR)
|
1-82699-858-0 |
01 |
1 |
9611- |
| |
248 |
ADAPTER
BRAKE SYSTEM SPRING BRAKE(BCR)
EMERGENCY
DIN8 & M16 STRAIGHT
|
1-09660-875-0 |
02 |
1 |
9611- |
| |
248 |
ADAPTER
BRAKE SYSTEM SPRING BRAKE(BCR)
SERVICE
DIN12 & M20 STRAIGHT
|
1-09660-877-0 |
02 |
1 |
9611- |
