Sayfa 7-70 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11426 - FVZ(AUST)EURO4 ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-70 - SEPARATER AND BED ▶

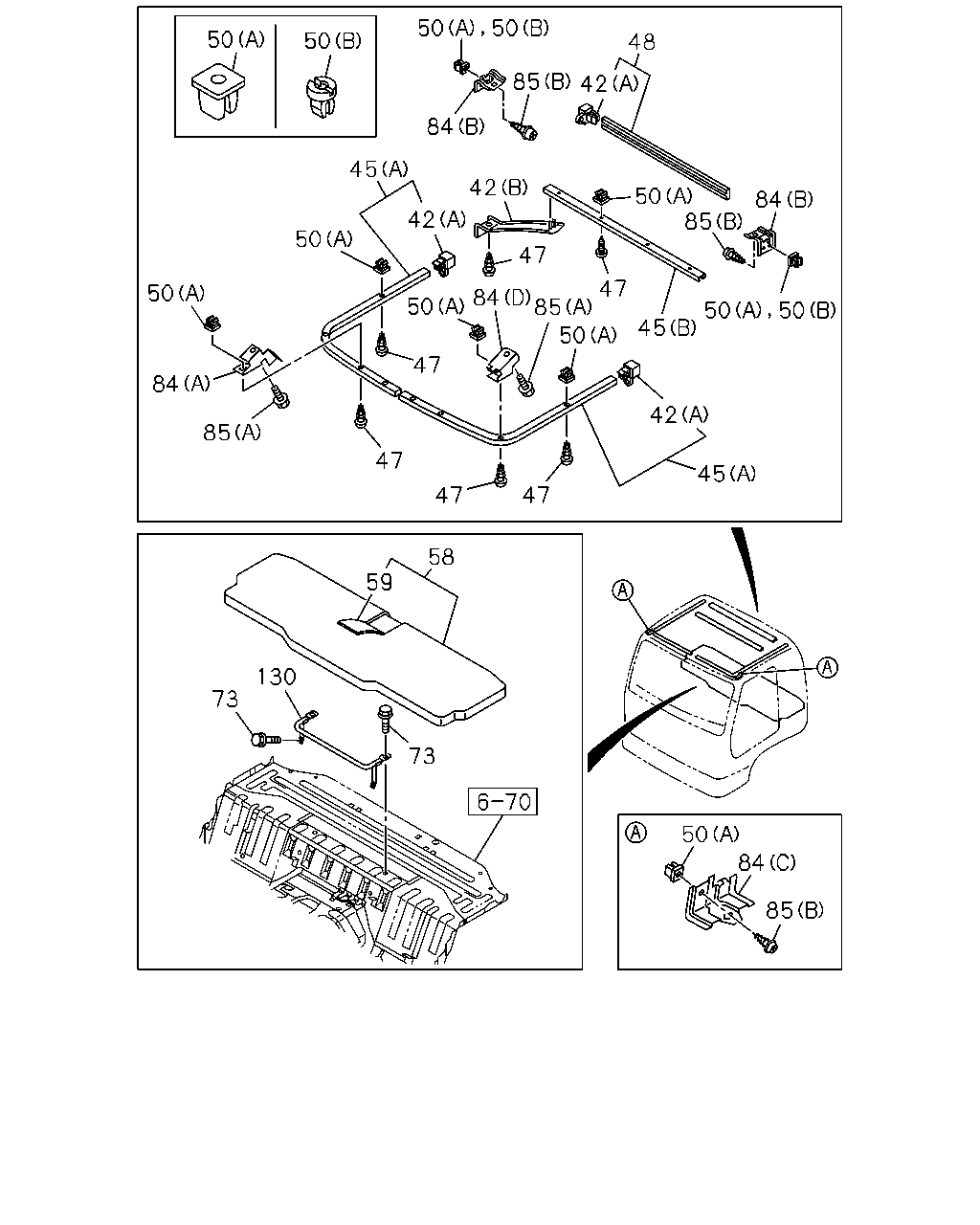

7-70 — SEPARATER AND BED (#48465) — 55 parça

50 50 50 50 48 85 42 84 45 42 50 85 84 42 50 47 47 50 84 85 50 50 45 50 50 47 84 42 85 47 45 47 47 58 59 130 73 73 50 84 85

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-499-2	01	1	0710-	●	●
42	STOPPER; CURTAIN RAIL (B) DARK GRAY	8-97407-972-2	01	1	0710-	●	●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	01	1	0711-	●	●
42	STOPPER; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97408-038-0	02	1	0711-	●	●
45	RAIL; CURTAIN,FRT (B) DARK GRAY	8-97407-486-0	01	1	0711-	●	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) DARK GRAY	8-97407-492-4	01	1	0711-0804	●	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-675-0	01	1	0805-	●	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) DARK GRAY	8-97407-494-4	01	1	0711-0804	●	●
45	RAIL; CURTAIN,FRT ROUND CURTAIN RAIL<EDH> (A) LIGHT GRAY	8-97415-676-0	01	1	0805-	●	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0710-0710	●	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0711-0804	●	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	0711-0804	●	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	0711-0804	●	●
47	SCREW; CURTAIN RAIL M5X20	5-09981-059-0	06	1	0805-	●	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	06	1	0805-	●	●
47	SCREW; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> M5X20	5-09981-059-0	08	1	0805-	●	●
48	RAIL; CURTAIN,BACK DARK GRAY	8-97407-486-0	01	1	0710-0710	●	●
48	RAIL; CURTAIN,BACK ROUND CURTAIN RAIL<EDH> DARK GRAY	8-97407-866-2	01	1	0711-	●	●
50	GROMMET; SCREW,CURTAIN RAIL EXC. ROUND CURTAIN RAIL<EDH> (B) D=8.6X7.7 L=7.5	8-94279-078-0	04	1	1406-	●	●
50	GROMMET; SCREW,CURTAIN RAIL (A) D=8.7X7.8 L=7.5	8-97033-807-0	04	1	0710-0710	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	04	1	0710-0804	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (B) D=8.6X7.7 L=7.5	8-94279-078-0	08	1	0805-1405	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (B) D=8.6X7.7 L=7.5	8-94279-078-0	14	1	1406-	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0710-0710	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0711-0804	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (B) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0711-0804	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (B) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0711-0804	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1405	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1405	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (B) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	0805-1405	●	●
50	GROMMET; SCREW,CURTAIN RAIL (B) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1406-	●	●
50	GROMMET; SCREW,CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (B) D=8.6X7.7 L=7.5	8-94279-078-0	06	1	1406-	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97409-894-1	01	1	0710-0912	●	●
58	BED; MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97407-384-2	01	1	1001-	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97414-135-0	01	1	0710-0912	●	●
59	COVER ASM; TRIM,BED MAT MATTRESS SLEEPER CAB<E40> DARK GRAY	8-97412-043-1	01	1	1001-	●	●
73	BOLT; GUARD PIPE MATTRESS SLEEPER CAB<E40> M8X20 FLANGE	0-28450-820-0	04	1	0710-	●	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A)	8-98049-290-1	01	1	0710-	●	●
84	BRACKET; CURTAIN RAIL EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (D)	8-98074-740-0	01	1	0711-	●	●
84	BRACKET; CURTAIN RAIL (B)	8-98049-761-1	01	1	0710-0712	●	●
84	BRACKET; CURTAIN RAIL (C)	8-98028-326-1	02	1	0710-1405	●	●
84	BRACKET; CURTAIN RAIL ROUND CURTAIN RAIL<EDH> (C)	8-98028-326-1	02	1	1406-	●	●
84	BRACKET; CURTAIN RAIL (B)	8-98028-821-1	01	1	0710-0712	●	●
84	BRACKET; CURTAIN RAIL (B)	8-98042-152-0	02	1	0801-0804	●	●
84	BRACKET; CURTAIN RAIL (B)	8-98042-152-0	04	1	0805-	●	●
85	SCREW; BRKT EXC. ROUND CURTAIN RAIL<EDH> (B) M5X20	5-09981-059-0	04	1	1406-	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0710-0710	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0711-0810	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	0-28450-612-0	01	1	0711-0810	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	0811-	●	●
85	SCREW; BRKT EXC. HEADER CONSOLE DRIVER & PASSENGER<EDG> (A) M6X12 FLANGE	8-97108-669-0	01	1	0811-	●	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	04	1	0710-0804	●	●
85	SCREW; BRKT (B) M5X20	5-09981-059-0	06	1	0805-1405	●	●
85	SCREW; BRKT ROUND CURTAIN RAIL<EDH> (B) M5X20	5-09981-059-0	06	1	1406-	●	●
130	PIPE; GUARD,BED MATTRESS SLEEPER CAB<E40>	8-98014-968-0	01	1	0710-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
