Sayfa 2-85A - Isuzu EPC

55 47 47 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
47	GASKET; FLEX HOSE TRANSMISSION SIDE PTO WO/LEVER(SH5) ID=11 OD=18	9-09572-510-0	02	1	9601-9702	●	●
48	HOSE; FLEX,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=390	0-07150-390-0	01	1	9601-9601	●	●
48	HOSE; FLEX,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=460	0-07150-460-0	01	1	9602-9602	●	●
48	HOSE; FLEX,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=430	0-07150-430-0	01	1	9603-9702	●	●
48	HOSE; FLEX,PTO TRANSMISSION SIDE PTO WO/LEVER(SH5) L=430	1-09363-677-0	01	1	9703-	●	●
55	GROMMET; CABLE EXC. DUMP CONTROL LEVER<RC4>	1-09983-068-0	01	1	9905-	●	●

1 132 246 217 21 121 21 73 73 21 3 1

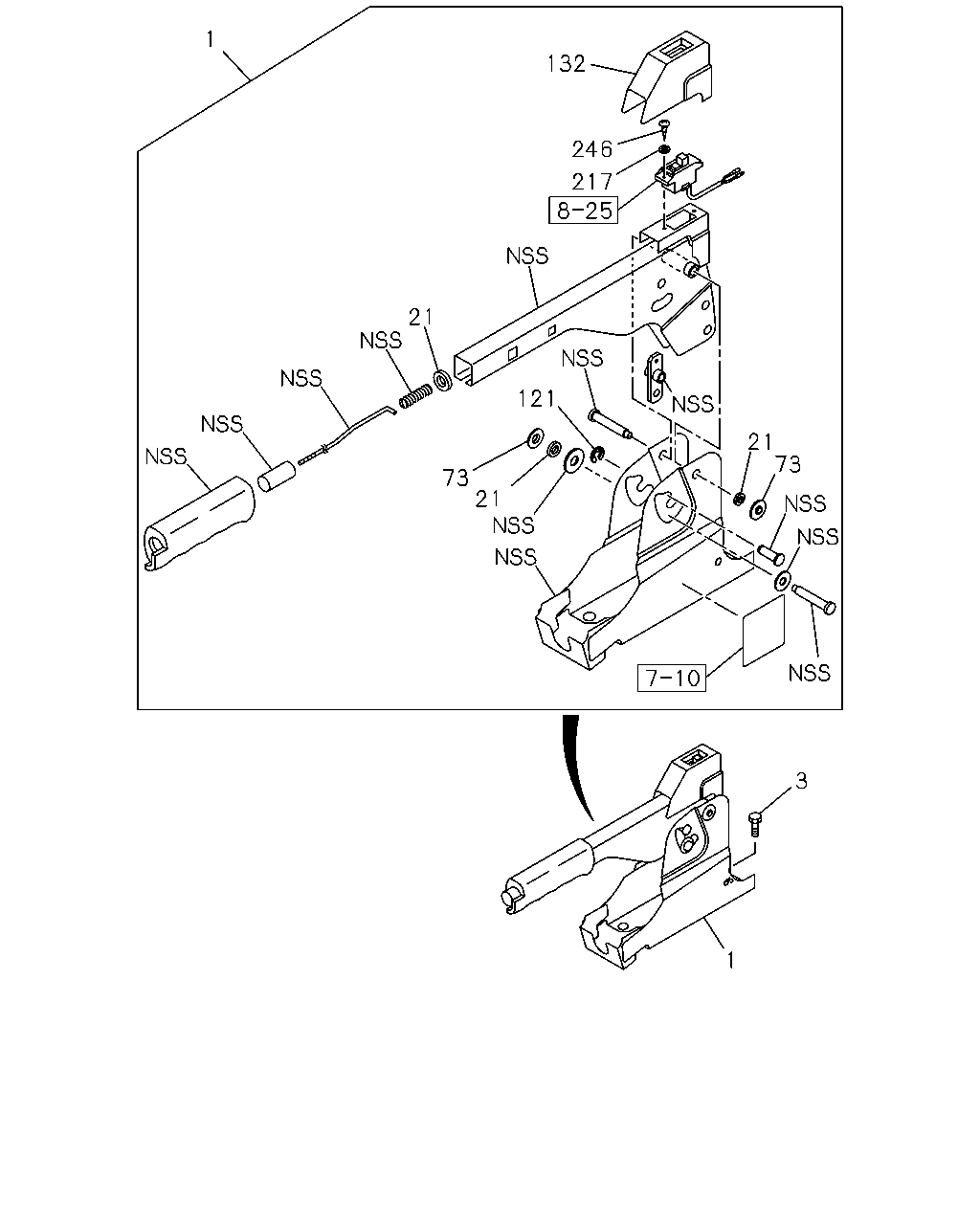

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	LEVER ASM; PTO & DUMP CONT DUMP CONTROL LEVER<RC4>	1-79996-244-0	01	1	9905-	●	●
3	BOLT; BRKT,DUMP CONT LEVER DUMP CONTROL LEVER<RC4> M8X20.5 W/LK&PL WASHER	8-94279-207-0	03	1	9905-	●	●
21	WASHER; PL,CONT LEVER DUMP CONTROL LEVER<RC4> ID=6.4 OD=14	9-09160-606-0	03	1	9905-	●	●
73	NUT; LEVER DUMP CONTROL LEVER<RC4> ID=5.9 PUSH NUT	8-97015-036-0	02	1	9905-	●	●
121	RING; SNAP DUMP CONTROL LEVER<RC4> ID=5	9-09185-405-0	01	1	9905-	●	●
132	COVER; PTO CONT DUMP CONTROL LEVER<RC4>	1-79997-376-0	01	1	9601-9904	●	●
132	COVER; PTO CONT DUMP CONTROL LEVER<RC4>	1-79997-376-0	01	1	9905-	●	●
217	WASHER; PL DUMP CONTROL LEVER<RC4> ID=4.3	9-09160-504-0	02	1	9905-	●	●
246	SCREW; CABLE CLIP DUMP CONTROL LEVER<RC4> M4X8 TAPPING	0-71180-408-0	02	1	9905-	●	●
