Sayfa 6-03 - Isuzu EPC

◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11426 - FVZ(AUST)EURO4 ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-03 - RADIATOR GRILLE ▶

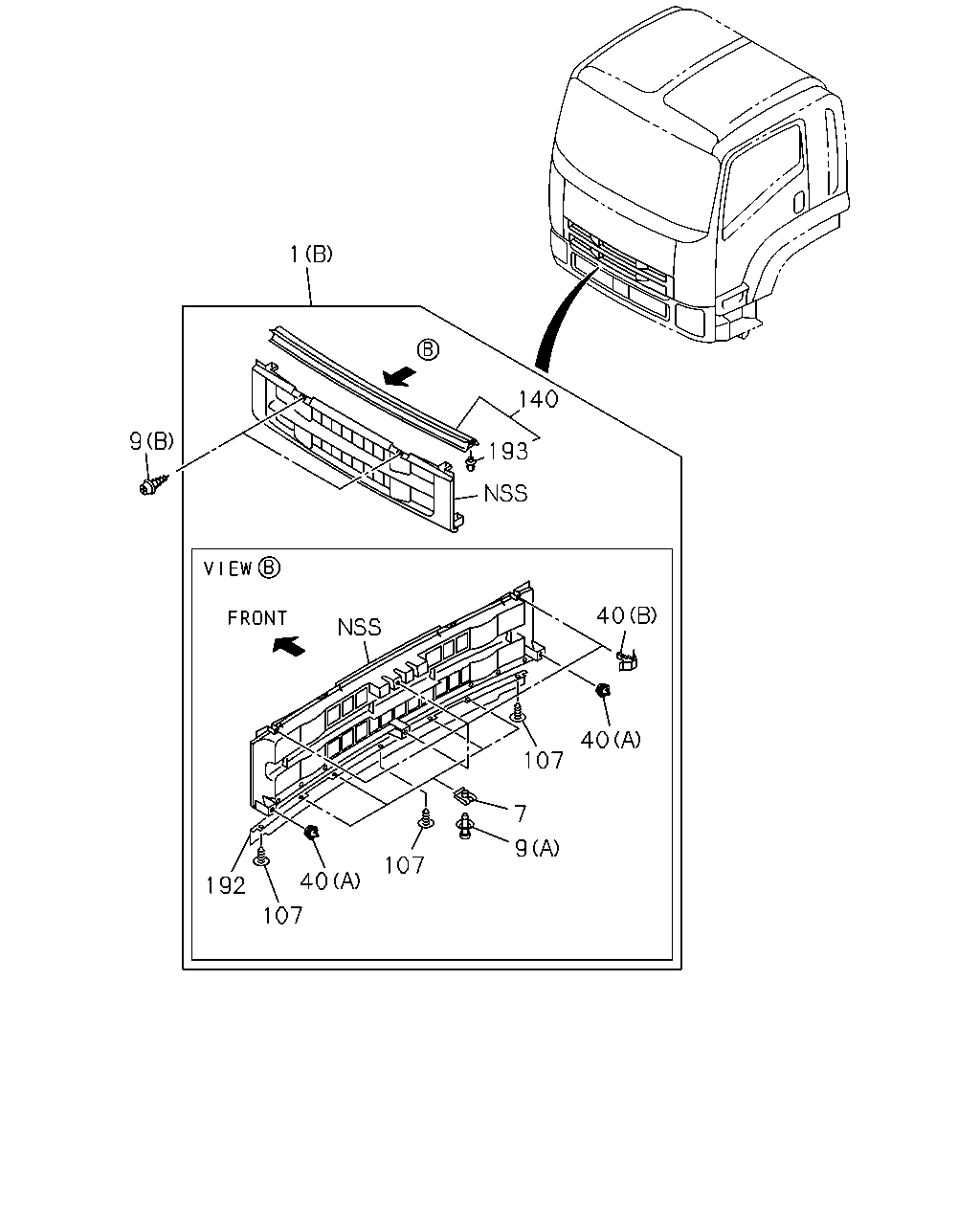

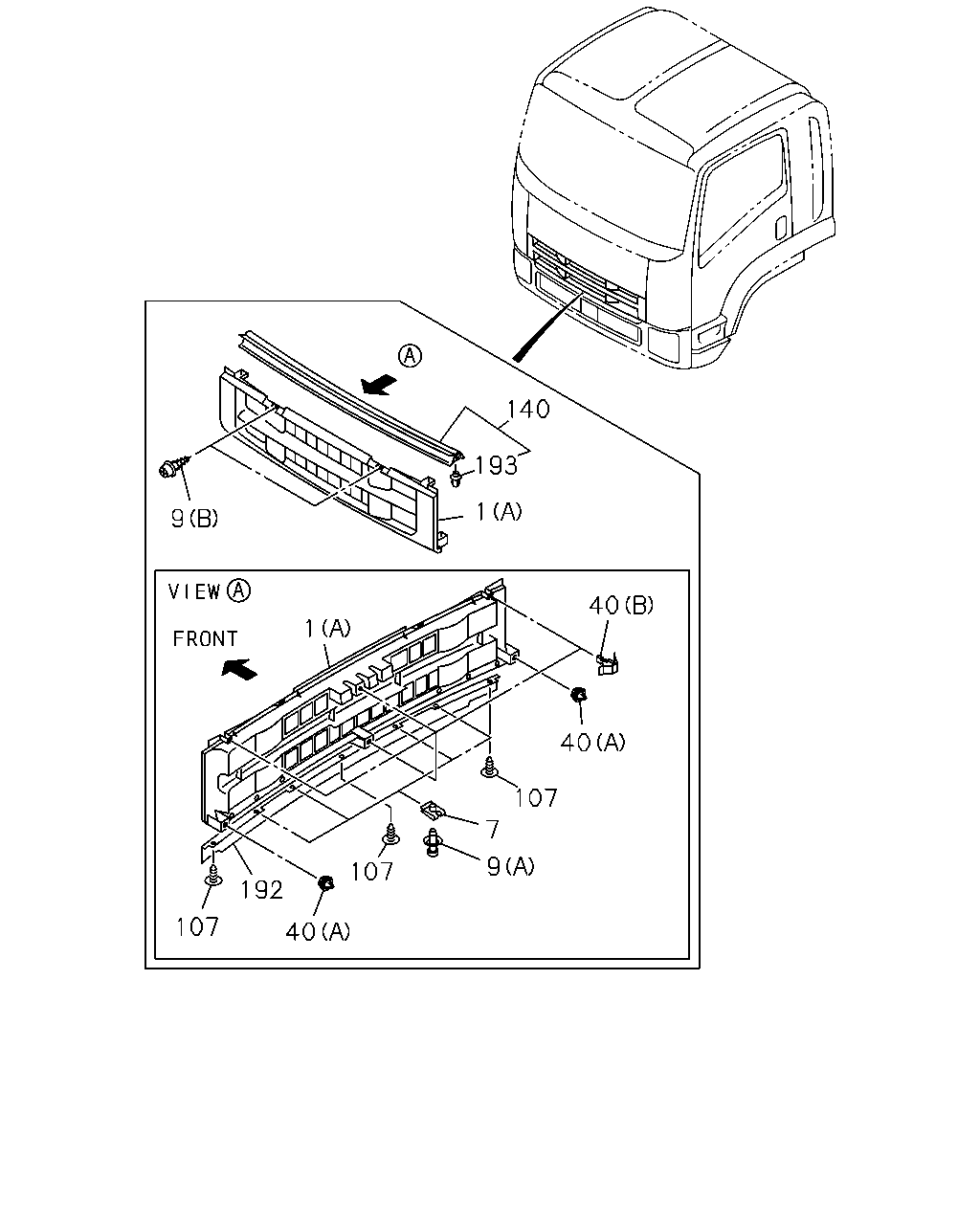

6-03 — RADIATOR GRILLE (#48435) — 76 parça

1 140 9 193 40 40 107 7 9 107 40 192 107

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GRILLE; RAD BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> (A) BEIGE	8-97411-840-6	01	1	0710-0712	●	●
1	GRILLE; RAD BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE	8-97411-840-6	01	1	0801-	●	●
1	GRILLE; RAD BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> (A) WHITE	8-97407-868-6	01	1	0710-0712	●	●
1	GRILLE; RAD BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE	8-97407-868-6	01	1	0801-	●	●
1	GRILLE; RAD BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> (A) RED	8-97411-746-6	01	1	0710-0712	●	●
1	GRILLE; RAD BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97411-746-6	01	1	0801-	●	●
1	GRILLE; RAD BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> (A) BEIGE	8-97411-747-6	01	1	0710-0712	●	●
1	GRILLE; RAD BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE	8-97411-747-6	01	1	0801-	●	●
1	GRILLE; RAD BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> (A) YELLOW	8-97411-748-6	01	1	0710-0712	●	●
1	GRILLE; RAD BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW	8-97411-748-6	01	1	0801-	●	●
1	GRILLE; RAD BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> (A) RED	8-97411-749-6	01	1	0710-0712	●	●
1	GRILLE; RAD BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97411-749-6	01	1	0801-	●	●
1	GRILLE; RAD BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> (A) BLUE	8-97411-750-6	01	1	0710-0712	●	●
1	GRILLE; RAD BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97411-750-6	01	1	0801-	●	●
1	GRILLE; RAD EXC. CAB ALL PAINTING<TFD> (A) DARK GRAY	8-98040-997-6	01	1	0710-0712	●	●
1	GRILLE; RAD EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY	8-98040-997-6	01	1	0801-	●	●
1	GRILLE; RAD BRIGHT RAD GRILLE<V22> (B) CHROMIUM PLATE	8-98078-847-2	01	1	0801-	●	●
1	GRILLE; RAD BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW	8-97418-046-6	01	1	0906-0906	●	●
1	GRILLE; RAD BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY	8-97413-908-6	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-909-6	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97413-910-6	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-911-6	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN	8-97413-912-6	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW	8-97413-913-6	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-914-6	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE	8-97413-915-6	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE	8-97417-988-6	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN	8-97413-917-6	01	1	0906-	●	●
7	NUT; SPIRE,RAD GRILLE	8-94279-501-0	04	1	0710-	●	●
9	SCREW; RAD GRILLE (B) M5X16 TAPPING W/PL WASHER	0-74160-516-0	02	1	0710-	●	●
9	SCREW; RAD GRILLE (A)	0-38050-620-0	04	1	0710-	●	●
40	CLIP; RAD GRILLE (A)	8-97581-651-2	02	1	0710-	●	●
40	CLIP; RAD GRILLE (B)	8-98025-698-0	04	1	0710-	●	●
107	RIVET; ROCKER CVR D8X13.5	1-09987-248-1	03	1	0710-	●	●
140	SEAL; RAD GRILLE	8-98060-340-0	01	1	0710-	●	●
192	EXTENSION; RAD GRILLE	8-98075-088-0	01	1	0710-0710	●	●
192	EXTENSION; RAD GRILLE	8-98098-344-0	01	1	0711-	●	●
193	CLIP; SEAL NATURAL	8-98027-457-0	13	1	0710-	●	●

140 193 1 9 40 1 40 107 7 9 107 192 107 40

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	GRILLE; RAD BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> (A) BEIGE	8-97411-840-6	01	1	0710-0712	●	●
1	GRILLE; RAD BODY COLOR FT ORANGE(609) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE	8-97411-840-6	01	1	0801-	●	●
1	GRILLE; RAD BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> (A) WHITE	8-97407-868-6	01	1	0710-0712	●	●
1	GRILLE; RAD BODY COLOR ARC WHITE(729) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE	8-97407-868-6	01	1	0801-	●	●
1	GRILLE; RAD BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> (A) RED	8-97411-746-6	01	1	0710-0712	●	●
1	GRILLE; RAD BODY COLOR CARDINAL RED(736) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97411-746-6	01	1	0801-	●	●
1	GRILLE; RAD BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> (A) BEIGE	8-97411-747-6	01	1	0710-0712	●	●
1	GRILLE; RAD BODY COLOR SAHARA BEIGE(829) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BEIGE	8-97411-747-6	01	1	0801-	●	●
1	GRILLE; RAD BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> (A) YELLOW	8-97411-748-6	01	1	0710-0712	●	●
1	GRILLE; RAD BODY COLOR GOLDEN YELLOW(904) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW	8-97411-748-6	01	1	0801-	●	●
1	GRILLE; RAD BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> (A) RED	8-97411-749-6	01	1	0710-0712	●	●
1	GRILLE; RAD BODY COLOR FIRE RED(915) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97411-749-6	01	1	0801-	●	●
1	GRILLE; RAD BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> (A) BLUE	8-97411-750-6	01	1	0710-0712	●	●
1	GRILLE; RAD BODY COLOR TRANS BLUE(999) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97411-750-6	01	1	0801-	●	●
1	GRILLE; RAD EXC. CAB ALL PAINTING<TFD> (A) DARK GRAY	8-98040-997-6	01	1	0710-0712	●	●
1	GRILLE; RAD EXC. CAB ALL PAINTING<TFD>,BRIGHT RAD GRILLE<V22> (A) DARK GRAY	8-98040-997-6	01	1	0801-	●	●
1	GRILLE; RAD BRIGHT RAD GRILLE<V22> (B) CHROMIUM PLATE	8-98078-847-2	01	1	0801-	●	●
1	GRILLE; RAD BODY COLOR BRIGHT YELLOW(538) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW	8-97418-046-6	01	1	0906-0906	●	●
1	GRILLE; RAD BODY COLOR AL GRAY(517) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GRAY	8-97413-908-6	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR PURPLISH BLUE(668) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-909-6	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR GERANIUM RED(681) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) RED	8-97413-910-6	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR DARK BLUE(695) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-911-6	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR WOODLAND GREEN(807) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) DARK GREEN	8-97413-912-6	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR WHEATLAND YELLOW(812) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) YELLOW	8-97413-913-6	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR MARINE BLUE(890) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) BLUE	8-97413-914-6	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR HIGHWAY ORANGE(944) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) ORANGE	8-97413-915-6	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR POLAR WHITE(982) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) WHITE	8-97417-988-6	01	1	0906-	●	●
1	GRILLE; RAD BODY COLOR GREEN(989) CAB ALL PAINTING<TFD> EXC. BRIGHT RAD GRILLE<V22> (A) GREEN	8-97413-917-6	01	1	0906-	●	●
7	NUT; SPIRE,RAD GRILLE	8-94279-501-0	04	1	0710-	●	●
9	SCREW; RAD GRILLE (B) M5X16 TAPPING W/PL WASHER	0-74160-516-0	02	1	0710-	●	●
9	SCREW; RAD GRILLE (A)	0-38050-620-0	04	1	0710-	●	●
40	CLIP; RAD GRILLE (A)	8-97581-651-2	02	1	0710-	●	●
40	CLIP; RAD GRILLE (B)	8-98025-698-0	04	1	0710-	●	●
107	RIVET; ROCKER CVR D8X13.5	1-09987-248-1	03	1	0710-	●	●
140	SEAL; RAD GRILLE	8-98060-340-0	01	1	0710-	●	●
192	EXTENSION; RAD GRILLE	8-98075-088-0	01	1	0710-0710	●	●
192	EXTENSION; RAD GRILLE	8-98098-344-0	01	1	0711-	●	●
193	CLIP; SEAL NATURAL	8-98027-457-0	13	1	0710-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
