Sayfa 5-01 - Isuzu EPC

5-01 — FRAME AND OTHER PARTS (#48427) — 241 parça

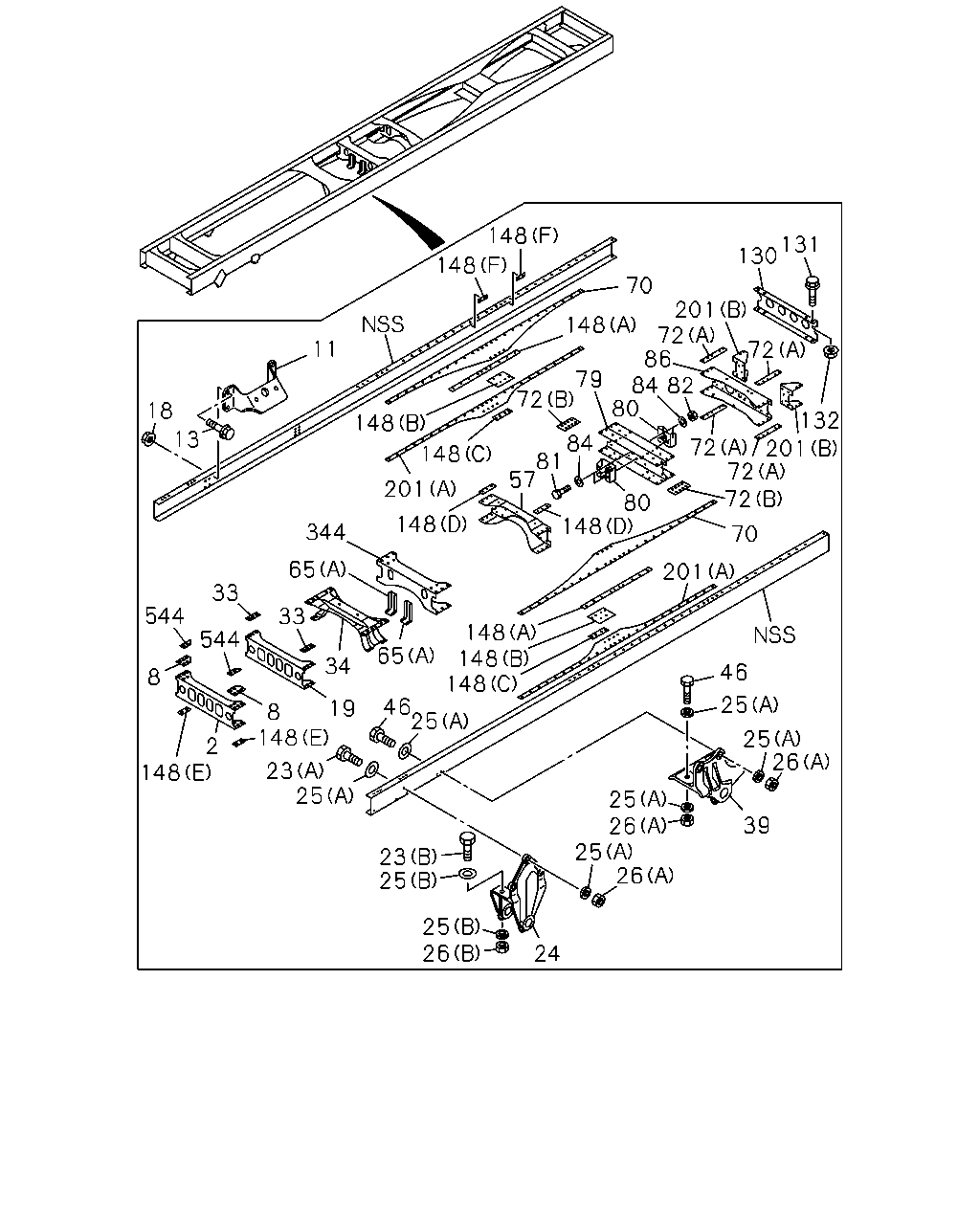

148 131 130 148 70 201 72 86 80 84 81 57 80 148 201 148 148 148 79 72 11 72 18 132 148 72 72 13 148 201 148 344 70 65 33 33 544 544 65 34 46 8 25 46 25 19 8 148 25 26 2 148 23 25 25 26 25 26 39 23 25 25 26 24 72 201 84 82 148

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97610-852-6	01	1	0710-	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	0710-	●	●	●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	0710-			●
11	BRACKET; ENG MTG	8-97619-549-0	02	1	0710-	●	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	0710-	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	0710-	●	●	●
19	MEMBER; CROSS,2ND	8-97610-853-4	01	1	0710-	●	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	0710-	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	0710-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	0710-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	0710-	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	0710-	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	0710-	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	0710-	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0710-	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	0710-	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	0710-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	0710-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	0710-	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	0710-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT	8-97612-103-1	01	1	0710-	●	●	●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ZF9S1110 M/T(Y5E) (E)	8-97623-448-0	02	1	1211-			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B) (F)	8-97611-329-0	04	1	0710-0910			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B) (E)	8-97614-133-0	02	1	0911-			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ZF9S1110 M/T(Y5E) (D)	8-97611-329-0	02	1	0710-0910			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (D)	8-97611-329-0	02	1	0911-1210			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B) (D)	8-97611-329-0	02	1	1211-			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ZF9S1110 M/T(Y5E) (E)	8-97612-486-0	02	1	0710-1210			●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (E)	8-97612-486-0	02	1	0710-1210			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ZF9S1110 M/T(Y5E) (B)	8-97614-128-0	02	1	1211-			●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (B)	8-97614-128-0	02	1	1211-			●
65	BRACKET; CENTER BRG (A)	8-97614-129-0	02	1	0710-0910		●
65	BRACKET; CENTER BRG (A)	8-97614-139-0	02	1	0911-		●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (B)	8-97614-128-0	02	1	0710-1210			●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (E)	8-97612-486-0	02	1	1211-			●
65	BRACKET; CENTER BRG ALLISON MD3560P A/T(Y3B) (A)	8-97614-125-0	02	1	0904-	●
70	GUSSET; TRUNNION,UPR	8-97612-106-0	02	1	0710-	●	●
70	GUSSET; TRUNNION,UPR LEAF SUS(FGZ***)	8-97612-106-0	02	1	0710-			●
72	SPACER; TRUNNION (B)	8-97619-805-0	02	1	0710-	●	●
72	SPACER; TRUNNION (A)	8-97612-110-0	04	1	0710-	●	●
72	SPACER; TRUNNION LEAF SUS(FGZ***) (A)	8-97612-110-0	04	1	0710-			●
79	MEMBER; CROSS,TRUNNION ASM	8-97612-484-1	01	1	0710-	●	●
79	MEMBER; CROSS,TRUNNION ASM LEAF SUS(FGZ***)	8-97612-484-1	01	1	0710-			●
80	BRACKET; C/MBR	1-53363-068-0	02	1	0710-	●	●
80	BRACKET; C/MBR LEAF SUS(FGZ***)	1-53363-068-0	02	1	0710-			●
81	BOLT; BRKT M14X50	0-10956-450-0	02	1	0710-	●	●
81	BOLT; BRKT LEAF SUS(FGZ***) M14X50	0-10956-450-0	02	1	0710-			●
82	NUT; BRKT M14	0-91110-514-0	02	1	0710-	●	●
82	NUT; BRKT LEAF SUS(FGZ***) M14	0-91110-514-0	02	1	0710-			●
84	WASHER; PL,BRKT ID=15	8-98010-627-1	04	1	0710-	●	●
84	WASHER; PL,BRKT LEAF SUS(FGZ***) ID=15	8-98010-627-1	04	1	0710-			●
86	MEMBER; CROSS,RR SUSP RR	8-97612-105-4	01	1	0710-	●	●	●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	0710-	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	0710-	●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	0710-	●	●	●
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	0710-	●	●	●
148	SPACER; C/MBR (D)	8-97612-109-0	02	1	0710-	●	●
148	SPACER; C/MBR (F)	8-97612-111-0	04	1	0710-	●	●
148	SPACER; C/MBR LEAF SUS(FGZ***) (F)	8-97612-111-0	04	1	0710-			●
148	SPACER; C/MBR (A)	8-97612-112-0	02	1	0710-	●	●
148	SPACER; C/MBR LEAF SUS(FGZ***) (A)	8-97612-112-0	02	1	0710-			●
148	SPACER; C/MBR (B)	8-97612-113-0	02	1	0710-	●	●
148	SPACER; C/MBR LEAF SUS(FGZ***) (B)	8-97612-113-0	02	1	0710-			●
148	SPACER; C/MBR (C)	8-97612-115-0	02	1	0710-	●	●
148	SPACER; C/MBR LEAF SUS(FGZ***) (C)	8-97612-115-0	02	1	0710-			●
148	SPACER; C/MBR LEAF SUS(FGZ***) (D)	8-97612-109-0	04	1	0710-			●
201	GUSSET; C/MBR AIR SUS(FGY***) (C)	8-97619-807-3	06	1	0710-			●
201	GUSSET; C/MBR (A)	8-97620-394-3	02	1	0710-		●
201	GUSSET; C/MBR (B)	8-97612-108-2	02	1	0710-	●	●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (B)	8-97612-108-2	02	1	0710-			●
201	GUSSET; C/MBR (A)	8-97620-294-3	02	1	0710-	●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (D)	8-97622-259-2	02	1	0710-			●
344	MEMBER; CROSS,4TH AIR SUS(FGY***) ZF9S1110 M/T(Y5E)	8-97645-412-1	01	1	1211-			●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	0710-1210	●	●	●
344	MEMBER; CROSS,4TH AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B)	8-97611-238-1	01	1	1211-	●		●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***)	8-97611-238-1	01	1	1211-	●		●
344	MEMBER; CROSS,4TH ALLISON MD3560P A/T(Y3B)	8-97611-238-1	01	1	1211-		●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	0710-			●
544	PLATE; CAB FRT MTG	8-97611-030-0	02	1	0710-	●	●

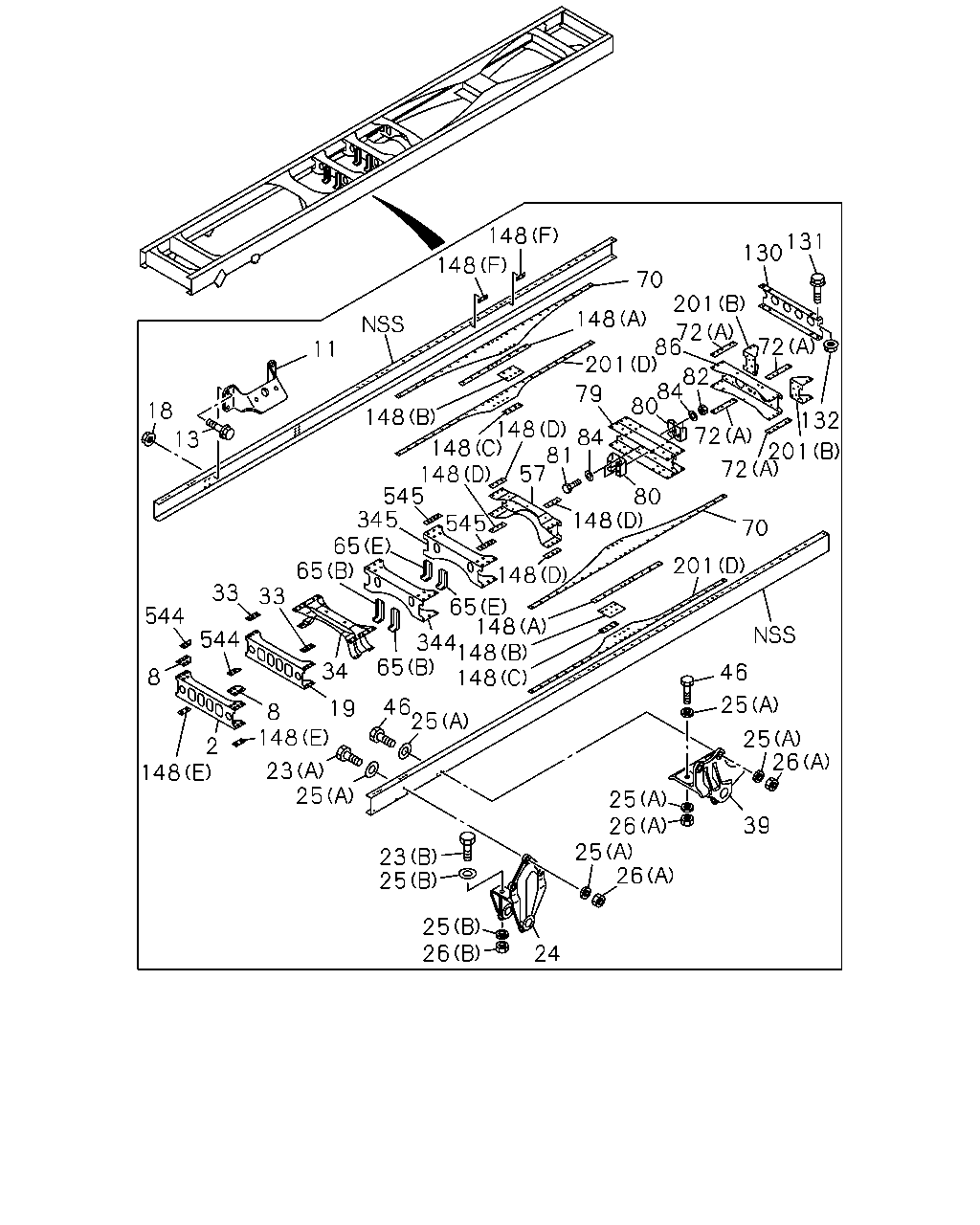

148 131 130 148 70 72 86 2 82 84 80 148 148 84 148 148 545 80 345 545 148 65 65 201 148 65 148 344 148 65 148 201 148 72 11 79 132 72 18 201 72 13 70 33 33 544 34 544 46 8 25 46 25 19 8 148 25 26 2 148 23 25 25 26 25 26 39 23 25 25 26 24 57 81

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97610-852-6	01	1	0710-	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	0710-	●	●	●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	0710-			●
11	BRACKET; ENG MTG	8-97619-549-0	02	1	0710-	●	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	0710-	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	0710-	●	●	●
19	MEMBER; CROSS,2ND	8-97610-853-4	01	1	0710-	●	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	0710-	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	0710-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	0710-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	0710-	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	0710-	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	0710-	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	0710-	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0710-	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	0710-	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	0710-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	0710-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	0710-	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	0710-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT	8-97612-103-1	01	1	0710-	●	●	●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ZF9S1110 M/T(Y5E) (E)	8-97623-448-0	02	1	1211-			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B) (F)	8-97611-329-0	04	1	0710-0910			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B) (E)	8-97614-133-0	02	1	0911-			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ZF9S1110 M/T(Y5E) (D)	8-97611-329-0	02	1	0710-0910			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (D)	8-97611-329-0	02	1	0911-1210			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B) (D)	8-97611-329-0	02	1	1211-			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ZF9S1110 M/T(Y5E) (E)	8-97612-486-0	02	1	0710-1210			●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (E)	8-97612-486-0	02	1	0710-1210			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ZF9S1110 M/T(Y5E) (B)	8-97614-128-0	02	1	1211-			●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (B)	8-97614-128-0	02	1	1211-			●
65	BRACKET; CENTER BRG (A)	8-97614-129-0	02	1	0710-0910		●
65	BRACKET; CENTER BRG (A)	8-97614-139-0	02	1	0911-		●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (B)	8-97614-128-0	02	1	0710-1210			●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (E)	8-97612-486-0	02	1	1211-			●
65	BRACKET; CENTER BRG ALLISON MD3560P A/T(Y3B) (A)	8-97614-125-0	02	1	0904-	●
70	GUSSET; TRUNNION,UPR	8-97612-106-0	02	1	0710-	●	●
70	GUSSET; TRUNNION,UPR LEAF SUS(FGZ***)	8-97612-106-0	02	1	0710-			●
72	SPACER; TRUNNION (B)	8-97619-805-0	02	1	0710-	●	●
72	SPACER; TRUNNION (A)	8-97612-110-0	04	1	0710-	●	●
72	SPACER; TRUNNION LEAF SUS(FGZ***) (A)	8-97612-110-0	04	1	0710-			●
79	MEMBER; CROSS,TRUNNION ASM	8-97612-484-1	01	1	0710-	●	●
79	MEMBER; CROSS,TRUNNION ASM LEAF SUS(FGZ***)	8-97612-484-1	01	1	0710-			●
80	BRACKET; C/MBR	1-53363-068-0	02	1	0710-	●	●
80	BRACKET; C/MBR LEAF SUS(FGZ***)	1-53363-068-0	02	1	0710-			●
81	BOLT; BRKT M14X50	0-10956-450-0	02	1	0710-	●	●
81	BOLT; BRKT LEAF SUS(FGZ***) M14X50	0-10956-450-0	02	1	0710-			●
82	NUT; BRKT M14	0-91110-514-0	02	1	0710-	●	●
82	NUT; BRKT LEAF SUS(FGZ***) M14	0-91110-514-0	02	1	0710-			●
84	WASHER; PL,BRKT ID=15	8-98010-627-1	04	1	0710-	●	●
84	WASHER; PL,BRKT LEAF SUS(FGZ***) ID=15	8-98010-627-1	04	1	0710-			●
86	MEMBER; CROSS,RR SUSP RR	8-97612-105-4	01	1	0710-	●	●	●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	0710-	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	0710-	●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	0710-	●	●	●
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	0710-	●	●	●
148	SPACER; C/MBR (D)	8-97612-109-0	02	1	0710-	●	●
148	SPACER; C/MBR (F)	8-97612-111-0	04	1	0710-	●	●
148	SPACER; C/MBR LEAF SUS(FGZ***) (F)	8-97612-111-0	04	1	0710-			●
148	SPACER; C/MBR (A)	8-97612-112-0	02	1	0710-	●	●
148	SPACER; C/MBR LEAF SUS(FGZ***) (A)	8-97612-112-0	02	1	0710-			●
148	SPACER; C/MBR (B)	8-97612-113-0	02	1	0710-	●	●
148	SPACER; C/MBR LEAF SUS(FGZ***) (B)	8-97612-113-0	02	1	0710-			●
148	SPACER; C/MBR (C)	8-97612-115-0	02	1	0710-	●	●
148	SPACER; C/MBR LEAF SUS(FGZ***) (C)	8-97612-115-0	02	1	0710-			●
148	SPACER; C/MBR LEAF SUS(FGZ***) (D)	8-97612-109-0	04	1	0710-			●
201	GUSSET; C/MBR AIR SUS(FGY***) (C)	8-97619-807-3	06	1	0710-			●
201	GUSSET; C/MBR (A)	8-97620-394-3	02	1	0710-		●
201	GUSSET; C/MBR (B)	8-97612-108-2	02	1	0710-	●	●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (B)	8-97612-108-2	02	1	0710-			●
201	GUSSET; C/MBR (A)	8-97620-294-3	02	1	0710-	●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (D)	8-97622-259-2	02	1	0710-			●
344	MEMBER; CROSS,4TH AIR SUS(FGY***) ZF9S1110 M/T(Y5E)	8-97645-412-1	01	1	1211-			●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	0710-1210	●	●	●
344	MEMBER; CROSS,4TH AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B)	8-97611-238-1	01	1	1211-	●		●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***)	8-97611-238-1	01	1	1211-	●		●
344	MEMBER; CROSS,4TH ALLISON MD3560P A/T(Y3B)	8-97611-238-1	01	1	1211-		●
345	MEMBER; CROSS,5TH AIR SUS(FGY***) ZF9S1110 M/T(Y5E)	8-97645-413-0	01	1	1211-			●
345	MEMBER; CROSS,5TH	8-97611-238-1	01	1	0710-1210			●
345	MEMBER; CROSS,5TH AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B)	8-97611-238-1	01	1	1211-			●
345	MEMBER; CROSS,5TH LEAF SUS(FGZ***) ZF9S1110 M/T(Y5E)	8-97611-238-1	01	1	1211-			●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	0710-			●
544	PLATE; CAB FRT MTG	8-97611-030-0	02	1	0710-	●	●
545	SPACER; 5TH C/MBR	8-97611-245-0	02	1	0710-			●

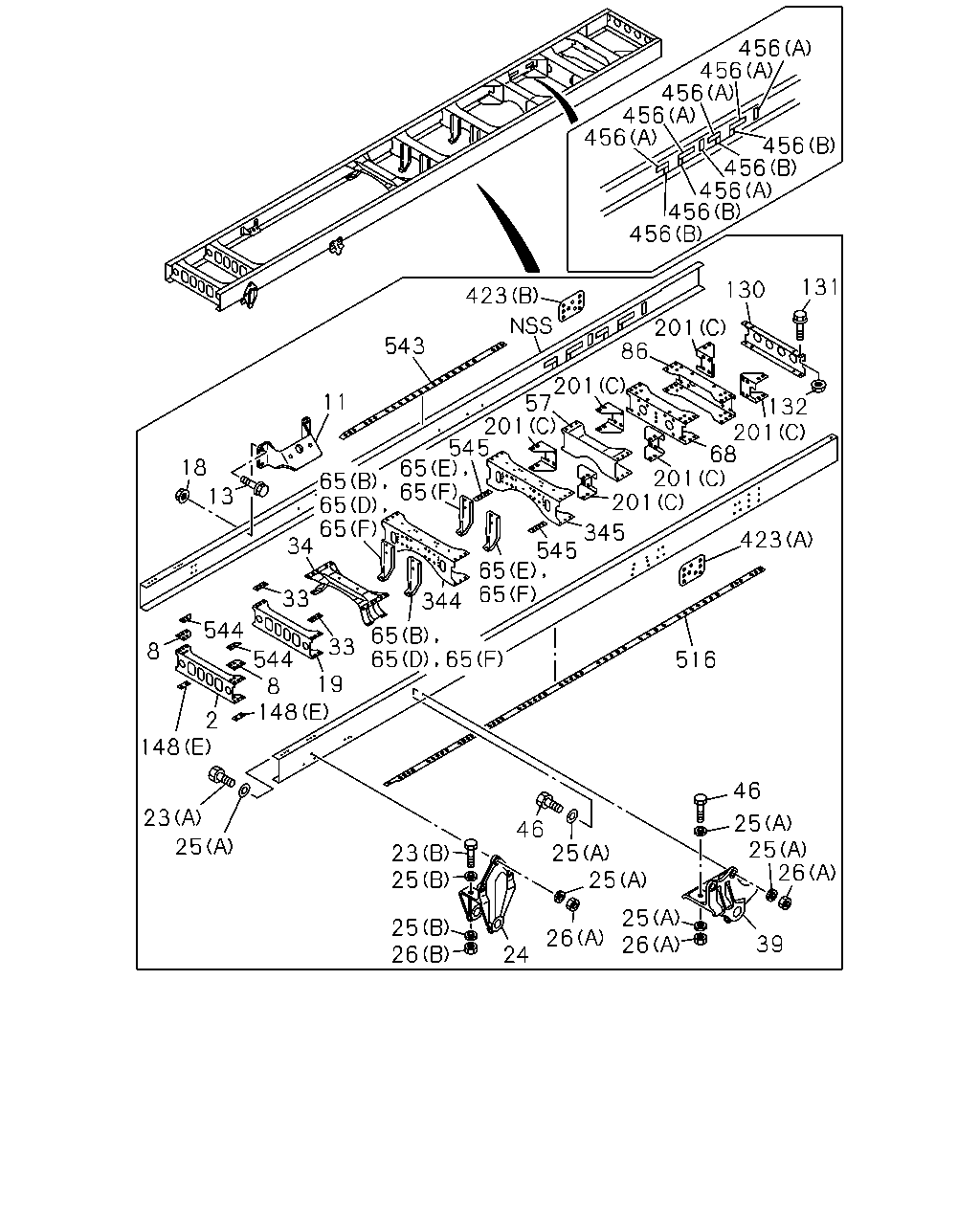

516 423 65 65 65 344 65 65 545 345 201 201 68 201 132 131 130 201 86 201 57 201 545 65 65 65 65 65 34 33 33 19 8 544 148 544 8 148 23 25 2 23 25 46 25 25 26 25 26 46 25 25 26 39 423 543 11 13 18 456 456 456 456 456 456 456 456 456 456 25 26 24

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	MEMBER; CROSS,1ST	8-97610-852-6	01	1	0710-	●	●	●
8	GUSSET; 1ST C/MBR	8-97611-027-0	02	1	0710-	●	●	●
11	BRACKET; ENG MTG	8-97619-550-0	02	1	0710-			●
11	BRACKET; ENG MTG	8-97619-549-0	02	1	0710-	●	●
13	BOLT; BRKT,ENG MTG M12X35 FLANGE	0-28661-235-0	08	1	0710-	●	●	●
18	NUT; BRKT,ENG MTG M12 FLANGE	0-91180-212-0	08	1	0710-	●	●	●
19	MEMBER; CROSS,2ND	8-97610-853-4	01	1	0710-	●	●	●
23	BOLT; BRKT,SPR (A) M14X50	0-20951-450-0	06	1	0710-	●	●	●
23	BOLT; BRKT,SPR (B) M16X60	0-20951-660-0	04	1	0710-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-840-0	01	1	0710-	●	●	●
24	BRACKET; FRT SPR,FRT	8-98018-841-0	01	1	0710-	●	●	●
25	WASHER; PL,BRKT (B) ID=16.2	1-09503-316-0	08	1	0710-	●	●	●
25	WASHER; PL,BRKT (A) ID=15	8-98010-627-1	28	1	0710-	●	●	●
26	NUT; BRKT,SPR (A) M14	0-91110-514-0	14	1	0710-	●	●	●
26	NUT; BRKT,SPR (B) M16	0-91110-516-0	04	1	0710-	●	●	●
33	SPACER; 2ND C/MBR,UPR	8-97611-040-0	02	1	0710-	●	●	●
34	MEMBER; CROSS,3RD	8-97610-854-2	01	1	0710-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-648-0	01	1	0710-	●	●	●
39	BRACKET; FRT SPR,RR	8-98043-649-0	01	1	0710-	●	●	●
46	BOLT; BRKT FIX M14X50	0-20951-450-0	08	1	0710-	●	●	●
57	MEMBER; CROSS,RR SUSP FRT	8-97612-103-1	01	1	0710-	●	●	●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ZF9S1110 M/T(Y5E) (E)	8-97623-448-0	02	1	1211-			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B) (F)	8-97611-329-0	04	1	0710-0910			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B) (E)	8-97614-133-0	02	1	0911-			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ZF9S1110 M/T(Y5E) (D)	8-97611-329-0	02	1	0710-0910			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) (D)	8-97611-329-0	02	1	0911-1210			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B) (D)	8-97611-329-0	02	1	1211-			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ZF9S1110 M/T(Y5E) (E)	8-97612-486-0	02	1	0710-1210			●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (E)	8-97612-486-0	02	1	0710-1210			●
65	BRACKET; CENTER BRG AIR SUS(FGY***) ZF9S1110 M/T(Y5E) (B)	8-97614-128-0	02	1	1211-			●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (B)	8-97614-128-0	02	1	1211-			●
65	BRACKET; CENTER BRG (A)	8-97614-129-0	02	1	0710-0910		●
65	BRACKET; CENTER BRG (A)	8-97614-139-0	02	1	0911-		●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (B)	8-97614-128-0	02	1	0710-1210			●
65	BRACKET; CENTER BRG LEAF SUS(FGZ***) (E)	8-97612-486-0	02	1	1211-			●
65	BRACKET; CENTER BRG ALLISON MD3560P A/T(Y3B) (A)	8-97614-125-0	02	1	0904-	●
68	MEMBER; CROSS,RR SUSP CTR AIR SUS(FGY***)	8-97612-105-4	01	1	0710-			●
86	MEMBER; CROSS,RR SUSP RR	8-97612-105-4	01	1	0710-	●	●	●
130	MEMBER; CROSS,END	8-97610-869-1	01	1	0710-	●	●	●
131	BOLT; END C/MBR M12X30 W/LK WASHER	0-50541-230-0	04	1	0710-	●	●	●
132	NUT; END C/MBR M12	0-91110-512-0	04	1	0710-	●	●	●
148	SPACER; C/MBR (E)	8-97611-039-0	02	1	0710-	●	●	●
148	SPACER; C/MBR (D)	8-97612-109-0	02	1	0710-	●	●
148	SPACER; C/MBR (F)	8-97612-111-0	04	1	0710-	●	●
148	SPACER; C/MBR LEAF SUS(FGZ***) (F)	8-97612-111-0	04	1	0710-			●
148	SPACER; C/MBR (A)	8-97612-112-0	02	1	0710-	●	●
148	SPACER; C/MBR LEAF SUS(FGZ***) (A)	8-97612-112-0	02	1	0710-			●
148	SPACER; C/MBR (B)	8-97612-113-0	02	1	0710-	●	●
148	SPACER; C/MBR LEAF SUS(FGZ***) (B)	8-97612-113-0	02	1	0710-			●
148	SPACER; C/MBR (C)	8-97612-115-0	02	1	0710-	●	●
148	SPACER; C/MBR LEAF SUS(FGZ***) (C)	8-97612-115-0	02	1	0710-			●
148	SPACER; C/MBR LEAF SUS(FGZ***) (D)	8-97612-109-0	04	1	0710-			●
201	GUSSET; C/MBR AIR SUS(FGY***) (C)	8-97619-807-3	06	1	0710-			●
201	GUSSET; C/MBR (A)	8-97620-394-3	02	1	0710-		●
201	GUSSET; C/MBR (B)	8-97612-108-2	02	1	0710-	●	●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (B)	8-97612-108-2	02	1	0710-			●
201	GUSSET; C/MBR (A)	8-97620-294-3	02	1	0710-	●
201	GUSSET; C/MBR LEAF SUS(FGZ***) (D)	8-97622-259-2	02	1	0710-			●
344	MEMBER; CROSS,4TH AIR SUS(FGY***) ZF9S1110 M/T(Y5E)	8-97645-412-1	01	1	1211-			●
344	MEMBER; CROSS,4TH	8-97611-238-1	01	1	0710-1210	●	●	●
344	MEMBER; CROSS,4TH AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B)	8-97611-238-1	01	1	1211-	●		●
344	MEMBER; CROSS,4TH LEAF SUS(FGZ***)	8-97611-238-1	01	1	1211-	●		●
344	MEMBER; CROSS,4TH ALLISON MD3560P A/T(Y3B)	8-97611-238-1	01	1	1211-		●
345	MEMBER; CROSS,5TH AIR SUS(FGY***) ZF9S1110 M/T(Y5E)	8-97645-413-0	01	1	1211-			●
345	MEMBER; CROSS,5TH	8-97611-238-1	01	1	0710-1210			●
345	MEMBER; CROSS,5TH AIR SUS(FGY***) ALLISON MD3560P A/T(Y3B)	8-97611-238-1	01	1	1211-			●
345	MEMBER; CROSS,5TH LEAF SUS(FGZ***) ZF9S1110 M/T(Y5E)	8-97611-238-1	01	1	1211-			●
423	PATCH AIR SUS(FGY***) (A)	8-97619-809-0	01	1	0710-			●
423	PATCH AIR SUS(FGY***) (B)	8-97619-810-0	01	1	0710-			●
456	PATCH; STOPPER AIR SUS(FGY***) (A)	8-97611-248-0	12	1	0710-1201			●
456	PATCH; STOPPER AIR SUS(FGY***) (A)	8-97642-212-0	12	1	1202-			●
456	PATCH; STOPPER AIR SUS(FGY***) (B)	8-97611-249-0	08	1	0710-1201			●
456	PATCH; STOPPER AIR SUS(FGY***) (B)	8-97642-213-0	08	1	1202-			●
516	GUSSET; LWR AIR SUS(FGY***)	8-97620-292-1	02	1	0710-			●
543	GUSSET; UPR AIR SUS(FGY***)	8-97620-007-0	02	1	0710-			●
544	PLATE; CAB FRT MTG	8-97615-598-0	02	1	0710-			●
544	PLATE; CAB FRT MTG	8-97611-030-0	02	1	0710-	●	●
545	SPACER; 5TH C/MBR	8-97611-245-0	02	1	0710-			●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
