Isuzu WW
▶
TRUCKS
▶
FVZ
▶
11426 - FVZ(AUST)EURO4
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-71 - AIR SUSPENSION PIPING
▶

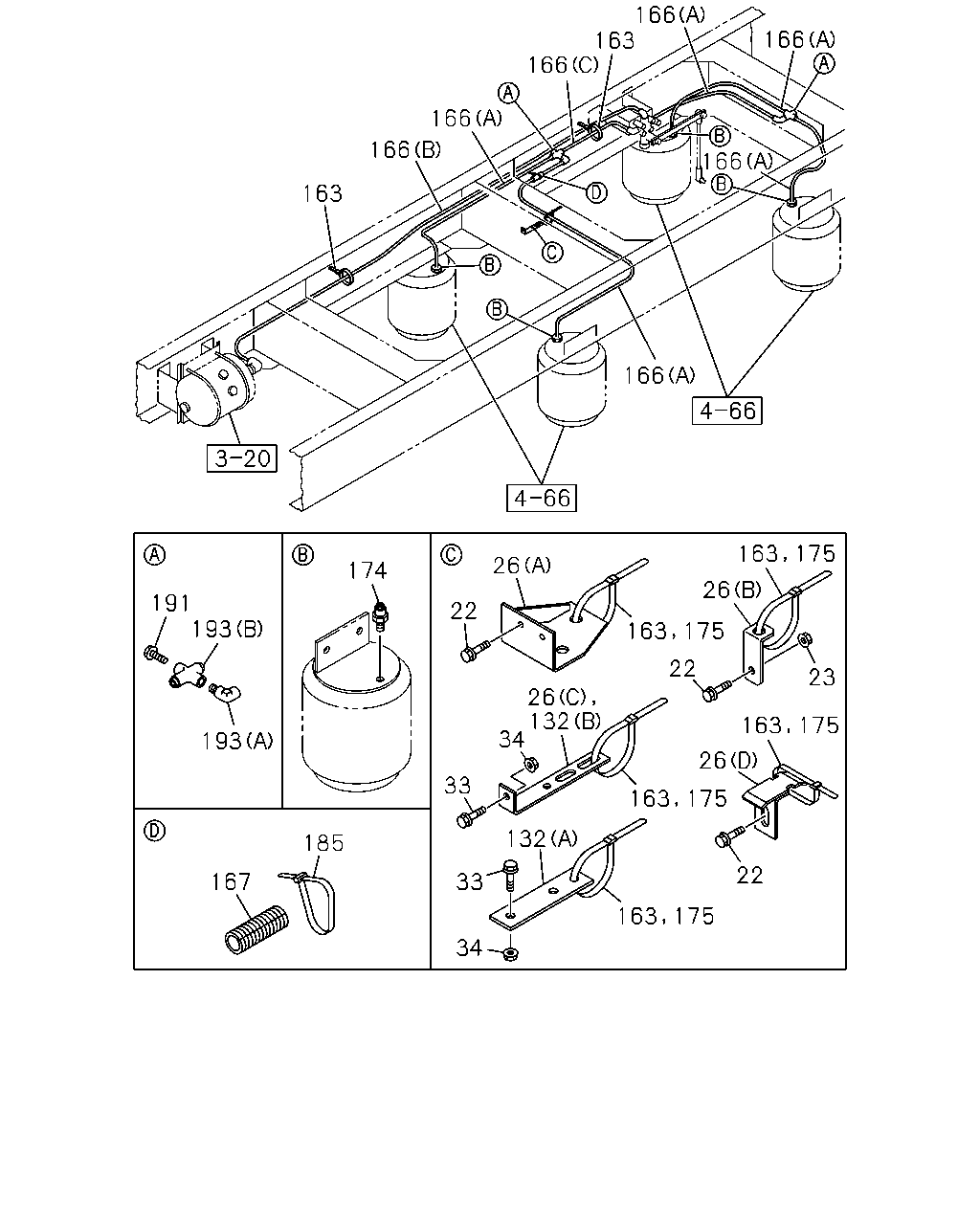

4-71 — AIR SUSPENSION PIPING
(#48425) — 28 parça
166
163
166
166
166
166
166
163
166
26
174
26
191
193
22
22
23
26
132
34
193
26
33
163
175
132
185
22
167
33
34
163
175
163
175
163
175
163
175
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
22
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
03
1
0710-0907
22
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
02
1
0908-
22
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
01
1
0908-
23
NUT; BRKT
M8 FLANGE
0-91180-108-0
03
1
0710-
26
BRACKET; CLIP
(B)
1-82699-527-1
02
1
0710-0711
26
BRACKET; CLIP
(D)
1-47479-693-0
02
1
0712-
26
BRACKET; CLIP
(A) L=60 H=30
1-47477-716-1
01
1
0710-0712
26
BRACKET; CLIP
(C) L=100 H=30
1-47477-645-2
01
1
0801-
33
BOLT; BRKT
M8X20 FLANGE
0-28650-820-0
01
1
0710-0907
33
BOLT; BRKT
M8X25 FLANGE
0-28650-825-0
01
1
0908-
33
BOLT; BRKT
M8X30 FLANGE
0-28650-830-0
01
1
0710-0907
33
BOLT; BRKT
M8X35 FLANGE
0-28650-835-0
01
1
0908-
34
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0710-
34
NUT; BRKT
M8 FLANGE
0-91180-108-0
01
1
0710-
132
BRACKET; CLIP
(A) L=100
1-47477-620-1
01
1
0710-
132
BRACKET; CLIP
(B) L=150 H=30
1-47477-629-2
01
1
0710-
163
CLIP; BAND
L=350
1-09707-183-0
13
1
0908-
166
TUBE; NYLON
(A) SERVICED BY L=2000 OD=12
1-87411-011-0
AR
1
0710-
166
TUBE; NYLON
(B) SERVICED BY L=6000 OD=12
1-87411-013-0
AR
1
0710-
166
TUBE; NYLON
(C) SERVICED BY L=2000 OD=12
1-87410-069-0
AR
1
0710-
167
TUBE; CORRUGATE
SERVICED BY L=2000 ID=13
1-87411-022-0
AR
1
0810-
174
UNION; AIR SPRING
DIN12 & R1/4 STRAIGHT
1-09661-214-0
04
1
0712-
175
CLIP
L=350
1-09707-183-0
03
1
0908-
185
CLIP; NYLON TUBE
L=350
1-09707-183-0
01
1
0810-
191
BOLT; UNION
M8X16 FLANGE
0-28050-816-0
01
1
0710-
191
BOLT; UNION
M8X25 FLANGE
0-28650-825-0
01
1
0710-
193
UNION
(A) DIN12 & R3/8 ELBOW
1-09660-959-0
02
1
0710-
193
UNION
(B) DIN12X2 & R3/8 3WAY
1-09661-131-0
02
1
0710-
