◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FVZ ▶ 11426 - FVZ(AUST)EURO4 ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-60 - REAR SUSPENSION ▶
4-60 — REAR SUSPENSION (#48419) — 169 parça

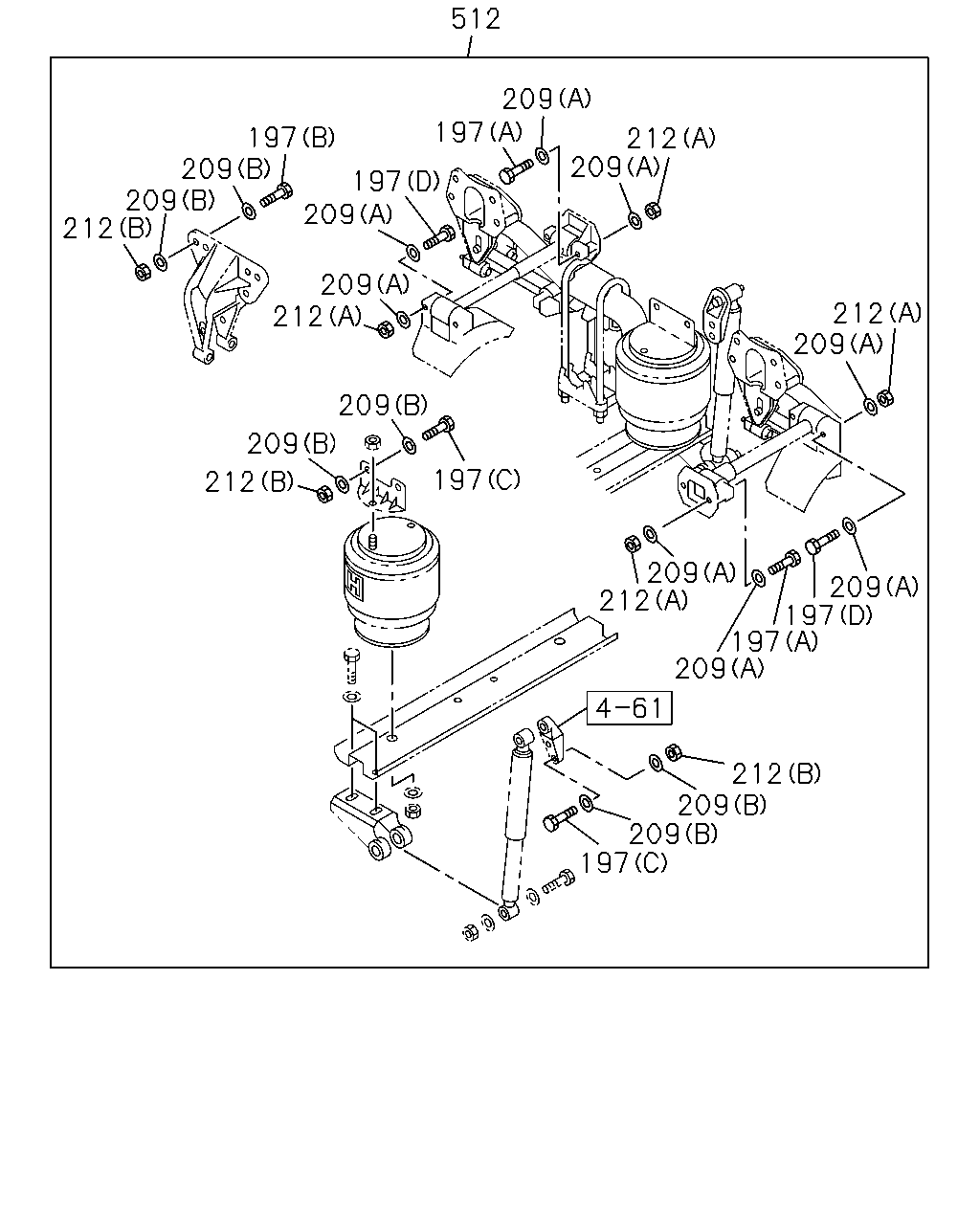

çizim 112188
512 209 197 197 209 209 212 212 209 197 209 209 212 212 209 209 209 197 212 209 212 209 197 197 209 212 209 209 197
BalonParca AdiParca NoAdetTipApplied Date A B
197 BOLT
(D) 		1-09000-767-0 04 1 0710-1302 ●
197 BOLT
(D) 		1-09000-767-0 04 1 1303- ●
197 BOLT
(A) 		1-09000-768-0 04 1 0710-1302 ●
197 BOLT
(A) 		1-09000-768-0 04 1 1303- ●
197 BOLT
(B) M20X65 		1-09000-769-0 24 1 0710-1302 ●
197 BOLT
(B) M20X65 		1-09000-769-0 24 1 1303- ●
197 BOLT
(C) 		1-09000-771-0 16 1 0710-1302 ●
197 BOLT
(C) 		1-09000-771-0 16 1 1303- ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 16 1 0710-1302 ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 16 1 1303- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 80 1 0710-1302 ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 80 1 1303- ●
212 NUT
(A) M16 		1-09400-160-0 08 1 0710-1302 ●
212 NUT
(A) M16 		1-09400-160-0 08 1 1303- ●
212 NUT
(B) M20 		1-09400-161-0 40 1 0710-1302 ●
212 NUT
(B) M20 		1-09400-161-0 40 1 1303- ●
512 FIXING KIT; BRKT TO FRAME 8-98049-197-0 02 1 0710-1302 ●
512 FIXING KIT; BRKT TO FRAME 8-98049-197-0 02 1 1303- ●

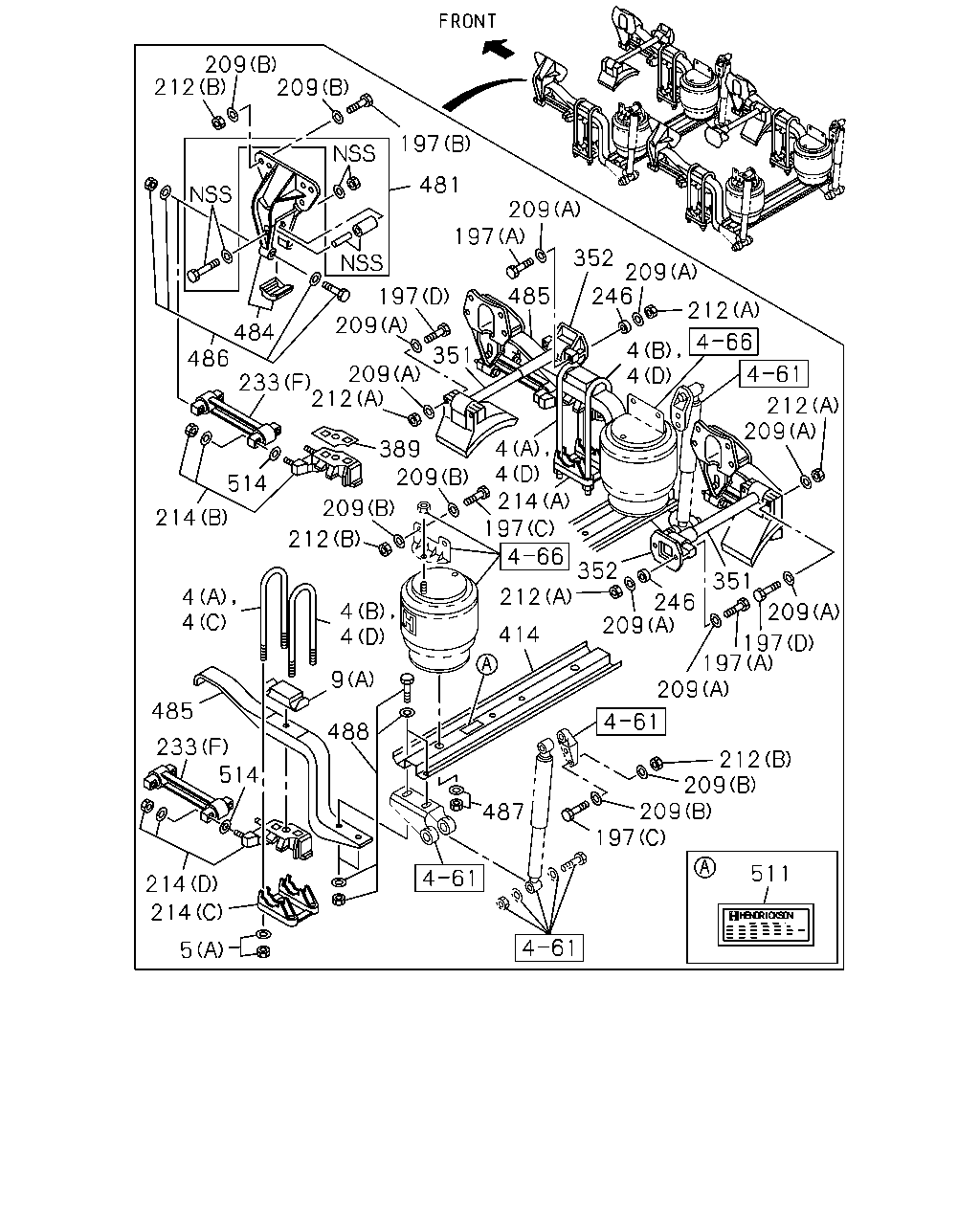

çizim 112203
212 209 209 197 481 197 209 485 352 246 209 4 4 212 212 209 351 209 197 197 209 212 209 209 197 487 414 212 209 246 352 197 214 4 4 197 351 209 209 212 389 209 212 4 4 9 488 484 486 514 214 4 4 485 233 514 214 5 214 209 233 511
BalonParca AdiParca NoAdetTipApplied Date A B
4 U-BOLT; RR SPR
ZF9S1110 M/T(Y5E) (C) L=356 		1-51371-229-0 02 1 1303- ●
4 U-BOLT; RR SPR
ZF9S1110 M/T(Y5E) (D) L=381 		1-51371-230-0 06 1 1303- ●
4 U-BOLT; RR SPR
(A) L=356 		1-51371-229-0 04 1 0710-1302 ●
4 U-BOLT; RR SPR
ALLISON MD3560P A/T(Y3B) (A) L=356 		1-51371-229-0 04 1 1303- ●
4 U-BOLT; RR SPR
(B) L=381 		1-51371-230-0 04 1 0710-1302 ●
4 U-BOLT; RR SPR
ALLISON MD3560P A/T(Y3B) (B) L=381 		1-51371-230-0 04 1 1303- ●
5 NUT; U-BOLT,RR SPR
(A) 		1-52179-039-0 02 1 0710-1302 ●
5 NUT; U-BOLT,RR SPR
(A) 		1-52179-039-0 02 1 1303- ●
5 NUT; U-BOLT,RR SPR
(B) M27 FLANGE 		1-09440-058-0 08 1 0710- ●
9 PAD; U BOLT,RR SPR
(A) 		1-51372-073-0 04 1 0710-1302 ●
9 PAD; U BOLT,RR SPR
(A) 		1-51372-073-0 04 1 1303- ●
9 PAD; U BOLT,RR SPR
(B) 		1-51372-019-1 02 1 0710-1010 ●
9 PAD; U BOLT,RR SPR
(B) 		8-98177-265-0 02 1 1011- ●
197 BOLT
(D) 		1-09000-767-0 04 1 0710-1302 ●
197 BOLT
(D) 		1-09000-767-0 04 1 1303- ●
197 BOLT
(A) 		1-09000-768-0 04 1 0710-1302 ●
197 BOLT
(A) 		1-09000-768-0 04 1 1303- ●
197 BOLT
(B) M20X65 		1-09000-769-0 24 1 0710-1302 ●
197 BOLT
(B) M20X65 		1-09000-769-0 24 1 1303- ●
197 BOLT
(C) 		1-09000-771-0 16 1 0710-1302 ●
197 BOLT
(C) 		1-09000-771-0 16 1 1303- ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 16 1 0710-1302 ●
209 WASHER; PL
(A) ID=16 		1-09503-314-0 16 1 1303- ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 80 1 0710-1302 ●
209 WASHER; PL
(B) ID=20 		1-09503-315-0 80 1 1303- ●
212 NUT
(A) M16 		1-09400-160-0 08 1 0710-1302 ●
212 NUT
(A) M16 		1-09400-160-0 08 1 1303- ●
212 NUT
(B) M20 		1-09400-161-0 40 1 0710-1302 ●
212 NUT
(B) M20 		1-09400-161-0 40 1 1303- ●
214 SEAT; SPR
ZF9S1110 M/T(Y5E) (B) 		8-98235-545-0 02 1 1303- ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 0710-1302 ●
214 SEAT; SPR
(A) 		1-51385-103-0 02 1 1303- ●
214 SEAT; SPR
(C) 		1-51385-104-0 02 1 0710-1302 ●
214 SEAT; SPR
(C) 		1-51385-104-0 02 1 1303- ●
214 SEAT; SPR
(B) 		1-51385-105-0 02 1 0710-1302 ●
214 SEAT; SPR
ALLISON MD3560P A/T(Y3B) (B) 		1-51385-105-0 02 1 1303- ●
214 SEAT; SPR
(D) 		1-51385-106-0 02 1 0710-1302 ●
214 SEAT; SPR
(D) 		1-51385-106-0 02 1 1303- ●
233 ROD ASM; TORQUE,RR SUSP
(F) L=366 		1-51510-855-0 04 1 0710-1302 ●
233 ROD ASM; TORQUE,RR SUSP
(F) L=366 		1-51510-855-0 04 1 1303- ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=555 		1-51511-660-0 01 1 0710-0903 ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) (B) L=555 		1-51511-660-0 01 1 0904- ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) (B) L=555 		1-51511-660-0 01 1 0904- ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=530 		1-51511-678-0 03 1 0710-0903 ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (D) L=530 		1-51511-678-0 01 1 0904- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (B) L=565 		1-51511-685-0 01 1 0904- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (E) L=525 		1-51511-656-0 02 1 0904- ●
233 ROD ASM; TORQUE,RR SUSP
(C) L=550 		1-51511-659-0 02 1 0710-1104 ●
233 ROD ASM; TORQUE,RR SUSP
(C) L=550 		1-51511-659-0 02 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) (A) L=530 		1-51511-678-0 03 1 0904- ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) (A) L=530 		1-51511-678-0 03 1 0904- ●
246 WASHER; TORQUE ROD 8-97372-224-0 04 1 1101- ●
351 ROD ASM; RADIUS 1-51510-867-0 02 1 0710-1302 ●
351 ROD ASM; RADIUS 1-51510-867-0 02 1 1303- ●
352 BRACKET; RADIUS ROD,FRAME 1-53353-132-0 02 1 0710-1302 ●
352 BRACKET; RADIUS ROD,FRAME 1-53353-132-0 02 1 1303- ●
389 PLATE; CASTER
ZF9S1110 M/T(Y5E) 		8-98235-546-0 02 1 1303- ●
414 BEAM; AIR SPR 1-52172-036-0 02 1 0710-1302 ●
414 BEAM; AIR SPR 1-52172-036-0 02 1 1303- ●
481 ROLLER; REBOUND 1-53357-043-0 02 1 0710-1302 ●
481 ROLLER; REBOUND 1-53357-043-0 02 1 1303- ●
484 BRACKET; REAR SPRING 1-53353-131-0 04 1 0710-1302 ●
484 BRACKET; REAR SPRING 1-53353-131-0 04 1 1303- ●
485 SPRING; LEAF 1-51410-240-0 04 1 0710-1302 ●
485 SPRING; LEAF 1-51410-240-0 04 1 1303- ●
486 FIXING KIT; TORQUE ROD 1-52000-165-0 02 1 0710-1302 ●
486 FIXING KIT; TORQUE ROD 1-52000-165-0 02 1 1303- ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 02 1 0710-1302 ●
487 FIXING KIT; AIR SPRING 1-52000-163-0 02 1 1303- ●
488 FIXING KIT; BEAM 1-52000-164-0 02 1 0710-1302 ●
488 FIXING KIT; BEAM 1-52000-164-0 02 1 1303- ●
511 LABEL
ZF9S1110 M/T(Y5E) 		1-51399-034-0 01 1 1303- ●
511 LABEL 1-51399-034-0 02 1 0710-1302 ●
511 LABEL
ALLISON MD3560P A/T(Y3B) 		1-51399-034-0 02 1 1303- ●
514 SPACER; TORQUE ROD 1-09503-299-0 08 1 0710-1302 ●
514 SPACER; TORQUE ROD
ALLISON MD3560P A/T(Y3B) 		1-09503-299-0 08 1 1303- ●

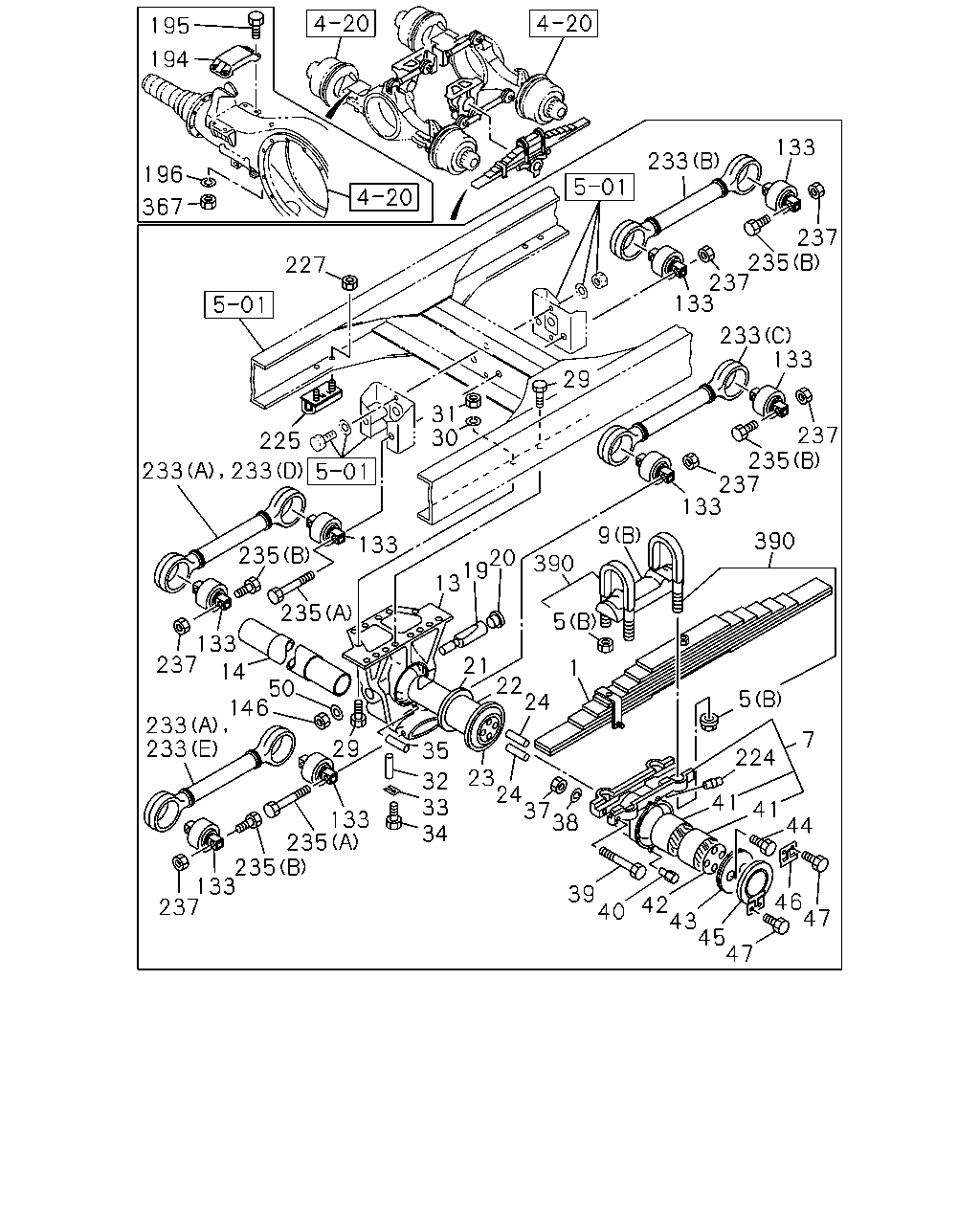

çizim 112209
195 194 133 233 196 367 237 235 237 133 227 233 133 29 31 30 237 235 237 133 225 233 9 390 133 235 20 19 13 390 235 5 133 237 21 1 14 22 24 50 146 5 233 233 7 29 35 224 23 24 37 38 41 32 33 34 41 133 235 235 133 237 44 39 40 46 47 42 43 45 47 233
BalonParca AdiParca NoAdetTipApplied Date A B
1 SPRING ASM; LEAF,RR
SEE FIG-NO 4-65 FOR COMPONENT. 		1-51310-880-0 02 1 0710- ●
5 NUT; U-BOLT,RR SPR
(A) 		1-52179-039-0 02 1 0710-1302 ●
5 NUT; U-BOLT,RR SPR
(A) 		1-52179-039-0 02 1 1303- ●
5 NUT; U-BOLT,RR SPR
(B) M27 FLANGE 		1-09440-058-0 08 1 0710- ●
7 SEAT; SPR,LWR 8-97614-049-2 02 1 0710- ●
9 PAD; U BOLT,RR SPR
(A) 		1-51372-073-0 04 1 0710-1302 ●
9 PAD; U BOLT,RR SPR
(A) 		1-51372-073-0 04 1 1303- ●
9 PAD; U BOLT,RR SPR
(B) 		1-51372-019-1 02 1 0710-1010 ●
9 PAD; U BOLT,RR SPR
(B) 		8-98177-265-0 02 1 1011- ●
13 BRACKET; TRUNNION SHAFT 1-53361-079-0 02 1 0710- ●
14 PIPE; TRUNNION BRKT 1-51389-032-1 01 1 0710- ●
19 BOLT; KEY,SHAFT 1-51389-066-0 02 1 0710- ●
20 GROMMET; KEY BOLT 1-09333-057-0 02 1 0710- ●
21 WASHER; THRUST,TRUNNION SHAFT 1-51389-058-0 02 1 0710- ●
22 SHAFT; TRUNNION,RR SUSP 1-51381-022-3 02 1 0710- ●
23 SEAL; OIL,TRUNNION SHAFT 1-51389-005-0 02 1 0710- ●
24 PIN; SIDE PLATE TO SHAFT 1-09740-009-0 04 1 0710- ●
29 BOLT; BRKT TO FRAME
M18X75 		8-98012-872-0 24 1 0710- ●
29 BOLT; BRKT TO FRAME
M18X55 		9-92061-855-0 04 1 0710- ●
30 WASHER; PL,TRUNNION BRKT
ID=19 		1-09503-162-0 28 1 0710- ●
31 NUT; TRUNNION BRKT
M18 		0-91110-518-0 28 1 0710- ●
32 PIN; STRAIGHT 1-09740-027-0 04 1 0710- ●
33 PLATE; LK KNOCK PIN 1-53369-032-1 02 1 0710- ●
34 BOLT; LOCK PLATE
M10X16 FLANGE 		0-28051-016-0 02 1 0710- ●
35 PIN; TRUNNION SHAFT 1-09749-030-1 04 1 0710- ●
37 NUT; SPR SETTING
M22 		0-91110-522-0 04 1 0710- ●
38 WASHER; LK,SPR SETTING
ID=22.5 		0-91510-622-0 04 1 0710- ●
39 BOLT; SPR SETTING
M22X155 		9-09801-290-1 04 1 0710- ●
40 VALVE; GREASE ESCAPE 9-51389-010-0 02 1 0710- ●
41 BUSHING; TRUNNION SHAFT 1-51386-004-0 04 1 0710-0902 ●
41 BUSHING; TRUNNION SHAFT 8-98081-832-0 04 1 0903- ●
42 SHIM; SIDE PLATE TO SHAFT 1-51389-033-1 12 1 0710- ●
43 PLATE; SIDE,TRUNNION SHAFT 1-51382-010-4 02 1 0710- ●
44 BOLT; SIDE PLATE TO SHAFT
M18X48.5 FLANGE 		1-09044-038-2 04 1 0710- ●
45 COVER; SPR SEAT 1-51387-013-2 02 1 0710- ●
46 BRACKET; COVER 1-51387-015-2 02 1 0710- ●
47 BOLT; COVER TO SEAT
M8X12 FLANGE 		0-28050-812-0 08 1 0710- ●
50 WASHER; PL,TRUNNION SHAFT
ID=25 		8-98012-871-0 02 1 0710- ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 12 1 0710-0903 ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 04 1 0904-1104 ●
133 BUSHING; RUBBER,TORQUE ROD
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) OD=105 		1-51519-113-1 06 1 1105- ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 08 1 0904-1104 ●
133 BUSHING; RUBBER,TORQUE ROD
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) OD=105 		1-51519-113-1 02 1 1105- ●
133 BUSHING; RUBBER,TORQUE ROD
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) OD=105 		1-51519-113-1 08 1 1105- ●
133 BUSHING; RUBBER,TORQUE ROD
ZF9S1110 M/T(Y5E) OD=105 		1-51519-113-1 08 1 1105- ●
133 BUSHING; RUBBER,TORQUE ROD
OD=105 		1-51519-113-1 04 1 1105- ●
146 NUT; KEY BOLT
M24 		0-91110-524-0 02 1 0710- ●
194 PAD; CONTACT 1-42124-101-0 04 1 0710- ●
195 BOLT; PAD FIX
M14X45 		9-92061-445-0 16 1 0710-0805 ●
195 BOLT; PAD FIX
M14X40 		0-20951-440-0 16 1 0806- ●
196 WASHER; LK
ID=14.2 		0-91510-514-0 16 1 0710- ●
224 NIPPLE; GREASE,SPR SEAT
PT1/8 STRAIGHT 		0-90301-410-0 02 1 0710- ●
225 RUBBER; CUSHION,RR SPR
REARWARD 		1-53366-072-2 01 1 0710- ●
225 RUBBER; CUSHION,RR SPR
FORWARD 		1-53366-077-3 01 1 0710- ●
225 RUBBER; CUSHION,RR SPR
REARWARD 		1-53366-100-2 01 1 0710- ●
225 RUBBER; CUSHION,RR SPR
FORWARD 		1-53366-143-1 01 1 0710- ●
227 NUT; CUSHION RUBBER
M12 FLANGE 		0-91180-212-0 08 1 0710- ●
233 ROD ASM; TORQUE,RR SUSP
(F) L=366 		1-51510-855-0 04 1 0710-1302 ●
233 ROD ASM; TORQUE,RR SUSP
(F) L=366 		1-51510-855-0 04 1 1303- ●
233 ROD ASM; TORQUE,RR SUSP
(B) L=555 		1-51511-660-0 01 1 0710-0903 ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) (B) L=555 		1-51511-660-0 01 1 0904- ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) (B) L=555 		1-51511-660-0 01 1 0904- ●
233 ROD ASM; TORQUE,RR SUSP
(A) L=530 		1-51511-678-0 03 1 0710-0903 ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (D) L=530 		1-51511-678-0 01 1 0904- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (B) L=565 		1-51511-685-0 01 1 0904- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5000MM(50W) (E) L=525 		1-51511-656-0 02 1 0904- ●
233 ROD ASM; TORQUE,RR SUSP
(C) L=550 		1-51511-659-0 02 1 0710-1104 ●
233 ROD ASM; TORQUE,RR SUSP
(C) L=550 		1-51511-659-0 02 1 1105- ●
233 ROD ASM; TORQUE,RR SUSP
ALLISON MD3560P A/T(Y3B) WHEEL BASE 5900MM(59W) (A) L=530 		1-51511-678-0 03 1 0904- ●
233 ROD ASM; TORQUE,RR SUSP
ZF9S1110 M/T(Y5E) (A) L=530 		1-51511-678-0 03 1 0904- ●
235 BOLT; TORQUE ROD
(A) M18X265 		8-98012-875-0 06 1 0710- ●
235 BOLT; TORQUE ROD
(B) M18X102 		8-98012-877-0 12 1 0710- ●
237 NUT; TORQUE ROD
M18 		1-09464-011-0 18 1 0710- ●
367 NUT
M14 		0-91110-514-0 16 1 0710- ●
390 U-BOLT SET; RR SPRING
L=310 		1-87870-166-3 04 1 0710- ●
