5-45 — UNDER GUARD (#48415) — 19 parça

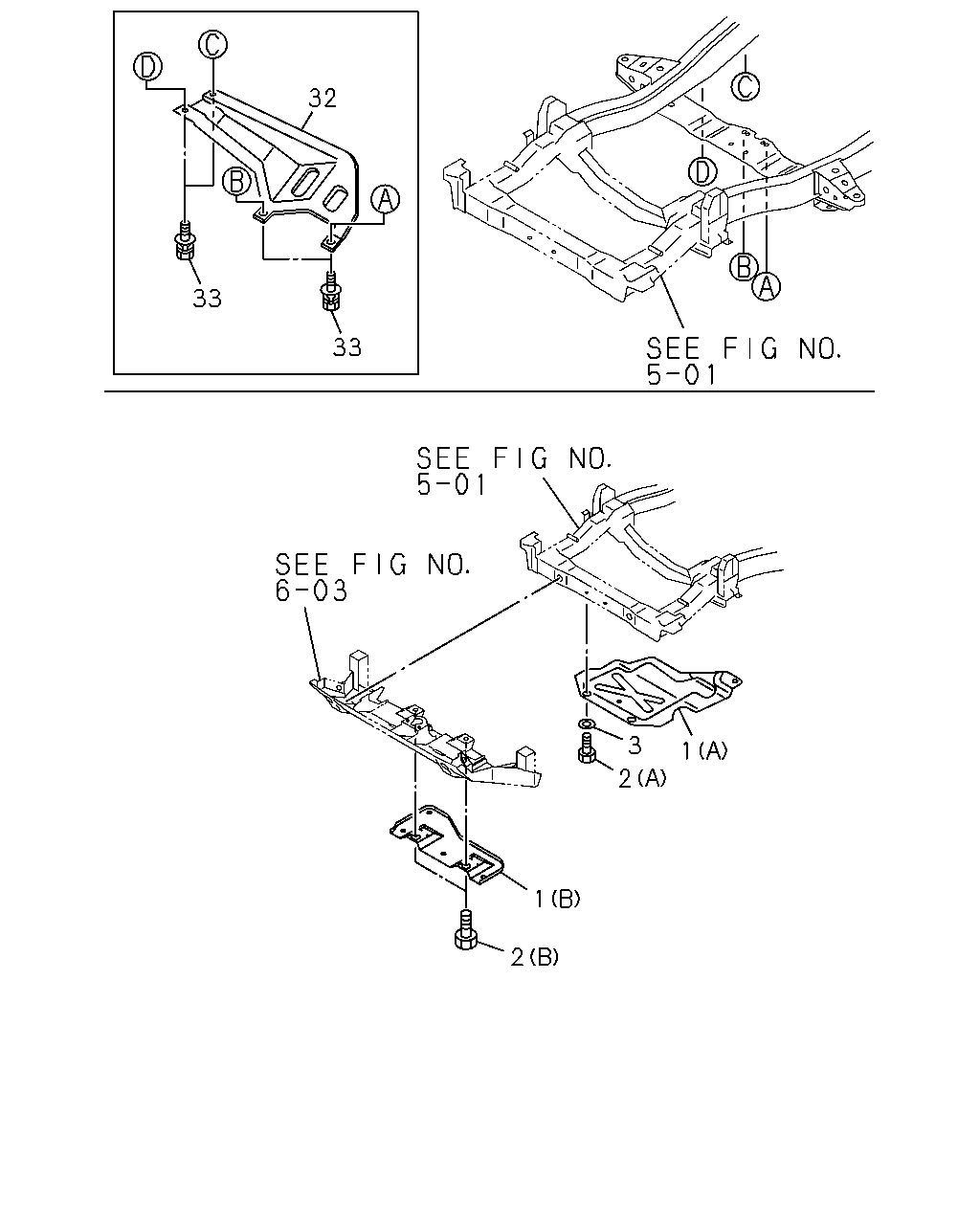

çizim 72142
32 33 33 3 2 2 1 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 08.153 COVER; MUD,ENG
(A) 		8-94389-359-0 01 1 9611-9711 ● ● ● ●
1 08.153 COVER; MUD,ENG
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A) 		8-94389-359-0 01 1 9712- ● ● ● ●
1 08.153 COVER; MUD,ENG
6VD1 ENG(RLV) (B) 		8-97132-305-0 01 1 9712- ● ●
1 08.153 COVER; MUD,ENG
(A) 		8-97131-925-0 01 1 9611-9711 ● ● ● ●
1 08.153 COVER; MUD,ENG
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A) 		8-97131-925-0 01 1 9712- ● ● ● ●
2 08.154 BOLT; MUD COVER
04.686 (A) M6X16 W/LK WASHER 		0-50040-616-0 03 1 9611-9711 ● ● ● ● ● ● ● ●
2 08.154 BOLT; MUD COVER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 04.686 (A) M6X16 W/LK WASHER 		0-50040-616-0 03 1 9712- ● ● ● ● ● ● ● ●
2 08.154 BOLT; MUD COVER
6VD1 ENG(RLV) 16.320 (B) M8X22 W/LK&PL WASHER 		8-94279-148-1 02 1 9712- ● ●
3 08.154 WASHER; PL,MUD COVER
02.334 ID=6.4 OD=22 		9-09164-806-0 03 1 9611-9711 ● ● ● ● ● ● ● ●
3 08.154 WASHER; PL,MUD COVER
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 02.334 ID=6.4 OD=22 		9-09164-806-0 03 1 9712- ● ● ● ● ● ● ● ●
32 04.510 PROTECTOR; TRANSFER 8-97019-355-1 01 1 9712- ● ● ●
32 04.510 PROTECTOR; TRANSFER
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 		8-97019-355-1 01 1 9712- ●
32 04.510 PROTECTOR; TRANSFER
6VD1 ENG(RLV) M/T MUA 5 SPEED(RMN) 		8-94375-527-2 01 1 9712- ●
33 04.510 BOLT; PROTECTOR
6VD1 ENG(RLV) 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9712-9801 ● ●
33 04.510 BOLT; PROTECTOR
6VD1 ENG(RLV) 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 03 1 9802- ●
33 04.510 BOLT; PROTECTOR
03.706 M10X20 W/LK&PL WASHER 		0-50141-020-0 02 1 9712- ● ● ●
33 04.510 BOLT; PROTECTOR
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 03.706 M10X20 W/LK&PL WASHER 		0-50141-020-0 02 1 9712- ●
33 04.510 BOLT; PROTECTOR
03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 02 1 9712- ● ● ●
33 04.510 BOLT; PROTECTOR
4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 03.690 M10X28 W/LK&PL WASHER 		8-97104-788-0 02 1 9712- ●
