5-40 — ENGINE ROOM INSULATOR (#48414) — 14 parça

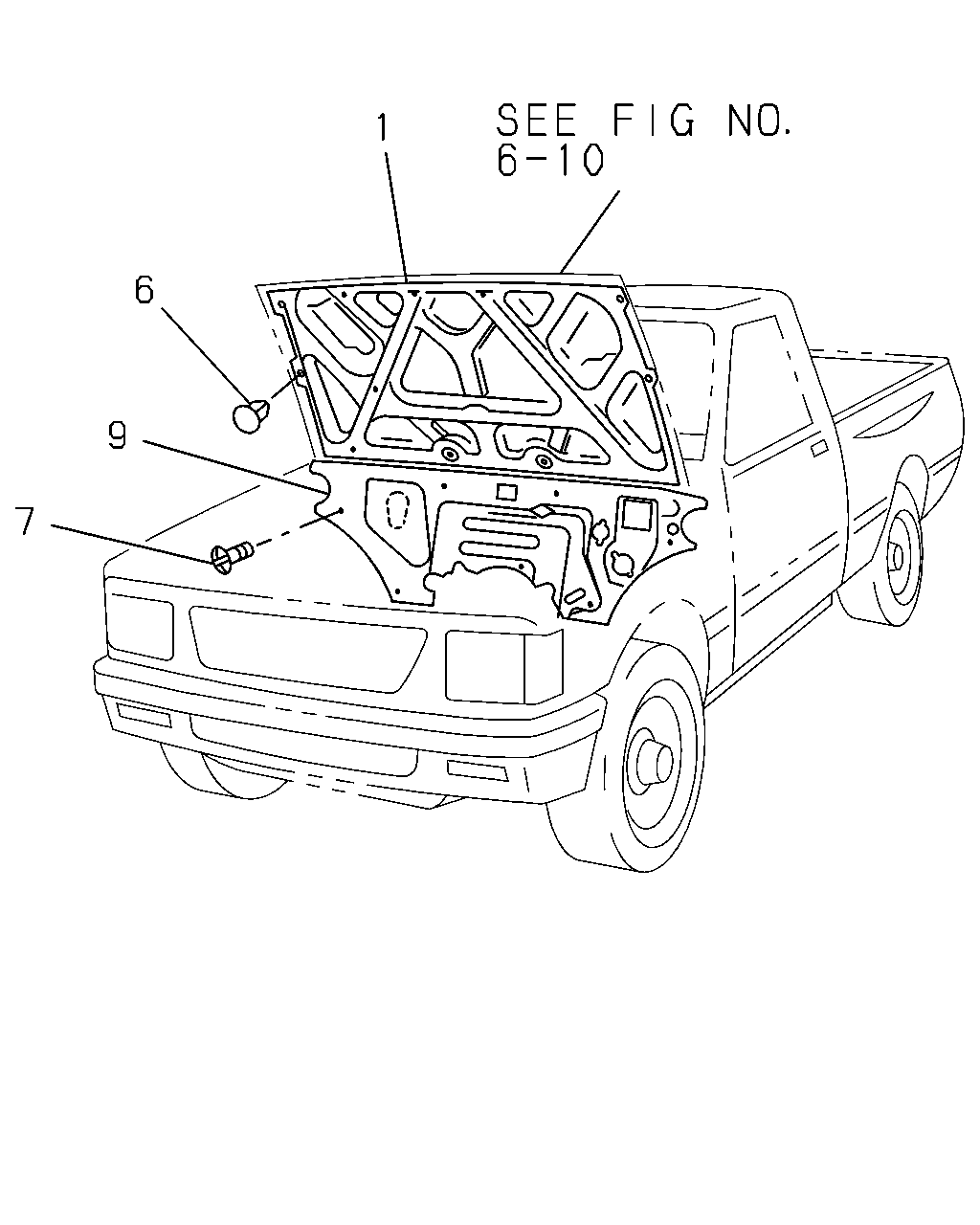

çizim 17472
1 6 9 7
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 08.021 INSULATION; ENG HOOD
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) NOISE INSULATION PACK 2<7MW> 		8-97111-847-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
1 08.021 INSULATION; ENG HOOD
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97111-847-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
1 08.021 INSULATION; ENG HOOD
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ),6VD1 ENG(RLV) NOISE INSULATION PACK 2<7MW> 		8-97111-847-0 01 1 9712- ● ● ● ● ● ● ● ●
1 08.021 INSULATION; ENG HOOD
4JA1 ENG(RLE),4JB1 ENG(RLF) 		8-97111-847-0 01 1 9712- ● ● ● ● ● ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) NOISE INSULATION PACK 2<7MW> ID=6.2 L=11.4 		8-97808-623-0 13 1 9611-9711 ● ● ● ● ● ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
4JA1 ENG(RLE),4JB1 ENG(RLF) ID=6.2 L=11.4 		8-97808-623-0 13 1 9611-9711 ● ● ● ● ● ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ),6VD1 ENG(RLV) NOISE INSULATION PACK 2<7MW> ID=6.2 L=11.4 		8-97808-623-0 13 1 9712- ● ● ● ● ● ● ● ●
6 08.021 CLIP; ENG HOOD INSULATION
4JA1 ENG(RLE),4JB1 ENG(RLF) ID=6.2 L=11.4 		8-97808-623-0 13 1 9712- ● ● ● ● ● ● ● ●
7 08.021 CLIP; INSULATION
NOISE INSULATION PACK 2<7MW> 16.550 H=10.5 		8-94441-810-0 07 1 9611-9711 ● ● ● ● ● ● ● ●
7 08.021 CLIP; INSULATION
NOISE INSULATION PACK 2<7MW> 16.550 H=10.5 		8-94441-810-0 06 1 9712- ● ● ● ● ● ● ● ●
7 08.021 CLIP; INSULATION
6VD1 ENG(RLV) EXC. NOISE INSULATION PACK 2<7MW> 16.550 H=10.5 		8-94441-810-0 06 1 9712- ● ●
9 08.021 INSULATION; DASH ENG ROOM
NOISE INSULATION PACK 2<7MW> 		8-97147-025-1 01 1 9611-9711 ● ● ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
NOISE INSULATION PACK 2<7MW> 		8-97147-025-2 01 1 9712- ● ● ● ● ● ● ● ●
9 08.021 INSULATION; DASH ENG ROOM
6VD1 ENG(RLV) EXC. NOISE INSULATION PACK 2<7MW> 		8-97147-025-2 01 1 9712- ● ●
