5-20 — BATTERY CARRIER (#48412) — 20 parça

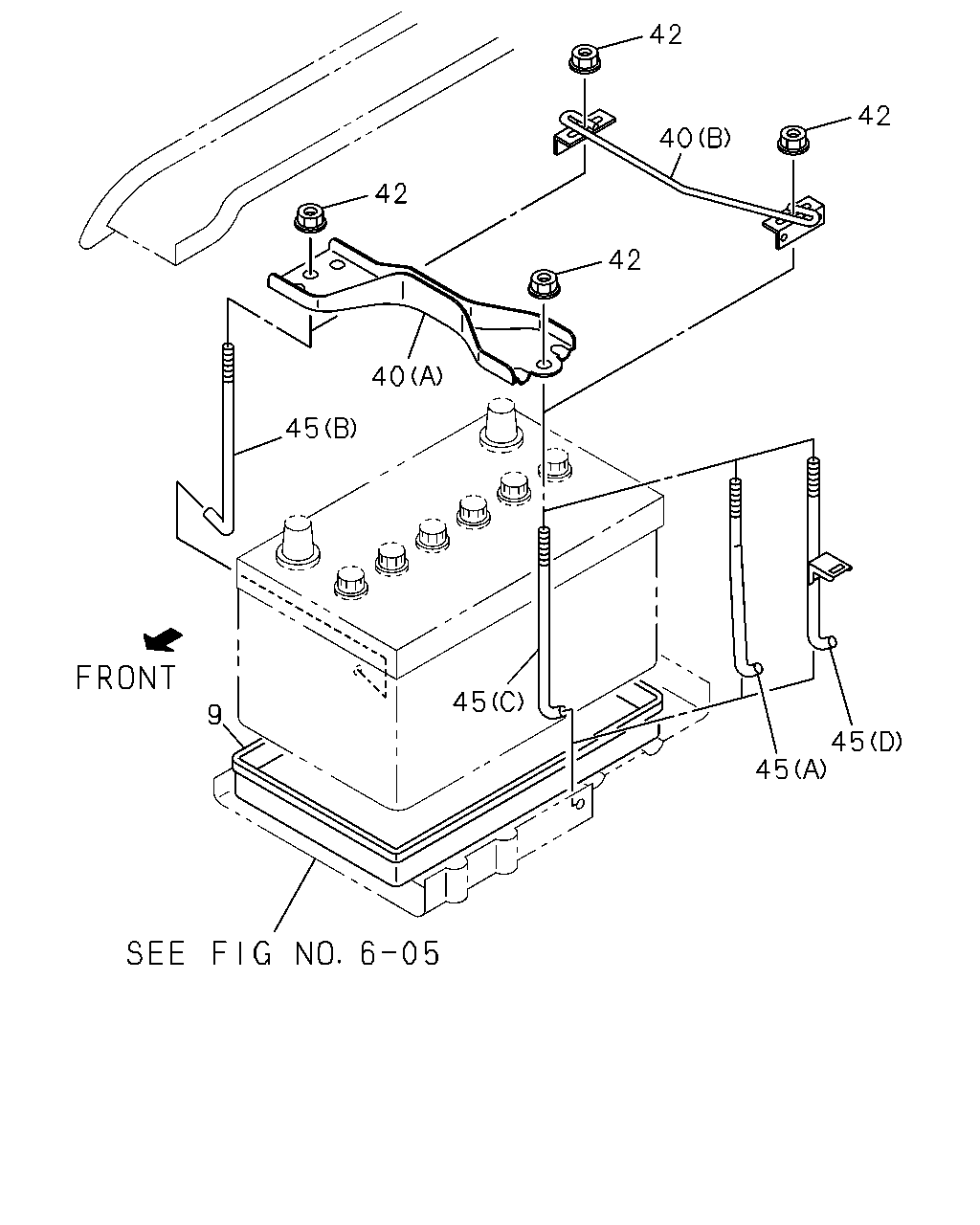

çizim 71000
42 42 40 42 42 40 45 45 9 45 45
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
9 02.333 SEAT; BATTERY
BATTERY NX120-7 FRIGID ZONE(ES5), BATTERY 75D26R(6DM),BATTERY 95D31R DRY(6TZ) 		8-94405-030-0 01 1 9611-9702 ● ● ● ● ● ● ● ●
9 02.333 SEAT; BATTERY
BATTERY NX120-7 FRIGID ZONE(ES5), BATTERY 75D26R(6DM),BATTERY 80D26R(6KC),BATTERY 95D31R DRY(6TZ) 		8-94405-030-0 01 1 9703-9711 ● ● ● ● ● ● ● ●
9 02.333 SEAT; BATTERY
BATTERY NX120-7 FRIGID ZONE(ES5), BATTERY 80D26R(6KC),BATTERY 95D31R DRY(6TZ) 		8-94405-030-0 01 1 9712- ● ● ● ● ● ● ● ●
9 02.333 SEAT; BATTERY
4JA1 ENG(RLE),4JB1 ENG(RLF) BATTERY 75D26R(6DM) 		8-94405-030-0 01 1 9712- ● ● ● ● ● ● ● ●
9 02.333 SEAT; BATTERY
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 		8-94407-453-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
9 02.333 SEAT; BATTERY
4ZC1 ENG(LR9),4ZD1 ENG(LW3) 		8-94407-453-0 01 1 9712- ● ● ● ● ● ● ●
9 02.333 SEAT; BATTERY
4ZE1 ENG(RLJ) 		8-94405-031-0 01 1 9611-9702 ● ● ● ● ●
9 02.333 SEAT; BATTERY
4ZE1 ENG(RLJ) EXC. BATTERY 80D26R(6KC) 		8-94405-031-0 01 1 9703- ● ● ● ● ● ●
9 02.333 SEAT; BATTERY
6VD1 ENG(RLV) 		8-97174-512-0 01 1 9712- ● ●
40 02.335 CLAMP; BATTERY
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A) 		8-97125-377-0 01 1 9611- ● ● ● ● ● ● ● ●
40 02.335 CLAMP; BATTERY
4ZC1 ENG(LR9),4ZD1 ENG(LW3) (A) 		8-97137-524-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
40 02.335 CLAMP; BATTERY
4ZC1 ENG(LR9),4ZD1 ENG(LW3) (A) 		8-97137-524-0 01 1 9712- ● ● ● ● ● ● ●
40 02.335 CLAMP; BATTERY
6VD1 ENG(RLV) (B) T=0.600 		8-97174-146-0 01 1 9712- ● ●
42 02.334 NUT; CLAMP
04.594 M6 FLANGE 		0-91150-106-0 02 1 9611-9711 ● ● ● ● ● ● ● ●
42 02.334 NUT; CLAMP
07.833 M6 W/DISHED WASHER 		8-94170-192-0 02 1 9712- ● ● ● ● ● ● ● ●
45 02.334 ROD; TENSION,BATTERY
4ZC1 ENG(LR9),4ZD1 ENG(LW3) (A) L=80+132 		8-94407-452-0 01 1 9611-9711 ● ● ● ● ● ● ● ●
45 02.334 ROD; TENSION,BATTERY
4ZC1 ENG(LR9),4ZD1 ENG(LW3) (A) L=80+132 		8-94407-452-1 01 1 9712- ● ● ● ● ● ● ●
45 02.334 ROD; TENSION,BATTERY
(B) L=180 		8-94407-451-2 01 1 9611- ● ● ● ● ● ● ● ●
45 02.334 ROD; TENSION,BATTERY
4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (C) L=204 		8-94259-857-0 01 1 9611- ● ● ● ● ● ● ● ●
45 02.334 ROD; TENSION,BATTERY
6VD1 ENG(RLV) (D) L=202 		8-97039-079-1 01 1 9712- ● ●
