5-10 — CAB MOUNTING; FRAME SIDE (#48411) — 49 parça

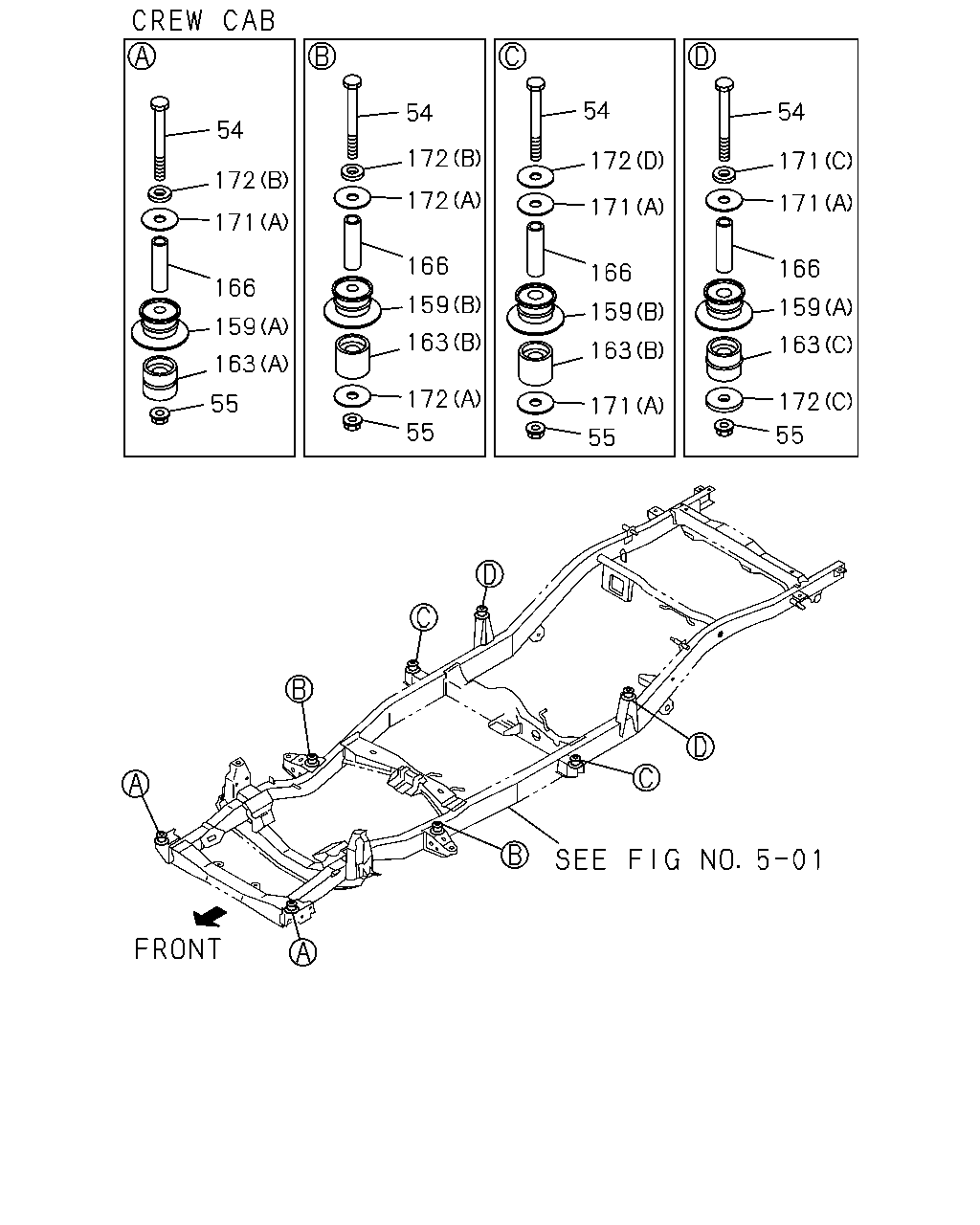

çizim 71126
54 54 54 54 172 171 172 172 171 171 171 166 166 166 166 159 159 159 159 163 163 163 163 172 55 172 55 55 171 55 172
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
54 09.008 BOLT; RUBBER
M10X120 		8-97134-968-0 06 1 9611- ● ● ● ● ● ● ● ●
54 09.008 BOLT; RUBBER
M10X120 		8-97134-968-0 02 1 9611- ● ●
55 09.008 NUT; RUBBER
08.917 M10 FLANGE 		0-91150-210-0 06 1 9611- ● ● ● ● ● ● ● ●
55 09.008 NUT; RUBBER
08.917 M10 FLANGE 		0-91150-210-0 02 1 9611- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(A) 		8-94325-155-2 02 1 9611- ● ● ● ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(A) 		8-94325-155-2 02 1 9611- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) 		8-94325-158-2 04 1 9611- ● ● ● ● ● ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(A) 		8-94325-156-0 02 1 9611- ● ● ● ● ● ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(B) 		8-94325-157-1 04 1 9611- ● ● ● ● ● ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(C) 		8-97035-572-1 02 1 9611- ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
L=70 		8-97148-478-0 06 1 9611- ● ● ● ● ● ● ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
L=70 		8-97148-478-0 02 1 9611- ● ●
171 09.011 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 		8-94223-170-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
171 09.011 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 		8-94223-170-0 04 1 9712- ● ● ● ● ● ● ● ●
171 09.011 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 		8-94223-170-0 04 1 9712- ● ●
171 09.011 WASHER; BODY MTG RUBBER
(B) OD=48 T=6.0 		8-94416-694-0 04 1 9611-9711 ● ● ● ● ● ●
171 09.011 WASHER; BODY MTG RUBBER
(B) OD=48 T=6.0 		8-94416-694-0 02 1 9712- ● ● ● ● ● ●
171 09.011 WASHER; BODY MTG RUBBER
(C) OD=32 T=6.0 		8-94416-693-0 02 1 9611- ● ●
172 09.011 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 		8-94223-170-0 04 1 9611- ● ● ● ● ● ● ● ●
172 09.011 WASHER; BODY MTG RUBBER
(B) OD=32 T=6.0 		8-94416-693-0 04 1 9611- ● ● ● ● ● ● ● ●
172 09.011 WASHER; BODY MTG RUBBER
(C) OD=48 T=6.0 		8-94416-694-0 02 1 9712- ● ● ● ● ● ● ● ●
172 09.011 WASHER; BODY MTG RUBBER
(C) OD=48 T=6.0 		8-94416-694-0 02 1 9611-9711 ● ●
172 09.011 WASHER; BODY MTG RUBBER
(D) ID=11 OD=48 T=2.9 		8-94223-170-0 02 1 9712- ● ●

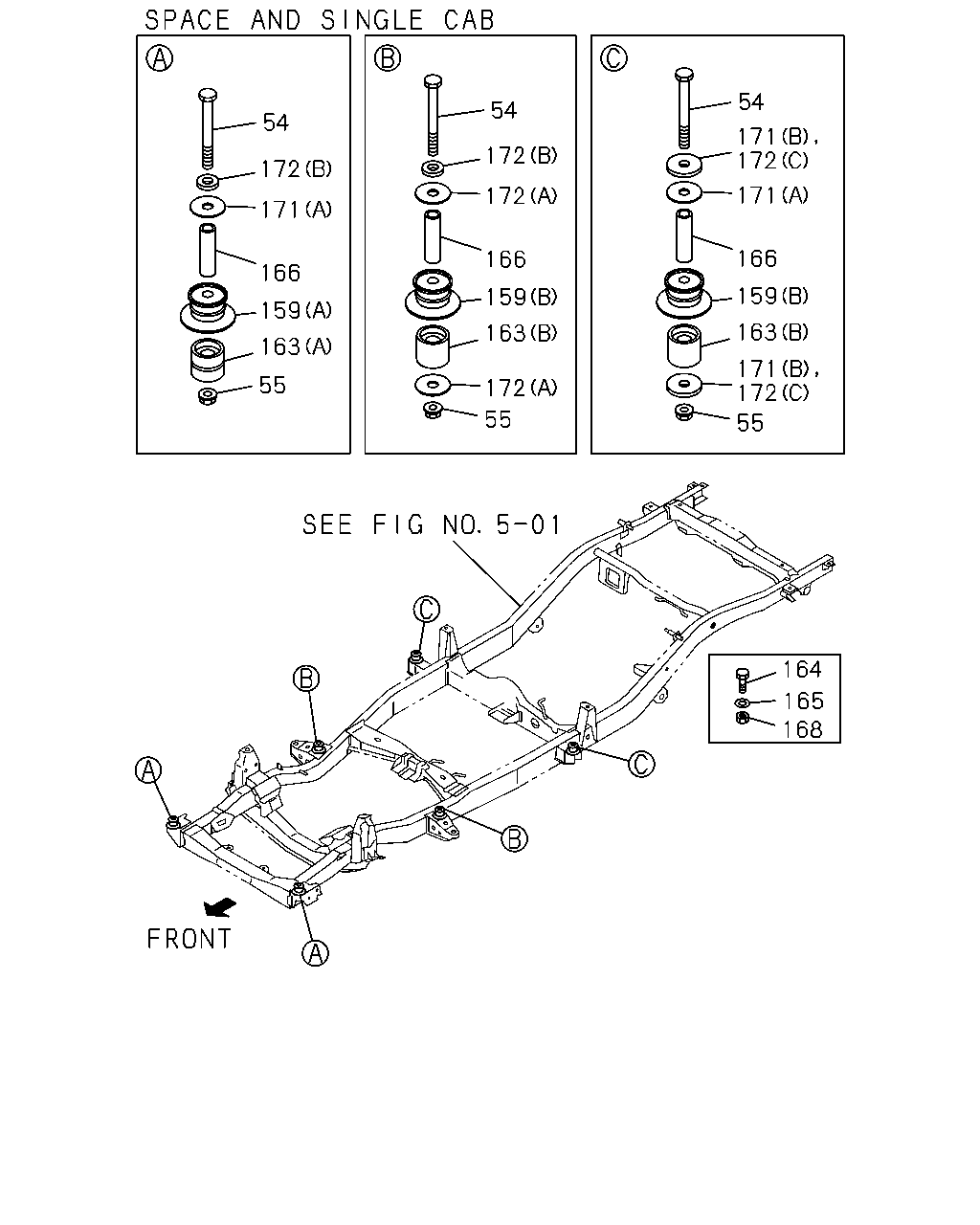

çizim 71930
54 171 172 171 54 54 172 172 172 171 166 166 166 159 159 159 163 163 163 171 172 55 55 172 55 164 165 168
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
54 09.008 BOLT; RUBBER
M10X120 		8-97134-968-0 06 1 9611- ● ● ● ● ● ● ● ●
54 09.008 BOLT; RUBBER
M10X120 		8-97134-968-0 02 1 9611- ● ●
55 09.008 NUT; RUBBER
08.917 M10 FLANGE 		0-91150-210-0 06 1 9611- ● ● ● ● ● ● ● ●
55 09.008 NUT; RUBBER
08.917 M10 FLANGE 		0-91150-210-0 02 1 9611- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(A) 		8-94325-155-2 02 1 9611- ● ● ● ● ● ● ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(A) 		8-94325-155-2 02 1 9611- ● ●
159 09.023 RUBBER; CUSHION,CAB MTG
(B) 		8-94325-158-2 04 1 9611- ● ● ● ● ● ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(A) 		8-94325-156-0 02 1 9611- ● ● ● ● ● ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(B) 		8-94325-157-1 04 1 9611- ● ● ● ● ● ● ● ●
163 09.023 RUBBER; CUSHION,BODY MTG,REBOUND
(C) 		8-97035-572-1 02 1 9611- ● ●
164 09.008 BOLT; CUSHION RUBBER,CAB MTG
06.056 M12X25 		0-20801-225-0 02 1 9611- ● ●
165 09.011 WASHER; PL,CAB MTG
00.793 ID=12.5 OD=26 		9-09160-612-0 02 1 9611- ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
L=70 		8-97148-478-0 06 1 9611- ● ● ● ● ● ● ● ●
166 09.009 PIECE; DIST,BODY MTG RUBBER
L=70 		8-97148-478-0 02 1 9611- ● ●
168 09.011 NUT; CUSHION RUBBER,BODY MTG
05.586 M12 FLANGE 		0-91150-112-0 02 1 9611- ● ●
171 09.011 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 		8-94223-170-0 04 1 9611-9711 ● ● ● ● ● ● ● ●
171 09.011 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 		8-94223-170-0 04 1 9712- ● ● ● ● ● ● ● ●
171 09.011 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 		8-94223-170-0 04 1 9712- ● ●
171 09.011 WASHER; BODY MTG RUBBER
(B) OD=48 T=6.0 		8-94416-694-0 04 1 9611-9711 ● ● ● ● ● ●
171 09.011 WASHER; BODY MTG RUBBER
(B) OD=48 T=6.0 		8-94416-694-0 02 1 9712- ● ● ● ● ● ●
171 09.011 WASHER; BODY MTG RUBBER
(C) OD=32 T=6.0 		8-94416-693-0 02 1 9611- ● ●
172 09.011 WASHER; BODY MTG RUBBER
(A) ID=11 OD=48 T=2.9 		8-94223-170-0 04 1 9611- ● ● ● ● ● ● ● ●
172 09.011 WASHER; BODY MTG RUBBER
(B) OD=32 T=6.0 		8-94416-693-0 04 1 9611- ● ● ● ● ● ● ● ●
172 09.011 WASHER; BODY MTG RUBBER
(C) OD=48 T=6.0 		8-94416-694-0 02 1 9712- ● ● ● ● ● ● ● ●
172 09.011 WASHER; BODY MTG RUBBER
(C) OD=48 T=6.0 		8-94416-694-0 02 1 9611-9711 ● ●
172 09.011 WASHER; BODY MTG RUBBER
(D) ID=11 OD=48 T=2.9 		8-94223-170-0 02 1 9712- ● ●
