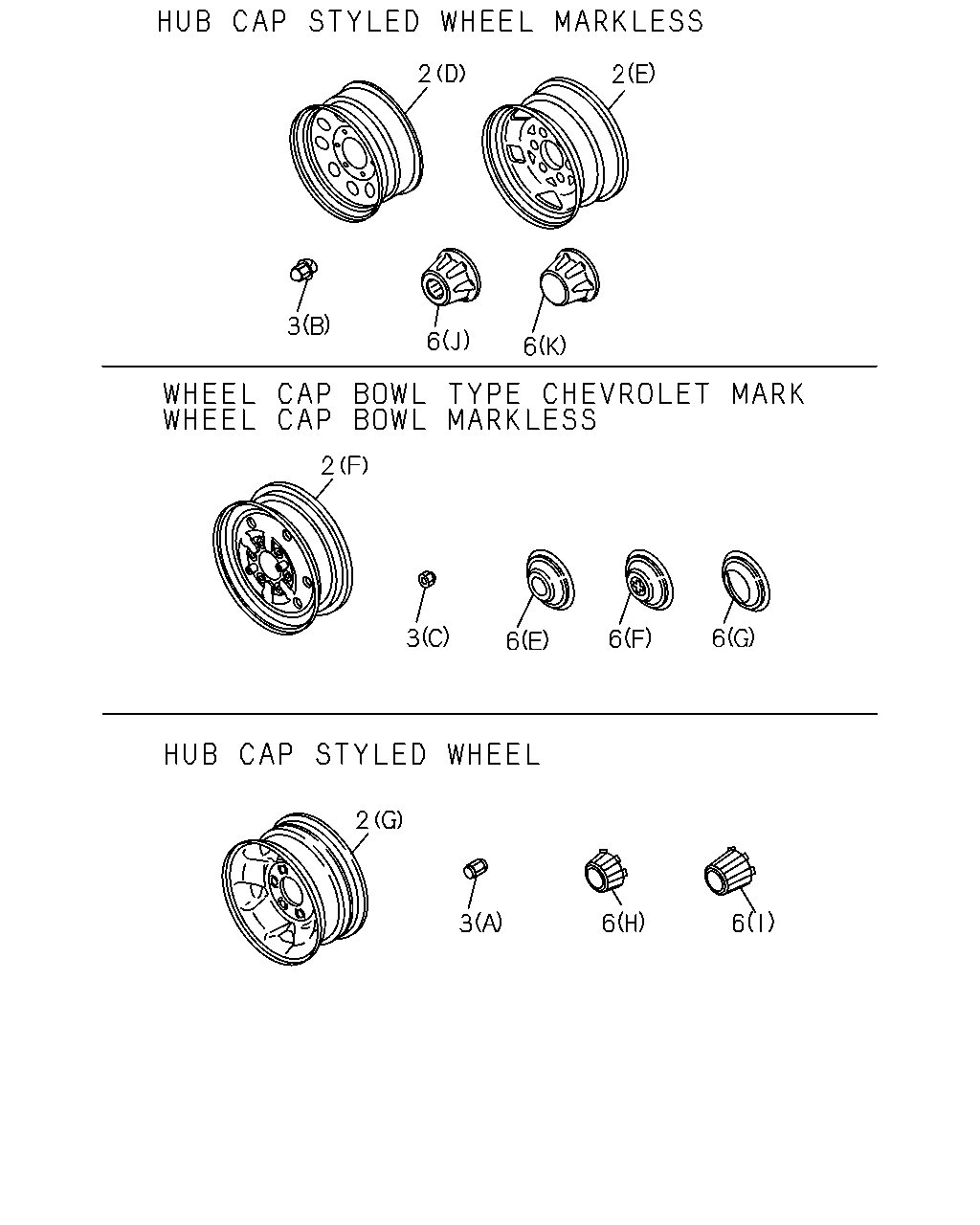

4-80 — ROAD WHEEL (#48409) — 78 parça

2 2 3 6 6 2 3 6 6 6 2 6 6 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
2	05.803 WHEEL; DISC FRT 185R14-6 5.5JJ-20 RR 185R14-8 5 .5JJ-20(ANL),FRT&RR 185R14-8 5.5JJX14(9PE) (A) OFFSET=20	8-97030-473-1	01	1	9611-	●	●	●	●
2	05.803 WHEEL; DISC FRT 185R14-6 5.5JJ-20 RR 185R14-8 5 .5JJ-20(ANL),FRT&RR 185R14-8 5.5JJX14(9PE) (A) OFFSET=20	8-97030-473-1	04	1	9611-	●	●	●	●
2	05.803 WHEEL; DISC FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW) ,FRT&RR 6.5-14-8 5JX14(9NY) (A) 14X5J OFFSET=30 PLATINUM SILVER	8-97146-797-0	05	1	9611-	●	●	●	●
2	05.803 WHEEL; DISC FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP) (B) OFFSET=20	8-97130-282-0	05	1	9611-	●	●	●	●
2	05.803 WHEEL; DISC FRT&RR P225/75R15 6JJX15(9PY) (D) OFFSET=25	8-97030-476-1	05	1	9611-9711					●	●	●
2	05.803 WHEEL; DISC FRT 6.5-15-6 RR 6.5-15-8 5.5KX15(9PA) (F) 14X5J OFFSET=30 PLATINUM SILVER	8-97032-083-1	05	1	9611-					●	●	●	●
2	05.803 WHEEL; DISC FRT&RR 205/80R16 104Q P/SILVER(9PR) ,FRT&RR 205SR16 6JJX16 STYLED(9UR) (E) 14X5J OFFSET=30 PLATINUM SILVER	8-97030-481-1	05	1	9611-9706					●	●	●	●
2	05.803 WHEEL; DISC FRT&RR 205SR16 6JJX16 STYLED(AUY), FRT&RR 205/80R16 104Q (AVA),FRT&RR 205/80R16 104Q P/SILVER(9PR), FRT&RR205SR16 6JJX16 STYLED(9UR) (E) 14X5J OFFSET=30 PLATINUM SILVER	8-97030-481-1	05	1	9707-9711					●	●	●	●
2	05.803 WHEEL; DISC FRT&RR 205SR16 6JJX16 STYLED(AUY) (E) 14X5J OFFSET=30 PLATINUM SILVER	8-97030-481-1	05	1	9712-				●	●	●
2	05.803 WHEEL; DISC FRT&RR 205SR16 6JJX16 STYLED(AUY), FRT&RR 205/80R16 104Q (AVA) (E) 14X5J OFFSET=30 PLATINUM SILVER	8-97030-481-1	05	1	9712-							●	●
2	05.803 WHEEL; DISC FRT&RR 6.50-15-8 5.5KX15 STYLED WHL (9RE),FRT&RR 215R15-6 5.5KX15 STYLED WHL(9RF) (G) 15X5J OFFSET=30 PLATINUM SILVER	8-97061-823-1	05	1	9611-9709					●	●	●	●
2	05.803 WHEEL; DISC FRT&RR 215R15 5.5KX15 STYLED(AVY), FRT&RR 6.50-15-8 5.5KX15 STYLED WHL(9RE) (G) 15X5J OFFSET=30 PLATINUM SILVER	8-97061-823-1	05	1	9710-					●	●	●	●
3	05.813 NUT; WHEEL,FRT AXLE FRT 185R14-6 5.5JJ-20 RR 185R14-8 5 .5JJ-20(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT 6.0-14-6 RR 6.5- 14-8 5JX14(9NW),FRT&RR 6.5-14-8 5JX14(9NY),FRT&RR 185R14-8 5.5JJX14(9PE) (A) M12 H=30.5	8-97176-091-0	24	1	9611-9611	●	●	●	●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR 6.50-15-8 5.5KX15 STYLED WHL (9RE),FRT&RR 215R15-6 5.5KX15 STYLED WHL(9RF) (A) M12 H=30.5	8-97176-091-0	24	1	9611-9611					●	●	●	●
3	05.813 NUT; WHEEL,FRT AXLE (A) M12 H=30.5	8-97176-091-0	24	1	9612-9711	●	●	●	●
3	05.813 NUT; WHEEL,FRT AXLE EXC. WHEEL CAP BOWL TYPE CHEVROLET MARK(6UV),WHEEL CAP BOWL TYPE MARKLESS(6UW),HUB CAP STYLED WHEEL MARK LESS(6UX) (A) M12 H=30.5	8-97176-091-0	24	1	9612-9711					●	●	●	●
3	05.813 NUT; WHEEL,FRT AXLE (A) M12 H=30.5	8-97176-091-0	24	1	9712-	●	●	●
3	05.813 NUT; WHEEL,FRT AXLE EXC. HUB CAP STYLED WHEEL MARK LESS (6UX) (A) M12 H=30.5	8-97176-091-0	24	1	9712-				●
3	05.813 NUT; WHEEL,FRT AXLE EXC. WHEEL CAP BOWL TYPE CHEVROLET MARK(6UV),WHEEL CAP BOWL TYPE MARKLESS(6UW),HUB CAP STYLED WHEEL MARK LESS(6UX) (A) M12 H=30.5	8-97176-091-0	24	1	9712-					●	●	●	●
3	05.813 NUT; WHEEL,FRT AXLE HUB CAP STYLED WHEEL MARK LESS(6UX) (B) M12 H=40	8-97129-440-1	24	1	9611-9711					●	●	●	●
3	05.813 NUT; WHEEL,FRT AXLE HUB CAP STYLED WHEEL MARK LESS(6UX) (B) M12 H=40	8-97129-440-1	24	1	9712-				●	●	●	●	●
3	05.813 NUT; WHEEL,FRT AXLE WHEEL CAP BOWL TYPE CHEVROLET MARK(6UV),WHEEL CAP BOWL TYPE MARKLESS(6UW) (C) M12 H=16	8-94200-216-0	24	1	9611-					●	●	●	●
6	05.858 CAP; WHEEL HUB CAP WHEEL BLACK(PA5) (A) WO/HOLE	8-94435-612-1	04	1	9611-	●	●	●	●
6	05.858 CAP; WHEEL WHEEL CAP HALF COVER ISUZU MARK(6FP) (B) W/HOLE	8-97023-249-1	04	1	9611-	●	●	●	●
6	05.858 CAP; WHEEL WHEEL CAP HALF COVER CHROME CHEVROL ET MARK(ES2) (C) WO/HOLE	8-94420-214-1	04	1	9611-	●	●	●	●
6	05.858 CAP; WHEEL WHEEL CAP HALF COVER CHROME MARK LE SS(P05) (D) WO/HOLE	8-94420-212-1	04	1	9611-	●	●	●	●
6	05.858 CAP; WHEEL MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) WHEEL CAP BOWL TYPE MARKLESS(6UW) (E) WO/HOLE	8-94238-436-2	02	1	9611-					●	●	●	●
6	05.858 CAP; WHEEL WHEEL CAP BOWL TYPE MARKLESS(6UW) EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) (E) WO/HOLE	8-94238-436-2	04	1	9611-					●	●	●	●
6	05.858 CAP; WHEEL MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) WHEEL CAP BOWL TYPE CHEVROLET MARK(6UV) (F) WO/HOLE	8-94238-435-2	02	1	9611-					●	●	●	●
6	05.858 CAP; WHEEL WHEEL CAP BOWL TYPE CHEVROLET MARK(6UV) EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) (F) WO/HOLE	8-94238-435-2	04	1	9611-					●	●	●	●
6	05.858 CAP; WHEEL MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) WHEEL CAP BOWL TYPE CHEVROLET MARK(6UV),WHEEL CAP BOWL TYPE MARKLESS(6UW) (G) W/HOLE	8-94238-326-2	02	1	9611-					●	●	●	●
6	05.858 CAP; WHEEL HUB CAP STYLED WHEEL(6XY) (H) WO/HOLE	8-97071-984-0	02	1	9611-	●	●	●	●	●	●	●	●
6	05.858 CAP; WHEEL HUB CAP STYLED WHEEL(6XY) EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) (I) WO/HOLE	8-97071-983-0	02	1	9611-	●	●	●	●	●	●	●	●
6	05.858 CAP; WHEEL MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) HUB CAP STYLED WHEEL(6XY) (I) W/HOLE	8-97071-982-0	02	1	9611-					●	●	●	●
6	05.858 CAP; WHEEL MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) HUB CAP STYLED WHEEL MARK LESS(6UX) (J) W/HOLE	8-97038-977-0	02	1	9611-					●	●	●	●
6	05.858 CAP; WHEEL HUB CAP STYLED WHEEL MARK LESS(6UX) EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) (K) WO/HOLE	8-97144-397-0	04	1	9611-9711					●	●	●	●
6	05.858 CAP; WHEEL HUB CAP STYLED WHEEL MARK LESS(6UX) (K) WO/HOLE	8-97144-397-0	04	1	9712-				●
6	05.858 CAP; WHEEL HUB CAP STYLED WHEEL MARK LESS(6UX) EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) (K) WO/HOLE	8-97144-397-0	04	1	9712-					●	●	●	●
6	05.858 CAP; WHEEL MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) HUB CAP STYLED WHEEL MARK LESS(6UX) (K) WO/HOLE	8-97144-397-0	02	1	9611-					●	●	●	●

2 3 6 6 6 6 2 6 3 6 6

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
2	05.803 WHEEL; DISC FRT 185R14-6 5.5JJ-20 RR 185R14-8 5 .5JJ-20(ANL),FRT&RR 185R14-8 5.5JJX14(9PE) (A) OFFSET=20	8-97030-473-1	01	1	9611-	●	●	●	●
2	05.803 WHEEL; DISC FRT 185R14-6 5.5JJ-20 RR 185R14-8 5 .5JJ-20(ANL),FRT&RR 185R14-8 5.5JJX14(9PE) (A) OFFSET=20	8-97030-473-1	04	1	9611-	●	●	●	●
2	05.803 WHEEL; DISC FRT 6.0-14-6 RR 6.5-14-8 5JX14(9NW) ,FRT&RR 6.5-14-8 5JX14(9NY) (A) 14X5J OFFSET=30 PLATINUM SILVER	8-97146-797-0	05	1	9611-	●	●	●	●
2	05.803 WHEEL; DISC FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP) (B) OFFSET=20	8-97130-282-0	05	1	9611-	●	●	●	●
2	05.803 WHEEL; DISC FRT&RR P225/75R15 6JJX15(9PY) (D) OFFSET=25	8-97030-476-1	05	1	9611-9711					●	●	●
2	05.803 WHEEL; DISC FRT 6.5-15-6 RR 6.5-15-8 5.5KX15(9PA) (F) 14X5J OFFSET=30 PLATINUM SILVER	8-97032-083-1	05	1	9611-					●	●	●	●
2	05.803 WHEEL; DISC FRT&RR 205/80R16 104Q P/SILVER(9PR) ,FRT&RR 205SR16 6JJX16 STYLED(9UR) (E) 14X5J OFFSET=30 PLATINUM SILVER	8-97030-481-1	05	1	9611-9706					●	●	●	●
2	05.803 WHEEL; DISC FRT&RR 205SR16 6JJX16 STYLED(AUY), FRT&RR 205/80R16 104Q (AVA),FRT&RR 205/80R16 104Q P/SILVER(9PR), FRT&RR205SR16 6JJX16 STYLED(9UR) (E) 14X5J OFFSET=30 PLATINUM SILVER	8-97030-481-1	05	1	9707-9711					●	●	●	●
2	05.803 WHEEL; DISC FRT&RR 205SR16 6JJX16 STYLED(AUY) (E) 14X5J OFFSET=30 PLATINUM SILVER	8-97030-481-1	05	1	9712-				●	●	●
2	05.803 WHEEL; DISC FRT&RR 205SR16 6JJX16 STYLED(AUY), FRT&RR 205/80R16 104Q (AVA) (E) 14X5J OFFSET=30 PLATINUM SILVER	8-97030-481-1	05	1	9712-							●	●
2	05.803 WHEEL; DISC FRT&RR 6.50-15-8 5.5KX15 STYLED WHL (9RE),FRT&RR 215R15-6 5.5KX15 STYLED WHL(9RF) (G) 15X5J OFFSET=30 PLATINUM SILVER	8-97061-823-1	05	1	9611-9709					●	●	●	●
2	05.803 WHEEL; DISC FRT&RR 215R15 5.5KX15 STYLED(AVY), FRT&RR 6.50-15-8 5.5KX15 STYLED WHL(9RE) (G) 15X5J OFFSET=30 PLATINUM SILVER	8-97061-823-1	05	1	9710-					●	●	●	●
3	05.813 NUT; WHEEL,FRT AXLE FRT 185R14-6 5.5JJ-20 RR 185R14-8 5 .5JJ-20(ANL),FRT&RR 195R14-8 5.5JJ-20 STYLED(ANP),FRT 6.0-14-6 RR 6.5- 14-8 5JX14(9NW),FRT&RR 6.5-14-8 5JX14(9NY),FRT&RR 185R14-8 5.5JJX14(9PE) (A) M12 H=30.5	8-97176-091-0	24	1	9611-9611	●	●	●	●
3	05.813 NUT; WHEEL,FRT AXLE FRT&RR 6.50-15-8 5.5KX15 STYLED WHL (9RE),FRT&RR 215R15-6 5.5KX15 STYLED WHL(9RF) (A) M12 H=30.5	8-97176-091-0	24	1	9611-9611					●	●	●	●
3	05.813 NUT; WHEEL,FRT AXLE (A) M12 H=30.5	8-97176-091-0	24	1	9612-9711	●	●	●	●
3	05.813 NUT; WHEEL,FRT AXLE EXC. WHEEL CAP BOWL TYPE CHEVROLET MARK(6UV),WHEEL CAP BOWL TYPE MARKLESS(6UW),HUB CAP STYLED WHEEL MARK LESS(6UX) (A) M12 H=30.5	8-97176-091-0	24	1	9612-9711					●	●	●	●
3	05.813 NUT; WHEEL,FRT AXLE (A) M12 H=30.5	8-97176-091-0	24	1	9712-	●	●	●
3	05.813 NUT; WHEEL,FRT AXLE EXC. HUB CAP STYLED WHEEL MARK LESS (6UX) (A) M12 H=30.5	8-97176-091-0	24	1	9712-				●
3	05.813 NUT; WHEEL,FRT AXLE EXC. WHEEL CAP BOWL TYPE CHEVROLET MARK(6UV),WHEEL CAP BOWL TYPE MARKLESS(6UW),HUB CAP STYLED WHEEL MARK LESS(6UX) (A) M12 H=30.5	8-97176-091-0	24	1	9712-					●	●	●	●
3	05.813 NUT; WHEEL,FRT AXLE HUB CAP STYLED WHEEL MARK LESS(6UX) (B) M12 H=40	8-97129-440-1	24	1	9611-9711					●	●	●	●
3	05.813 NUT; WHEEL,FRT AXLE HUB CAP STYLED WHEEL MARK LESS(6UX) (B) M12 H=40	8-97129-440-1	24	1	9712-				●	●	●	●	●
3	05.813 NUT; WHEEL,FRT AXLE WHEEL CAP BOWL TYPE CHEVROLET MARK(6UV),WHEEL CAP BOWL TYPE MARKLESS(6UW) (C) M12 H=16	8-94200-216-0	24	1	9611-					●	●	●	●
6	05.858 CAP; WHEEL HUB CAP WHEEL BLACK(PA5) (A) WO/HOLE	8-94435-612-1	04	1	9611-	●	●	●	●
6	05.858 CAP; WHEEL WHEEL CAP HALF COVER ISUZU MARK(6FP) (B) W/HOLE	8-97023-249-1	04	1	9611-	●	●	●	●
6	05.858 CAP; WHEEL WHEEL CAP HALF COVER CHROME CHEVROL ET MARK(ES2) (C) WO/HOLE	8-94420-214-1	04	1	9611-	●	●	●	●
6	05.858 CAP; WHEEL WHEEL CAP HALF COVER CHROME MARK LE SS(P05) (D) WO/HOLE	8-94420-212-1	04	1	9611-	●	●	●	●
6	05.858 CAP; WHEEL MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) WHEEL CAP BOWL TYPE MARKLESS(6UW) (E) WO/HOLE	8-94238-436-2	02	1	9611-					●	●	●	●
6	05.858 CAP; WHEEL WHEEL CAP BOWL TYPE MARKLESS(6UW) EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) (E) WO/HOLE	8-94238-436-2	04	1	9611-					●	●	●	●
6	05.858 CAP; WHEEL MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) WHEEL CAP BOWL TYPE CHEVROLET MARK(6UV) (F) WO/HOLE	8-94238-435-2	02	1	9611-					●	●	●	●
6	05.858 CAP; WHEEL WHEEL CAP BOWL TYPE CHEVROLET MARK(6UV) EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) (F) WO/HOLE	8-94238-435-2	04	1	9611-					●	●	●	●
6	05.858 CAP; WHEEL MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) WHEEL CAP BOWL TYPE CHEVROLET MARK(6UV),WHEEL CAP BOWL TYPE MARKLESS(6UW) (G) W/HOLE	8-94238-326-2	02	1	9611-					●	●	●	●
6	05.858 CAP; WHEEL HUB CAP STYLED WHEEL(6XY) (H) WO/HOLE	8-97071-984-0	02	1	9611-	●	●	●	●	●	●	●	●
6	05.858 CAP; WHEEL HUB CAP STYLED WHEEL(6XY) EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) (I) WO/HOLE	8-97071-983-0	02	1	9611-	●	●	●	●	●	●	●	●
6	05.858 CAP; WHEEL MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) HUB CAP STYLED WHEEL(6XY) (I) W/HOLE	8-97071-982-0	02	1	9611-					●	●	●	●
6	05.858 CAP; WHEEL MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) HUB CAP STYLED WHEEL MARK LESS(6UX) (J) W/HOLE	8-97038-977-0	02	1	9611-					●	●	●	●
6	05.858 CAP; WHEEL HUB CAP STYLED WHEEL MARK LESS(6UX) EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) (K) WO/HOLE	8-97144-397-0	04	1	9611-9711					●	●	●	●
6	05.858 CAP; WHEEL HUB CAP STYLED WHEEL MARK LESS(6UX) (K) WO/HOLE	8-97144-397-0	04	1	9712-				●
6	05.858 CAP; WHEEL HUB CAP STYLED WHEEL MARK LESS(6UX) EXC. MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) (K) WO/HOLE	8-97144-397-0	04	1	9712-					●	●	●	●
6	05.858 CAP; WHEEL MANUAL LOCKING HUB(ED2),AUTO LOCKING HUB(S1Y) HUB CAP STYLED WHEEL MARK LESS(6UX) (K) WO/HOLE	8-97144-397-0	02	1	9611-					●	●	●	●
