◀ 🏠 ▶ Isuzu WW ▶ PICKUP ▶ TFR ▶ 50726 - TFR/TFS-LHD ▶ 4 - Propeller Shaft, Axles, Steering, Suspension ▶ 4-61 - SHOCK ABSORBER; REAR SUSPENSION ▶
4-61 — SHOCK ABSORBER; REAR SUSPENSION (#48407) — 18 parça

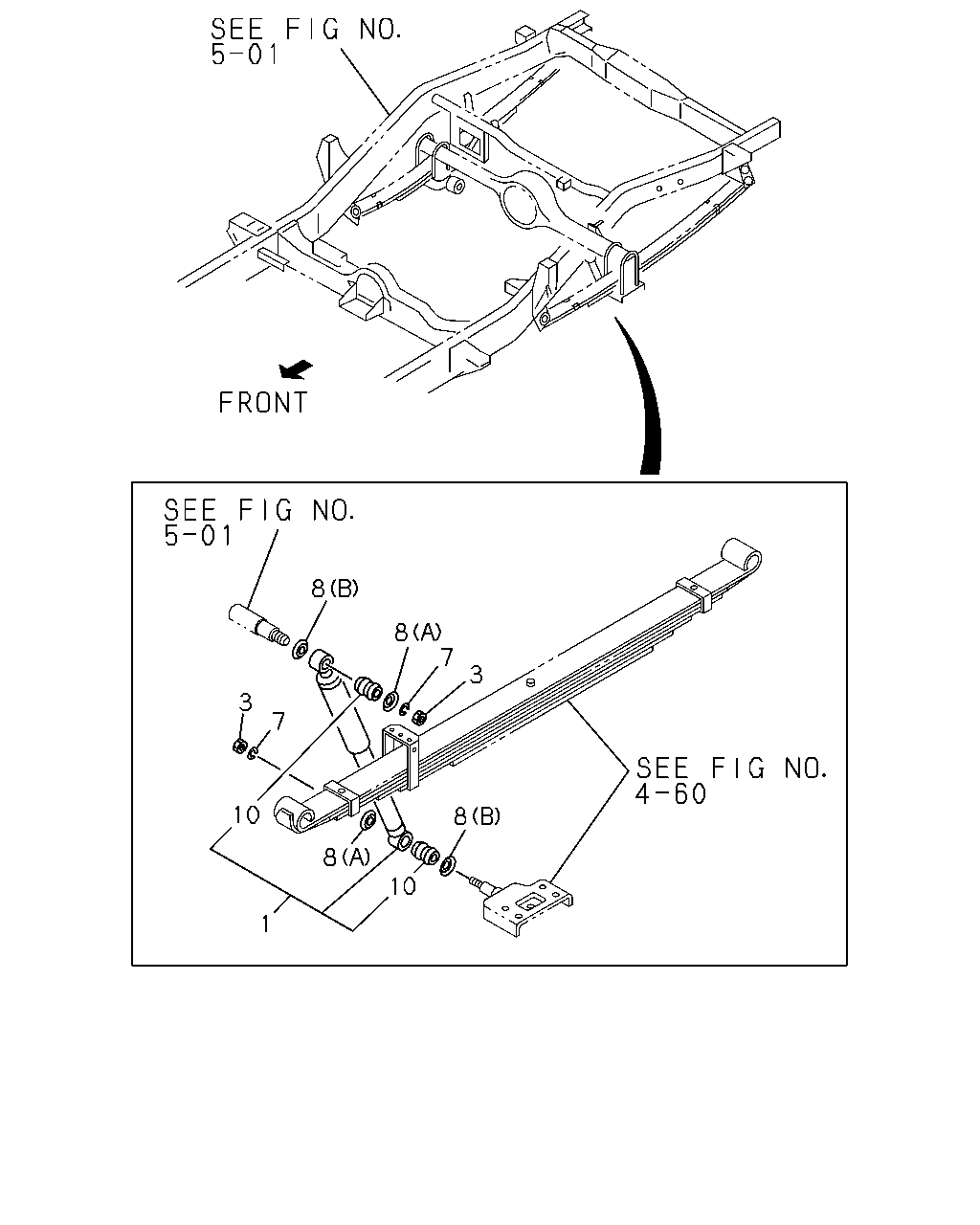

çizim 70578
8 8 7 3 3 7 10 8 8 10 1
BalonParca AdiParca NoAdetTipApplied Date A B C D E F G H
1 07.395 ABSORBER ASM; SHOCK,RR
SHOCK ABSORBER GAS FILLED(FG3) TOKICO 		8-94454-920-2 02 1 9611-9711 ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) SHOCK ABSORBER GAS FILLED(FG3) TOKICO 		8-94454-920-2 02 1 9712- ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. SHOCK ABSORBER GAS FILLED(FG3) 07.345 TOKICO 		8-94473-186-0 02 1 9611-9711 ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. SHOCK ABSORBER GAS FILLED(FG3) 07.345 TOKICO 		8-94473-186-0 02 1 9712- ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. SHOCK ABSORBER GAS FILLED(FG3) 07.345 KYB 		8-94473-187-0 02 1 9611-9711 ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. SHOCK ABSORBER GAS FILLED(FG3) 07.345 KYB 		8-94473-187-0 02 1 9712- ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
6VD1 ENG(RLV) SHOCK ABSORBER GAS FILLED(FG3) TOKICO 		8-97188-327-0 02 1 9712- ●
1 07.395 ABSORBER ASM; SHOCK,RR
SHOCK ABSORBER GAS FILLED(FG3) TOKICO 		8-94454-921-2 02 1 9611- ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. SHOCK ABSORBER GAS FILLED(FG3) TOKICO 		8-94433-697-0 02 1 9611-9711 ● ● ● ●
1 07.395 ABSORBER ASM; SHOCK,RR
6VD1 ENG(RLV) EXC. SHOCK ABSORBER GAS FILLED(FG3) TOKICO 		8-94433-697-0 02 1 9712- ●
1 07.395 ABSORBER ASM; SHOCK,RR
EXC. SHOCK ABSORBER GAS FILLED(FG3) TOKICO 		8-94433-697-0 02 1 9712- ● ● ● ●
3 07.347 NUT; S/ABS
M12 		9-99111-412-0 04 1 9611- ● ● ● ● ● ● ● ●
7 07.347 WASHER; LK,S/ABS
04.634 ID=12.2 		9-09150-512-0 04 1 9611- ● ● ● ● ● ● ● ●
8 07.347 WASHER; S/ABS
(A) ID=12.5 		9-51679-022-0 04 1 9611- ● ● ● ● ● ● ● ●
8 07.347 WASHER; S/ABS
(B) ID=16.5 		8-94445-688-0 04 1 9611- ● ● ● ● ● ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS
EXC. SHOCK ABSORBER GAS FILLED(FG3) 07.347 KYB 		5-51631-016-0 04 1 9611-9711 ● ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS
4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. SHOCK ABSORBER GAS FILLED(FG3) 07.347 KYB 		5-51631-016-0 04 1 9712- ● ● ● ●
10 07.388 BUSHING; RUBBER,S/ABS
07.347 TOKICO 		8-94224-694-0 04 1 9611- ● ● ● ● ● ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
