Sayfa 4-50 - Isuzu EPC

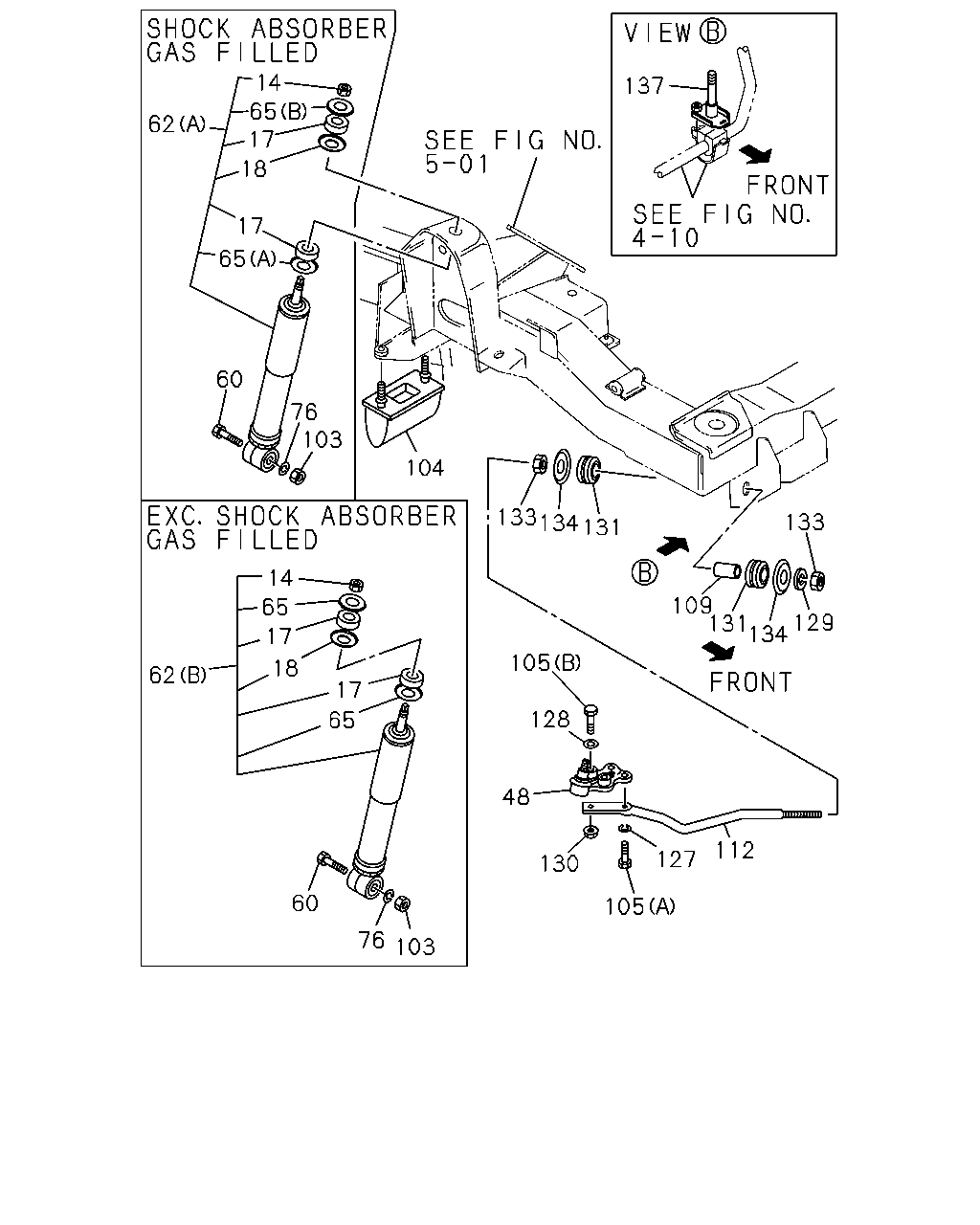

4-50 — FRONT SUSPENSION (#48405) — 351 parça

14 65 17 18 137 62 17 65 60 76 103 104 133 134 131 133 14 65 17 18 109 131 129 134 105 62 17 65 128 48 127 130 60 105 76 103 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
14	07.389 NUT; S/ABS,UPR TOKICO M10	8-94317-772-0	02	1	9611-	●	●	●	●	●	●	●	●
14	07.389 NUT; S/ABS,UPR EXC. SHOCK ABSORBER GAS FILLED(FG3) 09.011 KAYABA M10	9-09110-410-0	02	1	9611-	●	●	●	●	●	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	9611-	●	●	●	●	●	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS EXC. SHOCK ABSORBER GAS FILLED(FG3) KYB	9-51631-065-0	04	1	9611-	●	●	●	●	●	●	●	●
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	9611-	●	●	●	●	●	●	●	●
18	07.347 WASHER; CENTERING,S/ABS EXC. SHOCK ABSORBER GAS FILLED(FG3) KYB	8-94467-498-0	02	1	9611-	●	●	●	●	●	●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM	8-94459-464-3	02	1	9611-9711	●	●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94459-464-3	02	1	9712-	●	●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM	8-94459-465-2	02	1	9611-9711					●	●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM 6VD1 ENG(RLV)	8-94459-465-2	02	1	9712-				●
48	06.174 JOINT ASM; BALL,LWR CONT ARM	8-94459-465-2	02	1	9712-					●	●	●	●
60	07.347 BOLT; S/ABS TO LWR LINK M12X50	9-91061-250-0	02	1	9611-	●	●	●	●	●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT SHOCK ABSORBER GAS FILLED(FG3) (A) TOKICO	8-94454-918-2	02	1	9611-9711	●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) SHOCK ABSORBER GAS FILLED(FG3) (A) TOKICO	8-94454-918-2	02	1	9712-	●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. SHOCK ABSORBER GAS FILLED(FG3) (B) TOKICO	8-94446-373-1	02	1	9611-9711	●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. SHOCK ABSORBER GAS FILLED(FG3) (B) TOKICO	8-94446-373-1	02	1	9712-	●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. SHOCK ABSORBER GAS FILLED(FG3) (B) KYB	8-94446-374-1	02	1	9611-9711	●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. SHOCK ABSORBER GAS FILLED(FG3) (B) KYB	8-94446-374-1	02	1	9712-	●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT 6VD1 ENG(RLV) SHOCK ABSORBER GAS FILLED(FG3) (A) TOKICO	8-97188-326-0	02	1	9712-				●
62	07.345 ABSORBER ASM; SHOCK,FRT SHOCK ABSORBER GAS FILLED(FG3) (A) TOKICO	8-94454-919-2	02	1	9611-9711					●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT 6VD1 ENG(RLV) SHOCK ABSORBER GAS FILLED(FG3) (A) TOKICO	8-97188-418-0	02	1	9712-								●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. SHOCK ABSORBER GAS FILLED(FG3) (B) TOKICO	8-94433-687-2	02	1	9611-9711					●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT 6VD1 ENG(RLV) EXC. SHOCK ABSORBER GAS FILLED(FG3) (B) TOKICO	8-94433-687-2	02	1	9712-				●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. SHOCK ABSORBER GAS FILLED(FG3) (B) TOKICO	8-94433-687-2	02	1	9712-					●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. SHOCK ABSORBER GAS FILLED(FG3) (B) KYB	8-94433-688-1	02	1	9611-9711					●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT 6VD1 ENG(RLV) EXC. SHOCK ABSORBER GAS FILLED(FG3) (B) KYB	8-94433-688-1	02	1	9712-				●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. SHOCK ABSORBER GAS FILLED(FG3) (B) KYB	8-94433-688-1	02	1	9712-					●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) SHOCK ABSORBER GAS FILLED(FG3) (A) TOKICO	8-94454-919-2	02	1	9712-					●	●	●	●
65	07.347 WASHER; S/ABS SHOCK ABSORBER GAS FILLED(FG3) (A) ID=10.5 OD=48	8-94317-639-0	02	1	9611-	●	●	●	●	●	●	●	●
65	07.347 WASHER; S/ABS SHOCK ABSORBER GAS FILLED(FG3) 07.245 (B) ID=10.5 OD=38	9-51631-062-0	02	1	9611-	●	●	●	●	●	●	●	●
65	07.347 WASHER; S/ABS EXC. SHOCK ABSORBER GAS FILLED(FG3) 07.245 ID=10.5 OD=38	9-51631-062-0	04	1	9611-	●	●	●	●	●	●	●	●
76	07.347 WASHER; LK,S/ABS TO LWR LINK 04.634 ID=12.2	9-09150-512-0	02	1	9611-	●	●	●	●	●	●	●	●
103	07.347 NUT; S/ABS TO LWR LINK M12	9-99111-512-0	02	1	9611-	●	●	●	●	●	●	●	●
104	07.170 RUBBER; BUMPER,STRUT	8-94433-673-0	02	1	9611-9711	●	●	●	●
104	07.170 RUBBER; BUMPER,STRUT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94433-673-0	02	1	9712-	●	●	●	●
104	07.170 RUBBER; BUMPER,STRUT	8-94173-375-0	01	1	9611-9711					●	●	●	●
104	07.170 RUBBER; BUMPER,STRUT 6VD1 ENG(RLV)	8-94173-375-0	01	1	9712-				●
104	07.170 RUBBER; BUMPER,STRUT	8-94173-375-0	01	1	9712-					●	●	●	●
104	07.170 RUBBER; BUMPER,STRUT	8-94173-374-0	01	1	9611-9711					●	●	●	●
104	07.170 RUBBER; BUMPER,STRUT 6VD1 ENG(RLV)	8-94173-374-0	01	1	9712-				●
104	07.170 RUBBER; BUMPER,STRUT	8-94173-374-0	01	1	9712-					●	●	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK 06.168 (A) M10X35	8-94237-412-0	02	1	9611-9711	●	●	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 06.168 (A) M10X35	8-94237-412-0	02	1	9712-	●	●	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK 08.900 (B) M10X65	9-01066-065-0	02	1	9611-9711	●	●	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 08.900 (B) M10X65	9-01066-065-0	02	1	9712-	●	●	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	04	1	9611-9711					●	●	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK 6VD1 ENG(RLV) 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	04	1	9712-				●
105	07.172 BOLT; STRUT BAR TO LWR LINK 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	04	1	9712-					●	●	●	●
109	06.168 TUBE; DIST,STRUT BAR	8-94439-157-0	02	1	9611-9711	●	●	●	●
109	06.168 TUBE; DIST,STRUT BAR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94439-157-0	02	1	9712-	●	●	●	●
112	06.168 BAR; STRUT	8-94473-192-4	01	1	9611-9711	●	●	●	●
112	06.168 BAR; STRUT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94473-192-4	01	1	9712-	●	●	●	●
112	06.168 BAR; STRUT	8-94473-191-4	01	1	9611-9711	●	●	●	●
112	06.168 BAR; STRUT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94473-191-4	01	1	9712-	●	●	●	●
127	06.515 WASHER; LK,STRUT BAR TO LWR LINK 00.002 ID=10.2	9-09150-610-0	02	1	9611-9711	●	●	●	●
127	06.515 WASHER; LK,STRUT BAR TO LWR LINK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 00.002 ID=10.2	9-09150-610-0	02	1	9712-	●	●	●	●
128	06.164 WASHER; PL,STRUT 04.085 ID=10.5 OD=26	9-09164-710-0	02	1	9611-9711	●	●	●	●
128	06.164 WASHER; PL,STRUT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 04.085 ID=10.5 OD=26	9-09164-710-0	02	1	9712-	●	●	●	●
129	06.168 WASHER; LK,STRUT BAR 05.002 ID=16.2	9-09150-616-0	02	1	9611-9711	●	●	●	●
129	06.168 WASHER; LK,STRUT BAR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 05.002 ID=16.2	9-09150-616-0	02	1	9712-	●	●	●	●
130	07.172 NUT; STRUT BAR TO LWR LINK 06.168 M10 FLANGE	8-94242-425-0	02	1	9611-9711	●	●	●	●
130	07.172 NUT; STRUT BAR TO LWR LINK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 06.168 M10 FLANGE	8-94242-425-0	02	1	9712-	●	●	●	●
131	07.170 RUBBER; CUSHION,STRUT BAR	8-94433-672-0	04	1	9611-9711	●	●	●	●
131	07.170 RUBBER; CUSHION,STRUT BAR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94433-672-0	04	1	9712-	●	●	●	●
133	07.172 NUT; STRUT BAR 08.915 M16	9-99110-516-0	04	1	9611-9711	●	●	●	●
133	07.172 NUT; STRUT BAR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 08.915 M16	9-99110-516-0	04	1	9712-	●	●	●	●
134	07.172 WASHER; STRUT BAR	8-94439-158-1	04	1	9611-9711	●	●	●	●
134	07.172 WASHER; STRUT BAR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94439-158-1	04	1	9712-	●	●	●	●
137	07.242 BRACKET; STAB BAR TO FRAME	8-94143-209-0	02	1	9611-9711	●	●	●	●
137	07.242 BRACKET; STAB BAR TO FRAME 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94143-209-0	02	1	9712-	●	●	●	●

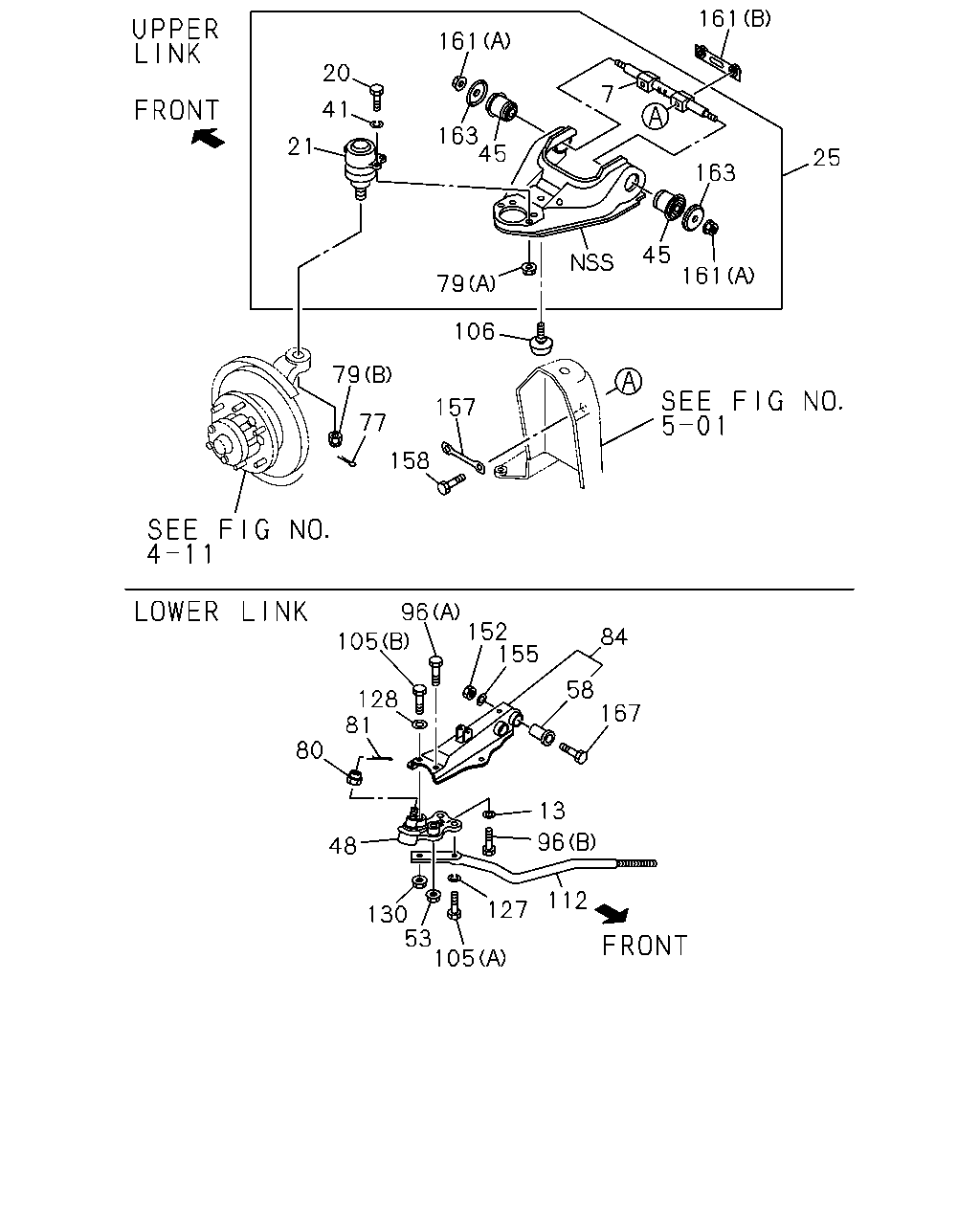

161 161 20 7 41 163 45 21 25 163 45 161 79 106 79 157 77 158 96 152 105 155 84 58 167 128 81 80 13 96 48 127 130 53 105 112

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
7	06.174 PIN; FULCRUM,UPR LINK	8-94173-352-2	02	1	9611-	●	●	●	●	●	●	●	●
13	06.174 WASHER; LK,LWR LINK 00.002 ID=10.2	9-09150-610-0	02	1	9611-9711	●	●	●	●
13	06.174 WASHER; LK,LWR LINK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 00.002 ID=10.2	9-09150-610-0	02	1	9712-	●	●	●	●
20	06.174 BOLT; UPR LINK END TO UPR LINK	8-94478-727-0	08	1	9611-	●	●	●	●	●	●	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM	8-94459-453-4	02	1	9611-	●	●	●	●	●	●	●	●
25	06.168 ARM; UPR CONT KD PREPARATORY PACK<6HF>	8-94322-752-3	01	1	9611-9711	●	●	●	●
25	06.168 ARM; UPR CONT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) KD PREPARATORY PACK<6HF>	8-94322-752-3	01	1	9712-	●	●	●	●
25	06.168 ARM; UPR CONT KD PREPARATORY PACK<6HF>	8-94322-751-3	01	1	9611-9711	●	●	●	●
25	06.168 ARM; UPR CONT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) KD PREPARATORY PACK<6HF>	8-94322-751-3	01	1	9712-	●	●	●	●
25	06.168 ARM; UPR CONT EXC. KD PREPARATORY PACK<6HF>	8-94445-551-2	01	1	9611-9711	●	●	●	●
25	06.168 ARM; UPR CONT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. KD PREPARATORY PACK<6HF>	8-94445-551-2	01	1	9712-	●	●	●	●
25	06.168 ARM; UPR CONT EXC. KD PREPARATORY PACK<6HF>	8-94445-550-2	01	1	9611-9711	●	●	●	●
25	06.168 ARM; UPR CONT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. KD PREPARATORY PACK<6HF>	8-94445-550-2	01	1	9712-	●	●	●	●
25	06.168 ARM; UPR CONT 6VD1 ENG(RLV) EXC. KD PREPARATORY PACK<6HF>	8-97073-727-2	01	1	9712-				●				●
25	06.168 ARM; UPR CONT 6VD1 ENG(RLV) EXC. KD PREPARATORY PACK<6HF>	8-97073-726-2	01	1	9712-				●				●
25	06.168 ARM; UPR CONT KD PREPARATORY PACK<6HF>	8-94322-754-3	01	1	9611-9711					●	●	●	●
25	06.168 ARM; UPR CONT 6VD1 ENG(RLV) KD PREPARATORY PACK<6HF>	8-94322-754-3	01	1	9712-				●
25	06.168 ARM; UPR CONT KD PREPARATORY PACK<6HF>	8-94322-754-3	01	1	9712-					●	●	●	●
25	06.168 ARM; UPR CONT KD PREPARATORY PACK<6HF>	8-94322-753-3	01	1	9611-9711					●	●	●	●
25	06.168 ARM; UPR CONT 6VD1 ENG(RLV) KD PREPARATORY PACK<6HF>	8-94322-753-3	01	1	9712-				●
25	06.168 ARM; UPR CONT KD PREPARATORY PACK<6HF>	8-94322-753-3	01	1	9712-					●	●	●	●
25	06.168 ARM; UPR CONT EXC. KD PREPARATORY PACK<6HF>	8-94323-563-2	01	1	9611-9711					●	●	●	●
25	06.168 ARM; UPR CONT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. KD PREPARATORY PACK<6HF>	8-94323-563-2	01	1	9712-					●	●	●	●
25	06.168 ARM; UPR CONT EXC. KD PREPARATORY PACK<6HF>	8-94323-562-2	01	1	9611-9711					●	●	●	●
25	06.168 ARM; UPR CONT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. KD PREPARATORY PACK<6HF>	8-94323-562-2	01	1	9712-					●	●	●	●
41	06.174 WASHER; LK,UPR LINK END TO UPR L 04.046 ID=8.2	9-09150-808-0	08	1	9611-	●	●	●	●	●	●	●	●
45	06.164 BUSHING; UPR LINK,FRT	8-94408-840-3	04	1	9611-	●	●	●	●	●	●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM	8-94459-464-3	02	1	9611-9711	●	●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94459-464-3	02	1	9712-	●	●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM	8-94459-465-2	02	1	9611-9711					●	●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM 6VD1 ENG(RLV)	8-94459-465-2	02	1	9712-				●
48	06.174 JOINT ASM; BALL,LWR CONT ARM	8-94459-465-2	02	1	9712-					●	●	●	●
53	06.174 NUT; LWR LINK 06.168 M10 FLANGE	8-94242-425-0	02	1	9611-9711	●	●	●	●
53	06.174 NUT; LWR LINK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 06.168 M10 FLANGE	8-94242-425-0	02	1	9712-	●	●	●	●
53	06.174 NUT; LWR LINK 07.243 M12 FLANGE	0-91150-212-0	08	1	9611-9711					●	●	●	●
53	06.174 NUT; LWR LINK 6VD1 ENG(RLV) 07.243 M12 FLANGE	0-91150-212-0	08	1	9712-				●
53	06.174 NUT; LWR LINK 07.243 M12 FLANGE	0-91150-212-0	08	1	9712-					●	●	●	●
58	06.170 BUSHING; LWR LINK ID=16	8-94316-903-0	02	1	9611-9711	●	●	●	●
58	06.170 BUSHING; LWR LINK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) ID=16	8-94316-903-0	02	1	9712-	●	●	●	●
58	06.170 BUSHING; LWR LINK (A) ID=16 L=55.6	8-94408-841-1	02	1	9611-9711					●	●	●	●
58	06.170 BUSHING; LWR LINK 6VD1 ENG(RLV) (A) ID=16 L=55.6	8-94408-841-1	02	1	9712-				●
58	06.170 BUSHING; LWR LINK (A) ID=16 L=55.6	8-94408-841-1	02	1	9712-					●	●	●	●
58	06.170 BUSHING; LWR LINK (B) ID=18.2 OD=44.1 L=85.2	8-97018-166-1	02	1	9611-9711					●	●	●	●
58	06.170 BUSHING; LWR LINK 6VD1 ENG(RLV) (B) ID=18.2 OD=44.1 L=85.2	8-97018-166-1	02	1	9712-				●
58	06.170 BUSHING; LWR LINK (B) ID=18.2 OD=44.1 L=85.2	8-97018-166-1	02	1	9712-					●	●	●	●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE 08.938 OD=2.8 L=28	9-08113-028-0	02	1	9611-	●	●	●	●	●	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 06.164 (A) M8 FLANGE	5-09440-010-0	08	1	9611-	●	●	●	●	●	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 06.164 (B) M14 SLOTTED	8-94124-556-0	02	1	9611-	●	●	●	●	●	●	●	●
80	06.174 NUT; LWR LINK END TO KNUCKLE M18 SLOTTED	9-99116-418-0	02	1	9611-	●	●	●	●	●	●	●	●
81	06.174 PIN; SPLIT,LWR LINK TO KNUCKLE 09.023 OD=3.7 L=30	9-08114-030-0	02	1	9611-	●	●	●	●	●	●	●	●
84	06.168 ARM; LWR CONT	8-94459-461-2	01	1	9611-9711	●	●	●	●
84	06.168 ARM; LWR CONT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94459-461-2	01	1	9712-	●	●	●	●
84	06.168 ARM; LWR CONT	8-94459-460-2	01	1	9611-9711	●	●	●	●
84	06.168 ARM; LWR CONT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94459-460-2	01	1	9712-	●	●	●	●
84	06.168 ARM; LWR CONT	8-94367-913-0	01	1	9611-9711					●	●	●	●
84	06.168 ARM; LWR CONT 6VD1 ENG(RLV)	8-94367-913-0	01	1	9712-				●
84	06.168 ARM; LWR CONT	8-94367-913-0	01	1	9712-					●	●	●	●
84	06.168 ARM; LWR CONT	8-94367-912-0	01	1	9611-9711					●	●	●	●
84	06.168 ARM; LWR CONT 6VD1 ENG(RLV)	8-94367-912-0	01	1	9712-				●
84	06.168 ARM; LWR CONT	8-94367-912-0	01	1	9712-					●	●	●	●
96	06.174 BOLT; LWR LINK 08.900 (A) M10X50	9-01066-050-0	02	1	9611-9711	●	●	●	●
96	06.174 BOLT; LWR LINK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 08.900 (A) M10X50	9-01066-050-0	02	1	9712-	●	●	●	●
96	06.174 BOLT; LWR LINK 00.002 (B) M10X20	9-02061-020-0	02	1	9611-9711	●	●	●	●
96	06.174 BOLT; LWR LINK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 00.002 (B) M10X20	9-02061-020-0	02	1	9712-	●	●	●	●
96	06.174 BOLT; LWR LINK 08.900 M12X35	9-92061-235-0	08	1	9611-9711					●	●	●	●
96	06.174 BOLT; LWR LINK 6VD1 ENG(RLV) 08.900 M12X35	9-92061-235-0	08	1	9712-				●
96	06.174 BOLT; LWR LINK 08.900 M12X35	9-92061-235-0	08	1	9712-					●	●	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK 06.168 (A) M10X35	8-94237-412-0	02	1	9611-9711	●	●	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 06.168 (A) M10X35	8-94237-412-0	02	1	9712-	●	●	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK 08.900 (B) M10X65	9-01066-065-0	02	1	9611-9711	●	●	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 08.900 (B) M10X65	9-01066-065-0	02	1	9712-	●	●	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	04	1	9611-9711					●	●	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK 6VD1 ENG(RLV) 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	04	1	9712-				●
105	07.172 BOLT; STRUT BAR TO LWR LINK 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	04	1	9712-					●	●	●	●
106	07.170 RUBBER; REBOUND,STRUT	8-94259-086-0	02	1	9611-9711	●	●	●	●
106	07.170 RUBBER; REBOUND,STRUT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94259-086-0	02	1	9712-	●	●	●	●
106	07.170 RUBBER; REBOUND,STRUT	8-94173-376-0	02	1	9611-9711					●	●	●	●
106	07.170 RUBBER; REBOUND,STRUT 6VD1 ENG(RLV)	8-94173-376-0	02	1	9712-				●
106	07.170 RUBBER; REBOUND,STRUT	8-94173-376-0	02	1	9712-					●	●	●	●
112	06.168 BAR; STRUT	8-94473-192-4	01	1	9611-9711	●	●	●	●
112	06.168 BAR; STRUT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94473-192-4	01	1	9712-	●	●	●	●
112	06.168 BAR; STRUT	8-94473-191-4	01	1	9611-9711	●	●	●	●
112	06.168 BAR; STRUT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94473-191-4	01	1	9712-	●	●	●	●
127	06.515 WASHER; LK,STRUT BAR TO LWR LINK 00.002 ID=10.2	9-09150-610-0	02	1	9611-9711	●	●	●	●
127	06.515 WASHER; LK,STRUT BAR TO LWR LINK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 00.002 ID=10.2	9-09150-610-0	02	1	9712-	●	●	●	●
128	06.164 WASHER; PL,STRUT 04.085 ID=10.5 OD=26	9-09164-710-0	02	1	9611-9711	●	●	●	●
128	06.164 WASHER; PL,STRUT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 04.085 ID=10.5 OD=26	9-09164-710-0	02	1	9712-	●	●	●	●
130	07.172 NUT; STRUT BAR TO LWR LINK 06.168 M10 FLANGE	8-94242-425-0	02	1	9611-9711	●	●	●	●
130	07.172 NUT; STRUT BAR TO LWR LINK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 06.168 M10 FLANGE	8-94242-425-0	02	1	9712-	●	●	●	●
152	06.172 NUT; LWR LINK TO FRT C/MBR 07.529 M14	9-99110-514-0	02	1	9611-9711	●	●	●	●
152	06.172 NUT; LWR LINK TO FRT C/MBR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 07.529 M14	9-99110-514-0	02	1	9712-	●	●	●	●
152	06.172 NUT; LWR LINK TO FRT C/MBR (A) M16	8-94478-728-0	02	1	9611-9711					●	●	●	●
152	06.172 NUT; LWR LINK TO FRT C/MBR 6VD1 ENG(RLV) (A) M16	8-94478-728-0	02	1	9712-				●
152	06.172 NUT; LWR LINK TO FRT C/MBR (A) M16	8-94478-728-0	02	1	9712-					●	●	●	●
152	06.172 NUT; LWR LINK TO FRT C/MBR (B) M18	8-94478-729-0	02	1	9611-9711					●	●	●	●
152	06.172 NUT; LWR LINK TO FRT C/MBR 6VD1 ENG(RLV) (B) M18	8-94478-729-0	02	1	9712-				●
152	06.172 NUT; LWR LINK TO FRT C/MBR (B) M18	8-94478-729-0	02	1	9712-					●	●	●	●
155	06.897 WASHER; LK,UPR LINK TO FRT C/MBR 00.796 ID=14.2	9-09150-514-0	02	1	9611-9711	●	●	●	●
155	06.897 WASHER; LK,UPR LINK TO FRT C/MBR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 00.796 ID=14.2	9-09150-514-0	02	1	9712-	●	●	●	●
157	06.176 PLATE; UPR LINK TO FRAME	8-94407-719-1	02	1	9611-	●	●	●	●	●	●	●	●
158	06.178 BOLT; UPR LINK TO FRAME M14X65	8-94478-730-0	04	1	9611-	●	●	●	●	●	●	●	●
161	06.178 NUT ASM; UPR LINK TO FRAME 07.417 (A) M14 FLANGE	8-94137-483-0	04	1	9611-	●	●	●	●	●	●	●	●
161	06.178 NUT ASM; UPR LINK TO FRAME (B) M14	8-94478-731-0	02	1	9611-	●	●	●	●	●	●	●	●
163	06.163 PLATE; FULCRUM PIN,UPR LINK	8-94407-707-0	04	1	9611-	●	●	●	●	●	●	●	●
167	06.178 BOLT; LWR LINK TO FRT C/MBR M14X90	0-10806-490-0	02	1	9611-9711	●	●	●	●
167	06.178 BOLT; LWR LINK TO FRT C/MBR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) M14X90	0-10806-490-0	02	1	9712-	●	●	●	●

161 161 45 20 21 163 25 45 163 161 136 79 136 143 136 149 149 157 158 143 152 58 156 151 152 393 58 96 84 54 48 148 88 53 149 80 81 7 41 79 77 106 100 100 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
7	06.174 PIN; FULCRUM,UPR LINK	8-94173-352-2	02	1	9611-	●	●	●	●	●	●	●	●
20	06.174 BOLT; UPR LINK END TO UPR LINK	8-94478-727-0	08	1	9611-	●	●	●	●	●	●	●	●
21	06.168 JOINT ASM; BALL,UPR CONT ARM	8-94459-453-4	02	1	9611-	●	●	●	●	●	●	●	●
25	06.168 ARM; UPR CONT KD PREPARATORY PACK<6HF>	8-94322-752-3	01	1	9611-9711	●	●	●	●
25	06.168 ARM; UPR CONT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) KD PREPARATORY PACK<6HF>	8-94322-752-3	01	1	9712-	●	●	●	●
25	06.168 ARM; UPR CONT KD PREPARATORY PACK<6HF>	8-94322-751-3	01	1	9611-9711	●	●	●	●
25	06.168 ARM; UPR CONT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) KD PREPARATORY PACK<6HF>	8-94322-751-3	01	1	9712-	●	●	●	●
25	06.168 ARM; UPR CONT EXC. KD PREPARATORY PACK<6HF>	8-94445-551-2	01	1	9611-9711	●	●	●	●
25	06.168 ARM; UPR CONT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. KD PREPARATORY PACK<6HF>	8-94445-551-2	01	1	9712-	●	●	●	●
25	06.168 ARM; UPR CONT EXC. KD PREPARATORY PACK<6HF>	8-94445-550-2	01	1	9611-9711	●	●	●	●
25	06.168 ARM; UPR CONT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. KD PREPARATORY PACK<6HF>	8-94445-550-2	01	1	9712-	●	●	●	●
25	06.168 ARM; UPR CONT 6VD1 ENG(RLV) EXC. KD PREPARATORY PACK<6HF>	8-97073-727-2	01	1	9712-				●				●
25	06.168 ARM; UPR CONT 6VD1 ENG(RLV) EXC. KD PREPARATORY PACK<6HF>	8-97073-726-2	01	1	9712-				●				●
25	06.168 ARM; UPR CONT KD PREPARATORY PACK<6HF>	8-94322-754-3	01	1	9611-9711					●	●	●	●
25	06.168 ARM; UPR CONT 6VD1 ENG(RLV) KD PREPARATORY PACK<6HF>	8-94322-754-3	01	1	9712-				●
25	06.168 ARM; UPR CONT KD PREPARATORY PACK<6HF>	8-94322-754-3	01	1	9712-					●	●	●	●
25	06.168 ARM; UPR CONT KD PREPARATORY PACK<6HF>	8-94322-753-3	01	1	9611-9711					●	●	●	●
25	06.168 ARM; UPR CONT 6VD1 ENG(RLV) KD PREPARATORY PACK<6HF>	8-94322-753-3	01	1	9712-				●
25	06.168 ARM; UPR CONT KD PREPARATORY PACK<6HF>	8-94322-753-3	01	1	9712-					●	●	●	●
25	06.168 ARM; UPR CONT EXC. KD PREPARATORY PACK<6HF>	8-94323-563-2	01	1	9611-9711					●	●	●	●
25	06.168 ARM; UPR CONT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. KD PREPARATORY PACK<6HF>	8-94323-563-2	01	1	9712-					●	●	●	●
25	06.168 ARM; UPR CONT EXC. KD PREPARATORY PACK<6HF>	8-94323-562-2	01	1	9611-9711					●	●	●	●
25	06.168 ARM; UPR CONT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. KD PREPARATORY PACK<6HF>	8-94323-562-2	01	1	9712-					●	●	●	●
41	06.174 WASHER; LK,UPR LINK END TO UPR L 04.046 ID=8.2	9-09150-808-0	08	1	9611-	●	●	●	●	●	●	●	●
45	06.164 BUSHING; UPR LINK,FRT	8-94408-840-3	04	1	9611-	●	●	●	●	●	●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM	8-94459-464-3	02	1	9611-9711	●	●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94459-464-3	02	1	9712-	●	●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM	8-94459-465-2	02	1	9611-9711					●	●	●	●
48	06.174 JOINT ASM; BALL,LWR CONT ARM 6VD1 ENG(RLV)	8-94459-465-2	02	1	9712-				●
48	06.174 JOINT ASM; BALL,LWR CONT ARM	8-94459-465-2	02	1	9712-					●	●	●	●
53	06.174 NUT; LWR LINK 06.168 M10 FLANGE	8-94242-425-0	02	1	9611-9711	●	●	●	●
53	06.174 NUT; LWR LINK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 06.168 M10 FLANGE	8-94242-425-0	02	1	9712-	●	●	●	●
53	06.174 NUT; LWR LINK 07.243 M12 FLANGE	0-91150-212-0	08	1	9611-9711					●	●	●	●
53	06.174 NUT; LWR LINK 6VD1 ENG(RLV) 07.243 M12 FLANGE	0-91150-212-0	08	1	9712-				●
53	06.174 NUT; LWR LINK 07.243 M12 FLANGE	0-91150-212-0	08	1	9712-					●	●	●	●
54	06.174 PIN; FULCRUM,LWR LINK	8-94437-212-1	02	1	9611-9711					●	●	●	●
54	06.174 PIN; FULCRUM,LWR LINK 6VD1 ENG(RLV)	8-94437-212-1	02	1	9712-				●
54	06.174 PIN; FULCRUM,LWR LINK	8-94437-212-1	02	1	9712-					●	●	●	●
58	06.170 BUSHING; LWR LINK ID=16	8-94316-903-0	02	1	9611-9711	●	●	●	●
58	06.170 BUSHING; LWR LINK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) ID=16	8-94316-903-0	02	1	9712-	●	●	●	●
58	06.170 BUSHING; LWR LINK (A) ID=16 L=55.6	8-94408-841-1	02	1	9611-9711					●	●	●	●
58	06.170 BUSHING; LWR LINK 6VD1 ENG(RLV) (A) ID=16 L=55.6	8-94408-841-1	02	1	9712-				●
58	06.170 BUSHING; LWR LINK (A) ID=16 L=55.6	8-94408-841-1	02	1	9712-					●	●	●	●
58	06.170 BUSHING; LWR LINK (B) ID=18.2 OD=44.1 L=85.2	8-97018-166-1	02	1	9611-9711					●	●	●	●
58	06.170 BUSHING; LWR LINK 6VD1 ENG(RLV) (B) ID=18.2 OD=44.1 L=85.2	8-97018-166-1	02	1	9712-				●
58	06.170 BUSHING; LWR LINK (B) ID=18.2 OD=44.1 L=85.2	8-97018-166-1	02	1	9712-					●	●	●	●
77	06.174 PIN; SPLIT,LINK END TO KNUCKLE 08.938 OD=2.8 L=28	9-08113-028-0	02	1	9611-	●	●	●	●	●	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 06.164 (A) M8 FLANGE	5-09440-010-0	08	1	9611-	●	●	●	●	●	●	●	●
79	06.174 NUT; UPR LINK END TO KNUCKLE 06.164 (B) M14 SLOTTED	8-94124-556-0	02	1	9611-	●	●	●	●	●	●	●	●
80	06.174 NUT; LWR LINK END TO KNUCKLE M18 SLOTTED	9-99116-418-0	02	1	9611-	●	●	●	●	●	●	●	●
81	06.174 PIN; SPLIT,LWR LINK TO KNUCKLE 09.023 OD=3.7 L=30	9-08114-030-0	02	1	9611-	●	●	●	●	●	●	●	●
84	06.168 ARM; LWR CONT	8-94459-461-2	01	1	9611-9711	●	●	●	●
84	06.168 ARM; LWR CONT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94459-461-2	01	1	9712-	●	●	●	●
84	06.168 ARM; LWR CONT	8-94459-460-2	01	1	9611-9711	●	●	●	●
84	06.168 ARM; LWR CONT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94459-460-2	01	1	9712-	●	●	●	●
84	06.168 ARM; LWR CONT	8-94367-913-0	01	1	9611-9711					●	●	●	●
84	06.168 ARM; LWR CONT 6VD1 ENG(RLV)	8-94367-913-0	01	1	9712-				●
84	06.168 ARM; LWR CONT	8-94367-913-0	01	1	9712-					●	●	●	●
84	06.168 ARM; LWR CONT	8-94367-912-0	01	1	9611-9711					●	●	●	●
84	06.168 ARM; LWR CONT 6VD1 ENG(RLV)	8-94367-912-0	01	1	9712-				●
84	06.168 ARM; LWR CONT	8-94367-912-0	01	1	9712-					●	●	●	●
88	06.174 NUT; LWR LINK 07.243 M12 FLANGE	0-91150-212-0	04	1	9611-9711					●	●	●	●
88	06.174 NUT; LWR LINK 6VD1 ENG(RLV) 07.243 M12 FLANGE	0-91150-212-0	04	1	9712-				●
88	06.174 NUT; LWR LINK 07.243 M12 FLANGE	0-91150-212-0	04	1	9712-					●	●	●	●
96	06.174 BOLT; LWR LINK 08.900 (A) M10X50	9-01066-050-0	02	1	9611-9711	●	●	●	●
96	06.174 BOLT; LWR LINK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 08.900 (A) M10X50	9-01066-050-0	02	1	9712-	●	●	●	●
96	06.174 BOLT; LWR LINK 00.002 (B) M10X20	9-02061-020-0	02	1	9611-9711	●	●	●	●
96	06.174 BOLT; LWR LINK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 00.002 (B) M10X20	9-02061-020-0	02	1	9712-	●	●	●	●
96	06.174 BOLT; LWR LINK 08.900 M12X35	9-92061-235-0	08	1	9611-9711					●	●	●	●
96	06.174 BOLT; LWR LINK 6VD1 ENG(RLV) 08.900 M12X35	9-92061-235-0	08	1	9712-				●
96	06.174 BOLT; LWR LINK 08.900 M12X35	9-92061-235-0	08	1	9712-					●	●	●	●
100	06.164 SHIM; UPR LINK TO FRAME (A) T=0.40	8-94227-053-1	AR	1	9611-9711					●	●	●	●
100	06.164 SHIM; UPR LINK TO FRAME 6VD1 ENG(RLV) (A) T=0.40	8-94227-053-1	AR	1	9712-				●
100	06.164 SHIM; UPR LINK TO FRAME (A) T=0.40	8-94227-053-1	AR	1	9712-					●	●	●	●
100	06.164 SHIM; UPR LINK TO FRAME (A) T=1.60	8-94227-054-2	AR	1	9611-9711					●	●	●	●
100	06.164 SHIM; UPR LINK TO FRAME 6VD1 ENG(RLV) (A) T=1.60	8-94227-054-2	AR	1	9712-				●
100	06.164 SHIM; UPR LINK TO FRAME (A) T=1.60	8-94227-054-2	AR	1	9712-					●	●	●	●
100	06.164 SHIM; UPR LINK TO FRAME (A) T=3.20	8-94241-885-3	AR	1	9611-9711					●	●	●	●
100	06.164 SHIM; UPR LINK TO FRAME 6VD1 ENG(RLV) (A) T=3.20	8-94241-885-3	AR	1	9712-				●
100	06.164 SHIM; UPR LINK TO FRAME (A) T=3.20	8-94241-885-3	AR	1	9712-					●	●	●	●
100	06.164 SHIM; UPR LINK TO FRAME (B) T=1.60	8-94408-859-2	AR	1	9611-9711					●	●	●	●
100	06.164 SHIM; UPR LINK TO FRAME 6VD1 ENG(RLV) (B) T=1.60	8-94408-859-2	AR	1	9712-				●
100	06.164 SHIM; UPR LINK TO FRAME (B) T=1.60	8-94408-859-2	AR	1	9712-					●	●	●	●
100	06.164 SHIM; UPR LINK TO FRAME (B) T=3.20	8-94408-860-2	AR	1	9611-9711					●	●	●	●
100	06.164 SHIM; UPR LINK TO FRAME 6VD1 ENG(RLV) (B) T=3.20	8-94408-860-2	AR	1	9712-				●
100	06.164 SHIM; UPR LINK TO FRAME (B) T=3.20	8-94408-860-2	AR	1	9712-					●	●	●	●
106	07.170 RUBBER; REBOUND,STRUT	8-94259-086-0	02	1	9611-9711	●	●	●	●
106	07.170 RUBBER; REBOUND,STRUT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94259-086-0	02	1	9712-	●	●	●	●
106	07.170 RUBBER; REBOUND,STRUT	8-94173-376-0	02	1	9611-9711					●	●	●	●
106	07.170 RUBBER; REBOUND,STRUT 6VD1 ENG(RLV)	8-94173-376-0	02	1	9712-				●
106	07.170 RUBBER; REBOUND,STRUT	8-94173-376-0	02	1	9712-					●	●	●	●
136	04.686 BRACKET; FLEX HOSE,FRT BRAKE 6VD1 ENG(RLV)	8-97072-703-1	01	1	9712-				●				●
136	04.686 BRACKET; FLEX HOSE,FRT BRAKE 6VD1 ENG(RLV)	8-97072-702-1	01	1	9712-				●				●
136	04.686 BRACKET; FLEX HOSE,FRT BRAKE EXC. KD PREPARATORY PACK<6HF> (B)	8-94455-514-1	01	1	9611-					●	●
136	04.686 BRACKET; FLEX HOSE,FRT BRAKE EXC. KD PREPARATORY PACK<6HF> (B)	8-94455-513-1	01	1	9611-					●	●
136	04.686 BRACKET; FLEX HOSE,FRT BRAKE (A)	8-94455-514-1	01	1	9611-9711					●	●	●	●
136	04.686 BRACKET; FLEX HOSE,FRT BRAKE 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A)	8-94455-514-1	01	1	9712-					●	●	●	●
136	04.686 BRACKET; FLEX HOSE,FRT BRAKE (A)	8-94455-513-1	01	1	9611-9711					●	●	●	●
136	04.686 BRACKET; FLEX HOSE,FRT BRAKE 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) (A)	8-94455-513-1	01	1	9712-					●	●	●	●
143	04.686 BOLT; BRKT,FLEX HOSE,FRT BRAKE EXC. KD PREPARATORY PACK<6HF> 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	9611-9705					●	●	●	●
143	04.686 BOLT; BRKT,FLEX HOSE,FRT BRAKE 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	9706-9711					●	●	●	●
143	04.686 BOLT; BRKT,FLEX HOSE,FRT BRAKE 6VD1 ENG(RLV) 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	9712-				●
143	04.686 BOLT; BRKT,FLEX HOSE,FRT BRAKE 4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 04.785 M8X18 W/LK WASHER	0-50040-818-0	02	1	9712-					●	●	●	●
148	06.170 ARM; LWR LINK	8-94435-413-0	02	1	9611-9711					●	●	●	●
148	06.170 ARM; LWR LINK 6VD1 ENG(RLV)	8-94435-413-0	02	1	9712-				●
148	06.170 ARM; LWR LINK	8-94435-413-0	02	1	9712-					●	●	●	●
149	06.172 BOLT; ARM TO LWR CONT ARM (A) M12X37 FLANGE	8-94382-104-1	04	1	9611-9711					●	●	●	●
149	06.172 BOLT; ARM TO LWR CONT ARM 6VD1 ENG(RLV) (A) M12X37 FLANGE	8-94382-104-1	04	1	9712-				●
149	06.172 BOLT; ARM TO LWR CONT ARM (A) M12X37 FLANGE	8-94382-104-1	04	1	9712-					●	●	●	●
149	06.172 BOLT; ARM TO LWR CONT ARM KD PREPARATORY PACK<6HF> 04.785 (B) M8X18 W/LK WASHER	0-50040-818-0	02	1	9611-9705					●	●	●	●
151	06.172 WASHER; LK,LWR LINK TO FRT C/MBR 05.002 ID=16.2	9-09150-616-0	02	1	9611-9711					●	●	●	●
151	06.172 WASHER; LK,LWR LINK TO FRT C/MBR 6VD1 ENG(RLV) 05.002 ID=16.2	9-09150-616-0	02	1	9712-				●
151	06.172 WASHER; LK,LWR LINK TO FRT C/MBR 05.002 ID=16.2	9-09150-616-0	02	1	9712-					●	●	●	●
152	06.172 NUT; LWR LINK TO FRT C/MBR 07.529 M14	9-99110-514-0	02	1	9611-9711	●	●	●	●
152	06.172 NUT; LWR LINK TO FRT C/MBR 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 07.529 M14	9-99110-514-0	02	1	9712-	●	●	●	●
152	06.172 NUT; LWR LINK TO FRT C/MBR (A) M16	8-94478-728-0	02	1	9611-9711					●	●	●	●
152	06.172 NUT; LWR LINK TO FRT C/MBR 6VD1 ENG(RLV) (A) M16	8-94478-728-0	02	1	9712-				●
152	06.172 NUT; LWR LINK TO FRT C/MBR (A) M16	8-94478-728-0	02	1	9712-					●	●	●	●
152	06.172 NUT; LWR LINK TO FRT C/MBR (B) M18	8-94478-729-0	02	1	9611-9711					●	●	●	●
152	06.172 NUT; LWR LINK TO FRT C/MBR 6VD1 ENG(RLV) (B) M18	8-94478-729-0	02	1	9712-				●
152	06.172 NUT; LWR LINK TO FRT C/MBR (B) M18	8-94478-729-0	02	1	9712-					●	●	●	●
156	06.172 PIN; FULCRUM,FRT SUSPENSION M16X91	8-94173-359-0	02	1	9611-9711					●	●	●	●
156	06.172 PIN; FULCRUM,FRT SUSPENSION 6VD1 ENG(RLV) M16X91	8-94173-359-0	02	1	9712-				●
156	06.172 PIN; FULCRUM,FRT SUSPENSION M16X91	8-94173-359-0	02	1	9712-					●	●	●	●
157	06.176 PLATE; UPR LINK TO FRAME	8-94407-719-1	02	1	9611-	●	●	●	●	●	●	●	●
158	06.178 BOLT; UPR LINK TO FRAME M14X65	8-94478-730-0	04	1	9611-	●	●	●	●	●	●	●	●
161	06.178 NUT ASM; UPR LINK TO FRAME 07.417 (A) M14 FLANGE	8-94137-483-0	04	1	9611-	●	●	●	●	●	●	●	●
161	06.178 NUT ASM; UPR LINK TO FRAME (B) M14	8-94478-731-0	02	1	9611-	●	●	●	●	●	●	●	●
163	06.163 PLATE; FULCRUM PIN,UPR LINK	8-94407-707-0	04	1	9611-	●	●	●	●	●	●	●	●
393	07.347 WASHER; PL ID=19 OD=36	9-09164-618-0	02	1	9611-9711					●	●	●	●
393	07.347 WASHER; PL 6VD1 ENG(RLV) ID=19 OD=36	9-09164-618-0	02	1	9712-				●
393	07.347 WASHER; PL ID=19 OD=36	9-09164-618-0	02	1	9712-					●	●	●	●

14 65 17 18 62 17 65 104 60 76 103 105 14 65 17 18 62 17 65 60 76 103

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
14	07.389 NUT; S/ABS,UPR TOKICO M10	8-94317-772-0	02	1	9611-	●	●	●	●	●	●	●	●
14	07.389 NUT; S/ABS,UPR EXC. SHOCK ABSORBER GAS FILLED(FG3) 09.011 KAYABA M10	9-09110-410-0	02	1	9611-	●	●	●	●	●	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS TOKICO	9-51631-603-0	04	1	9611-	●	●	●	●	●	●	●	●
17	07.388 BUSHING; RUBBER,S/ABS EXC. SHOCK ABSORBER GAS FILLED(FG3) KYB	9-51631-065-0	04	1	9611-	●	●	●	●	●	●	●	●
18	07.347 WASHER; CENTERING,S/ABS TOKICO	8-94412-791-0	02	1	9611-	●	●	●	●	●	●	●	●
18	07.347 WASHER; CENTERING,S/ABS EXC. SHOCK ABSORBER GAS FILLED(FG3) KYB	8-94467-498-0	02	1	9611-	●	●	●	●	●	●	●	●
60	07.347 BOLT; S/ABS TO LWR LINK M12X50	9-91061-250-0	02	1	9611-	●	●	●	●	●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT SHOCK ABSORBER GAS FILLED(FG3) (A) TOKICO	8-94454-918-2	02	1	9611-9711	●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) SHOCK ABSORBER GAS FILLED(FG3) (A) TOKICO	8-94454-918-2	02	1	9712-	●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. SHOCK ABSORBER GAS FILLED(FG3) (B) TOKICO	8-94446-373-1	02	1	9611-9711	●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. SHOCK ABSORBER GAS FILLED(FG3) (B) TOKICO	8-94446-373-1	02	1	9712-	●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. SHOCK ABSORBER GAS FILLED(FG3) (B) KYB	8-94446-374-1	02	1	9611-9711	●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) EXC. SHOCK ABSORBER GAS FILLED(FG3) (B) KYB	8-94446-374-1	02	1	9712-	●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT 6VD1 ENG(RLV) SHOCK ABSORBER GAS FILLED(FG3) (A) TOKICO	8-97188-326-0	02	1	9712-				●
62	07.345 ABSORBER ASM; SHOCK,FRT SHOCK ABSORBER GAS FILLED(FG3) (A) TOKICO	8-94454-919-2	02	1	9611-9711					●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT 6VD1 ENG(RLV) SHOCK ABSORBER GAS FILLED(FG3) (A) TOKICO	8-97188-418-0	02	1	9712-								●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. SHOCK ABSORBER GAS FILLED(FG3) (B) TOKICO	8-94433-687-2	02	1	9611-9711					●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT 6VD1 ENG(RLV) EXC. SHOCK ABSORBER GAS FILLED(FG3) (B) TOKICO	8-94433-687-2	02	1	9712-				●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. SHOCK ABSORBER GAS FILLED(FG3) (B) TOKICO	8-94433-687-2	02	1	9712-					●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. SHOCK ABSORBER GAS FILLED(FG3) (B) KYB	8-94433-688-1	02	1	9611-9711					●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT 6VD1 ENG(RLV) EXC. SHOCK ABSORBER GAS FILLED(FG3) (B) KYB	8-94433-688-1	02	1	9712-				●
62	07.345 ABSORBER ASM; SHOCK,FRT EXC. SHOCK ABSORBER GAS FILLED(FG3) (B) KYB	8-94433-688-1	02	1	9712-					●	●	●	●
62	07.345 ABSORBER ASM; SHOCK,FRT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) SHOCK ABSORBER GAS FILLED(FG3) (A) TOKICO	8-94454-919-2	02	1	9712-					●	●	●	●
65	07.347 WASHER; S/ABS SHOCK ABSORBER GAS FILLED(FG3) (A) ID=10.5 OD=48	8-94317-639-0	02	1	9611-	●	●	●	●	●	●	●	●
65	07.347 WASHER; S/ABS SHOCK ABSORBER GAS FILLED(FG3) 07.245 (B) ID=10.5 OD=38	9-51631-062-0	02	1	9611-	●	●	●	●	●	●	●	●
65	07.347 WASHER; S/ABS EXC. SHOCK ABSORBER GAS FILLED(FG3) 07.245 ID=10.5 OD=38	9-51631-062-0	04	1	9611-	●	●	●	●	●	●	●	●
76	07.347 WASHER; LK,S/ABS TO LWR LINK 04.634 ID=12.2	9-09150-512-0	02	1	9611-	●	●	●	●	●	●	●	●
103	07.347 NUT; S/ABS TO LWR LINK M12	9-99111-512-0	02	1	9611-	●	●	●	●	●	●	●	●
104	07.170 RUBBER; BUMPER,STRUT	8-94433-673-0	02	1	9611-9711	●	●	●	●
104	07.170 RUBBER; BUMPER,STRUT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ)	8-94433-673-0	02	1	9712-	●	●	●	●
104	07.170 RUBBER; BUMPER,STRUT	8-94173-375-0	01	1	9611-9711					●	●	●	●
104	07.170 RUBBER; BUMPER,STRUT 6VD1 ENG(RLV)	8-94173-375-0	01	1	9712-				●
104	07.170 RUBBER; BUMPER,STRUT	8-94173-375-0	01	1	9712-					●	●	●	●
104	07.170 RUBBER; BUMPER,STRUT	8-94173-374-0	01	1	9611-9711					●	●	●	●
104	07.170 RUBBER; BUMPER,STRUT 6VD1 ENG(RLV)	8-94173-374-0	01	1	9712-				●
104	07.170 RUBBER; BUMPER,STRUT	8-94173-374-0	01	1	9712-					●	●	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK 06.168 (A) M10X35	8-94237-412-0	02	1	9611-9711	●	●	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 06.168 (A) M10X35	8-94237-412-0	02	1	9712-	●	●	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK 08.900 (B) M10X65	9-01066-065-0	02	1	9611-9711	●	●	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) 08.900 (B) M10X65	9-01066-065-0	02	1	9712-	●	●	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	04	1	9611-9711					●	●	●	●
105	07.172 BOLT; STRUT BAR TO LWR LINK 6VD1 ENG(RLV) 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	04	1	9712-				●
105	07.172 BOLT; STRUT BAR TO LWR LINK 01.652 (C) M10X25 W/LK WASHER	0-50041-025-0	04	1	9712-					●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
