Sayfa 4-35 - Isuzu EPC

4-35 — POWER STEERING CONTROL; CHASSIS SIDE (#48401) — 164 parça

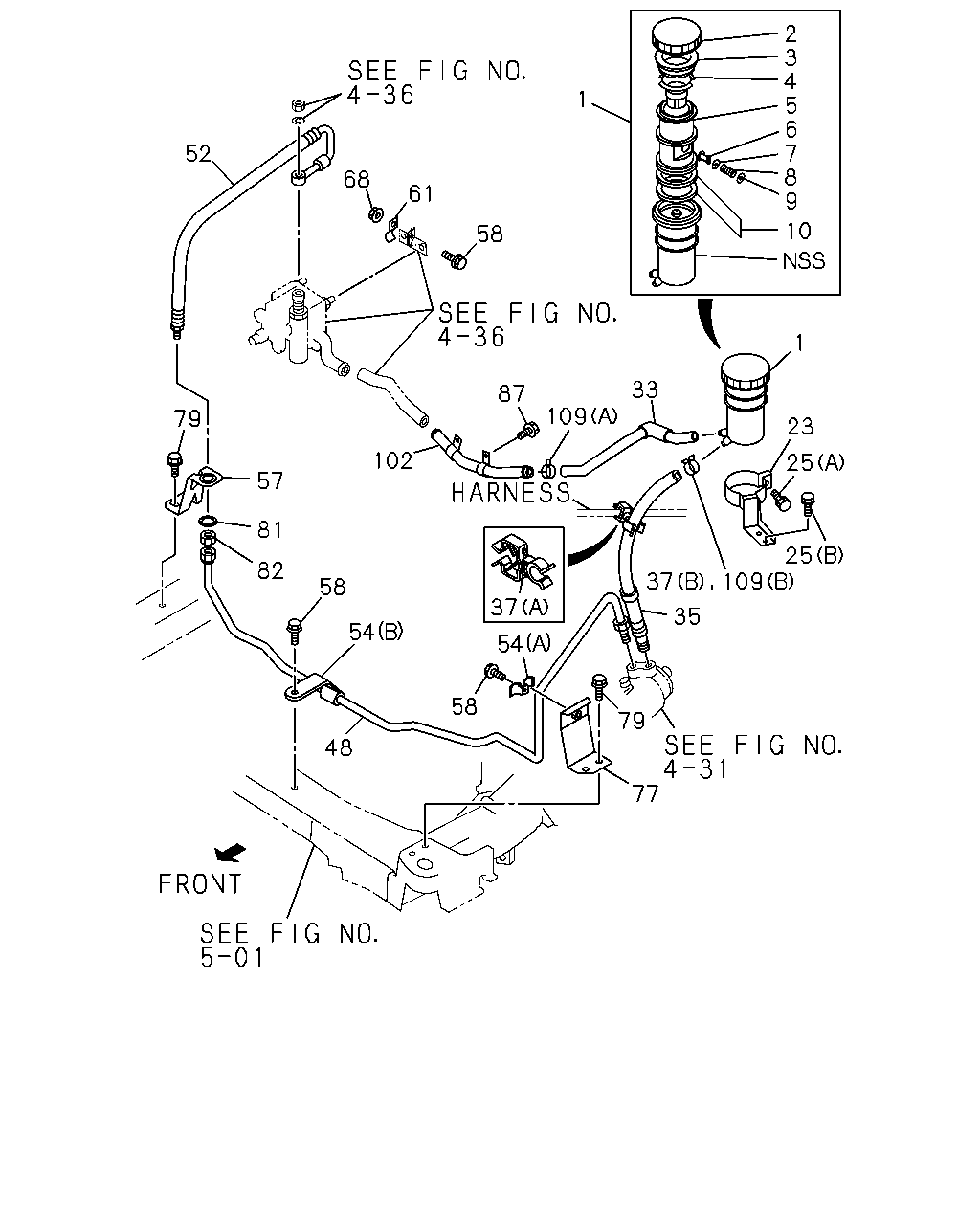

2 3 4 5 6 7 8 10 1 52 68 61 58 1 33 109 87 79 23 102 25 57 81 25 109 82 37 58 37 35 54 54 58 79 48 77 9

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	06.635 TANK ASM; OIL,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94105-282-6	01	1	9611-	●	●	●	●	●	●	●	●
1	06.635 TANK ASM; OIL,P/S 6VD1 ENG(RLV) POWER STEERING<N40>	8-97115-869-1	01	1	9712-				●				●
2	06.672 CAP; OIL TANK,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635	5-21241-001-1	01	1	9611-	●	●	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 6VD1 ENG(RLV) POWER STEERING<N40>	8-94481-841-1	01	1	9712-				●				●
3	06.673 GASKET; OIL TANK,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635	8-94246-510-0	01	1	9611-	●	●	●	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S 6VD1 ENG(RLV) POWER STEERING<N40>	8-94363-359-1	01	1	9712-				●				●
4	06.635 FILTER; OIL TANK,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94204-441-1	01	1	9611-	●	●	●	●	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94405-458-1	01	1	9611-	●	●	●	●	●	●	●	●
6	06.672 HOLDER; GASKET,OIL TANK,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635	5-21219-005-0	01	1	9611-	●	●	●	●	●	●	●	●
7	06.672 RING; GASKET,OIL TANK,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635	5-21219-007-0	01	1	9611-	●	●	●	●	●	●	●	●
8	06.672 SPRING; OIL TANK,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635	5-09580-088-1	01	1	9611-	●	●	●	●	●	●	●	●
9	06.672 COVER; SPR,OIL TANK,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635	5-21219-006-0	01	1	9611-	●	●	●	●	●	●	●	●
10	06.672 SEAL; OIL TANK,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635	8-94405-457-0	02	1	9611-	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-94440-403-1	01	1	9611-9711	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94440-403-1	01	1	9712-	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 6VD1 ENG(RLV) POWER STEERING<N40>	8-97064-085-4	01	1	9712-				●				●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> (A) M6X16 FLANGE	0-28480-616-0	02	1	9611-9711	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> (A) M6X16 FLANGE	0-28480-616-0	02	1	9712-	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 08.155 (B) M8X16 FLANGE	0-28480-816-0	02	1	9611-	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 6VD1 ENG(RLV) POWER STEERING<N40> (A) M6X16 FLANGE	0-28480-616-0	01	1	9712-				●				●
25	06.635 BOLT; OIL TANK BRKT 6VD1 ENG(RLV) POWER STEERING<N40> 08.155 (B) M8X16 FLANGE	0-28480-816-0	01	1	9801-				●				●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.673	8-94473-739-1	01	1	9611-	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.673	8-94434-125-3	01	1	9611-	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 6VD1 ENG(RLV) POWER STEERING<N40>	8-97178-427-1	01	1	9712-				●				●
35	06.671 HOSE; RETURN,P/S TANK 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94329-645-2	01	1	9611-	●	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94147-058-3	01	1	9611-	●	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 6VD1 ENG(RLV) POWER STEERING<N40>	8-97191-251-0	01	1	9712-				●				●
37	01.762 CLIP; HOSE,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 03.162 (A) L=170	5-09707-054-0	01	1	9611-	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.930 (B) ID=16	8-94238-568-0	02	1	9712-9712	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.681 (B) ID=16	8-97173-222-0	02	1	9801-	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.672 (A) D=14.5 /22	8-94317-707-0	01	1	9611-	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ),6VD1 ENG(RLV) POWER STEERING<N40> 03.280 (B) ID=17.1	8-94122-679-0	01	1	9712-	●	●	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-97014-363-0	01	1	9611-	●	●	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 6VD1 ENG(RLV) POWER STEERING<N40>	8-97171-396-0	01	1	9712-				●				●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97165-976-0	01	1	9611-	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-97165-977-0	01	1	9611-	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 6VD1 ENG(RLV) POWER STEERING<N40>	8-97191-252-0	01	1	9712-				●				●
54	06.672 CLIP; OIL PIPE POWER STEERING<N40> 04.342 (A)	8-94222-795-1	01	1	9611-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (B)	8-94451-983-0	01	1	9611-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> (B)	8-94178-110-0	01	1	9611-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 6VD1 ENG(RLV) POWER STEERING<N40> (B)	8-97026-703-0	01	1	9712-				●				●
57	06.672 BRACKET; POWER STRG PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-97124-388-0	01	1	9611-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9611-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9611-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9611-	●	●	●	●	●	●	●	●
61	06.672 CLIP; OIL PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 04.930	9-09716-061-0	01	1	9611-	●	●	●	●	●	●	●	●
68	06.672 NUT; CLIP,OIL PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 04.594 M6 FLANGE	0-91150-106-0	01	1	9611-	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE POWER STEERING<N40>	8-97120-708-0	01	1	9611-9711	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-97120-708-0	01	1	9712-	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 6VD1 ENG(RLV) POWER STEERING<N40>	8-97120-706-0	01	1	9712-				●				●
79	06.672 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9611-9711	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9712-	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	03	1	9611-	●	●	●	●	●	●	●	●
81	06.672 WASHER; LK,FLEX HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> ID=16.5 TOOTH LK INT	9-09151-216-0	01	1	9611-	●	●	●	●	●	●	●	●
82	06.672 NUT; FLEX HOSE,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 04.681 M16	9-99111-416-0	01	1	9611-	●	●	●	●	●	●	●	●
87	06.672 BOLT; POWER STRG PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> M8X16 FLANGE	0-28280-816-0	01	1	9611-	●	●	●	●	●	●	●	●
102	06.671 PIPE; SUCTION,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94146-056-1	01	1	9611-	●	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	9611-9711	●	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	9712-	●	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.930 (B) ID=16	8-94238-568-0	02	1	9611-9711	●	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 04.930 (B) ID=16	8-94238-568-0	01	1	9611-9711	●	●	●	●	●	●	●	●

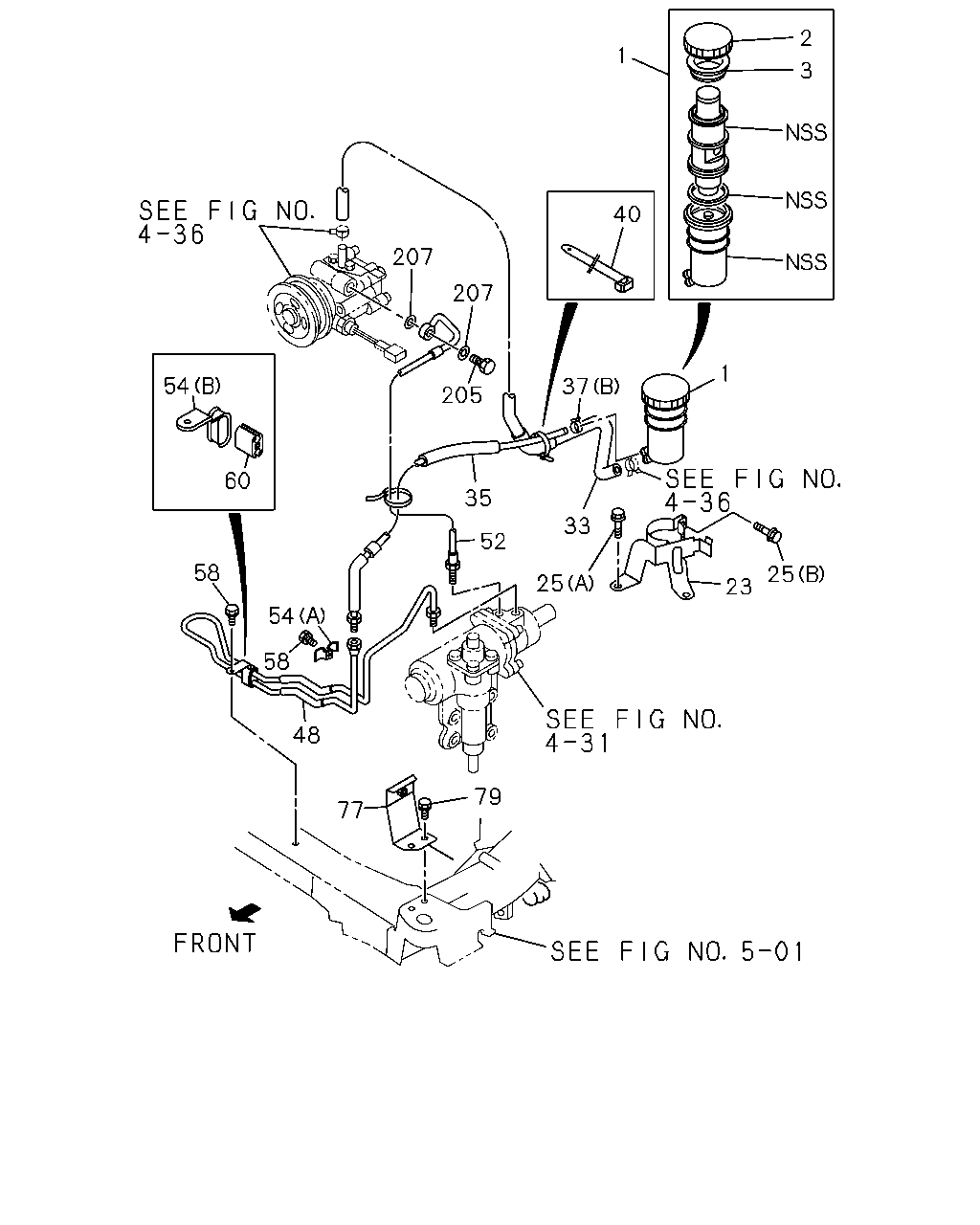

2 3 1 40 207 207 1 54 37 205 60 35 33 52 58 25 23 25 54 58 48 79 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	06.635 TANK ASM; OIL,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94105-282-6	01	1	9611-	●	●	●	●	●	●	●	●
1	06.635 TANK ASM; OIL,P/S 6VD1 ENG(RLV) POWER STEERING<N40>	8-97115-869-1	01	1	9712-				●				●
2	06.672 CAP; OIL TANK,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635	5-21241-001-1	01	1	9611-	●	●	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 6VD1 ENG(RLV) POWER STEERING<N40>	8-94481-841-1	01	1	9712-				●				●
3	06.673 GASKET; OIL TANK,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635	8-94246-510-0	01	1	9611-	●	●	●	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S 6VD1 ENG(RLV) POWER STEERING<N40>	8-94363-359-1	01	1	9712-				●				●
23	06.672 BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-94440-403-1	01	1	9611-9711	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94440-403-1	01	1	9712-	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 6VD1 ENG(RLV) POWER STEERING<N40>	8-97064-085-4	01	1	9712-				●				●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> (A) M6X16 FLANGE	0-28480-616-0	02	1	9611-9711	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> (A) M6X16 FLANGE	0-28480-616-0	02	1	9712-	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 08.155 (B) M8X16 FLANGE	0-28480-816-0	02	1	9611-	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 6VD1 ENG(RLV) POWER STEERING<N40> (A) M6X16 FLANGE	0-28480-616-0	01	1	9712-				●				●
25	06.635 BOLT; OIL TANK BRKT 6VD1 ENG(RLV) POWER STEERING<N40> 08.155 (B) M8X16 FLANGE	0-28480-816-0	01	1	9801-				●				●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.673	8-94473-739-1	01	1	9611-	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.673	8-94434-125-3	01	1	9611-	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 6VD1 ENG(RLV) POWER STEERING<N40>	8-97178-427-1	01	1	9712-				●				●
35	06.671 HOSE; RETURN,P/S TANK 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94329-645-2	01	1	9611-	●	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94147-058-3	01	1	9611-	●	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 6VD1 ENG(RLV) POWER STEERING<N40>	8-97191-251-0	01	1	9712-				●				●
37	01.762 CLIP; HOSE,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 03.162 (A) L=170	5-09707-054-0	01	1	9611-	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.930 (B) ID=16	8-94238-568-0	02	1	9712-9712	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.681 (B) ID=16	8-97173-222-0	02	1	9801-	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.672 (A) D=14.5 /22	8-94317-707-0	01	1	9611-	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ),6VD1 ENG(RLV) POWER STEERING<N40> 03.280 (B) ID=17.1	8-94122-679-0	01	1	9712-	●	●	●	●	●	●	●	●
40	06.672 CLIP; BAND 6VD1 ENG(RLV) POWER STEERING<N40> 16.716 L=129.5	8-94368-493-0	01	1	9712-				●				●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-97014-363-0	01	1	9611-	●	●	●	●	●	●	●	●
48	06.671 PIPE; OIL,FLEX HOSE TO STRG UNIT 6VD1 ENG(RLV) POWER STEERING<N40>	8-97171-396-0	01	1	9712-				●				●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97165-976-0	01	1	9611-	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-97165-977-0	01	1	9611-	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 6VD1 ENG(RLV) POWER STEERING<N40>	8-97191-252-0	01	1	9712-				●				●
54	06.672 CLIP; OIL PIPE POWER STEERING<N40> 04.342 (A)	8-94222-795-1	01	1	9611-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (B)	8-94451-983-0	01	1	9611-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> (B)	8-94178-110-0	01	1	9611-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 6VD1 ENG(RLV) POWER STEERING<N40> (B)	8-97026-703-0	01	1	9712-				●				●
58	06.672 BOLT; CLIP POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9611-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9611-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9611-	●	●	●	●	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	01	1	9611-9711	●	●	●	●	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	01	1	9712-	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE POWER STEERING<N40>	8-97120-708-0	01	1	9611-9711	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-97120-708-0	01	1	9712-	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 6VD1 ENG(RLV) POWER STEERING<N40>	8-97120-706-0	01	1	9712-				●				●
79	06.672 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9611-9711	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9712-	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	03	1	9611-	●	●	●	●	●	●	●	●
205	06.673 BOLT; EYE,FLEX HOSE,P/S 6VD1 ENG(RLV) POWER STEERING<N40> M16X28	8-94383-489-0	01	1	9712-				●				●
207	06.673 GASKET; FLEX HOSE,P/S PUMP 6VD1 ENG(RLV) POWER STEERING<N40> 01.252 ID=16.2 OD=24	9-09571-416-0	02	1	9712-				●				●

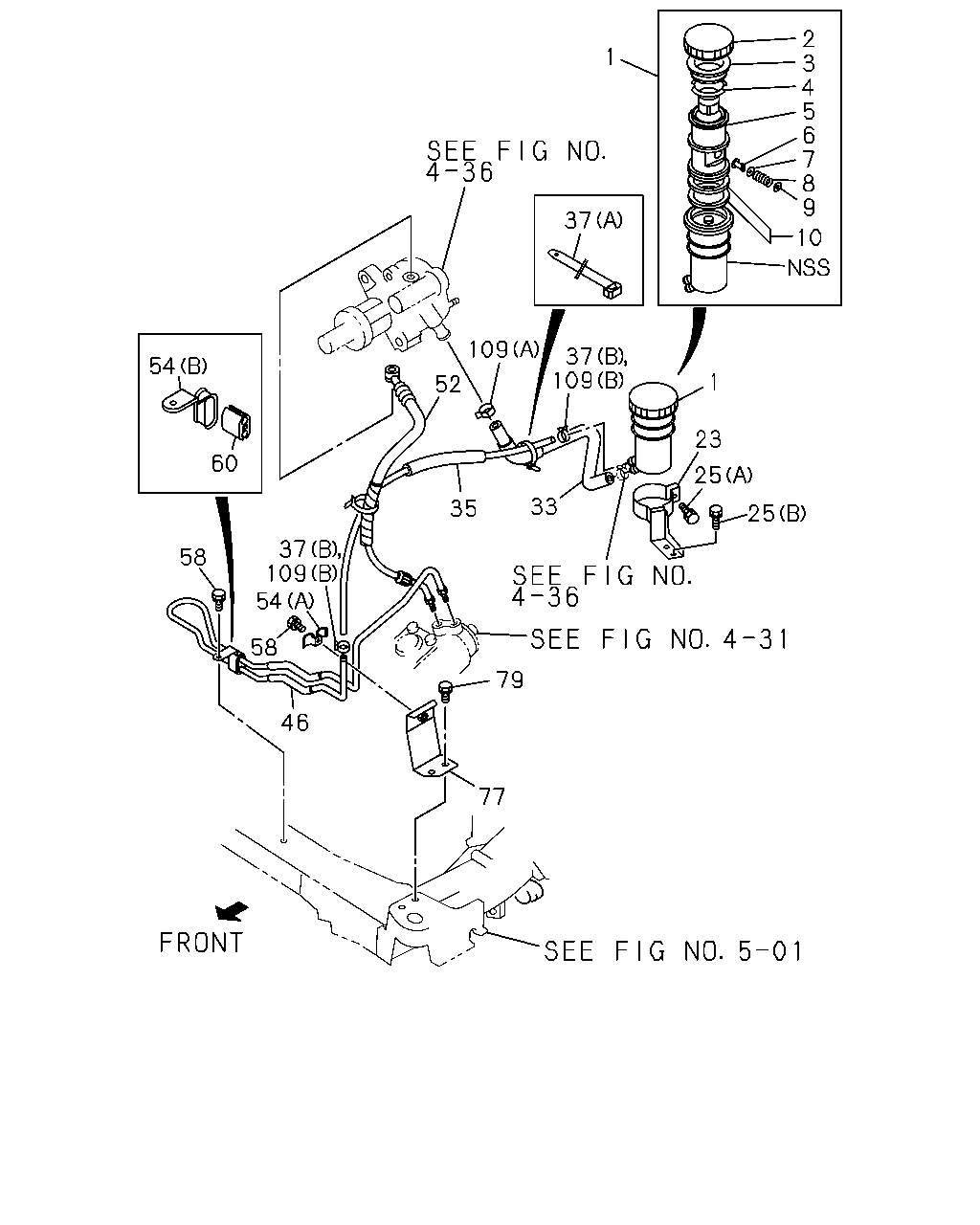

2 3 4 5 6 7 8 9 10 1 37 109 37 109 54 1 52 23 60 25 33 35 25 37 109 54 58 58 79 46 77

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C	D	E	F	G	H
1	06.635 TANK ASM; OIL,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94105-282-6	01	1	9611-	●	●	●	●	●	●	●	●
1	06.635 TANK ASM; OIL,P/S 6VD1 ENG(RLV) POWER STEERING<N40>	8-97115-869-1	01	1	9712-				●				●
2	06.672 CAP; OIL TANK,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635	5-21241-001-1	01	1	9611-	●	●	●	●	●	●	●	●
2	06.672 CAP; OIL TANK,P/S 6VD1 ENG(RLV) POWER STEERING<N40>	8-94481-841-1	01	1	9712-				●				●
3	06.673 GASKET; OIL TANK,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635	8-94246-510-0	01	1	9611-	●	●	●	●	●	●	●	●
3	06.673 GASKET; OIL TANK,P/S 6VD1 ENG(RLV) POWER STEERING<N40>	8-94363-359-1	01	1	9712-				●				●
4	06.635 FILTER; OIL TANK,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94204-441-1	01	1	9611-	●	●	●	●	●	●	●	●
5	06.600 STRAINER; OIL TANK,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94405-458-1	01	1	9611-	●	●	●	●	●	●	●	●
6	06.672 HOLDER; GASKET,OIL TANK,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635	5-21219-005-0	01	1	9611-	●	●	●	●	●	●	●	●
7	06.672 RING; GASKET,OIL TANK,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635	5-21219-007-0	01	1	9611-	●	●	●	●	●	●	●	●
8	06.672 SPRING; OIL TANK,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635	5-09580-088-1	01	1	9611-	●	●	●	●	●	●	●	●
9	06.672 COVER; SPR,OIL TANK,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635	5-21219-006-0	01	1	9611-	●	●	●	●	●	●	●	●
10	06.672 SEAL; OIL TANK,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635	8-94405-457-0	02	1	9611-	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S POWER STEERING<N40>	8-94440-403-1	01	1	9611-9711	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94440-403-1	01	1	9712-	●	●	●	●	●	●	●	●
23	06.672 BRACKET; OIL TANK,P/S 6VD1 ENG(RLV) POWER STEERING<N40>	8-97064-085-4	01	1	9712-				●				●
25	06.635 BOLT; OIL TANK BRKT POWER STEERING<N40> (A) M6X16 FLANGE	0-28480-616-0	02	1	9611-9711	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> (A) M6X16 FLANGE	0-28480-616-0	02	1	9712-	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> 08.155 (B) M8X16 FLANGE	0-28480-816-0	02	1	9611-	●	●	●	●	●	●	●	●
25	06.635 BOLT; OIL TANK BRKT 6VD1 ENG(RLV) POWER STEERING<N40> (A) M6X16 FLANGE	0-28480-616-0	01	1	9712-				●				●
25	06.635 BOLT; OIL TANK BRKT 6VD1 ENG(RLV) POWER STEERING<N40> 08.155 (B) M8X16 FLANGE	0-28480-816-0	01	1	9801-				●				●
33	06.672 HOSE; RUBBER,POWER STRG 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.673	8-94473-739-1	01	1	9611-	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.673	8-94434-125-3	01	1	9611-	●	●	●	●	●	●	●	●
33	06.672 HOSE; RUBBER,POWER STRG 6VD1 ENG(RLV) POWER STEERING<N40>	8-97178-427-1	01	1	9712-				●				●
35	06.671 HOSE; RETURN,P/S TANK 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94329-645-2	01	1	9611-	●	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-94147-058-3	01	1	9611-	●	●	●	●	●	●	●	●
35	06.671 HOSE; RETURN,P/S TANK 6VD1 ENG(RLV) POWER STEERING<N40>	8-97191-251-0	01	1	9712-				●				●
37	01.762 CLIP; HOSE,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 03.162 (A) L=170	5-09707-054-0	01	1	9611-	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.930 (B) ID=16	8-94238-568-0	02	1	9712-9712	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.681 (B) ID=16	8-97173-222-0	02	1	9801-	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.672 (A) D=14.5 /22	8-94317-707-0	01	1	9611-	●	●	●	●	●	●	●	●
37	01.762 CLIP; HOSE,P/S 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ),6VD1 ENG(RLV) POWER STEERING<N40> 03.280 (B) ID=17.1	8-94122-679-0	01	1	9712-	●	●	●	●	●	●	●	●
46	06.671 PIPE; OIL,P/S UNIT TO OIL TANK 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-94326-034-1	01	1	9611-	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40>	8-97165-976-0	01	1	9611-	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-97165-977-0	01	1	9611-	●	●	●	●	●	●	●	●
52	06.673 HOSE; FLEX,P/S CONT VLV 6VD1 ENG(RLV) POWER STEERING<N40>	8-97191-252-0	01	1	9712-				●				●
54	06.672 CLIP; OIL PIPE POWER STEERING<N40> 04.342 (A)	8-94222-795-1	01	1	9611-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> (B)	8-94451-983-0	01	1	9611-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> (B)	8-94178-110-0	01	1	9611-	●	●	●	●	●	●	●	●
54	06.672 CLIP; OIL PIPE 6VD1 ENG(RLV) POWER STEERING<N40> (B)	8-97026-703-0	01	1	9712-				●				●
58	06.672 BOLT; CLIP POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9611-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9611-	●	●	●	●	●	●	●	●
58	06.672 BOLT; CLIP 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9611-	●	●	●	●	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	01	1	9611-9711	●	●	●	●	●	●	●	●
60	06.672 CLAMP; PIPE,RETURN 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) POWER STEERING<N40> ID=10X2 H=22	8-94252-455-2	01	1	9712-	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE POWER STEERING<N40>	8-97120-708-0	01	1	9611-9711	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40>	8-97120-708-0	01	1	9712-	●	●	●	●	●	●	●	●
77	06.672 BRACKET; POWER STEERING HOSE 6VD1 ENG(RLV) POWER STEERING<N40>	8-97120-706-0	01	1	9712-				●				●
79	06.672 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9611-9711	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT 4JA1 ENG(RLE),4JB1 ENG(RLF),6VD1 ENG(RLV) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	01	1	9712-	●	●	●	●	●	●	●	●
79	06.672 BOLT; BRKT 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 06.635 M6X16 FLANGE	0-28480-616-0	03	1	9611-	●	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4JA1 ENG(RLE),4JB1 ENG(RLF),4ZE1 ENG(RLJ) POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	9611-9711	●	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> (A) ID=21	8-94242-034-0	01	1	9712-	●	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4JA1 ENG(RLE),4JB1 ENG(RLF) POWER STEERING<N40> 04.930 (B) ID=16	8-94238-568-0	02	1	9611-9711	●	●	●	●	●	●	●	●
109	06.672 CLIP; RUBBER HOSE 4ZC1 ENG(LR9),4ZD1 ENG(LW3),4ZE1 ENG(RLJ) POWER STEERING<N40> 04.930 (B) ID=16	8-94238-568-0	01	1	9611-9711	●	●	●	●	●	●	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
