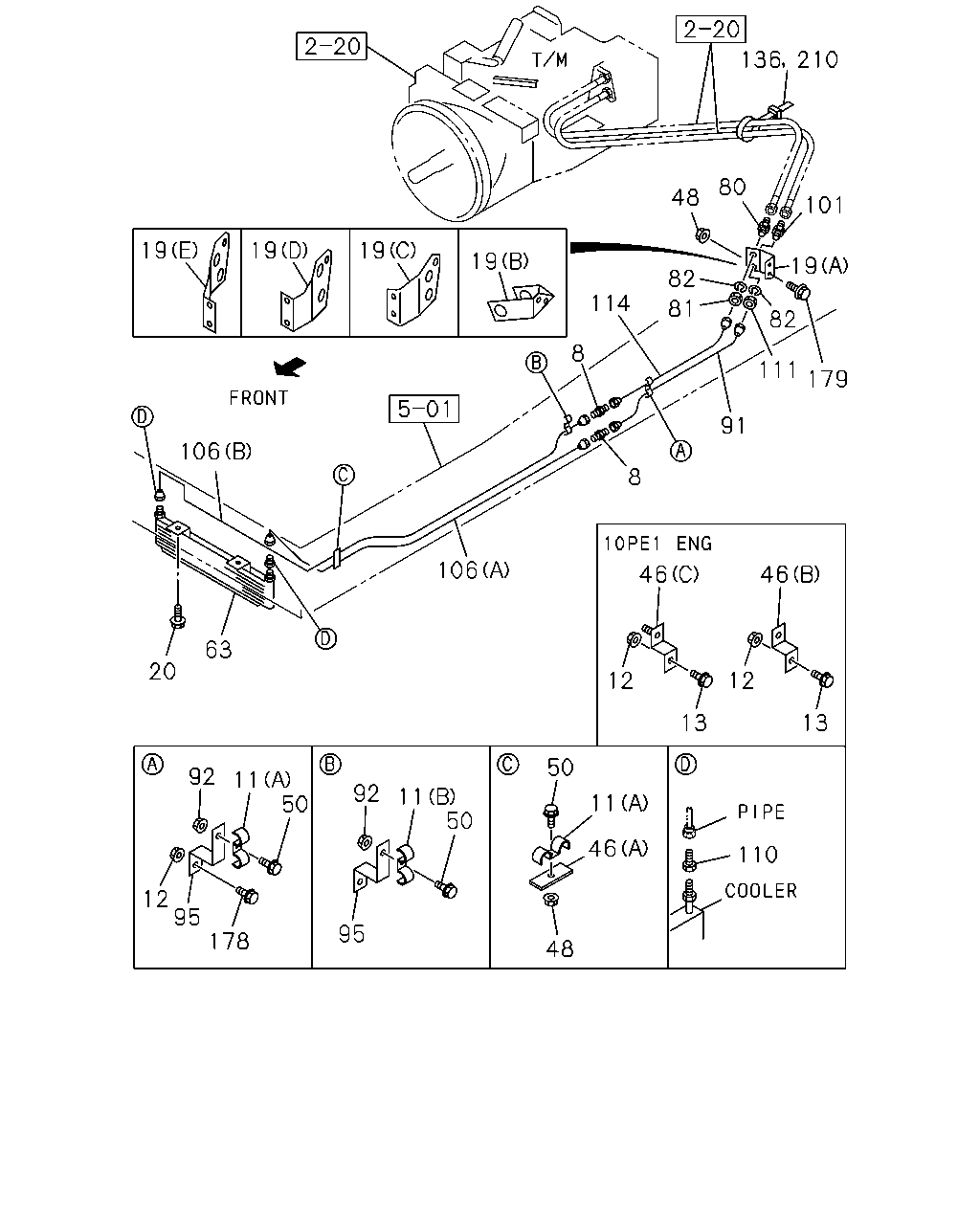

2-53B — TRANSMISSION OIL COOLER SYSTEM (#4840) — 116 parça

136 210 80 48 101 19 19 19 19 19 82 114 81 82 8 111 179 91 106 8 106 46 46 63 20 12 12 13 13 50 92 11 50 92 11 50 11 46 110 12 95 95 178 48

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
8	UNION TRANSMISSION OIL COOLER<C2C> M22	9-09233-015-1	02	1	9601-9904	●
8	UNION TRANSMISSION OIL COOLER<C2C> M22	9-09233-015-1	02	1	9905-	●	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	03	1	9601-9904	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> (A) ID=16 & 16 L=21.5 & 21.5	1-09700-674-0	03	1	9905-	●	●
11	CLIP; PIPE 6WA1 TC-S(56L) TRANSMISSION OIL COOLER<C2C> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9601-9904	●
11	CLIP; PIPE TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> (B) ID=16 & 9 L=21 & 18	1-09700-676-0	01	1	9905-	●	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8	9-09110-508-0	01	1	9601-9606	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	9607-9904	●
12	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	9905-	●	●
12	NUT; BRKT 10PE1S(60L) TRANSMISSION OIL COOLER<C2C> M8	9-09110-508-0	02	1	9601-9606	●
12	NUT; BRKT 10PE1S(60L) TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	02	1	9607-	●
13	BOLT; BRKT 10PE1S(60L) TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●
13	BOLT; BRKT 10PE1S(60L) TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28680-830-0	02	1	9607-	●
19	BRACKET; FLEX HOSE TRANSMISSION OIL COOLER<C2C> (A)	1-47477-355-0	01	1	9601-9603	●
19	BRACKET; FLEX HOSE 6WA1 TC-S(56L) TRANSMISSION OIL COOLER<C2C> (A)	1-47477-355-0	01	1	9604-9904	●
19	BRACKET; FLEX HOSE 10PE1S(60L) TRANSMISSION OIL COOLER<C2C> (A)	1-47477-761-0	01	1	9604-9609	●
19	BRACKET; FLEX HOSE 10PE1S(60L) TRANSMISSION OIL COOLER<C2C> (B)	1-47477-886-1	01	1	9610-9904	●
19	BRACKET; FLEX HOSE L TYPE ENG<90L> TRANSMISSION OIL COOLER<C2C> (C)	1-47478-566-0	01	1	9906-	●	●
19	BRACKET; FLEX HOSE 10PE1S(60L) TRANSMISSION OIL COOLER<C2C> (D)	1-47478-523-0	01	1	9905-9907	●
19	BRACKET; FLEX HOSE V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> (E)	1-47478-648-0	01	1	9908-	●	●
20	BOLT; COOLER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X20 FLANGE	0-28081-020-0	02	1	9601-9606	●
20	BOLT; COOLER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE	0-28681-025-0	02	1	9607-9904	●
20	BOLT; COOLER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X25 FLANGE	0-28681-025-0	02	1	9905-0006	●	●
20	BOLT; COOLER TO BRKT TRANSMISSION OIL COOLER<C2C> M10X20 FLANGE	0-28081-020-0	02	1	0007-	●	●
46	BRACKET; OIL PIPE 10PE1S(60L) TRANSMISSION OIL COOLER<C2C> (B)	1-47475-881-0	01	1	9601-	●
46	BRACKET; OIL PIPE 10PE1S(60L) TRANSMISSION OIL COOLER<C2C> (C)	1-47477-235-0	01	1	9601-	●
46	BRACKET; OIL PIPE 6WA1 TC-S(56L) TRANSMISSION OIL COOLER<C2C> (A) L=50	1-47475-299-2	02	1	9601-9904	●
46	BRACKET; OIL PIPE L TYPE ENG<90L> TRANSMISSION OIL COOLER<C2C> (A) L=50	1-47475-299-2	02	1	9905-	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8	9-09110-508-0	02	1	9601-9606	●
48	NUT; BRKT 6WA1 TC-S(56L) TRANSMISSION OIL COOLER<C2C> M8	9-09110-508-0	02	1	9601-9606	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
48	NUT; BRKT 6WA1 TC-S(56L) TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	02	1	9607-9904	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
48	NUT; BRKT TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	02	1	9905-	●	●
48	NUT; BRKT 10PE1S(60L) TRANSMISSION OIL COOLER<C2C> M8	9-09110-508-0	01	1	9601-9606	●
48	NUT; BRKT 10PE1S(60L) TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	9607-	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X16 FLANGE	0-28080-816-0	01	1	9601-9606	●
50	BOLT; CLIP 10PE1S(60L) TRANSMISSION OIL COOLER<C2C> M8X16 FLANGE	0-28080-816-0	01	1	9601-9606	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	01	1	9607-9904	●
50	BOLT; CLIP 10PE1S(60L) TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	01	1	9607-9904	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	01	1	9905-	●	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	01	1	9905-	●	●
50	BOLT; CLIP 6WA1 TC-S(56L) TRANSMISSION OIL COOLER<C2C> M8X16 FLANGE	0-28080-816-0	03	1	9601-9606	●
50	BOLT; CLIP 6WA1 TC-S(56L) TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	03	1	9607-9904	●
50	BOLT; CLIP L TYPE ENG<90L> TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28680-820-0	02	1	9905-	●	●
50	BOLT; CLIP 6WA1 TC-S(56L) TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28080-825-0	01	1	9601-9606	●
50	BOLT; CLIP 6WA1 TC-S(56L) TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28680-830-0	01	1	9607-9904	●
50	BOLT; CLIP TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> M8X30 FLANGE	0-28680-830-0	01	1	9905-	●	●
63	COOLER; OIL TRANSMISSION OIL COOLER<C2C>	1-21700-290-0	01	1	9601-9904	●
63	COOLER; OIL TRANSMISSION OIL COOLER<C2C>	1-21700-290-0	01	1	9905-	●	●
80	UNION; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M22 & M30 STRAIGHT	1-09664-237-0	01	1	9601-9904	●
80	UNION; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M22 & M30 STRAIGHT	1-09664-237-0	01	1	9905-	●	●
81	NUT; UNION TRANSMISSION OIL COOLER<C2C> M22	9-09111-422-0	01	1	9601-9904	●
81	NUT; UNION TRANSMISSION OIL COOLER<C2C> M22	9-09111-422-0	01	1	9905-	●	●
82	WASHER; LK,UNION TRANSMISSION OIL COOLER<C2C> ID=22.5	9-09150-522-0	02	1	9601-9904	●
82	WASHER; LK,UNION TRANSMISSION OIL COOLER<C2C> ID=22.5	9-09150-522-0	02	1	9905-	●	●
91	PIPE; OIL,FLEX HOSE TO UNION 10PE1S(60L) TRANSMISSION OIL COOLER<C2C>	1-47429-068-0	01	1	9601-9603	●
91	PIPE; OIL,FLEX HOSE TO UNION 10PE1S(60L) TRANSMISSION OIL COOLER<C2C>	1-47429-808-0	01	1	9604-9609	●
91	PIPE; OIL,FLEX HOSE TO UNION 10PE1S(60L) TRANSMISSION OIL COOLER<C2C>	1-49161-157-0	01	1	9610-9611	●
91	PIPE; OIL,FLEX HOSE TO UNION 10PE1S(60L) TRANSMISSION OIL COOLER<C2C>	1-49161-330-0	01	1	9612-9904	●
91	PIPE; OIL,FLEX HOSE TO UNION 10PE1S(60L) TRANSMISSION OIL COOLER<C2C>	1-49164-395-0	01	1	9905-9907	●
91	PIPE; OIL,FLEX HOSE TO UNION V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C>	1-49164-672-0	01	1	9908-	●	●
91	PIPE; OIL,FLEX HOSE TO UNION 6WA1 TC-S(56L) TRANSMISSION OIL COOLER<C2C>	1-47429-062-0	01	1	9601-9602	●
91	PIPE; OIL,FLEX HOSE TO UNION 6WA1 TC-S(56L) TRANSMISSION OIL COOLER<C2C>	1-47429-789-0	01	1	9603-9904	●
91	PIPE; OIL,FLEX HOSE TO UNION L TYPE ENG<90L> TRANSMISSION OIL COOLER<C2C> L=911	1-49163-072-0	01	1	9905-	●	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8	9-09110-508-0	01	1	9601-9606	●
92	NUT; CLIP 6WA1 TC-S(56L) TRANSMISSION OIL COOLER<C2C> M8	9-09110-508-0	01	1	9601-9606	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	9607-9904	●
92	NUT; CLIP 6WA1 TC-S(56L) TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	9607-9904	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	9905-0002	●	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L> M8 FLANGE	0-91150-108-0	01	1	9905-0002	●	●
92	NUT; CLIP TRANSMISSION OIL COOLER<C2C> M8 FLANGE	0-91150-108-0	01	1	0003-	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C>	1-47475-881-0	02	1	9601-9904	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C>	1-47475-881-0	02	1	9905-9908	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C>	1-47475-881-0	01	1	9909-0002	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L>	1-47475-881-0	01	1	9909-0002	●	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C>	1-47475-881-0	01	1	0003-	●	●
95	BRACKET; CLIP 6WA1 TC-S(56L) TRANSMISSION OIL COOLER<C2C>	1-47475-881-0	01	1	9601-9904	●
95	BRACKET; CLIP TRANSMISSION OIL COOLER<C2C> L TYPE ENG<90L>	1-47475-881-0	01	1	9905-9908	●	●
101	UNION; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M22 & M30 STRAIGHT	1-09664-237-0	01	1	9601-9904	●
101	UNION; FLEX HOSE TRANSMISSION OIL COOLER<C2C> M22 & M30 STRAIGHT	1-09664-237-0	01	1	9905-	●	●
106	PIPE ASM; OIL,COOLER TO UNION 10PE1S(60L) TRANSMISSION OIL COOLER<C2C> (A)	1-47429-503-0	02	1	9601-9905	●
106	PIPE ASM; OIL,COOLER TO UNION 10PE1S(60L) TRANSMISSION OIL COOLER<C2C> (A)	1-49164-613-0	02	1	9906-	●
106	PIPE ASM; OIL,COOLER TO UNION 10PE1S(60L) TRANSMISSION OIL COOLER<C2C> (B)	1-47429-504-0	01	1	9601-	●
106	PIPE ASM; OIL,COOLER TO UNION 6WA1 TC-S(56L) TRANSMISSION OIL COOLER<C2C> (A)	1-47429-501-0	01	1	9601-9711	●
106	PIPE ASM; OIL,COOLER TO UNION 6WA1 TC-S(56L) TRANSMISSION OIL COOLER<C2C> (A)	1-49162-309-0	01	1	9712-9904	●
106	PIPE ASM; OIL,COOLER TO UNION L TYPE ENG<90L> TRANSMISSION OIL COOLER<C2C> (A) L=1703	1-49164-312-0	01	1	9905-	●	●
106	PIPE ASM; OIL,COOLER TO UNION 6WA1 TC-S(56L) TRANSMISSION OIL COOLER<C2C> (B)	1-47429-502-0	01	1	9601-9904	●
106	PIPE ASM; OIL,COOLER TO UNION L TYPE ENG<90L> TRANSMISSION OIL COOLER<C2C> (B) L=2317	1-49164-311-0	01	1	9905-	●	●
110	UNION; OIL PIPE TRANSMISSION OIL COOLER<C2C>	1-09654-365-0	02	1	9601-9805	●
110	UNION; OIL PIPE TRANSMISSION OIL COOLER<C2C>	1-09654-398-0	02	1	9806-9904	●
110	UNION; OIL PIPE TRANSMISSION OIL COOLER<C2C>	1-09654-398-0	02	1	9905-	●	●
111	NUT; UNION TRANSMISSION OIL COOLER<C2C> M22	9-09111-422-0	01	1	9601-9904	●
111	NUT; UNION TRANSMISSION OIL COOLER<C2C> M22	9-09111-422-0	01	1	9905-	●	●
114	PIPE; OIL,UNION TO FLEX HOSE 10PE1S(60L) TRANSMISSION OIL COOLER<C2C> L=1142	1-47429-071-0	01	1	9601-9603	●
114	PIPE; OIL,UNION TO FLEX HOSE 10PE1S(60L) TRANSMISSION OIL COOLER<C2C> L=1140	1-47429-809-0	01	1	9604-9609	●
114	PIPE; OIL,UNION TO FLEX HOSE 10PE1S(60L) TRANSMISSION OIL COOLER<C2C> L=1089	1-49161-158-0	01	1	9610-9904	●
114	PIPE; OIL,UNION TO FLEX HOSE 10PE1S(60L) TRANSMISSION OIL COOLER<C2C> L=1332	1-49164-396-0	01	1	9905-9907	●
114	PIPE; OIL,UNION TO FLEX HOSE V TYPE ENG<91L> TRANSMISSION OIL COOLER<C2C> L=1324	1-49164-673-0	01	1	9908-	●	●
114	PIPE; OIL,UNION TO FLEX HOSE 6WA1 TC-S(56L) TRANSMISSION OIL COOLER<C2C>	1-47429-067-0	01	1	9601-9602	●
114	PIPE; OIL,UNION TO FLEX HOSE 6WA1 TC-S(56L) TRANSMISSION OIL COOLER<C2C> L=1013	1-47429-790-0	01	1	9603-9904	●
114	PIPE; OIL,UNION TO FLEX HOSE L TYPE ENG<90L> TRANSMISSION OIL COOLER<C2C> L=1071	1-49163-073-0	01	1	9905-	●	●
136	CLIP; FLEX HOSE 10PE1S(60L) TRANSMISSION OIL COOLER<C2C> L=250	1-09707-126-0	01	1	9702-9705	●
136	CLIP; FLEX HOSE TRANSMISSION OIL COOLER<C2C> L=250	1-09707-126-0	01	1	9706-9904	●
136	CLIP; FLEX HOSE TRANSMISSION OIL COOLER<C2C> L=250	1-09707-126-0	01	1	9905-9907	●	●
136	CLIP; FLEX HOSE 6WA1 TC-S(56L) TRANSMISSION OIL COOLER<C2C> L=250	1-09707-126-0	01	1	9908-	●
178	BOLT; BRKT,CLIP TRANSMISSION OIL COOLER<C2C> M8X20 FLANGE	0-28080-820-0	01	1	9601-9606	●
178	BOLT; BRKT,CLIP TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28680-825-0	01	1	9607-9904	●
178	BOLT; BRKT,CLIP TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28680-825-0	01	1	9905-	●	●
179	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X25 FLANGE	0-28080-825-0	02	1	9601-9606	●
179	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28680-830-0	02	1	9607-9904	●
179	BOLT; BRKT TRANSMISSION OIL COOLER<C2C> M8X30 FLANGE	0-28680-830-0	02	1	9905-	●	●
210	BAND; FLEX HOSE 10PE1S(60L) TRANSMISSION OIL COOLER<C2C> L=175	1-09707-178-0	01	1	9702-9705	●
210	BAND; FLEX HOSE TRANSMISSION OIL COOLER<C2C> L=175	1-09707-178-0	01	1	9706-9904	●
210	BAND; FLEX HOSE TRANSMISSION OIL COOLER<C2C> L=175	1-09707-178-0	01	1	9905-9907	●	●
210	BAND; FLEX HOSE 6WA1 TC-S(56L) TRANSMISSION OIL COOLER<C2C> L=175	1-09707-178-0	01	1	9908-	●
