1-55B — EXHAUST BRAKE VALVE AND CONTROL CYLINDER (#484) — 254 parça

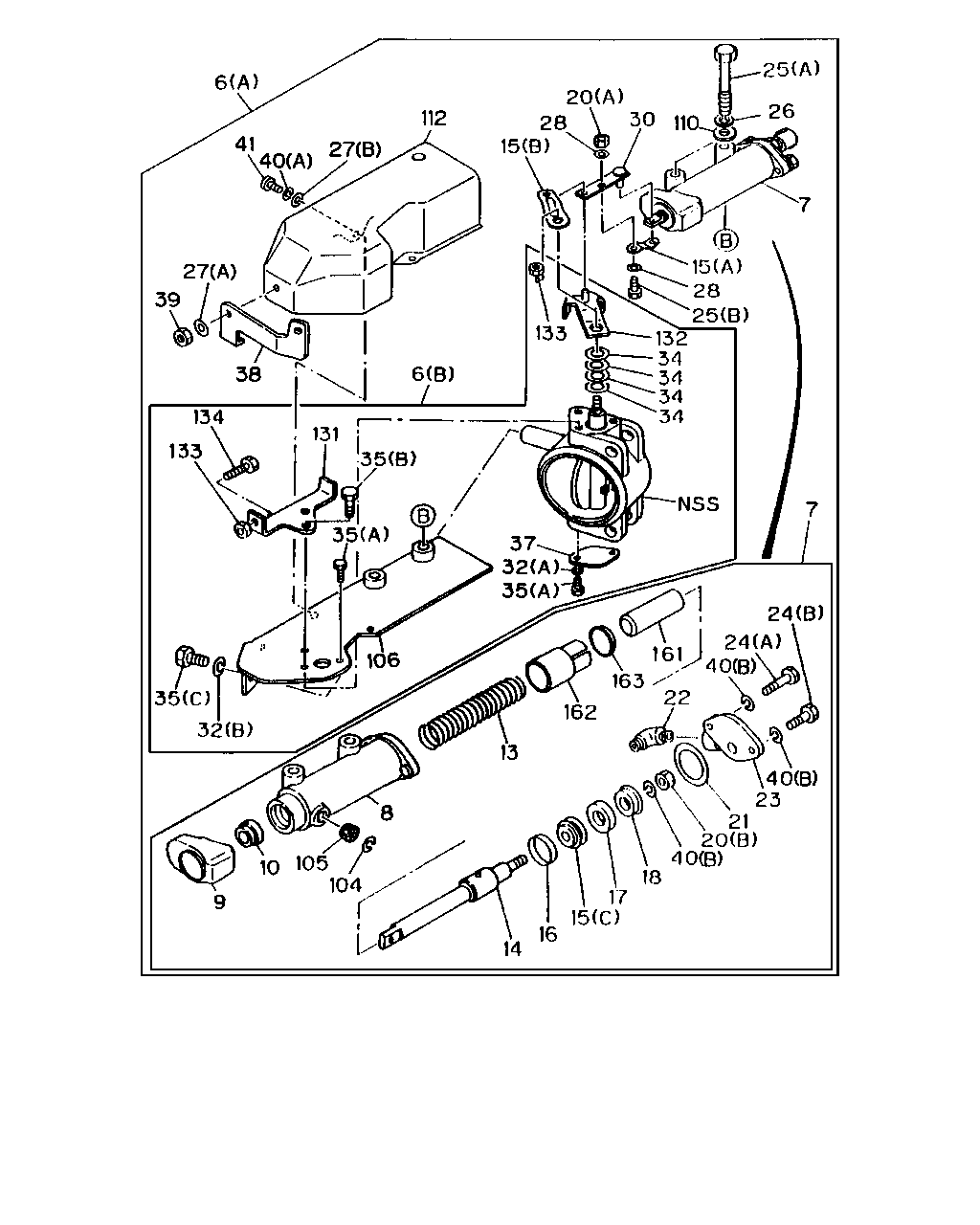

çizim 28241
6 41 40 27 112 15 28 20 30 110 25 26 7 15 28 25 132 34 34 34 34 7 37 32 35 24 24 161 163 162 22 40 40 23 21 20 40 18 17 15 16 14 27 39 38 6 133 131 35 134 133 35 106 35 32 9 10 105 104 8 13
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE
(A) 		1-22180-260-6 01 1 8712-9101 ● ●
6 VALVE; EXH BRAKE
(A) 		1-22180-314-4 01 1 9102- ●
6 VALVE; EXH BRAKE
(B) 		1-22181-117-0 01 1 8712-9101 ● ●
6 VALVE; EXH BRAKE
(B) 		1-22181-122-0 01 1 9102-9108 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-128-0 01 1 9109- ●
6 VALVE; EXH BRAKE
(A) 		1-22180-259-6 01 1 8712-9101 ● ●
6 VALVE; EXH BRAKE
(A) 		1-22180-313-3 01 1 9102- ●
6 VALVE; EXH BRAKE
(B) 		1-22181-119-0 01 1 8712-9101 ● ●
6 VALVE; EXH BRAKE
(B) 		1-22181-123-0 01 1 9102-9108 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-129-0 01 1 9109- ●
7 CYLINDER ASM; CONT 1-22190-534-0 01 1 8712-8811 ●
7 CYLINDER ASM; CONT 1-22190-533-0 01 1 8712-8811 ●
7 CYLINDER ASM; CONT 1-22190-575-0 01 1 8812-9101 ● ●
7 CYLINDER ASM; CONT 1-22190-562-0 01 1 9102-9112 ●
7 CYLINDER ASM; CONT 1-22190-607-2 01 1 9201- ●
7 CYLINDER ASM; CONT 1-22190-574-0 01 1 8812-9101 ● ●
7 CYLINDER ASM; CONT 1-22190-561-0 01 1 9102-9112 ●
7 CYLINDER ASM; CONT 1-22190-606-2 01 1 9201- ●
8 CYLINDER; CONT 9-88510-329-0 02 1 8807-8811 ●
8 CYLINDER; CONT 1-22199-107-0 02 1 8812-9108 ● ●
8 CYLINDER; CONT 1-22199-581-0 02 1 9109-9112 ●
8 CYLINDER; CONT 1-22199-143-0 02 1 9201- ●
9 COVER; CYL 1-22199-070-0 01 1 8712- ● ●
9 COVER; CYL 1-22199-069-0 01 1 8712- ● ●
10 SEAL; DUST,CONT 1-22199-071-0 02 1 8712- ● ●
13 SPRING; CONT CYL 1-22199-077-0 02 1 8712-8806 ●
13 SPRING; CONT CYL 1-09580-465-0 02 1 8807-8811 ●
13 SPRING; CONT CYL 1-22199-105-0 02 1 8812-9112 ● ●
13 SPRING; CONT CYL 1-22199-144-0 02 1 9201- ●
14 SHAFT; CONT CYL 1-22199-256-0 02 1 8712-9108 ● ●
14 SHAFT; CONT CYL 1-22199-051-0 02 1 9109-9112 ●
14 SHAFT; CONT CYL 1-22199-145-0 02 1 9201- ●
15 PLATE; CONT CYL
(C) 		1-22199-020-0 02 1 8712-8811 ●
15 PLATE; CONT CYL
(C) 		1-22199-108-0 02 1 8812-9112 ● ●
15 PLATE; CONT CYL
(C) 		1-22199-149-0 02 1 9201- ●
15 PLATE; CONT CYL
(A) 		1-22189-176-0 02 1 9102-9108 ●
15 PLATE; CONT CYL
(A) 		1-22196-323-0 02 1 9109- ●
15 PLATE; CONT CYL
(B) 		1-22189-178-0 02 1 9102-9108 ●
15 PLATE; CONT CYL
(B) 		1-22196-325-0 02 1 9109- ●
16 RING; WEAR,CONT CYL 1-22199-002-0 02 1 8712-9001 ●
16 RING; WEAR,CONT CYL 1-22189-161-0 02 1 9002- ●
17 GASKET; CONT CYL 1-22199-073-0 02 1 8712-8811 ●
17 GASKET; CONT CYL 1-22199-103-0 02 1 8812- ● ●
18 RETAINER; CONT CYL 9-88510-324-0 02 1 8712- ● ●
20 NUT; CONT CYL
(B) 		9-83315-085-0 02 1 8712- ● ●
20 NUT; CONT CYL
(A) 		8-94311-424-0 02 1 9102-9108 ●
20 NUT; CONT CYL
(A) 		8-94311-441-0 02 1 9109- ●
21 GASKET; COVER 1-22199-072-0 02 1 8712- ● ●
22 CONNECTOR; CONT CYL 1-22199-079-0 02 1 8712-8811 ●
22 CONNECTOR; CONT CYL 1-22199-109-0 02 1 8812-9101 ● ●
22 CONNECTOR; CONT CYL 1-09650-358-1 02 1 9102- ●
23 COVER; CONT CYL 1-22199-076-0 01 1 8712- ● ●
23 COVER; CONT CYL 1-22199-075-0 01 1 8712- ● ●
24 BOLT; COVER
(B) M8X30 		1-22199-074-0 02 1 8712- ● ●
24 BOLT; COVER
(A) M8X20 		9-01000-820-0 02 1 8712- ● ●
25 BOLT; CONT CYL
(A) 		9-02051-020-0 02 1 8712-9001 ●
25 BOLT; CONT CYL
(A) 		1-19519-244-0 04 1 9102- ●
25 BOLT; CONT CYL
(B) 		1-22189-177-0 02 1 9102- ●
26 WASHER; LK,CONT CYL
ID=6.4 		9-09160-506-0 04 1 8712-9001 ●
26 WASHER; LK,CONT CYL
ID=10.2 		9-09150-510-0 04 1 9102- ●
27 WASHER; PL,COVER
(A) 		9-09164-608-0 02 1 8712-9001 ●
27 WASHER; PL,COVER
(B) 		9-09160-506-0 04 1 8712-9101 ● ●
27 WASHER; PL,COVER
(A) 		9-09164-608-0 04 1 9002-9101 ●
27 WASHER; PL,COVER
(A) 		9-09164-608-0 03 1 9102-9108 ●
27 WASHER; PL,COVER
(A) 		8-94311-430-0 03 1 9109- ●
27 WASHER; PL,COVER
(B) 		9-09160-506-0 02 1 9102- ●
28 WASHER; PL,LINK
ID=6.4 		9-09160-506-0 04 1 8712- ● ●
30 ROD; LINK,CONT CYL 1-22196-253-0 02 1 8712-9101 ● ●
30 ROD; LINK,CONT CYL 1-22189-179-0 02 1 9102-9108 ●
30 ROD; LINK,CONT CYL 1-22196-324-0 02 1 9109- ●
32 WASHER; LK
(A) ID=8.2 		9-09150-508-0 12 1 8712-9108 ● ●
32 WASHER; LK
(A) ID=8.2 		9-09150-508-0 10 1 9109- ●
32 WASHER; LK
(B) ID=10.2 		9-09150-510-0 02 1 8712- ● ●
34 RING; SEAL
ID=14 		9-22189-104-0 04 1 8712-9108 ● ●
34 RING; SEAL
ID=13.7 		9-22189-124-0 04 1 9109- ●
34 RING; SEAL
ID=15 		1-22189-025-0 04 1 9002- ●
35 BOLT; PLATE FIX
(A) M8X16 		9-02050-816-0 06 1 8712- ● ●
35 BOLT; PLATE FIX
(B) M8X22 		9-02050-822-0 04 1 8712- ● ●
35 BOLT; PLATE FIX
(C) M10X20 		9-02051-020-0 02 1 8712- ● ●
37 COVER; BODY 1-22189-153-0 02 1 8712- ● ●
38 HOLDER; BRK VLV 1-22196-234-2 01 1 8712- ● ●
38 HOLDER; BRK VLV 1-22196-233-1 01 1 8712- ● ●
39 NUT; COVER
M8 		9-09111-408-0 02 1 8712- ● ●
40 WASHER; LK,COVER
(A) ID=6.1 		9-09150-506-0 04 1 8712-9101 ● ●
40 WASHER; LK,COVER
(A) ID=6.1 		9-09150-506-0 02 1 9102- ●
40 WASHER; LK,COVER
(B) ID=8.2 		9-09150-508-0 06 1 8712- ● ●
41 SCREW; COVER 1-09000-438-0 02 1 8712-9001 ●
41 SCREW; COVER 1-09000-438-0 04 1 9002-9101 ●
41 SCREW; COVER 1-09000-438-0 02 1 9102- ●
104 RING; RET 9-88510-331-0 02 1 8807- ● ●
105 FILTER; CONT CYL 9-88510-330-0 02 1 8807- ● ●
106 BRACKET; CONT CYL 1-22186-111-0 01 1 8712- ● ●
106 BRACKET; CONT CYL 1-22186-110-0 01 1 8712- ● ●
110 WASHER; PL,CONT CYL
ID=10.5 OD=26 		9-09160-710-0 02 1 9002-9101 ●
110 WASHER; PL,CONT CYL
ID=10.5 OD=22 		9-09160-610-0 04 1 9102- ●
112 COVER; CONT CYL 1-22189-155-0 01 1 8712-9101 ● ●
112 COVER; CONT CYL 1-22189-151-1 01 1 9102- ●
112 COVER; CONT CYL 1-22189-154-0 01 1 8712-9101 ● ●
112 COVER; CONT CYL 1-22189-150-1 01 1 9102- ●
131 PLATE; BODY 1-22186-055-0 01 1 8712- ● ●
131 PLATE; BODY 1-22186-054-0 01 1 8712- ● ●
132 LEVER; BRK VLV 1-22196-254-0 02 1 8712-9101 ● ●
132 LEVER; BRK VLV 1-22196-313-0 02 1 9102- ●
133 NUT; LK
M8 		9-09111-408-0 02 1 8712-9001 ●
133 NUT; LK
M8 		9-09111-408-0 04 1 9002-9101 ●
133 NUT; LK
M8 FLANGE 		0-91150-108-0 02 1 9102- ●
133 NUT; LK
M8 		9-09111-408-0 02 1 9102- ●
134 BOLT; STOPPER 1-09000-436-0 02 1 8712- ● ●
161 PROTECTOR; CONT CYL 1-22199-146-0 02 1 9201- ●
162 GUIDE; CONT CYL 1-22199-147-0 02 1 9201- ●
163 WASHER; CONT CYL 1-22199-148-0 02 1 9201- ●

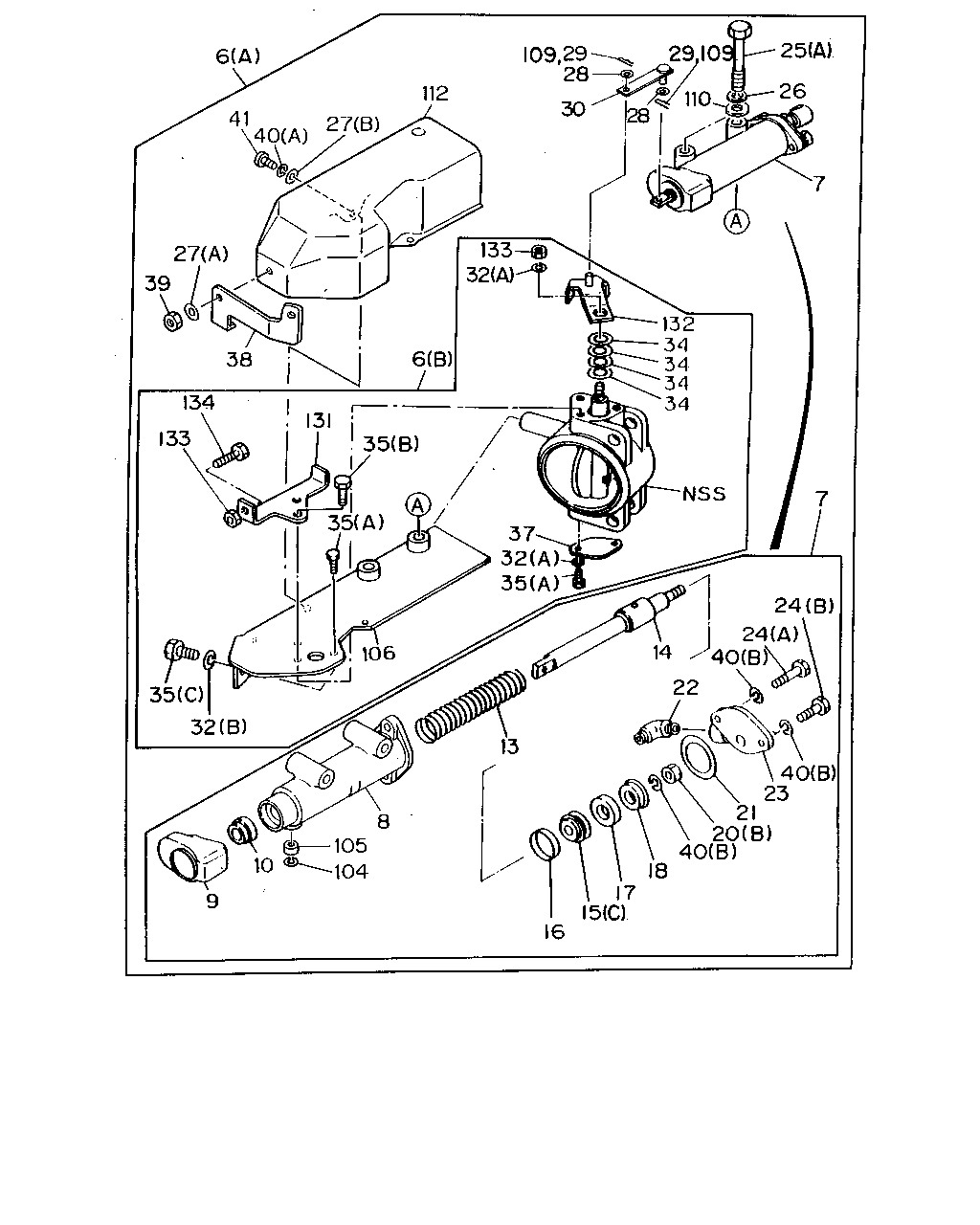

çizim 28284
109 29 28 30 28 29 109 110 25 26 7 7 24 24 40 14 22 40 23 21 20 40 18 17 15 16 13 8 105 104 10 9 32 35 106 35 32 37 35 35 131 133 134 38 39 27 6 32 133 34 34 34 34 132 112 27 40 41 6
BalonParca AdiParca NoAdetTipApplied Date A B
6 VALVE; EXH BRAKE
(A) 		1-22180-260-6 01 1 8712-9101 ● ●
6 VALVE; EXH BRAKE
(A) 		1-22180-314-4 01 1 9102- ●
6 VALVE; EXH BRAKE
(B) 		1-22181-117-0 01 1 8712-9101 ● ●
6 VALVE; EXH BRAKE
(B) 		1-22181-122-0 01 1 9102-9108 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-128-0 01 1 9109- ●
6 VALVE; EXH BRAKE
(A) 		1-22180-259-6 01 1 8712-9101 ● ●
6 VALVE; EXH BRAKE
(A) 		1-22180-313-3 01 1 9102- ●
6 VALVE; EXH BRAKE
(B) 		1-22181-119-0 01 1 8712-9101 ● ●
6 VALVE; EXH BRAKE
(B) 		1-22181-123-0 01 1 9102-9108 ●
6 VALVE; EXH BRAKE
(B) 		1-22181-129-0 01 1 9109- ●
7 CYLINDER ASM; CONT 1-22190-534-0 01 1 8712-8811 ●
7 CYLINDER ASM; CONT 1-22190-533-0 01 1 8712-8811 ●
7 CYLINDER ASM; CONT 1-22190-575-0 01 1 8812-9101 ● ●
7 CYLINDER ASM; CONT 1-22190-562-0 01 1 9102-9112 ●
7 CYLINDER ASM; CONT 1-22190-607-2 01 1 9201- ●
7 CYLINDER ASM; CONT 1-22190-574-0 01 1 8812-9101 ● ●
7 CYLINDER ASM; CONT 1-22190-561-0 01 1 9102-9112 ●
7 CYLINDER ASM; CONT 1-22190-606-2 01 1 9201- ●
8 CYLINDER; CONT 9-88510-329-0 02 1 8807-8811 ●
8 CYLINDER; CONT 1-22199-107-0 02 1 8812-9108 ● ●
8 CYLINDER; CONT 1-22199-581-0 02 1 9109-9112 ●
8 CYLINDER; CONT 1-22199-143-0 02 1 9201- ●
9 COVER; CYL 1-22199-070-0 01 1 8712- ● ●
9 COVER; CYL 1-22199-069-0 01 1 8712- ● ●
10 SEAL; DUST,CONT 1-22199-071-0 02 1 8712- ● ●
13 SPRING; CONT CYL 1-22199-077-0 02 1 8712-8806 ●
13 SPRING; CONT CYL 1-09580-465-0 02 1 8807-8811 ●
13 SPRING; CONT CYL 1-22199-105-0 02 1 8812-9112 ● ●
13 SPRING; CONT CYL 1-22199-144-0 02 1 9201- ●
14 SHAFT; CONT CYL 1-22199-256-0 02 1 8712-9108 ● ●
14 SHAFT; CONT CYL 1-22199-051-0 02 1 9109-9112 ●
14 SHAFT; CONT CYL 1-22199-145-0 02 1 9201- ●
15 PLATE; CONT CYL
(C) 		1-22199-020-0 02 1 8712-8811 ●
15 PLATE; CONT CYL
(C) 		1-22199-108-0 02 1 8812-9112 ● ●
15 PLATE; CONT CYL
(C) 		1-22199-149-0 02 1 9201- ●
15 PLATE; CONT CYL
(A) 		1-22189-176-0 02 1 9102-9108 ●
15 PLATE; CONT CYL
(A) 		1-22196-323-0 02 1 9109- ●
15 PLATE; CONT CYL
(B) 		1-22189-178-0 02 1 9102-9108 ●
15 PLATE; CONT CYL
(B) 		1-22196-325-0 02 1 9109- ●
16 RING; WEAR,CONT CYL 1-22199-002-0 02 1 8712-9001 ●
16 RING; WEAR,CONT CYL 1-22189-161-0 02 1 9002- ●
17 GASKET; CONT CYL 1-22199-073-0 02 1 8712-8811 ●
17 GASKET; CONT CYL 1-22199-103-0 02 1 8812- ● ●
18 RETAINER; CONT CYL 9-88510-324-0 02 1 8712- ● ●
20 NUT; CONT CYL
(B) 		9-83315-085-0 02 1 8712- ● ●
20 NUT; CONT CYL
(A) 		8-94311-424-0 02 1 9102-9108 ●
20 NUT; CONT CYL
(A) 		8-94311-441-0 02 1 9109- ●
21 GASKET; COVER 1-22199-072-0 02 1 8712- ● ●
22 CONNECTOR; CONT CYL 1-22199-079-0 02 1 8712-8811 ●
22 CONNECTOR; CONT CYL 1-22199-109-0 02 1 8812-9101 ● ●
22 CONNECTOR; CONT CYL 1-09650-358-1 02 1 9102- ●
23 COVER; CONT CYL 1-22199-076-0 01 1 8712- ● ●
23 COVER; CONT CYL 1-22199-075-0 01 1 8712- ● ●
24 BOLT; COVER
(B) M8X30 		1-22199-074-0 02 1 8712- ● ●
24 BOLT; COVER
(A) M8X20 		9-01000-820-0 02 1 8712- ● ●
25 BOLT; CONT CYL
(A) 		9-02051-020-0 02 1 8712-9001 ●
25 BOLT; CONT CYL
(A) 		1-19519-244-0 04 1 9102- ●
25 BOLT; CONT CYL
(B) 		1-22189-177-0 02 1 9102- ●
26 WASHER; LK,CONT CYL
ID=6.4 		9-09160-506-0 04 1 8712-9001 ●
26 WASHER; LK,CONT CYL
ID=10.2 		9-09150-510-0 04 1 9102- ●
27 WASHER; PL,COVER
(A) 		9-09164-608-0 02 1 8712-9001 ●
27 WASHER; PL,COVER
(B) 		9-09160-506-0 04 1 8712-9101 ● ●
27 WASHER; PL,COVER
(A) 		9-09164-608-0 04 1 9002-9101 ●
27 WASHER; PL,COVER
(A) 		9-09164-608-0 03 1 9102-9108 ●
27 WASHER; PL,COVER
(A) 		8-94311-430-0 03 1 9109- ●
27 WASHER; PL,COVER
(B) 		9-09160-506-0 02 1 9102- ●
28 WASHER; PL,LINK
ID=6.4 		9-09160-506-0 04 1 8712- ● ●
29 PIN; SPLIT,LINK
L=21.2 		8-94157-840-0 04 1 9002-9101 ●
30 ROD; LINK,CONT CYL 1-22196-253-0 02 1 8712-9101 ● ●
30 ROD; LINK,CONT CYL 1-22189-179-0 02 1 9102-9108 ●
30 ROD; LINK,CONT CYL 1-22196-324-0 02 1 9109- ●
32 WASHER; LK
(A) ID=8.2 		9-09150-508-0 12 1 8712-9108 ● ●
32 WASHER; LK
(A) ID=8.2 		9-09150-508-0 10 1 9109- ●
32 WASHER; LK
(B) ID=10.2 		9-09150-510-0 02 1 8712- ● ●
34 RING; SEAL
ID=14 		9-22189-104-0 04 1 8712-9108 ● ●
34 RING; SEAL
ID=13.7 		9-22189-124-0 04 1 9109- ●
34 RING; SEAL
ID=15 		1-22189-025-0 04 1 9002- ●
35 BOLT; PLATE FIX
(A) M8X16 		9-02050-816-0 06 1 8712- ● ●
35 BOLT; PLATE FIX
(B) M8X22 		9-02050-822-0 04 1 8712- ● ●
35 BOLT; PLATE FIX
(C) M10X20 		9-02051-020-0 02 1 8712- ● ●
37 COVER; BODY 1-22189-153-0 02 1 8712- ● ●
38 HOLDER; BRK VLV 1-22196-234-2 01 1 8712- ● ●
38 HOLDER; BRK VLV 1-22196-233-1 01 1 8712- ● ●
39 NUT; COVER
M8 		9-09111-408-0 02 1 8712- ● ●
40 WASHER; LK,COVER
(A) ID=6.1 		9-09150-506-0 04 1 8712-9101 ● ●
40 WASHER; LK,COVER
(A) ID=6.1 		9-09150-506-0 02 1 9102- ●
40 WASHER; LK,COVER
(B) ID=8.2 		9-09150-508-0 06 1 8712- ● ●
41 SCREW; COVER 1-09000-438-0 02 1 8712-9001 ●
41 SCREW; COVER 1-09000-438-0 04 1 9002-9101 ●
41 SCREW; COVER 1-09000-438-0 02 1 9102- ●
104 RING; RET 9-88510-331-0 02 1 8807- ● ●
105 FILTER; CONT CYL 9-88510-330-0 02 1 8807- ● ●
106 BRACKET; CONT CYL 1-22186-111-0 01 1 8712- ● ●
106 BRACKET; CONT CYL 1-22186-110-0 01 1 8712- ● ●
109 PIN; SNAP,CONT CYL
L=21.2 		1-09747-003-0 04 1 8712-9001 ●
110 WASHER; PL,CONT CYL
ID=10.5 OD=26 		9-09160-710-0 02 1 9002-9101 ●
110 WASHER; PL,CONT CYL
ID=10.5 OD=22 		9-09160-610-0 04 1 9102- ●
112 COVER; CONT CYL 1-22189-155-0 01 1 8712-9101 ● ●
112 COVER; CONT CYL 1-22189-151-1 01 1 9102- ●
112 COVER; CONT CYL 1-22189-154-0 01 1 8712-9101 ● ●
112 COVER; CONT CYL 1-22189-150-1 01 1 9102- ●
131 PLATE; BODY 1-22186-055-0 01 1 8712- ● ●
131 PLATE; BODY 1-22186-054-0 01 1 8712- ● ●
132 LEVER; BRK VLV 1-22196-254-0 02 1 8712-9101 ● ●
132 LEVER; BRK VLV 1-22196-313-0 02 1 9102- ●
133 NUT; LK
M8 		9-09111-408-0 02 1 8712-9001 ●
133 NUT; LK
M8 		9-09111-408-0 04 1 9002-9101 ●
133 NUT; LK
M8 FLANGE 		0-91150-108-0 02 1 9102- ●
133 NUT; LK
M8 		9-09111-408-0 02 1 9102- ●
134 BOLT; STOPPER 1-09000-436-0 02 1 8712- ● ●

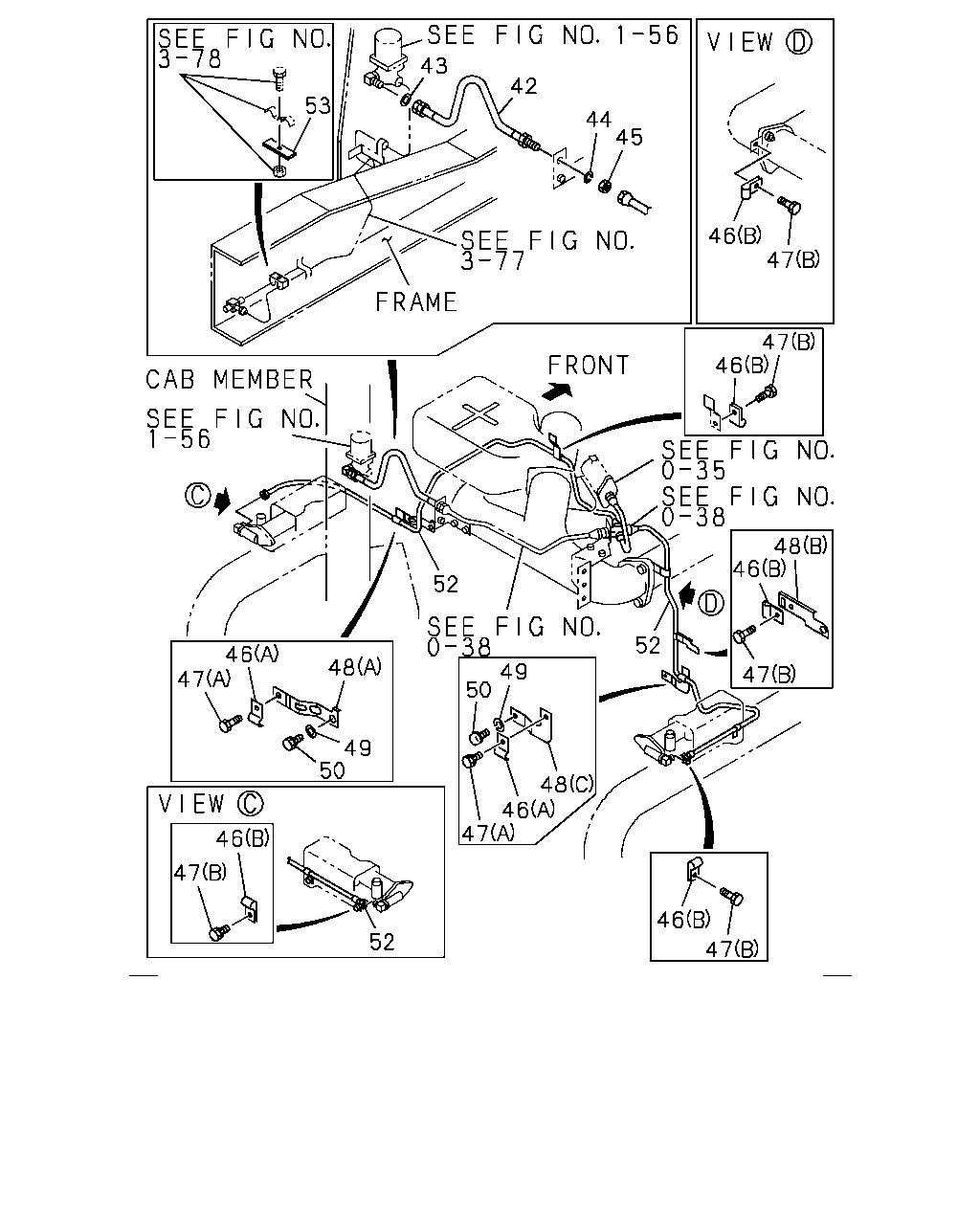

çizim 96357
53 43 42 44 45 46 47 47 46 48 46 47 52 46 47 48 46 47 50 49 52 52 47 46 50 49 48 46 47
BalonParca AdiParca NoAdetTipApplied Date A B
42 HOSE; FLEX,EXH BRK
L=350 		0-07120-350-0 01 1 8712- ● ●
43 GASKET; FLEX HOSE
ID=11 OD=18 		9-09572-510-0 01 1 8712- ● ●
44 WASHER; LK,FLEX HOSE
ID=12.2 		9-09150-512-0 01 1 8712- ● ●
45 NUT; FLEX HOSE
M12 		9-09840-280-0 01 1 8712- ● ●
46 CLIP; AIR PIPE
(A) 		1-09700-372-0 02 1 8712- ● ●
46 CLIP; AIR PIPE
(B) 		9-09522-632-0 07 1 8712- ● ●
47 BOLT; CLIP
(B) M6X14 W/LK WASHER 		9-01900-614-0 08 1 8712-9204 ● ●
47 BOLT; CLIP
(B) M6X14 W/LK WASHER 		0-50040-614-0 08 1 9205-9302 ●
47 BOLT; CLIP
(B) M6X16 FLANGE 		0-28080-616-0 08 1 9303- ●
47 BOLT; CLIP
(A) M8X14 W/LK WASHER 		9-01900-814-0 02 1 8712-9204 ● ●
47 BOLT; CLIP
(A) M8X14 W/LK WASHER 		0-50040-814-0 02 1 9205-9302 ●
47 BOLT; CLIP
(A) M8X16 FLANGE 		0-28080-816-0 02 1 9303- ●
48 BRACKET; AIR PIPE
(A) 		1-47465-548-0 01 1 8712-9001 ●
48 BRACKET; AIR PIPE
(A) 		1-19199-184-0 01 1 9002- ●
48 BRACKET; AIR PIPE
(C) 		1-47475-285-1 01 1 8712-8901 ●
48 BRACKET; AIR PIPE
AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (B) 		1-22196-263-0 01 1 8902-9001 ●
48 BRACKET; AIR PIPE
EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) (C) 		1-47475-285-1 01 1 8902-9001 ●
48 BRACKET; AIR PIPE
(C) 		1-47475-285-1 01 1 9002-9002 ●
48 BRACKET; AIR PIPE
(B) 		1-22196-263-0 01 1 9002-9002 ●
48 BRACKET; AIR PIPE
EXC. AIR COMPRESSOR HEAVY DUTY(E1Q) (B) 		1-22196-291-0 01 1 9003-9412 ●
48 BRACKET; AIR PIPE
(B) 		1-22196-291-0 01 1 9501- ●
49 WASHER; LK,BRKT
ID=10.2 		9-09150-510-0 01 1 8712-9306 ● ●
50 BOLT; BRKT
M10X16 		9-02341-016-0 02 1 8712-9001 ●
50 BOLT; BRKT
M10X16 		9-02341-016-0 01 1 9002-9204 ●
50 BOLT; BRKT
M10X16 		0-23801-016-0 01 1 9205-9306 ●
50 BOLT; BRKT
M10X20 W/LK&PL WASHER 		0-50151-020-0 01 1 9307- ●
52 PIPE ASM; AIR FLEX HOSE 1-19192-051-0 01 1 8712-9001 ●
52 PIPE ASM; AIR FLEX HOSE 1-19192-050-0 01 1 8712-8901 ●
52 PIPE ASM; AIR FLEX HOSE
AIR COMPRESSOR HEAVY DUTY VAR2(E6A) 		1-19192-274-2 01 1 8902-9001 ●
52 PIPE ASM; AIR FLEX HOSE
EXC. AIR COMPRESSOR HEAVY DUTY VAR2(E6A) 		1-19192-050-0 01 1 8902-9001 ●
52 PIPE ASM; AIR FLEX HOSE 1-19192-365-1 01 1 9002- ●
52 PIPE ASM; AIR FLEX HOSE 1-19192-364-2 01 1 9002- ●
53 BRACKET; CLIP
L=50 		1-47475-299-2 01 1 9207- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
