Isuzu WW
▶
PICKUP
▶
TFR
▶
50726 - TFR/TFS-LHD
▶
4 - Propeller Shaft, Axles, Steering, Suspension
▶
4-30 - STEERING WHEEL AND COWL
▶

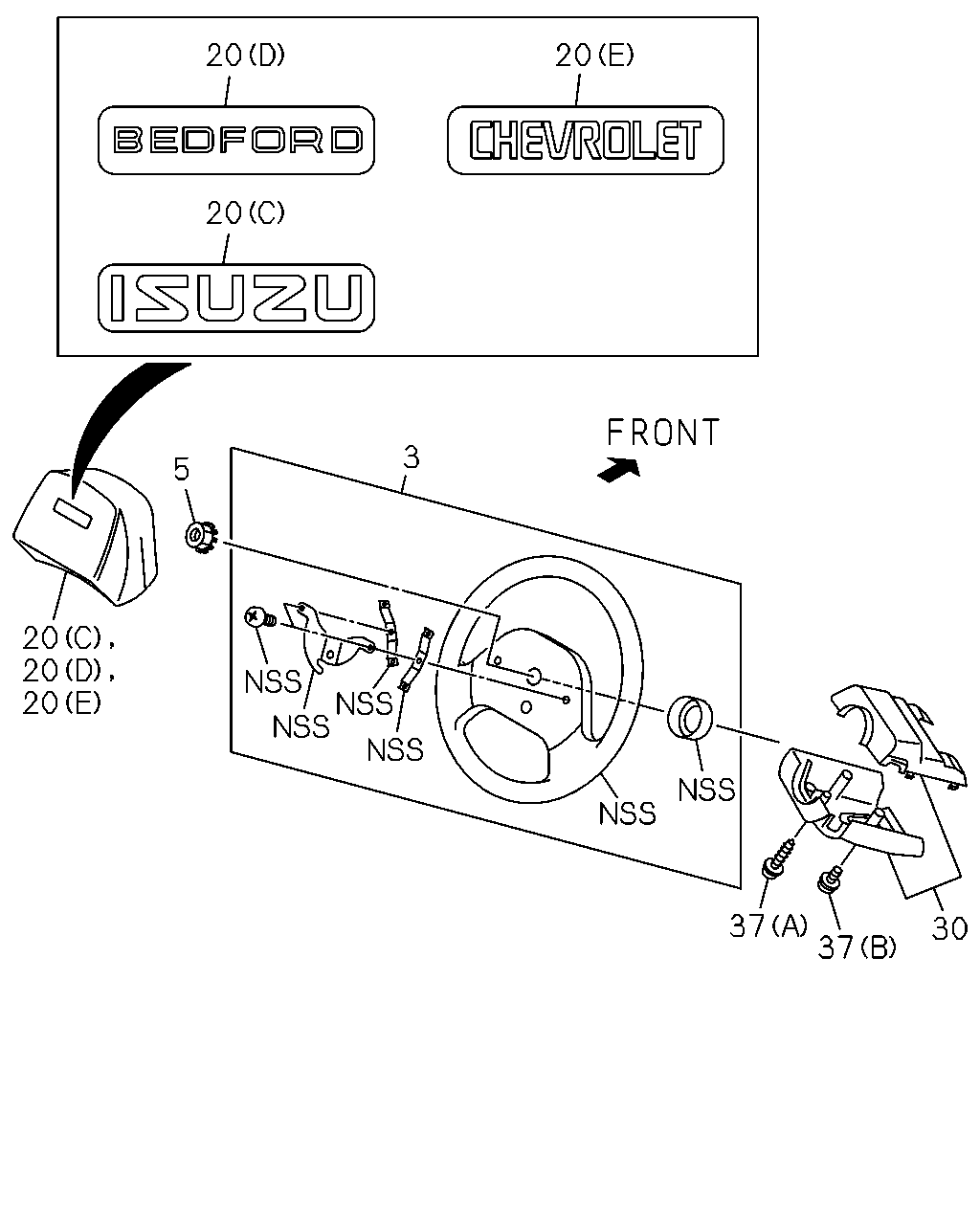

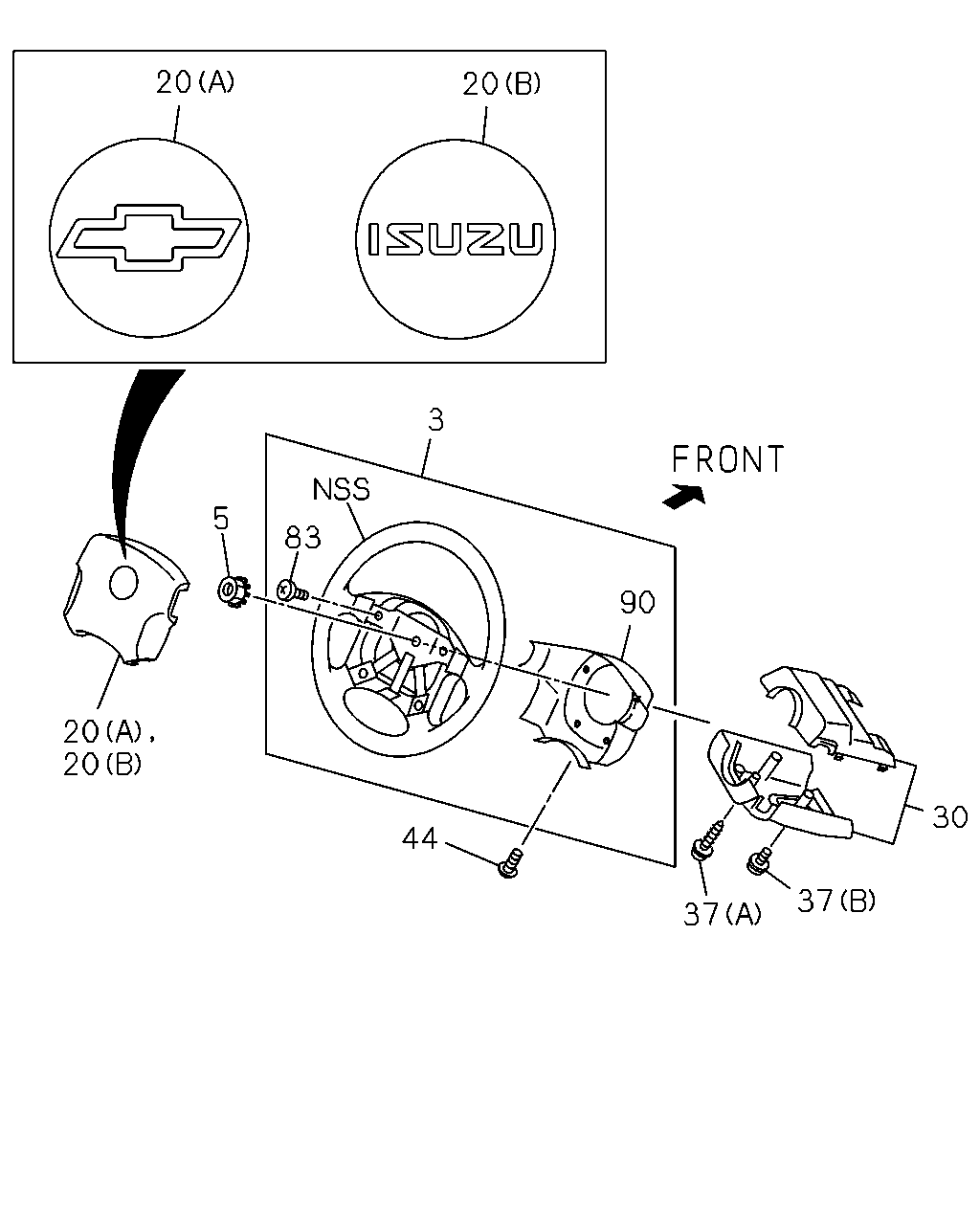

4-30 — STEERING WHEEL AND COWL
(#48398) — 38 parça
Tümü
A - TFB6CF
B - TFS6CF
C - TFB6SC
D - TFB6SF
E - TFB6WF
F - TFS6SC
G - TFS6SF
H - TFS6WF
◀
[430A] EXC.STEERING WHEEL LEATHER SPORTY TYPE (16 parça)
[430A] STEERING WHEEL LEATHER SPORTY TYPE (22 parça)
▶
20
20
3
5
20
20
37
37
30
20
20
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
3
06.513 WHEEL; STRG
BLACK
8-97155-240-0
01
1
9611-
●
●
3
06.513 WHEEL; STRG
SPORTY TYPE STRG WHEEL URETHANE<NK4> BLACK
8-97155-240-0
01
1
9611-
●
●
●
●
●
●
3
06.513 WHEEL; STRG
EXC. SPORTY TYPE STRG WHEEL URETHAN E<NK4> BLACK
8-97154-756-2
01
1
9611-
●
●
●
●
●
●
5
06.515 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER
8-94455-487-1
01
1
9611-
●
●
●
●
●
●
●
●
20
06.512 SHROUD; PAD,STRG WHEEL
SPORTY TYPE STRG WHEEL URETHANE<NK4> CHEVROLET MARK<YL6> (A) BLACK
8-97155-242-1
01
1
9611-9701
●
●
●
●
●
●
●
●
20
06.512 SHROUD; PAD,STRG WHEEL
SPORTY TYPE STRG WHEEL URETHANE<NK4> CHEVROLET MARK<YL6> (A) BLACK
8-97159-162-0
01
1
9702-
●
●
●
●
●
●
●
●
20
06.512 SHROUD; PAD,STRG WHEEL
SPORTY TYPE STRG WHEEL URETHANE<NK4> EXC. CHEVROLET MARK<YL6> (B) BLACK
8-97155-241-1
01
1
9611-9701
●
●
●
●
●
●
●
●
20
06.512 SHROUD; PAD,STRG WHEEL
SPORTY TYPE STRG WHEEL URETHANE<NK4> EXC. CHEVROLET MARK<YL6> (B) BLACK
8-97159-161-0
01
1
9702-
●
●
●
●
●
●
●
●
20
06.512 SHROUD; PAD,STRG WHEEL
GRADE STD(RBA) BEDFORD MARK<RS3> EXC. SPORTY TYPE STRG WHEEL URETHAN E<NK4> (D) BLACK
8-97154-760-1
01
1
9611-9704
●
●
●
●
●
●
20
06.512 SHROUD; PAD,STRG WHEEL
GRADE STD(RBA) CHEVROLET MARK<YL6> EXC. SPORTY TYPE STRG WHEEL URETHAN E<NK4> (E) BLACK
8-97154-758-1
01
1
9611-
●
●
●
●
●
●
20
06.512 SHROUD; PAD,STRG WHEEL
GRADE STD(RBA) EXC. SPORTY TYPE STRG WHEEL URETHAN E<NK4>,CHEVROLET MARK<YL6> (C) BLACK
8-97154-757-1
01
1
9611-9706
●
●
●
●
●
●
20
06.512 SHROUD; PAD,STRG WHEEL
GRADE STD(RBA) EXC. SPORTY TYPE STRG WHEEL URETHAN E<NK4>,CHEVROLET MARK<YL6> (C) BLACK
8-97154-757-1
01
1
9707-
●
●
●
●
●
●
20
06.512 SHROUD; PAD,STRG WHEEL
GRADE LS(RBD) CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) (C) BLACK
8-97154-757-1
01
1
9707-
●
●
30
06.518 COWL; STEERING
BLACK
8-97098-330-5
01
1
9611-
●
●
●
●
●
●
●
●
37
06.518 SCREW; STRG COWL UPR
16.085 (A) M5X16
5-09981-053-0
04
1
9611-
●
●
●
●
●
●
●
●
37
06.518 SCREW; STRG COWL UPR
(B) M4X12 W/PL WASHER
9-03900-412-0
03
1
9611-
●
●
●
●
●
●
●
●
3
5
83
90
20
20
37
20
20
44
37
30
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
D
E
F
G
H
3
06.513 WHEEL; STRG
BLACK
8-97155-240-0
01
1
9611-
●
●
3
06.513 WHEEL; STRG
SPORTY TYPE STRG WHEEL URETHANE<NK4> BLACK
8-97155-240-0
01
1
9611-
●
●
●
●
●
●
3
06.513 WHEEL; STRG
EXC. SPORTY TYPE STRG WHEEL URETHAN E<NK4> BLACK
8-97154-756-2
01
1
9611-
●
●
●
●
●
●
5
06.515 NUT; STRG WHEEL TO SHAFT
M12 W/TOOTH WASHER
8-94455-487-1
01
1
9611-
●
●
●
●
●
●
●
●
20
06.512 SHROUD; PAD,STRG WHEEL
SPORTY TYPE STRG WHEEL URETHANE<NK4> CHEVROLET MARK<YL6> (A) BLACK
8-97155-242-1
01
1
9611-9701
●
●
●
●
●
●
●
●
20
06.512 SHROUD; PAD,STRG WHEEL
SPORTY TYPE STRG WHEEL URETHANE<NK4> CHEVROLET MARK<YL6> (A) BLACK
8-97159-162-0
01
1
9702-
●
●
●
●
●
●
●
●
20
06.512 SHROUD; PAD,STRG WHEEL
SPORTY TYPE STRG WHEEL URETHANE<NK4> EXC. CHEVROLET MARK<YL6> (B) BLACK
8-97155-241-1
01
1
9611-9701
●
●
●
●
●
●
●
●
20
06.512 SHROUD; PAD,STRG WHEEL
SPORTY TYPE STRG WHEEL URETHANE<NK4> EXC. CHEVROLET MARK<YL6> (B) BLACK
8-97159-161-0
01
1
9702-
●
●
●
●
●
●
●
●
20
06.512 SHROUD; PAD,STRG WHEEL
GRADE STD(RBA) BEDFORD MARK<RS3> EXC. SPORTY TYPE STRG WHEEL URETHAN E<NK4> (D) BLACK
8-97154-760-1
01
1
9611-9704
●
●
●
●
●
●
20
06.512 SHROUD; PAD,STRG WHEEL
GRADE STD(RBA) CHEVROLET MARK<YL6> EXC. SPORTY TYPE STRG WHEEL URETHAN E<NK4> (E) BLACK
8-97154-758-1
01
1
9611-
●
●
●
●
●
●
20
06.512 SHROUD; PAD,STRG WHEEL
GRADE STD(RBA) EXC. SPORTY TYPE STRG WHEEL URETHAN E<NK4>,CHEVROLET MARK<YL6> (C) BLACK
8-97154-757-1
01
1
9611-9706
●
●
●
●
●
●
20
06.512 SHROUD; PAD,STRG WHEEL
GRADE STD(RBA) EXC. SPORTY TYPE STRG WHEEL URETHAN E<NK4>,CHEVROLET MARK<YL6> (C) BLACK
8-97154-757-1
01
1
9707-
●
●
●
●
●
●
20
06.512 SHROUD; PAD,STRG WHEEL
GRADE LS(RBD) CHINA CHONGQING EQUIPMENT(R5B) CHINA EQUIPMENT(YT2) (C) BLACK
8-97154-757-1
01
1
9707-
●
●
30
06.518 COWL; STEERING
BLACK
8-97098-330-5
01
1
9611-
●
●
●
●
●
●
●
●
37
06.518 SCREW; STRG COWL UPR
16.085 (A) M5X16
5-09981-053-0
04
1
9611-
●
●
●
●
●
●
●
●
37
06.518 SCREW; STRG COWL UPR
(B) M4X12 W/PL WASHER
9-03900-412-0
03
1
9611-
●
●
●
●
●
●
●
●
44
06.514 SCREW; STRG COWL
06.512 M5X19 W/LK&PL WASHER
8-94104-815-1
01
1
9611-
●
●
44
06.514 SCREW; STRG COWL
SPORTY TYPE STRG WHEEL URETHANE<NK4> 06.512 M5X19 W/LK&PL WASHER
8-94104-815-1
01
1
9611-
●
●
●
●
●
●
83
06.514 SCREW; LWR COVER TO WHEEL
8-97164-606-0
04
1
9611-
●
●
83
06.514 SCREW; LWR COVER TO WHEEL
SPORTY TYPE STRG WHEEL URETHANE<NK4>
8-97164-606-0
04
1
9611-
●
●
●
●
●
●
90
06.578 COVER ASM; STRG WHEEL,LWR
06.514 BLACK
8-97158-297-0
01
1
9611-
●
●
90
06.578 COVER ASM; STRG WHEEL,LWR
SPORTY TYPE STRG WHEEL URETHANE<NK4> 06.514 BLACK
8-97158-297-0
01
1
9611-
●
●
●
●
●
●
