Isuzu WW
▶
TRUCKS
▶
FTS
▶
11421 - FTS(AUST)EURO4
▶
2 - Clutch, Transmission, Trans Axle
▶
2-85 - POWER TAKE OFF CONTROL
▶

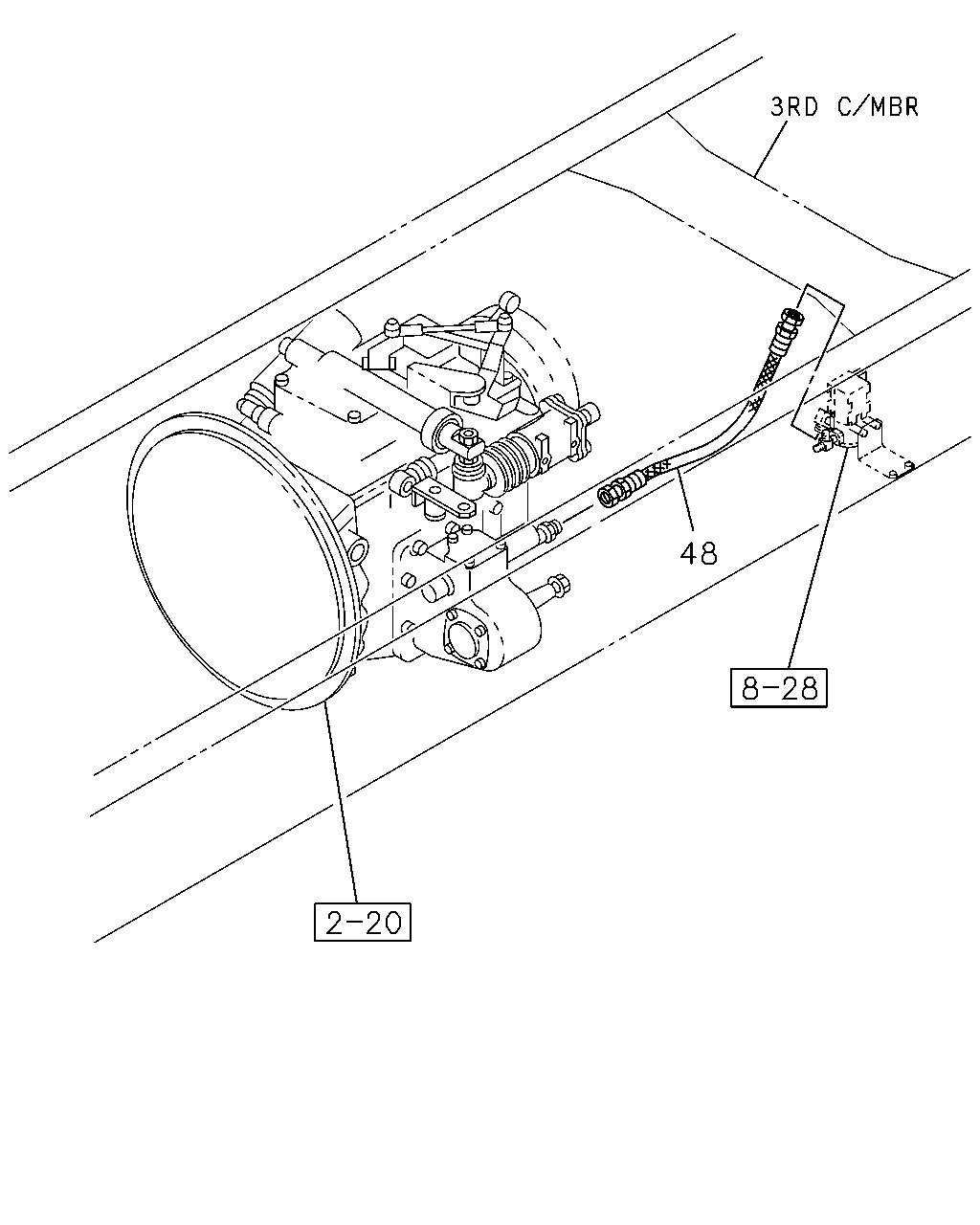

2-85 — POWER TAKE OFF CONTROL
(#48395) — 6 parça
Tümü
A - FGS5MS
B - FGS5WS
48
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
48
HOSE; FLEX,PTO
MLD6Q M/T(X5J) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=230
1-09363-784-0
01
1
0806-0806
●
●
48
HOSE; FLEX,PTO
MZW6P M/T(RSZ) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=220
1-09363-645-0
01
1
0907-
●
●
48
HOSE; FLEX,PTO
PTO CONTROL<SV6> L=340
1-09363-617-0
01
1
0712-0802
●
48
HOSE; FLEX,PTO
TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=210
1-09363-614-0
01
1
0803-0804
●
●
48
HOSE; FLEX,PTO
MZX6P M/T(RSW) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=210
1-09363-614-0
01
1
0805-0805
●
●
48
HOSE; FLEX,PTO
MZX6P M/T(RSW),MLD6Q M/T(X5J) TRANSMISSION SIDE PTO WO/LEVER(SH5) PTO CONTROL<SV6> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=210
1-09363-614-0
01
1
0806-
●
●
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
