2-60 — TRANSFER (#48389) — 29 parça

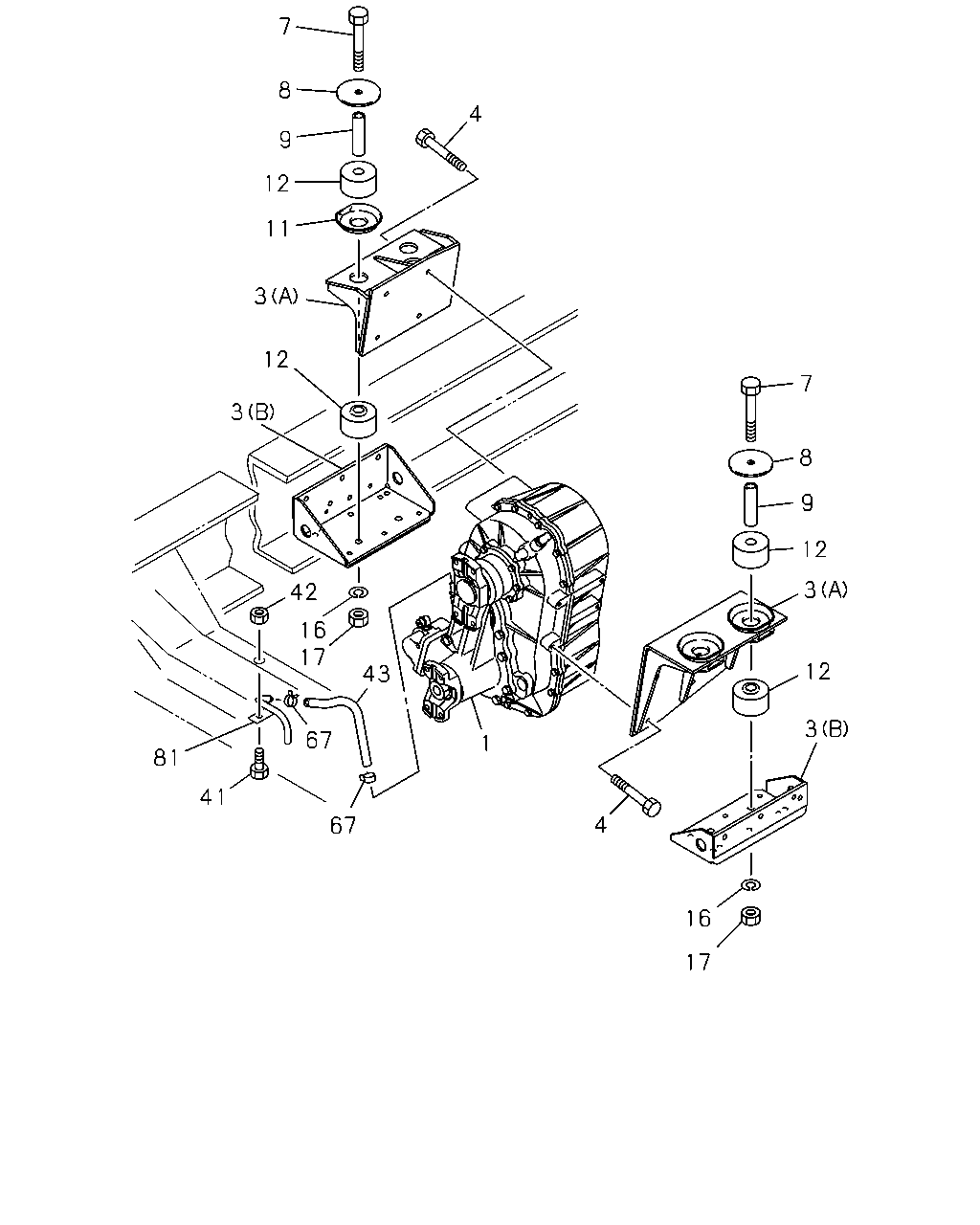

çizim 25696
7 8 4 9 12 11 3 12 7 3 8 9 12 3 42 16 17 12 43 3 67 1 81 41 4 67 16 17
BalonParca AdiParca NoAdetTipApplied Date A B
1 TRANSFER ASM 1-36000-729-0 01 1 0712- ● ●
3 BRACKET; TRANSFER
(B) 		8-97615-988-3 01 1 0712-0803 ● ●
3 BRACKET; TRANSFER
(B) 		8-97628-322-0 01 1 0804- ● ●
3 BRACKET; TRANSFER
(B) 		8-97615-989-1 01 1 0712-0803 ● ●
3 BRACKET; TRANSFER
(B) 		8-97615-988-3 01 1 0804- ●
3 BRACKET; TRANSFER
(A) 		8-98013-515-0 01 1 0712- ● ●
3 BRACKET; TRANSFER
(A) 		8-98013-516-0 01 1 0712- ● ●
3 BRACKET; TRANSFER
(B) 		8-97628-278-0 01 1 0804- ●
4 BOLT; BRKT TO TRANSFER
M12X25 FLANGE 		0-28151-225-0 08 1 0712- ● ●
7 BOLT; CUSHION RUBBER 1-09000-239-1 04 1 0712- ● ●
8 PLATE; CUSHION RUBBER 1-09503-134-0 04 1 0712- ● ●
9 PIECE; DIST,CUSHION RUBBER 1-36181-002-0 04 1 0712- ● ●
11 SEAT; CUSHION RUBBER 1-36189-070-0 02 1 0712- ● ●
12 RUBBER; CUSHION,LWR,TRANSFER 1-36189-040-1 08 1 0712- ● ●
16 WASHER; LK,CUSHION RUBBER
ID=16.2 		0-91510-616-0 04 1 0712- ● ●
17 NUT; CUSHION RUBBER
M16 		0-91110-516-0 04 1 0712- ● ●
41 BOLT; BRKT,BREATHER
M8X25 FLANGE 		0-28650-825-0 01 1 0712-0801 ●
41 BOLT; BRKT,BREATHER
M8X25 FLANGE 		0-28650-825-0 01 1 0802- ● ●
42 NUT; BRKT,BREATHER
M8 FLANGE 		0-91180-108-0 02 1 0712-0801 ●
42 NUT; BRKT,BREATHER
M8 FLANGE 		0-91180-108-0 02 1 0802- ● ●
43 HOSE; RUBBER,BREATHER
L=445 SERVICED BY L=1800 		1-09360-320-0 01 1 0712-0801 ●
43 HOSE; RUBBER,BREATHER
L=445 SERVICED BY L=1800 		1-09360-320-0 01 1 0802-0802 ● ●
43 HOSE; RUBBER,BREATHER
L=310 SERVICED BY L=1800 		1-09360-320-0 01 1 0802- ● ●
67 CLIP; BAND
ID=14 		1-09704-102-0 02 1 0712-0801 ●
67 CLIP; BAND
ID=14 		1-09704-102-0 02 1 0802- ● ●
81 PIPE; BREATHER 1-49115-033-0 01 1 0712-0801 ●
81 PIPE; BREATHER 1-49115-033-0 01 1 0802- ● ●

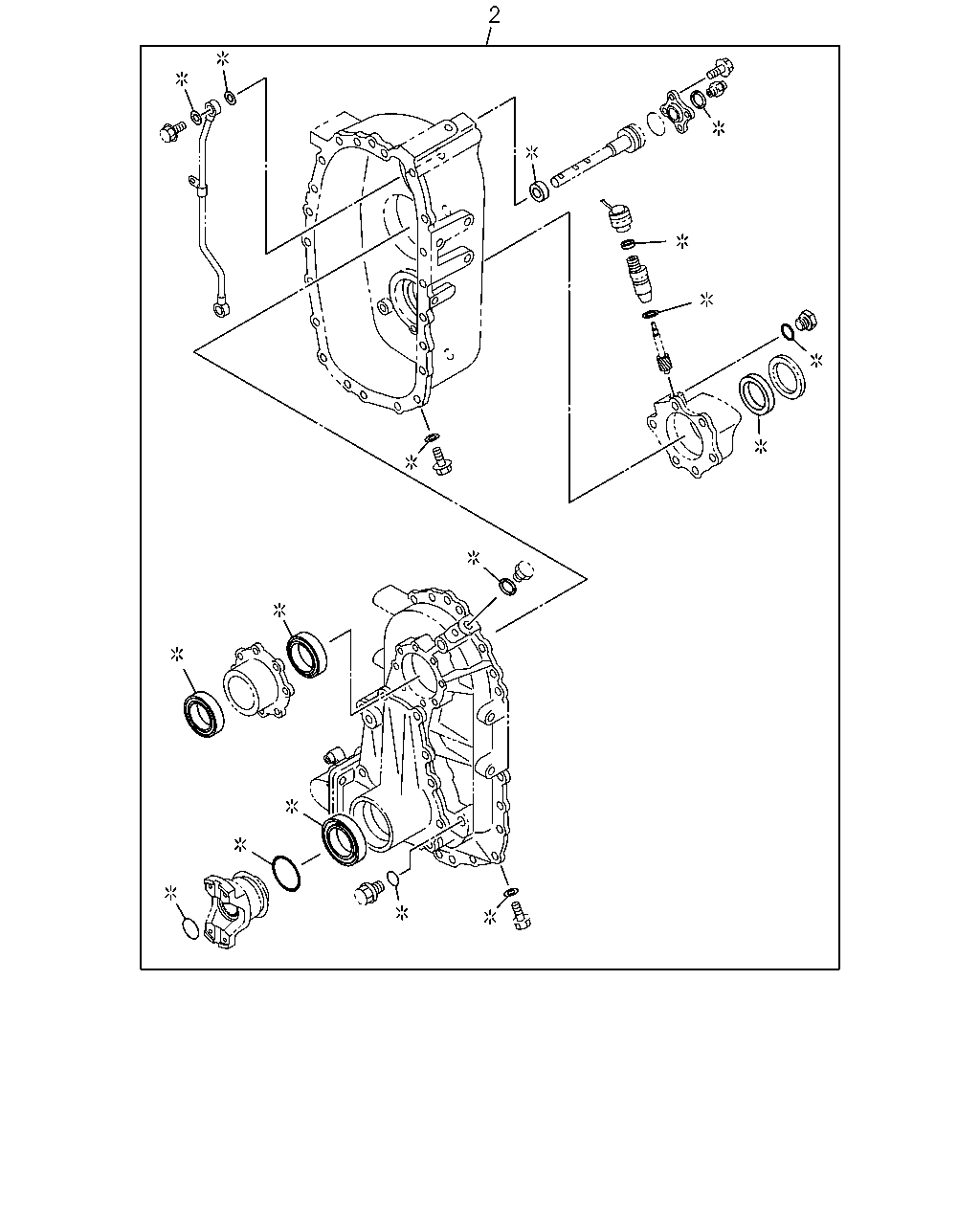

çizim 98965
2
BalonParca AdiParca NoAdetTipApplied Date A B
2 REPAIR KIT; TRANSFER OVERHAUL 1-87831-339-0 01 1 0712-1312 ● ●
2 REPAIR KIT; TRANSFER OVERHAUL 1-87831-462-0 01 1 1401- ● ●
