◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11421 - FTS(AUST)EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-39 - POWER ASSISTOR ▶
2-39 — POWER ASSISTOR (#48388) — 81 parça

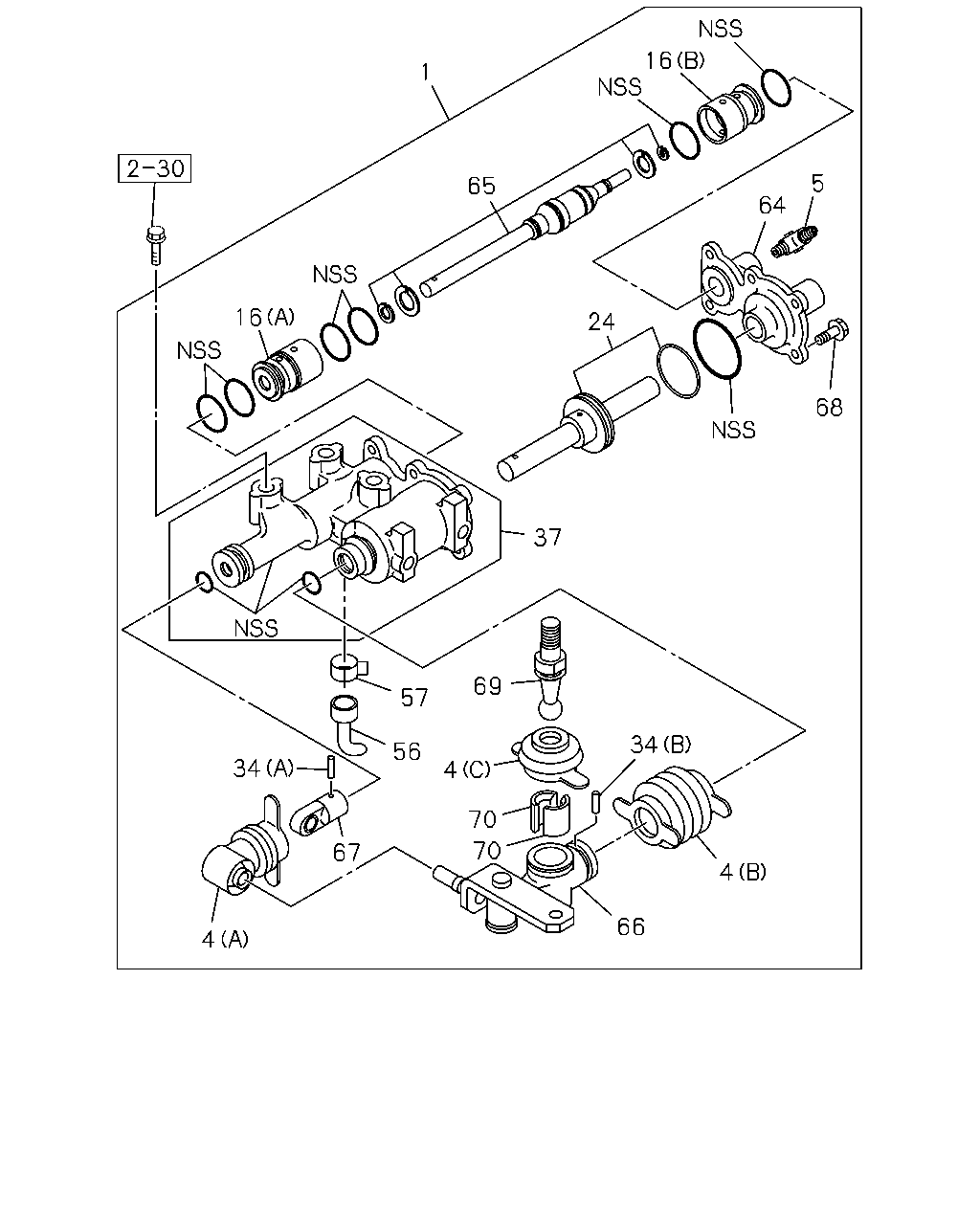

çizim 25341
16 1 5 65 64 16 24 68 37 69 57 34 56 34 4 70 70 67 4 66 4
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ASSISTOR ASM; POWER,SHIFT 8-98022-843-0 01 1 0712-0805 ●
1 ASSISTOR ASM; POWER,SHIFT 8-98022-843-0 01 1 0806-0906 ● ●
1 ASSISTOR ASM; POWER,SHIFT 8-98022-843-0 01 1 0907- ● ● ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 0712-0805 ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 0806-0906 ● ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 0907- ● ● ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 0712-0805 ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 0806-0906 ● ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 0907- ● ● ●
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 0712-0805 ●
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 0806-0906 ● ●
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 0907- ● ● ●
5 CONNECTOR; CYL
M12 & PT1/8 		0-92124-306-0 01 1 0712-0805 ●
5 CONNECTOR; CYL
M12 & PT1/8 		0-92124-306-0 01 1 0806-0906 ● ●
5 CONNECTOR; CYL
M12 & PT1/8 		0-92124-306-0 01 1 0907- ● ● ●
16 SEAT; VALVE
(A) 		8-97388-032-0 01 1 0712-0805 ●
16 SEAT; VALVE
(A) 		8-97388-032-0 01 1 0806-0906 ● ●
16 SEAT; VALVE
(A) 		8-97388-032-0 01 1 0907- ● ● ●
16 SEAT; VALVE
(B) 		8-97388-033-0 01 1 0712-0805 ●
16 SEAT; VALVE
(B) 		8-97388-033-0 01 1 0806-0906 ● ●
16 SEAT; VALVE
(B) 		8-97388-033-0 01 1 0907- ● ● ●
24 PISTON 1-33739-836-1 01 1 0712-0805 ●
24 PISTON 1-33739-836-1 01 1 0806-0906 ● ●
24 PISTON 1-33739-836-1 01 1 0907- ● ● ●
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 0712-0805 ●
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 0806-0906 ● ●
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 0907- ● ● ●
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 0712-0805 ●
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 0806-0906 ● ●
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 0907- ● ● ●
37 HOUSING; POWER SHIFTER 1-33739-969-0 01 1 0712-0805 ●
37 HOUSING; POWER SHIFTER 1-33739-969-0 01 1 0806-0906 ● ●
37 HOUSING; POWER SHIFTER 1-33739-969-0 01 1 0907- ● ● ●
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 0712-0805 ●
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 0806-0906 ● ●
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 0907- ● ● ●
57 CLAMP; HOSE 1-33739-849-0 01 1 0712-0805 ●
57 CLAMP; HOSE 1-33739-849-0 01 1 0806-0906 ● ●
57 CLAMP; HOSE 1-33739-849-0 01 1 0907- ● ● ●
64 COVER; HOUSING 1-33739-970-0 01 1 0712-0805 ●
64 COVER; HOUSING 1-33739-970-0 01 1 0806-0906 ● ●
64 COVER; HOUSING 1-33739-970-0 01 1 0907- ● ● ●
65 VALVE; POWER SHIFTER 8-97388-029-0 01 1 0712-0805 ●
65 VALVE; POWER SHIFTER 8-97388-029-0 01 1 0806-0906 ● ●
65 VALVE; POWER SHIFTER 8-97388-029-0 01 1 0907- ● ● ●
66 JOINT ASM; POWER SHIFTER 1-33739-972-0 01 1 0712-0805 ●
66 JOINT ASM; POWER SHIFTER 1-33739-972-0 01 1 0806-0906 ● ●
66 JOINT ASM; POWER SHIFTER 1-33739-972-0 01 1 0907- ● ● ●
67 JOINT; BALL,POWER SHIFTER 1-33739-973-0 01 1 0712-0805 ●
67 JOINT; BALL,POWER SHIFTER 1-33739-973-0 01 1 0806-0906 ● ●
67 JOINT; BALL,POWER SHIFTER 1-33739-973-0 01 1 0907- ● ● ●
68 BOLT; COVER
M6X12 FLANGE 		1-33739-842-0 06 1 0712-0805 ●
68 BOLT; COVER
M6X12 FLANGE 		1-33739-842-0 06 1 0806-0906 ● ●
68 BOLT; COVER
M6X12 FLANGE 		1-33739-842-0 06 1 0907- ● ● ●
69 STUD; BALL,POWER SHIFTER 1-33739-846-0 01 1 0712-0805 ●
69 STUD; BALL,POWER SHIFTER 1-33739-846-0 01 1 0806-0906 ● ●
69 STUD; BALL,POWER SHIFTER 1-33739-846-0 01 1 0907- ● ● ●
70 SEAT; BALL STUD 1-33659-118-0 02 1 0712-0805 ●
70 SEAT; BALL STUD 1-33659-118-0 02 1 0806-0906 ● ●
70 SEAT; BALL STUD 1-33659-118-0 02 1 0907- ● ● ●

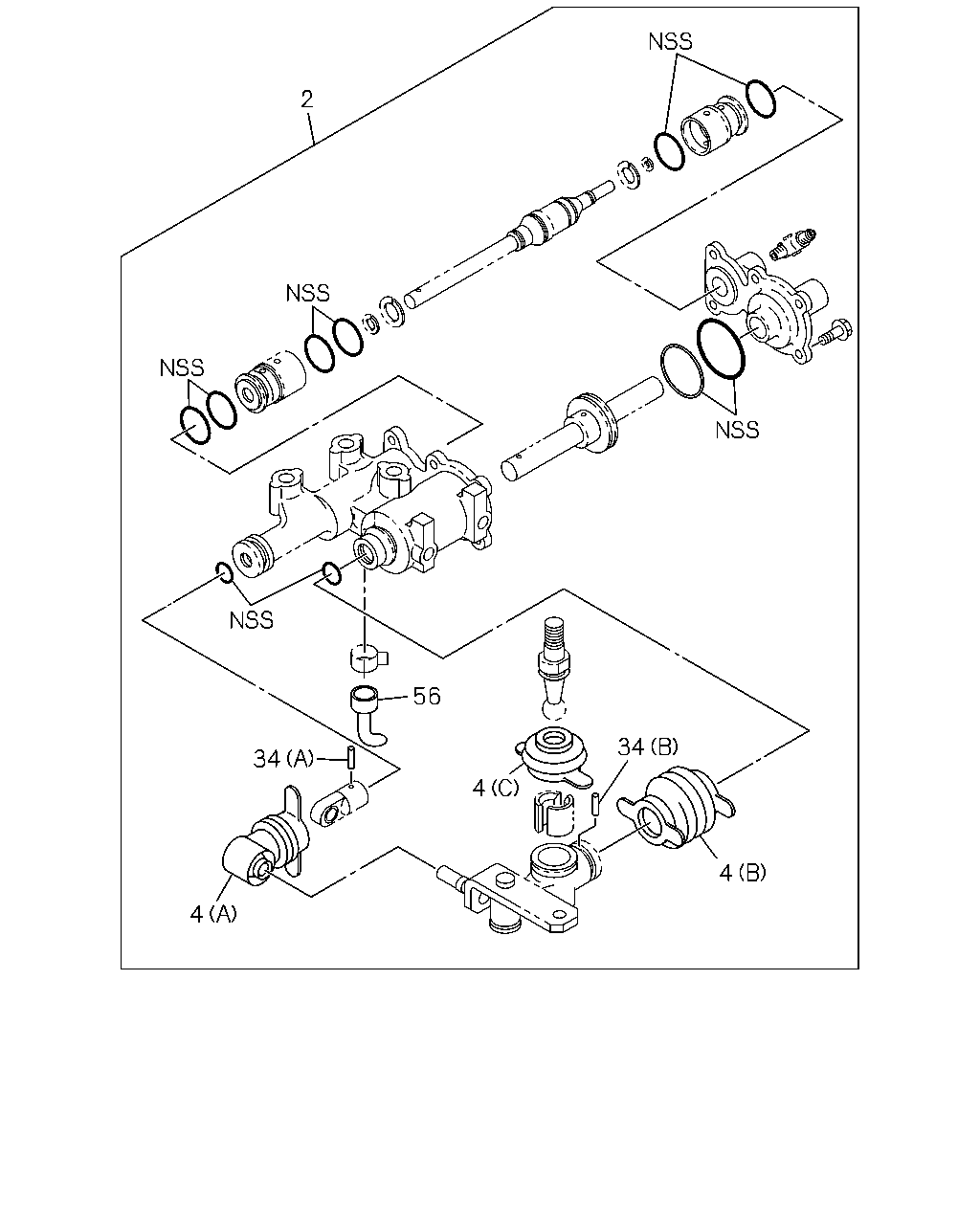

çizim 98902
2 56 34 34 4 4 4
BalonParca AdiParca NoAdetTipApplied Date A B C
2 REPAIR KIT; POWER SHIFTER 1-33738-028-0 01 1 0712-0805 ●
2 REPAIR KIT; POWER SHIFTER 1-33738-028-0 01 1 0806-0906 ● ●
2 REPAIR KIT; POWER SHIFTER 1-33738-028-0 01 1 0907- ● ● ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 0712-0805 ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 0806-0906 ● ●
4 BOOT; POWER SHIFTER
(A) 		1-33739-843-0 01 1 0907- ● ● ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 0712-0805 ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 0806-0906 ● ●
4 BOOT; POWER SHIFTER
(B) 		1-33739-844-0 01 1 0907- ● ● ●
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 0712-0805 ●
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 0806-0906 ● ●
4 BOOT; POWER SHIFTER
(C) 		1-33739-847-0 01 1 0907- ● ● ●
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 0712-0805 ●
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 0806-0906 ● ●
34 PIN; STRAIGHT,POWER SHIFTER
(B) 		1-33739-885-0 01 1 0907- ● ● ●
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 0712-0805 ●
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 0806-0906 ● ●
34 PIN; STRAIGHT,POWER SHIFTER
(A) 		1-33739-974-0 01 1 0907- ● ● ●
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 0712-0805 ●
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 0806-0906 ● ●
56 HOSE; POWER SHIFTER 1-33739-848-0 01 1 0907- ● ● ●
