◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11421 - FTS(AUST)EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-37 - MANUAL TRANSMISSION CONT; MISSION SIDE ▶
2-37 — MANUAL TRANSMISSION CONT; MISSION SIDE (#48387) — 22 parça

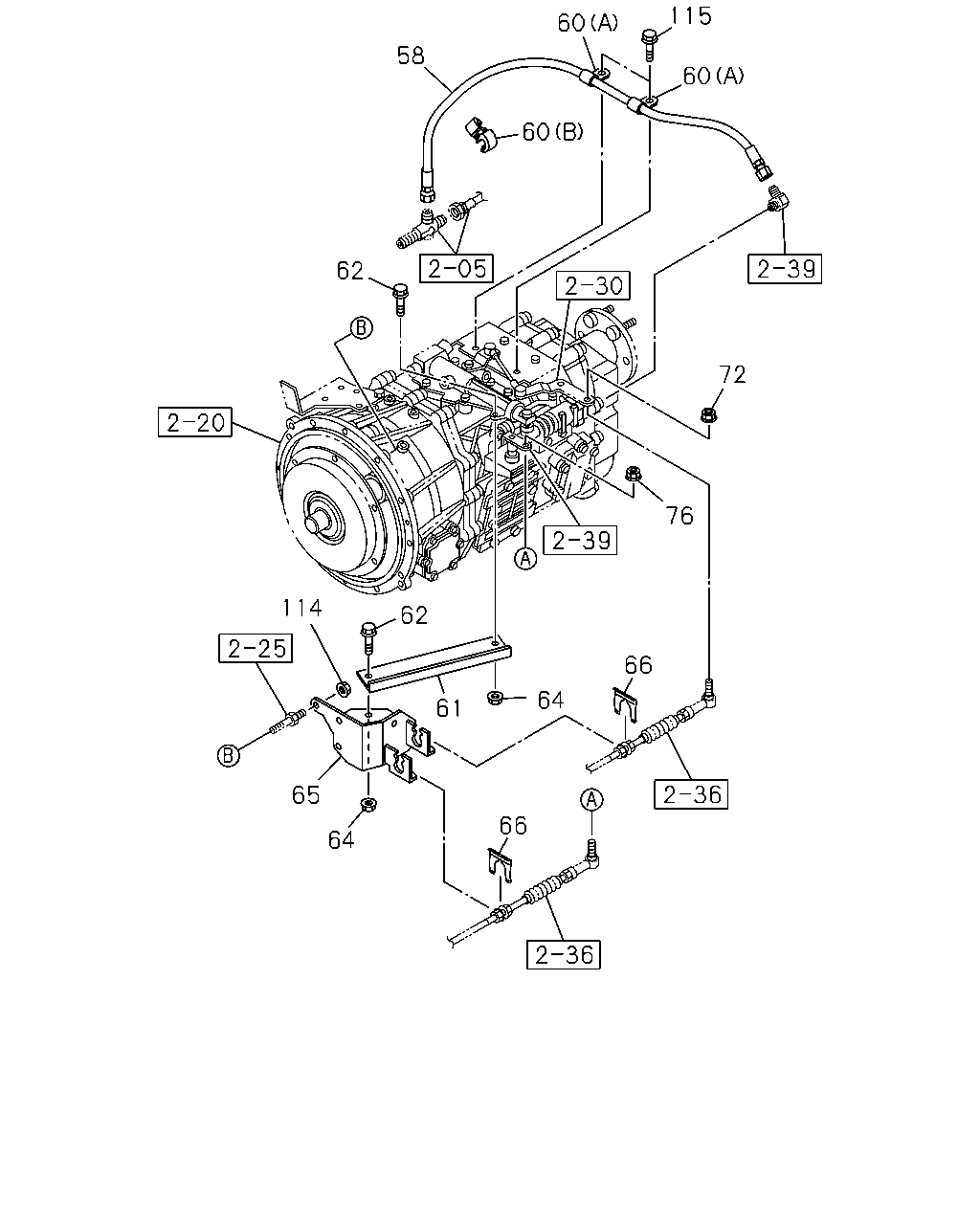

çizim 25170
115 60 58 60 60 62 72 76 114 62 66 64 61 65 66 64
BalonParca AdiParca NoAdetTipApplied Date A B
58 HOSE; FLEX,POWER ASSISTOR
MLD6Q M/T(X5J) L=740 		1-09363-675-0 01 1 0806- ● ●
58 HOSE; FLEX,POWER ASSISTOR
MZX6P M/T(RSW) L=640 		1-09363-626-1 01 1 0712-0906 ● ●
58 HOSE; FLEX,POWER ASSISTOR
MZX6P M/T(RSW),MZW6P M/T(RSZ) L=640 		1-09363-626-1 01 1 0907- ● ●
60 CLIP; FLEX HOSE
(A) ID=13 L=20 		0-95235-235-0 02 1 0712- ● ●
60 CLIP; FLEX HOSE
(B) ID=10 & 10 		1-09709-277-1 01 1 0712- ● ●
61 STAY; BRKT,TRANS CONT 1-33657-267-0 01 1 0712- ● ●
62 BOLT; STAY
M10X30 FLANGE 		0-28651-030-0 02 1 0712- ● ●
64 NUT; STAY
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT 8-98010-160-0 01 1 0712-0805 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW) 		8-98010-160-0 01 1 0806-0807 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98010-160-0 01 1 0808-0906 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98010-160-0 01 1 0907- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6Q M/T(X5J) 		1-33657-677-0 01 1 0806-0904 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		1-33657-677-0 01 1 0905- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98117-611-0 01 1 0905- ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98125-513-0 01 1 0808-0906 ● ●
65 BRACKET; SHIFT TO SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98125-513-0 01 1 0907- ● ●
66 CLIP; SELECT BRKT
ID=22.2 		1-09701-209-1 02 1 0712- ● ●
72 NUT; TRANS CONT,SELECT
M8 FLANGE 		1-09440-049-0 01 1 0712- ● ●
76 NUT; BALL JOINT,SELECT WIRE
M8 FLANGE 		1-09440-049-0 01 1 0712- ● ●
114 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
115 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 02 1 0712- ● ●
