◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11421 - FTS(AUST)EURO4 ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-36 - MANUAL TRANSMISSION CONT LINK AND CABLE ▶
2-36 — MANUAL TRANSMISSION CONT LINK AND CABLE (#48386) — 74 parça

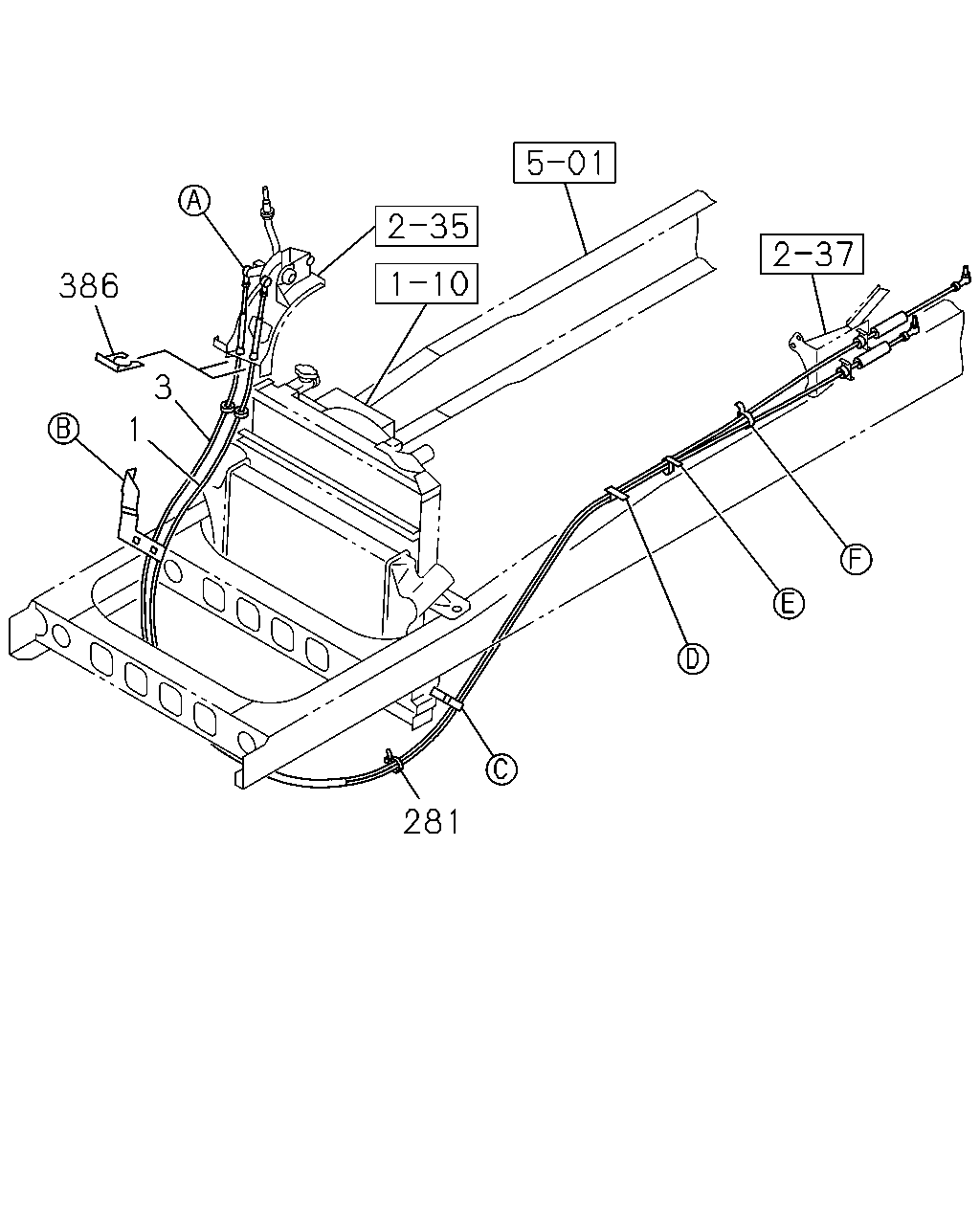

çizim 23360
386 3 1 281
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) L=3670 		8-98122-025-0 01 1 0806-0904 ● ●
1 CABLE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) L=3670 		8-98145-495-2 01 1 0905- ● ●
1 CABLE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3615 		8-98122-023-2 01 1 0806- ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) L=3570 		8-98074-060-2 01 1 0712-0807 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) L=3630 		8-98125-510-2 01 1 0808-0906 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) L=3630 		8-98125-510-2 01 1 0907- ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3515 		8-98050-357-5 01 1 0712-0906 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3515 		8-98050-357-5 01 1 0907- ● ●
3 CABLE; SELECT,TRANS CONT
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) L=3775 		8-98122-026-1 01 1 0806- ● ●
3 CABLE; SELECT,TRANS CONT
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3720 		8-98122-024-1 01 1 0806- ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) L=3775 		8-98074-066-3 01 1 0712-0906 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) L=3775 		8-98074-066-3 01 1 0907- ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3720 		8-98050-361-3 01 1 0712-0906 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3720 		8-98050-361-3 01 1 0907- ● ●
281 CLIP; BAND
L=300 		1-09707-001-1 01 1 0712- ● ●
386 CLIP; CONT CABLE & TUBE 1-09700-966-1 02 1 0712- ● ●

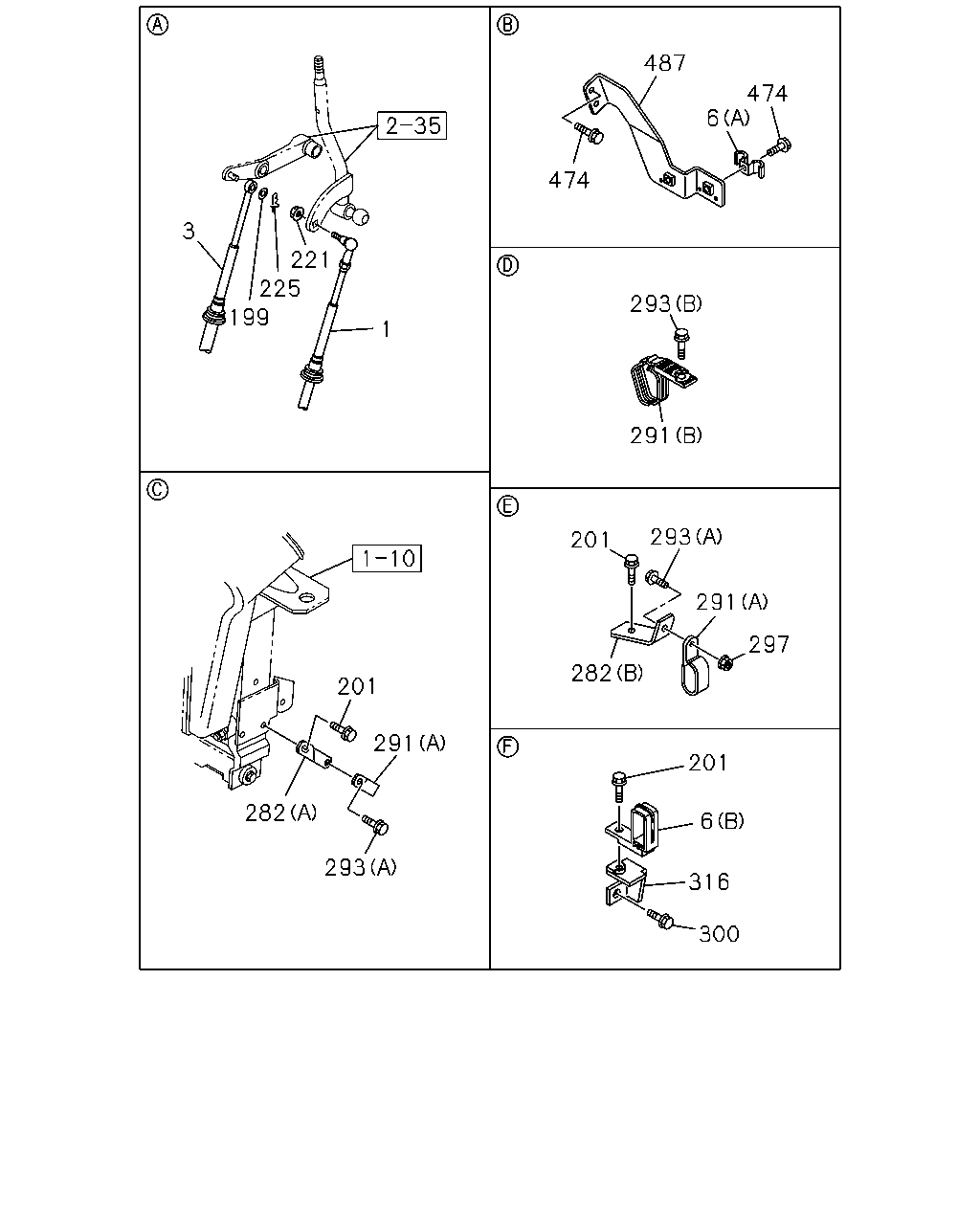

çizim 25433
487 474 6 474 3 221 225 293 199 1 291 293 201 291 297 282 201 291 201 282 6 293 316 300
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) L=3670 		8-98122-025-0 01 1 0806-0904 ● ●
1 CABLE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) L=3670 		8-98145-495-2 01 1 0905- ● ●
1 CABLE; SHIFT,TRANS CONT
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3615 		8-98122-023-2 01 1 0806- ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) L=3570 		8-98074-060-2 01 1 0712-0807 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) L=3630 		8-98125-510-2 01 1 0808-0906 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) L=3630 		8-98125-510-2 01 1 0907- ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3515 		8-98050-357-5 01 1 0712-0906 ● ●
1 CABLE; SHIFT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3515 		8-98050-357-5 01 1 0907- ● ●
3 CABLE; SELECT,TRANS CONT
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) L=3775 		8-98122-026-1 01 1 0806- ● ●
3 CABLE; SELECT,TRANS CONT
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3720 		8-98122-024-1 01 1 0806- ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) L=3775 		8-98074-066-3 01 1 0712-0906 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) L=3775 		8-98074-066-3 01 1 0907- ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3720 		8-98050-361-3 01 1 0712-0906 ● ●
3 CABLE; SELECT,TRANS CONT
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) L=3720 		8-98050-361-3 01 1 0907- ● ●
6 CLIP; CABLE
(A) ID=11 & 11 L=17.5 & 17.5 		1-09700-739-0 01 1 0712- ● ●
6 CLIP; CABLE
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0712-0804 ● ●
6 CLIP; CABLE
MZX6P M/T(RSW) (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0805-0805 ● ●
6 CLIP; CABLE
MZX6P M/T(RSW),MLD6Q M/T(X5J) MANUAL TRANSMISSION<X9C> (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0806-0806 ● ●
6 CLIP; CABLE
MZX6P M/T(RSW) MANUAL TRANSMISSION<X9C> (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0806-0906 ● ●
6 CLIP; CABLE
MZX6P M/T(RSW),MZW6P M/T(RSZ) MANUAL TRANSMISSION<X9C> (B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0907- ● ●
199 WASHER; PL,SELECT
ID=8.4 OD=16 		0-91614-508-0 01 1 0712- ● ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0712-0805 ● ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0712-0805 ● ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0806-0906 ● ●
201 BOLT; BRKT
MZX6P M/T(RSW) M8X16 FLANGE 		0-28050-816-0 01 1 0806-0906 ● ●
201 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 01 1 0907- ● ●
201 BOLT; BRKT
MZX6P M/T(RSW),MZW6P M/T(RSZ) M8X16 FLANGE 		0-28050-816-0 01 1 0907- ● ●
201 BOLT; BRKT
M8X20 FLANGE 		0-28050-820-0 01 1 0712- ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-049-0 01 1 0712-0906 ● ●
221 NUT; SHIFT WIRE TO LEVER
MANUAL TRANSMISSION<X9C> M8 FLANGE 		1-09440-049-0 01 1 0907-1011 ● ●
221 NUT; SHIFT WIRE TO LEVER
M8 FLANGE 		1-09440-062-1 01 1 1012- ● ●
225 PIN; SELECT CABLE
L=27.7 		8-94111-137-0 01 1 0712- ● ●
282 BRACKET; TRANS SIDE
(B) 		8-98010-419-0 01 1 0712-0712 ● ●
282 BRACKET; TRANS SIDE
(B) 		8-98098-265-2 01 1 0712-0805 ● ●
282 BRACKET; TRANS SIDE
(B) 		8-98098-265-2 01 1 0806- ● ●
282 BRACKET; TRANS SIDE
(A) 		1-82699-199-0 01 1 0801-0805 ● ●
282 BRACKET; TRANS SIDE
(A) 		1-82699-199-0 01 1 0806- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 01 1 0712- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(A) ID=11X2 L=16 		0-95325-026-0 01 1 0712- ● ●
291 CLIP; SHIFT TO SELECT,FRAME
(B) ID=13 & 10 & 10 L=35.5 		8-98023-991-0 01 1 0712- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0712- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X20 FLANGE 		0-28050-820-0 02 1 0712-0801 ● ●
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X20 FLANGE 		0-28050-820-0 01 1 0802- ● ●
293 BOLT; CLIP,SHIFT TO SELECT
(A) M8X20 FLANGE 		0-28650-820-0 01 1 0802- ● ●
297 NUT; CLIP
M8 FLANGE 		0-91180-108-0 01 1 0712- ● ●
300 BOLT; CLIP
M8X20 FLANGE 		0-28650-820-0 01 1 0712-0804 ● ●
300 BOLT; CLIP
MZX6P M/T(RSW) M8X20 FLANGE 		0-28650-820-0 01 1 0805-0805 ● ●
300 BOLT; CLIP
MZX6P M/T(RSW),MLD6Q M/T(X5J) MANUAL TRANSMISSION<X9C> M8X20 FLANGE 		0-28650-820-0 01 1 0806-0806 ● ●
300 BOLT; CLIP
MZX6P M/T(RSW) MANUAL TRANSMISSION<X9C> M8X20 FLANGE 		0-28650-820-0 01 1 0806-0906 ● ●
300 BOLT; CLIP
MZX6P M/T(RSW),MZW6P M/T(RSZ) MANUAL TRANSMISSION<X9C> M8X20 FLANGE 		0-28650-820-0 01 1 0907- ● ●
316 BRACKET; CLIP 8-98073-017-1 01 1 0712-0805 ● ●
316 BRACKET; CLIP
MZX6P M/T(RSW) MANUAL TRANSMISSION<X9C> 		8-98073-017-1 01 1 0806-0906 ● ●
316 BRACKET; CLIP
MZX6P M/T(RSW),MZW6P M/T(RSZ) MANUAL TRANSMISSION<X9C> 		8-98073-017-1 01 1 0907- ● ●
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 0712-0805 ● ●
474 BOLT; BRKT
M8X25 W/WASHER 		0-51640-825-0 03 1 0806- ● ●
487 BRACKET; CONT CABLE 8-98021-920-2 01 1 0712-0805 ● ●
487 BRACKET; CONT CABLE
MANUAL TRANSMISSION<X9C> 		8-98021-920-2 01 1 0806-1012 ● ●
487 BRACKET; CONT CABLE 8-98183-009-0 01 1 1101- ● ●
