2-39A — POWER ASSISTOR (#4838) — 158 parça

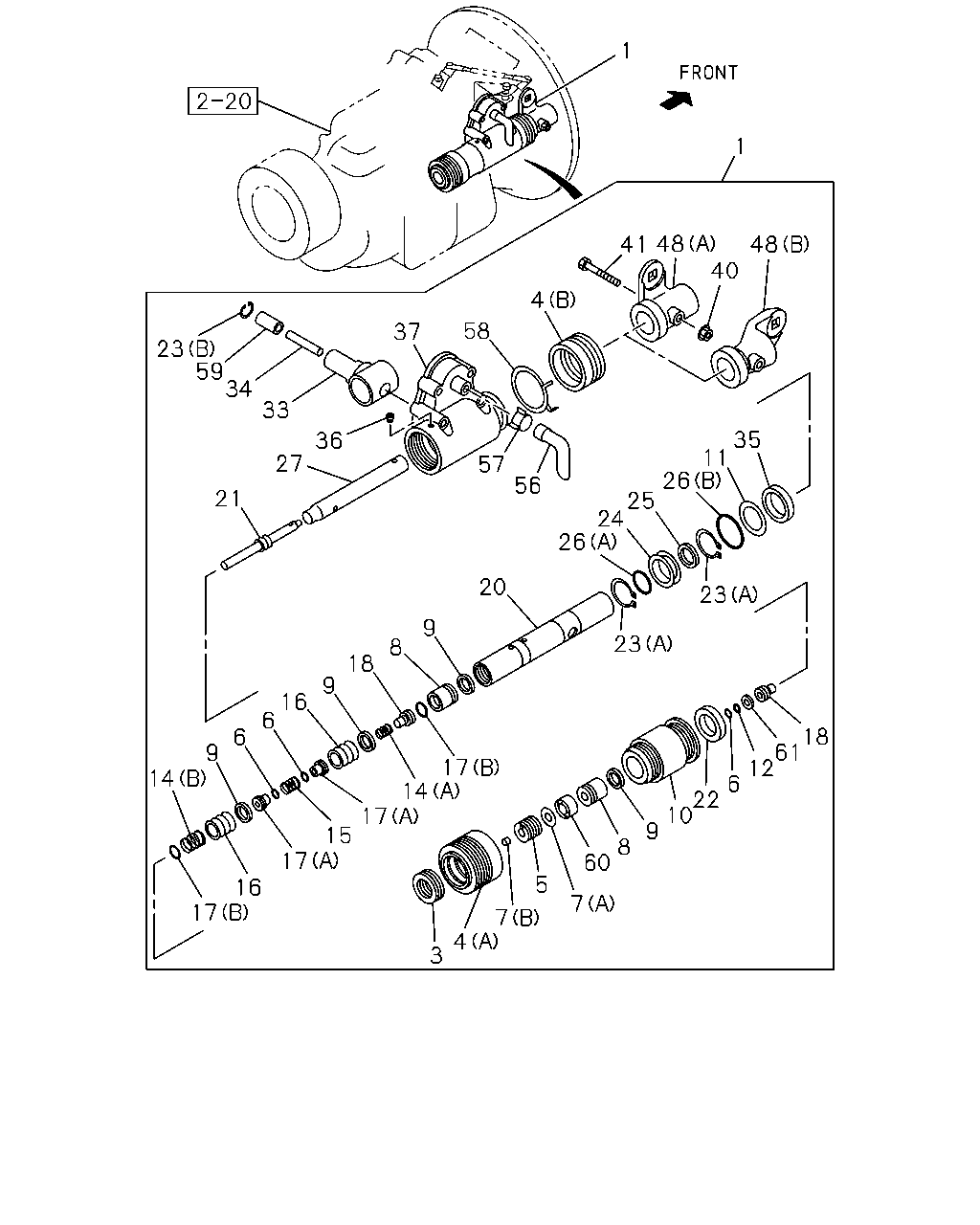

1 1 48 40 48 41 4 58 37 23 59 34 33 35 11 26 25 24 26 36 27 57 56 21 20 23 9 23 8 18 9 16 6 18 61 12 6 9 14 17 14 17 6 22 10 9 15 17 8 60 5 16 17 7 7 4 3

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	ASSISTOR ASM; POWER,SHIFT 10PE1S(60L) ASSISTOR SHIFT CONTROL<WX8>	1-33730-104-0	01	1	9601-9805	●	●
1	ASSISTOR ASM; POWER,SHIFT 10PE1S(60L) ASSISTOR SHIFT CONTROL<WX8>	1-33730-210-1	01	1	9806-9807	●	●
1	ASSISTOR ASM; POWER,SHIFT 10PE1S(60L) ASSISTOR SHIFT CONTROL<WX8>	1-33730-223-0	01	1	9808-9904	●	●
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33730-223-0	01	1	9905-0004		●
1	ASSISTOR ASM; POWER,SHIFT P90 PROP SHAFT<C5T> ASSISTOR SHIFT CONTROL<WX8>	1-33730-223-0	01	1	9905-0004	●
1	ASSISTOR ASM; POWER,SHIFT ASSISTOR SHIFT CONTROL<WX8>	1-33730-275-1	01	1	0005-		●
1	ASSISTOR ASM; POWER,SHIFT P90 PROP SHAFT<C5T> ASSISTOR SHIFT CONTROL<WX8>	1-33730-275-1	01	1	0005-	●
1	ASSISTOR ASM; POWER,SHIFT 6WA1 TC-S(56L) ASSISTOR SHIFT CONTROL<WX8>	1-33730-103-1	01	1	9601-9805	●
1	ASSISTOR ASM; POWER,SHIFT 6WA1 TC-S(56L) ASSISTOR SHIFT CONTROL<WX8>	1-33730-209-1	01	1	9806-9807	●
1	ASSISTOR ASM; POWER,SHIFT 6WA1 TC-S(56L) ASSISTOR SHIFT CONTROL<WX8>	1-33730-225-0	01	1	9808-9904	●
1	ASSISTOR ASM; POWER,SHIFT P115 PROP SHAFT<C5X> ASSISTOR SHIFT CONTROL<WX8>	1-33730-225-0	01	1	9905-0003	●
1	ASSISTOR ASM; POWER,SHIFT P115 PROP SHAFT<C5X> ASSISTOR SHIFT CONTROL<WX8>	1-33730-260-0	01	1	0004-0004	●
1	ASSISTOR ASM; POWER,SHIFT P115 PROP SHAFT<C5X> ASSISTOR SHIFT CONTROL<WX8>	1-33730-269-0	01	1	0005-	●
1	ASSISTOR ASM; POWER,SHIFT	1-33730-261-0	01	1	0005-0005			●
1	ASSISTOR ASM; POWER,SHIFT	1-33730-270-1	01	1	0005-			●
3	NUT; LK,ROD ASSISTOR SHIFT CONTROL<WX8>	1-33739-025-0	01	1	9601-0004	●	●
3	NUT; LK,ROD ASSISTOR SHIFT CONTROL<WX8>	1-33739-025-0	01	1	0005-	●	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-038-0	01	1	9601-0004	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-038-0	01	1	0005-	●	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-571-0	01	1	9601-0004	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-571-0	01	1	0005-	●	●	●
5	CONNECTOR; CYL ASSISTOR SHIFT CONTROL<WX8>	1-33739-596-0	01	1	9601-0004	●	●
5	CONNECTOR; CYL ASSISTOR SHIFT CONTROL<WX8>	1-33739-596-0	01	1	0005-	●	●	●
6	GASKET ASSISTOR SHIFT CONTROL<WX8>	1-33739-013-0	03	1	9601-0004	●	●
6	GASKET ASSISTOR SHIFT CONTROL<WX8>	1-33739-013-0	03	1	0005-	●	●	●
7	FILTER; AIR ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-036-0	01	1	0005-		●
7	FILTER; AIR P90 PROP SHAFT<C5T> ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-036-0	01	1	0005-	●
7	FILTER; AIR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-033-0	01	1	9601-0004	●	●
7	FILTER; AIR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-033-0	01	1	0005-	●	●	●
7	FILTER; AIR P115 PROP SHAFT<C5X> ASSISTOR SHIFT CONTROL<WX8> (B)	1-33738-036-0	01	1	0004-0004	●
7	FILTER; AIR P115 PROP SHAFT<C5X> ASSISTOR SHIFT CONTROL<WX8> (B)	1-33738-036-0	01	1	0005-	●		●
8	TUBE ASSISTOR SHIFT CONTROL<WX8>	1-33739-560-0	02	1	9601-0004	●	●
8	TUBE ASSISTOR SHIFT CONTROL<WX8>	1-33739-560-0	02	1	0005-	●	●	●
9	RING; SQUARE ASSISTOR SHIFT CONTROL<WX8>	1-33739-086-0	04	1	9601-0004	●	●
9	RING; SQUARE ASSISTOR SHIFT CONTROL<WX8>	1-33739-086-0	04	1	0005-	●	●	●
10	CYLINDER; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-352-0	01	1	9601-	●	●
10	CYLINDER; POWER SHIFTER	1-33739-605-0	01	1	0005-			●
11	PLATE; CYL ASSISTOR SHIFT CONTROL<WX8>	1-33739-108-0	01	1	9601-	●	●
11	PLATE; CYL	1-33739-600-0	01	1	0005-			●
12	RING; RET ASSISTOR SHIFT CONTROL<WX8>	1-33739-016-0	01	1	9601-0004	●	●
12	RING; RET ASSISTOR SHIFT CONTROL<WX8>	1-33739-016-0	01	1	0005-	●	●	●
14	SPRING; VALVE LIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-347-0	01	1	9601-0004	●	●
14	SPRING; VALVE LIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-347-0	01	1	0005-	●	●	●
14	SPRING; VALVE LIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-354-0	01	1	9601-0004	●	●
14	SPRING; VALVE LIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-354-0	01	1	0005-	●	●	●
15	SPRING; VALVE SEAL ASSISTOR SHIFT CONTROL<WX8>	1-33739-014-0	01	1	9601-0004	●	●
15	SPRING; VALVE SEAL ASSISTOR SHIFT CONTROL<WX8>	1-33739-014-0	01	1	0005-	●	●	●
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8>	1-33739-067-0	02	1	9601-0004	●	●
16	SEAT; VALVE ASSISTOR SHIFT CONTROL<WX8>	1-33739-067-0	02	1	0005-	●	●	●
17	SEAL ASM; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-012-0	02	1	9601-0004	●	●
17	SEAL ASM; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-012-0	02	1	0005-	●	●	●
17	SEAL ASM; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	9-83335-055-0	02	1	9601-0004	●	●
17	SEAL ASM; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	9-83335-055-0	02	1	0005-	●	●	●
18	LIFTER; VALVE ASSISTOR SHIFT CONTROL<WX8>	1-33739-586-0	02	1	9601-0004	●	●
18	LIFTER; VALVE ASSISTOR SHIFT CONTROL<WX8>	1-33739-586-0	02	1	0005-	●	●	●
20	ROD ASM; W/CAP ASSISTOR SHIFT CONTROL<WX8>	1-33739-599-0	01	1	9601-0004	●	●
20	ROD ASM; W/CAP ASSISTOR SHIFT CONTROL<WX8>	1-33739-599-0	01	1	0005-	●	●	●
21	PIPE; AIR,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-598-0	01	1	9601-0004	●	●
21	PIPE; AIR,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-598-0	01	1	0005-	●	●	●
22	SEAL; OIL ASSISTOR SHIFT CONTROL<WX8>	1-33739-353-0	01	1	9601-0004	●	●
22	SEAL; OIL ASSISTOR SHIFT CONTROL<WX8>	1-33739-353-0	01	1	0005-	●	●	●
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-022-0	02	1	9601-0004	●	●
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-022-0	02	1	0005-	●	●	●
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-564-0	01	1	9601-9807	●	●
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-944-0	01	1	9808-0004	●	●
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-944-0	01	1	0005-0005	●	●	●
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-564-0	01	1	0005-	●	●	●
24	PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-499-0	01	1	9601-	●	●
24	PISTON	1-33739-601-0	01	1	0005-			●
25	RING; "X",PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-350-0	01	1	9601-	●	●
25	RING; "X",PISTON	1-33739-613-0	01	1	0005-			●
26	GASKET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-122-0	01	1	9601-	●	●
26	GASKET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-124-0	01	1	9601-0004	●	●
26	GASKET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-124-0	01	1	0005-	●	●	●
26	GASKET (B)	1-33739-604-0	01	1	0005-			●
27	ROD; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-597-0	01	1	9601-0004	●	●
27	ROD; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-597-0	01	1	0005-	●	●	●
33	STRIKER; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-609-0	01	1	9601-9807	●	●
33	STRIKER; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-943-0	01	1	9808-0004	●	●
33	STRIKER; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-943-0	01	1	0005-0005	●	●	●
33	STRIKER; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-609-0	01	1	0005-	●	●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-575-0	01	1	9601-0004	●	●
34	PIN; STRAIGHT,POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-575-0	01	1	0005-	●	●	●
35	GASKET; CUP ASSISTOR SHIFT CONTROL<WX8>	1-33739-073-0	01	1	9601-0004	●	●
35	GASKET; CUP ASSISTOR SHIFT CONTROL<WX8>	1-33739-073-0	01	1	0005-	●	●	●
36	SCREW; SET ASSISTOR SHIFT CONTROL<WX8>	1-33739-040-0	01	1	9601-0004	●	●
36	SCREW; SET ASSISTOR SHIFT CONTROL<WX8>	1-33739-040-0	01	1	0005-	●	●	●
37	HOUSING; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-606-0	01	1	9601-	●	●
37	HOUSING; POWER SHIFTER	1-33739-603-0	01	1	0005-			●
40	NUT; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33739-363-0	01	1	9601-9805	●	●
40	NUT; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33739-940-0	01	1	9806-0004	●	●
40	NUT; LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33739-940-0	01	1	0005-	●	●	●
41	BOLT; SET,LEVER 10PE1S(60L) ASSISTOR SHIFT CONTROL<WX8>	1-33739-043-0	01	1	9601-9805	●	●
41	BOLT; SET,LEVER 6WA1 TC-S(56L) ASSISTOR SHIFT CONTROL<WX8>	1-33739-339-0	01	1	9601-9805	●
41	BOLT; SET,LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33739-339-0	01	1	9806-9806	●	●
41	BOLT; SET,LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33739-939-0	01	1	9806-0004	●	●
41	BOLT; SET,LEVER ASSISTOR SHIFT CONTROL<WX8>	1-33739-939-0	01	1	0005-	●	●	●
48	LEVER; CONT,CABLE 10PE1S(60L) ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-592-0	01	1	9601-9904	●	●
48	LEVER; CONT,CABLE ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-592-0	01	1	9905-		●
48	LEVER; CONT,CABLE P90 PROP SHAFT<C5T> ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-592-0	01	1	9905-	●
48	LEVER; CONT,CABLE 6WA1 TC-S(56L) ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-591-1	01	1	9601-9904	●
48	LEVER; CONT,CABLE P115 PROP SHAFT<C5X> ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-591-1	01	1	9905-0004	●
48	LEVER; CONT,CABLE P115 PROP SHAFT<C5X> ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-591-1	01	1	0005-	●		●
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-570-0	01	1	9601-0004	●	●
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-570-0	01	1	0005-	●	●	●
57	CLAMP; HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33739-569-0	01	1	9601-0004	●	●
57	CLAMP; HOSE ASSISTOR SHIFT CONTROL<WX8>	1-33739-569-0	01	1	0005-	●	●	●
58	CLAMP; BOOT ASSISTOR SHIFT CONTROL<WX8>	1-33739-562-0	01	1	9601-0004	●	●
58	CLAMP; BOOT ASSISTOR SHIFT CONTROL<WX8>	1-33739-562-0	01	1	0005-	●	●	●
59	SHIM; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-563-0	01	1	9601-9807	●	●
59	SHIM; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-563-0	01	1	0005-	●	●	●
60	COLLAR; CYL ASSISTOR SHIFT CONTROL<WX8>	1-33739-595-0	01	1	9601-0004	●	●
60	COLLAR; CYL ASSISTOR SHIFT CONTROL<WX8>	1-33739-595-0	01	1	0005-	●	●	●
61	PLATE; VLV LIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-581-0	01	1	9601-0004	●	●
61	PLATE; VLV LIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-581-0	01	1	0005-	●	●	●

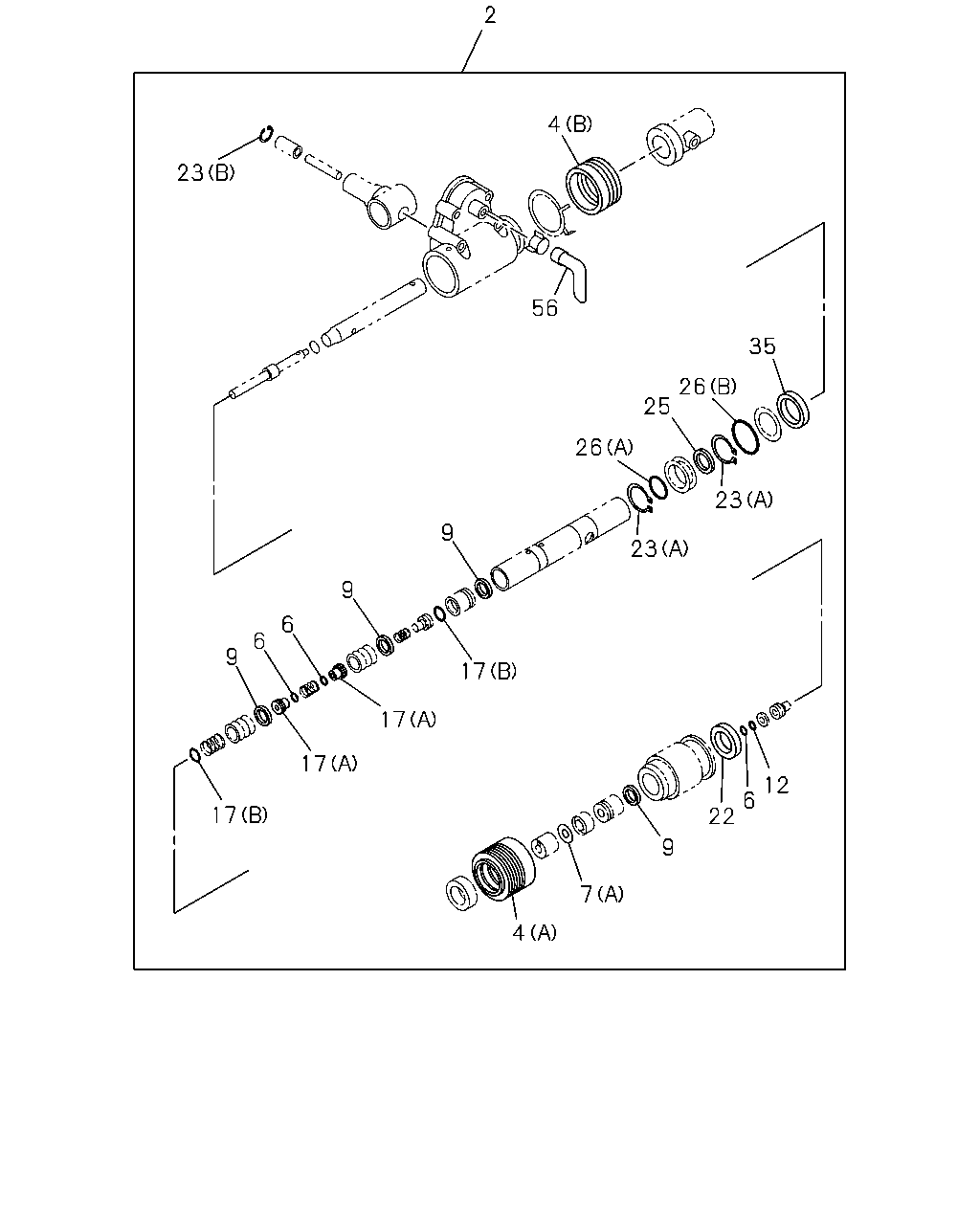

2 4 23 56 35 26 25 26 23 9 23 9 6 6 9 17 17 17 12 6 22 17 9 7 4

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-608-0	01	1	9601-9807	●	●
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-945-0	01	1	9808-0004	●	●
2	REPAIR KIT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-608-0	01	1	0005-	●	●
2	REPAIR KIT; POWER SHIFTER	1-33739-946-0	01	1	0005-0005			●
2	REPAIR KIT; POWER SHIFTER	1-33739-607-0	01	1	0005-			●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-038-0	01	1	9601-0004	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-038-0	01	1	0005-	●	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-571-0	01	1	9601-0004	●	●
4	BOOT; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-571-0	01	1	0005-	●	●	●
6	GASKET ASSISTOR SHIFT CONTROL<WX8>	1-33739-013-0	03	1	9601-0004	●	●
6	GASKET ASSISTOR SHIFT CONTROL<WX8>	1-33739-013-0	03	1	0005-	●	●	●
7	FILTER; AIR ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-036-0	01	1	0005-		●
7	FILTER; AIR P90 PROP SHAFT<C5T> ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-036-0	01	1	0005-	●
7	FILTER; AIR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-033-0	01	1	9601-0004	●	●
7	FILTER; AIR ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-033-0	01	1	0005-	●	●	●
7	FILTER; AIR P115 PROP SHAFT<C5X> ASSISTOR SHIFT CONTROL<WX8> (B)	1-33738-036-0	01	1	0004-0004	●
7	FILTER; AIR P115 PROP SHAFT<C5X> ASSISTOR SHIFT CONTROL<WX8> (B)	1-33738-036-0	01	1	0005-	●		●
9	RING; SQUARE ASSISTOR SHIFT CONTROL<WX8>	1-33739-086-0	04	1	9601-0004	●	●
9	RING; SQUARE ASSISTOR SHIFT CONTROL<WX8>	1-33739-086-0	04	1	0005-	●	●	●
12	RING; RET ASSISTOR SHIFT CONTROL<WX8>	1-33739-016-0	01	1	9601-0004	●	●
12	RING; RET ASSISTOR SHIFT CONTROL<WX8>	1-33739-016-0	01	1	0005-	●	●	●
17	SEAL ASM; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-012-0	02	1	9601-0004	●	●
17	SEAL ASM; VALVE ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-012-0	02	1	0005-	●	●	●
17	SEAL ASM; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	9-83335-055-0	02	1	9601-0004	●	●
17	SEAL ASM; VALVE ASSISTOR SHIFT CONTROL<WX8> (B)	9-83335-055-0	02	1	0005-	●	●	●
22	SEAL; OIL ASSISTOR SHIFT CONTROL<WX8>	1-33739-353-0	01	1	9601-0004	●	●
22	SEAL; OIL ASSISTOR SHIFT CONTROL<WX8>	1-33739-353-0	01	1	0005-	●	●	●
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-022-0	02	1	9601-0004	●	●
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-022-0	02	1	0005-	●	●	●
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-564-0	01	1	9601-9807	●	●
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-944-0	01	1	9808-0004	●	●
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-944-0	01	1	0005-0005	●	●	●
23	RING; RET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-564-0	01	1	0005-	●	●	●
25	RING; "X",PISTON ASSISTOR SHIFT CONTROL<WX8>	1-33739-350-0	01	1	9601-	●	●
25	RING; "X",PISTON	1-33739-613-0	01	1	0005-			●
26	GASKET ASSISTOR SHIFT CONTROL<WX8> (B)	1-33739-122-0	01	1	9601-	●	●
26	GASKET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-124-0	01	1	9601-0004	●	●
26	GASKET ASSISTOR SHIFT CONTROL<WX8> (A)	1-33739-124-0	01	1	0005-	●	●	●
26	GASKET (B)	1-33739-604-0	01	1	0005-			●
35	GASKET; CUP ASSISTOR SHIFT CONTROL<WX8>	1-33739-073-0	01	1	9601-0004	●	●
35	GASKET; CUP ASSISTOR SHIFT CONTROL<WX8>	1-33739-073-0	01	1	0005-	●	●	●
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-570-0	01	1	9601-0004	●	●
56	HOSE; POWER SHIFTER ASSISTOR SHIFT CONTROL<WX8>	1-33739-570-0	01	1	0005-	●	●	●
