2-05 — CLUTCH PIPING (#48377) — 228 parça

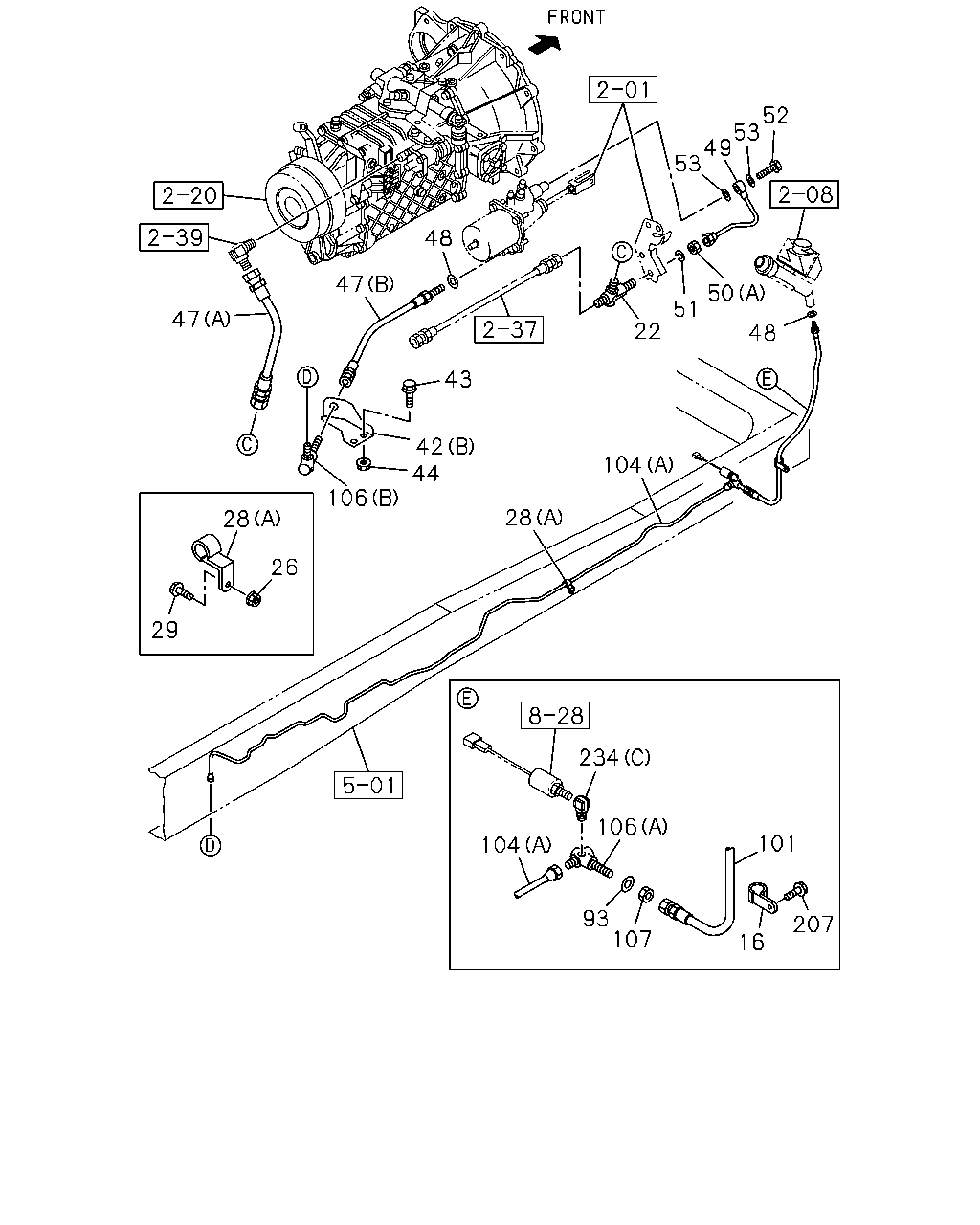

çizim 25521
52 53 49 53 48 47 50 51 47 22 48 43 42 44 104 106 28 28 26 29 234 106 101 104 93 107 207 16
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
ID=10 & 12 		1-09709-278-1 01 1 0807- ● ●
16 CLIP; FLEX HOSE
ID=16 L=28 		1-09700-872-0 01 1 0712-0802 ●
22 UNION; CLU PIPE
M12 3WAY 		0-92138-706-0 01 1 0712- ● ●
26 NUT; CLIP,OIL PIPE
M8 FLANGE 		0-91180-108-0 03 1 0712-0802 ●
28 CLIP; OIL PIPE
(B) ID=6.35 		1-09701-247-1 03 1 0712-0802 ●
28 CLIP; OIL PIPE
(B) ID=6.35 		1-09701-247-1 03 1 0803-0810 ● ●
28 CLIP; OIL PIPE
(B) ID=6.35 		1-09701-247-1 04 1 0811- ● ●
28 CLIP; OIL PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 03 1 0712-0802 ●
28 CLIP; OIL PIPE
(C) ID=45 H=31 L=35 		1-09701-273-0 01 1 0803-0806 ● ●
28 CLIP; OIL PIPE
(C) ID=6.35 & 6.35 		1-09709-273-1 01 1 0807- ● ●
29 BOLT; CLIP,OIL PIPE
M8X25 FLANGE 		0-28650-825-0 03 1 0712-0802 ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		8-98037-610-0 01 1 0712-0802 ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-97615-747-0 01 1 0712-0802 ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28650-830-0 02 1 0712-0802 ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ● ●
47 HOSE; FLEX,CLU CONT
(A) L=400 		1-09363-743-0 01 1 0712-0802 ●
47 HOSE; FLEX,CLU CONT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=320 		1-09363-625-0 01 1 0803-0805 ● ●
47 HOSE; FLEX,CLU CONT
MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=320 		1-09363-625-0 01 1 0806-0806 ● ●
47 HOSE; FLEX,CLU CONT
MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=340 		1-09363-617-0 01 1 0807- ● ●
47 HOSE; FLEX,CLU CONT
(B) L=460 		1-09364-264-0 01 1 0712-0802 ●
47 HOSE; FLEX,CLU CONT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530 		8-98072-348-0 01 1 0803-0803 ● ●
47 HOSE; FLEX,CLU CONT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530 		8-98072-348-0 01 1 0804- ●
47 HOSE; FLEX,CLU CONT
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530 		8-98072-348-0 01 1 0804- ●
47 HOSE; FLEX,CLU CONT
POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=280 		1-09363-672-0 01 1 0807- ● ●
47 HOSE; FLEX,CLU CONT
(A) L=390 		1-09363-616-0 01 1 0712-0802 ●
47 HOSE; FLEX,CLU CONT
(B) L=440 		8-98072-346-0 01 1 0712-0802 ●
47 HOSE; FLEX,CLU CONT
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=480 		8-98072-349-0 01 1 0803-0803 ● ●
47 HOSE; FLEX,CLU CONT
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=480 		8-98072-349-0 01 1 0804- ●
47 HOSE; FLEX,CLU CONT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=590 		8-98072-352-0 01 1 0804- ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 0712-0802 ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 0803- ● ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 0712-0802 ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=239 		1-49117-401-0 01 1 0712-0805 ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
15" CLUTCH(RE9) L=239 		1-49117-401-0 01 1 0806- ● ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0712-0802 ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0712-0802 ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0803- ● ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0803- ● ●
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0712-0802 ● ●
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0712-0802 ●
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0803- ● ●
51 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 0712- ● ●
52 BOLT; EYE,AIR PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 0712-0805 ● ●
52 BOLT; EYE,AIR PIPE
15" CLUTCH(RE9) M14X27 FLANGE 		1-09675-086-0 01 1 0806- ● ●
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0712-0805 ● ●
53 GASKET; JOINT BOLT
15" CLUTCH(RE9) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0806-1312 ● ●
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
93 WASHER; LK,UNION,OIL PIPE
ID=12.2 		0-91510-812-0 01 1 0712-0802 ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=470 		8-98072-353-0 01 1 0712-0802 ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 		8-98072-346-0 01 1 0803- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=411 		8-97623-318-0 01 1 0712-0802 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=541 SERVICED BY L=550 		1-47428-724-0 01 1 0803-0805 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MANUAL TRANSMISSION<X9C> (B) L=541 SERVICED BY L=550 		1-47428-724-0 01 1 0806- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=2915 		8-98098-196-0 01 1 0712-0802 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(C) L=2656 SERVICED BY L=2900 		1-47428-744-0 01 1 0803-0803 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(C) L=2656 SERVICED BY L=2900 		1-47428-744-0 01 1 0804-0805 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MANUAL TRANSMISSION<X9C> (C) L=2656 SERVICED BY L=2900 		1-47428-744-0 01 1 0806-0811 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MANUAL TRANSMISSION<X9C> (C) L=2703 SERVICED BY L=2900 		1-47428-744-0 01 1 0812-0812 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MANUAL TRANSMISSION<X9C> (C) L=2708 SERVICED BY L=2900 		1-47428-744-0 01 1 0901-0908 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MANUAL TRANSMISSION<X9C> (C) L=2824 SERVICED BY L=2900 		1-47428-744-0 01 1 0909- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2930 		8-97614-531-0 01 1 0712-0802 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(C) L=2582 SERVICED BY L=2650 		1-47428-743-0 01 1 0804-0804 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(C) L=2674 SERVICED BY L=2900 		1-47428-744-0 01 1 0805-0805 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MANUAL TRANSMISSION<X9C> (C) L=2674 SERVICED BY L=2900 		1-47428-744-0 01 1 0806-0811 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MANUAL TRANSMISSION<X9C> (C) L=2674 SERVICED BY L=2900 		1-47428-744-0 01 1 0812- ●
106 UNION; OIL PIPE
(C) 		8-98067-169-0 01 1 0712-0802 ●
106 UNION; OIL PIPE
(E) M12 3WAY 		8-98051-113-0 01 1 0803-0910 ● ●
106 UNION; OIL PIPE
(B) M12 ELBOW 		0-92125-206-0 01 1 0712-0802 ●
106 UNION; OIL PIPE
(D) M12 2WAY 		1-09654-059-2 01 1 0803- ● ●
106 UNION; OIL PIPE
(A) 		1-09656-751-0 01 1 0712-0802 ●
107 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 0712-0802 ●
107 NUT; UNION,OIL PIPE
M12 		0-91111-512-0 01 1 0712-0802 ●
107 NUT; UNION,OIL PIPE
M12 		0-91111-512-0 01 1 0803- ● ●
207 BOLT; CLIP
M8X25 FLANGE 		0-28650-825-0 01 1 0712-0802 ●
234 CONNECTOR; ELBOW
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0802 ●
234 CONNECTOR; ELBOW
(B) PT1/4 2WAY 		1-09660-693-0 01 1 0712-0802 ●
234 CONNECTOR; ELBOW
(C) PT1/8 ELBOW 		8-94338-418-1 01 1 0712-0802 ●

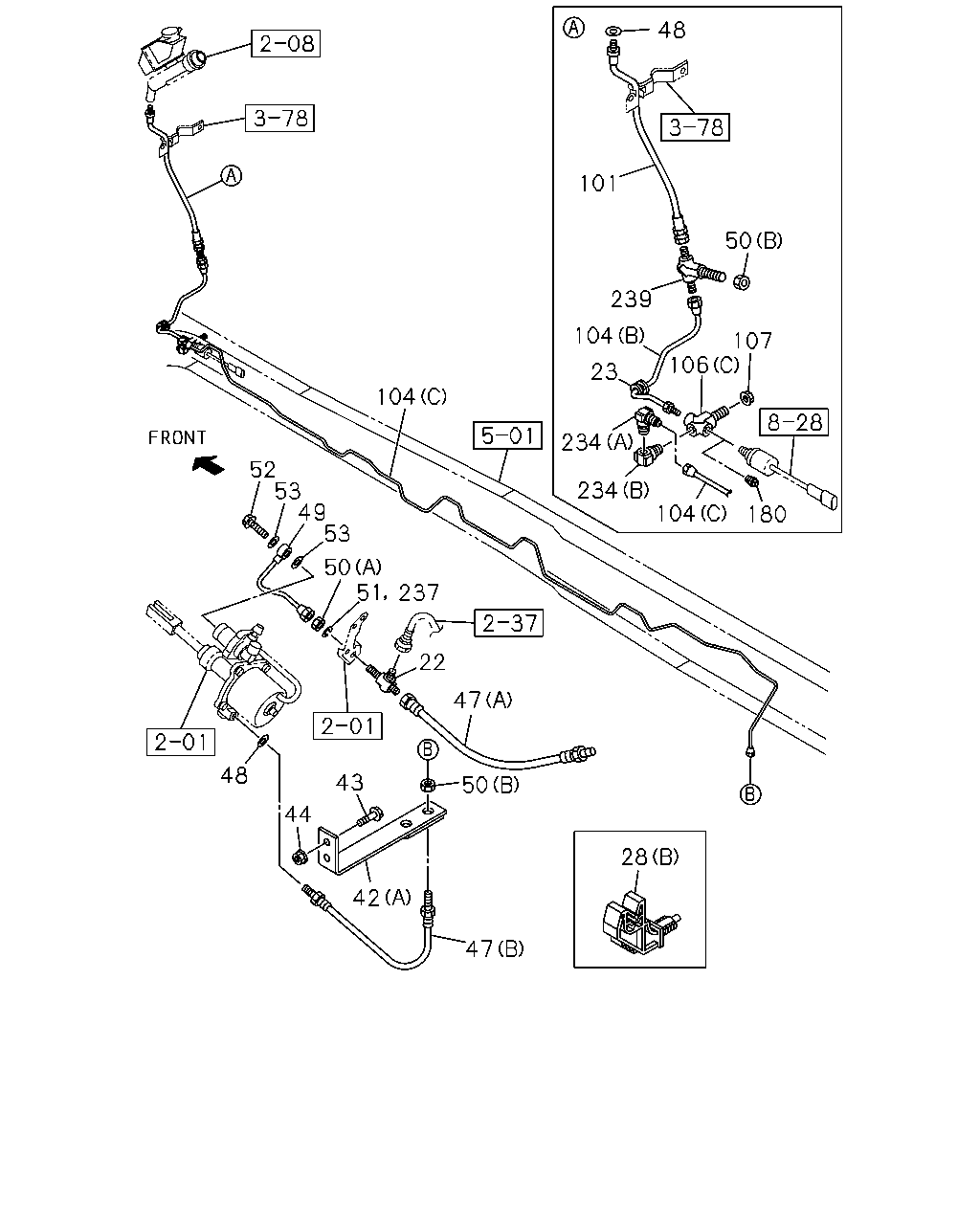

çizim 25603
48 101 50 239 104 107 106 23 104 234 52 53 49 53 234 104 180 50 51 237 22 47 48 43 50 44 28 42 47
BalonParca AdiParca NoAdetTipApplied Date A B
22 UNION; CLU PIPE
M12 3WAY 		0-92138-706-0 01 1 0712- ● ●
23 GROMMET; CLU PIPE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712-0802 ●
23 GROMMET; CLU PIPE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0803- ● ●
28 CLIP; OIL PIPE
(B) ID=6.35 		1-09701-247-1 03 1 0712-0802 ●
28 CLIP; OIL PIPE
(B) ID=6.35 		1-09701-247-1 03 1 0803-0810 ● ●
28 CLIP; OIL PIPE
(B) ID=6.35 		1-09701-247-1 04 1 0811- ● ●
28 CLIP; OIL PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 03 1 0712-0802 ●
28 CLIP; OIL PIPE
(C) ID=45 H=31 L=35 		1-09701-273-0 01 1 0803-0806 ● ●
28 CLIP; OIL PIPE
(C) ID=6.35 & 6.35 		1-09709-273-1 01 1 0807- ● ●
42 BRACKET; FLEX HOSE,CLU CONT
(A) 		8-98037-610-0 01 1 0712-0802 ●
42 BRACKET; FLEX HOSE,CLU CONT
(B) 		8-97615-747-0 01 1 0712-0802 ●
43 BOLT; BRKT,FLEX HOSE,CLU BOOSTER
M8X30 FLANGE 		0-28650-830-0 02 1 0712-0802 ● ●
44 NUT; BRKT,FLEX HOSE,CLU BOOSTER
M8 FLANGE 		0-91180-108-0 02 1 0712-0802 ● ●
47 HOSE; FLEX,CLU CONT
(A) L=400 		1-09363-743-0 01 1 0712-0802 ●
47 HOSE; FLEX,CLU CONT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=320 		1-09363-625-0 01 1 0803-0805 ● ●
47 HOSE; FLEX,CLU CONT
MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=320 		1-09363-625-0 01 1 0806-0806 ● ●
47 HOSE; FLEX,CLU CONT
MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=340 		1-09363-617-0 01 1 0807- ● ●
47 HOSE; FLEX,CLU CONT
(B) L=460 		1-09364-264-0 01 1 0712-0802 ●
47 HOSE; FLEX,CLU CONT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530 		8-98072-348-0 01 1 0803-0803 ● ●
47 HOSE; FLEX,CLU CONT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530 		8-98072-348-0 01 1 0804- ●
47 HOSE; FLEX,CLU CONT
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530 		8-98072-348-0 01 1 0804- ●
47 HOSE; FLEX,CLU CONT
POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=280 		1-09363-672-0 01 1 0807- ● ●
47 HOSE; FLEX,CLU CONT
(A) L=390 		1-09363-616-0 01 1 0712-0802 ●
47 HOSE; FLEX,CLU CONT
(B) L=440 		8-98072-346-0 01 1 0712-0802 ●
47 HOSE; FLEX,CLU CONT
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=480 		8-98072-349-0 01 1 0803-0803 ● ●
47 HOSE; FLEX,CLU CONT
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=480 		8-98072-349-0 01 1 0804- ●
47 HOSE; FLEX,CLU CONT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=590 		8-98072-352-0 01 1 0804- ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 0712-0802 ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 0803- ● ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 0712-0802 ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=239 		1-49117-401-0 01 1 0712-0805 ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
15" CLUTCH(RE9) L=239 		1-49117-401-0 01 1 0806- ● ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0712-0802 ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0712-0802 ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0803- ● ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0803- ● ●
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0712-0802 ● ●
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0712-0802 ●
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0803- ● ●
51 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 0712- ● ●
52 BOLT; EYE,AIR PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 0712-0805 ● ●
52 BOLT; EYE,AIR PIPE
15" CLUTCH(RE9) M14X27 FLANGE 		1-09675-086-0 01 1 0806- ● ●
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0712-0805 ● ●
53 GASKET; JOINT BOLT
15" CLUTCH(RE9) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0806-1312 ● ●
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=470 		8-98072-353-0 01 1 0712-0802 ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 		8-98072-346-0 01 1 0803- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=411 		8-97623-318-0 01 1 0712-0802 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=541 SERVICED BY L=550 		1-47428-724-0 01 1 0803-0805 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MANUAL TRANSMISSION<X9C> (B) L=541 SERVICED BY L=550 		1-47428-724-0 01 1 0806- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=2915 		8-98098-196-0 01 1 0712-0802 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(C) L=2656 SERVICED BY L=2900 		1-47428-744-0 01 1 0803-0803 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(C) L=2656 SERVICED BY L=2900 		1-47428-744-0 01 1 0804-0805 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MANUAL TRANSMISSION<X9C> (C) L=2656 SERVICED BY L=2900 		1-47428-744-0 01 1 0806-0811 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MANUAL TRANSMISSION<X9C> (C) L=2703 SERVICED BY L=2900 		1-47428-744-0 01 1 0812-0812 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MANUAL TRANSMISSION<X9C> (C) L=2708 SERVICED BY L=2900 		1-47428-744-0 01 1 0901-0908 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MANUAL TRANSMISSION<X9C> (C) L=2824 SERVICED BY L=2900 		1-47428-744-0 01 1 0909- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2930 		8-97614-531-0 01 1 0712-0802 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(C) L=2582 SERVICED BY L=2650 		1-47428-743-0 01 1 0804-0804 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(C) L=2674 SERVICED BY L=2900 		1-47428-744-0 01 1 0805-0805 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MANUAL TRANSMISSION<X9C> (C) L=2674 SERVICED BY L=2900 		1-47428-744-0 01 1 0806-0811 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MANUAL TRANSMISSION<X9C> (C) L=2674 SERVICED BY L=2900 		1-47428-744-0 01 1 0812- ●
106 UNION; OIL PIPE
(C) 		8-98067-169-0 01 1 0712-0802 ●
106 UNION; OIL PIPE
(E) M12 3WAY 		8-98051-113-0 01 1 0803-0910 ● ●
106 UNION; OIL PIPE
(B) M12 ELBOW 		0-92125-206-0 01 1 0712-0802 ●
106 UNION; OIL PIPE
(D) M12 2WAY 		1-09654-059-2 01 1 0803- ● ●
106 UNION; OIL PIPE
(A) 		1-09656-751-0 01 1 0712-0802 ●
107 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 0712-0802 ●
107 NUT; UNION,OIL PIPE
M12 		0-91111-512-0 01 1 0712-0802 ●
107 NUT; UNION,OIL PIPE
M12 		0-91111-512-0 01 1 0803- ● ●
180 PLUG; PIPE 9-09204-510-0 01 1 0712-0802 ●
180 PLUG; PIPE 9-09204-510-0 01 1 0803-0910 ● ●
234 CONNECTOR; ELBOW
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0802 ●
234 CONNECTOR; ELBOW
(B) PT1/4 2WAY 		1-09660-693-0 01 1 0712-0802 ●
234 CONNECTOR; ELBOW
(C) PT1/8 ELBOW 		8-94338-418-1 01 1 0712-0802 ●
237 WASHER; BRKT
ID=12.2 		0-91510-812-0 01 1 0712-0802 ●
239 UNION; CLU HOSE
M12 3WAY 		1-09654-137-2 01 1 0712-0802 ●
239 UNION; CLU HOSE
M12 2WAY 		1-09654-059-2 01 1 0803- ● ●

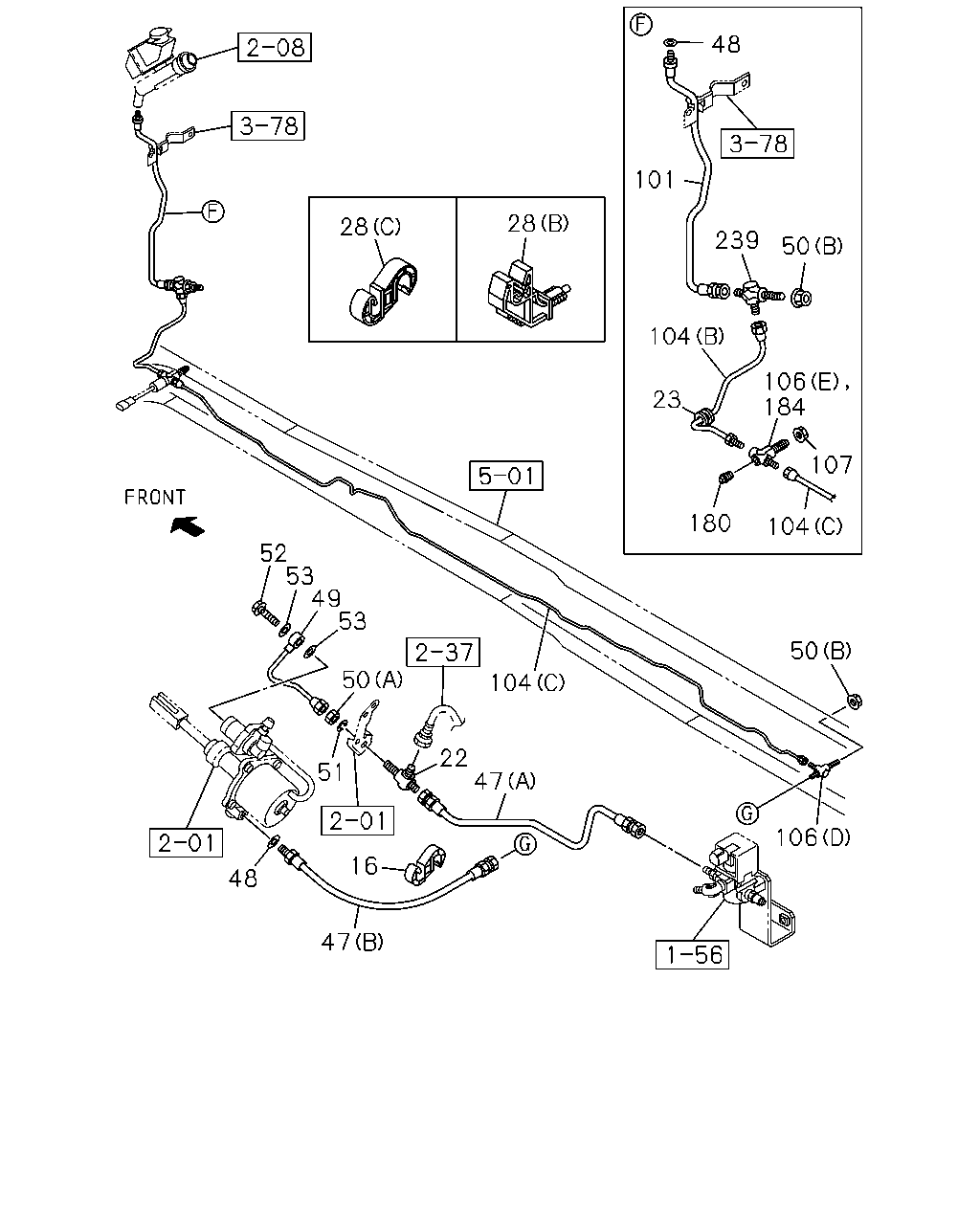

çizim 25604
48 101 28 28 239 50 104 106 184 23 107 180 104 52 53 49 53 50 50 104 22 47 51 106 16 48 47
BalonParca AdiParca NoAdetTipApplied Date A B
16 CLIP; FLEX HOSE
ID=10 & 12 		1-09709-278-1 01 1 0807- ● ●
16 CLIP; FLEX HOSE
ID=16 L=28 		1-09700-872-0 01 1 0712-0802 ●
22 UNION; CLU PIPE
M12 3WAY 		0-92138-706-0 01 1 0712- ● ●
23 GROMMET; CLU PIPE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712-0802 ●
23 GROMMET; CLU PIPE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0803- ● ●
28 CLIP; OIL PIPE
(B) ID=6.35 		1-09701-247-1 03 1 0712-0802 ●
28 CLIP; OIL PIPE
(B) ID=6.35 		1-09701-247-1 03 1 0803-0810 ● ●
28 CLIP; OIL PIPE
(B) ID=6.35 		1-09701-247-1 04 1 0811- ● ●
28 CLIP; OIL PIPE
(A) ID=6 H=20 L=20 		1-09700-603-0 03 1 0712-0802 ●
28 CLIP; OIL PIPE
(C) ID=45 H=31 L=35 		1-09701-273-0 01 1 0803-0806 ● ●
28 CLIP; OIL PIPE
(C) ID=6.35 & 6.35 		1-09709-273-1 01 1 0807- ● ●
47 HOSE; FLEX,CLU CONT
(A) L=400 		1-09363-743-0 01 1 0712-0802 ●
47 HOSE; FLEX,CLU CONT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=320 		1-09363-625-0 01 1 0803-0805 ● ●
47 HOSE; FLEX,CLU CONT
MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=320 		1-09363-625-0 01 1 0806-0806 ● ●
47 HOSE; FLEX,CLU CONT
MANUAL TRANSMISSION<X9C> EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=340 		1-09363-617-0 01 1 0807- ● ●
47 HOSE; FLEX,CLU CONT
(B) L=460 		1-09364-264-0 01 1 0712-0802 ●
47 HOSE; FLEX,CLU CONT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530 		8-98072-348-0 01 1 0803-0803 ● ●
47 HOSE; FLEX,CLU CONT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530 		8-98072-348-0 01 1 0804- ●
47 HOSE; FLEX,CLU CONT
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=530 		8-98072-348-0 01 1 0804- ●
47 HOSE; FLEX,CLU CONT
POWER TAKE OFF-FLYWHEEL(6SZ) (A) L=280 		1-09363-672-0 01 1 0807- ● ●
47 HOSE; FLEX,CLU CONT
(A) L=390 		1-09363-616-0 01 1 0712-0802 ●
47 HOSE; FLEX,CLU CONT
(B) L=440 		8-98072-346-0 01 1 0712-0802 ●
47 HOSE; FLEX,CLU CONT
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=480 		8-98072-349-0 01 1 0803-0803 ● ●
47 HOSE; FLEX,CLU CONT
POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=480 		8-98072-349-0 01 1 0804- ●
47 HOSE; FLEX,CLU CONT
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) L=590 		8-98072-352-0 01 1 0804- ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 0712-0802 ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 02 1 0803- ● ●
48 GASKET; FLEX HOSE,CLU CONT
ID=10.2 OD=16.0 		9-09571-410-0 01 1 0712-0802 ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
L=239 		1-49117-401-0 01 1 0712-0805 ● ●
49 PIPE; AIR,FLEX HOSE TO CLU BOOSTER
15" CLUTCH(RE9) L=239 		1-49117-401-0 01 1 0806- ● ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0712-0802 ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0712-0802 ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0803- ● ●
50 NUT; UNION
(B) M12 		0-91111-512-0 01 1 0803- ● ●
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0712-0802 ● ●
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0712-0802 ●
50 NUT; UNION
(A) M12 		9-09840-280-0 01 1 0803- ● ●
51 WASHER; LK
ID=12.2 		0-91510-512-0 01 1 0712- ● ●
52 BOLT; EYE,AIR PIPE
M14X27 FLANGE 		1-09675-086-0 01 1 0712-0805 ● ●
52 BOLT; EYE,AIR PIPE
15" CLUTCH(RE9) M14X27 FLANGE 		1-09675-086-0 01 1 0806- ● ●
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		1-09630-085-0 02 1 0712-0805 ● ●
53 GASKET; JOINT BOLT
15" CLUTCH(RE9) ID=14.2 OD=19.2 		1-09630-085-0 02 1 0806-1312 ● ●
53 GASKET; JOINT BOLT
ID=14.2 OD=19.2 		8-98251-345-0 02 1 1401- ● ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=470 		8-98072-353-0 01 1 0712-0802 ●
101 HOSE; FLEX,OIL PIPE TO OIL PIPE
L=440 		8-98072-346-0 01 1 0803- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=411 		8-97623-318-0 01 1 0712-0802 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=541 SERVICED BY L=550 		1-47428-724-0 01 1 0803-0805 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MANUAL TRANSMISSION<X9C> (B) L=541 SERVICED BY L=550 		1-47428-724-0 01 1 0806- ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(B) L=2915 		8-98098-196-0 01 1 0712-0802 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(C) L=2656 SERVICED BY L=2900 		1-47428-744-0 01 1 0803-0803 ● ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(C) L=2656 SERVICED BY L=2900 		1-47428-744-0 01 1 0804-0805 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MANUAL TRANSMISSION<X9C> (C) L=2656 SERVICED BY L=2900 		1-47428-744-0 01 1 0806-0811 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MANUAL TRANSMISSION<X9C> (C) L=2703 SERVICED BY L=2900 		1-47428-744-0 01 1 0812-0812 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MANUAL TRANSMISSION<X9C> (C) L=2708 SERVICED BY L=2900 		1-47428-744-0 01 1 0901-0908 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MANUAL TRANSMISSION<X9C> (C) L=2824 SERVICED BY L=2900 		1-47428-744-0 01 1 0909- ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(A) L=2930 		8-97614-531-0 01 1 0712-0802 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(C) L=2582 SERVICED BY L=2650 		1-47428-743-0 01 1 0804-0804 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
(C) L=2674 SERVICED BY L=2900 		1-47428-744-0 01 1 0805-0805 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MANUAL TRANSMISSION<X9C> (C) L=2674 SERVICED BY L=2900 		1-47428-744-0 01 1 0806-0811 ●
104 PIPE; OIL,FLEX HOSE TO CONNECTOR
MANUAL TRANSMISSION<X9C> (C) L=2674 SERVICED BY L=2900 		1-47428-744-0 01 1 0812- ●
106 UNION; OIL PIPE
(C) 		8-98067-169-0 01 1 0712-0802 ●
106 UNION; OIL PIPE
(E) M12 3WAY 		8-98051-113-0 01 1 0803-0910 ● ●
106 UNION; OIL PIPE
(B) M12 ELBOW 		0-92125-206-0 01 1 0712-0802 ●
106 UNION; OIL PIPE
(D) M12 2WAY 		1-09654-059-2 01 1 0803- ● ●
106 UNION; OIL PIPE
(A) 		1-09656-751-0 01 1 0712-0802 ●
107 NUT; UNION,OIL PIPE
M12 		9-09840-280-0 01 1 0712-0802 ●
107 NUT; UNION,OIL PIPE
M12 		0-91111-512-0 01 1 0712-0802 ●
107 NUT; UNION,OIL PIPE
M12 		0-91111-512-0 01 1 0803- ● ●
180 PLUG; PIPE 9-09204-510-0 01 1 0712-0802 ●
180 PLUG; PIPE 9-09204-510-0 01 1 0803-0910 ● ●
184 UNION; FLEX HOSE 8-98150-865-0 01 1 0911- ● ●
239 UNION; CLU HOSE
M12 3WAY 		1-09654-137-2 01 1 0712-0802 ●
239 UNION; CLU HOSE
M12 2WAY 		1-09654-059-2 01 1 0803- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
