1-56 — EXHAUST BRAKE SYSTEM (#48374) — 15 parça

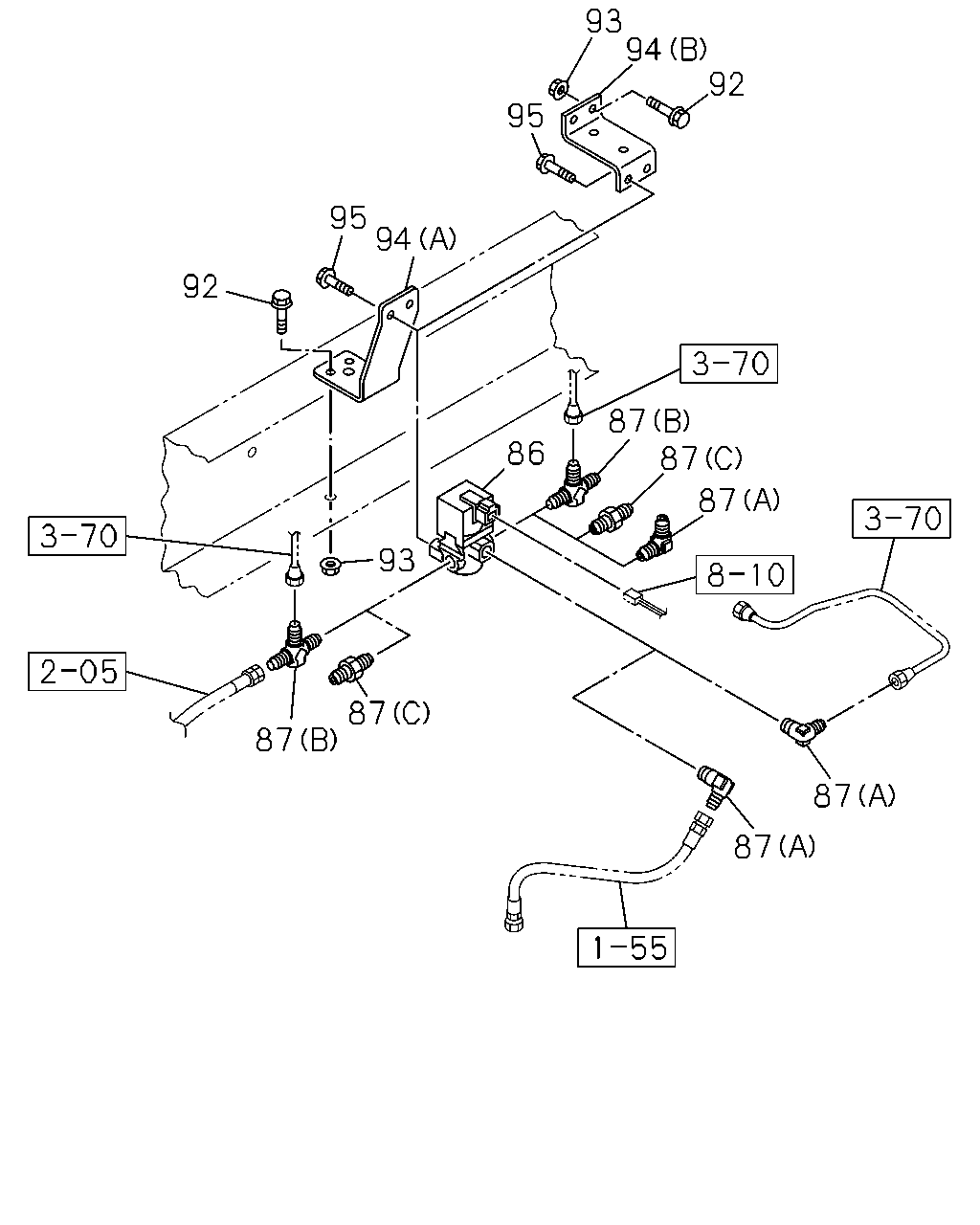

çizim 24862
93 94 92 95 95 94 92 87 87 86 87 93 87 87 87 87
BalonParca AdiParca NoAdetTipApplied Date
86 VALVE; MAG,EXH BRK 1-82563-871-2 01 1 0712-
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0712-0802
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 02 1 0803-0811
87 CONNECTOR
(A) M12 & PT1/4 ELBOW 		1-09650-430-0 01 1 0812-
87 CONNECTOR
FTS WIDE SGL CAB(FG**M*) (C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0712-0802
87 CONNECTOR
(C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 01 1 0803-0811
87 CONNECTOR
(C) M12 & PT1/4 STRAIGHT 		1-09650-074-1 02 1 0812-
87 CONNECTOR
FTS WIDE DBL CAB(FG**W*) (B) M12X2 & PT1/4 3WAY 		1-09656-230-1 02 1 0712-0802
92 BOLT; MAG VLV
M8X30 FLANGE 		0-28650-830-0 02 1 0712-
93 NUT; MAG VLV
M8 FLANGE 		0-91180-108-0 02 1 0712-
94 BRACKET; MAG VLV,EXH BRAKE
FTS WIDE SGL CAB(FG**M*) (B) 		1-47471-374-0 01 1 0712-0802
94 BRACKET; MAG VLV,EXH BRAKE
(B) 		1-47471-374-1 01 1 0803-1004
94 BRACKET; MAG VLV,EXH BRAKE
(B) 		8-98154-633-0 01 1 1005-
94 BRACKET; MAG VLV,EXH BRAKE
FTS WIDE DBL CAB(FG**W*) (A) 		8-98021-181-0 01 1 0712-0802
95 BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE 		0-28650-820-0 02 1 0712-
