1-50 — EXHAUST PIPE AND SILENCER (#48372) — 173 parça

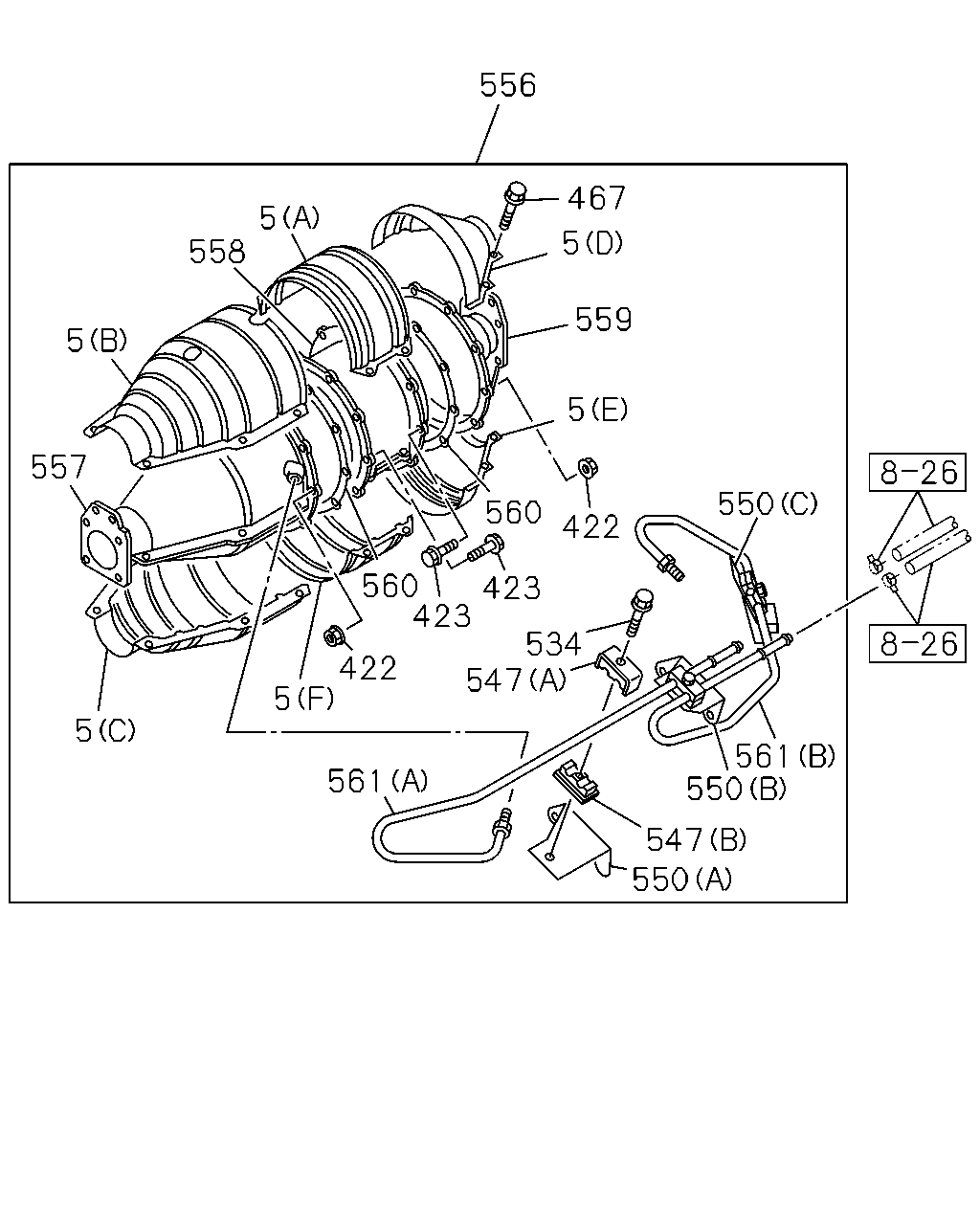

çizim 24693
556 467 5 5 558 559 5 5 557 550 560 422 560 423 423 534 547 422 5 5 561 550 561 547 550
BalonParca AdiParca NoAdetTipApplied Date A B
5 PROTECTOR; HEAT
(A) 		8-97605-172-0 01 1 0712- ● ●
5 PROTECTOR; HEAT
(B) 		8-97611-086-0 01 1 0712- ● ●
5 PROTECTOR; HEAT
(C) 		8-97611-087-0 01 1 0712- ● ●
5 PROTECTOR; HEAT
(D) 		8-97611-088-0 01 1 0712- ● ●
5 PROTECTOR; HEAT
(E) 		8-97611-089-0 01 1 0712- ● ●
5 PROTECTOR; HEAT
(F) 		8-97613-390-0 01 1 0712- ● ●
422 NUT; PIPE
M8 FLANGE 		0-91180-108-0 20 1 0712- ● ●
423 BOLT; PIPE
M8X35 FLANGE 		0-28650-835-0 20 1 0712- ● ●
467 BOLT; PROTECTOR
M6X16 		8-98019-179-0 14 1 0712- ● ●
534 BOLT; CLIP
M6X35 FLANGE 		0-28650-635-0 03 1 0712- ● ●
547 CLIP; PIPE
(A) 		8-97381-635-0 03 1 0712- ● ●
547 CLIP; PIPE
(B) 		8-97381-636-0 03 1 0712- ● ●
550 BRACKET; DPD
(A) 		8-97611-083-0 01 1 0712- ● ●
550 BRACKET; DPD
(B) 		8-97611-084-0 01 1 0712- ● ●
550 BRACKET; DPD
(C) 		8-97611-085-0 01 1 0712- ● ●
556 DPD ASM 8-97613-331-6 01 1 0712-1010 ● ●
556 DPD ASM 8-97622-883-3 01 1 1011- ● ●
557 CATALYST ASM 8-97608-055-7 01 1 0712- ● ●
558 FILTER ASM 8-97608-057-3 01 1 0712- ● ●
559 COVER; RR 8-97611-078-0 01 1 0712-1010 ● ●
559 COVER; RR 8-97622-887-0 01 1 1011- ● ●
560 GASKET; DPD 8-97611-080-0 02 1 0712- ● ●
561 PIPE; DPD
(A) 		8-97611-081-0 01 1 0712-1010 ● ●
561 PIPE; DPD
(A) 		8-97622-888-0 01 1 1011- ● ●
561 PIPE; DPD
(B) 		8-97611-082-0 01 1 0712-1010 ● ●
561 PIPE; DPD
(B) 		8-97622-889-0 01 1 1011- ● ●

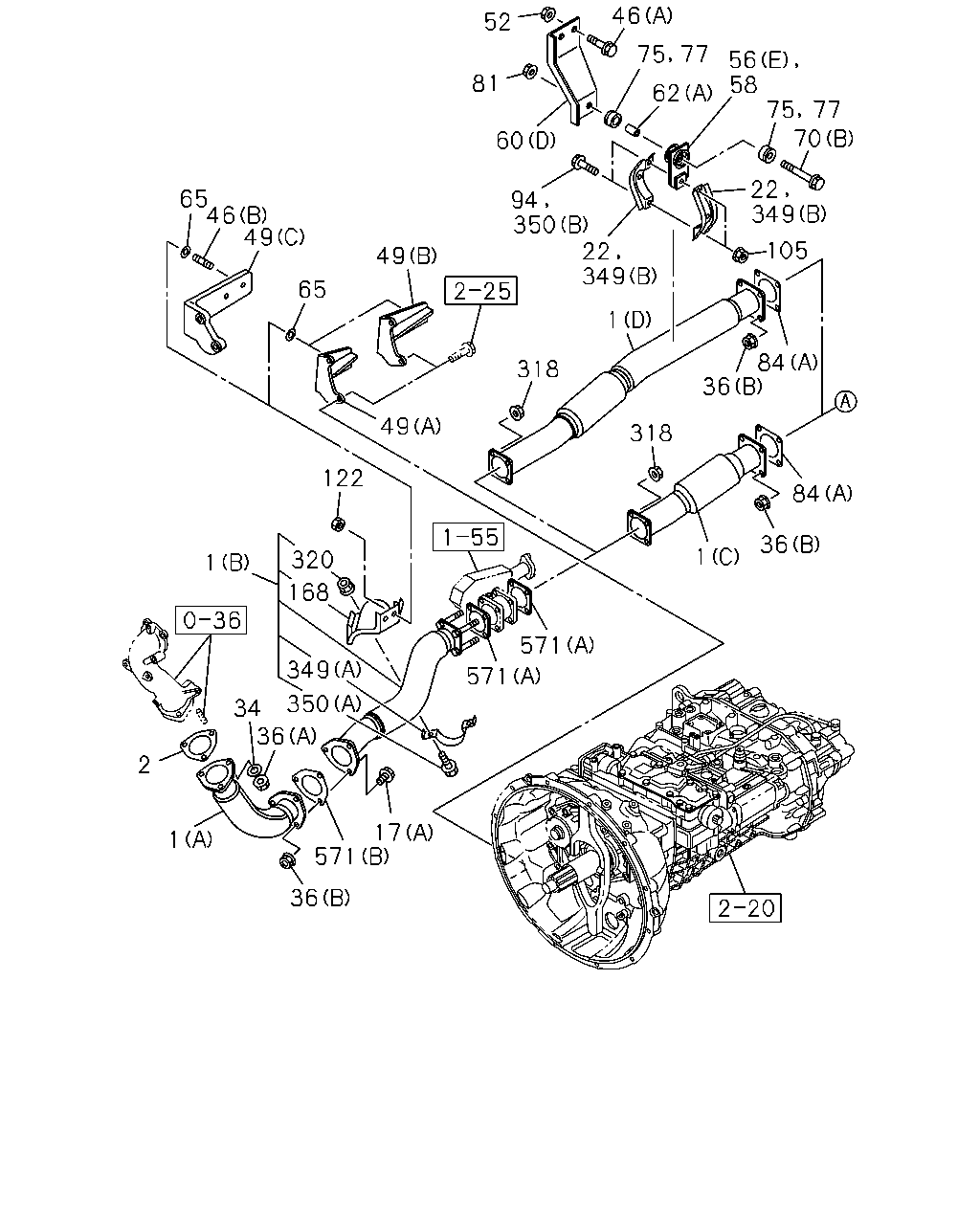

çizim 98711
46 52 56 58 70 81 62 60 22 349 65 46 49 94 350 22 349 105 49 65 1 84 36 318 49 318 122 84 36 1 320 168 1 571 349 571 350 34 36 2 17 571 1 36 75 77 75 77
BalonParca AdiParca NoAdetTipApplied Date A B
1 PIPE; EXH
(C) 		8-97614-621-1 01 1 0712- ●
1 PIPE; EXH
(B) 		8-98070-601-0 01 1 0712-0712 ● ●
1 PIPE; EXH
(B) 		8-97622-002-1 01 1 0712-0804 ● ●
1 PIPE; EXH
MZX6P M/T(RSW) (B) 		8-97622-002-1 01 1 0805-0906 ● ●
1 PIPE; EXH
MZX6P M/T(RSW),MZW6P M/T(RSZ) (B) 		8-97622-002-1 01 1 0907-1209 ● ●
1 PIPE; EXH
(A) 		8-98061-088-1 01 1 0712-0712 ● ●
1 PIPE; EXH
(A) 		8-97616-023-1 01 1 0712-0801 ● ●
1 PIPE; EXH
(A) 		8-97627-749-0 01 1 0802-1209 ● ●
1 PIPE; EXH
(A) 		8-97643-264-0 01 1 1210- ● ●
1 PIPE; EXH
MLD6Q M/T(X5J) (B) 		8-98122-456-0 01 1 0806-1209 ● ●
1 PIPE; EXH
(B) 		8-98226-282-0 01 1 1210- ● ●
1 PIPE; EXH
(D) 		8-98050-587-1 01 1 0712- ●
2 GASKET; PIPE TO MANIF
ALSO INCLUDED IN GASKET SET(ENGINE). 		8-98043-481-0 01 1 0712- ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 0712- ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0712- ● ●
22 CLAMP; EXH PIPE
ID=94-98 		1-22133-237-0 02 1 0712-0712 ●
34 WASHER; EXH PIPE
ID=13 OD=24 DISH 		1-09500-030-0 03 1 0712- ● ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 0712- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 0712- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0712- ● ●
46 BOLT; BRKT,EXH PIPE
MLD6Q M/T(X5J) (B) M10X25 L=40 		0-44011-025-0 02 1 0806-1209 ● ●
46 BOLT; BRKT,EXH PIPE
(B) M10X25 L=40 		0-44011-025-0 02 1 1210- ● ●
46 BOLT; BRKT,EXH PIPE
(A) M10X35 FLANGE 		0-28651-035-0 02 1 0712- ●
49 BRACKET; EXH PIPE TO TRANS
MLD6Q M/T(X5J) POWER TAKE OFF-FLYWHEEL(6SZ) (C) 		8-98113-011-0 01 1 0806- ● ●
49 BRACKET; EXH PIPE TO TRANS
MLD6Q M/T(X5J) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) 		8-98113-012-0 01 1 0806- ● ●
49 BRACKET; EXH PIPE TO TRANS
POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98084-126-0 01 1 0712-0804 ● ●
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98084-126-0 01 1 0805-0906 ● ●
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) (A) 		8-98084-126-0 01 1 0907-1209 ● ●
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) POWER TAKE OFF-FLYWHEEL(6SZ) (C) 		8-98120-492-0 01 1 1210- ● ●
49 BRACKET; EXH PIPE TO TRANS
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-98084-127-0 01 1 0712-0804 ● ●
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-98084-127-0 01 1 0805-0906 ● ●
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		8-98084-127-0 01 1 0907-1209 ● ●
49 BRACKET; EXH PIPE TO TRANS
MZX6P M/T(RSW),MZW6P M/T(RSZ) EXC. POWER TAKE OFF-FLYWHEEL(6SZ) (C) 		8-98120-493-0 01 1 1210- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 06 1 0712-0712 ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0801- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712-0712 ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712-0712 ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0801- ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0801- ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 0712-0906 ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 0907- ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98071-227-0 01 1 0712- ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98071-231-0 01 1 0712- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98072-104-0 01 1 0712- ● ●
56 BRACKET; CLAMP,EXH PIPE
(E) L=94 		1-22131-575-0 01 1 0712-0712 ●
58 BRACKET; EXH PIPE,RR
L=94 		1-22131-575-0 01 1 0801- ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98070-628-0 02 1 0712-0906 ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98070-628-0 02 1 0907-1309 ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98245-532-0 02 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98071-228-0 01 1 0712- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98072-708-0 01 1 0712- ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98104-021-0 01 1 0712- ●
62 TUBE; DIST,BRKT
(B) 		8-98060-852-0 04 1 0712-0906 ● ●
62 TUBE; DIST,BRKT
(B) 		8-98060-852-0 04 1 0907- ● ●
62 TUBE; DIST,BRKT
(A) L=22 		1-22159-392-0 01 1 0712-0906 ●
62 TUBE; DIST,BRKT
(A) L=22 		9-22159-024-0 01 1 0907- ●
65 WASHER; PL
ID=10.5 		8-98073-091-0 02 1 0712- ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 04 1 0712-0906 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 04 1 0907- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0712- ●
75 RUBBER; SUPPORT,BRKT
OD=40 		1-22159-094-0 02 1 0712-0712 ●
77 RUBBER; CUSHION,BRKT
OD=40 		1-22159-094-0 02 1 0801- ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0712-0906 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0907- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0712-0712 ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0712- ● ●
84 GASKET; EXH PIPE
(B) 		1-22116-043-0 01 1 0712- ● ●
84 GASKET; EXH PIPE
(B) 		1-22116-043-0 01 1 0712- ● ●
94 BOLT; CLAMP
M10X40 FLANGE 		0-28651-040-0 02 1 0712-0712 ●
105 NUT; CLAMP
M10 FLANGE 		0-91180-210-0 02 1 0712- ●
122 NUT; HANGER BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
168 BRACKET; EXH PIPE,FRT 8-98071-144-0 01 1 0712-1209 ● ●
168 BRACKET; EXH PIPE,FRT 8-98221-369-1 01 1 1210- ● ●
318 NUT; EXH PIPE,FRT
M10 		0-91110-510-0 04 1 0712-0712 ● ●
318 NUT; EXH PIPE,FRT
M10 FLANGE 		0-91180-210-0 04 1 0801- ● ●
320 NUT; CLAMP,EXH PIPE
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
349 CLAMP; EXH PIPE
(A) 		8-98058-351-0 01 1 0712-0804 ● ●
349 CLAMP; EXH PIPE
MZX6P M/T(RSW) (A) 		8-98058-351-0 01 1 0805-0906 ● ●
349 CLAMP; EXH PIPE
MZX6P M/T(RSW),MZW6P M/T(RSZ) (A) 		8-98058-351-0 01 1 0907-1209 ● ●
349 CLAMP; EXH PIPE
MLD6Q M/T(X5J) (A) 		8-98115-162-0 01 1 0806-1209 ● ●
349 CLAMP; EXH PIPE
(A) 		8-98115-162-0 01 1 1210- ● ●
349 CLAMP; EXH PIPE
(B) ID=94-98 		1-22133-237-0 02 1 0801- ●
350 BOLT; CLAMP,EXH PIPE
(A) M10X30 FLANGE 		0-28651-030-0 02 1 0712- ● ●
350 BOLT; CLAMP,EXH PIPE
(B) M10X40 FLANGE 		0-28651-040-0 02 1 0801- ●
571 GASKET
(A) 		1-22116-043-0 02 1 0712- ● ●
571 GASKET
(B) 		8-98043-481-0 01 1 0712- ● ●

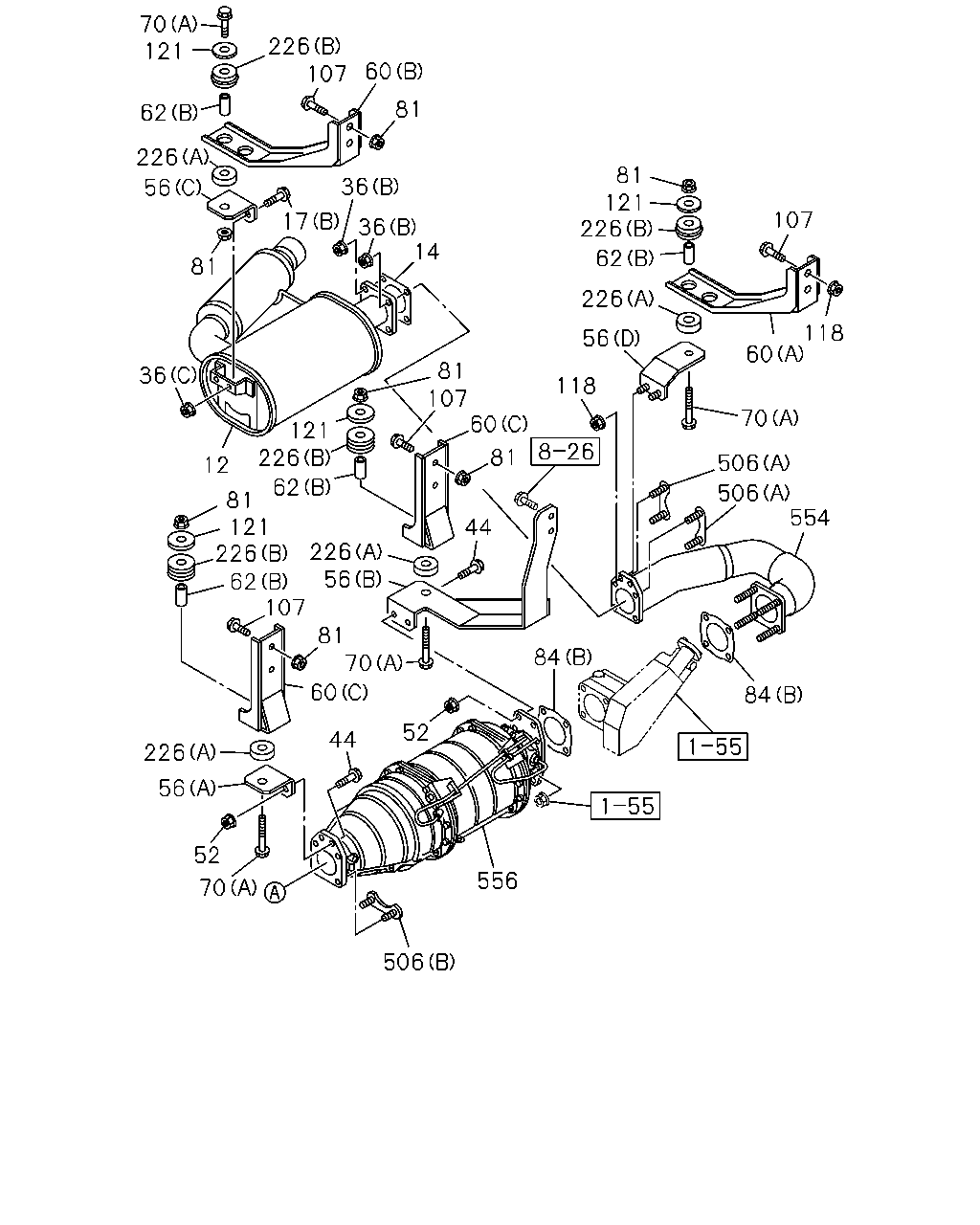

çizim 98778
70 121 226 107 60 81 62 226 81 121 226 36 56 107 17 36 14 62 81 226 118 56 60 81 107 60 36 118 70 121 226 81 506 12 62 506 554 81 121 226 44 226 56 62 107 81 70 84 60 84 52 44 226 56 52 556 70 506
BalonParca AdiParca NoAdetTipApplied Date A B
12 SILENCER ASM; EXH 8-98070-098-2 01 1 0712- ● ●
14 GASKET; SILENCER TO EXH PIPE 1-22116-042-0 01 1 0712- ● ●
17 BOLT; EXH PIPE
(A) M12X35 FLANGE 		0-28051-235-0 03 1 0712- ● ●
17 BOLT; EXH PIPE
(B) M10X35 FLANGE 		0-28651-035-0 02 1 0712- ● ●
36 NUT; EXH PIPE
(C) M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 04 1 0712- ● ●
36 NUT; EXH PIPE
(B) M12 FLANGE 		0-91180-212-0 07 1 0712- ● ●
36 NUT; EXH PIPE
(A) M12 		1-09400-010-0 03 1 0712- ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 04 1 0712-0712 ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0712-0712 ● ●
44 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 06 1 0801- ● ●
44 BOLT; BRKT
M10X40 FLANGE 		0-28651-040-0 02 1 0712- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 06 1 0712-0712 ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 08 1 0801- ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712-0712 ● ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712-0712 ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0801- ●
52 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0801- ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 0712-0906 ● ●
56 BRACKET; CLAMP,EXH PIPE
(A) 		1-22152-324-0 01 1 0907- ● ●
56 BRACKET; CLAMP,EXH PIPE
(C) 		8-98071-227-0 01 1 0712- ● ●
56 BRACKET; CLAMP,EXH PIPE
(D) 		8-98071-231-0 01 1 0712- ● ●
56 BRACKET; CLAMP,EXH PIPE
(B) 		8-98072-104-0 01 1 0712- ● ●
56 BRACKET; CLAMP,EXH PIPE
(E) L=94 		1-22131-575-0 01 1 0712-0712 ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98070-628-0 02 1 0712-0906 ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98070-628-0 02 1 0907-1309 ● ●
60 BRACKET; FRAME TO BRKT
(C) 		8-98245-532-0 02 1 1310- ● ●
60 BRACKET; FRAME TO BRKT
(A) 		8-98071-228-0 01 1 0712- ● ●
60 BRACKET; FRAME TO BRKT
(B) 		8-98072-708-0 01 1 0712- ● ●
60 BRACKET; FRAME TO BRKT
(D) 		8-98104-021-0 01 1 0712- ●
62 TUBE; DIST,BRKT
(B) 		8-98060-852-0 04 1 0712-0906 ● ●
62 TUBE; DIST,BRKT
(B) 		8-98060-852-0 04 1 0907- ● ●
62 TUBE; DIST,BRKT
(A) L=22 		1-22159-392-0 01 1 0712-0906 ●
62 TUBE; DIST,BRKT
(A) L=22 		9-22159-024-0 01 1 0907- ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 04 1 0712-0906 ● ●
70 BOLT; BRKT
(A) M10X70 FLANGE 		0-28051-070-0 04 1 0907- ● ●
70 BOLT; BRKT
(B) M10X50 FLANGE 		0-28051-050-0 01 1 0712- ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0712-0906 ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 04 1 0907- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
81 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0712-0712 ●
84 GASKET; EXH PIPE
(A) 		1-22116-040-0 01 1 0712- ● ●
84 GASKET; EXH PIPE
(B) 		1-22116-043-0 01 1 0712- ● ●
84 GASKET; EXH PIPE
(B) 		1-22116-043-0 01 1 0712- ● ●
107 BOLT; BRKT
M10X45 FLANGE 		0-28051-045-0 02 1 0712- ● ●
107 BOLT; BRKT
M10X35 FLANGE 		0-28651-035-0 02 1 0712- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
118 NUT; SILENCER MTG BRKT
M10 FLANGE 		0-91180-210-0 02 1 0712- ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 04 1 0712-0906 ● ●
121 WASHER; PL,BRKT
ID=8.4 OD=22 		1-09503-154-2 04 1 0907- ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 04 1 0712-0906 ● ●
226 RUBBER; CUSHION
(A) 		8-94457-277-1 04 1 0907- ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 04 1 0712-0906 ● ●
226 RUBBER; CUSHION
(B) 		8-94457-278-1 04 1 0907- ● ●
506 BRACKET; STUD
(B) M12X35 		1-22131-963-0 02 1 0712- ● ●
506 BRACKET; STUD
(A) 		1-22134-214-0 02 1 0712- ● ●
554 PIPE; EXH,SILENCER 1-22126-626-0 01 1 0712- ● ●
556 DPD ASM 8-97613-331-6 01 1 0712-1010 ● ●
556 DPD ASM 8-97622-883-3 01 1 1011- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
