Sayfa 1-41 - Isuzu EPC

1-41 — FUEL PIPING; CHASSIS (#48370) — 317 parça

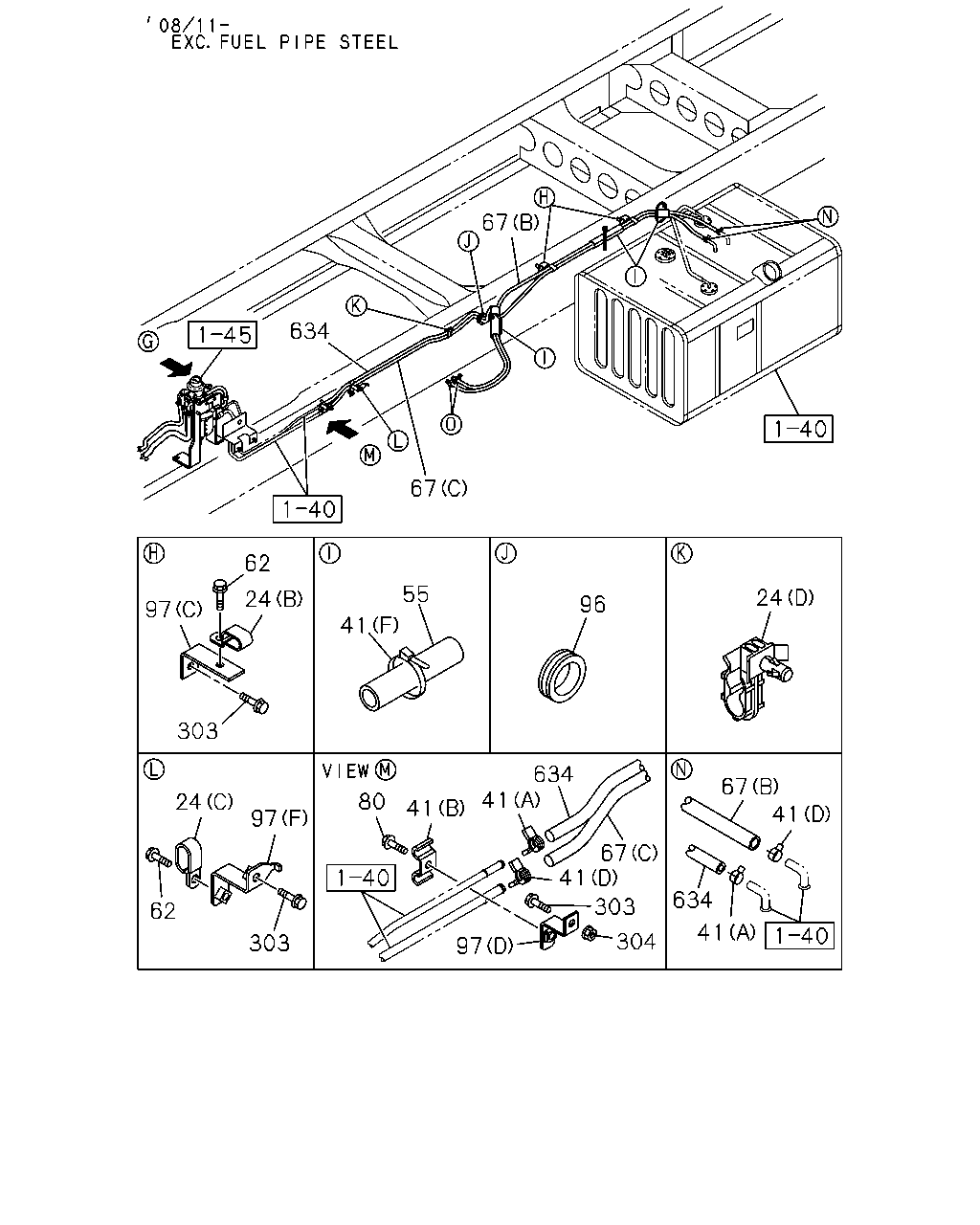

67 634 67 62 24 97 303 41 55 96 24 24 80 41 41 62 97 303 97 634 41 67 303 304 67 41 634 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (C) ID=16X2 L=20	0-95325-536-0	02	1	0811-	●
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	02	1	0811-0812	●
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	03	1	0901-1302	●
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	04	1	1303-	●
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (D) ID=14.5 & 14.5	1-09701-246-1	01	1	0811-	●
24	CLIP; FUEL HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0803-	●	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0811-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0811-0811	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	02	1	0811-0811	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0811-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) ID=13	8-94238-571-0	02	1	0811-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0811-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	03	1	0811-1302	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	02	1	1303-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	04	1	0812-	●
55	COVER; PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> L=150 SERVICED BY L=1300	1-09360-677-1	03	1	0811-1302	●
55	COVER; PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> L=150 SERVICED BY L=1300	1-09360-677-1	02	1	1303-	●
62	BOLT; CLIP FIX EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	02	1	0811-0812	●
62	BOLT; CLIP FIX EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	03	1	0901-1302	●
62	BOLT; CLIP FIX EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	04	1	1303-	●
62	BOLT; CLIP FIX EXC. FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	02	1	0811-	●
67	HOSE; FUEL,DELIVERY (A) L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0712-0802	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (C) L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	0811-0812	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (C) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0901-1302	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (C) L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	1303-	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (B) L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	0811-0812	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (B) L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	0901-1302	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (B) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1303-	●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28050-816-0	01	1	0712-0802	●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28050-816-0	02	1	0803-0810	●	●
80	BOLT; CLIP,FUEL TANK FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	02	1	0811-	●	●
80	BOLT; CLIP,FUEL TANK EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	01	1	0811-	●
96	GROMMET; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0712-0802	●
96	GROMMET; PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17	9-09956-256-2	01	1	0811-0811	●
96	GROMMET; PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17	9-09956-256-2	01	1	0812-	●	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (G)	8-98204-698-0	01	1	1304-	●
97	BRACKET; CLIP (B) L=65	1-47479-064-0	02	1	0712-0802	●
97	BRACKET; CLIP (D)	1-47478-981-0	02	1	0803-0810	●	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	02	1	0811-	●	●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	0712-0802	●
97	BRACKET; CLIP (C)	8-98111-711-0	02	1	0803-	●	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	01	1	0811-	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	0811-	●
97	BRACKET; CLIP (E)	8-98115-316-1	01	1	0803-	●	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0712-0802	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0803-0810	●	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0803-0810	●	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0811-	●	●
303	BOLT; BRKT FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0811-	●	●
303	BOLT; BRKT EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	03	1	0811-1303	●
303	BOLT; BRKT EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	04	1	1304-	●
304	NUT; BRKT EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1304-	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0803-	●	●
634	HOSE; RUBBER RETURN L=200 SERVICED BY L=3000	0-01558-300-0	01	1	0712-0802	●
634	HOSE; RUBBER RETURN EXC. FUEL PIPE STEEL<E2N> L=2000 SERVICED BY L=3000	0-01558-300-0	01	1	0811-	●

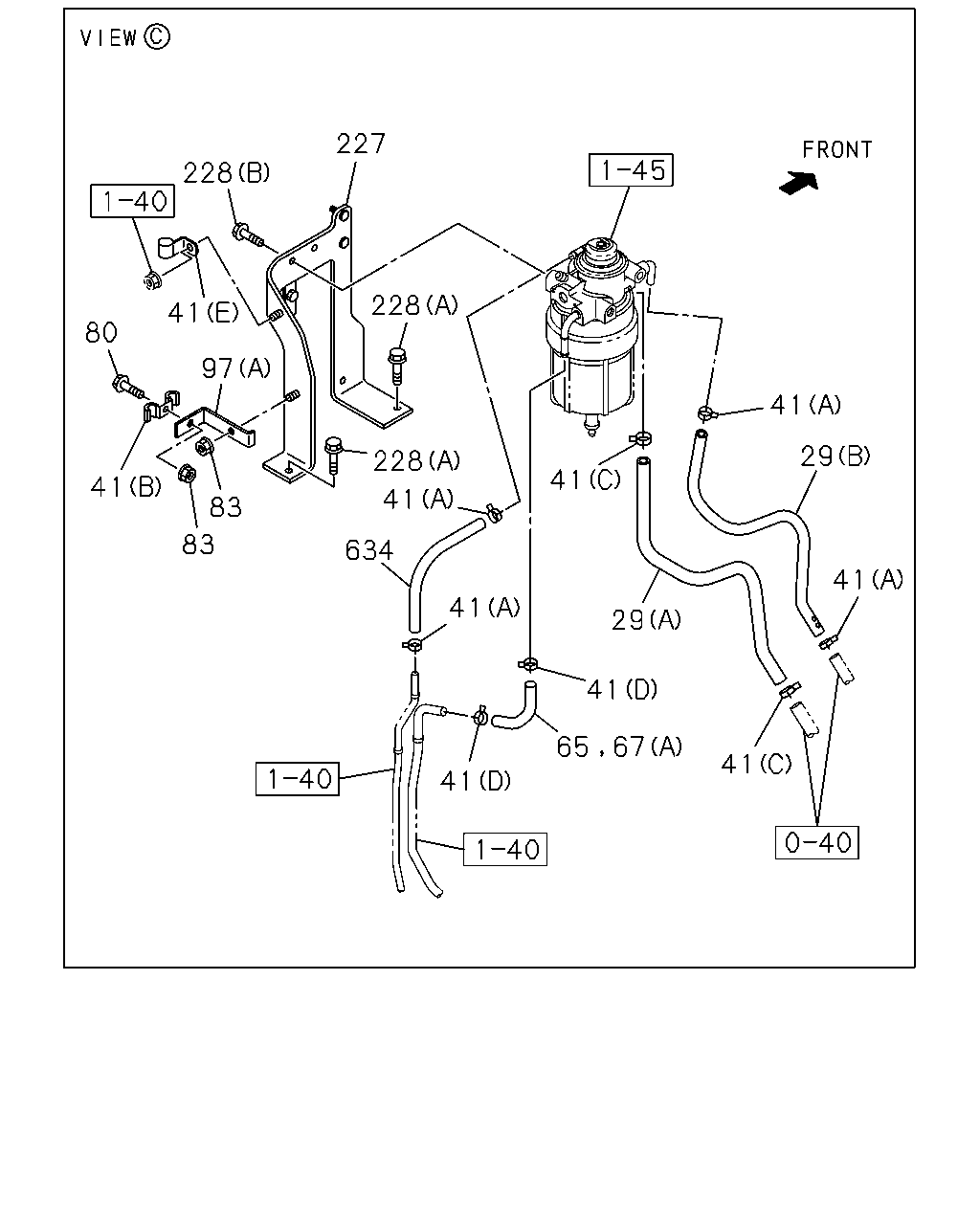

228 227 41 80 41 83 83 97 228 228 41 634 41 41 65 67 41 29 41 41 29 41 41

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
29	HOSE; FUEL (A)	8-98078-196-1	01	1	0712-0802	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0803-	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0712-0802	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0811-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0811-0811	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	02	1	0811-0811	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0811-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) ID=13	8-94238-571-0	02	1	0811-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0811-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	03	1	0811-1302	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	02	1	1303-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	04	1	0812-	●
65	HOSE; FUEL,DELIVERY PIPE L=110 SERVICED BY L=3000	0-01260-300-0	01	1	0803-0806	●	●
65	HOSE; FUEL,DELIVERY PIPE L=260 SERVICED BY L=3000	0-01260-300-0	01	1	0807-	●	●
67	HOSE; FUEL,DELIVERY (A) L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0712-0802	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (C) L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	0811-0812	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (C) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0901-1302	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (C) L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	1303-	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (B) L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	0811-0812	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (B) L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	0901-1302	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (B) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1303-	●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28050-816-0	01	1	0712-0802	●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28050-816-0	02	1	0803-0810	●	●
80	BOLT; CLIP,FUEL TANK FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	02	1	0811-	●	●
80	BOLT; CLIP,FUEL TANK EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	01	1	0811-	●
83	NUT; CLIP,FUEL TANK M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (G)	8-98204-698-0	01	1	1304-	●
97	BRACKET; CLIP (B) L=65	1-47479-064-0	02	1	0712-0802	●
97	BRACKET; CLIP (D)	1-47478-981-0	02	1	0803-0810	●	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	02	1	0811-	●	●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	0712-0802	●
97	BRACKET; CLIP (C)	8-98111-711-0	02	1	0803-	●	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	01	1	0811-	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	0811-	●
97	BRACKET; CLIP (E)	8-98115-316-1	01	1	0803-	●	●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	0712-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	0712-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	0712-	●	●
634	HOSE; RUBBER RETURN L=200 SERVICED BY L=3000	0-01558-300-0	01	1	0712-0802	●
634	HOSE; RUBBER RETURN EXC. FUEL PIPE STEEL<E2N> L=2000 SERVICED BY L=3000	0-01558-300-0	01	1	0811-	●

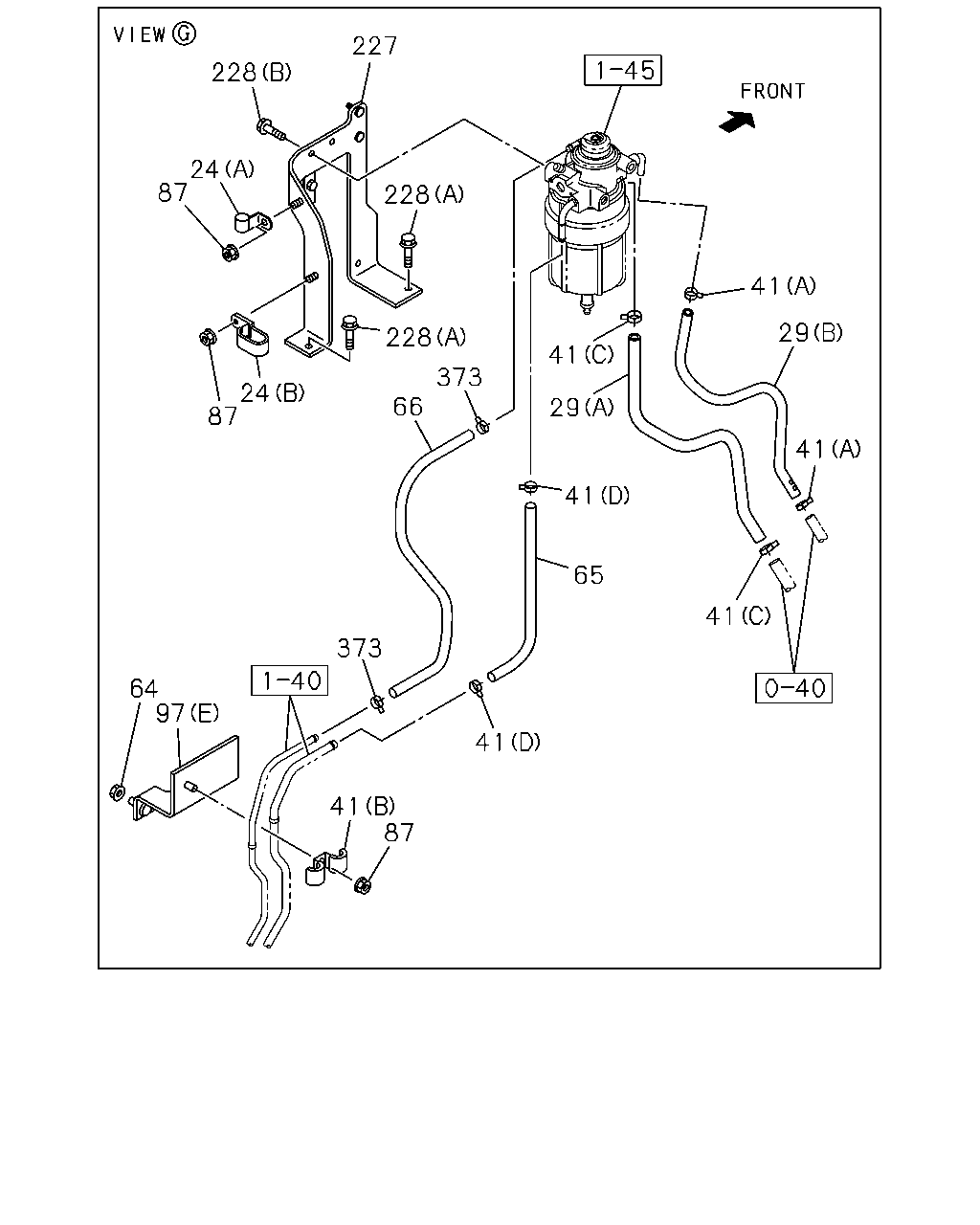

227 228 24 87 228 41 29 228 41 373 24 87 66 29 41 41 65 41 373 64 97 41 41 87

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (C) ID=16X2 L=20	0-95325-536-0	02	1	0811-	●
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	02	1	0811-0812	●
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	03	1	0901-1302	●
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	04	1	1303-	●
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (D) ID=14.5 & 14.5	1-09701-246-1	01	1	0811-	●
24	CLIP; FUEL HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0803-	●	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0803-	●	●
29	HOSE; FUEL (A)	8-98078-196-1	01	1	0712-0802	●
29	HOSE; FUEL (A)	8-98078-196-2	01	1	0803-	●	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0712-0802	●
29	HOSE; FUEL (B)	8-98078-197-1	01	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0811-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0811-0811	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	02	1	0811-0811	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0811-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) ID=13	8-94238-571-0	02	1	0811-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0811-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	03	1	0811-1302	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	02	1	1303-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	04	1	0812-	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0803-0812	●	●
64	NUT; CLIP EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	0901-1302	●
64	NUT; CLIP EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	1303-	●
65	HOSE; FUEL,DELIVERY PIPE L=110 SERVICED BY L=3000	0-01260-300-0	01	1	0803-0806	●	●
65	HOSE; FUEL,DELIVERY PIPE L=260 SERVICED BY L=3000	0-01260-300-0	01	1	0807-	●	●
66	HOSE; FUEL,RETURN PIPE L=200 SERVICED BY L=3000	0-01558-300-0	01	1	0803-0806	●	●
66	HOSE; FUEL,RETURN PIPE L=450 SERVICED BY L=3000	0-01558-300-0	01	1	0807-	●	●
87	NUT; CLIP,FUEL HOSE M8 FLANGE	0-91180-108-0	02	1	0803-	●	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (G)	8-98204-698-0	01	1	1304-	●
97	BRACKET; CLIP (B) L=65	1-47479-064-0	02	1	0712-0802	●
97	BRACKET; CLIP (D)	1-47478-981-0	02	1	0803-0810	●	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	02	1	0811-	●	●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	0712-0802	●
97	BRACKET; CLIP (C)	8-98111-711-0	02	1	0803-	●	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	01	1	0811-	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	0811-	●
97	BRACKET; CLIP (E)	8-98115-316-1	01	1	0803-	●	●
227	BRACKET; FUEL SEDIMENTER	8-98044-366-3	01	1	0712-	●	●
228	BOLT; BRKT,SEDIMENTER (A) M8X25 FLANGE	0-28050-825-0	02	1	0712-	●	●
228	BOLT; BRKT,SEDIMENTER (B) M8X20 FLANGE	0-28650-820-0	02	1	0712-	●	●
373	CLAMP; HOSE,FUEL ID=13	8-94238-571-0	02	1	0803-	●	●

67 96 41 41 303 97 67 62 24 62 24 64 64

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (C) ID=16X2 L=20	0-95325-536-0	02	1	0811-	●
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	02	1	0811-0812	●
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	03	1	0901-1302	●
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (B) ID=14X29 H=15 L=20	1-09700-744-0	04	1	1303-	●
24	CLIP; FUEL HOSE EXC. FUEL PIPE STEEL<E2N> (D) ID=14.5 & 14.5	1-09701-246-1	01	1	0811-	●
24	CLIP; FUEL HOSE (A) ID=15 H=24 L=20	1-09700-606-0	01	1	0803-	●	●
24	CLIP; FUEL HOSE (B) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0811-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0811-0811	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	02	1	0811-0811	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0811-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) ID=13	8-94238-571-0	02	1	0811-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0811-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	03	1	0811-1302	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	02	1	1303-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	04	1	0812-	●
62	BOLT; CLIP FIX EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	02	1	0811-0812	●
62	BOLT; CLIP FIX EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	03	1	0901-1302	●
62	BOLT; CLIP FIX EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	04	1	1303-	●
62	BOLT; CLIP FIX EXC. FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28650-820-0	02	1	0811-	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0803-0812	●	●
64	NUT; CLIP EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	0901-1302	●
64	NUT; CLIP EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	1303-	●
67	HOSE; FUEL,DELIVERY (A) L=2600 SERVICED BY L=3000	0-01260-300-0	01	1	0712-0802	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (C) L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	0811-0812	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (C) L=1700 SERVICED BY L=3000	0-01260-300-0	01	1	0901-1302	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (C) L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	1303-	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (B) L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	0811-0812	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (B) L=1800 SERVICED BY L=3000	0-01260-300-0	01	1	0901-1302	●
67	HOSE; FUEL,DELIVERY EXC. FUEL PIPE STEEL<E2N> (B) L=1900 SERVICED BY L=3000	0-01260-300-0	01	1	1303-	●
96	GROMMET; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0712-0802	●
96	GROMMET; PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17	9-09956-256-2	01	1	0811-0811	●
96	GROMMET; PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17	9-09956-256-2	01	1	0812-	●	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (G)	8-98204-698-0	01	1	1304-	●
97	BRACKET; CLIP (B) L=65	1-47479-064-0	02	1	0712-0802	●
97	BRACKET; CLIP (D)	1-47478-981-0	02	1	0803-0810	●	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	02	1	0811-	●	●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	0712-0802	●
97	BRACKET; CLIP (C)	8-98111-711-0	02	1	0803-	●	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	01	1	0811-	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	0811-	●
97	BRACKET; CLIP (E)	8-98115-316-1	01	1	0803-	●	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0712-0802	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0803-0810	●	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0803-0810	●	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0811-	●	●
303	BOLT; BRKT FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0811-	●	●
303	BOLT; BRKT EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	03	1	0811-1303	●
303	BOLT; BRKT EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	04	1	1304-	●

232 303 239 95 304 304 80 41 97 97 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
41	CLIP; FUEL PIPE,FUEL TANK (E) ID=15 H=24 L=20	1-09700-606-0	01	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	01	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	03	1	0811-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0811-0811	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	02	1	0811-0811	●
41	CLIP; FUEL PIPE,FUEL TANK (D) ID=14	1-09704-102-0	02	1	0812-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (C) ID=16	8-94238-568-0	02	1	0803-	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	04	1	0712-0802	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0803-0810	●	●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=13	8-94238-571-0	02	1	0811-	●	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (A) ID=13	8-94238-571-0	02	1	0811-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (B) ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0811-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	03	1	0811-1302	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (F) L=250	5-09707-030-1	02	1	1303-	●
41	CLIP; FUEL PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> (D) ID=14	1-09704-102-0	04	1	0812-	●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28050-816-0	01	1	0712-0802	●
80	BOLT; CLIP,FUEL TANK M8X16 FLANGE	0-28050-816-0	02	1	0803-0810	●	●
80	BOLT; CLIP,FUEL TANK FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	02	1	0811-	●	●
80	BOLT; CLIP,FUEL TANK EXC. FUEL PIPE STEEL<E2N> M8X16 FLANGE	0-28050-816-0	01	1	0811-	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0712-0802	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	0803-0810	●	●
95	BUSHING; PIPE,FUEL TANK FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17	9-09956-256-2	02	1	0811-	●	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (G)	8-98204-698-0	01	1	1304-	●
97	BRACKET; CLIP (B) L=65	1-47479-064-0	02	1	0712-0802	●
97	BRACKET; CLIP (D)	1-47478-981-0	02	1	0803-0810	●	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	02	1	0811-	●	●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	0712-0802	●
97	BRACKET; CLIP (C)	8-98111-711-0	02	1	0803-	●	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	01	1	0811-	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	0811-	●
97	BRACKET; CLIP (E)	8-98115-316-1	01	1	0803-	●	●
232	BOLT; CLIP,PIPE M8X16 FLANGE	0-28050-816-0	02	1	0712-0802	●
232	BOLT; CLIP,PIPE M8X20 FLANGE	0-28050-820-0	02	1	0803-0811	●	●
232	BOLT; CLIP,PIPE FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28050-820-0	02	1	0812-	●	●
239	CLIP; FUEL PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0712-0802	●
239	CLIP; FUEL PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0803-0811	●	●
239	CLIP; FUEL PIPE FUEL PIPE STEEL<E2N> ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0812-	●	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0712-0802	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0803-0810	●	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0803-0810	●	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0811-	●	●
303	BOLT; BRKT FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0811-	●	●
303	BOLT; BRKT EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	03	1	0811-1303	●
303	BOLT; BRKT EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	04	1	1304-	●
304	NUT; BRKT EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1304-	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0803-	●	●

232 304 239 95 96 252 97 64 303

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
64	NUT; CLIP M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
64	NUT; CLIP M8 FLANGE	0-91180-108-0	01	1	0803-0812	●	●
64	NUT; CLIP EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	0901-1302	●
64	NUT; CLIP EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	02	1	1303-	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0712-0802	●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	02	1	0803-0810	●	●
95	BUSHING; PIPE,FUEL TANK FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17	9-09956-256-2	02	1	0811-	●	●
96	GROMMET; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-2	01	1	0712-0802	●
96	GROMMET; PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17	9-09956-256-2	01	1	0811-0811	●
96	GROMMET; PIPE,FUEL TANK EXC. FUEL PIPE STEEL<E2N> ID=28 OD=35 T=17	9-09956-256-2	01	1	0812-	●	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (G)	8-98204-698-0	01	1	1304-	●
97	BRACKET; CLIP (B) L=65	1-47479-064-0	02	1	0712-0802	●
97	BRACKET; CLIP (D)	1-47478-981-0	02	1	0803-0810	●	●
97	BRACKET; CLIP FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	02	1	0811-	●	●
97	BRACKET; CLIP (A)	8-98053-654-0	01	1	0712-0802	●
97	BRACKET; CLIP (C)	8-98111-711-0	02	1	0803-	●	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (D)	1-47478-981-0	01	1	0811-	●
97	BRACKET; CLIP EXC. FUEL PIPE STEEL<E2N> (F)	8-97623-325-0	02	1	0811-	●
97	BRACKET; CLIP (E)	8-98115-316-1	01	1	0803-	●	●
232	BOLT; CLIP,PIPE M8X16 FLANGE	0-28050-816-0	02	1	0712-0802	●
232	BOLT; CLIP,PIPE M8X20 FLANGE	0-28050-820-0	02	1	0803-0811	●	●
232	BOLT; CLIP,PIPE FUEL PIPE STEEL<E2N> M8X20 FLANGE	0-28050-820-0	02	1	0812-	●	●
239	CLIP; FUEL PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0712-0802	●
239	CLIP; FUEL PIPE ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0803-0811	●	●
239	CLIP; FUEL PIPE FUEL PIPE STEEL<E2N> ID=11 & 9 L=17.5 & 17.5	1-09700-747-0	02	1	0812-	●	●
252	GROMMET ID=28 OD=35 T=17	9-09956-256-2	02	1	0712-0802	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0712-0802	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0803-0810	●	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0803-0810	●	●
303	BOLT; BRKT M8X25 FLANGE	0-28650-825-0	02	1	0811-	●	●
303	BOLT; BRKT FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	02	1	0811-	●	●
303	BOLT; BRKT EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	03	1	0811-1303	●
303	BOLT; BRKT EXC. FUEL PIPE STEEL<E2N> M8X25 FLANGE	0-28650-825-0	04	1	1304-	●
304	NUT; BRKT EXC. FUEL PIPE STEEL<E2N> M8 FLANGE	0-91180-108-0	01	1	1304-	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	02	1	0712-0802	●
304	NUT; BRKT M8 FLANGE	0-91180-108-0	04	1	0803-	●	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
