◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ EXR ▶ 10724 - EXR RHD ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-37C - MANUAL TRANSMISSION CONT; MISSION SIDE ▶
2-37C — MANUAL TRANSMISSION CONT; MISSION SIDE (#4837) — 94 parça
çizim 9257
24 28 15 112 25 22 25 25 15 22 5 22 24 28 30 35 5 35 30 32 32 45 49 8 36 47 44 47 6 38 36 38 49 45 44
BalonParca AdiParca NoAdetTipApplied Date A B
5 ROD; LINK,3RD SHIFT
L=1110 		1-33652-623-0 01 1 9905- ●
5 ROD; LINK,3RD SHIFT
L=1110 		1-33652-623-0 01 1 9611-9904 ●
6 ROD; LINK,3RD SELECT
L=1613 		1-33652-729-0 01 1 9611-9904 ●
6 ROD; LINK,3RD SELECT
L=1613 		1-33652-729-0 01 1 9905- ●
8 ROD; LINK,4TH SHIFT
L=480 		1-33652-730-0 01 1 9611-9904 ●
8 ROD; LINK,4TH SHIFT
L=480 		1-33652-730-0 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
(D) 1ST SELECT L=435 		1-33652-696-0 01 1 9905-9911 ●
15 ROD; LINK 1ST SHIFT
(D) 1ST SELECT L=435 		1-33652-696-0 01 1 9912- ●
15 ROD; LINK 1ST SHIFT
(C) 2ND SELECT L=428 		1-33652-781-0 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
(B) 2ND SHIFT L=490 		1-33652-780-0 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
(C) 2ND SELECT L=438 		1-33652-682-0 01 1 9611-9904 ●
15 ROD; LINK 1ST SHIFT
(D) 1ST SELECT L=435 		1-33652-696-0 01 1 9611-9904 ●
15 ROD; LINK 1ST SHIFT
(B) 2ND SHIFT L=497 		1-33652-716-0 01 1 9611-9904 ●
22 JOINT; BALL,SCREW,LINK ROD
(A) 2ND SHIFT 		1-09760-125-0 01 1 9711-9904 ●
22 JOINT; BALL,SCREW,LINK ROD
(A) 2ND SHIFT 		1-09760-125-0 01 1 9905- ●
22 JOINT; BALL,SCREW,LINK ROD
(B) 2ND SELECT 		1-09760-109-0 02 1 9905- ●
22 JOINT; BALL,SCREW,LINK ROD
(B) 2ND SELECT 		1-09760-109-0 02 1 9611-9904 ●
22 JOINT; BALL,SCREW,LINK ROD
(A) 2ND SHIFT L=64.5 		1-09760-111-0 01 1 9611-9710 ●
24 NUT; 2ND LINK ROD,SHIFT
M10 T=10 FLANGE 		1-09440-050-0 01 1 9709-9710 ●
24 NUT; 2ND LINK ROD,SHIFT
M10 T=11 FLANGE 		1-09440-056-0 01 1 9709-9710 ●
24 NUT; 2ND LINK ROD,SHIFT
M10 T=11 FLANGE 		1-09440-056-0 02 1 9711-9802 ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9803-9904 ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9905- ●
24 NUT; 2ND LINK ROD,SHIFT
M10 T=10 FLANGE 		1-09440-050-0 02 1 9611-9708 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) 2ND SHIFT M12 		9-99111-412-0 02 1 9611-9904 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) 2ND SHIFTT M12 		9-99111-412-0 02 1 9905- ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) 2ND SELECT M10 		9-09111-410-0 02 1 9905- ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(B) 2ND SELECT M10 		9-09111-410-0 02 1 9611-9904 ●
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9805-9904 ●
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9905- ●
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9611-9804 ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 9711- ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-110-0 02 1 9611-9710 ●
32 NUT; 3RD LINK ROD
(A) M10 FLANGE 		1-09440-056-0 02 1 9711-9802 ●
32 NUT; 3RD LINK ROD
(A) M10 FLANGE 		1-09440-061-0 02 1 9803-9904 ●
32 NUT; 3RD LINK ROD
(A) M10 FLANGE 		1-09440-061-0 02 1 9905- ●
32 NUT; 3RD LINK ROD
(A) M10 FLANGE 		1-09440-050-0 02 1 9611-9710 ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9905- ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9611-9904 ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
(B) 		1-09760-109-0 02 1 9905-9912 ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
(B) 		1-09760-109-0 02 1 0001-0004 ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
(B) 		1-09760-109-0 02 1 0005- ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
(B) 		1-09760-109-0 02 1 9611-9904 ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-0 02 1 9805-9807 ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0001- ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9905-9912 ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9611-9804 ●
44 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9905-9912 ●
44 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0001-0004 ●
44 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 0005- ●
44 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9611-9904 ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-125-0 02 1 9905-0004 ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-125-0 02 1 0005- ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-117-0 02 1 9611-9904 ●
47 NUT; 4TH LINK ROD
(A) M10 FLANGE 		1-09440-050-0 02 1 9611-9710 ●
47 NUT; 4TH LINK ROD
(A) M10 FLANGE 		1-09440-056-0 02 1 9711-9802 ●
47 NUT; 4TH LINK ROD
(A) M10 FLANGE 		1-09440-061-0 02 1 9803-9904 ●
47 NUT; 4TH LINK ROD
(A) M10 FLANGE 		1-09440-061-0 02 1 9905- ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9905-0004 ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 0005- ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9611-9904 ●
112 JOINT; RUBBER 1-33670-413-1 02 1 9905- ●
112 JOINT; RUBBER 1-33670-413-1 02 1 9611-9904 ●

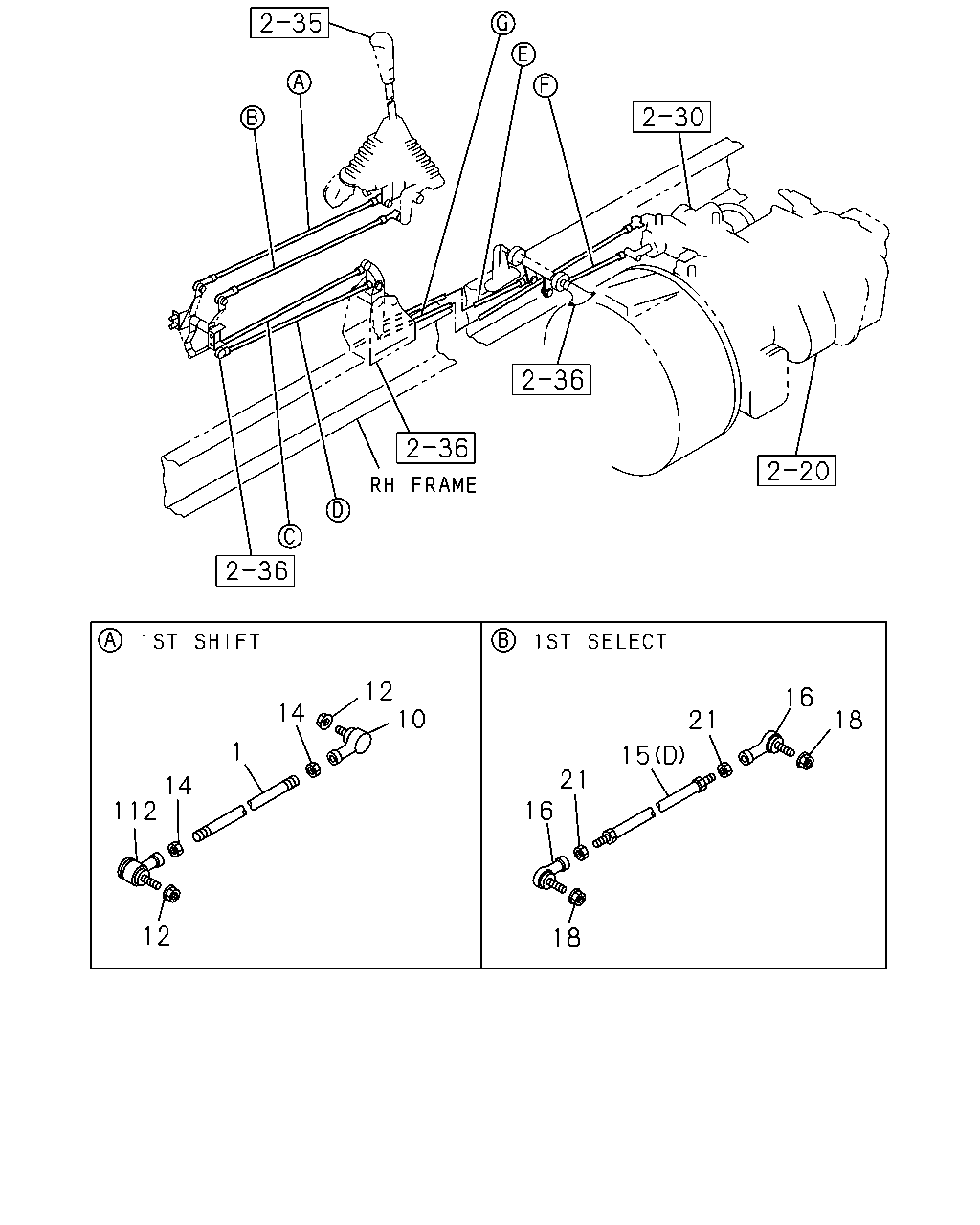

çizim 42416
12 10 16 14 21 18 1 15 21 16 14 112 12 18
BalonParca AdiParca NoAdetTipApplied Date A B
1 ROD; LINK,1ST SHIFT
L=480 		9-08401-248-0 01 1 9905-9911 ●
1 ROD; LINK,1ST SHIFT
L=480 		9-08401-248-0 01 1 9912- ●
1 ROD; LINK,1ST SHIFT
L=480 		9-08401-248-0 01 1 9611-9904 ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-125-0 01 1 9905-9911 ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-125-0 01 1 9912- ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-117-0 01 1 9611-9904 ●
12 NUT; 1ST LINK ROD,SHIFT
M10 T=11 FLANGE 		1-09440-056-0 02 1 9709-9802 ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9803-9904 ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9905- ●
12 NUT; 1ST LINK ROD,SHIFT
M10 T=10 FLANGE 		1-09440-050-0 02 1 9611-9708 ●
14 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9905-9911 ●
14 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9912- ●
14 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9611-9904 ●
15 ROD; LINK 1ST SHIFT
(D) 1ST SELECT L=435 		1-33652-696-0 01 1 9905-9911 ●
15 ROD; LINK 1ST SHIFT
(D) 1ST SELECT L=435 		1-33652-696-0 01 1 9912- ●
15 ROD; LINK 1ST SHIFT
(C) 2ND SELECT L=428 		1-33652-781-0 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
(B) 2ND SHIFT L=490 		1-33652-780-0 01 1 9905- ●
15 ROD; LINK 1ST SHIFT
(C) 2ND SELECT L=438 		1-33652-682-0 01 1 9611-9904 ●
15 ROD; LINK 1ST SHIFT
(D) 1ST SELECT L=435 		1-33652-696-0 01 1 9611-9904 ●
15 ROD; LINK 1ST SHIFT
(B) 2ND SHIFT L=497 		1-33652-716-0 01 1 9611-9904 ●
16 JOINT ASM; BALL,CONT ROD 1-09760-108-0 02 1 9905-9911 ●
16 JOINT ASM; BALL,CONT ROD 1-09760-108-0 02 1 9912- ●
16 JOINT ASM; BALL,CONT ROD 1-09760-108-0 02 1 9611-9904 ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9805-9904 ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9905- ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9611-9804 ●
21 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 9905-9911 ●
21 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 9912- ●
21 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 9611-9904 ●
112 JOINT; RUBBER 1-33670-413-1 02 1 9905- ●
112 JOINT; RUBBER 1-33670-413-1 02 1 9611-9904 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
