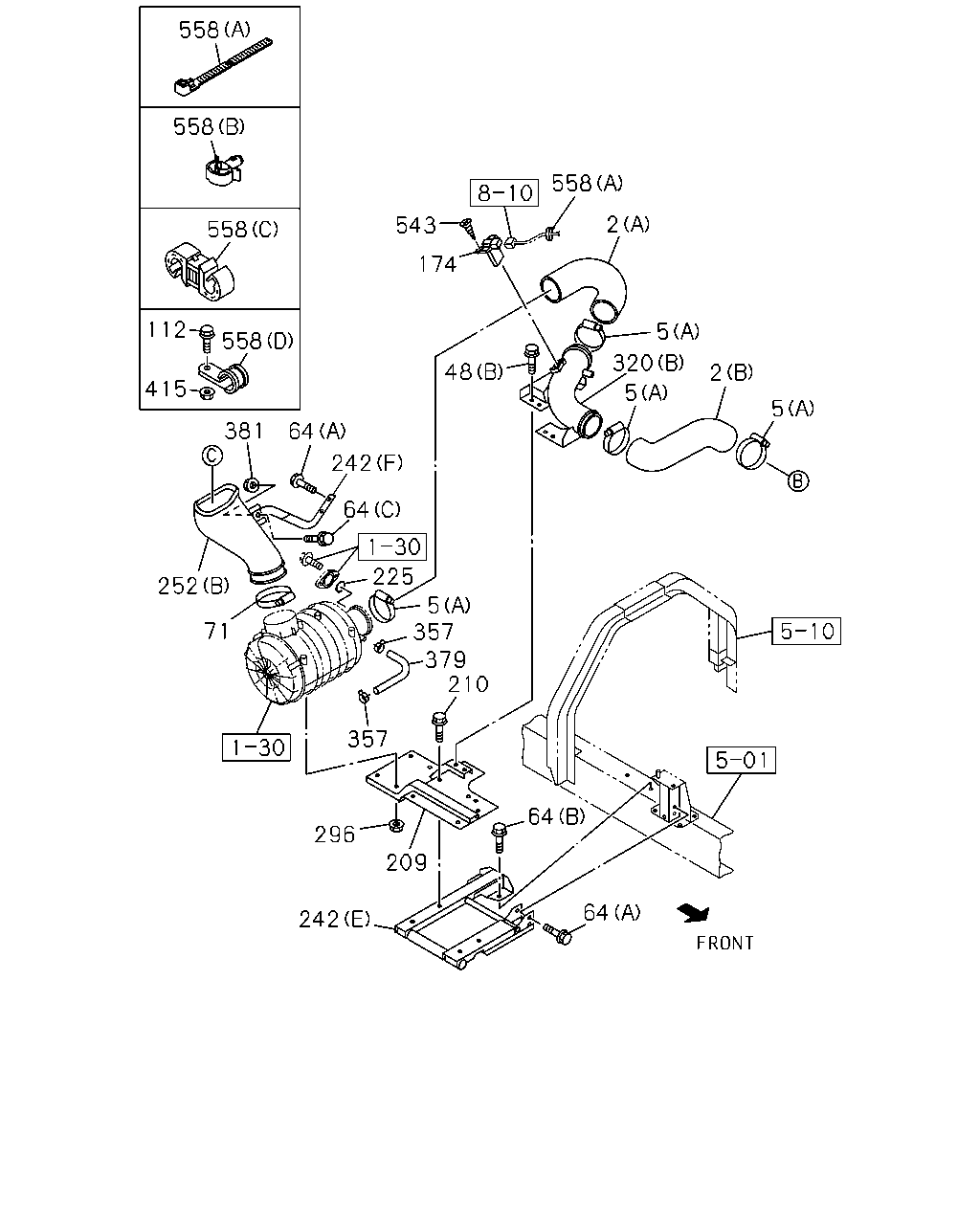

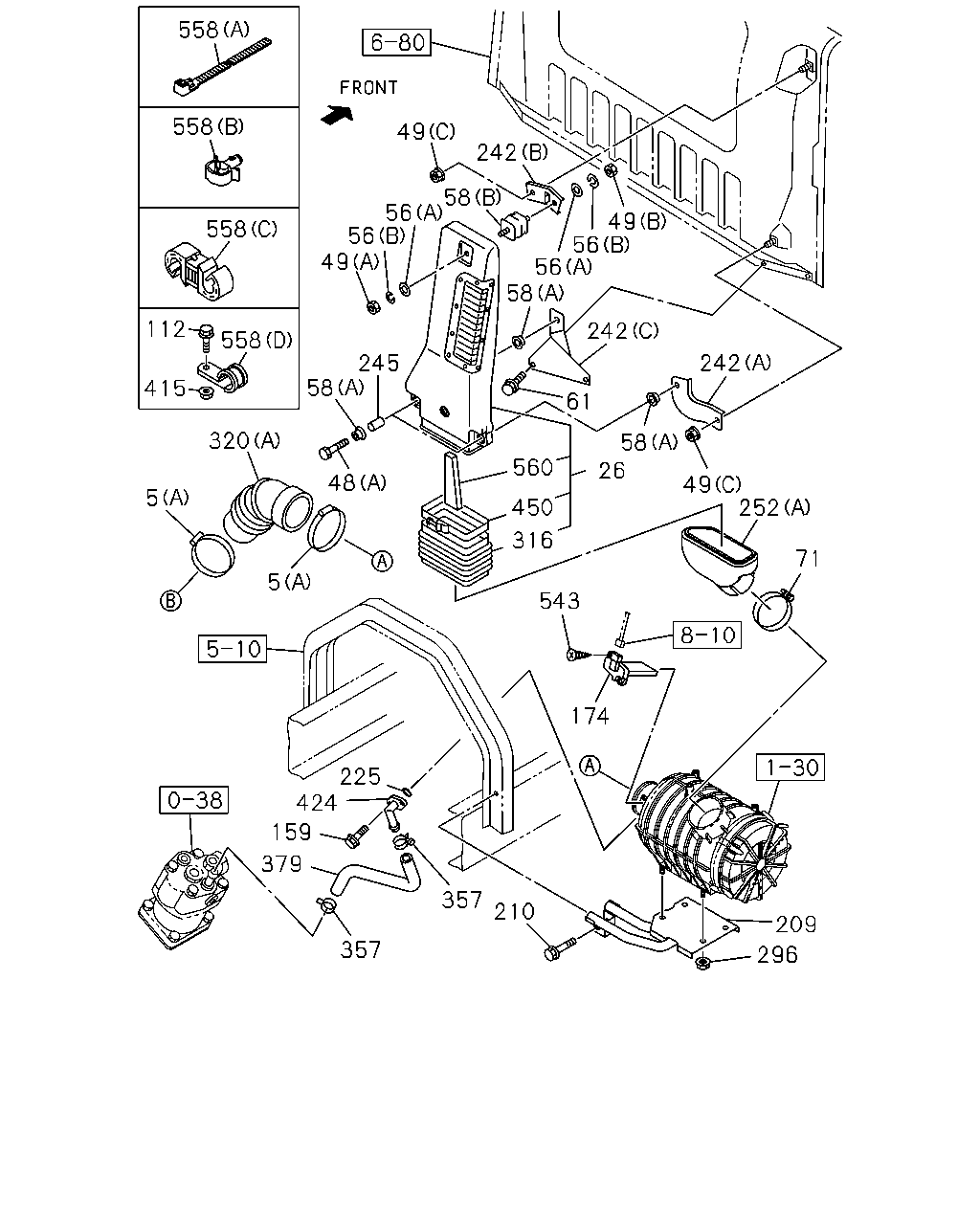

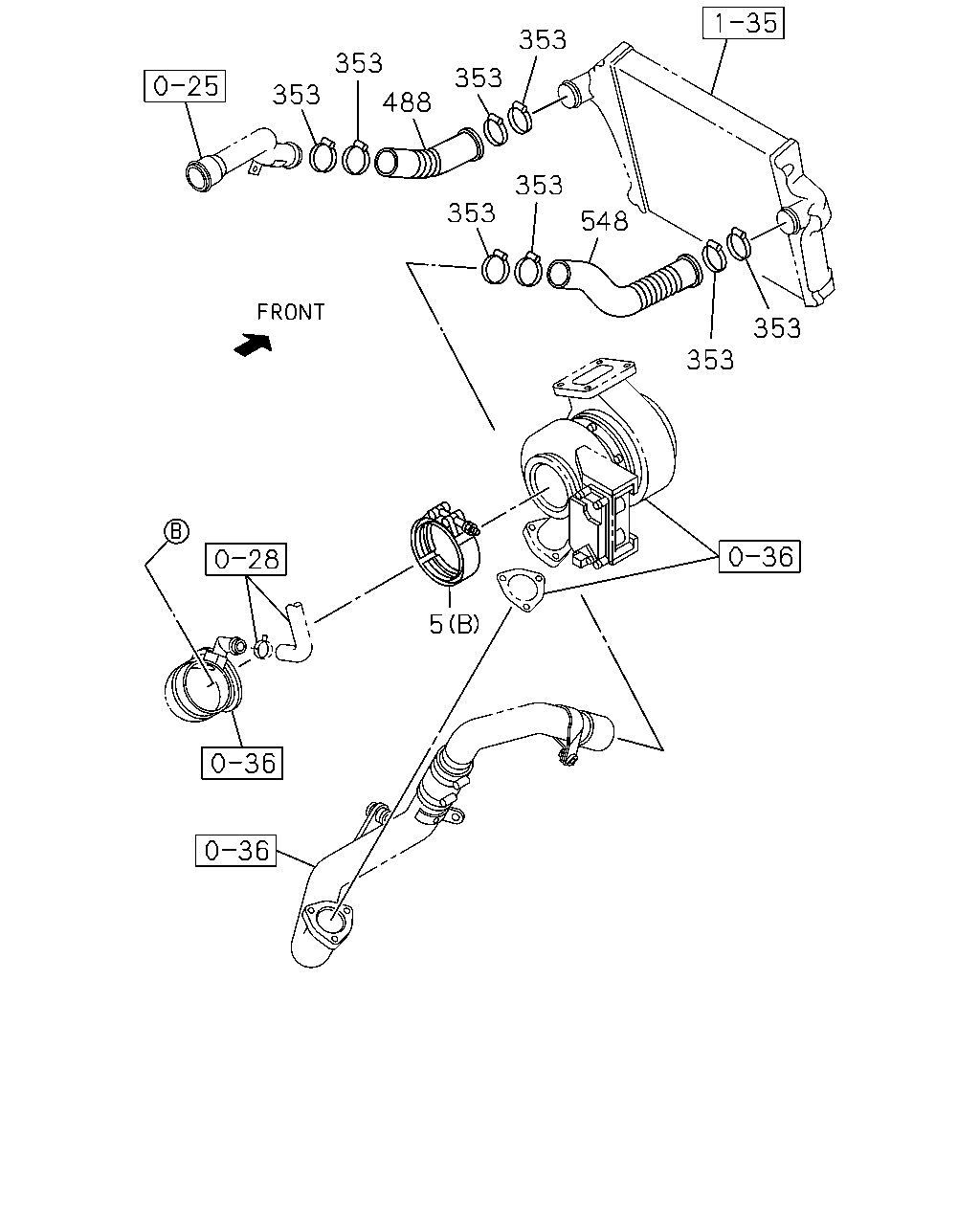

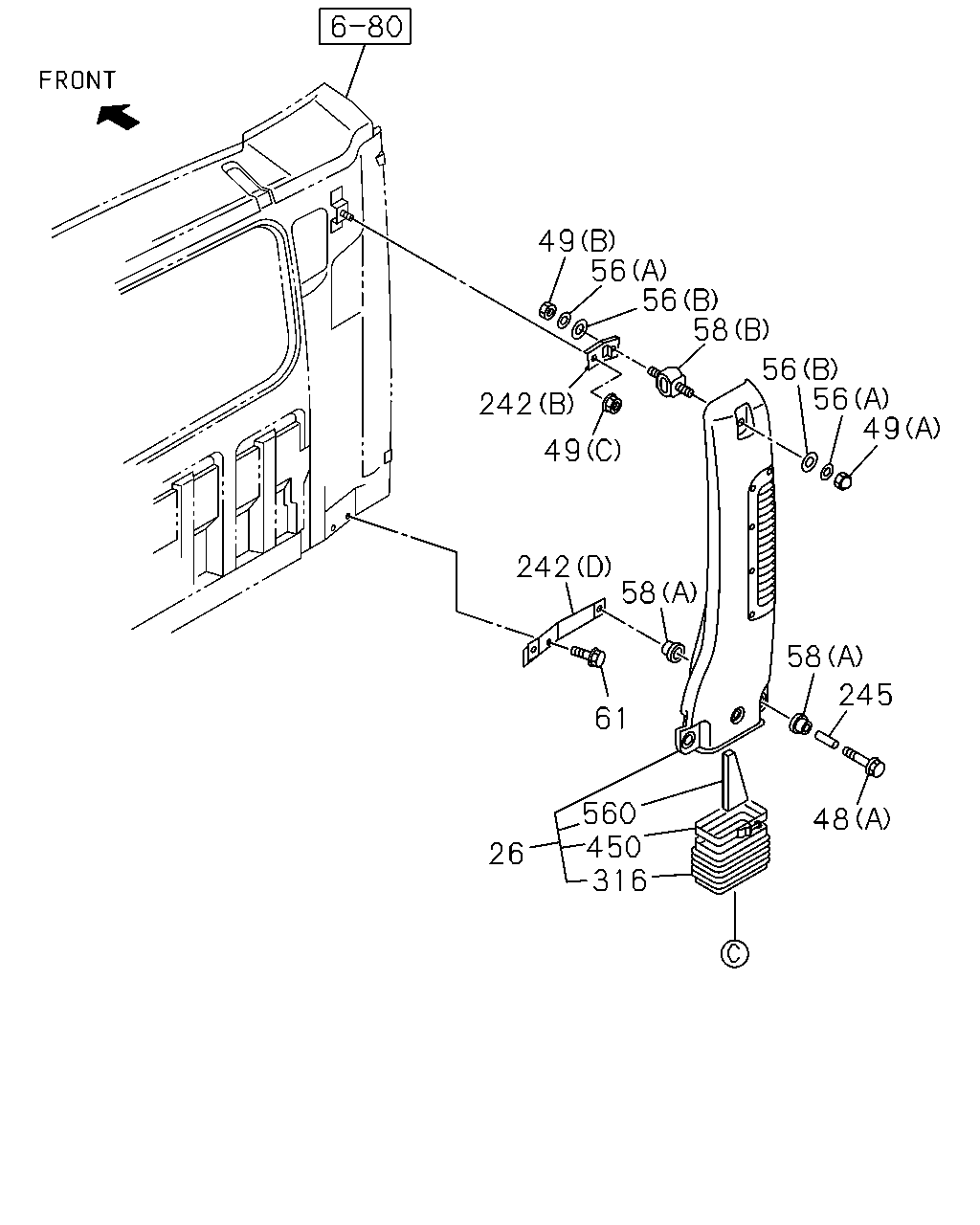

1-31 — AIR DUCT (#48367) — 161 parça

49 56 56 58 56 56 49 242 49 242 58 58 245 61 560 450 316 48 26

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
26	DUCT; AIR INT	8-98010-361-2	01	1	0712-
48	BOLT; AIR DUCT (A) M10X26	1-09030-044-1	02	1	0712-
48	BOLT; AIR DUCT FTS WIDE DBL CAB(FG*W) (B) M10X25 FLANGE	0-28651-025-0	04	1	0712-
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	0712-
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	0712-
49	NUT; AIR DUCT FTS WIDE SGL CAB(FG*M) (C) M8 FLANGE	8-94279-517-0	02	1	0712-
49	NUT; AIR DUCT FTS WIDE DBL CAB(FG*W) (C) M8 FLANGE	8-94279-517-0	01	1	0712-
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	0712-
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	0712-
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	0712-
58	SUPPORT; AIR INL DUCT (B)	1-14119-452-0	01	1	0712-0810
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	0811-
61	BOLT; BRKT,AIR DUCT M8X20 FLANGE	8-98061-920-0	02	1	0712-0807
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0808-
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	0712-
242	BRACKET; AIR DUCT FTS WIDE SGL CAB(FG*M) (C)	8-98019-302-1	01	1	0712-
242	BRACKET; AIR DUCT FTS WIDE SGL CAB(FG*M) (A)	8-98019-304-1	01	1	0712-
242	BRACKET; AIR DUCT FTS WIDE DBL CAB(FG*W) (D)	8-98050-679-1	01	1	0712-
242	BRACKET; AIR DUCT FTS WIDE DBL CAB(FG*W) (E)	8-98089-457-1	01	1	0712-
242	BRACKET; AIR DUCT FTS WIDE DBL CAB(FG*W) (F)	8-98092-772-0	01	1	0712-
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0712-
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	0908-
450	CLAMP; HOSE	9-09915-504-1	01	1	0712-
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	0712-

353 353 353 353 488 353 353 548 353 353 5

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	CLIP; AIR DUCT (B) ID=114	8-15178-030-0	01	1	0712-
5	CLIP; AIR DUCT FTS WIDE SGL CAB(FG*M) (A) ID=104-139	1-09707-200-0	01	1	0712-0812
5	CLIP; AIR DUCT FTS WIDE SGL CAB(FG*M) (A) ID=110-130	8-98133-359-0	01	1	0901-1001
5	CLIP; AIR DUCT FTS WIDE SGL CAB(FG*M) (A) ID=104-142	1-09707-139-0	01	1	1002-
5	CLIP; AIR DUCT FTS WIDE SGL CAB(FG*M) (A) ID=104-142	1-09707-139-0	01	1	1002-
5	CLIP; AIR DUCT FTS WIDE SGL CAB(FG*M) (A) ID=104-139	1-09707-200-0	02	1	0712-0812
5	CLIP; AIR DUCT (A) ID=100-120	8-98133-366-0	01	1	0901-1001
5	CLIP; AIR DUCT FTS WIDE DBL CAB(FG*W) (A) ID=104-139	1-09707-200-0	04	1	0712-0812
5	CLIP; AIR DUCT FTS WIDE DBL CAB(FG*W) (A) ID=110-130	8-98133-359-0	03	1	0901-1001
5	CLIP; AIR DUCT FTS WIDE DBL CAB(FG*W) (A) ID=104-142	1-09707-139-0	04	1	1002-
353	CLIP; RUBBER HOSE ID=58-76	1-09707-203-0	08	1	0712-0811
353	CLIP; RUBBER HOSE ID=55-75	8-98133-349-0	08	1	0812-1001
353	CLIP; RUBBER HOSE ID=58-79	1-09707-136-0	08	1	1002-
488	HOSE; RUBBER,PIPE	8-98050-686-0	01	1	0712-
548	HOSE; RUBBER,TURBO TO INL PIPE	8-98050-685-0	01	1	0712-

558 558 558 2 543 558 174 112 5 558 320 48 2 415 5 5 381 64 242 64 225 252 5 357 379 210 71 357 64 296 209 64 242

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	HOSE; ACL FTS WIDE DBL CAB(FG*W) (A)	8-98050-682-0	01	1	0712-
2	HOSE; ACL FTS WIDE DBL CAB(FG*W) (B)	8-98050-684-0	01	1	0712-
5	CLIP; AIR DUCT (B) ID=114	8-15178-030-0	01	1	0712-
5	CLIP; AIR DUCT FTS WIDE SGL CAB(FG*M) (A) ID=104-139	1-09707-200-0	01	1	0712-0812
5	CLIP; AIR DUCT FTS WIDE SGL CAB(FG*M) (A) ID=110-130	8-98133-359-0	01	1	0901-1001
5	CLIP; AIR DUCT FTS WIDE SGL CAB(FG*M) (A) ID=104-142	1-09707-139-0	01	1	1002-
5	CLIP; AIR DUCT FTS WIDE SGL CAB(FG*M) (A) ID=104-142	1-09707-139-0	01	1	1002-
5	CLIP; AIR DUCT FTS WIDE SGL CAB(FG*M) (A) ID=104-139	1-09707-200-0	02	1	0712-0812
5	CLIP; AIR DUCT (A) ID=100-120	8-98133-366-0	01	1	0901-1001
5	CLIP; AIR DUCT FTS WIDE DBL CAB(FG*W) (A) ID=104-139	1-09707-200-0	04	1	0712-0812
5	CLIP; AIR DUCT FTS WIDE DBL CAB(FG*W) (A) ID=110-130	8-98133-359-0	03	1	0901-1001
5	CLIP; AIR DUCT FTS WIDE DBL CAB(FG*W) (A) ID=104-142	1-09707-139-0	04	1	1002-
48	BOLT; AIR DUCT (A) M10X26	1-09030-044-1	02	1	0712-
48	BOLT; AIR DUCT FTS WIDE DBL CAB(FG*W) (B) M10X25 FLANGE	0-28651-025-0	04	1	0712-
64	BOLT; BRKT,AIR DUCT FTS WIDE DBL CAB(FG*W) (A) M10X25 FLANGE	0-28651-025-0	02	1	0712-
64	BOLT; BRKT,AIR DUCT FTS WIDE DBL CAB(FG*W) (A) M10X25 FLANGE	0-28651-025-0	03	1	0712-
64	BOLT; BRKT,AIR DUCT FTS WIDE DBL CAB(FG*W) (B) M10X35 FLANGE	0-28651-035-0	02	1	0712-
64	BOLT; BRKT,AIR DUCT FTS WIDE DBL CAB(FG*W) (C) M8X25 W/LK&PL WASHER	1-09030-074-0	01	1	0712-0805
64	BOLT; BRKT,AIR DUCT FTS WIDE DBL CAB(FG*W) (C) M8X25 W/LK&PL WASHER	1-09030-093-0	01	1	0806-
71	CLIP; AIR DUCT ID=104-139	1-09707-200-0	01	1	0712-0812
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	0901-
112	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	0712-0804
112	BOLT; CLIP FTS WIDE SGL CAB(FG*M) M8X25 FLANGE	0-28650-825-0	03	1	0805-
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	0712-
209	BRACKET; ACL FTS WIDE SGL CAB(FG*M)	8-98021-995-1	01	1	0712-
209	BRACKET; ACL FTS WIDE DBL CAB(FG*W)	8-98089-455-1	01	1	0712-
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	04	1	0712-
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	0712-
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	0712-
242	BRACKET; AIR DUCT FTS WIDE SGL CAB(FG*M) (C)	8-98019-302-1	01	1	0712-
242	BRACKET; AIR DUCT FTS WIDE SGL CAB(FG*M) (A)	8-98019-304-1	01	1	0712-
242	BRACKET; AIR DUCT FTS WIDE DBL CAB(FG*W) (D)	8-98050-679-1	01	1	0712-
242	BRACKET; AIR DUCT FTS WIDE DBL CAB(FG*W) (E)	8-98089-457-1	01	1	0712-
242	BRACKET; AIR DUCT FTS WIDE DBL CAB(FG*W) (F)	8-98092-772-0	01	1	0712-
252	DUCT; AIR INT FTS WIDE SGL CAB(FG*M) (A)	8-98012-861-1	01	1	0712-
252	DUCT; AIR INT FTS WIDE DBL CAB(FG*W) (B)	8-98050-681-0	01	1	0712-
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0712-
320	HOSE; CONN,ACL FTS WIDE SGL CAB(FG*M) (A)	8-97616-752-1	01	1	0712-
320	HOSE; CONN,ACL FTS WIDE DBL CAB(FG*W) (B)	8-98092-944-1	01	1	0712-
357	CLIP; RUBBER HOSE ID=26	1-09707-091-0	01	1	0712-
357	CLIP; RUBBER HOSE ID=29.5	8-97354-979-0	01	1	0712-
379	HOSE; RUBBER FTS WIDE SGL CAB(FG*M)	8-97619-196-0	01	1	0712-
379	HOSE; RUBBER FTS WIDE DBL CAB(FG*W)	8-98073-021-0	01	1	0712-0805
379	HOSE; RUBBER FTS WIDE DBL CAB(FG*W)	8-98124-699-0	01	1	0806-
381	NUT; BRKT,AIR DUCT FTS WIDE DBL CAB(FG*W) M8 FLANGE	0-91180-108-0	01	1	0712-
415	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0712-0804
415	NUT; CLIP FTS WIDE SGL CAB(FG*M) M8 FLANGE	0-91180-108-0	03	1	0805-
543	SCREW; SENSOR M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0712-
558	CLIP; AIR FLOW SENSOR (D) ID=15 L=28	1-09701-216-0	03	1	0712-0804
558	CLIP; AIR FLOW SENSOR FTS WIDE SGL CAB(FG*M) (D) ID=15 L=28	1-09701-216-0	03	1	0805-
558	CLIP; AIR FLOW SENSOR (A) L=600	1-09707-107-1	01	1	0712-0905
558	CLIP; AIR FLOW SENSOR (C) ID=10 & 15	1-09709-279-1	01	1	0712-0804
558	CLIP; AIR FLOW SENSOR FTS WIDE SGL CAB(FG*M) (C) ID=10 & 15	1-09709-279-1	01	1	0805-
558	CLIP; AIR FLOW SENSOR (B) ID=5-12 L=14.5	1-09987-221-0	01	1	0712-0804
558	CLIP; AIR FLOW SENSOR FTS WIDE SGL CAB(FG*M) (B) ID=5-12 L=14.5	1-09987-221-0	01	1	0805-
558	CLIP; AIR FLOW SENSOR (A) L=250	5-09707-030-1	01	1	0712-0803

558 558 49 242 58 56 56 49 49 56 56 58 558 112 242 558 242 245 61 58 415 320 58 560 26 48 49 252 5 450 316 71 5 543 174 225 424 159 379 357 210 209 357 296

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
5	CLIP; AIR DUCT (B) ID=114	8-15178-030-0	01	1	0712-
5	CLIP; AIR DUCT FTS WIDE SGL CAB(FG*M) (A) ID=104-139	1-09707-200-0	01	1	0712-0812
5	CLIP; AIR DUCT FTS WIDE SGL CAB(FG*M) (A) ID=110-130	8-98133-359-0	01	1	0901-1001
5	CLIP; AIR DUCT FTS WIDE SGL CAB(FG*M) (A) ID=104-142	1-09707-139-0	01	1	1002-
5	CLIP; AIR DUCT FTS WIDE SGL CAB(FG*M) (A) ID=104-142	1-09707-139-0	01	1	1002-
5	CLIP; AIR DUCT FTS WIDE SGL CAB(FG*M) (A) ID=104-139	1-09707-200-0	02	1	0712-0812
5	CLIP; AIR DUCT (A) ID=100-120	8-98133-366-0	01	1	0901-1001
5	CLIP; AIR DUCT FTS WIDE DBL CAB(FG*W) (A) ID=104-139	1-09707-200-0	04	1	0712-0812
5	CLIP; AIR DUCT FTS WIDE DBL CAB(FG*W) (A) ID=110-130	8-98133-359-0	03	1	0901-1001
5	CLIP; AIR DUCT FTS WIDE DBL CAB(FG*W) (A) ID=104-142	1-09707-139-0	04	1	1002-
26	DUCT; AIR INT	8-98010-361-2	01	1	0712-
48	BOLT; AIR DUCT (A) M10X26	1-09030-044-1	02	1	0712-
48	BOLT; AIR DUCT FTS WIDE DBL CAB(FG*W) (B) M10X25 FLANGE	0-28651-025-0	04	1	0712-
49	NUT; AIR DUCT (B) M8 FLANGE	1-09984-122-0	01	1	0712-
49	NUT; AIR DUCT (A) M8 FLANGE	1-09984-126-0	01	1	0712-
49	NUT; AIR DUCT FTS WIDE SGL CAB(FG*M) (C) M8 FLANGE	8-94279-517-0	02	1	0712-
49	NUT; AIR DUCT FTS WIDE DBL CAB(FG*W) (C) M8 FLANGE	8-94279-517-0	01	1	0712-
56	WASHER; LK,AIR INT DUCT (A) ID=8.2	1-09985-177-0	02	1	0712-
56	WASHER; LK,AIR INT DUCT (B) ID=8.4 OD=22	1-09985-188-0	02	1	0712-
58	SUPPORT; AIR INL DUCT (A) OD=40 T=18.5	1-14119-267-0	04	1	0712-
58	SUPPORT; AIR INL DUCT (B)	1-14119-452-0	01	1	0712-0810
58	SUPPORT; AIR INL DUCT (B)	8-98125-944-1	01	1	0811-
61	BOLT; BRKT,AIR DUCT M8X20 FLANGE	8-98061-920-0	02	1	0712-0807
61	BOLT; BRKT,AIR DUCT M8X25 FLANGE	8-98074-570-0	02	1	0808-
71	CLIP; AIR DUCT ID=104-139	1-09707-200-0	01	1	0712-0812
71	CLIP; AIR DUCT ID=120-140	8-98133-367-0	01	1	0901-
112	BOLT; CLIP M8X25 FLANGE	0-28650-825-0	03	1	0712-0804
112	BOLT; CLIP FTS WIDE SGL CAB(FG*M) M8X25 FLANGE	0-28650-825-0	03	1	0805-
159	BOLT; AIR PIPE FTS WIDE SGL CAB(FG*M) M6X16 FLANGE	0-28050-616-0	02	1	0712-
174	SENSOR; AIR FLOW CONT	8-97601-967-0	01	1	0712-
209	BRACKET; ACL FTS WIDE SGL CAB(FG*M)	8-98021-995-1	01	1	0712-
209	BRACKET; ACL FTS WIDE DBL CAB(FG*W)	8-98089-455-1	01	1	0712-
210	BOLT; ACL BRKT M10X25 FLANGE	0-28651-025-0	04	1	0712-
225	GASKET; AIR PIPE ID=24.4	1-09623-057-0	01	1	0712-
242	BRACKET; AIR DUCT (B)	8-98019-301-3	01	1	0712-
242	BRACKET; AIR DUCT FTS WIDE SGL CAB(FG*M) (C)	8-98019-302-1	01	1	0712-
242	BRACKET; AIR DUCT FTS WIDE SGL CAB(FG*M) (A)	8-98019-304-1	01	1	0712-
242	BRACKET; AIR DUCT FTS WIDE DBL CAB(FG*W) (D)	8-98050-679-1	01	1	0712-
242	BRACKET; AIR DUCT FTS WIDE DBL CAB(FG*W) (E)	8-98089-457-1	01	1	0712-
242	BRACKET; AIR DUCT FTS WIDE DBL CAB(FG*W) (F)	8-98092-772-0	01	1	0712-
245	PIECE; DIST,AIR DUCT	1-79998-228-0	02	1	0712-
252	DUCT; AIR INT FTS WIDE SGL CAB(FG*M) (A)	8-98012-861-1	01	1	0712-
252	DUCT; AIR INT FTS WIDE DBL CAB(FG*W) (B)	8-98050-681-0	01	1	0712-
296	NUT; ACL M8 FLANGE	0-91180-108-0	04	1	0712-
316	RUBBER; CUSHION,DUCT	8-98152-269-0	01	1	0908-
320	HOSE; CONN,ACL FTS WIDE SGL CAB(FG*M) (A)	8-97616-752-1	01	1	0712-
320	HOSE; CONN,ACL FTS WIDE DBL CAB(FG*W) (B)	8-98092-944-1	01	1	0712-
357	CLIP; RUBBER HOSE ID=26	1-09707-091-0	01	1	0712-
357	CLIP; RUBBER HOSE ID=29.5	8-97354-979-0	01	1	0712-
379	HOSE; RUBBER FTS WIDE SGL CAB(FG*M)	8-97619-196-0	01	1	0712-
379	HOSE; RUBBER FTS WIDE DBL CAB(FG*W)	8-98073-021-0	01	1	0712-0805
379	HOSE; RUBBER FTS WIDE DBL CAB(FG*W)	8-98124-699-0	01	1	0806-
415	NUT; CLIP M8 FLANGE	0-91180-108-0	03	1	0712-0804
415	NUT; CLIP FTS WIDE SGL CAB(FG*M) M8 FLANGE	0-91180-108-0	03	1	0805-
424	PIPE; AIR,INL FTS WIDE SGL CAB(FG*M)	8-98081-834-0	01	1	0712-
450	CLAMP; HOSE	9-09915-504-1	01	1	0712-
543	SCREW; SENSOR M4X10 W/LK&PL WASHER	0-36230-410-0	02	1	0712-
558	CLIP; AIR FLOW SENSOR (D) ID=15 L=28	1-09701-216-0	03	1	0712-0804
558	CLIP; AIR FLOW SENSOR FTS WIDE SGL CAB(FG*M) (D) ID=15 L=28	1-09701-216-0	03	1	0805-
558	CLIP; AIR FLOW SENSOR (A) L=600	1-09707-107-1	01	1	0712-0905
558	CLIP; AIR FLOW SENSOR (C) ID=10 & 15	1-09709-279-1	01	1	0712-0804
558	CLIP; AIR FLOW SENSOR FTS WIDE SGL CAB(FG*M) (C) ID=10 & 15	1-09709-279-1	01	1	0805-
558	CLIP; AIR FLOW SENSOR (B) ID=5-12 L=14.5	1-09987-221-0	01	1	0712-0804
558	CLIP; AIR FLOW SENSOR FTS WIDE SGL CAB(FG*M) (B) ID=5-12 L=14.5	1-09987-221-0	01	1	0805-
558	CLIP; AIR FLOW SENSOR (A) L=250	5-09707-030-1	01	1	0712-0803
560	FILTER; VERTICAL DUCT	8-98061-675-0	01	1	0712-
