◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ FTS ▶ 11421 - FTS(AUST)EURO4 ▶ 1 - Fuel Tank, Cooling, Air Intake, Exhaust System ▶ 1-30 - AIR CLEANER ▶

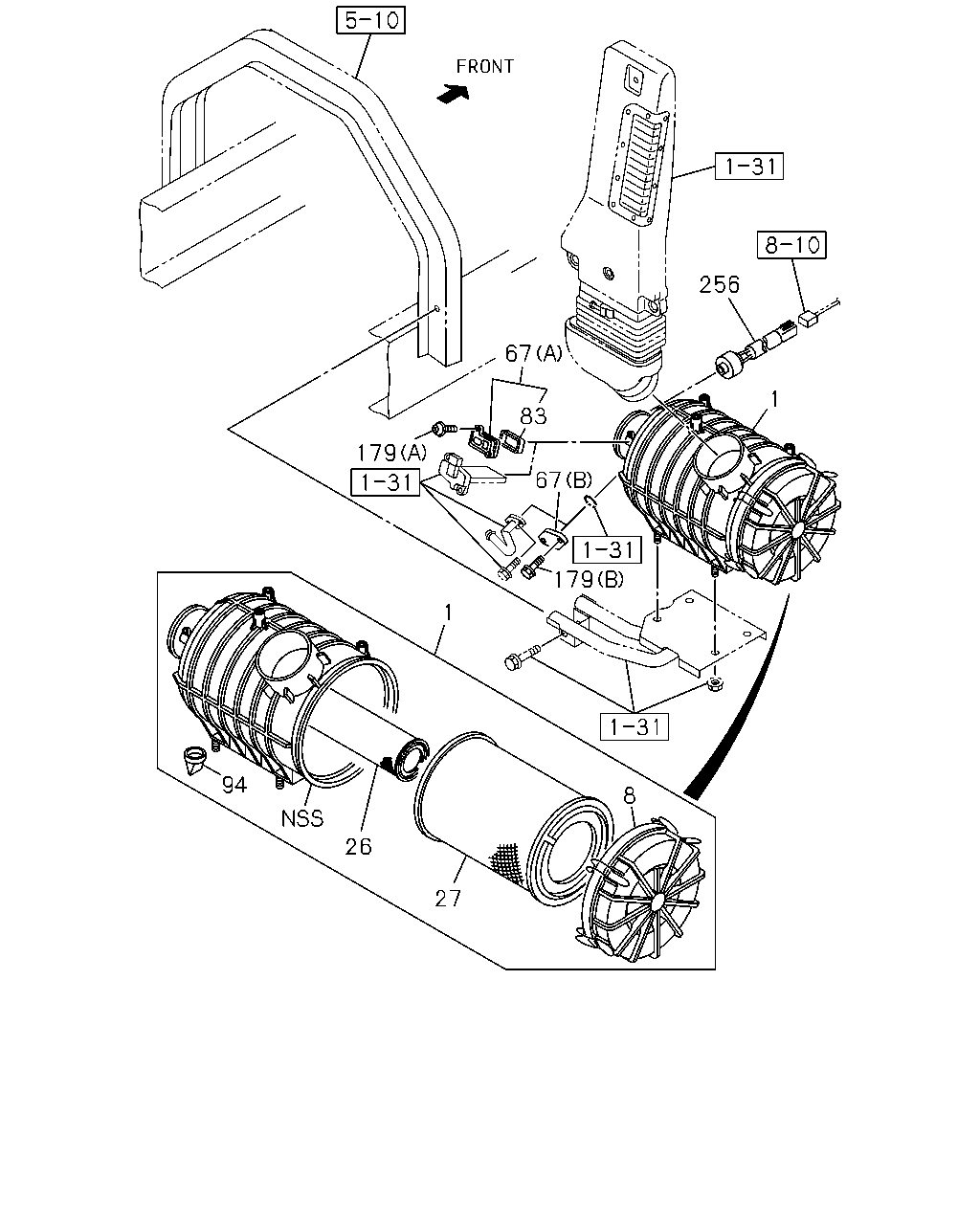

1-30 — AIR CLEANER (#48366) — 13 parça
çizim 25968
256 1 67 83 67 179 179 8 27 26 94 1
BalonParca AdiParca NoAdetTipApplied Date
1 CLEANER ASM; AIR 8-98082-165-1 01 1 0712-
8 COVER ASM; ACL 8-98066-740-0 01 1 0712-
26 FILTER; ACL,INNER 8-98071-422-0 01 1 0712-
27 FILTER; ACL,OUTER
DRY TYPE 		8-98071-421-0 01 1 0712-
67 COVER; ACL
FTS WIDE DBL CAB(FG**W*) (A) 		8-98078-789-0 01 1 0712-
67 COVER; ACL
FTS WIDE DBL CAB(FG**W*) (B) 		8-98081-729-0 01 1 0712-1208
67 COVER; ACL
FTS WIDE DBL CAB(FG**W*) (B) 		8-98217-788-0 01 1 1209-
83 GASKET; COVER
FTS WIDE DBL CAB(FG**W*) 		8-98071-416-0 01 1 0712-
94 VALVE; VACUATOR 1-14219-279-0 01 1 0712-
179 BOLT; COVER,ACL
FTS WIDE DBL CAB(FG**W*) (B) M6X16 FLANGE 		0-28050-616-0 02 1 0712-
179 BOLT; COVER,ACL
FTS WIDE DBL CAB(FG**W*) (A) M4X12 W/LK&PL WASHER 		0-36230-412-0 02 1 0712-
256 SENSOR; AIRFLOW 8-98071-103-1 01 1 0712-1002
256 SENSOR; AIRFLOW 8-98152-742-1 01 1 1003-
