0-61 — BATTERY AND ENGINE ELECTRICAL PARTS (#48359) — 108 parça

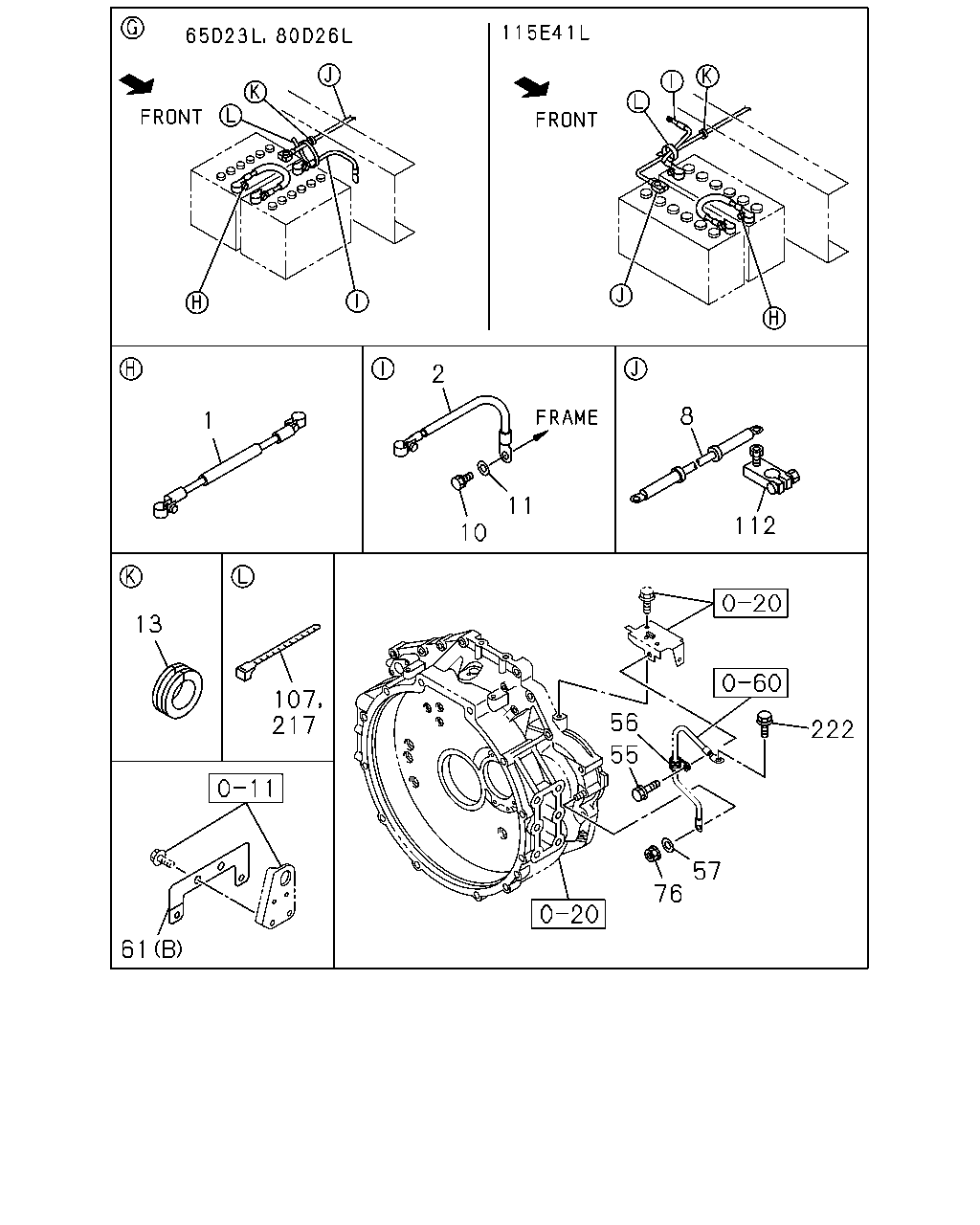

çizim 25691
2 8 1 11 112 10 13 107 217 56 222 55 57 76 61
BalonParca AdiParca NoAdetTipApplied Date A B
1 CABLE; BATTERY
L=280 		8-98025-412-3 01 1 0712- ● ●
2 CABLE; BATTERY
L=280 		8-98035-647-1 01 1 0712- ●
2 CABLE; BATTERY
L=240 		1-82650-403-1 01 1 0712- ●
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98100-768-2 01 1 0712-1004 ●
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98159-443-0 01 1 1005- ●
8 CABLE; BATTERY,STARTER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98083-332-3 01 1 0712-1004 ●
8 CABLE; BATTERY,STARTER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98159-441-0 01 1 1005- ●
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98074-479-1 01 1 0712-1004 ●
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98159-447-0 01 1 1005- ●
8 CABLE; BATTERY,STARTER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98074-477-1 01 1 0712-1004 ●
8 CABLE; BATTERY,STARTER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98159-446-0 01 1 1005- ●
10 BOLT; BATTERY CABLE CLIP
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0712- ● ●
11 WASHER; BATTERY CABLE EARTH
ID=10.5 OD=22 T=2.0 		1-09503-265-0 01 1 0712- ● ●
13 GROMMET; BATTERY CABLE
ID=28 OD=35 T=17 		9-09956-256-2 01 1 0712- ● ●
55 BOLT; CLIP,BATTERY CABLE
M8X16 FLANGE 		0-28050-816-0 01 1 0712- ● ●
56 CLIP; BATTERY CABLE
ID=16 L=28 		1-09700-872-0 01 1 0712- ● ●
57 WASHER; PL,BATTERY CABLE
ID=10.5 OD=22 T=1.6 		0-91610-610-0 01 1 0712- ● ●
61 BRACKET; BATTERY CABLE
(A) 		8-98051-379-1 01 1 0712- ● ●
61 BRACKET; BATTERY CABLE
POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		1-82698-324-0 01 1 0712-0806 ● ●
76 NUT; BATTERY CABLE
M10 FLANGE 		0-91180-210-0 01 1 0712- ● ●
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 0712-0902 ● ●
107 CLIP; BAND
L=140 		5-09707-031-1 01 1 0903- ●
112 TERMINAL; BATTERY
<+> 		8-97365-771-0 01 1 0712- ● ●
217 CLIP; BAND,CABLE
L=250 		5-09707-030-1 01 1 0804-0805 ●
222 BOLT; EARTH CABLE
M10X25 W/LK&PL WASHER 		8-97087-205-0 01 1 0712- ● ●

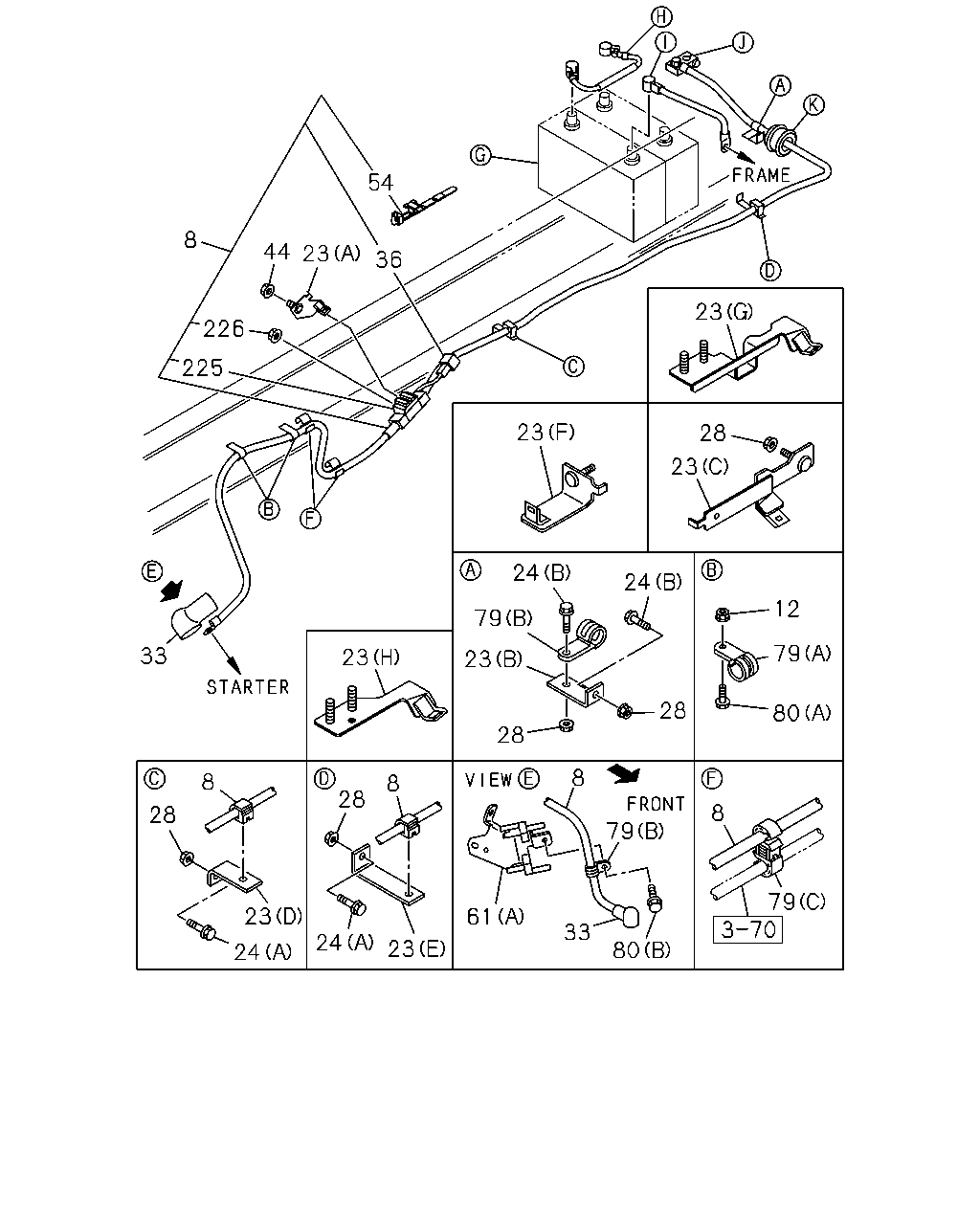

çizim 98710
54 8 44 23 36 23 226 225 23 28 23 24 24 12 79 79 33 23 23 28 80 28 8 28 8 8 8 28 79 79 23 61 33 24 23 80 24
BalonParca AdiParca NoAdetTipApplied Date A B
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98100-768-2 01 1 0712-1004 ●
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98159-443-0 01 1 1005- ●
8 CABLE; BATTERY,STARTER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98083-332-3 01 1 0712-1004 ●
8 CABLE; BATTERY,STARTER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98159-441-0 01 1 1005- ●
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98074-479-1 01 1 0712-1004 ●
8 CABLE; BATTERY,STARTER
POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98159-447-0 01 1 1005- ●
8 CABLE; BATTERY,STARTER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98074-477-1 01 1 0712-1004 ●
8 CABLE; BATTERY,STARTER
EXC. POWER TAKE OFF-FLYWHEEL(6SZ) 		8-98159-446-0 01 1 1005- ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0712-0803 ● ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 01 1 0804- ●
12 NUT; BATTERY CABLE CLIP
M8 FLANGE 		0-91180-108-0 02 1 0804- ●
23 BRACKET; CABLE CLIP TO FRAME
(E) L=95 		1-82699-085-0 01 1 0712-0803 ●
23 BRACKET; CABLE CLIP TO FRAME
(D) L=50 		1-47475-663-1 02 1 0804-0804 ●
23 BRACKET; CABLE CLIP TO FRAME
(E) L=95 		1-82699-085-0 03 1 0805- ●
23 BRACKET; CABLE CLIP TO FRAME
(D) L=50 		1-47475-663-1 01 1 0804-0807 ●
23 BRACKET; CABLE CLIP TO FRAME
(B) L=55 		1-47475-304-0 01 1 0712-0803 ● ●
23 BRACKET; CABLE CLIP TO FRAME
(B) L=55 		1-47475-304-0 01 1 0804-0804 ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-97612-957-1 01 1 0804- ●
23 BRACKET; CABLE CLIP TO FRAME
(D) L=50 		1-47475-663-1 02 1 0712-0803 ● ●
23 BRACKET; CABLE CLIP TO FRAME
(E) L=95 		1-82699-085-0 01 1 0804-0804 ● ●
23 BRACKET; CABLE CLIP TO FRAME
(E) L=95 		1-82699-085-0 01 1 0805-0807 ●
23 BRACKET; CABLE CLIP TO FRAME
(E) L=95 		1-82699-085-0 01 1 0808- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98044-882-0 01 1 0712-0712 ● ●
23 BRACKET; CABLE CLIP TO FRAME
(C) 		8-98095-861-0 01 1 0712-0803 ● ●
23 BRACKET; CABLE CLIP TO FRAME
(C) 		8-98095-861-0 01 1 0804-1111 ●
23 BRACKET; CABLE CLIP TO FRAME
(H) 		8-98201-147-0 01 1 1112- ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98044-882-0 01 1 0802-0803 ● ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98044-882-0 01 1 0804-0807 ●
23 BRACKET; CABLE CLIP TO FRAME
(E) L=95 		1-82699-085-0 02 1 0712-0803 ●
23 BRACKET; CABLE CLIP TO FRAME
(F) 		8-98091-358-0 01 1 0804-0804 ●
23 BRACKET; CABLE CLIP TO FRAME
(F) 		8-98091-358-0 01 1 0805- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(F) 		8-98051-381-2 02 1 0712-0803 ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98092-593-0 01 1 0804-0807 ●
23 BRACKET; CABLE CLIP TO FRAME
(A) 		8-98092-593-0 01 1 0808- ● ●
23 BRACKET; CABLE CLIP TO FRAME
(C) 		8-98118-499-0 01 1 0804-1111 ●
23 BRACKET; CABLE CLIP TO FRAME
(G) 		8-98195-169-0 01 1 1112- ●
24 BOLT; BRKT TO FRAME
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0804-0804 ●
24 BOLT; BRKT TO FRAME
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0804-0807 ●
24 BOLT; BRKT TO FRAME
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0808- ●
24 BOLT; BRKT TO FRAME
(B) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0803 ● ●
24 BOLT; BRKT TO FRAME
(B) M8X25 FLANGE 		0-28650-825-0 01 1 0804-0807 ● ●
24 BOLT; BRKT TO FRAME
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0808- ●
24 BOLT; BRKT TO FRAME
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0808- ●
24 BOLT; BRKT TO FRAME
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0712-0803 ● ●
24 BOLT; BRKT TO FRAME
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0712-0803 ●
24 BOLT; BRKT TO FRAME
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0804-0804 ● ●
24 BOLT; BRKT TO FRAME
(A) M8X30 FLANGE 		0-28650-830-0 01 1 0804-0807 ●
24 BOLT; BRKT TO FRAME
(A) M8X30 FLANGE 		0-28650-830-0 02 1 0808- ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 01 1 1112- ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0712-0803 ● ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 02 1 0804- ●
28 NUT; BRKT TO FRAME
M8 FLANGE 		0-91180-108-0 03 1 0712- ● ●
28 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-210-0 01 1 0804-0804 ●
28 NUT; BRKT TO FRAME
M10 FLANGE 		0-91180-210-0 01 1 0805- ● ●
33 CAP; INSULATOR 1-82699-431-0 01 1 0712- ● ●
36 FUSIBLE LINK; BATTERY 8-97615-498-1 01 1 0712- ● ●
44 NUT; BRKT
M10 FLANGE 		0-91180-110-0 01 1 0712-0712 ● ●
44 NUT; BRKT
M10 FLANGE 		0-91180-110-0 01 1 0802-0803 ● ●
44 NUT; BRKT
M10 FLANGE 		0-91180-210-0 01 1 0804- ● ●
54 CLIP; BAND,BATTERY CABLE
L=175 		1-09707-176-1 01 1 0712-1004 ● ●
61 BRACKET; BATTERY CABLE
(A) 		8-98051-379-1 01 1 0712- ● ●
61 BRACKET; BATTERY CABLE
POWER TAKE OFF-FLYWHEEL(6SZ) (B) 		1-82698-324-0 01 1 0712-0806 ● ●
79 CLIP; BATTERY CABLE
(A) ID=21 L=24 		8-98019-191-0 01 1 0804- ●
79 CLIP; BATTERY CABLE
(B) ID=16 L=28 		1-09700-872-0 01 1 0712-1004 ● ●
79 CLIP; BATTERY CABLE
(B) ID=15 L=28 		1-09701-216-0 01 1 1005- ● ●
79 CLIP; BATTERY CABLE
(A) ID=16 L=50 		1-09701-158-0 02 1 0712-0803 ● ●
79 CLIP; BATTERY CABLE
(A) ID=16 L=50 		1-09701-158-0 02 1 0804-0804 ●
79 CLIP; BATTERY CABLE
(C) ID=6.35 & 10.0 		1-09709-274-1 01 1 0712-0803 ● ●
79 CLIP; BATTERY CABLE
(C) ID=6.35 & 10.0 		1-09709-274-1 01 1 0804-0804 ●
79 CLIP; BATTERY CABLE
(C) ID=10 & 10 		1-09709-277-1 01 1 0712-0803 ● ●
79 CLIP; BATTERY CABLE
(C) ID=10 & 10 		1-09709-277-1 01 1 0804-0805 ●
79 CLIP; BATTERY CABLE
(C) ID=10 & 15 		1-09709-279-1 01 1 0806-0808 ●
79 CLIP; BATTERY CABLE
(C) ID=10.5 & 18 		8-94381-420-0 01 1 0806-0806 ●
79 CLIP; BATTERY CABLE
(C) ID=10.5 & 18 		8-94381-420-0 02 1 0806-0807 ●
79 CLIP; BATTERY CABLE
(C) ID=10.5 & 18 		8-94381-420-0 01 1 0808- ●
79 CLIP; BATTERY CABLE
(C) ID=10 & 10 		1-09709-277-1 01 1 0808-0808 ●
79 CLIP; BATTERY CABLE
(C) ID=10 & 10 		1-09709-277-1 01 1 0809- ● ●
80 BOLT; BATTERY CABLE CLIP
(B) M8X16 FLANGE 		0-28050-816-0 01 1 0712- ● ●
80 BOLT; BATTERY CABLE CLIP
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0712-0803 ● ●
80 BOLT; BATTERY CABLE CLIP
(A) M8X25 FLANGE 		0-28650-825-0 01 1 0804- ●
80 BOLT; BATTERY CABLE CLIP
(A) M8X25 FLANGE 		0-28650-825-0 02 1 0804-0804 ●
225 BLOCK; TERMINAL 8-98029-689-0 01 1 0712- ● ●
226 NUT; FUSIBLE LINK
M6 W/LK WASHER 		8-94424-179-0 01 1 0712- ● ●
