0-52 — OIL AND VACUUM PIPING; ENGINE (#48356) — 50 parça

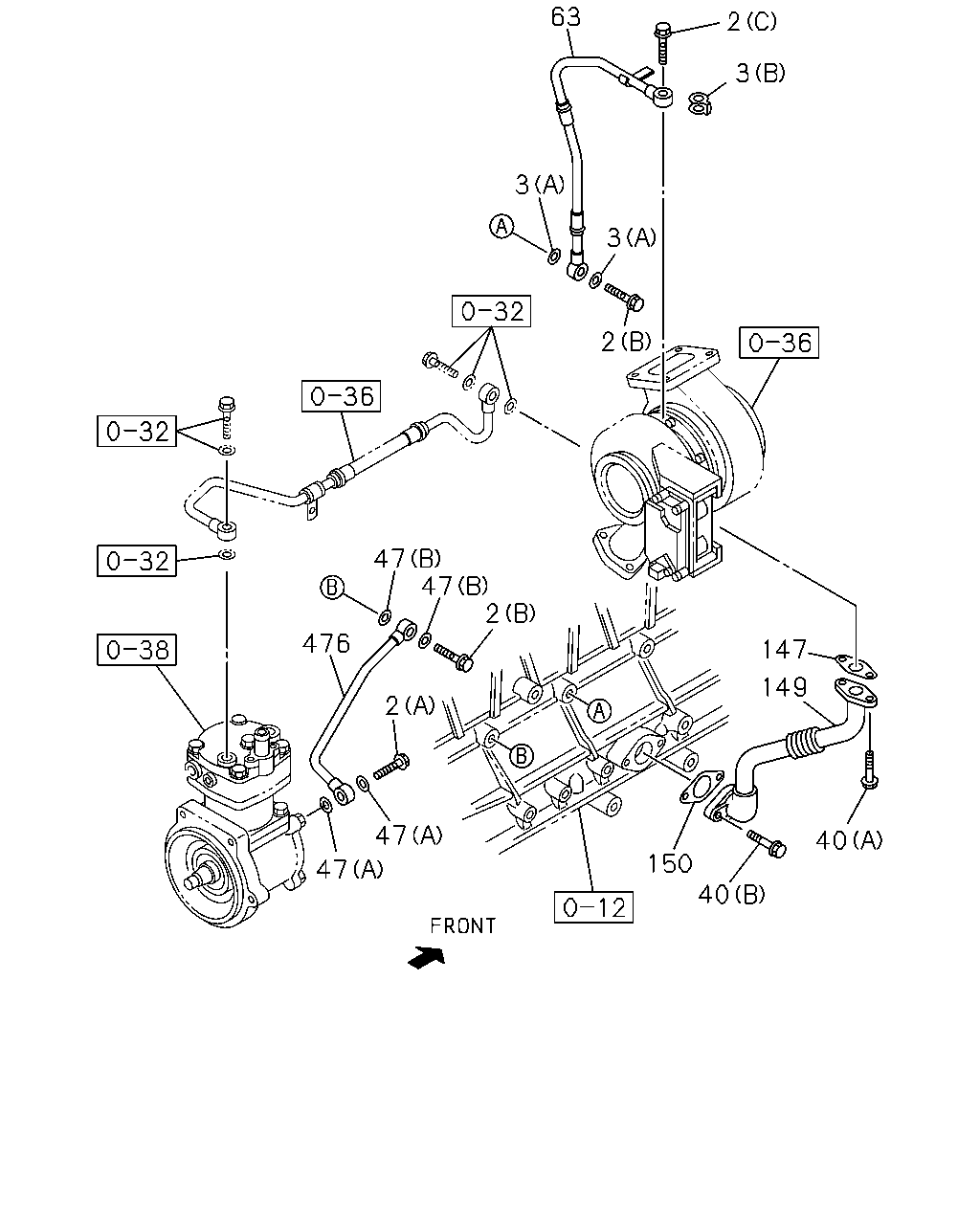

63 2 3 3 3 2 47 47 2 476 147 149 2 47 40 150 40 47

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0712-0805
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	0712-
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0712-0803
2	BOLT; EYE,OIL PIPE (C) M12X27 FLANGE	1-09675-160-0	01	1	0804-0805
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-
2	BOLT; EYE,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D) M10X21 FLANGE	8-97372-239-0	01	1	0712-
2	BOLT; EYE,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (E) M14X43	8-98037-829-0	01	1	0712-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0712-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	0712-
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0712-
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	0712-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0712-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0712-1312
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	0712-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0712-
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-3	01	1	0712-
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0712-
476	PIPE; OIL,C/BL TO AIR CMPR	8-97608-935-0	01	1	0712-

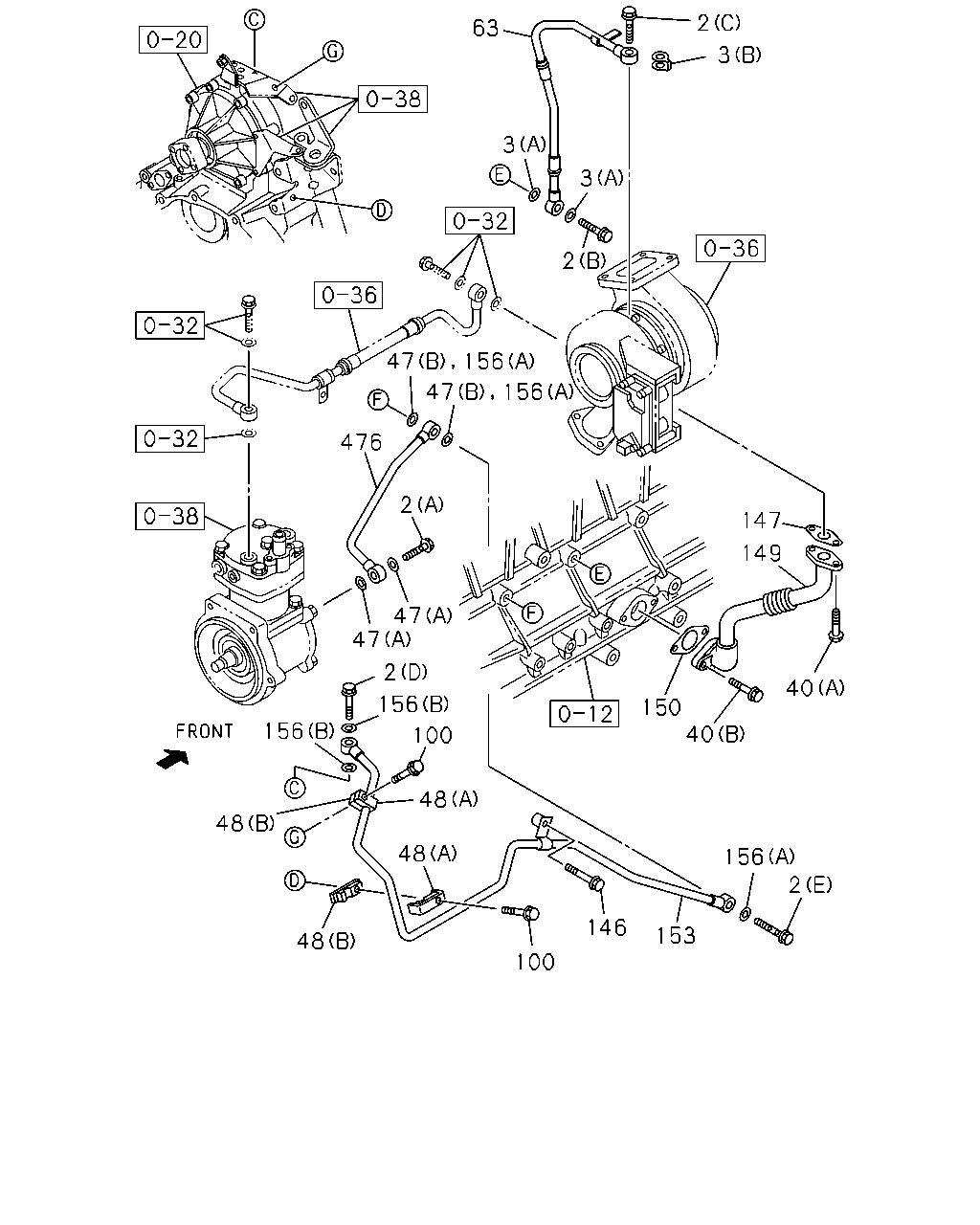

2 63 3 3 3 2 156 47 156 47 476 2 147 149 47 47 2 40 156 150 40 156 100 48 48 48 156 2 146 153 48 100

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	1-09675-077-0	01	1	0712-0805
2	BOLT; EYE,OIL PIPE (A) M10X21 FLANGE	8-97372-238-0	01	1	0806-
2	BOLT; EYE,OIL PIPE (B) M14X27 FLANGE	1-09675-086-0	02	1	0712-
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0712-0803
2	BOLT; EYE,OIL PIPE (C) M12X27 FLANGE	1-09675-160-0	01	1	0804-0805
2	BOLT; EYE,OIL PIPE (C) M12X27 EYE-BOLT W/FLANGE	8-98037-826-0	01	1	0806-
2	BOLT; EYE,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (D) M10X21 FLANGE	8-97372-239-0	01	1	0712-
2	BOLT; EYE,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (E) M14X43	8-98037-829-0	01	1	0712-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	1-09630-085-0	02	1	0712-1312
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (A) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
3	GASKET; EYE BOLT,OIL PIPE ALSO INCLUDED IN GASKET SET(ENGINE). (B) ID=12.6	8-97331-137-1	01	1	0712-
40	BOLT; OIL PIPE (B) M8X25 FLANGE	0-28650-825-0	02	1	0712-
40	BOLT; OIL PIPE (A) M8X30 FLANGE	0-28650-830-0	02	1	0712-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (A) ID=10.2 OD=15.2	1-09630-083-0	02	1	0712-
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	1-09630-085-0	02	1	0712-1312
47	GASKET; OIL PIPE ALSO INCLUDED IN GASKET SET(ENG. & HEAD) (B) ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-
48	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A)	8-97372-487-0	02	1	0712-
48	CLIP; OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B)	8-97372-488-0	02	1	0712-
63	PIPE; OIL,TURBOCHARGER FEED	8-97606-204-0	01	1	0712-
100	BOLT; CLIP POWER TAKE OFF-FLYWHEEL(6SZ) M6X30 FLANGE	0-28650-630-0	02	1	0712-
146	BOLT; BRKT POWER TAKE OFF-FLYWHEEL(6SZ) M8X30 FLANGE	0-28650-830-0	01	1	0712-
147	GASKET; OIL PIPE TO TURBOCHARGER ALSO INCLUDED IN GASKET SET(ENGINE).	8-94390-641-1	01	1	0712-
149	PIPE; OIL RETURN,TURBOCHARGER	8-97606-205-3	01	1	0712-
150	GASKET; OIL PIPE TO C/BL ALSO INCLUDED IN GASKET SET(ENGINE). ID=30	8-94394-671-0	01	1	0712-
153	PIPE; OIL,C/BL TO PTO POWER TAKE OFF-FLYWHEEL(6SZ)	8-98052-616-0	01	1	0712-
156	GASKET; EYE JOINT,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=14.2 OD=19.2	1-09630-085-0	03	1	0712-1312
156	GASKET; EYE JOINT,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (A) ID=14.2 OD=19.2	8-98251-345-0	03	1	1401-
156	GASKET; EYE JOINT,OIL PIPE POWER TAKE OFF-FLYWHEEL(6SZ) (B) ID=10.2 OD=16.0	9-09571-410-0	02	1	0712-
476	PIPE; OIL,C/BL TO AIR CMPR	8-97608-935-0	01	1	0712-
