2-37A — MANUAL TRANSMISSION CONT; MISSION SIDE (#4835) — 204 parça

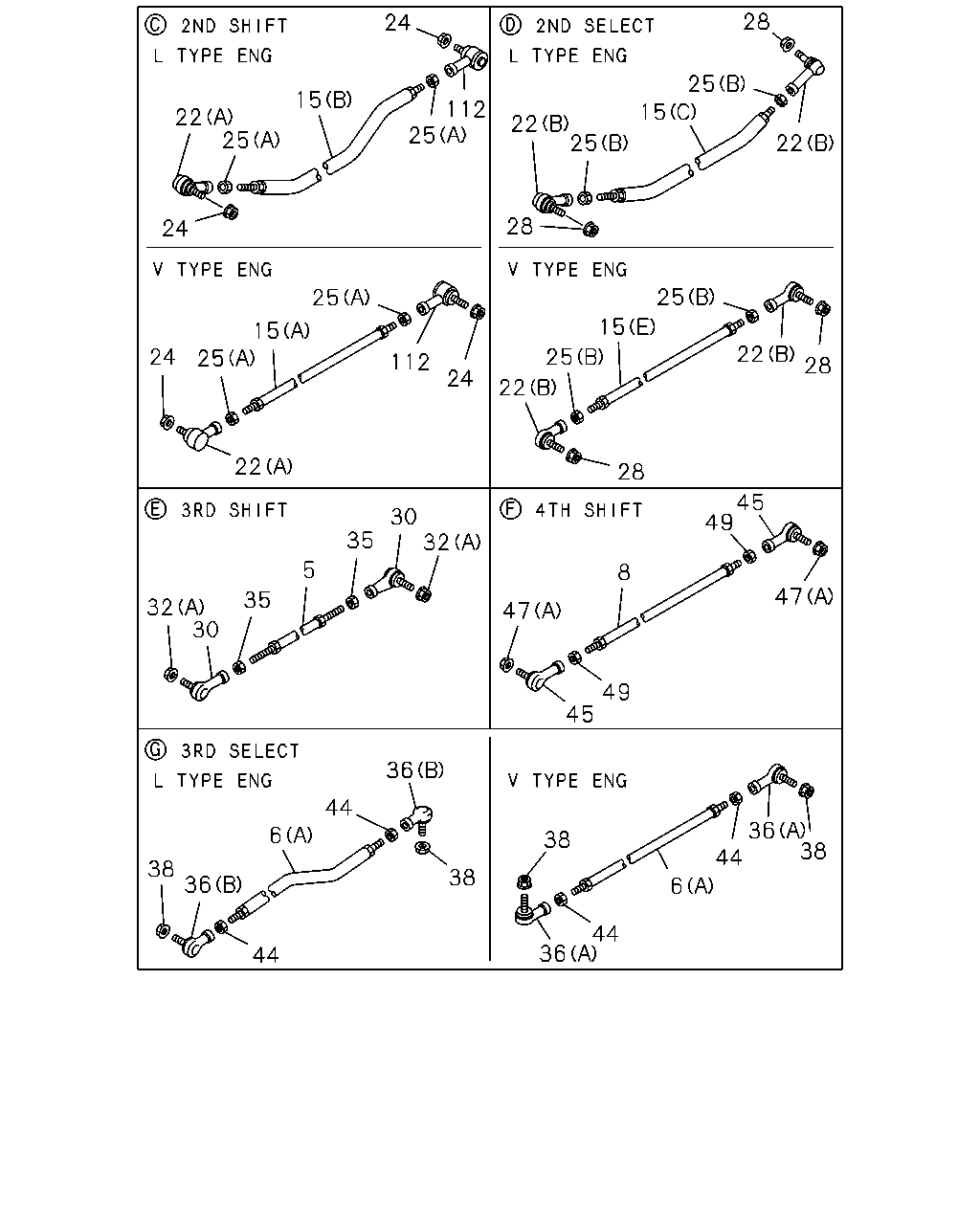

çizim 8111
28 24 25 15 15 112 25 22 25 22 5 22 28 24 25 25 15 15 22 28 24 25 25 112 24 22 22 28 45 49 30 32 35 5 8 47 35 32 30 47 49 45 36 44 36 44 38 6 38 38 36 38 6 44 36 44
BalonParca AdiParca NoAdetTipApplied Date A B C
5 ROD; LINK,3RD SHIFT
10PE1S(60L) L=855 		1-33652-321-0 01 1 9601-9904 ● ●
5 ROD; LINK,3RD SHIFT
V TYPE ENG<91L> L=855 		1-33652-321-0 01 1 9905- ● ●
5 ROD; LINK,3RD SHIFT
6WA1 TC-S(56L) L=1110 		1-33652-623-0 01 1 9601-9904 ●
5 ROD; LINK,3RD SHIFT
L TYPE ENG<90L> L=1110 		1-33652-623-0 01 1 9905- ● ● ●
6 ROD; LINK,3RD SELECT
10PE1S(60L) ASSISTOR SHIFT CONTROL<WX8> (A) L=1400 		1-33652-735-0 01 1 9601-9807 ● ●
6 ROD; LINK,3RD SELECT
10PE1S(60L) ASSISTOR SHIFT CONTROL<WX8> (A) L=1403 		1-33652-824-1 01 1 9808-9904 ● ●
6 ROD; LINK,3RD SELECT
V TYPE ENG<91L> ASSISTOR SHIFT CONTROL<WX8> (A) L=1403 		1-33652-824-1 01 1 9905-0004 ● ●
6 ROD; LINK,3RD SELECT
V TYPE ENG<91L> ASSISTOR SHIFT CONTROL<WX8> (A) L=1403 		1-33652-824-1 01 1 0005- ● ● ●
6 ROD; LINK,3RD SELECT
10PE1S(60L) EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=1409 		1-33652-444-0 01 1 9601-9904 ● ●
6 ROD; LINK,3RD SELECT
V TYPE ENG<91L> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=1409 		1-33652-444-0 01 1 9905-0004 ● ●
6 ROD; LINK,3RD SELECT
V TYPE ENG<91L> EXC. ASSISTOR SHIFT CONTROL<WX8> (A) L=1409 		1-33652-444-0 01 1 0005- ● ● ●
6 ROD; LINK,3RD SELECT
6WA1 TC-S(56L) (A) L=1585 		1-33652-660-0 01 1 9601-9904 ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> (A) L=1585 		1-33652-660-0 01 1 9905-0004 ● ●
6 ROD; LINK,3RD SELECT
L TYPE ENG<90L> (A) L=1585 		1-33652-660-0 01 1 0005- ● ● ●
8 ROD; LINK,4TH SHIFT
10PE1S(60L) ASSISTOR SHIFT CONTROL<WX8> L=330 		1-33652-653-1 01 1 9601-9904 ● ●
8 ROD; LINK,4TH SHIFT
6WA1 TC-S(56L) L=330 		1-33652-653-1 01 1 9601-9904 ●
8 ROD; LINK,4TH SHIFT
V TYPE ENG<91L> ASSISTOR SHIFT CONTROL<WX8> L=330 		1-33652-653-1 01 1 9905-0004 ● ●
8 ROD; LINK,4TH SHIFT
L TYPE ENG<90L> L=330 		1-33652-653-1 01 1 9905-0004 ● ●
8 ROD; LINK,4TH SHIFT
V TYPE ENG<91L> ASSISTOR SHIFT CONTROL<WX8> L=330 		1-33652-653-1 01 1 0005- ● ● ●
8 ROD; LINK,4TH SHIFT
L TYPE ENG<90L> L=330 		1-33652-653-1 01 1 0005- ● ● ●
8 ROD; LINK,4TH SHIFT
10PE1S(60L) EXC. ASSISTOR SHIFT CONTROL<WX8> L=490 		1-33652-749-0 01 1 9601-9904 ● ●
8 ROD; LINK,4TH SHIFT
V TYPE ENG<91L> EXC. ASSISTOR SHIFT CONTROL<WX8> L=490 		1-33652-749-0 01 1 9905-0004 ● ●
8 ROD; LINK,4TH SHIFT
V TYPE ENG<91L> EXC. ASSISTOR SHIFT CONTROL<WX8> L=490 		1-33652-749-0 01 1 0005- ● ● ●
15 ROD; LINK 1ST SHIFT
(D) 1ST SELECT L=435 		1-33652-696-0 01 1 9601-9904 ●
15 ROD; LINK 1ST SHIFT
EXC. HONG KONG EQUIPMENT(PQ1) (D) 1ST SELECT L=435 		1-33652-696-0 01 1 9601-9904 ●
15 ROD; LINK 1ST SHIFT
(D) 1ST SELECT L=435 		1-33652-696-0 01 1 9905-9911 ● ●
15 ROD; LINK 1ST SHIFT
EXC. HONG KONG EQUIPMENT(PQ1) (D) 1ST SELECT L=435 		1-33652-696-0 01 1 9905-9911 ●
15 ROD; LINK 1ST SHIFT
(D) 1ST SELECT L=435 		1-33652-696-0 01 1 9912- ● ●
15 ROD; LINK 1ST SHIFT
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) 1ST SELECT L=435 		1-33652-696-0 01 1 9912- ●
15 ROD; LINK 1ST SHIFT
10PE1S(60L) (E) 2ND SELECT L=440 		1-33652-672-0 01 1 9601-9904 ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (E) 2ND SELECT L=440 		1-33652-672-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
10PE1S(60L) (A) 2ND SHIFT L=490 		1-33652-700-0 01 1 9601-9904 ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (A) 2ND SHIFT L=490 		1-33652-700-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
HONG KONG EQUIPMENT(PQ1) (F) 1ST SELECT L=345 		1-33652-736-0 01 1 9601-9911 ●
15 ROD; LINK 1ST SHIFT
PARKING BRAKE VALVE LEVER TYPE<W48> (F) 1ST SELECT L=345 		1-33652-736-0 01 1 9912- ●
15 ROD; LINK 1ST SHIFT
HONG KONG EQUIPMENT(PQ1) (G) 1ST SELECT L=88 		1-33652-740-0 01 1 9601-9911 ●
15 ROD; LINK 1ST SHIFT
PARKING BRAKE VALVE LEVER TYPE<W48> (G) 1ST SELECT L=88 		1-33652-740-0 01 1 9912- ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (C) 2ND SELECT L=438 		1-33652-682-0 01 1 9601-9711 ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (C) 2ND SELECT L=428 		1-33652-781-0 01 1 9712-9904 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (C) 2ND SELECT L=428 		1-33652-781-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (B) 2ND SHIFT L=497 		1-33652-716-0 01 1 9601-9711 ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (B) 2ND SHIFT L=490 		1-33652-780-0 01 1 9712-9904 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (B) 2ND SHIFT L=490 		1-33652-780-0 01 1 9905- ● ●
22 JOINT; BALL,SCREW,LINK ROD
(A) 2ND SHIFT L=64.5 		1-09760-111-0 01 1 9601-9710 ● ●
22 JOINT; BALL,SCREW,LINK ROD
(A) 2ND SHIFT 		1-09760-125-0 01 1 9711-9904 ● ●
22 JOINT; BALL,SCREW,LINK ROD
(A) 2ND SHIFT 		1-09760-125-0 01 1 9905- ● ● ●
22 JOINT; BALL,SCREW,LINK ROD
10PE1S(60L) (B) 2ND SELECT 		1-09760-108-0 02 1 9601-9904 ● ●
22 JOINT; BALL,SCREW,LINK ROD
V TYPE ENG<91L> (B) 2ND SELECT 		1-09760-108-0 02 1 9905- ● ●
22 JOINT; BALL,SCREW,LINK ROD
6WA1 TC-S(56L) (B) 2ND SELECT 		1-09760-109-0 02 1 9601-9904 ●
22 JOINT; BALL,SCREW,LINK ROD
L TYPE ENG<90L> (B) 2ND SELECT 		1-09760-109-0 02 1 9905- ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 T=10 FLANGE 		1-09440-050-0 02 1 9601-9708 ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 T=10 FLANGE 		1-09440-050-0 01 1 9709-9710 ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 T=11 FLANGE 		1-09440-056-0 01 1 9709-9710 ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 T=11 FLANGE 		1-09440-056-0 02 1 9711-9802 ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9803-9904 ● ●
24 NUT; 2ND LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9905- ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) 2ND SHIFT M12 		9-99111-412-0 02 1 9601-9904 ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) 2ND SHIFTT M12 		9-99111-412-0 02 1 9905- ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
10PE1S(60L) (B) 2ND SELECT M8 		9-09111-408-0 02 1 9601-9904 ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> (B) 2ND SELECT M8 		9-09111-408-0 02 1 9905- ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
HONG KONG EQUIPMENT(PQ1) (C) M10 LH THREAD 		9-09840-167-0 02 1 9601-9911 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
PARKING BRAKE VALVE LEVER TYPE<W48> (C) M10 LH THREAD 		9-09840-167-0 02 1 9912- ●
25 NUT; LK,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) (B) 2ND SELECT M10 		9-09111-410-0 02 1 9601-9904 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> (B) 2ND SELECT M10 		9-09111-410-0 02 1 9905- ● ●
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9601-9804 ● ●
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9805-9904 ● ●
28 NUT; 2ND LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9905- ● ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-110-0 02 1 9601-9710 ● ●
30 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-124-0 02 1 9711- ● ● ●
32 NUT; 3RD LINK ROD
(A) M10 FLANGE 		1-09440-050-0 02 1 9601-9710 ● ●
32 NUT; 3RD LINK ROD
(A) M10 FLANGE 		1-09440-056-0 02 1 9711-9802 ● ●
32 NUT; 3RD LINK ROD
(A) M10 FLANGE 		1-09440-061-0 02 1 9803-9904 ● ●
32 NUT; 3RD LINK ROD
(A) M10 FLANGE 		1-09440-061-0 02 1 9905- ● ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9601-9904 ● ●
35 NUT; LK,RIGHT SCREW,LINK ROD
M10 		9-09111-410-0 02 1 9905- ● ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
10PE1S(60L) (A) 		1-09760-108-0 02 1 9601-9807 ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
10PE1S(60L) (A) 		1-09760-108-0 02 1 9808-9904 ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> (A) 		1-09760-108-0 02 1 9905-0004 ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> (A) 		1-09760-108-0 02 1 0005- ● ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) (B) 		1-09760-109-0 02 1 9601-9807 ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> (B) 		1-09760-109-0 02 1 9808-9904 ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> (B) 		1-09760-109-0 02 1 9905-9912 ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> (B) 		1-09760-109-0 02 1 0001-0004 ● ●
36 JOINT; BALL,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> (B) 		1-09760-109-0 02 1 0005- ● ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9601-9804 ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-0 02 1 9805-9807 ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 0001- ● ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9808-9904 ● ●
38 NUT; 3RD LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9905-9912 ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
10PE1S(60L) M8 		9-09111-408-0 02 1 9601-9807 ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
10PE1S(60L) M8 		9-09111-408-0 02 1 9808-9904 ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> M8 		9-09111-408-0 02 1 9905-0004 ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> M8 		9-09111-408-0 02 1 0005- ● ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) M10 		9-09111-410-0 02 1 9601-9807 ●
44 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> M10 		9-09111-410-0 02 1 9808-9904 ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> M10 		9-09111-410-0 02 1 9905-9912 ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> M10 		9-09111-410-0 02 1 0001-0004 ● ●
44 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> M10 		9-09111-410-0 02 1 0005- ● ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-117-0 02 1 9601-9710 ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-125-0 02 1 9711-9904 ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-117-0 01 1 9601-9710 ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-125-0 01 1 9711-9904 ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-125-0 02 1 9905-0004 ● ●
45 JOINT; BALL,RIGHT SCREW,LINK ROD 1-09760-125-0 02 1 0005- ● ● ●
47 NUT; 4TH LINK ROD
(A) M10 FLANGE 		1-09440-050-0 02 1 9601-9610 ● ●
47 NUT; 4TH LINK ROD
(A) M10 FLANGE 		1-09440-050-0 02 1 9611-9710 ● ●
47 NUT; 4TH LINK ROD
(A) M10 FLANGE 		1-09440-056-0 02 1 9711-9802 ● ●
47 NUT; 4TH LINK ROD
(A) M10 FLANGE 		1-09440-061-0 02 1 9803-9904 ● ●
47 NUT; 4TH LINK ROD
(A) M10 FLANGE 		1-09440-061-0 02 1 9905- ● ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9601-9904 ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9905-0004 ● ●
49 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 0005- ● ● ●
112 JOINT; RUBBER 1-33670-413-1 02 1 9601-9904 ● ●
112 JOINT; RUBBER 1-33670-413-1 02 1 9905- ● ● ●

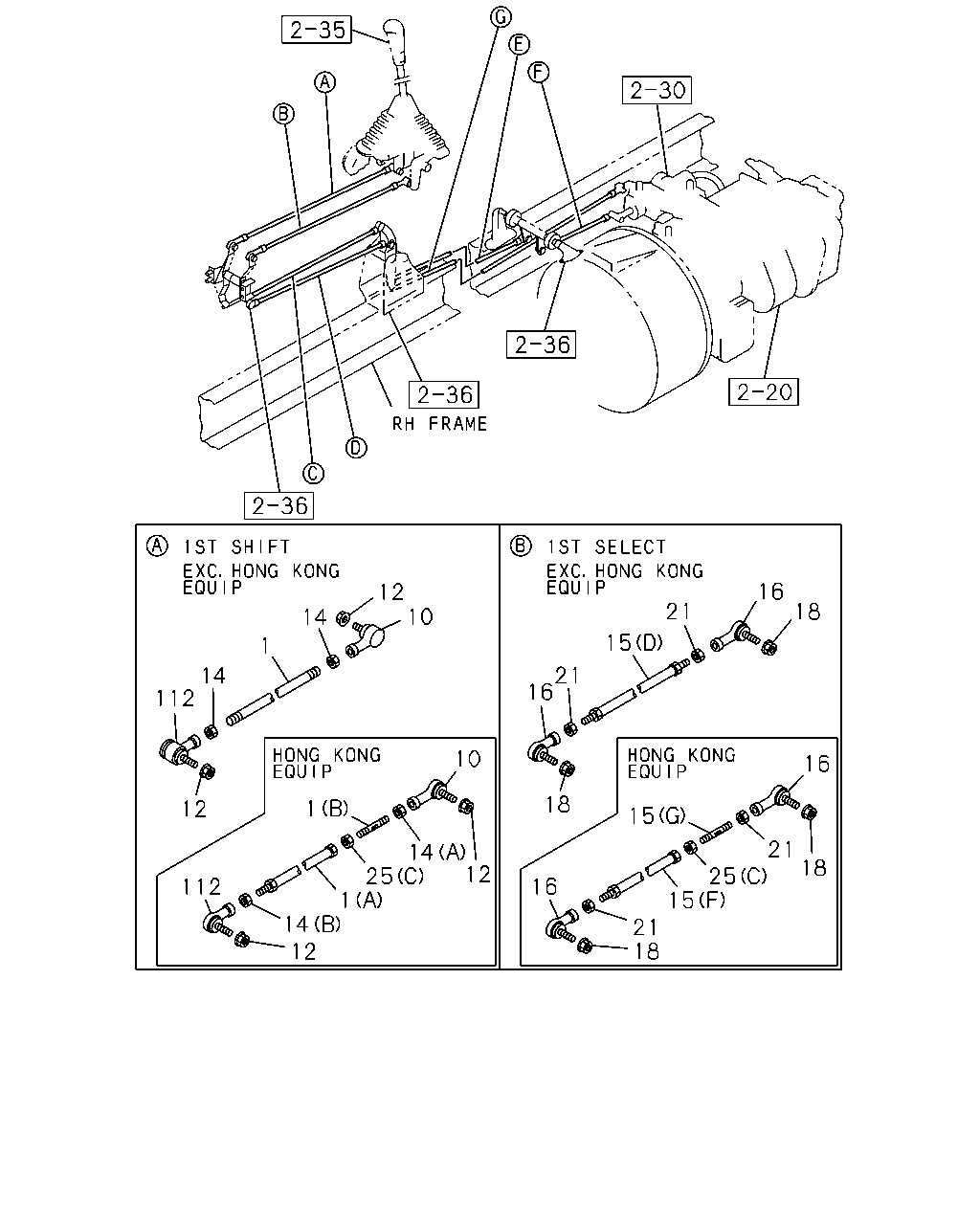

çizim 40880
16 12 10 21 18 14 15 1 21 16 14 112 10 16 18 1 12 15 21 25 15 14 25 1 14 12 12 18 112 16 21 18
BalonParca AdiParca NoAdetTipApplied Date A B C
1 ROD; LINK,1ST SHIFT
L=480 		9-08401-248-0 01 1 9601-9904 ●
1 ROD; LINK,1ST SHIFT
EXC. HONG KONG EQUIPMENT(PQ1) L=480 		9-08401-248-0 01 1 9601-9904 ●
1 ROD; LINK,1ST SHIFT
L=480 		9-08401-248-0 01 1 9905-9911 ● ●
1 ROD; LINK,1ST SHIFT
EXC. HONG KONG EQUIPMENT(PQ1) L=480 		9-08401-248-0 01 1 9905-9911 ●
1 ROD; LINK,1ST SHIFT
L=480 		9-08401-248-0 01 1 9912- ● ●
1 ROD; LINK,1ST SHIFT
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> L=480 		9-08401-248-0 01 1 9912- ●
1 ROD; LINK,1ST SHIFT
HONG KONG EQUIPMENT(PQ1) (B) L=421 		1-33652-738-0 01 1 9601-9911 ●
1 ROD; LINK,1ST SHIFT
PARKING BRAKE VALVE LEVER TYPE<W48> (B) L=421 		1-33652-738-0 01 1 9912- ●
1 ROD; LINK,1ST SHIFT
HONG KONG EQUIPMENT(PQ1) (A) L=88 		1-33652-740-0 01 1 9601-9911 ●
1 ROD; LINK,1ST SHIFT
PARKING BRAKE VALVE LEVER TYPE<W48> (A) L=88 		1-33652-740-0 01 1 9912- ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-117-0 01 1 9601-9710 ●
10 JOINT ASM; BALL,SELECT ROD
EXC. HONG KONG EQUIPMENT(PQ1) 		1-09760-117-0 01 1 9601-9710 ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-125-0 01 1 9711-9904 ●
10 JOINT ASM; BALL,SELECT ROD
EXC. HONG KONG EQUIPMENT(PQ1) 		1-09760-125-0 01 1 9711-9904 ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-125-0 01 1 9905-9911 ● ●
10 JOINT ASM; BALL,SELECT ROD
EXC. HONG KONG EQUIPMENT(PQ1) 		1-09760-125-0 01 1 9905-9911 ●
10 JOINT ASM; BALL,SELECT ROD 1-09760-125-0 01 1 9912- ● ●
10 JOINT ASM; BALL,SELECT ROD
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-09760-125-0 01 1 9912- ●
10 JOINT ASM; BALL,SELECT ROD
HONG KONG EQUIPMENT(PQ1) 		1-09760-110-0 01 1 9601-9710 ●
10 JOINT ASM; BALL,SELECT ROD
HONG KONG EQUIPMENT(PQ1) 		1-09760-124-0 01 1 9711-9911 ●
10 JOINT ASM; BALL,SELECT ROD
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-09760-124-0 01 1 9912- ●
12 NUT; 1ST LINK ROD,SHIFT
M10 T=10 FLANGE 		1-09440-050-0 02 1 9601-9708 ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 T=11 FLANGE 		1-09440-056-0 02 1 9709-9802 ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9803-9904 ● ●
12 NUT; 1ST LINK ROD,SHIFT
M10 FLANGE 		1-09440-061-0 02 1 9905- ● ● ●
14 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9601-9904 ●
14 NUT; LK,RIGHT SCREW,LINK ROD
EXC. HONG KONG EQUIPMENT(PQ1) M12 		9-99111-412-0 02 1 9601-9904 ●
14 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9905-9911 ● ●
14 NUT; LK,RIGHT SCREW,LINK ROD
EXC. HONG KONG EQUIPMENT(PQ1) M12 		9-99111-412-0 02 1 9905-9911 ●
14 NUT; LK,RIGHT SCREW,LINK ROD
M12 		9-99111-412-0 02 1 9912- ● ●
14 NUT; LK,RIGHT SCREW,LINK ROD
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M12 		9-99111-412-0 02 1 9912- ●
14 NUT; LK,RIGHT SCREW,LINK ROD
HONG KONG EQUIPMENT(PQ1) (A) M10 		9-09111-410-0 01 1 9601-9911 ●
14 NUT; LK,RIGHT SCREW,LINK ROD
PARKING BRAKE VALVE LEVER TYPE<W48> (A) M10 		9-09111-410-0 01 1 9912- ●
14 NUT; LK,RIGHT SCREW,LINK ROD
HONG KONG EQUIPMENT(PQ1) (B) M12 		9-99111-412-0 01 1 9601-9911 ●
14 NUT; LK,RIGHT SCREW,LINK ROD
PARKING BRAKE VALVE LEVER TYPE<W48> (B) M12 		9-99111-412-0 01 1 9912- ●
15 ROD; LINK 1ST SHIFT
(D) 1ST SELECT L=435 		1-33652-696-0 01 1 9601-9904 ●
15 ROD; LINK 1ST SHIFT
EXC. HONG KONG EQUIPMENT(PQ1) (D) 1ST SELECT L=435 		1-33652-696-0 01 1 9601-9904 ●
15 ROD; LINK 1ST SHIFT
(D) 1ST SELECT L=435 		1-33652-696-0 01 1 9905-9911 ● ●
15 ROD; LINK 1ST SHIFT
EXC. HONG KONG EQUIPMENT(PQ1) (D) 1ST SELECT L=435 		1-33652-696-0 01 1 9905-9911 ●
15 ROD; LINK 1ST SHIFT
(D) 1ST SELECT L=435 		1-33652-696-0 01 1 9912- ● ●
15 ROD; LINK 1ST SHIFT
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> (D) 1ST SELECT L=435 		1-33652-696-0 01 1 9912- ●
15 ROD; LINK 1ST SHIFT
10PE1S(60L) (E) 2ND SELECT L=440 		1-33652-672-0 01 1 9601-9904 ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (E) 2ND SELECT L=440 		1-33652-672-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
10PE1S(60L) (A) 2ND SHIFT L=490 		1-33652-700-0 01 1 9601-9904 ● ●
15 ROD; LINK 1ST SHIFT
V TYPE ENG<91L> (A) 2ND SHIFT L=490 		1-33652-700-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
HONG KONG EQUIPMENT(PQ1) (F) 1ST SELECT L=345 		1-33652-736-0 01 1 9601-9911 ●
15 ROD; LINK 1ST SHIFT
PARKING BRAKE VALVE LEVER TYPE<W48> (F) 1ST SELECT L=345 		1-33652-736-0 01 1 9912- ●
15 ROD; LINK 1ST SHIFT
HONG KONG EQUIPMENT(PQ1) (G) 1ST SELECT L=88 		1-33652-740-0 01 1 9601-9911 ●
15 ROD; LINK 1ST SHIFT
PARKING BRAKE VALVE LEVER TYPE<W48> (G) 1ST SELECT L=88 		1-33652-740-0 01 1 9912- ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (C) 2ND SELECT L=438 		1-33652-682-0 01 1 9601-9711 ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (C) 2ND SELECT L=428 		1-33652-781-0 01 1 9712-9904 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (C) 2ND SELECT L=428 		1-33652-781-0 01 1 9905- ● ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (B) 2ND SHIFT L=497 		1-33652-716-0 01 1 9601-9711 ●
15 ROD; LINK 1ST SHIFT
6WA1 TC-S(56L) (B) 2ND SHIFT L=490 		1-33652-780-0 01 1 9712-9904 ●
15 ROD; LINK 1ST SHIFT
L TYPE ENG<90L> (B) 2ND SHIFT L=490 		1-33652-780-0 01 1 9905- ● ●
16 JOINT ASM; BALL,CONT ROD 1-09760-108-0 02 1 9601-9904 ●
16 JOINT ASM; BALL,CONT ROD
EXC. HONG KONG EQUIPMENT(PQ1) 		1-09760-108-0 02 1 9601-9904 ●
16 JOINT ASM; BALL,CONT ROD 1-09760-108-0 02 1 9905-9911 ● ●
16 JOINT ASM; BALL,CONT ROD
EXC. HONG KONG EQUIPMENT(PQ1) 		1-09760-108-0 02 1 9905-9911 ●
16 JOINT ASM; BALL,CONT ROD 1-09760-108-0 02 1 9912- ● ●
16 JOINT ASM; BALL,CONT ROD
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> 		1-09760-108-0 02 1 9912- ●
16 JOINT ASM; BALL,CONT ROD
HONG KONG EQUIPMENT(PQ1) 		1-09760-109-0 02 1 9601-9911 ●
16 JOINT ASM; BALL,CONT ROD
PARKING BRAKE VALVE LEVER TYPE<W48> 		1-09760-109-0 02 1 9912- ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-049-0 02 1 9601-9804 ● ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9805-9904 ● ●
18 NUT; 1ST LINK ROD
M8 FLANGE 		1-09440-062-1 02 1 9905- ● ● ●
21 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 9601-9904 ●
21 NUT; LK,RIGHT SCREW,LINK ROD
EXC. HONG KONG EQUIPMENT(PQ1) M8 		9-09111-408-0 02 1 9601-9904 ●
21 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 9905-9911 ● ●
21 NUT; LK,RIGHT SCREW,LINK ROD
EXC. HONG KONG EQUIPMENT(PQ1) M8 		9-09111-408-0 02 1 9905-9911 ●
21 NUT; LK,RIGHT SCREW,LINK ROD
M8 		9-09111-408-0 02 1 9912- ● ●
21 NUT; LK,RIGHT SCREW,LINK ROD
EXC. PARKING BRAKE VALVE LEVER TYPE<W48> M8 		9-09111-408-0 02 1 9912- ●
21 NUT; LK,RIGHT SCREW,LINK ROD
HONG KONG EQUIPMENT(PQ1) M10 		9-09111-410-0 02 1 9601-9911 ●
21 NUT; LK,RIGHT SCREW,LINK ROD
PARKING BRAKE VALVE LEVER TYPE<W48> M10 		9-09111-410-0 02 1 9912- ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) 2ND SHIFT M12 		9-99111-412-0 02 1 9601-9904 ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
(A) 2ND SHIFTT M12 		9-99111-412-0 02 1 9905- ● ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
10PE1S(60L) (B) 2ND SELECT M8 		9-09111-408-0 02 1 9601-9904 ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
V TYPE ENG<91L> (B) 2ND SELECT M8 		9-09111-408-0 02 1 9905- ● ●
25 NUT; LK,RIGHT SCREW,LINK ROD
HONG KONG EQUIPMENT(PQ1) (C) M10 LH THREAD 		9-09840-167-0 02 1 9601-9911 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
PARKING BRAKE VALVE LEVER TYPE<W48> (C) M10 LH THREAD 		9-09840-167-0 02 1 9912- ●
25 NUT; LK,RIGHT SCREW,LINK ROD
6WA1 TC-S(56L) (B) 2ND SELECT M10 		9-09111-410-0 02 1 9601-9904 ●
25 NUT; LK,RIGHT SCREW,LINK ROD
L TYPE ENG<90L> (B) 2ND SELECT M10 		9-09111-410-0 02 1 9905- ● ●
112 JOINT; RUBBER 1-33670-413-1 02 1 9601-9904 ● ●
112 JOINT; RUBBER 1-33670-413-1 02 1 9905- ● ● ●
çizim 42025
57 39 58 39
BalonParca AdiParca NoAdetTipApplied Date A B C
39 GASKET; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> ID=11 OD=18 		9-09572-510-0 02 1 9601-9904 ● ●
39 GASKET; FLEX HOSE
ASSISTOR SHIFT CONTROL<WX8> ID=11 OD=18 		9-09572-510-0 02 1 9905- ● ● ●
57 NIPPLE; POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9601-9904 ● ●
57 NIPPLE; POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> M20 & PT1/4 ELBOW 		1-09660-681-0 01 1 9905- ● ● ●
58 HOSE; FLEX,POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> L=360 		0-07150-360-0 01 1 9601-0004 ● ●
58 HOSE; FLEX,POWER ASSISTOR
ASSISTOR SHIFT CONTROL<WX8> L=360 		0-07150-360-0 01 1 0005- ● ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
