Sayfa 2-36C - Isuzu EPC

2-36C — MANUAL TRANSMISSION CONT LINK AND CABLE (#4834) — 212 parça

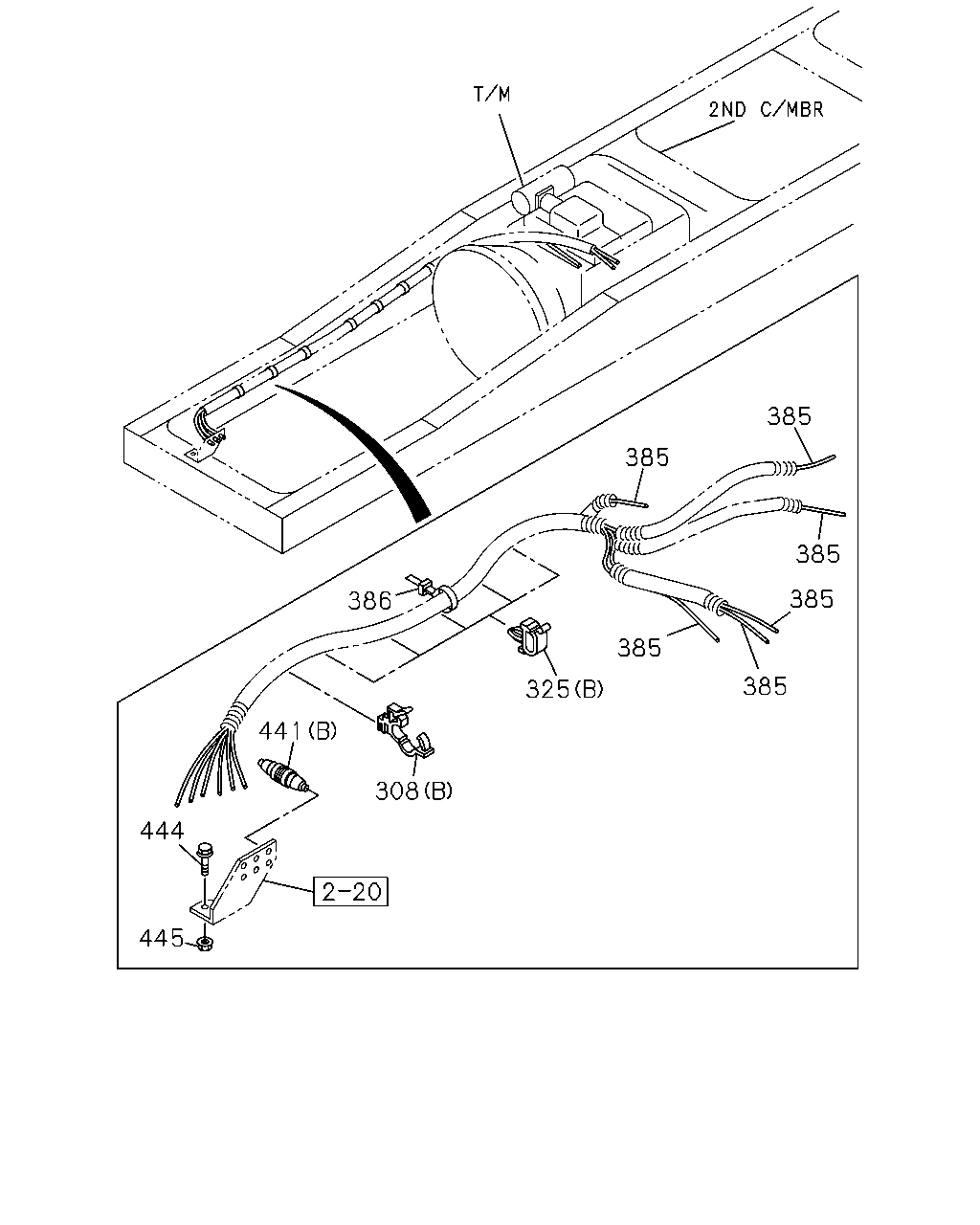

385 385 385 385 386 385 385 325 441 308 444 445

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
308	CLIP; PIPE (A) ID=18 L=28	1-09701-067-0	01	1	0104-	●
308	CLIP; PIPE (B) ID=12 & 16.5	8-94400-865-0	01	1	9611-9612		●
308	CLIP; PIPE (B) ID=12-16 & 12-16	1-09709-191-0	01	1	9701-9904		●
308	CLIP; PIPE (B) ID=12-16 & 12-16	1-09709-191-0	01	1	9905-	●
325	CLIP; NYLON TUBE (B) ID=9.5	5-09709-020-0	06	1	9611-9904		●
325	CLIP; NYLON TUBE (B) ID=9.5	5-09709-020-0	06	1	9905-9910	●
325	CLIP; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> (B) ID=9.5	5-09709-020-0	06	1	9911-	●
325	CLIP; NYLON TUBE (A) ID=18 L=28	1-09701-067-0	01	1	0104-	●
325	CLIP; NYLON TUBE EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B) ID=9.5	5-09709-020-0	04	1	9911-	●
385	TUBE; NYLON L=1530 RED	1-33619-362-0	01	1	9611-9904		●
385	TUBE; NYLON L=1530 RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	9905-0103	●
385	TUBE; NYLON L=1680 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0104-	●
385	TUBE; NYLON L=1430 BLACK	1-33619-371-0	01	1	9611-9904		●
385	TUBE; NYLON L=1530 BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	9905-0103	●
385	TUBE; NYLON L=1680 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0104-	●
385	TUBE; NYLON L=1530 BLUE	1-33619-380-0	01	1	9611-9904		●
385	TUBE; NYLON L=1530 BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	9905-0103	●
385	TUBE; NYLON L=1680 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0104-	●
385	TUBE; NYLON L=1530 GREEN	1-33619-389-0	01	1	9611-9904		●
385	TUBE; NYLON L=1530 GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	9905-0103	●
385	TUBE; NYLON L=1680 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0104-	●
385	TUBE; NYLON L=1530 YELLOW	1-33619-392-0	01	1	9611-9904		●
385	TUBE; NYLON L=1530 YELLOW	1-33619-392-0	01	1	9905-0103	●
385	TUBE; NYLON L=1680 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0104-	●
385	TUBE; NYLON L=1530 ORANGE	1-33619-400-0	01	1	9611-9904		●
385	TUBE; NYLON L=1530 ORANGE	1-33619-400-0	01	1	9905-0103	●
385	TUBE; NYLON L=1680 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0104-	●
385	TUBE; NYLON L=5800 RED	1-33619-362-0	01	1	9701-9904		●
385	TUBE; NYLON L=3000 RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	9905-0103	●
385	TUBE; NYLON L=3100 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0104-	●
385	TUBE; NYLON L=5800 BLACK	1-33619-371-0	01	1	9701-9904		●
385	TUBE; NYLON L=3100 BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	9905-0103	●
385	TUBE; NYLON L=3200 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0104-	●
385	TUBE; NYLON L=6350 BLUE	1-33619-380-0	01	1	9701-9904		●
385	TUBE; NYLON L=3500 BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	9905-0103	●
385	TUBE; NYLON L=3600 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0104-	●
385	TUBE; NYLON L=5800 GREEN	1-33619-389-0	01	1	9701-9904		●
385	TUBE; NYLON L=3100 GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	9905-0103	●
385	TUBE; NYLON L=3200 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0104-	●
385	TUBE; NYLON L=2650 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	9701-9904		●
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> L=2650 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	9905-0103	●
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0104-	●
385	TUBE; NYLON L=3350 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	9701-9904		●
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> L=3350 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	9905-0103	●
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0104-	●
386	CLIP; CONT CABLE & TUBE L=250	1-09707-126-0	07	1	9611-9904		●
386	CLIP; CONT CABLE & TUBE L=250	1-09707-126-0	07	1	9905-9910	●
386	CLIP; CONT CABLE & TUBE L=250	1-09707-126-0	09	1	9911-0103	●
386	CLIP; CONT CABLE & TUBE L=250	1-09707-126-0	08	1	0104-	●
441	CONNECTOR; NYLON TUBE (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9611-9904		●
441	CONNECTOR; NYLON TUBE (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9905-	●
441	CONNECTOR; NYLON TUBE (B)	1-09660-975-0	06	1	9611-9904		●
441	CONNECTOR; NYLON TUBE (B)	1-09660-975-0	06	1	9905-9910	●
441	CONNECTOR; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-09660-975-0	06	1	9911-	●
441	CONNECTOR; NYLON TUBE EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-09660-975-0	04	1	9911-	●
444	BOLT; BRKT,NIPPLE M8X25 FLANGE	0-28680-825-0	01	1	9611-9904		●
444	BOLT; BRKT,NIPPLE M8X25 FLANGE	0-28680-825-0	01	1	9905-	●
445	NUT; BRKT,NIPPLE M8 FLANGE	0-91150-108-0	01	1	9611-9904		●
445	NUT; BRKT,NIPPLE M8 FLANGE	0-91150-108-0	01	1	9905-	●

35 33 34 162 46 34 71 100 46 242 34 34 71

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
33	BOLT; BRKT,3RD RELAY LEVER M10X30 FLANGE	0-28681-030-0	03	1	9611-9904		●
33	BOLT; BRKT,3RD RELAY LEVER M10X30 FLANGE	0-28681-030-0	03	1	9905-	●
34	SEAT; BALL,RELAY LEVER	1-33659-165-0	04	1	9905-	●
34	SEAT; BALL,RELAY LEVER	1-33659-165-0	04	1	9611-9904		●
35	RING; SNAP,RELAY LEVER OD=34.4	9-09180-132-0	01	1	9905-	●
35	RING; SNAP,RELAY LEVER OD=34.4	9-09180-132-0	01	1	9611-9904		●
46	SEAL; DUST,RELAY LEVER	1-33659-166-0	02	1	9905-	●
46	SEAL; DUST,RELAY LEVER	1-33659-166-0	02	1	9611-9904		●
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-481-0	01	1	9905-	●
71	BRACKET; 3RD RELAY LEVER,FRAME (A)	1-33657-512-0	01	1	9905-	●
71	BRACKET; 3RD RELAY LEVER,FRAME (B)	1-33657-481-0	01	1	9611-9904		●
71	BRACKET; 3RD RELAY LEVER,FRAME (A)	1-33657-512-0	01	1	9611-9904		●
100	SPRING (A)	1-09583-319-0	01	1	9905-	●
100	SPRING (A)	1-09583-319-0	01	1	9611-9904		●
162	LEVER; RELAY	1-33651-625-0	01	1	9905-	●
162	LEVER; RELAY	1-33651-625-0	01	1	9611-9904		●
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91150-212-0	03	1	9905-	●
242	NUT; FLANGE 3RD RELAY LEVER M12 FLANGE	0-91150-212-0	03	1	9611-9904		●

385 385 385 385 460 387 501 441

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
385	TUBE; NYLON L=1530 RED	1-33619-362-0	01	1	9611-9904		●
385	TUBE; NYLON L=1530 RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	9905-0103	●
385	TUBE; NYLON L=1680 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0104-	●
385	TUBE; NYLON L=1430 BLACK	1-33619-371-0	01	1	9611-9904		●
385	TUBE; NYLON L=1530 BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	9905-0103	●
385	TUBE; NYLON L=1680 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0104-	●
385	TUBE; NYLON L=1530 BLUE	1-33619-380-0	01	1	9611-9904		●
385	TUBE; NYLON L=1530 BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	9905-0103	●
385	TUBE; NYLON L=1680 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0104-	●
385	TUBE; NYLON L=1530 GREEN	1-33619-389-0	01	1	9611-9904		●
385	TUBE; NYLON L=1530 GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	9905-0103	●
385	TUBE; NYLON L=1680 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0104-	●
385	TUBE; NYLON L=1530 YELLOW	1-33619-392-0	01	1	9611-9904		●
385	TUBE; NYLON L=1530 YELLOW	1-33619-392-0	01	1	9905-0103	●
385	TUBE; NYLON L=1680 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0104-	●
385	TUBE; NYLON L=1530 ORANGE	1-33619-400-0	01	1	9611-9904		●
385	TUBE; NYLON L=1530 ORANGE	1-33619-400-0	01	1	9905-0103	●
385	TUBE; NYLON L=1680 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0104-	●
385	TUBE; NYLON L=5800 RED	1-33619-362-0	01	1	9701-9904		●
385	TUBE; NYLON L=3000 RED SERVICED BY L=5800 RED	1-33619-362-0	01	1	9905-0103	●
385	TUBE; NYLON L=3100 SERVICED BY L=5800 RED	1-33619-362-0	01	1	0104-	●
385	TUBE; NYLON L=5800 BLACK	1-33619-371-0	01	1	9701-9904		●
385	TUBE; NYLON L=3100 BLACK SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	9905-0103	●
385	TUBE; NYLON L=3200 SERVICED BY L=5800 BLACK	1-33619-371-0	01	1	0104-	●
385	TUBE; NYLON L=6350 BLUE	1-33619-380-0	01	1	9701-9904		●
385	TUBE; NYLON L=3500 BLUE SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	9905-0103	●
385	TUBE; NYLON L=3600 SERVICED BY L=6350 BLUE	1-33619-380-0	01	1	0104-	●
385	TUBE; NYLON L=5800 GREEN	1-33619-389-0	01	1	9701-9904		●
385	TUBE; NYLON L=3100 GREEN SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	9905-0103	●
385	TUBE; NYLON L=3200 SERVICED BY L=5800 GREEN	1-33619-389-0	01	1	0104-	●
385	TUBE; NYLON L=2650 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	9701-9904		●
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> L=2650 YELLOW SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	9905-0103	●
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> L=2750 SERVICED BY L=5250 YELLOW	1-33619-392-0	01	1	0104-	●
385	TUBE; NYLON L=3350 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	9701-9904		●
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> L=3350 ORANGE SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	9905-0103	●
385	TUBE; NYLON COUNTER SHAFT BRAKE MULTI DISC<BCP> L=3450 SERVICED BY L=6250 ORANGE	1-33619-400-0	01	1	0104-	●
387	GROMMET; CONT TUBE,FULLER	1-09332-135-0	01	1	9611-9904		●
387	GROMMET; CONT TUBE,FULLER	1-09332-135-0	01	1	9905-	●
441	CONNECTOR; NYLON TUBE (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9611-9904		●
441	CONNECTOR; NYLON TUBE (A) DIN8 & M20 STRAIGHT	1-09660-675-1	01	1	9905-	●
441	CONNECTOR; NYLON TUBE (B)	1-09660-975-0	06	1	9611-9904		●
441	CONNECTOR; NYLON TUBE (B)	1-09660-975-0	06	1	9905-9910	●
441	CONNECTOR; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-09660-975-0	06	1	9911-	●
441	CONNECTOR; NYLON TUBE EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B)	1-09660-975-0	04	1	9911-	●
460	TUBE; CORRUGATE L=1190 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0104-	●
460	TUBE; CORRUGATE L=800	1-83129-031-1	AR	1	9611-9904		●
460	TUBE; CORRUGATE L=300 SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9701-9904		●
460	TUBE; CORRUGATE L=300 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	9905-	●
460	TUBE; CORRUGATE L=800	1-83129-031-1	AR	1	9905-	●
460	TUBE; CORRUGATE L=2400 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	9905-9910	●
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> L=2400 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	9911-0103	●
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0104-	●
460	TUBE; CORRUGATE EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> L=2400 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	9911-0103	●
460	TUBE; CORRUGATE EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> L=2500 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0104-	●
501	SEAL; HARNESS PROTECTOR 100X30	1-72498-014-1	04	1	9611-9903		●
501	SEAL; HARNESS PROTECTOR 100X40	1-72498-022-0	04	1	9904-9904		●
501	SEAL; HARNESS PROTECTOR 100X40	1-72498-022-0	04	1	9905-	●

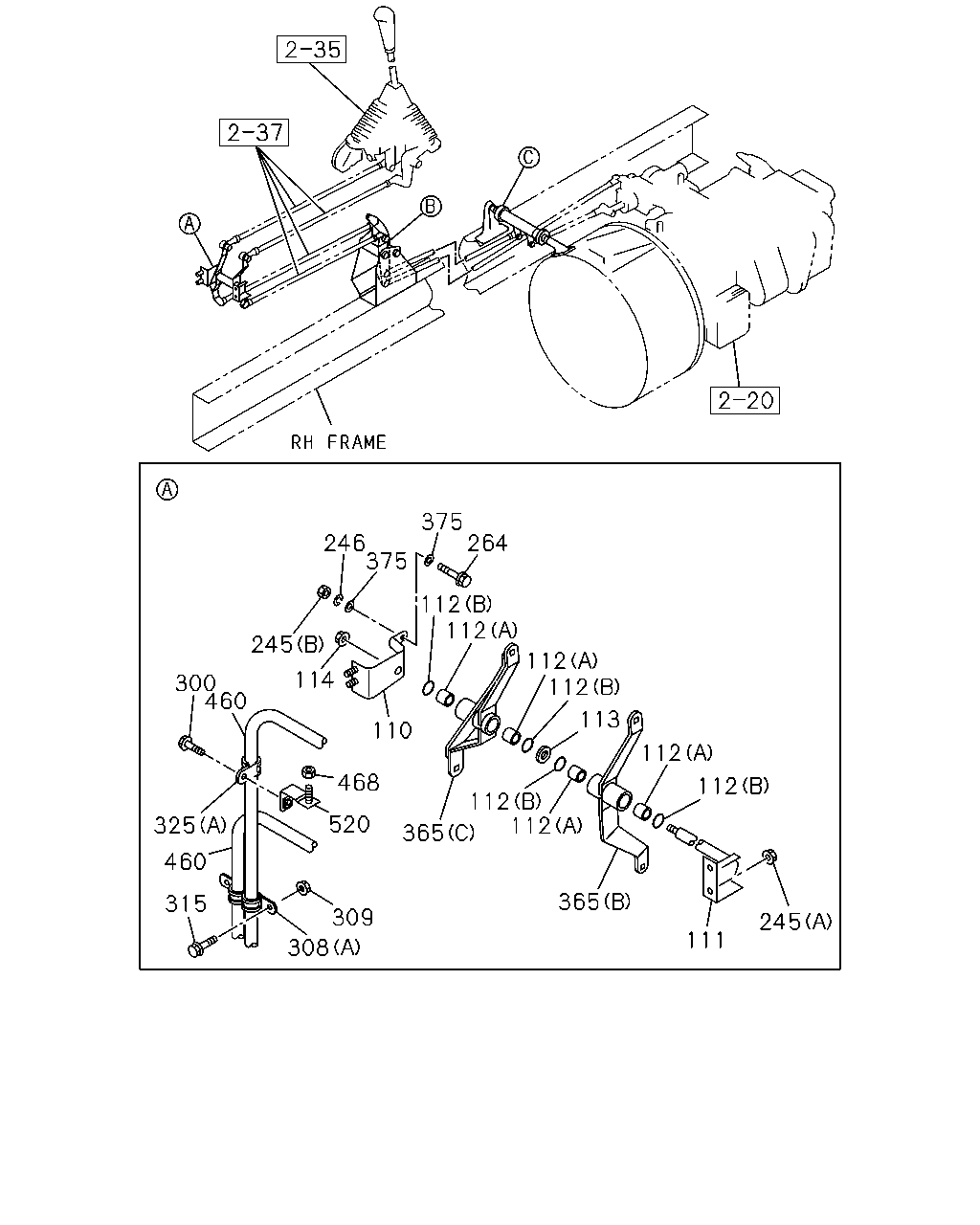

375 264 246 375 112 112 245 112 112 114 300 460 113 110 112 468 112 112 112 520 325 365 460 365 315 309 245 111 308

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
110	BRACKET; RELAY LEVER,1ST	1-33657-598-0	01	1	9905-	●	●
110	BRACKET; RELAY LEVER,1ST	1-33657-598-0	01	1	9611-9904		●
111	SHAFT; RELAY LEVER,1ST	1-33619-468-0	01	1	9905-	●	●
111	SHAFT; RELAY LEVER,1ST	1-33619-468-0	01	1	9611-9904		●
112	BUSHING; RELAY LEVER (A)	1-09330-119-0	04	1	9905-	●	●
112	BUSHING; RELAY LEVER (B)	1-09623-594-0	04	1	9905-	●	●
112	BUSHING; RELAY LEVER (A)	1-09330-119-0	04	1	9611-9904		●
112	BUSHING; RELAY LEVER (B)	1-09623-594-0	04	1	9611-9904		●
113	WASHER; RELAY LEVER ID=17	9-09160-516-0	01	1	9905-	●	●
113	WASHER; RELAY LEVER ID=17	9-09160-516-0	01	1	9611-9904		●
114	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	01	1	9905-	●	●
114	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	01	1	9611-9904		●
245	NUT; BRKT,RELAY LEVER (A) M10 FLANGE	0-91150-210-0	02	1	9905-	●	●
245	NUT; BRKT,RELAY LEVER (B) M10	1-09984-142-0	01	1	9905-	●	●
245	NUT; BRKT,RELAY LEVER (A) M10 FLANGE	0-91150-210-0	02	1	9611-9904		●
245	NUT; BRKT,RELAY LEVER (B) M10	1-09984-142-0	01	1	9611-9904		●
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	01	1	9905-	●	●
246	WASHER; LK,BRKT,RELAY LEVER ID=10	1-09985-185-0	01	1	9611-9904		●
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	01	1	9905-	●	●
264	BOLT; BRKT,RELAY LEVER M10X100	1-09980-547-0	01	1	9611-9904		●
300	BOLT; CLIP M8X24.5 W/LK&PL WASHER	8-94279-208-0	01	1	0104-	●
308	CLIP; PIPE (A) ID=18 L=28	1-09701-067-0	01	1	0104-	●
308	CLIP; PIPE (B) ID=12 & 16.5	8-94400-865-0	01	1	9611-9612		●
308	CLIP; PIPE (B) ID=12-16 & 12-16	1-09709-191-0	01	1	9701-9904		●
308	CLIP; PIPE (B) ID=12-16 & 12-16	1-09709-191-0	01	1	9905-	●
309	NUT; PIPE CLIP M8 FLANGE	0-91150-108-0	01	1	0104-	●
315	BOLT; PIPE CLIP M8X25 FLANGE	0-28680-825-0	01	1	0104-	●
325	CLIP; NYLON TUBE (B) ID=9.5	5-09709-020-0	06	1	9611-9904		●
325	CLIP; NYLON TUBE (B) ID=9.5	5-09709-020-0	06	1	9905-9910	●
325	CLIP; NYLON TUBE COUNTER SHAFT BRAKE MULTI DISC<BCP> (B) ID=9.5	5-09709-020-0	06	1	9911-	●
325	CLIP; NYLON TUBE (A) ID=18 L=28	1-09701-067-0	01	1	0104-	●
325	CLIP; NYLON TUBE EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> (B) ID=9.5	5-09709-020-0	04	1	9911-	●
365	LEVER; RELAY,SELECT (B)	1-33651-638-0	01	1	9905-	●	●
365	LEVER; RELAY,SELECT (C)	1-33651-649-0	01	1	9905-	●	●
365	LEVER; RELAY,SELECT (A)	1-33651-628-1	01	1	9905-	●
365	LEVER; RELAY,SELECT (A)	1-33651-628-1	01	1	9611-9904		●
365	LEVER; RELAY,SELECT (B)	1-33651-638-0	01	1	9611-9904		●
365	LEVER; RELAY,SELECT (C)	1-33651-649-0	01	1	9611-9904		●
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	9905-	●	●
375	WASHER; PL,BRKT,RELAY LEVER ID=10.5 OD=26 T=2.6	1-09985-184-0	02	1	9611-9904		●
460	TUBE; CORRUGATE L=1190 SERVICED BY L=2000 ID=13	1-87411-022-0	01	1	0104-	●
460	TUBE; CORRUGATE L=800	1-83129-031-1	AR	1	9611-9904		●
460	TUBE; CORRUGATE L=300 SERVICED BY L=2000 ID=10	1-87410-088-0	01	1	9701-9904		●
460	TUBE; CORRUGATE L=300 SERVICED BY L=2000 ID=10	1-87411-019-0	01	1	9905-	●
460	TUBE; CORRUGATE L=800	1-83129-031-1	AR	1	9905-	●
460	TUBE; CORRUGATE L=2400 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	9905-9910	●
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> L=2400 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	9911-0103	●
460	TUBE; CORRUGATE COUNTER SHAFT BRAKE MULTI DISC<BCP> L=2500 SERVICED BY L=4000 ID=13	1-87411-023-0	01	1	0104-	●
460	TUBE; CORRUGATE EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> L=2400 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	9911-0103	●
460	TUBE; CORRUGATE EXC. COUNTER SHAFT BRAKE MULTI DISC<BCP> L=2500 SERVICED BY L=4000 ID=10	1-87411-020-0	01	1	0104-	●
468	NUT; BRKT M8 CUTTING NUT W/FLANGE	1-09985-340-0	01	1	0104-	●
520	BRACKET; NYLON TUBE	1-79996-545-0	01	1	0104-	●

457 118 88 365 118 457 457 118 88 115 118 457 253 254 16 253 458 283

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	9905-	●
16	NUT; RELAY LEVER M10 FLANGE	0-91150-110-0	02	1	9611-9904		●
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	9905-	●
88	COLLAR; RELAY LEVER	1-33659-191-1	02	1	9611-9904		●
115	LEVER; RELAY,2ND SHIFT	1-33651-626-0	01	1	9905-	●
115	LEVER; RELAY,2ND SHIFT	1-33651-626-0	01	1	9611-9904		●
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	9905-	●
118	BUSHING; RELAY LEVER	1-09330-119-0	04	1	9611-9904		●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	9905-	●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	9905-	●
253	BOLT; BRKT,2ND RELAY LEVER (A) M14X45	0-20801-445-0	02	1	9611-9904		●
253	BOLT; BRKT,2ND RELAY LEVER (B) M10X35 FLANGE	0-28681-035-0	02	1	9611-9904		●
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	9905-	●
254	WASHER; LK,RELAY LEVER ID=14.2	9-09150-614-0	02	1	9611-9904		●
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	9905-	●
283	BOLT; RELAY LEVER M10X110	9-09801-316-1	02	1	9611-9904		●
365	LEVER; RELAY,SELECT (B)	1-33651-638-0	01	1	9905-	●	●
365	LEVER; RELAY,SELECT (C)	1-33651-649-0	01	1	9905-	●	●
365	LEVER; RELAY,SELECT (A)	1-33651-628-1	01	1	9905-	●
365	LEVER; RELAY,SELECT (A)	1-33651-628-1	01	1	9611-9904		●
365	LEVER; RELAY,SELECT (B)	1-33651-638-0	01	1	9611-9904		●
365	LEVER; RELAY,SELECT (C)	1-33651-649-0	01	1	9611-9904		●
457	GASKET (B)	1-09623-594-0	04	1	9905-	●
457	GASKET (B)	1-09623-594-0	04	1	9611-9904		●
458	BRACKET; 2ND RELAY LEVER	1-33657-583-1	01	1	9905-	●
458	BRACKET; 2ND RELAY LEVER	1-33657-573-2	01	1	9611-9904		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
